USER MANUAL LE19B3320 HAIER

CAUTION The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. The symbol indicates that there are important operating and maintenance instructions in the literaturaccompanying this unit. To reduce the risk of fire or electric shock, do not expose this Television to rain or moisture.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this Television near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in

accordance with the instructions.

8) Do not install near any heat sources such as radiations,

heat registers, stoves, or other Television (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized plug.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the Television.

11) Only use attachments/accessories specified by the

12) Unplug this Television during lighting storms or

when unused for long periods of time.

13) Refer all servicing to qualified service personnel.

Servicing is required when the Television has been damaged in any way, such as; power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the Television, the Television has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the

disconnect device shall remain readily operable.

15) The ventilation should not be impeded by covering

the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles,

should be placed on the Television.

17) Attention should be drawn to the environmental

aspects of battery disposal.

18) The use of Television in moderate climate.

19) The Television shall not be exposed to dripping or

splashing and that no objects filled with liquids, such as vases, shall be placed on the Television. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

The excessive sound pressure from earphones and headphones can cause hearing loss.

Haier is committed to safely recycling electronic products and product materials. Please check for a local recycling location in the United States at: 1800RECYCLING.COM or call 1.800.RECYCLING. ENERGY STAR is a joint program of the U.S. Environmetal Protection Agency and the U.S. Department of Energy helping us all save money and protect the environmetal through energy efficient practices. This product default mode (standard mode) already pass the Energy star test. If TV set in other mode, may increase energy consumption beyond the limits required for ENERGY STAR qualification.-3-

High voltages are used in the operation of this television receiver. Do not the cabinet. Refer servicing to qualified service personnel. open

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture.

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver. Do not block the ventilation holes on the back cover . Adequate ventilation is essential to prevent failure of electrical components. of the TV Do not trap the power supply cord under the television receiver s .' stand Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it falls. Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual and damage to the television may result if it falls. /or When the television receiver is not used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet. Avoid exposing the television receiver to direct sunlight and other sources of heat. Do not stand the television receiver directly on other products which give off heat, e.g. video cassette players and audio amplifiers. Do not place naked flame sources, such as lighted candles on the television. or near Dim:51 5*320 mm(不包 括底座） If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the life of your television, and can also be dangerous.-4- INTRODUCTION Main features Accessories Infrared Remote Control....................

■ Integrated ATSC TV tuner for HDTV broadcast reception ■ High brightness provides a vivid and brilliant picture ■ Deeper blacks and brighter whites with high contrast ■ Wide Screen aspect ratio (16:9) for a complete home theater experience ■ HDMI input for true digital connection ■ VGA port for connection to PC ■ Built-in stereo speaker system ■ Full-function Remote Control HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Main Specifications x 2 (1 HDMI input is MHL enabled) Resolution: TV System: Video Signal System: Receiving Channel: 1366 x 768 16:9 NTSC Cable :1-135/ Air: 2-69 (ATV&DTV) x 1 High-Definition Multimedia Interface (HDMI) Input Audio Input x 2 x 1 Horizontal definition (TV line) Composite Video Input >=350 Component (YPbPr) >=400 Video Input >=400 x 1 AC 100-240V 50/60Hz 2x3W ATSC Digital system and NTSC Analog system Headphone Output x 1 x 1 Coaxial Output Aspect Ratio: Viewing Picture Size (diagonal) Power supply Audio Output Power (THD 7%): Component (YPbPr) Input Composite Video Input Analog RGB (VGA) Input Power consumption x 1 USB Input 19 inches 30W-5- Base Stand Assembly Instruction

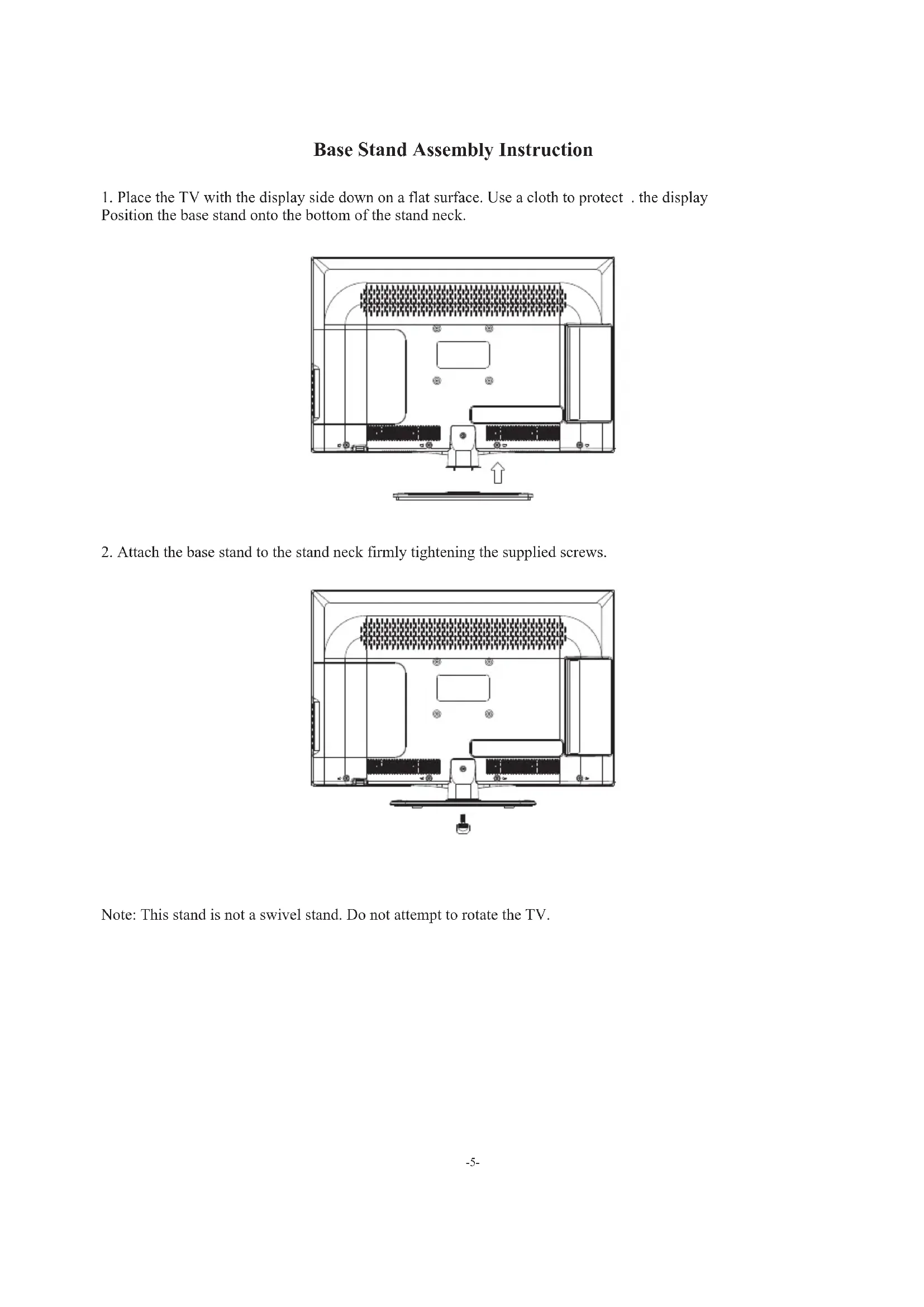

1. Place the TV with the display side down on a flat surface. Use a cloth to protect . the display

Position the base stand onto the bottom of the stand neck.

2. Attach the base stand to the stand neck firmly tightening the supplied screws.

Note: This stand is not a swivel stand. Do not attempt to rotate the TV.-6- INSTALLATION Front panel Side panel REAR Connections SIDE Connections All the terminals are (from left to right): , HDMI2/MHL, USB, VGA, PC AUDIO, HEADPHONE, COAXIAL(audio output), RF. Note: When HDMI has an input signal coming from a DVI source then the audio input signal must be connected to the PC audio input. HDMI1 All the terminals are (from left to right): POWER SOCKET, VIDEO, AUDIO INPUT, . Note: AV and component (YPbPr) share the R and L audio inputs. YPbPr INPUT(COMPONENT) 1: Remote control sensor. 2: Indicator LED: BLUE POWER ON. RED STANDBY.

3. CH+/CH-: In TV mode, press "CH+" or "CH-" to

change the channel up and down. In MENU mode, press "CH+" or "CH-" to select items; In standby mode, press "CH+" or "CH-" to turn on the TV.

4. VOL+/VOL-: Adjust sound level. In MENU mode,

press "VOL+ " or "VOL- " to adjust the item that you selected.

5. STANDBY: Press this button to turn the unit ON

from STANDBY mode. Press it again to turn the set back to STANDBY. SOURCE MENU CH+ CH- VOL+ VOL- STANDBY

DISPLAY S.M P.MANTENNA INSTALLATION Note: Aerial connections: IEC (female). Input impendance: 75 unbalanced. STEPS:

Be sure both the TV and computer are powered off. 1.Connect a VGA and audio cable. 2.Connect the power cord. 3.Turn on the TV, switch to PC mode. 4.Turn on the PC. -7-PC

AV EQUIPMENT There are two HDMI ports located on the back of your TV. You can connect a Blu-ray player, DVD player, or other video equipment through these ports. There is one component (Y, Pb, Pr) and one composite (AV) video input located on the back of your TV. You can connect a VCR, cable box, or other video equipment to these jacks. Please see the diagram below. You may also need to refer to the owner's manual of the device that you are trying to connect. The HDMI2 port is MHL enabled. You can connect MHL devices, such as the compatible mobile phones and tablets. NOTE: a USB to HDMI cable is required to connect a mobile phone or tablet to the TV. Please check the documentation of your device. The television's inputs can be connected to the following types of equipment: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc..... YPbPr can support these video formats:480i,576i,480p,576p,720p,1080i, 1080p. Yellow (video)White(audio L)Red(audio R or Pr)

VIDEO EQUIPMENT with YPbPr-10- REMOTE CONTROL 1.Press to turn on and off the TV. 2.USB: Press to launch the USB multimedia mode. 3.Select a closed caption option. 4.Press to input a channel. 5.Press to select the digital sub-channels.For example, to enter “54-3”, press“54”,“●”, and then “3”. 6.Press CH or CH to go to the next or previous channel in the channel list. Press VOL+ or VOL- to increase or decrease the volume. 7.Return to the menu. 8.Press to display the TV status information. 9.Select MONO, STEREO, SAP in NTSC (analog TV) system. 10.Press to the sleep timer options. 11.Press to cycle through the different sound settings. 12.Open the channel list in TV mode. 13.Show the input source menu. 14.Switch to 15.Press to go to the last viewed channel. 16.Switches the TV sound on or off. 17.Press to open the on-screen menu. 18.Exit 19.Press to change the aspect ratio. 20.Press to cycle through the available picture modes. 21.Press to confirm selections in an on-screen menu or to open a submenu. 22.Open the favorite channel list in TV mode. previous If the Roku Streaming Stick is connected, press this button to go back to the previous screen. cycle through the HDMI2/MHL input. If the Roku Streaming Stick is connected, press this button to return to the Roku home screen. display (OSD) the on-screen display. 23.If the Roku Streaming Stick is connected, press this button to view more options.

24. Reverse/Fast forward: Use these buttons to control

music/photo playback.

25. PLAY/PAUSE: Press to play/pause music or photo

slideshow in USB mode.

26. COLOR BUTTONS: Short cuts-follow the colored links

In this menu, you can adjust the picture options, such as contrast, brightness, etc. Press to select, press OK to adjust.

When a PC is connected, you can adjust the VGA settings.

4) Phase: Fine tune the phase of the screen. Usually you

don't adjust this item.

1) If you want to adjust contrast, brightness, color, and

sharpness, the picture mode be set to .will user

2) Cool to give the white colors

a blue tint, Normal to give the white colors a neutral tint, Warm to give the white colors a red tint. picture Adjust the color tempertaure to Energy Saving mode is the default setting, if you select some other options, the power consumption may change. 2.AUDIO menu In this menu, you can ajust the sound options. Press to select, press to adjust.OK

In this menu, you can adjust the Menu language, Closed Caption, Press to select, press to adjust. SETUP menu adjust the sleep timer, time zone, Restore Default, etc.

Audio language is available in ATSC/TVmode only. Auto volume is available only when the input signal volume is too large or there is distortion.

1) CC Mode: Switch the closed caption mode.

2) Advanced selection: only available in ATSC.

And use the key to lock/unlock

2) MPAA: Switching the movie-rating control level;

N/A, G, PG, PG-13, R, NC-17, X. Rating Description Age G General audiences, All Ages admitted

Parental Guidance suggested. Some material may not be Suitable for children. PG-13 Parents strongly cautioned. Some material .may be Inappropriate for children under 13.

Restrict. Under 17 requires accompanying parent or adult guardian(age varies in some jurisdictions) No one 17 and under admitted. X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

1) Canada English: Switching the English rating control

level: EXEMPT, C, C8+, G, PG, 14+, 18+. 4.LOCK MENU In this menu, you can change the password and adjust the vchip settings. Enter the password, to enter the lock menu. The factory default password is 0000.

1) old password: Input the old password.

2) new password: Input the new password.

3)Confirm password: Input the new password again. Enter Enter

When the System Lock switch is ON, the options listed below can be adjusted.

Press to display the following screen.OK

1) TV: Press display the following screen.OK

Press , to display the following screen.OK

OPERATION Rating Description Age E Exempt: Includes news, sports, documents and other information programming: talk shows, music videos, and variety programming.C Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of securityand well-being. C8+ Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen .G General: Considered acceptable for all age groups, Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional.PG Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues.14+ Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline But it must be integral to the devel opment of plot or character. Language usage could be profane and nudity , present within the context of theme.18+ Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of secretary and nudity.

2) Canada French: Switching the French-rating control

level: E, G, 8ANS+, 13 ANS+, 16ANS+, 18ANS+. Rating Description Age E Exempt programmingG General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner. 8ans+ General but inadvisable for young children :May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with paren. 13ans+ Over 13 years: Could contain scenes of frequent violent scenes and in tense violence.16ans+ Over 16 years: Could contain frequent violent scenes and violence.18ans+ Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

ATSC digital TV mode, it can be adjusted

In this menu, you can adjust digital and analog TV Channels. Press to select, press to adjust.

Select Air TV signal cable TV signal.

If it's the first time you use the TV, you should scan all the TV channels first. Press to confirm to display the following screen.

Press to choose/delete favorite channels.

Press to display/ hide the current channel.

Display DTV signal . It can't be selected or adjusted.

You can display the Music and Photo fil s by using the USB port that is located on the rear panel:

The LCD TV panel is built with very high precision technology giving you fine picture details in vibrant color. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, black or white. Please note this does not affect the performance of the product. Component (Y Pb Pr) connections microwave, electronic equipment, car/motorcycle, fluorescent lightWARRANTY

Press to display/ hide the current channel.

Display DTV signal . It can't be selected or adjusted.
