USER MANUAL RS27FDBTNSR SAMSUNG

English Refrigerator user manual imagine the possibilities Thank you for purchasing a Samsung product. Built-in DA68-02935A-08.indb 1 2016. 3. 31. 11:5102_ safety information SAFETY INFORMATION

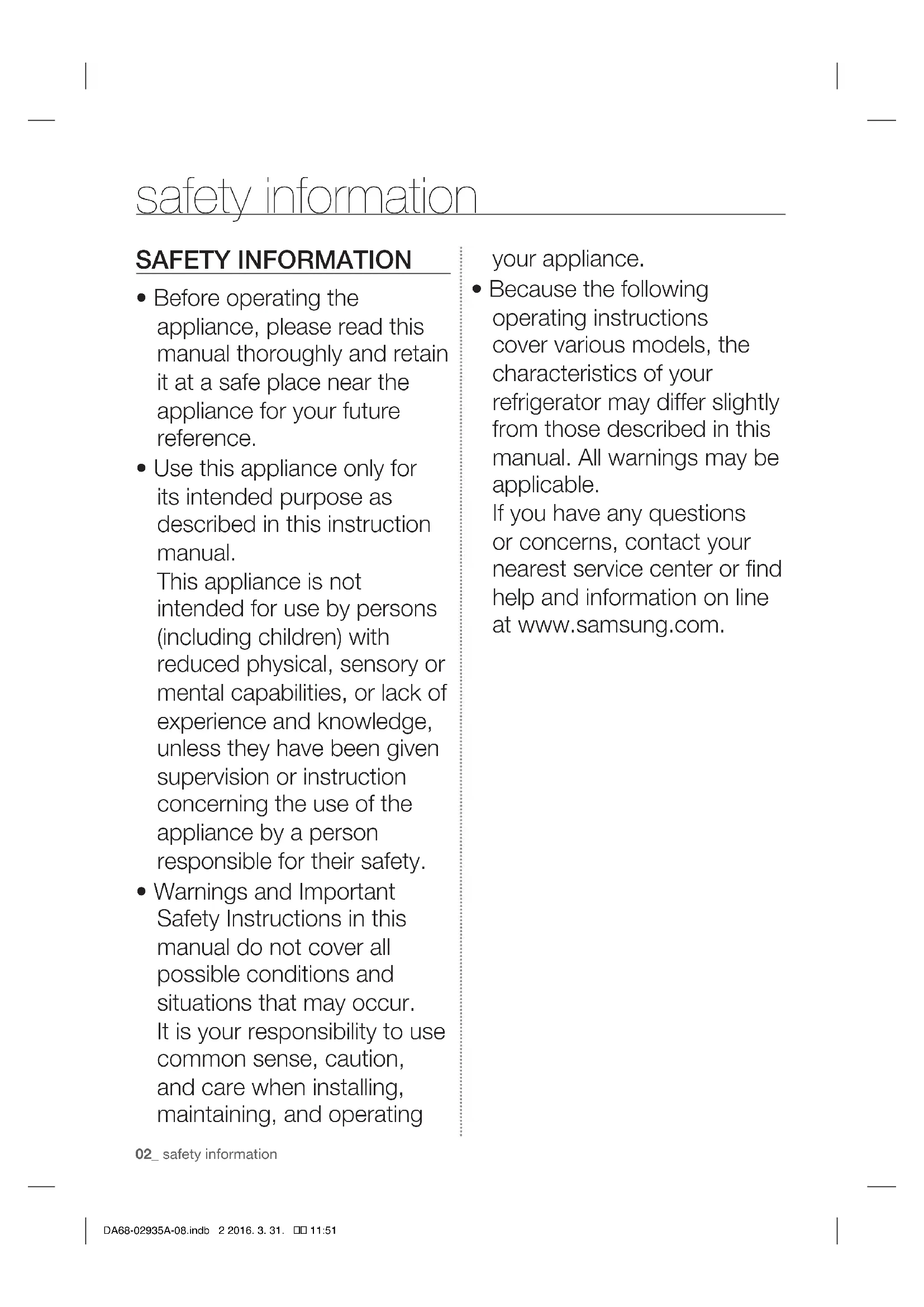

• Before operating the appliance, please read this manual thoroughly and retain it at a safe place near the appliance for your future reference.

• Use this appliance only for its intended purpose as described in this instruction manual. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

• Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.

• Because the following operating instructions cover various models, the characteristics of your refrigerator may differ slightly from those described in this manual. All warnings may be applicable. If you have any questions or concerns, contact your nearest service center or find help and information on line at www.samsung.com. safety information DA68-02935A-08.indb 2 2016. 3. 31. 11:51safety information _03 Important safety symbols and precautions: WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Note These warning signs are here to prevent injury to you and others. Please follow them carefully. After reading this section, keep it in a safe place for future reference. WARNING

• This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. DA68-02935A-08.indb 3 2016. 3. 31. 11:5104_ safety information WARNING CRITICAL TRANSPORTATION AND SITE WARNINGS

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerant circuit are damaged.

• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the refrigerator to see which refrigerant is used in your refrigerator. WARNING CRITICAL INSTALLATION WARNINGS

• Do not install this appliance near a heater or flammable material.

• Do not spray flammable gas near the refrigerator. - There is a risk of explosion or fire.

• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or water (rain drops). - Exposure can cause insulation to deteriorate. Deteriorated insulation on electrical parts may cause electric shock or fire.

• Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room heaters, or other appliances.

• Do not plug several appliances into the same multiple power board. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage on the rating plate. DA68-02935A-08.indb 4 2016. 3. 31. 11:51safety information _05 - This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from overheated wires.

• If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock or fire.

• Do not use a cord that shows cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy articles on it.

• Do not use aerosols near the refrigerator. - Aerosols used near the refrigerator may cause an explosion or fire.

• Do not install this appliance in a location where gas may leak. - This may result in an electric shock or fire.

• We strongly recommend you use a qualified technician or service company to install or service the refrigerator. - Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

• This refrigerator must be properly installed and located in accordance with the manual before it is used.

• Connect the power plug in the proper position with the cord hanging down. - If you connect the power plug upside down, the wire can get cut off and a cause fire or an electric shock.

• Make sure that the power plug is not squashed or damaged by the back of the refrigerator.

• When moving the refrigerator, be careful not to roll over or damage the power cord. - This constitutes a fire hazard.

• The appliance must be positioned so that the plug is accessible after installation.

• The refrigerator must be safely grounded. - Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. DA68-02935A-08.indb 5 2016. 3. 31. 11:5106_ safety information Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC115-120V, 10A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.

• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or fire.

• Do not modify the refrigerator. Unauthorized modifications can cause safety problems. To reverse an unauthorized modification, we will charge the full cost of parts and labor.

• If the power cord is damaged, have it replaced immediately by the manufacturer or its service agent.

• The fuse on the refrigerator must be changed by a qualified technician or service company. - Failing to do so may result in an electric shock or personal injury.

• Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays. CAUTION INSTALLATION CAUTIONS

• Allow sufficient space around the refrigerator and install it on a flat surface.

• Keep the ventilation space in the appliance enclosure or DA68-02935A-08.indb 6 2016. 3. 31. 11:51safety information _07 mounting structure clear of obstructions.

• Allow the appliance to stand for 2 hours before loading foods after installation and turning on.

• We strongly recommend you use a qualified technician or service company to install the refrigerator. - Failing to do so may result in an electric shock, fire, explosion, problems with the product, or injury.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in an electric shock, fire, problems with the product, or injury. WARNING CRITICAL USAGE WARNINGS

• Do not insert the power plug with wet hands. - This may result in an electric shock.

• Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not put items filled with water on the refrigerator. - If spilled, there is a risk of fire or electric shock.

• Do not let children hang on the door. Serious injury can occur.

• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.

• Do not allow babies or children go inside the drawer. - It can cause death from suffocation by entrapment or personal injury.

• Do not sit on the Freezer door. - The door may be broken and DA68-02935A-08.indb 7 2016. 3. 31. 11:5108_ safety information cause a personal injury.

• If you removed the divider from the drawer to clean it or to perform some other action, you must reinstall the drawer divider using the provided screws afterwards to prevent children from becoming entrapped.

• Children should be supervised to ensure that they do not play with the appliance. - Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors when children are in the area.

• Never put fingers or other objects into the dispenser hole, ice chute, or ice maker bucket. - It may cause personal injury or material damage.

• Do not insert hands, feet or metal objects (such as knives, etc.) into the bottom or the back of the refrigerator. - This may result in an electric shock or injury. - Any sharp edges may cause personal injury

• Do not store volatile or flammable substances such as benzene, thinner, alcohol, ether, or LP gas in the refrigerator. - The storage of any of such products may cause an explosion.

• Do not store low temperature-sensitive pharmaceutical products, scientific materials, or other low temperature-sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use electrical appliances inside the refrigerator, unless they are of a type recommended by the manufacturer.

• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or fire.

• Do not touch the inside walls of the freezer or products DA68-02935A-08.indb 8 2016. 3. 31. 11:51safety information _09 stored in the freezer with wet hands. - This may cause frostbite.

• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• This product is intended only for the storage of food in a domestic environment.

• Bottles should be stored tightly together so that they do not fall out.

• If you detect a gas leak, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

• In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the room immediately without touching the power plug. Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in an explosion or fire.

• Use only the LED Lamps provided by the manufacturer or a Samsung service center.

• Children should be supervised to ensure that they do not play with and/or climb into the appliance.

• Do not attempt to repair, disassemble, or modify the appliance yourself.

• Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.

• If your appliance needs to be repaired or reinstalled, contact your nearest service center. - Failing to do so may result in an electric shock, fire, problems with the product, or injury.

• If the appliance generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest service center. - Failing to do so may result in an electric or fire hazards. DA68-02935A-08.indb 9 2016. 3. 31. 11:5110_ safety information

• If you experience difficulty when changing the light, contact service agent.

• If the products is equipped with an LED Lamp, do not disassemble the Lamp Cover and LED Lamp yourself. - Please contact the nearest Samsung service center.

• If any foreign substance such as water or dust enters the mechanical or electrical sections of the refrigerator while you are cleaning it, unplug the power plug and contact your nearest Samsung service center. - There is a risk of fire. CAUTION USAGE CAUTIONS

• To get the best performance from the product: - Do not place food too close to the vents at the rear of the appliance. This can obstruct free air circulation in the refrigerator compartment. - Wrap the food up properly or place it in airtight containers before putting it into the refrigerator. - Do not put food you have just put into the freezer near already frozen food.

• Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer. - When the contents freeze, the glass may break and cause personal injury and property damage.

• Do not change or modify the functionality of the refrigerator. - Changes or modifications may result in a personal injury and/or property damage. Any changes or modifications DA68-02935A-08.indb 10 2016. 3. 31. 11:51safety information _11 performed by a 3rd party on this completed appliance are not covered under Samsung warranty service. Samsung is not responsible for any safety problems, injuries, or damage resulting from 3rd party modifications.

• Do not block air holes. - If the air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled. If this cooling period lasts too long, the water filter may break and cause water leakage.

• Please observe maximum storage times and expiration dates of frozen goods.

• If you won’t be using the refrigerator for a very long period of time, (3 weeks or more) empty the refrigerator including ice bucket, unplug it, close the water valve, wipe excess moisture from the inside walls, and leave the doors open to prevent odors and mold.

• Fill the water tank and ice cube tray with potable water only. - Do not fill the tank with tea or a sports drink. This may damage the refrigerator.

• Use only the ice-maker provided with the refrigerator.

• Have the refrigerator’s water supply connected only to a potable water supply.

• To operate the ice-maker properly, water pressure of 138~862kPa (1.4~8.8 kgf/ m³) is required.

• Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, fire or problems with the product.

• Do not apply strong shock or excessive force onto the surface of glass. - Broken glass may result in a personal injury and/or property damage. DA68-02935A-08.indb 11 2016. 3. 31. 11:5112_ safety information CAUTION CLEANING AND MAINTENANCE CAUTIONS

• Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in an electric shock or fire.

• Do not spray water directly on the inside or outside the refrigerator. - There is a risk of fire or electric shock.

• Do not use or place any substances sensitive to temperature such as inflammable sprays, inflammable objects, dry ice, medicine, or chemicals near the refrigerator. Do not keep volatile or inflammable objects or substances (benzene, thinner, propane gas, etc.) in the refrigerator. - This refrigerator is for storing food only. - This may result in a fire or an explosion.

• Do not spray cleaning products directly on the display. - Printed letters on the display may come off.

• Remove any foreign matter or dust from the power plug pins using a dry cloth. Do not use a wet or damp cloth when cleaning the plug. - Otherwise there is a risk of fire or electric shock.

• Never put fingers or objects such as knives, etc. into the dispenser hole or ice chute. - This may cause personal injury or material damage.

• Unplug the refrigerator before cleaning and performing maintenance. DA68-02935A-08.indb 12 2016. 3. 31. 11:51safety information _13 WARNING CRITICAL DISPOSAL WARNINGS

• DANGER : Risk of child entrapment. Before you throw away your old refrigerator or freezer: - Take off the doors and door latch. - Leave the shelves in place so that children cannot easily climb inside. - Children trapped inside a refrigerator can hurt themselves or suffocate to death.

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.

• R-600a or R-134a is used as a refrigerant. Check the compressor label on the front top of the appliance or the rating label inside the refrigerator to see which refrigerant is used for your refrigerator. When this product contains flammable gas (Refrigerant R-600a), contact your local authorities regarding the safe disposal of this product. Cyclopentane is used as an insulation blowing gas. Consequently, the insulation material in the refrigerator requires special disposal procedures. Please contact your local authorities in regard to the environmentally safe disposal of this product. Ensure that none of the pipes on the back of the appliances are damaged prior to disposal.

• When disposing of this product or other refrigerators, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Leave the shelves in place so that children may not easily climb inside. Children should be supervised to ensure that they do not play with the old refrigerator. - Children trapped inside a refrigerator can hurt themselves or suffocate to death. DA68-02935A-08.indb 13 2016. 3. 31. 11:5114_ safety information

• Please dispose of the packaging material for this product in an environmentally friendly manner.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over his or her head, the child could suffocate. ADDITIONAL TIPS

• In the event of a power failure, call the local office of your electric company and ask how long it is going to last. - Most power failures that are corrected within an hour or two will not affect your refrigerator temperatures. However, you should minimize the number of door openings while the power is off. - Should the power failure last more than 24 hours, remove all frozen food.

• The appliance might not operate consistently (frozen contents can thaw or temperatures can become too warm in the frozen food compartment) when sited for an extended period of time in a location where ambient air temperatures are constantly below the temperatures for which the appliance is designed.

• In case of particular foods, keeping it under refrigeration can have a bad effect on preservation due to its properties.

• Your appliance is frost free, which means there is no need to manually defrost your appliance. This will be carried out automatically.

• Temperature rise during defrosting complies with ISO requirements. However, if you want to prevent an undue rise in the temperature of the frozen food while the appliance defrosts, wrap the frozen food in several layers of newspaper.

• Do not re-freeze frozen foods that have thawed completely. DA68-02935A-08.indb 14 2016. 3. 31. 11:51safety information _15 Saving Energy Tips - Install the appliance in a cool, dry room with adequate ventilation. Ensure that it is not exposed to direct sunlight and never put it near a direct source of heat (a radiator, for example). - Not to block any vents and grilles is recommended for energy efficiency. - Allow warm food to cool down before placing it in the appliance. - Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the frozen products to cool food in the refrigerator. - Do not keep the door of the appliance open for too long when putting food in or taking food out. The shorter the time the door is open, the less frost build- up you’ll have in the freezer. - It is recommended to install the refrigerator with clearance to the back and sides. This will help reduce power consumption and keep your energy bills lower. DA68-02935A-08.indb 15 2016. 3. 31. 11:5116_ safety information

1. Regulatory Notice

FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Contains Transmitter Module FCC ID: A3LDNURS11 This device complies with Part 15 of FCC Rules. Operation is Subject to following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. FCC STATEMENT: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a different circuit from that to which the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help. FCC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.

SAVE THESE INSTRUCTIONS

CAUTION DA68-02935A-08.indb 16 2016. 3. 31. 11:51safety information _17

1. Regulatory Notice

Contains Transmitter Module IC: 649E-DNURS11 The term “IC” before the radio certification number only signifies that Industry Canada technical specifications were met. Operation is subject to the following two conditions : (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.

SAVE THESE INSTRUCTIONS

TROUBLESHOOTING ……………………………………………………………… 100 DA68-02935A-08.indb 17 2016. 3. 31. 11:5118_ setting up INSTALLATION REQUIREMENTS The installation location you choose must meet the requirements listed in this section. Selecting an installation place

• Check the refrigerator’s dimensions in the table below before you begin to install it and confirm it can clear all the doors on its way to the installation location. - If the refrigerator cannot clear the doors, you cannot install it. Front and side dimensions (inches) Model A B C D ERS27FDBTNSR/* 48” (1219 mm) (724 mm) (2083mm) (2340mm) (2182mm) Door 90º Open Door 130º Open Dimensions with doors open (inches) Model A B C D E FRS27FDBTNSR/* (1129mm) (1333mm) (1032mm) (365mm) (510mm) (1176mm)
• Allow sufficient space on the right, left, back, and top for air circulation. - If there is not enough space, you cannot install the refrigerator. Location of Electrical ReceptacleWater Supply Opening (20x20) Enclosure dimensions (inches) Model A B C RS27FDBTNSR/*

• Confirm that the floor is flat. - If the refrigerator is installed on an uneven floor, it will cause vibration and noise.

• Confirm that the floor can support the weight of the refrigerator and the food inside (1102.3lb (500kg) total).

• Confirm that the refrigerator will be within reach of a grounded wall outlet.

• If the refrigerator is a dispenser model, confirm that it will be within easy reach of a water supply and that the humidity in the location is low. - The refrigerator needs easy access to a water supply for the water and ice dispensers. Setting up your side-by-side refrigerator DA68-02935A-08.indb 18 2016. 3. 31. 11:51setting up _19 01 SETTING UP

• Avoid a location that is very hot or extremely cold. - Confirm that the location has ambient temperatures between 41ºF and 110ºF. (5ºC and 43ºC) - If you install the refrigerator in a location with extremely cold or hot ambient temperatures, it could malfunction, causing its cooling capacity to decrease and its power consumption to increase. Ground the product The refrigerator must be properly grounded to prevent any power leakages or electric shocks. To ground the refrigerator, plug it in to a grounded, three blade wall outlet. If the outlet in the installation location cannot accept a three blade, grounded plug, have a qualified electrician replace the current outlet with a three blade grounded outlet. Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the refrigerator. The marked rating of the extension cord should be AC115-120V, 10A, or more. If a you use a grounding adapter, make sure the receptacle box is fully grounded. Caution: Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. REFRIGERATOR PARTS Display (Touch Screen) : Displays time, refrigerator temperatures, built in apps, etc. Unit grill Freezer door Water/ice supplier (dispenser) : Supplies cold water purified by the purification filter or supplies ice made by the ice-maker. Water purification filter Handle Fridge door Power switch : Switches the refrigerator on or off. Ice storage : Makes and stores ice. Ice outlet (Ice discharge port) DA68-02935A-08.indb 19 2016. 3. 31. 11:5120_ setting up

ALIGNING THE HEIGHTS OF THE

REFRIGERATOR DOORS If the Fridge door is lower than the Freezer door, adjust the door height by turning the door height adjustment bolt at the bottom of the Fridge door. Height difference

• Turning it counter clockwise increases the height of the door and turning it clockwise decreases the height of the door.

• Loosen the screw (1), turn the adjusting bolt (2) with a spanner to align the door height to the Freezer door and then fix it by fastening the screw (1). (1) Screw (2) Adjusting bolt

• After adjusting the height, be sure to install the protective rubber inserts as shown in the figure to protect your feet from injury. If you increase the height of the Fridge door by too much, the switch may be damaged or the door may not close properly. CAUTION

INSTALLING THE WATER

DISPENSER LINE A water dispenser with a filter is one of the helpful features on your new refrigerator. To help promote better health, the water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that. The water line also connects to the ice maker. For the ice maker to operate properly, water pressure of 20-125psi (138 ~ 862kPa) is required. If the refrigerator is installed in an area with low water pressure (below 20 psi), you can install a booster pump to compensate for the low pressure. After you have connected the water line, make sure the water storage tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until the water runs from the water outlet. Water line installation kits are available at extra cost from your dealer. We recommend using a water line installation kit that contains copper tubing and ¼” compression nut. Connecting to the water supply line

1. First, shut off the main water

2. Locate the nearest cold water drinking line and

install the pipe clamp and shut off valve. Pipe clamp Cold water line Shut off valve DA68-02935A-08.indb 20 2016. 3. 31. 11:51setting up _21 01 SETTING UP

3. Connect the water line installation kit to the

shut off valve. Shut off valve Pipe clamp Cold water line Water line installation kit Connecting the water supply line to the refrigerator. There are several items that you need to purchase to complete this connection. You may find these items sold as a kit at your local hardware store. Use Copper Tubing Use Plastic Tubing

• ¼” compression nut (1pc) Compression Nut (1/4”) (Assembled) Ferrule (Not supplied) Plastic Tubing (Assembled) Compression Fitting (Assembled) Molded end (Bulb) Compression nut (B) (1/4”) (Not supplied)

Copper tubing (Not supplied) Plastic tubing (B) (Not supplied) Household water supply line Refrigerator

1. Connect the household water line to the

assembled compression fitting. - If you are using copper tubing, slip the compression nut (B) (not supplied) and ferrule (not supplied) on the copper tubing (not supplied) as shown. - If you are using plastic tubing (B) , insert the molded end (Bulb) of the plastic tubing (B) into the compression fitting. Do not use without the molded end (Bulb) of the plastic tubing (B).

2. Tighten the compression nut (B) onto the

compression fitting. Do not over-tighten the compression nut (B) .

3. Turn the water on and check for any leakage.

If you find water drops or leakage in the connection areas, turn off the main water supply. Check the connections and, if necessary, tighten.

4. Flush 1 gallon of water through the filter before

drinking or using the water from the refrigerator. (Flush approximately 6 minutes.) To flush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it into the kitchen sink after it is filled, and then repeat.

5. After you turn on the refrigerator, let the ice

maker make ice for 1 to 2 days. Over that period of time, throw out the first 1 or 2 buckets of ice the freezer makes to ensure all impurities have been removed from the water line. Only connect the water line to a drinkable water source. If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to make sure you get a snug, leak-free connection. You can test the water line quickly using a paper cup. Under normal conditions, the water dispenser can fill a 5.75 oz. (170cc) cup in about 10 seconds. CAUTION DA68-02935A-08.indb 21 2016. 3. 31. 11:5122_ setting up

For a better experience, read the following pointers before using the refrigerator.

• New refrigerators can sometimes smell of plastic. If a plastic smell comes from your new refrigerator: - Open the refrigerator doors and air the inside. - Remove all the adhesive tape strips to eliminate any chemical smells.

• When storing food for the first time: - Plug in the refrigerator, and then let it cool down for 2 to 3 hours before placing food inside. - When you place food in the refrigerator before it cools enough, food smells can permeate the inner liners.

• When you first start up a new refrigerator, the sound of the compressor and motor can be loud. - When starting up a new refrigerator, the compressor and the motor operate at high rpm to cool down the freezer and the fridge compartments quickly, generating a slight noise. - When the refrigerator gets to the set temperature and reaches a stable state, the noise decreases.

• If the power goes off: - Keep the doors closed. - If the power does not come back on for 2~3 hours in the summer, the cool temperature inside will be maintained.

• If an alarm goes off during operation. - If any one of the doors remains open at a more than 15 degree angle for more than 2 minutes, the refrigerator sounds an alarm indicating that a door is open. When installing, servicing, or cleaning behind the refrigerator, be sure to pull the unit straight out. Push it straight back in after finishing. CAUTION DA68-02935A-08.indb 22 2016. 3. 31. 11:51operating _23 02 OPERATING Operating the SAMSUNG side- by-side refrigerator

DISPLAY PANEL RESTRICTIONS AND ALERTS

1. English is a default language for the Display.

Languages not supported are not displayed on the screen.

2. Periodic updates of Weather or News will cause network traffic even when you are not using the

and then issues an alert which appears on your Display.

4. Please note that the relevant licensor (content provider) retains sole discretion as to what content is

made available through the various refrigerator applications. Furthermore, each licensor retains the sole right to remove any such content that the licensor may cease to offer through the refrigerator application. In such case, the licensor may send a written notice to the user with regards to the removal of content. DIGITAL PANEL CPU NEXELL CPU OS Linux 2.6.28 RAM 256 MB LCD 8" TFT-LCD (800*480) ROM 512 MB NETWORKS IEEE802.11b/g/n

USING FOR THE FIRST TIME

• When you use the product for the first time after installation, the Time Zone Setting screen appears on the Display Panel. You need to select your time zone to use Google Calendar and the Twitter service correctly.

• After you select the time zone and press the [Save] button, the Home Screen appears on the Display Panel. The Time Zone Setting screen may appear again after a software update. DA68-02935A-08.indb 23 2016. 3. 31. 11:5124_ operating HOME SCREEN

• The Home screen is the starting point for all functions. In the center of the Home screen, basic refrigerator information such as Time, Date, Weather, Temperature, and Dispenser Selection appears. The indicator icons at the top left of the screen display information about the refrigerator’s status. The Menu icons on the bottom of the screen start various applications or functions. When you select the ( ) on any menu, the screen returns to the Home screen immediately. USA CANADA USA uses the Fahrenheit temperature scale whereas Canada uses the Celsius temperature scale. Indicator Icons (At the left-top of the Screen)

<Wireless network connected>

<Wireless network disconnected>

<Wireless network disconnected>

1. Date/Time : Indicates the current date and time.

2. Freezer temperature : Displays the current freezer temperature.

When you press the freezer temperature, the temperature setting screen appears.

3. Dispenser : Displays the current status of the dispenser.

When you press the current status of the dispenser, the ice type selection screen appears.

4. Fridge temperature : Displays the current fridge temperature.

When you press the fridge temperature, the temperature setting screen appears. At the bottom of the Screen : Menu Icons USA CANADA

1. Memo : Lets you create, save, or check memos.

2. Photos : Lets you manage stored photos and import photos from external devices such as memory

cards or mobile phones and from the Internet.

3. Grocery Manager : Lets you manage food items by location, storage date, and expiration date.

4. Epicurious : Lets you view recipes and create shopping lists for the recipes you select.

5. Calendar : Lets you view the schedule you stored in Google Calendar.

6. AP News : Displays the news from one of 11 categories you select.

7. Pandora : Plays music provided by the Pandora Internet radio service. (Only for USA)

8. Twitter : Displays Twitter messages.

9. WeatherBug : Displays the current weather and weather forecast.

10. Settings : Lets you set the refrigerator’s basic functions such as Energy Saver, Door Alarm, Time, etc.

The temperature control allows you to set the freezer and the fridge temperatures. Use the following instructions to change and set these temperatures. USA CANADA

1. Select the Freezer/Fridge temperature on the Home screen.

• When you store ice cream at a temperature above 4°F (-16°C) in the freezer, it may melt.

2. Choose a freezer and/or fridge temperature using the temperature buttons, and then select the [Save]

button. USA CANADA The freezer/fridge can be set to the following temperatures:

• The freezer or fridge temperature may change depending on how often you open and close the door, the food quantity, the ambient temperature, etc.

• Temperatures vary in each food storage section in the freezer and fridge compartments.

• If the room temperature becomes unusually warm, it can cause temperatures in the Fridge and Freezer to rise abnormally. If this occurs, the screen will display the “Abnormally High Temperature” pop-up. When the temperatures return to normal, the pop-up will close automatically. If the room temperature returns to normal and the pop-up does not close automatically within a few hours, please contact your nearest repair center. USA CANADA

SETTING THE POWER FREEZE / POWER COOL

You can use the Power Freeze and Power Cool functions to lower the temperature of the freezer and fridge compartments quickly. To use the Power Freeze or Power Cool function, follow these steps:

1. Touch the Freezer/Fridge temperature on the Home screen.

• To cancel the Power Freeze and the Power Cool, select a Temperature Setting button.

• Energy consumption increases during Power Freeze and/or Power Cool usage.

• If you select the question icon ( ), the function description screen pops up. Press the [OK] button on the popup screen to re-display the Temperature Display Screen.

• When you turn on Power Freeze/Power Cool, the refrigerator’s compressor speeds up and is louder than during normal operation.

• Power Freeze will turn off automatically after a certain period of time, and the freezer temperature will return to its previous setting.

• Power Cool will turn off automatically after a certain period of time, and the fridge temperature will return to its previous setting.

SETTING THE DISPENSER

You can select the ice type and water.

1. Touch Dispenser Status on the Home screen. The Dispenser pop-up appears.

If the fridge / freezer door remains open more than 2 minutes, a warning window pops up accompanied by alarm sounds. The alarm repeats every minute and only stops when you close both doors. If you set Door Alarm to OFF in the Settings menu, the alarm does not operate. USA CANADA MEMO You can use the Memo function to leave a memo for yourself or someone else. How to leave a new memo.

1. Select the [Memo] button on the Home screen.

2. Select the [New] button.

DA68-02935A-08.indb 29 2016. 3. 31. 11:5130_ operating

3. Select the memo tools you want by touching the tool

buttons above the memo entry area. The tools are described below.

• : Select pen or erase thickness.

• To use the Keyboard, press the Keyboard icon, and then touch where you want the memo to begin. The keyboard pops up on the Display. The number of characters you can input with the Keyboard is limited to the number of characters that will fit in the memo entry area.

4. Press the [Save] button after you have completed your memo.

• If you want to display the memo on the Home screen, select the [Attach to Home Screen] button, and then select the [Save] button. See below. USA CANADA DA68-02935A-08.indb 30 2016. 3. 31. 11:51operating _31 02 OPERATING

• You can “put away” the memo being displayed on the Home screen by pressing the [Detach from Home Screen] button or hide it temporarily by pressing the [Hide] button. USA CANADA How to display memos.

1. Select the Memo button on the Home screen.

USA CANADA DA68-02935A-08.indb 31 2016. 3. 31. 11:5132_ operating To view multiple memos, continue here.

2. Select the memo you want to display. 2. To view multiple memos, press the [Multi

• When you select the [Select All] button, the Multi Selection screen appears.

• When there are multiple pages with many memos, there will be page number on the bottom of the screen. If you select a page number, the screen shifts to that page. Multi-Select mode lets you select a number of memos and then view them one after another by pressing the or buttons.

• The memo(s) being displayed on the Home screen is indicated with the red tack.

• The written memos appear as thumbnails. You can change the order of the written memos by dragging and dropping.

3. View the saved memo. 3. Select the memos you want to view.

• In the Detail View screen, you can delete the memo or attach it to or detach it from the Home screen.

• When you select the [Select All] button, all the memos on the current page will be selected and the [Select All] button will shift to the [Unselect All] button.

• To exit the Multi Select screen, press the [Cancel] button.

• When there are multiple pages with many memos, there will be page numbers on the bottom of the screen. If you press a page number, the screen shifts to that page. DA68-02935A-08.indb 32 2016. 3. 31. 11:51operating _33 02 OPERATING

4. Select the [View Selected] button.

5. Check the saved memo by using the and

buttons. Each time you press the or button, the next memo in sequence appears.

• In the Detail View screen, you can delete a memo or attach it to or detach it from the Home screen. DA68-02935A-08.indb 33 2016. 3. 31. 11:5134_ operating How to delete memos.

1. Select the [Memo] button on the Home screen.

USA CANADA To delete multiple memos, continue here.

2. Select the memo you want to delete. 2. To delete multiple memos, select the [Multi

3. Press the [Delete] button. 3. Select the memos you want to delete.

DA68-02935A-08.indb 34 2016. 3. 31. 11:51operating _35 02 OPERATING

4. Press the [Yes] button. 4. Press the [Delete] button.

5. Press the [Yes] button.

PHOTOS You can upload photos from a Memory card, a DLNA device, or Picasa Web Album into My Album on your refrigerator. How to Copy Photos from a Memory Card to My Album

1. Pull out the cover over the card slot and move it to the side.

2. Insert the memory card (SD/SDHC/MMC/HS MMC) with saved images into the card slot.

The “Memory card is connected.” message appears on the screen. DA68-02935A-08.indb 35 2016. 3. 31. 11:5136_ operating

• The Memory slot is only for SD/SDHC/MMC/HS MMC type memory cards.

• The slot can read only JPEG (JPG) images.

• The Panel has a capacity of about 300 photos.

• When saving photos from a memory card to the panel, the refrigerator automatically changes the photo size to 800 x 480 pixels, regardless of the original size.

• If there are many photos saved on the Memory card, it will take awhile for the preview function to load.

• If the Memory Card is removed while transferring images, My Album only shows the images that have transferred completely. If no images have completely transferred, the Display returns to the Photos screen.

• The saved images are fit to the screen size. Depending on the size of an image, there may be black bars on the top or sides.

• A Memory Card is not supplied with the refrigerator.

• The refrigerator may not be able to read your SD/SDHC/MMC/HS MMC memory card, depending on the type of card it is.

3. Select the [Photos] button on the Home screen.

4. Select [Memory Card] on the Photos list.

DA68-02935A-08.indb 36 2016. 3. 31. 11:51operating _37 02 OPERATING

5. Select the photo you want to save to My

• When you select the [Select All] button, the Multi Selection screen appears.

• When there are multiple pages with many photos, there will be page numbers on the bottom of the screen. If you select the page number, the screen shifts to that page.

• This function also applies to the <All Share> and <Picasa Web Album> functions.

• When there are folders in the Memory Card, the folder icons will appear on the screen.

• When you select a folder, you will see the photos stored in it.

• When you are in a sub-folder, you can move up to the folder that contains sub-folder by selecting the “..” icon on the sub-folder.

6. Press the [Save To My Album] button. 6. Select all the photos you want to save to My

Album. DA68-02935A-08.indb 37 2016. 3. 31. 11:5138_ operating

• When you select a photo, its detail information will appear.

• When you select the [Select All] button, all the photos on the current page are selected and the [Select All] button shifts to the [Unselect All] button.

• When you press the [View Selected] button, you will see its larger version.

• To exit the Multi Select screen, press the [Cancel] button.

• To delete the check mark on a selected photo, touch the photo again.

• When there are multiple pages with many photos, there will be page numbers on the bottom of the screen.

• If you have photos selected and move to another folder, the selected photos will be automatically unselected.

• When you touch the folder name above the thumb-nails (Preview Photos), the screen displays that folder.

• This function also applies to the <All Share> and <Picasa Web Album> functions.

7. While the photo uploads from the Memory

Card, the “Save To My Album” popup appears on the screen.

7. Press the [Save To My Album] button.

• Larger photo sizes will take longer to upload.

8. While the photos upload from the Memory

Card, the “Save To My Album” popup appears on the screen.

• Larger photo sizes will take longer to upload.

9. After the upload is complete, take the Memory Card out of the slot.

DA68-02935A-08.indb 38 2016. 3. 31. 11:51operating _39 02 OPERATING How to upload photos from a DLNA device to My Album (All Share)

• This function is only available when the refrigerator is connected to your wireless network (Wi-Fi).

1. Select the [Photos] button on the Home screen.

2. Select [All Share] on the Photos list, and then connect the

DLNA device to the same wireless AP as the refrigerator.

3. In the All Share list, select the DLNA device you want to

• If the DLNA device you want to connect does not appear, press the [Refresh] button several times to detect it.

• The device you want to connect must have a DLNA function installed with a DLNA (Digital Living Network Alliance) certificate.

• The display supports resolutions up to 4096 x 2048 (16 mega-pixels). When the number of pixels on either the vertical or horizontal axis of a photo exceeds 4,096 or its resolution is changed, the display may not support it.

4. Select the desired folder.

DA68-02935A-08.indb 39 2016. 3. 31. 11:5140_ operating

• When you are in a sub-folder, you can move up to the folder that contains sub-folder by selecting the “..” icon on the sub-folder.

5. Select the photo you want to save to My

6. Press the [Save To My Album] button. 6. Select the photos you want to save to My

7. While the photo uploads from the DLNA

device, the “Save To My Album” popup appears on the screen.

7. Press the [Save To My Album] button.

8. While the photos upload from the DLNA

device, the “Save To My Album” popup appears on the screen. DA68-02935A-08.indb 40 2016. 3. 31. 11:51operating _41 02 OPERATING

• Larger photo sizes will take longer to upload.

• The wireless network is used to transmit photos from the DLNA device. The transmission may not always work properly depending on the network conditions.

• When you select a photo, its detail information will appear. How to save photos in the Picasa Web Album to My Album. [Public Photos] You can download and store public photos from Google Picasa Web Album.

• This function is only available when the refrigerator is connected to your wireless network (Wi-Fi).

1. Select the [Photos] button on the Home screen.

3. Select the photo you want to save to My

4. Press the [Save To My Album] button. 4. Select the photos you want to save to My

5. While the photo downloads from Picasa

Web Album, the “Save To My Album” popup appears on the screen.

5. Press the [Save To My Album] button.

6. While the photos download from Picasa

Web Album, the “Save To My Album” popup appears on the screen.

• When you select a photo, its detail information will appear.

• Larger photos will take longer to upload.

• Depending on the status of the wireless network, the download may not always work. [Personal Photos] You can download and store personal photos from Google Picasa Web Album.

• This function is available only when the refrigerator is connected to your wireless network (Wi-Fi).

• To use this function, you must have a Google account.

1. Select the [Photos] button on the Home screen.

• When you have an account with Google Picasa (http://picasaweb.google.com), you can see the photos you uploaded to Picasa by logging into your account.

4. Select the Email input box, and then enter your Google account ID using the on-screen keyboard.

Select the Password input box, and then enter your Google password using the on-screen keyboard.

5. Press the [Sign In] button.

• If you check the ‘Stay signed in’ box, the refrigerator will store the account for faster future log-ins.

6. Select a web album which has photos you want to store

7. Select the photo you want to save to My

8. Press the [Save To My Album] button. 8. Select the photos you want to save to My

9. While the photo downloads from Picasa

Web Album, the “Save To My Album” popup appears on the screen.

9. Press the [Save To My Album] button.

10. While the photo downloads from Picasa

Web Album, the “Save To My Album” popup appears on the screen.

• When you select a photo, its detail information will appear.

• Larger photos will take longer to upload. DA68-02935A-08.indb 44 2016. 3. 31. 11:51operating _45 02 OPERATING How to run a slide show.

1. Select the [Photos] button on the Home screen.

4. Select the photos you want for the slide show, and then

press the [View Selected] button. (Select more than two photos.)

• When you select a photo, its detail information will appear.

6. The slide show starts. Select the screen to change the view option.

• The slide show runs once. When it finishes, the view options appear on the screen.

• By selecting the or button, you can move to the previous or next photo.

• Select the button to run the slide show again.

7. To change the screen transition effect of the slide show,

8. Select the desired slide show transition effects, and then

press the [OK] button.

• You can preview the selected effect on the left side of the screen.

• The Random effect runs the photos in a random order.

9. To change the screen transition time, select the

button. DA68-02935A-08.indb 46 2016. 3. 31. 11:51operating _47 02 OPERATING

10. Use the and buttons to change the slide show

transition time, and then press the [OK] button.

11. To change the order of the photos in the slide show, select

12. Select [Normal] or [Shuffle], and then press the [OK]

2. Select the photo you want to rotate. 2. Select the [Multi Select] button to rotate

3. Select the -90° Rotate or 90° Rotate button. 3. Select the photos you want to rotate, and

then press the [View Selected] button.

4. After selecting the photos you want to rotate,

1. Insert a memory card into the refrigerator’s memory card slot.

2. Select [My Album] in the Photos list.

3. Select the photo you want to save. 3. To save multiple photos, select the [Multi

4. Press the [Save To Memory Card] button. 4. Select the photos you want to save, and then

press the [Save To Memory Card] button.

5. While the photos are being saved, “Save To Memory Card” appears on the screen.

• You must insert a memory card into the memory card slot to use this function. DA68-02935A-08.indb 49 2016. 3. 31. 11:5150_ operating How to delete photos.

1. Select [My Album] in the Photos list.

2. Select the photo you want to delete. 2. To delete multiple photos, press the [Multi

3. Press the [Delete] button. 3. Select the photos you want to delete, and

then press the [Delete] button.

4. Press the [Yes] button. 4. Press the [Yes] button.

• There are 10 photos that have been pre-loaded by Samsung. These photos explain product features and cannot be deleted. DA68-02935A-08.indb 50 2016. 3. 31. 11:51operating _51 02 OPERATING GROCERY MANAGER You can save the purchase date and expiration date of your food before storing it in the fridge and then easily check how long food has been stored at a later time. Additionally, you can easily see what food items are stored and where they are located in the refrigerator. How to add food

1. Select the [Grocery Manager] button on the Home screen.

2. Select the [Add Food] button at the bottom right.

[No food is stored] [Food is stored]

3. Select and hold one of the food images displayed on

the right. Then, drag & drop it into the location on the refrigerator image where it will be stored. Be sure to keep your finger on the food image until it is in place.

• The storage area for the refrigerator is divided into 4 sections. The added food is displayed as an icon in the refrigerator image.

• To change the location of a stored item, press and hold the food image, and then drag & drop it to another location within the refrigerator image.

• If you select a food icon added to the refrigerator and drag & drop it outside of the refrigerator, the food item is deleted.

• The refrigerator section and the quantity of added food items are displayed at the bottom of the refrigerator image.

• You can store up to 15 kinds of food and ‘freshness’ durations. DA68-02935A-08.indb 51 2016. 3. 31. 11:5152_ operating

4. The ‘Purchase Date’ and ‘Expiration Date’ are displayed

at the bottom of the screen. The Purchase Date is automatically set to today, the Expiration Date is automatically set to the last day of the freshness duration. To change the Purchase Date, touch the appropriate section on the screen, and then enter the new date.

• You can also select a date by using the [+] and [-] buttons. However, the Purchase Date must always be earlier than the Expiration Date.

5. Select the date, and then press [Save] button.

• To select additional food items, repeat steps 2 to 5.

6. Press the [OK] button after you have completed the date settings.

Press the [Save] button to save your settings.

• You can save up to 50 grocery items. DA68-02935A-08.indb 52 2016. 3. 31. 11:51operating _53 02 OPERATING How to use the Grocery Manager

1. Select the [Grocery Manager] button on the Home screen.

All food items are displayed as icons in their stored locations within the refrigerator image on the left. They are also listed on the right side of the screen. USA CANADA

2. Select a storage section in the refrigerator image to display the food stored in that section on the

right side of screen. Select the storage section again (deselect it) to list all the food items stored in the refrigerator on the right side of the screen.

3. Select one of the stored food icons on the right side of the screen to identify where it is located in

the refrigerator. The purchase and expiration dates of the item will also be displayed.

• An expiration date can be set up to 999 days.

• You cannot modify the purchase date and expiration date of the food in the Grocery Manager screen. DA68-02935A-08.indb 53 2016. 3. 31. 11:5154_ operating How to delete food

1. Select the [Grocery Manager] button on the Home screen.

2. Select the food, and then select the [Delete] button.

• To select all the stored food items, select the [Delete all] button.

3. Select the [Yes] button to complete.

DA68-02935A-08.indb 54 2016. 3. 31. 11:51operating _55 02 OPERATING How to set a Reminder

1. Select the [Grocery Manager] button on the Home screen, and then select the [Set Reminder]

2. Select the Reminder options you want, and then select

• A reminder is set based on the Expiration Date of the stored food. A reminder window appears when the scheduled duration has passed.

• If more than one item is set to the same Reminder value (except [None]), the reminder window appears at 6:00 AM, 11:00 AM, and 5:00 PM. DA68-02935A-08.indb 55 2016. 3. 31. 11:5156_ operating EPICURIOUS With the Epicurious service, you can easily to find various recipes by ingredient, season, occasion, or category.

• This function is only available when the refrigerator is connected to your wireless network (Wi-Fi). How to use the Featured Recipes function

1. Select the [Epicurious] button on the Home screen.

• There will be a 4-second commercial ad when you start Epicurious. USA CANADA

2. Select [Featured Recipes] on the Epicurious list.

3. Select a Featured Recipes category.

• The popularity of a recipe is indicated by the number of forks. Four forks is the highest.

• : Select to show recipes in the last used order.

• : Select to show in order of photo information.

• : Select to show recipes in order of popularity.

• : Select to show recipes in alphabetical order. DA68-02935A-08.indb 56 2016. 3. 31. 11:51operating _57 02 OPERATING

5. Press the [Favorite] button to add a recipe to your favorite list.

Press the [Shopping List] button to make a shopping list for a recipe.

6. Select the [Preparation] tab on the top of the page to view the recipe’s step by step preparation

7. Select the [Review] tab on the top of the page to see reviews of the recipe by other users.

8. Select the [About] tab on the top of the page to view information about the author of the recipe.

DA68-02935A-08.indb 57 2016. 3. 31. 11:5158_ operating How to use Recipe Search by Ingredient.

1. Select [Recipe Search by Ingredient] on the Epicurious list.

2. Select the [Food] or [Drink] button, and then select the

[Food]/[Drink] type on the left of screen. Next, select an ingredient icon on the right.

• When you select an ingredient icon, the number of recipes using that ingredient appears on the bottom of the page.

• You can select multiple ingredient icons.

3. Select the [View Recipe Results] button.

4. Select the recipe you want. The screen displays the ingredients and other detail information.

5. Select the [Favorite] button to add the recipe to your Favorites list.

Select the [Shopping] List button to view a shopping list for the recipe. DA68-02935A-08.indb 58 2016. 3. 31. 11:51operating _59 02 OPERATING How to use My Favorites.

1. Select [My Favorites] on the Epicurious list.

• You can store up to 100 favorite recipes.

2. Select the recipe you want.

• Select the A-Z button on the right to arrange the favorites in the alphabetical order.

• Select a recipe, and then select the [Delete] button to delete the recipe from your Favorites List. How to use My Shopping List.

1. Select [My Shopping List] on the Epicurious list.

• Displays the ingredients for recipes you select so you can create shopping lists.

• You can store up to 100 shopping lists.

2. Select the recipe or recipes you want.

DA68-02935A-08.indb 59 2016. 3. 31. 11:5160_ operating

3. Select the [View Combined Shopping List]

list for all the recipes you selected.

4. Select a recipe on the left of screen.

The screen displays the ingredient list for the recipe you selected. CALENDAR Displays the calendar from Google Calendar.

• This function is only available when the refrigerator is connected to your wireless network (Wi-Fi).

• To use the Calendar function, you need a Google account.

• The Calendar schedule supports dates from Jan 1970 to Dec 2037. How to view the Google Calendar.

1. Select the [Calendar] button on the Home screen.

You will be asked to enter a user code for authentication. When authentication is successful, you will move to the Calendar schedule screen.

• If you do not have a Google account, you can get one at http://calendar.google.com.

3. To view your schedule, select a date. The screen displays

the daily schedule for the date you selected.

• You cannot modify or erase the Google Calendar schedule through the refrigerator Display screen.

• The display color of each scheduled event is the same as that in the Google Calendar application.

• Press the left / right direction arrows to check the Monthly Schedule.

• When there are more than 4 events within a day, the calendar indicates the excess with “+1 more”.

• The schedule updates every 30 minutes.

4. Press the event you want to view. The event you selected appears on the screen.

2. Select a [Show] or [Hide] button.

• You can show or hide schedules from your Google Web Calendar subscription list using the Other Calendar List screen.

• If you change the Show / Hide setting here, it does not change in the subscription list and the Show / Hide setting on the Google Web Calendar.

3. Select the [Apply] button.

The Google Calendar re-appears with the displayed schedule changed according to your selections. DA68-02935A-08.indb 62 2016. 3. 31. 11:51operating _63 02 OPERATING How to create an event

1. Select the [Create event] button on the Calendar screen.

• You must be logged in onyour primary Gmail email address (***@gmail.com) to use the Create an event feature. To view the primary email address:

1. Log in to www.google.com.

3. Click the e-mail address on the upper right side of

the screen ( ***@gmail.com). A drop down window appears.

5. Look under [Email addresses and usernames] for the email address identified as the Primary

2. Enter the Event Title, Date and Time, Location (Where), and Description in the corresponding entry

fields using the screen keyboard.

3. To set a reminder for a scheduled event, select the Reminders input box, and then select one of the

4. When all settings are complete, select [Save].

DA68-02935A-08.indb 63 2016. 3. 31. 11:5164_ operating WEATHERBUG The Internet weather service provides current and weekly weather information by region.

• This function is only available when the refrigerator is connected to your wireless network (Wi-Fi). How to add your Region to Weatherbug

1. Select the [WeatherBug] button on the Home screen.

• There will be a 4-second commercial ad when you start the WeatherBug. USA CANADA

2. Select the region search bar on the top left of the screen.

3. Select the [+] button in the upper right corner of screen.

4. Enter your location or zipcode (US Only) using the

onscreen keyboard, and then press the [OK] button. DA68-02935A-08.indb 64 2016. 3. 31. 11:51operating _65 02 OPERATING

5. Select your location.

6. Select a local weather station.

7. Select the “ ” button on the top right of the screen.

8. The display screen shows your local weather.

USA CANADA DA68-02935A-08.indb 65 2016. 3. 31. 11:5166_ operating How to view today’s weather.

1. Select the [WeatherBug] button on the Home screen.

• There will be a 4-second commercial ad when you start the WeatherBug. USA CANADA

2. The Weatherbug screen at right appears displaying your local weather.

• If you select Active Alerts, the screen displays weather alerts. USA CANADA

3. Select [So Far Today]. The screen displays the current weather detail information.

USA CANADA DA68-02935A-08.indb 66 2016. 3. 31. 11:51operating _67 02 OPERATING How to add other Regions to Weatherbug

1. Select the region search bar on the top left of the screen.

2. The current region information appears on the screen.

3. Select the [+] button in the upper right corner of the

4. Enter the location name or zipcode (US Only) using the

on-screen keyboard, and then press the [OK] button.

5. Select the desired location.

DA68-02935A-08.indb 67 2016. 3. 31. 11:5168_ operating

6. Select the desired local weather station.

7. Press the button on the top right of the screen.

8. The screen displays the weather for the location you selected.

How to view Weather Information for a Region

1. Select the desired location on the location list.

2. Press the back ( ) button in the upper right corner. The screen displays the weather for the location

you selected. USA CANADA DA68-02935A-08.indb 68 2016. 3. 31. 11:51operating _69 02 OPERATING How to delete Regions from Weatherbug

1. Select the [edit] button in the upper right corner of screen.

2. Select the check box on the left of the location you want

to delete, and then select the Delete button. DA68-02935A-08.indb 69 2016. 3. 31. 11:5170_ operating How to view weather forecasts.

2. Select the desired forecast on the forecast list. The screen displays detailed forecast information.

• The forecast screen lists weather forecasts for 7 days.

• It shows the day, the Day / Night (US weather only), the weather condition icon, the temperature and the weather description.

• If you select the [Conditions] button on the lower right, the screen displays the current weather information. DA68-02935A-08.indb 70 2016. 3. 31. 11:51operating _71 02 OPERATING AP NEWS The Internet news service provides current news in up to 11 categories.

• This function is only available when the refrigerator is connected to your wireless network (Wi-Fi). How to view news from AP News.

1. Select the [Ap News] button on the Home screen.

• When you select a category on the left, the screen displays the major news for that category.

3. Select the desired article.

DA68-02935A-08.indb 71 2016. 3. 31. 11:5172_ operating

• To see all the photos related to the article, select the main photo in the detail news article. To view the article in detail, visit http://www.ap.org on your mobile phone or PC.

4. To see all the photos related to the article, select the main photo in the detail news article.

• Select the and buttons on the top right of the article to view other articles.

5. Select a photo to enlarge it.

• Press the and buttons to see other photos in enlarged view. DA68-02935A-08.indb 72 2016. 3. 31. 11:51operating _73 02 OPERATING PANDORA (ONLY FOR USA)

• This function is only available when the refrigerator is connected to your wireless network (Wi-Fi).

• Through the Pandora service, you can enjoy your favorite songs free of charge.

• The song selections are based on the analysis data collected by Pandora’s Music Genome Project. Your individual song selections - used as feedback - can affect Pandora’s next song selection. How to Activate and Use Pandora Internet radio.

1. Select the [Pandora] button on the Home screen.

2. Select the ‘ I’m new to Pandora’ text. An Activation Code screen pops up. On your PC, go to the

web site shown in the pop-up and use the Code to set up and activate your Pandora account. When done, Select the [Continue] button.

3. Select the Email input box. Enter your Pandora account ID using the on-screen keyboard.

Select the Password input box. Enter your Pandora password using the on-screen keyboard.

• If you do not have a Pandora account, you can create one at http://www.pandora.com.

• If you forget your password, press the “I forgot my password” button to get an email with your password sent to the email address you registered with Pandora.

5. Select a station from the list on the left.

• Pandora supports up to 100 stations

• You can create stations at www.pandora.com or through mobile devices that support Pandora.

• If you select other stations, you can to play the selected songs in those stations.

6. When you select the Bookmark button ( ) while playing a

song, the song is added to the Song Bookmark List. You can view this list at the Pandora site.

• By bookmarking favorite songs, you can view the song list and purchase albums with those songs on the [Your Profile] page at www.pandora.com.

7. If you like a song that’s playing, select the Thumb Up ( )

button. Otherwise, select the Thumb Down ( ) button.

• When you select the Thumb Up button, Pandora creates a station with songs similar to the song you approved. DA68-02935A-08.indb 74 2016. 3. 31. 11:52operating _75 02 OPERATING

8. To put the currently playing song on hold, press the hold

9. To play the next song, press the Next ( ) button.

• Unfortunately, our music licenses force us to limit the number of songs you can skip in an hour.

10. Press the speaker ( ) button to adjust the volume.

DA68-02935A-08.indb 75 2016. 3. 31. 11:5276_ operating How to Create a Station in Pandora

1. Select the [Create Station] button at the bottom of the

2. Select the blank space next to “Artist of Song” to bring up the Keyboard window.

Enter the artist’s name to add a station.

3. After selecting the station you want among the searched

stations, press the [OK] button.

4. Confirm the newly added station on the left of the Screen.

DA68-02935A-08.indb 76 2016. 3. 31. 11:52operating _77 02 OPERATING TWITTER

• This function is only available when the refrigerator is connected to your wireless network (Wi-Fi).

• You can’t write a tweet while using this function. How to view Twitter.

1. Select the [Twitter] button on the Home screen.

2. Select the Email input box. Enter your Twitter account ID using the on-screen keyboard.

Select the Password input box. Enter your Twitter password using the on-screen keyboard.

3. Press the [Sign in] button.

• If you do not have a Twitter account, you can create one at http://twitter.com.

• In the Email section, enter your Twitter account ID, for example, UserID@gmail.com.

• If you select the ‘Stay signed in’ check box, you do not need to log in each time to enter the Twitter menu.

• If the system time is not set exactly, login may fail. If login fails, set the current time correctly at Settings

• Time/Date, and then retry.

4. The Tweet list screen appears. This page displays your

following tweeters up-to-date information including their photos, comment previews, and listed dates. DA68-02935A-08.indb 77 2016. 3. 31. 11:5278_ operating

5. Press a tweet on the tweet list and you can see the detail

• When selecting the List View on the Detail View screen, the screen changes to the Twit List.

6. Select the i button on the right of the screen to see detail

information about the follower/followee. SCREENSAVER THEME Select the themes for the Display screen screensaver.

1. Select the [Settings] button.

2. Select the [Screensaver Theme] on the Settings list.

USA CANADA DA68-02935A-08.indb 78 2016. 3. 31. 11:52operating _79 02 OPERATING

3. Select the theme(s) you want to use in the screensaver,

and then press the [Save] button.

• The Clock and Photo themes are the default themes. You cannot deselect them.

• The themes you select may not display if the data underlying them is not ready or unavailable. ENERGY SAVER Turns the Energy Saver function on and off. When the Energy Saver is on, the power consumption decreases.

• The Energy Saver function is pre-set to ON in the factory.

• If condensation or water drops appear on the doors, turn the Energy Saver mode off. DOOR ALARM Turns the Door Alarm on and off.

• If the door alarm is set to ON, an alarm beeps if any door is left open for more than two minutes.

• The beeping stops when you close the door. The door alarm function is pre-set to ON in the factory. DISPENSER LOCK When you activate the Dispenser Lock function, the dispenser will not work.

1. Select the Dispenser Lock ON or OFF buttons on the

• If you select the Dispenser Lock ON button, the Lock icon ( ) appears in the upper left corner of the Home screen.

Use this function to make ice quickly.

1. Select the [Quick Ice Making] ON or OFF button on the

• When the fast freeze function is turned on, the ( ) icon is displayed on the home screen.

• Quick Ice Making will be turned off automatically after 48 hours of operation. WATER FILTER The Water Filter status icon on the Home screen enables you to check the current status of the water filter. Follow the instructions below to check and/or replace the water filter. USA CANADA

1. Check the water filter status in the Settings list or indicator icons on the upper left of Home screen.

The icon will blink red for several seconds when you open or close the door.

• Good (Blue) : The filter does not need replacement. It is normal.

• Order (Pink) : The filter needs replacement. Order a new filter.

• Replace (Red) : The filter needs replacement immediately. DA68-02935A-08.indb 80 2016. 3. 31. 11:52operating _81 02 OPERATING

2. If the status reads “Order” or “Replace,” select the Water Filter on the Settings list to access the

replacement instructions. USA CANADA

3. Follow instructions in the Water Filter replacement guide to replace the Water Filter.

• Touch the button to move to the next page of the instructions. - Step by step instructions are also available on page 95.

4. When the replacement is done, touch and hold ‘Replace’ on the upper right side for 3 or more

seconds to reset the water filter indicator. DO NOT use the water or ice dispenser without a water filter cartridge. You can block the water line or damage the dispenser.

• Be sure to flush the dispenser thoroughly to prevent the dispenser from dripping. If water drips from the dispenser, it means that there is still air in the line.

• For a replacement water filter, visit your local home improvement center or Samsung’s official on-line parts distributor at http://www.samsungparts.com. Be sure the replacement water filter has the SAMSUNG logo on the box and on the water filter. CAUTION DA68-02935A-08.indb 81 2016. 3. 31. 11:5282_ operating LANGUAGE (ONLY FOR CANADA) You can select the default language.

1. Press the button in the right bottom corner of the Settings list.

2. Select the preferred language on the Settings list.

After selection, the default language will be changed automatically.

• If a content provider does not support the language you selected, the language of that content will not change after your language selection. DISPLAY Lets you set the brightness of the LCD and the running time of the Screensaver.

1. Press the button in the right bottom corner of the Settings list.

2. Select [Display] in the Settings list.

3. Select the Brightness level and/or Screensaver Running Time you

want, and then press the [Save] button.

• After 60 seconds, the Screen Saver runs for the time you set, and then the LCD panel turns off. DA68-02935A-08.indb 82 2016. 3. 31. 11:52operating _83 02 OPERATING VOLUME Lets you control the volume of the alert sounds.

1. Press the button in the bottom right corner of the Settings list.

2. Select [Volume] in the Settings list.

3. Select a volume level button to change the alert sound level.

4. Press the [Save] button to set the new volume level.

• An alert sounds whenever a button is touched or a message window or menu list appears. TIMEZONE You must select your time zone to use Google Calendar and the Twitter service correctly. To select your time zone, follow these steps:

1. Press the button in the bottom right corner of the Settings list. The Time Zone Setting screen

appears. DA68-02935A-08.indb 83 2016. 3. 31. 11:5284_ operating USA CANADA

2. Select [Timezone] in the Settings list.

3. To save the new time zone, press the [Save] button.

• The Time Zone Setting screen may appear again automatically after a software update. TIME SETTING Lets you set the current time.

1. Press the button in the bottom right corner of the Settings list.

2. Select [Time] in the Settings list.

USA CANADA DA68-02935A-08.indb 84 2016. 3. 31. 11:52operating _85 02 OPERATING

3. Press the and buttons to revise the time settings, and then

press the [Save] button.

• If the current time is incorrect, you may not be able to use Twitter. DATE SETTING Lets you set the current date.

1. Press the button in the bottom right corner of the Settings list.

2. Select [Date] in the Settings list.

3. Use the and buttons to revise the month.

4. Select the desired day, and then press the [Save] button.

• If the current date is incorrect, you may not be able to use Twitter. WI-FI Lets you turn the refrigerator’s connection to your wireless network on and off.

1. Press the button in the right bottom corner of the Settings list.

2. Select [Wi-Fi] in the Settings list.

3. Select ON or OFF.

DA68-02935A-08.indb 85 2016. 3. 31. 11:5286_ operating USA CANADA WI-FI NETWORKS When you set Wi-Fi ON, (see above) the refrigerator’s wireless network function searches for a wireless AP to connect to.

• In addition to the router installed in your home, your refrigerator can detect other wireless routers installed in nearby houses or offices while connecting to your wireless network. It is illegal to use another’s router without permission and can be subject to severe penalties. Consequently, you should connect the refrigerator only to your own wireless router or to routers for which you have permission.

1. Press the button in the bottom right corner of the Settings list.

2. Select [Wi-Fi Networks] in the Settings list.

USA CANADA CAUTION DA68-02935A-08.indb 86 2016. 3. 31. 11:52operating _87 02 OPERATING

3. Select the wireless AP you want to connect to.

• : Locked with Security Code

• You can check the MAC address of the Fridge on the bottom of the Screen.

• If there are no APs showing on the screen, press the [Search] menu at the bottom.

• Depending on the wireless AP type, the refrigerator may not make a connection. We recommended you use a wireless AP that supports IEEE802.11b/g/n.

• If you don’t have a wireless router, please contact your Internet provider or purchase and install one yourself.

• If you can’t remember the name of your wireless network system (SSID) or its security code, please see the user manual of your router.

• Radio frequency signals can interfere with any the wireless network system and they may affect the network performance of your refrigerator.

• Obstacles such as concrete walls and metallic doors, and radio and microwave interference from devices such as microwave ovens can affect the operation of your wireless network system.

• Depending on the type and location of your wireless network system and the surrounding environment, the range and quality of your wireless network may vary.

4. If your wireless network has a security code, enter the security

code, and then press the [OK] button. In most cases, after you have entered the security code, the refrigerator acquires the Network addresses it needs (IP Address, Subnet Mask, Gateway, and DNS) to connect to the network. If it does not or you need to enter these values manually, go to Step 6.

5. After the refrigerator has connected to your network, you can select the [IP Address] button on the

Wi-Fi Networks screen to view the current IP address and Gateway values. DA68-02935A-08.indb 87 2016. 3. 31. 11:5288_ operating

6. If you need to enter the IP Address, Subnet Mask, Gateway, and DNS manually, press the [User

Config] button on the IP Address screen. Then, select the [IP Address], [Subnet Mask], [Gateway], and [DNS] buttons in turn and, using the keypad, enter the appropriate values. When you are done with each entry, select the [OK] button on the keypad.

Lets you set the temperature display to Fahrenheit or Centigrade. The unit you select applies to the Freezer / Fridge set temperature and the temperature displayed by the Weather function.

1. Press the button in the bottom right corner of the Settings list.

2. Select the Temperature Unit Converter °C or °F button in the Settings list.

USA CANADA DA68-02935A-08.indb 88 2016. 3. 31. 11:52operating _89 02 OPERATING DISPENSER LIGHT Lets you set the operation of the dispenser lamp light.

1. Press the button in the bottom right corner of the Settings list.

2. Select [Dispenser Light] in the Settings list.

• On : The Dispenser lamp is always on.

• Auto : The Dispenser lamp lights up when you use the Dispenser. When you release the Dispenser lever, the light goes off in 5 seconds.

The Cooling Off function shuts off the cooling mechanism in the freezer and fridge compartments, but does not shut off the electrical power to the refrigerator. This function is only used to demo refrigerator models on showroom floors.

1. Press the button in the bottom right corner of the Settings list.

2. Select the Cooling Off ON or OFF button in the settings list.

• If you select the Cooling Off ON button, the Home screen will display “OFF” on the freezer/ fridge temperature displays, the refrigerator selector functions will be deactivated, and the refrigerator and freezer will not get cold.)

3. If you select the [ON] button, the message window below appears.

4. Press the [Yes] button for more than 3 seconds to confirm.

You can calibrate the stylus touch point to best meet your needs. To adjust the stylus touch point on the touch screen:

1. Press the button in the right bottom corner of the Settings list.

2. Select [Touch Screen Correction] in the Settings list.

3. Press the [Yes] button. A screen appears with pointer instructions on the top.

4. Press down lightly on the center of the “+” mark. Repeat as the “+” mark moves across the screen.

• If you do not press the center of the [+] properly, the cross mark appears repeatedly. If you cannot run the Touch Screen Correction function in Settings because the touch screen input point is incorrect:

1. Press and hold the Epicurious icon on the home screen for 5 seconds.

This will launch the select screen calibration function.

2. The screen will display a series of cross icons.

Press the exact center of each cross icon as it appears on the screen. DA68-02935A-08.indb 91 2016. 3. 31. 11:5292_ operating USA CANADA

Lets you check the current software version and update it to new software when available.

1. Press the button in the bottom right corner of the Settings list.

2. Select [S/W Update] in the Settings list.

USA CANADA DA68-02935A-08.indb 92 2016. 3. 31. 11:52operating _93 02 OPERATING

• The software update is provided through the wireless network. When updated software is available, the [Upgrade] button on the bottom right corner of the screen is activated. When you press the [Upgrade] button, the upgraded starts almost immediately (in about 10 seconds). When the update is complete, the “Upgrade completed.” message appears on the screen. Press the [Reboot] button in the “Upgrade completed.” message to finish the update.

• Open Source License Notice - This product uses open source software. The Open Source Licenses are available on the product menu. Press [License Information] button to see the detail information. DA68-02935A-08.indb 93 2016. 3. 31. 11:5294_ operating

- In the home screen, select the dispenser icon. In screens other than the home screen, select the small dispenser icon ( ) at the top right. USA CANADA - Select a function and touch the close button. USA CANADA

2. Dispensing ice or water

- To dispense ice, press the lever slightly with the cup. The cubed ice is in the shape of half moons and the crushed ice consists of fragments of the cubed ice. When you dispense ice, move the cup close to the dispenser so that ice does not fall onto the floor. - To dispense water, also press the lever with the cup slightly. To dispense both water and ice, dispense ice first and then dispense water.

• Do not dispense ice into a thin glass cup or ceramic container. This may result in the ice breaking the glass or ceramic container.

• If discolored ice is dispensed, stop using the product and contact the Samsung Electronics service center. Press the central part of the lever when you dispense ice or water. The lower part of the lever will not be activated.

- Discard 6 cups of water before drinking any water when using the product for the first time. The water dispensed at first may have a plastic smell. - Even if the refrigerator is running continuously, the water dispensed at first may not be cold. If you dispense ice and then water, you can make the water cold. - You can dispense up to 6 cups of cold water at once, and then dispense cold water again after 2~3 hours. - After installing the refrigerator, ice is produced after about 12 hours. - The required time to generate ice may differ depending on the number of times the door is opened and the operating conditions. - If you do not dispense ice frequently, the ice may melt and stick together, and the ice dispenser may not work properly. In this case, remove any ice stuck in the ice storage bin. CAUTION DA68-02935A-08.indb 94 2016. 3. 31. 11:52operating _95 02 OPERATING

• Not dispensing ice for long periods may cause ice clumps in the ice bucket. - Lift up and pull out the ice bucket to discard remaining clumps. - When replacing the bucket, be sure to press it firmly into place.

HOW TO REPLACE THE WATER

FILTER What Does the Water Filter Do? The water filter filters out impurities that may be in tap water including pathogens, insecticides, organic compounds, and mercury. It also filters out excess chlorine, removing the taste and smell of chlorine from the water. Filtrate and Purifying Effect - The filtrate in the water filter is made of activated charcoal. - The filter is NSF (National Science Foundation) certified, and meets the standard requirements for food safety and filter effectiveness listed in NSF 42 and 53. See the table below. Certification Standard Remove Capacity NSF 42 Smell, Chloride NSF 53 Pathogens, insecticide, asbestos, slime, benzol, organic compounds, mercury

• When to Replace the Filter - - When the Filter Status Indicator on the display turns from blue to pink, it is time to replace the filter. If the Indicator turns from pink to red, replace the filter immediately. - You can purchase a replacement filter from your nearest authorized Samsung service center, authorized Samsung retailer, or on line at www. samsungparts.com. How To Replace Water-Purifying Filter To reduce the risk of water damage to your property DO NOT use generic brands of water filers in your SAMSUNG Refrigerator. USE ONLY SAMSUNG BRAND WATER FILTERS. SAMSUNG will not be legally responsible for any damage, including, but not limited to property damage caused by water leakage from use of a generic water filter. SAMSUNG Refrigerators are designed to work ONLY WITH SAMSUNG Water Filter.

1. Remove the old water filter.

- Open the unit grill in the upper part of refrigerator, rotate the filter 90° to the left to unlock it, and then pull it down. Place a bucket or bowl a little bit bigger than the filter under the filter to catch any water that drips when you separate the filter from the refrigerator.

2. Unpack the new filter, and then peel off the red

3. Put an installation date sticker on the new filter.

Example) If installing it in October, put on the `OCT 10’ sticker.

4. Install the new filter.

- Insert the filter into the filter holder and then rotate it 90° to the right to lock it. Make sure to line up the the indicator line ( ) with Lock ( ) sign. - Close the unit grill, and then press the ice-maker test button to check if water flows out. - We recommend you dispense water for about 2 minutes (2 quarts or 2 liters) when you install or replace a filter to flush the water line. - After replacing the filter, touch and hold ‘Replace’ on the upper right side of the Water Filter screen for 3 or more seconds to reset the water filter indicator. See page 80 and 81 for details. Unlock Lock WARNING DA68-02935A-08.indb 95 2016. 3. 31. 11:5296_ operating

HOW TO CLEAN AND TAKE CARE

• Inside refrigerator / Accessories - Wipe with a clean cloth lightly dampened with water or mild liquid dish detergent.

• Door gasket - Wipe with a clean cloth lightly dampened with mild liquid dish detergent and clean the grooves with cotton balls.

• Dispenser - After wiping with a wet cloth, wipe dry with a dry cloth. - If the spill shelf is stained, wipe with a clean cloth lightly dampened with vinegar.

• How to get rid of odors. - Wipe down the interior of the fridge using a soft cloth dipped in a mild solution of warm water and bicarbonate of soda.

• How to remove mold on door gaskets. - Brush with a toothbrush dampened with pure dish detergent. It is difficult to scrub off the mold once it becomes black. Care must be taken not to damage the gaskets. If you do not intend to use your refrigerator for a long period of time, empty the fridge, open the grille panel, set the power switch to O (OFF), and then wipe the compartments and walls with a dry cloth or towel. Leave the doors open so that the fridge dries completely.

• Do not spray water directly on the refrigerator. There is a risk of explosion, electric shock, or fire. Do not clean with benzene, thinner, bleach, alcohol, or acetone. You can damage the refrigerator’s surfaces. CAUTION

• Do not use brushes or scouring pads to wipe the inside or outside of the refrigerator.

• Make sure to set the power switch to the O(OFF) position before cleaning the refrigerator to prevent the possibility of electric shock or fire. Set the power switch to the l(ON) position after cleaning is complete. Disassembling for cleaning Before cleaning the refrigerator, flip the grille panel up as shown in the figure and set the power switch to O (OFF). To prevent electric shock, disassemble the refrigerator only when it is turned off. Water tends to gather inside and flow down to the bottom. After cleaning, be sure to wipe the components inside dry with a dry cloth, and then re-assemble.

• Veggie/Fruit Box - Hold it with one hand, then pull it forward while lifting it up slightly to remove.

• Veggie Box Lid - Tilt the lid up in front, then pull it forward and out of the refrigerator. Take out the mid glass after removing the veggie box.

• Dairy Bin - Flip up the dairy bin cover and remove it while pushing it back. - Hold the dairy bin with both hands and lift it up and out of the door. DA68-02935A-08.indb 96 2016. 3. 31. 11:52operating _97 02 OPERATING

• Freeze r/Fridge Door Bin - Hold it with both hands and lift it up and out of the door.

• Freezer/Fridge Shelves - Tilt the shelf up in front, then lift it up and out of the tracks on the rear wall of refrigerator.

• When the refrigerator is not in use, or when you clean it, open the grille panel, set the power switch to the O(OFF) and dry the compartments with their doors open.

• Please contact our service center to replace the LED lamps. Do not replace the LED lamps yourself. There is a risk of electric shock. DA68-02935A-08.indb 97 2016. 3. 31. 11:5298_ operating

Foods Refrigerator Freezer Storage Tips DAIRY PRODUCTS Butter 2-3 Weeks 6-9 Months Wrap or cover tightly. Milk 1-2 Weeks Not recommended Check date code. Most milk and similar products are sold in date-coded cartons that indicate a products’s peak freshness. Re-seal with cap or wrap tightly. Do not return unused portions to original container. Cream Cheese, cheese food, and cheese spread 2-4 Weeks Not recommended Check date code. Keep all cheese tightly packed in moisture proof wrap Hard Cheese (unopened) 3-4 Months 6 Months Hard Cheese (opened) 2 Months Not recommended Cottage Cheese 10-15 Days Not recommended Cream 7-10 Days 2 Months Check date code. Most yogurt, creams, and similar products are sold in date-coded cartons that indicate a product’s peak freshness. Re-seal or cover tightly. Do not return unused portions to original container. Sour Cream 2 Weeks Not recommended Cream Dips (opened) 1 Week Not recommended Yogurt 10-14 Days Not recommended Check date code. Keep covered. Frozen Yogurt na 2 Months EGGS Eggs (uncooked) 3-4 Weeks Not recommended Check date code. Store eggs in coldest part of refrigerator and in their original container. Eggs (cooked) 1 Week Not recommended Store in covered container Leftover egg dishes 3-4 Days Not recommended Store in covered container FRESH FRUITS Apples 1 Month Not recommended If storing in refrigerator, do not wash fruit before storing. Store in moisture resistant bags or containers. Wrap cut fruits. Some fruits darken when refrigerated. Bananas 2-4 Days Not recommended Peaches, Melons, Pears, Avocados 3-5 Days Not recommended Berries and Cherries 2-3 Days 12 Months Apricots 3-5 Days Not recommended Grapes 2-5 Days na Pineapple (un-cut) 2-3 Days Not recommended Pineapple (cut) 5-7 Days 6-12 Months Citrus 1-2 Weeks Not recommended Store uncovered. Juice 6 Days Not recommended Check date code and re-seal in original container. Do not return unused portions to original con- tainer. Frozen Juice Thawing only 12 Months Check date code. Do not re-freeze.

Fish Fatty Fish (mackerel, trout, salmon) 1-2 Days 2-3 Months Keep in original wrapper and store in coldest part of refrigerator. Package in vapor-proof and moisture proof wrap for freezer. Freeze at 0ºF (or -18°C ). Thaw in refrigerator or check date code. Freeze in original packaging. Lean Fish (cod, flounder, etc) 1-2 Days 6 Months Frozen or Breaded na 3 Months DA68-02935A-08.indb 98 2016. 3. 31. 11:52operating _99 02 OPERATING Foods Refrigerator Freezer Storage Tips Shellfish Shrimp (uncooked) 1-2 Days 12 Months To freeze, package in vapor-proof and moisture- proof container. Crab 3-5 Days 10 Months Cooked Fish or Shellfish 2-3 Days 3 Months MEAT Fresh, Uncooked Chops 2-4 Days 6-12 Months Check date code for use. Store in coldest part of refrigerator in original packaging. Package in moisture-proof and vapor-proof container for freezing. Recommended refrigerator temperature 33ºF to 36ºF (or 1°C to 2°C ) and freezer tem- perature 0ºF to 2ºF (or -18°C to -16°C ) Ground 1 Day 3-4 Months Roast 2-4 Days 6-12 Months Bacon 1-2 Weeks 1-2 Months Sausage 1-2 Days 1-2 Months Steak 2-4 Days 6-9 Months Poultry 1 Day 12 Months Lunch meat 3-5 Days 1 Month Cooked Meat 2-3 Days 2-3 Months Check date code for use. Store in coldest part of refrigerator in original packaging. Package in moisture-proof and vapor-proof container for freezing. Poultry 2-3 Days 4-5 Months Ham 1-2 weeks 1-2 Months Sources: American Meat Institute Foundation. 1994. Yellow pages: answers to predictable questions consumers ask about meat and poultry. American Meat Institute Food Marketing Institute. 1999. The food keeper. Food Marketing Institute, Washington, D.C. Freeland-Graves, J.H. and G.C. Peckham. 1996. Foundations of food preparation, 6th ed. Prentice-Hall, Inc. Englewood Cliffs, NJ. Hillers, V.N. 1993. Storing foods at home. Washington State University Cooperative Extension, Pullman, WA. Publ. EB 1205. National Restaurant Association. 2001. Be cool-chill out! Refrigerate promptly. National Restaurant Association Education Foundation¼s International Food Safety Council, Washington, D.C. USDA. 1997. Basics for handling food safely. U.S. Department of Agriculture, Food Safety and Inspection Service, Washington, D.C. DA68-02935A-08.indb 99 2016. 3. 31. 11:52100_ troubleshooting troubleshooting

PROBLEM POSSIBLE CAUSES WHAT TO DO

Fridge or freezer compartment too warm. (Low cooling power) Master power control set to O(OFF). Switch on the power (“I” pressed). Refrigerator is unplugged. Plug in the power plug again. Temperature controls set at the warmest setting. Press the FRE. TEMP/REF. TEMP button and set it colder. Refrigerator installed in a place exposed to direct sunlight and in the vicinity of heater. Keep the refrigerator away from direct sunlight and heating appliances. Frozen food in fridge compartment. Fridge control setting is too cold. Press the temperature control button and set to a warmer setting. Refrigerator installed in a too cold place. When the ambient temperature is lower than 41ºF (5ºC), food can become frozen. Food containing lots of water is placed closer to the cold air discharging port. Put food containing lots of water on the front part of the self. Vibration or rattling sounds. The floor is slanted or it is not firm enough. Move the refrigerator and put it on a hard level floor. There is something blocking ventilation in the machine compartment on the top. If there is anything blocking ventilation, remove it. Refrigerator has odor. Dishes are stored without being wrapped in plastic. Make sure to put lids on containers and/or wrap food in plastic. Meat, fish and chicken are put in the refrigerator without plastic packing. Put them in clean plastic bags and seal the bags before storing them. Foods are stored for too long. Foods stored for a long time could have odors. Ice cubes have odor. Ice cubes are made with tap water. Water could contain chlorine which has a distinctive odor. Make ice with filtered water. Interior of refrigerator needs cleaning. Clean the interior of the refrigerator frequently to remove food smells. Ice storage bin needs cleaning. Wipe the surface of the ice bin frequently. Food dropped on the shelf. Wipe it away completely. Water dispenser does not work. Water supply line is turned off. Turn on water supply. Water supply line is not connected properly. Review the installation manual or contact our service center. DA68-02935A-08.indb 100 2016. 3. 31. 11:52troubleshooting _101 03 TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES WHAT TO DO

Water is warm. The fridge compartment is too warm. Press the REF.TEMP button and set to a colder setting. Six glassfuls of water have been used continuously. When more than six glasses of water are dispensed it takes a few hours to cool additional water. Cube dispenser does not work. No ice cubes or not enough ice cubes. Wait 12 hours for ice cubes to be made. Requires 24 hours to have enough ice cubes in the ice bin. Ice cubes get stuck together. When ice is not used for a long time or when there is a power failure, ice cubes could get stuck together. If this occurs, throw away the ice lump and empty the ice bin to get freshly made ice cubes. Door hard to open. It has just closed after being opened. If you open the door again within 5~10 seconds, it could be hard to open due to the pressure difference between the inside and the outside of the refrigerator. Try again in five minutes. You hear a water flowing noise (Ex: gurgling, sizzling or popping) or a clicking sound in the refrigerator. (Ex: clicking, rattling, chirping, cracking) The flow of refrigerant through the cooling coils may make a water flowing noise (ex: gurgling, sizzling, popping) or a water dropping noise may occur during the defrost cycle as ice melts and flows. This is not a defect. It is a normal function. When the refrigerator cools to the correct temperature, when cooling coils expand or contract, or when relays activate to control refrigerator components, you can hear these sounds. They do not indicate a defect. It is normal operation. Frost builds up in the freezer compartment. (Moisture collects inside the fridge compartment) The ambient temperature and humidity are high, the door is left open for a long time or food with lots of water is stored without a lid. In this case, frost or moisture could build up. Wipe dry it. Moisture builds up on the outside surface of the refrigerator and on the interior lamp cover. The fridge door has remained open for a long time. When the fridge door remains open for a long time, the fridge lamp cover will be warmed up by the halogen lamp (35W) resulting in water condensation. Wipe dry it. The ambient humidity is too high. When it is humid outside, water in the air could condense on the relatively cold fridge surfaces. DA68-02935A-08.indb 101 2016. 3. 31. 11:52102_ troubleshooting PROBLEM SOLUTION Display does not work!

• Press the Reset button for more than one second to reset the memory. User information is not reset. Photos not showing with a memory card connected.

• If the “Memory card is connected” messages do not appear on the screen, check if the memory type is SD / SDHC / MMC / HS MMC.

• Check if there are photos or images stored in the memory card.

• Check if the images in the memory card are JPEG (JPG) types. The LCD screen turns off frequently.

• This is a power-saving function and it is normal.

• On Settings-Display, you can set the Screensaver Running Time. There is an after image or an edge line left on the screen.

• Still images can cause permanent damage to the LCD screen. When you select Screensavers, select a number of themes so the image changes frequently. NOTE : Defects caused by this are not be covered by the factory warranty. The input point of the touch screen is not correct.

• Run the Touch Screen Calibration function in Settings. After you turn on the power, only the dispenser selection button operates.

• Click the “Dispenser OK” button which is at the bottom of the display. If the “”Dispenser OK” button changes to “Complete”, turn the power off and on again. The display should show the “Home screen”. There is no wireless router detected.

• Check if the power for the wireless router is on.

• Check if the wireless router supports IEEE 802.11 b/g/n.

• Check if other devices (Notebook PC, Smart phone etc.) can access the wireless router. If wireless router can not be accessed by the other devices, the wireless router probably has a problem. Please contact with wireless router manufacturer.

• If the wireless router is located far away from the Fridge, move the wireless router closer to the Fridge and see if the fridge detects it.

• Turn the power of both the Wireless router and the Fridge off and on. The fridge is not able to connect to the wireless router.

• Check if the wireless router supports IEEE 802.11 b/g/n.

• Check the status of the Internet connection of the wireless router.

• Check if other devices (Notebook PC, Smart phone etc.) can access the wireless router. If the wireless router can not be accessed by the other devices, the wireless router is probably the problem.

• Please contact with wireless router manufacturer and Internet service provider (ISP). Check if the current cost rate plan for the Internet covers the wireless network connection. If it does, check how many connections are allowed.

• Your Refrigerator may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your Refrigerator has a different MAC address, your ISP can not authenticate its MAC address, and your Refrigerator can not connect. To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your Refrigerator) to the Internet. (To find the MAC address of your Fridge, touch Settings ---> Wi-Fi Networks, and then look on the bottom of the screen that lists the available network connections.)

• Turn the power of both the Wireless router and the Fridge off and on. DA68-02935A-08.indb 102 2016. 3. 31. 11:52troubleshooting _103 03 TROUBLESHOOTING PROBLEM SOLUTION Can’t remember the password for the wireless router connection.

• Refer to the wireless router manual and reset the password. Functions using the wireless network (Wi-FI) do not work.

• Functions using the wireless network (Wi-Fi) such as AllShare can be used only if the refrigerator is connected to your wireless network (Wi-Fi).

• If there are any other devices connected to the wireless network, please check the connection status of the devices.

• Turn off the power to the Wireless router and the Fridge then turn it back on. Can’t connect to the external devices being detected.

• If the network connection of an external device the Fridge detects was shut down abnormally (by a power failure or by moving out of range, etc), the device’s network information will remain on the network list (as stipulated by DLNA specifications), but its connection will not be available.

• Select the Photos function - All Share, and then search for the external devices again. I cannot access the Calendar account screen.

• On the Home screen, tap and hold the Calendar icon for 5 seconds to reset your Calendar account settings. DA68-02935A-08.indb 103 2016. 3. 31. 11:52Warranty: USA

This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung) and delivered new, in the original carton to the original consumer purchaser, is warranted by Samsung against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) year Parts and Labor on Refrigerator Five (5) years Parts and Labor on sealed Refrigeration system only* (*Compressor, evaporator, condenser, drier, connecting tubing) This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung authorized service center. Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulated herein, with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products become the property of Samsung and must be returned to Samsung. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. In-home service will be provided during the warranty labor period subject to availability within the contiguous United States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed and accessible from floor level to service personnel. If during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, Samsung may elect, at our option, to provide for transportation of our choice to and from a Samsung authorized service center. Otherwise, transportation to and from the Samsung authorized service center is the responsibility of the purchaser. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied and authorized by Samsung, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; loss of food due to spoilage; consumable items including filters and light. THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact Samsung at:

SAMSUNG CUSTOMER CARE CENTER

Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660 1-800-SAMSUNG(726-7864) and www.samsung.com/us/support DA68-02935A-08.indb 104 2016. 3. 31. 11:52If your refrigerator needs service Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number when your product is not functioning properly. Warranty Information (CANADA) Limited Warranty for Original Purchaser This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods: Labor : 2 years (in-home) Parts : 2 years Inverter Compressor : 10 Years (Part only) SECA further warrants that if this product fails to operate properly within the specified warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to find out if in-home service is currently available in your area by using the contact information at the back of this warranty. All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To find the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca) Obligation to the Original Owner The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer. Exclusions of the Warranty This warranty does not cover damage due to accident, fire, flood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in the Canada.

[Delete] (Eliminar).

• ComplimentaryTechnicianHomeVisit

• Extended90-DayWarranty
