Owner's Manual. 1-12

SECHE-LINGE PORTATIF

Welcome to the Danby family. We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting and maintenance tips to ensure the reliability and longevity of your appliance.

Visit www.Danby.com to access self service tools, FAQs and much more. For additional assistance call 1-800-263-2629.

Note the information below; you will need this information to obtain service under warranty. You must provide the original purchase receipt to validate your warranty and receive service.

Model Number:

Serial Number:

Date of Purchase:

Need Help?

Before you call for service, here are a few things you can do to help us serve you better.

Read this owner's manual:

It contains instructions to help you use and maintain your appliance properly.

If you receive a damaged appliance:

Immediately contact the retailer or builder that sold you the appliance.

Save time and money:

Check the troubleshooting section at the end of this manual before calling. This section will help you solve common problems that may occur.

1-800-26-Danby (1-800-263-2629)

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

IMPORTANT WARNING

DANGER: Risk of child entrapment. Before thawing away an old appliance:

• Remove the door or lid.
• Leave the shelves in place so that children cannot easily climb into the appliance.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance is equipped with a cord that has a grounding wire with a grounding plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a standard 2-prong wall outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

DO NOT USE AN EXTENSION CORD

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord.

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.

SAFETY REQUIREMENTS

Ensure that component parts are replaced with like components and that servicing is done by factory authorized service personnel, to minimize the risk of possible ignition due to incorrect parts or improper service.

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not place items exposed to cooking oils in the dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dry cycle occurs without heat as a cool down period. Avoid stopping the dryer before the end of the drying cycle unless items can be immediately removed and spread out to allow the accumulated heat to dissipate.

Items that have been soiled with oil products can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing items that have been soiled with oil can prevent heat from escaping and create a fire hazard.

SAVE THESE INSTRUCTIONS!

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

• Do not dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapours that could ignite or explode.
• Do not reach into the appliance if the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather. This appliance is not intended for use outdoors.
• Do not tamper with the controls.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
• Clean the lint screen before and after each load.
• Keep area around the exhaust opening and adjacent surrounding areas free from the accumulation of lint, dust and dirt.
• The interior of the appliance and exhaust duct should be cleaned periodically by qualified service personnel.
• Do not place the appliance or power cord near heat sources such as radiators, heaters, air ducts or direct sunlight. Do not place open fl ames such as candles on or near the appliance.
• Do not block any ventilation openings. Ensure that vents are not covered by newspapers, tablecloths, curtains, carpeting, etc.
• Do not run the power cord under floor coverings. Keep the power cord away from high traffic areas where it can become a tripping hazard.

• Do not misuse the power cord. Never carry or pull the appliance by the power cord. Never pull the power cord to unplug it from the outlet, instead, grasp the plug and pull to remove from outlet.

• Do not operate the appliance if it has a damaged power cord or plug. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

• Do not attempt to repair, disassemble or modify the appliance. The warranty becomes void if the unit is not serviced or repaired by qualifi ed personnel. There are no user-serviceable parts inside.
• Do not over load the appliance.
• Ensure foreign objects do not fi nd their way into the appliance. Remove all objects from pockets such as lighters, matches, hairpins, coins, etc.
• The door window may be hot after a long drying cycle. Ensure that children are kept away from the appliance.
• If the dryer is not wall mounted, ensure that it is placed on a flat, firm surface in a dry, well-ventilated place. Use the adjustable front legs to assist in leveling the appliance if necessary. Do not place the appliance on any soft material such as foam, plastic or carpeting.
  After turning the power off, wait 2 minutes before attempting to turn the unit back on.
• Remove the transport packaging from the back of the unit before first use.
• This unit must be exhausted to the outside. The exhaust air must not be discharged into a flue which is used for exhausting fumes from other appliances that are burning gasoline or other fuels.
• Do not install this appliance behind a lockable door, a sliding door or in such a way that opening the dryer door is restricted. Do not install in a tight fitting cabinet.

INSTALLATION INSTRUCTIONS

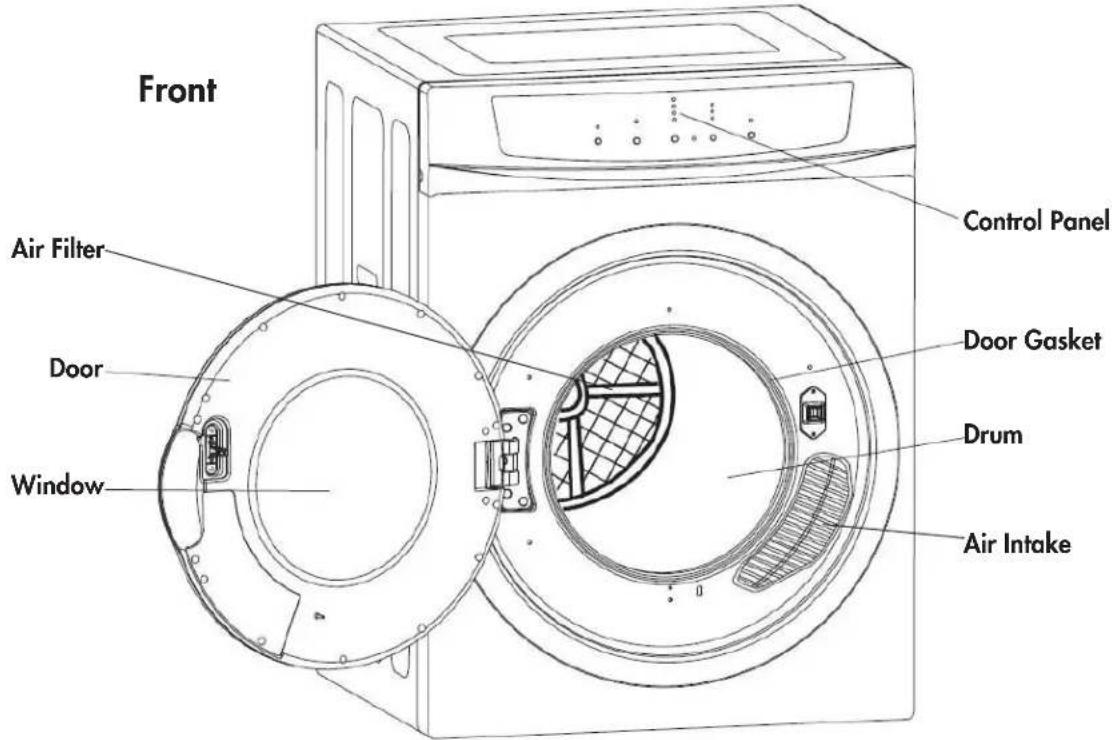

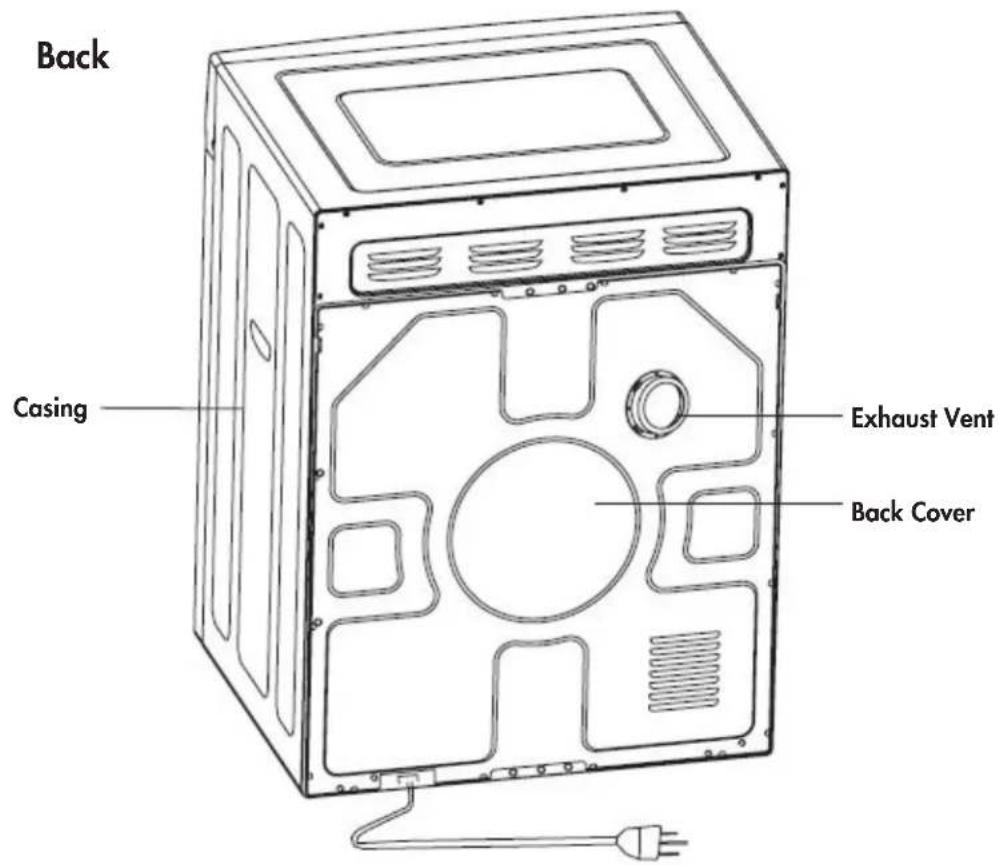

FEATURES

INSTALLATION INSTRUCTIONS

LOCATION

Before you install the dryer, select a location with the following characteristics:

• A hard, level surface. Do not place the dryer on carpeted floor.
• Away from direct sunlight. Direct sunlight may affect the acrylic coating, plastic and electrical components.
• Adequate ventilation. Ventilation openings must not be obstructed.
• Away from sources of heat such as fi replaces or stoves.
• Make sure that the dryer does not stand on its power cord.
• There must be at least 10cm (4 inches) of space between the the dryer and any adjacent wall.

WALL MOUNTING KIT

A wall mounting kit is included with the unit so that the unit can be secured to the wall if necessary. We recommend using two people to complete the installation as the dryer can be heavy.

The wall mounting kit includes:

Description Image Quantity
Hanging brackets		2
Plastic spacers		2
Exhaust connector 1
12 mm long screws 4
25 mm long screws 4

Tools required:

• one drill and 3mm bit
• one Phillips head screwdriver
• four 12 × 50 ~mm timber screws

Note:

• A minimum of 50mm (2 inches) is required between the top of the dryer and the ceiling.
• If mounting above a washing machine, ensure there is enough space above the washing machine to fully open the lid and load or unload the appliance.
• This dryer is not designed to be placed directly on top of a washing machine or any other appliance.

Important: If you wish to install the dryer with a stacking kit, we strongly recommend only using the Danby Dryer with the Danby Laundry Stacking Kit and ensure that you follow all installation instructions that come with the Laundry Stacking Kit.

INSTALLATION INSTRUCTIONS

WALL MOUNTING INSTRUCTIONS

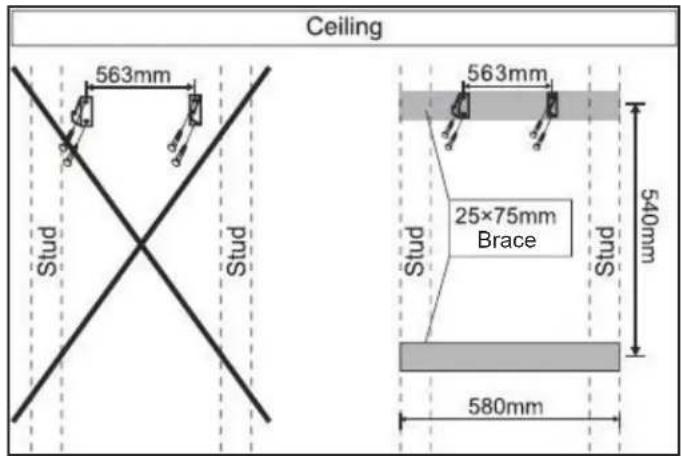

1. Determine where you would like the dryer positioned and mark the required bracket position on the wall.

2. Securely affix the hanging brackets to the wall.

3. The hanging brackets must be screwed into wall studs to ensure the installation is secure.

4. The hanging brackets must be placed no more than 56.3cm (22.2 inches) apart.

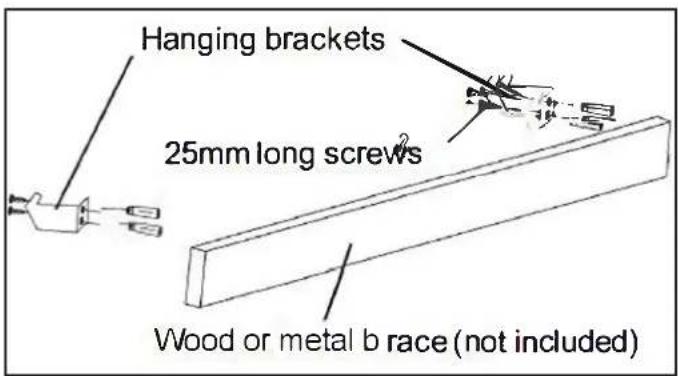

5. If the wall studs are further apart than 56.3cm (22.2 inches), you must install two braces on the wall, one to hold the hanging brackets and one to brace the plastic spacers.
6. Ensure the braces are screwed directly into the wall studs and then screw the hanging brackets to the brace.

Important note: If the hanging brackets do not align with the wall studs we strongly recommend using a wood or metal brace that will allow at least two screws to be secured into wall studs.

INSTALLATION INSTRUCTIONS

WALL MOUNTING INSTRUCTIONS

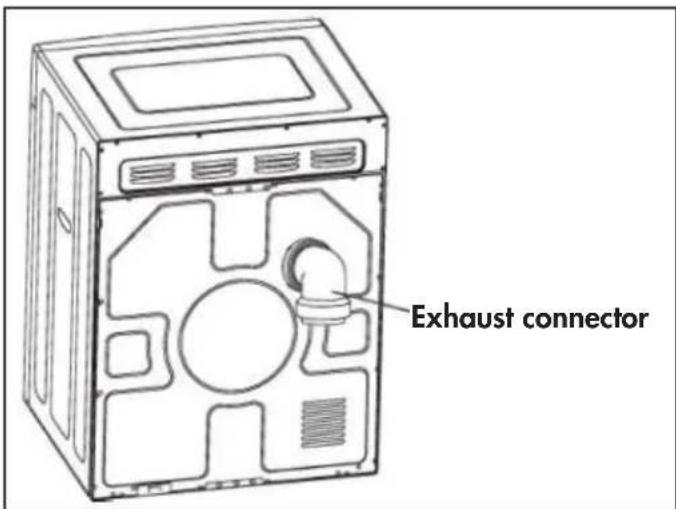

1. Install the exhaust connector on the back of the unit. The exhaust connector can be aimed in any direction that is convenient for your installation.

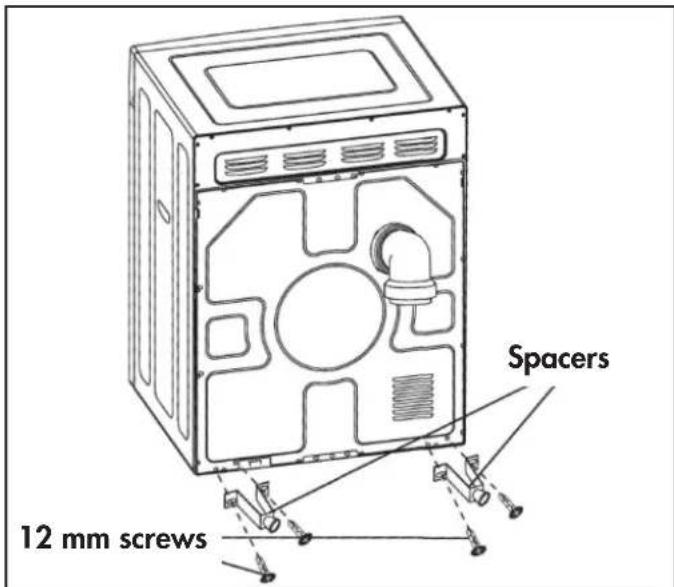

1. Using four 12mm screws, attach the plastic spacers to the rear of the unit. These spacers will minimize vibration and noise during operation.

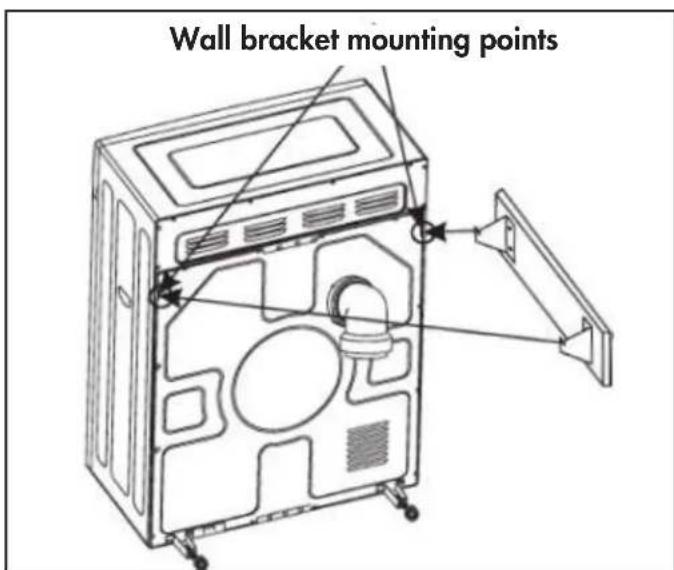

1. With assistance, mount the dryer on the wall bracket.

OPERATING INSTRUCTIONS

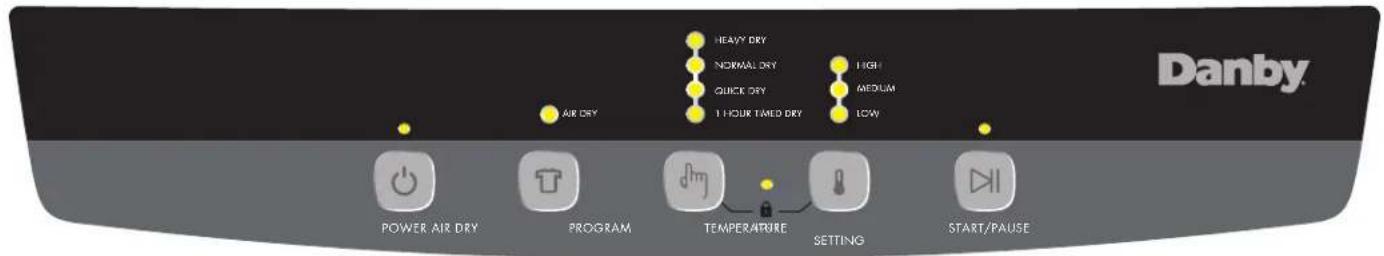

CONTROL PANEL

Power: Press the Power button to turn the unit on or off. When the unit is turned on it will beep and the light above the Power button will illuminate. The default program setting is "Heavy Dry" and the default temperature is "High".

Air Dry: The dryer will circulate room temperature air for the first 150 minutes and then circulate hot air for the remaining 22 minutes of the cycle. This is an energy efficient cycle that is intended for delicate clothes or materials that cannot be exposed to excessive heat when cleaned.

Program: Press the program button to scroll through available program settings.

• Heavy Dry: The unit will run until the humidity level inside the drum has reached ≤ 35% . Maximum running time is 200 minutes.
• Normal Dry: The unit will run until the humidity level inside the drum has reached ≤ 40% . Maximum running time is 150 minutes.
• Quick Dry: The unit will run until the humidity level inside the drum has reached ≤ 45% . Maximum running time is 90 minutes.
• 1 hour: The unit will run for 60 minutes, 50 minutes on full power heating and 10 minutes of air cooling. For this program, temperature selection is disabled.

Temperature: Press the Temperature button to scroll through available temperature settings.

• High: Dryer uses two sets of heating elements running simultaneously.
  Medium: Dryer uses two sets of heating elements for 10 minutes, then uses one set of elements for another 10 minutes, alternating back and forth for the duration of the program.
• Low: Dryer uses one set of heating elements.

Start/Pause: Press the Start/Pause button to start the drying program. The light above the Start/Pause button will illuminate to indicate that the program has started. While the unit is running, press the Start/Pause button to pause the drying program. Press the Start/Pause button again to resume the selected program.

Lock: When the dryer is running, press and hold the Program and Temperature buttons at the same time for 3 seconds to lock the control panel. The light above the lock icon will illuminate to indicate that the control panel is locked. While locked, the buttons will not work if pressed. To unlock the control panel, press and hold the Program and Temperature buttons at the same time for 3 seconds.

Drying Capacity Dry	Time - High Dry Time	- Low
Approx. 2 Kg (4.4 Lbs)	approx. 60 min.	Approx. 90 min.
Approx. 3 Kg (6.6 Lbs)	approx. 90 min.	Approx. 150 min.
Approx. 4 Kg (8.8 Lbs)	approx. 150 min.	Approx. 200 min.
Approx. 6 Kg (13.2 Lbs)	approx. 200 min.

Note: 1 Kg = 2.2Lbs

Note: Drying times can be affected by many factors such as type of material, bulkiness, how full the dryer is, etc. The chart is meant as a guide only.

OPERATING INSTRUCTIONS

OPERATING INSTRUCTIONS

• The maximum capacity of the unit is 6 Kgs (13.2 Lbs) of dry textile material. Do not over load.
  It is recommended that items be added to the dryer one at a time to avoid tangling which can result in uneven drying.
• Check the pockets of all items to be dried, ensure that foreign objects do not enter the unit such as lighters, hair pins, coins, etc.
• Turn items with zippers inside out and fasten all buckles.
• Dryer heat may permanently set stains, ensure all stains are removed prior to putting items in the dryer.
• Separate light and dark coloured items to ensure the colours do not bleed.
• For best results load the dryer with similar fabrics.
• Delicate items should be placed into a nylon net bag prior to drying. Do not place underwire bras in a dryer.
• Do not add items to the dryer when it is in operation.
• If drying large items such as blankets or heavy loads of laundry, it is recommended that you periodically pause the program, open the dryer door, shake the large item or turn over the heavy load and then restart the drying cycle. This will ensure even drying.
• If the door is opened during operation and not correctly closed, an alarm will sound for 10 seconds. The alarm will pause for 6 minutes and then sound again for 10 seconds every 6 minutes until the door is closed. The appliance cannot function while the door is open. Once the door is closed, press the Start/Pause button to resume operation.

Prior to loading the dryer check that the items you are drying do not have the following symbols on them as items marked with these symbols should not be placed in a dryer:

Dry flat

Dry in the shade

Do not tumble dry

Hang to dry

Drip dry

CAUTION! HOT SURFACE

Do not touch the air intake during the drying cycle due to high temperatures.

WARNING!

To reduce the risk of fire, this unit must be exhausted to the outdoors.

CARE & MAINTENANCE

Cleaning the lint fi Iter

Unplug the power cord prior to any cleaning. The lint filter must be in place when the unit is running and should be cleaned before and after every load.

1. Removing the lint fiIter.

• Remove the fiiter by gently pulling outwards on the center of the exhaust vent shroud.

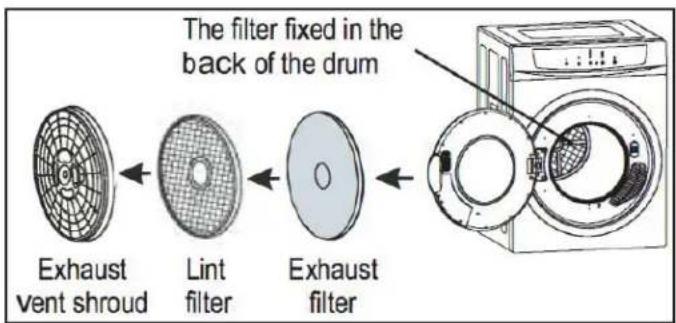

  The fi lter has three parts: exhaust vent shroud, lint fi lter and exhaust fi lter.

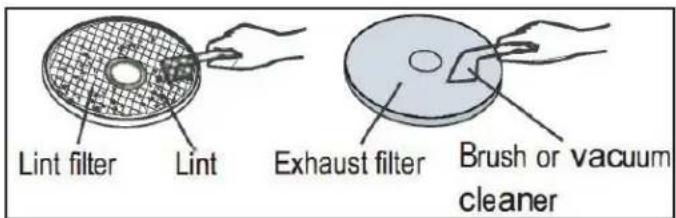

2. Cleaning the lint filter.

• Separate the three pieces of the filter.
• Remove lint with a soft brush or vacuum cleaner.

3. Replacing the lint fi liter.

After cleaning, reassemble the exhaust vent shroud, the lint filter and the exhaust fi filter.
- Ensure the fiiter assembly is firmly installed in the unit.

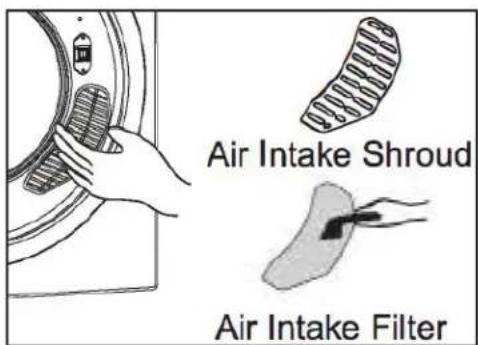

Cleaning the air intake filter

The air intake fi ler should be cleaned once a month. Remove the air intake fi ler by holding the upper and lower ends and pulling outward. Remove the fi ler and clean it with a soft brush. Reassemble and install in the unit.

Cleaning the interior and exterior

• Do not immerse any part of the unit in water.
• Do not use thinner, gasoline or alcohol on or near the unit as the residue and fumes can cause a fire.
• Do not use any type of spray cleaner on the interior of the unit. If the drum becomes stained, clean with a damp cloth.
• Remove any residue before drying the next load.
• Clean cabinet with mild soap and water. Do not use harsh or abrasive cleaners.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POSSIBLE CAUSE

Dryer does not operate • The appliance is not plugged in. • The circuit breaker tripped or a blown fuse.

Dryer drum does not turn. • The door is not fully closed. • The power plug is unplugged. • The outlet does not have power.

The laundry is not thoroughly dried. • The lint fi liter or air intake fi liter are clogged. • There is too much laundry in the dryer. • Wet items were added during the drying cycle. • The laundry has become twisted while drying. • The dryer has been placed in a small or badly ventilated area. • Dryer vent is blocked.

LIMITED "IN HOME" WARRANTY

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer.

This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

TERMS OF WARRANTY

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 12 months During the first twelve (12) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of Danby reserves the right to limit the boundaries of "In Home Service" to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of "In Home Service", will be the consumer's responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Nothing within this warranty shall imply that Danby will be responsible or liable for any spoilage or damage to food or other contents of this appliance, whether due to any defect of the appliance, or its use, whether proper or improper.

EXCLUSIONS

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

GENERAL PROVISIONS

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1) Power failure.
2) Damage in transit or when moving the appliance.
3) Improper power supply such as low voltage, defective house wiring or inadequate fuses.

4) Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).

5) Use for commercial or industrial purposes (i.e. If the appliance is not installed in a domestic residence).
6) Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7 Service calls resulting in customer education.
8) Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Warranty Service In Home

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [519] 837-0920 FAX: [519] 837-0449

1-800-263-2629 04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [phone] FAX: [phone]

Bienvenue

GARDER CES INSTRUCTIONS!

GARDER CES INSTRUCTIONS!

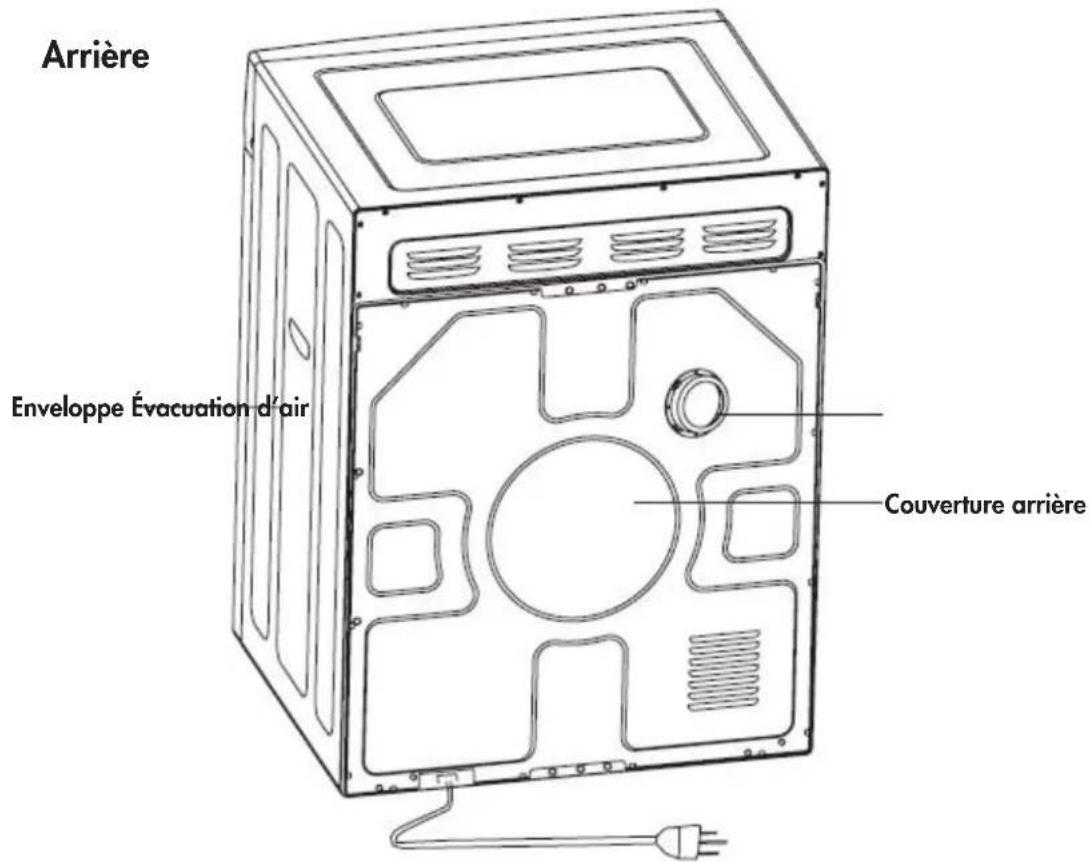

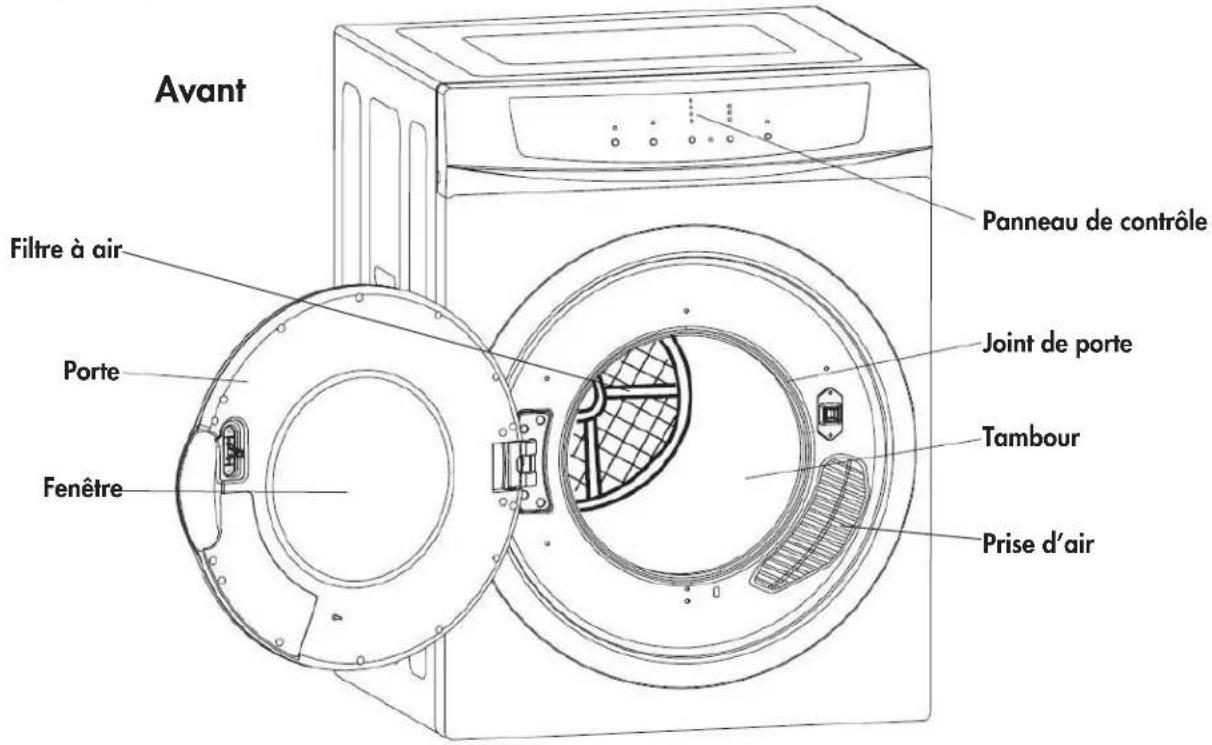

CHARACTERISTIQUES

INSTRUCTIONS D'INSTALLATION

EMPLACEMENT

Outilns necessities:

• un foret et un bit de 3 mm
• un tournevis Phillips
• quatre 12× 50mm vis a bois

Remarque:

Danby Products Limited

PO Box 1778, Guelph, Ontario, Canada N1H 6Z9

Telephone: [phone] Telecopieur: [phone]

1-800-263-2629

04/17

Danby Products Inc.

PO Box 669, Findlay, Ohio, U.S.A. 45840

Telephone: [419] 425-8627 Telecopieur: [419] 425-8629

NOTES / REMARQUES:

NOTES / REMARQUES:

MODELO · MODEL

DDY060WDB
