USER MANUAL aair Medical Pro Aeris

This instruction manual has been developed to help you better understand how to set up and use your aeris device.

If you continue to have issues that the manual cannot address, please contact us at [e-mail].

© Aeris Cleantec AG 2018 aeris is a registered trademark of Aeris Cleantec AG. The information in this manual is subject to change without notice. All other trademarks belong to their respective owners. Contents subject to revision without prior notice.

Active carbon (500g/1.54lbs) Activated Alumina (200g/0.44lbs)

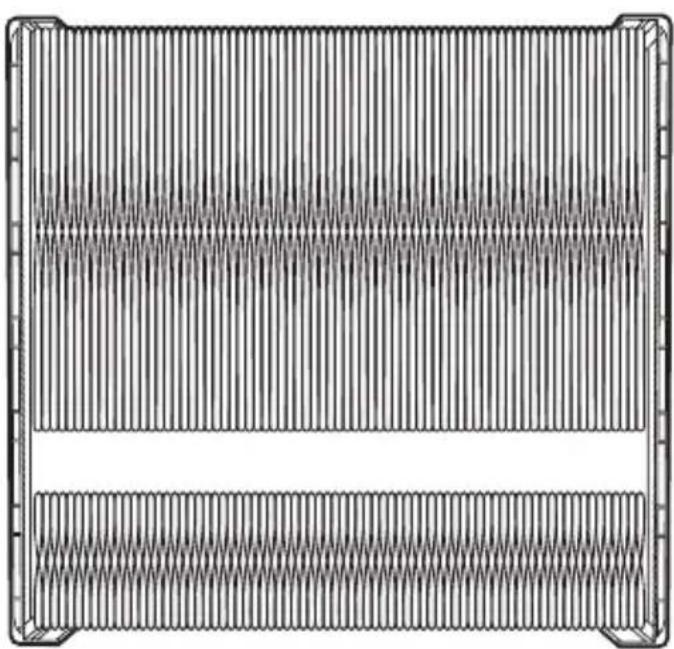

F7

Room Size

Raumgroße

Taille de la pièce

适用面积

up to 70 m^2

up to 1671sfqft

Weight

Gewicht

Poids

重量

3.8 kg

6.6lbs

PCADR

600m^3 /h

390cfm

Size

Dimensionen

Dimensions

尺寸和

CCM

P4

303x303x282mm

11.8x11.8x11in

Medical PRO

Anti-bacterial

Antibakteriell

Antibactérien

抗菌性

Filter class Filterklasse classification

滤芯级别

H14

F9

Room Size

Raumgroße

Taille de la pièce

适用面积

up to 59 m^2

up to 632sqft

Weight

Gewicht

Poids

重量

3.5 kg

6.6lbs

CADR

400 m³/h

295cfm

CCM

P4

Size

Dimensionen

Dimensions

尺寸和

303x303x282mm

11.8x11.8x11in

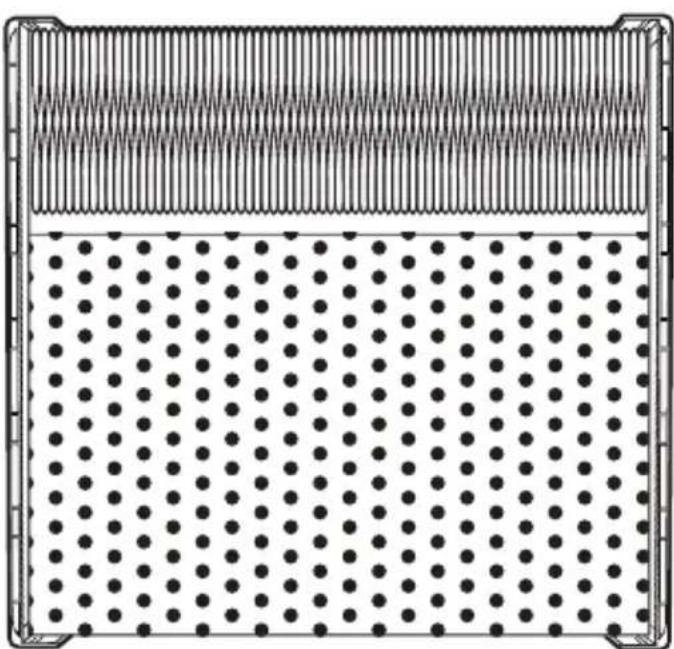

Gas PRO

Filter class Filterklasse Classification 滤芯级别

F9

Active Carbon (3200g/7lbs) Activated Alumina (400g/0.88lbs) Zeolite (400g/0.88lbs)

Room Size

Raumgroße

Taille de la pièce

适用面积

up to 47 m^2

up to 504sqft

Weight

Gewicht

Poids

重量

6 kg

13.2lbs

PCADR

315 m³/h

235cfm

Size

Dimensionen

Dimensions

尺寸和

CCM

F4

303x303x282mm

11.8x11.8x11in

Do not operate any machine with a damaged cord or plug. Discard device or return to an authorized service facility for examination and/or repair. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

aair selects the most appropriate fan speed itself based on indoor air quality and your daily schedule

Use up and down buttons to manually control the speed of the fan, Lowest speed equals to Sleep mode

Hold the little o button for 8 seconds to enable the child lock function Hold the same button again for another 8 seconds to disable the child lock function.

aair signals you that it's ready to be setup by saying 'I'm listening'. If aair is not in listening mode, please press the button for 10 seconds.

Once you have downloaded the application please register a

new account and follow the instructions within the App.

Find us on the Apple store "aeres"

Open the cover, take out the old filter, and replace it with a new one.

Hold O for 5 second to go to the filter editing mode.

While in filter editing mode, hold the button O for 2 seconds to reset the main filter.

While in filter editing mode, hold the o button for 2 seconds to reset the prefilter. (aair one only)

To avoid electrical shock, fire hazard, and damage to your aair, please avoid having water, liquids or any flammable materials come into direct contact with your device.

Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlet.

Stop using aair if the device emits strange odors, sounds or over heats. Contact your official aeris distributor for assistance.

The warranty covers defects of the main components such as: the fan, the PCBAs and the Wi-Fi module.

Within 7 days, starting from the day when the customer receives the air purifier, he can choose to return or exchange it, or have it repaired if it malfunctions without the cause of human damage. A return without malfunctioning of the device is only possible if the filter is unused.

The right to return the product without any reason within 7 days, only applies to the products sold on the official aeris store or on the stores of an official distributor of aeris products. Human damage, severe damages to the packaging or missing accessories will mitigate the right to return the product. The customer wishing to return the product has to cover all shipping costs.

Money will be returned to the customer's account within 7 days from the day the returned product is received by aeres or the official distributor.

The customer can exchange the device within 30 days after purchase, if it is defective due to manufacturing failure. The warranty is valid for a period of 2 years. The receipt and invoice are the proof of warranty, please do not discard them.

The warranty doesn't cover malfunctions that were caused by misuse of the device by the user.

Repairing the product in a place that is not authorized by aeris; using the product in a wrong way; liquid damage; removing or altering the serial number, label or security tags.

When customers are not following the user manual to use and maintain the product and cause damage.

When damage is caused by force or impact.

The model number of the repaired product does not match the warranty number of the product.

aair / pre-installed filter cable / user manuals / 4 prefilters

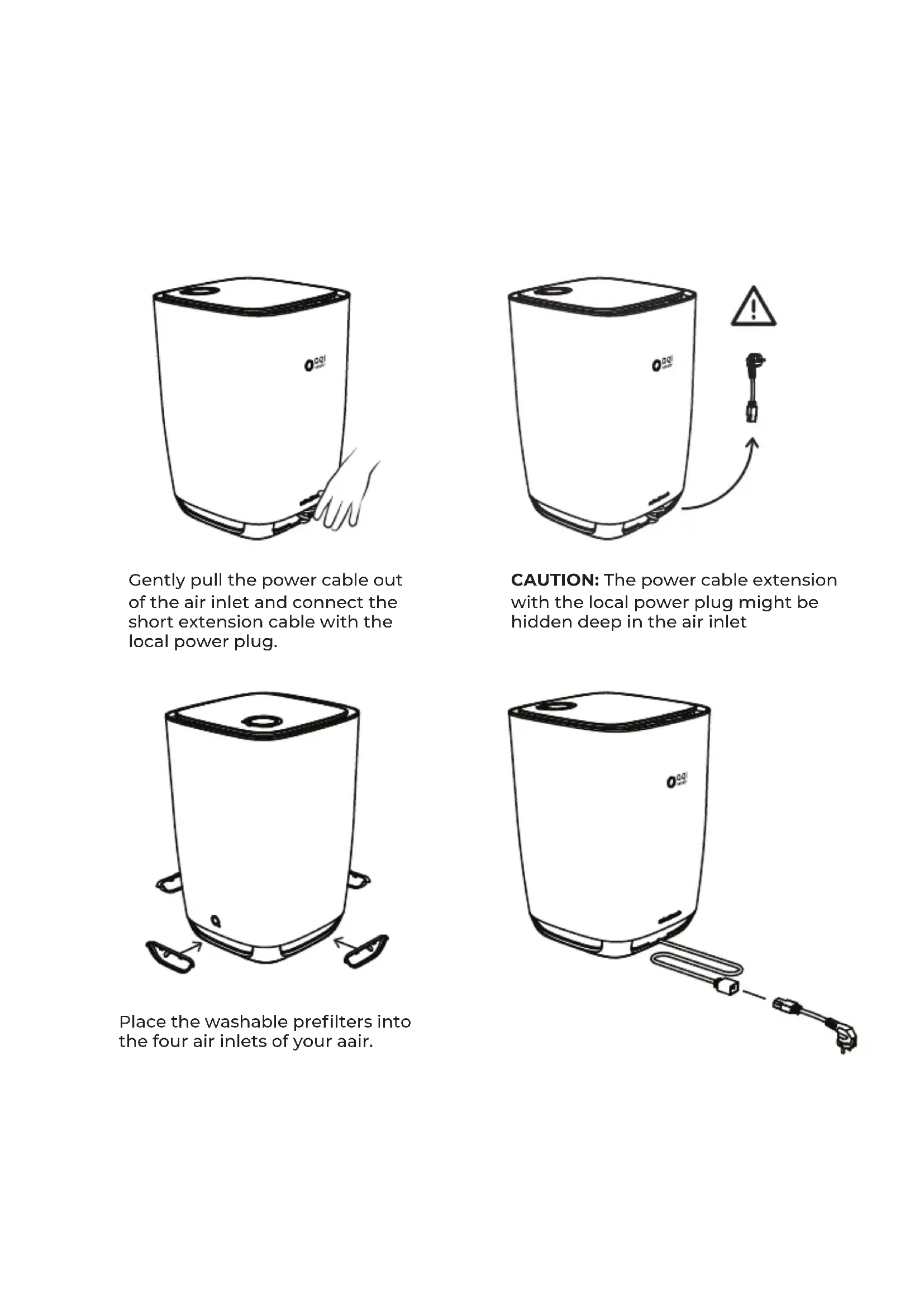

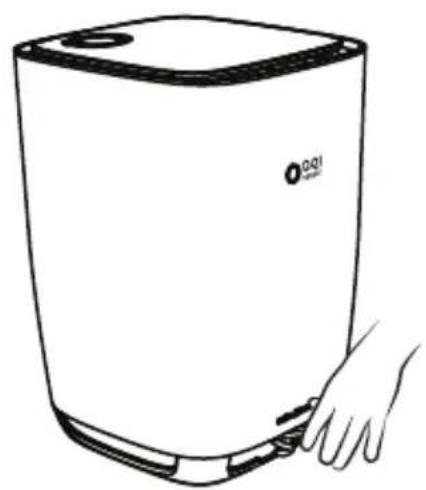

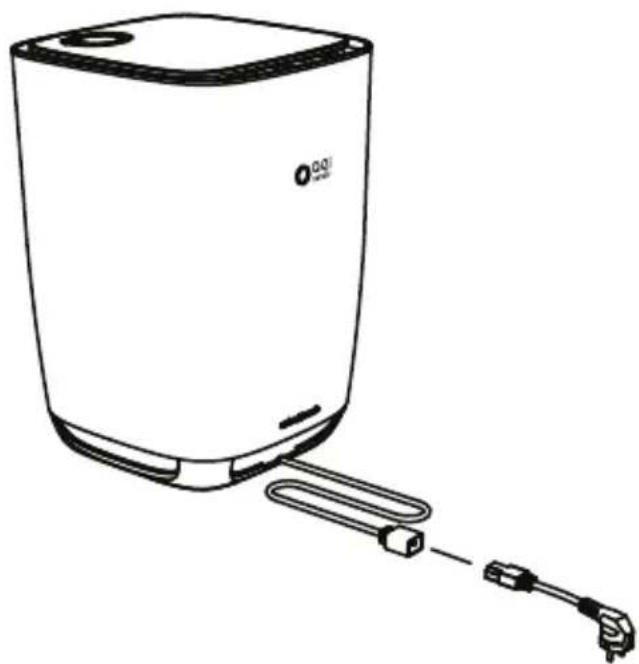

Gently pull the power cable out of the air inlet and connect the short extension cable with the local power plug.

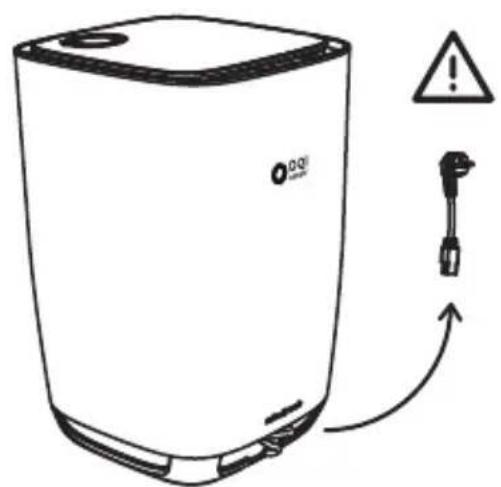

CAUTION: The power cable extension with the local power plug might be hidden deep in the air inlet

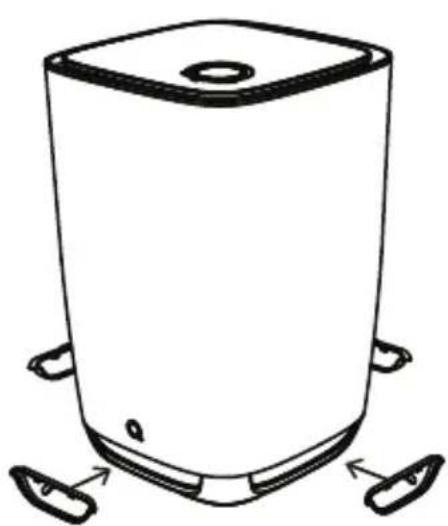

Place the washable prefilters into the four air inlets of your aair.

Recommendations

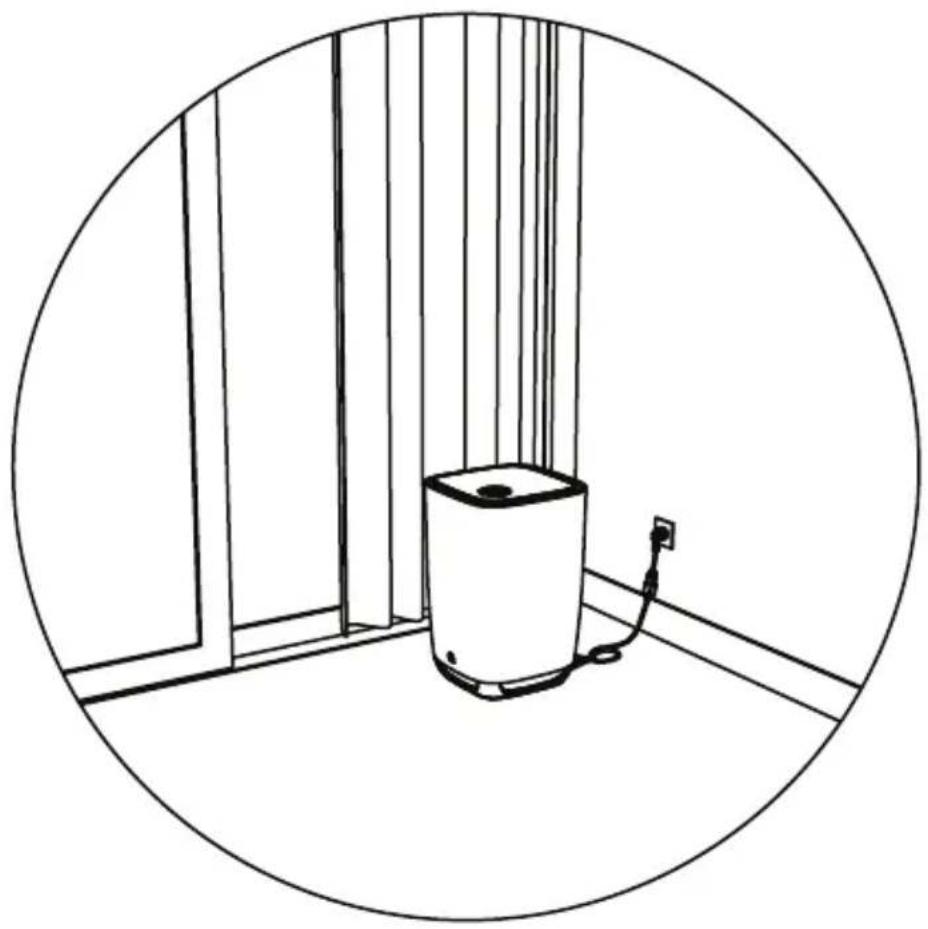

Place the device at least 1m from walls and next to a potential leaking point (Windows).

Refrain from covering the air inlet or air outlet of the device.

aeris

How to install screens in the aeris units:

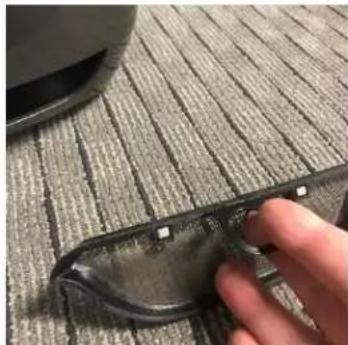

1) The screen is tapered so that it will fit the intake. Hold the screen so that the metal magnets are visible and face out towards you and the ring faces up, then gently pull on the ring so it is parallel to the floor while the rest of the screen stays perpendicular:

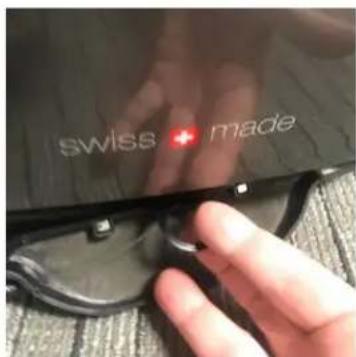

2) Hold the screen by the ring and slide the top edge of the screen into the intake. You may feel a tug when the magnets are in position, but not hear an audible click. The magnetic connection is just enough to hold the screen in place, the air flow will also hold it in:

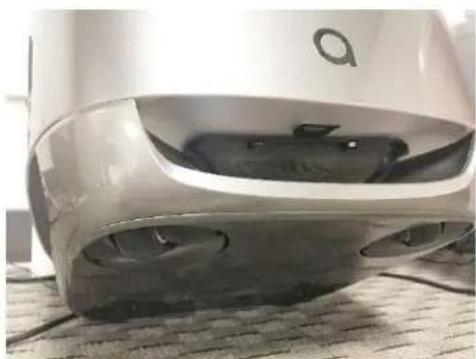

3) Installation shot of the screens in position. Note the magnets face out, the ring rests on the inside top of intake. To clean, either vacuum the screens carefully or pull them out by the ring and wash them. Dry thoroughly before reinstalling.

Qair Medical PRO

DESIGN AWARD 2017

redddot award 2019 winner

23.6 in

15.2 in
14.5 in

CADR

295

35-65

dB(a)

UP TO

10 MONTHS

632

UP TO

12 MONTHS

1264

Max Sq. Ft. At 4AHC

and 7th Ceiling height

Max Sq. Ft. At 2AHC

and 7th Ceiling height

GENERAL SPECIFICATIONS

Color

Voltage Requirement

Energy Consumption

Packaged Dimensions

Product Weight

Packaged Weight

Room Size w/8ft Ceiling

CADR per Fan Speed

Decibels per Fan Speed

Fan and Motor

Control Panel

Air Intake

Air Outlet

Housing Material

Safety Ratings

Awards

White / Graphite / Peach

110V or 220V

80W(avg) 180W(max) 110V / 90W(avg) 230W(max) 220V

28.7x18.5x18.5in

30.8lbs

41.8lbs

550sqft w/ 4 Air Changes per Hour

60, 110, 180, 210, 260, 295cfm

35 - 65 dB(a) 110V / 67dB(a) 220V

Blauberg 110V, EbmPapst 220V, Made in Germany

Hidden Display Touch Screen

360 Degree Inlet

Jet Outlet and Silver Ion Anti-Microbial Coating

ABS

IF Design Award, Reddot Winner

PERFORMANCE

Filter Efficiency

AHAM CADR Rating (Dust, Smoke, Pollen)

3rd Party Certifications

99.995% at MPPS; CCM P4

290,315,390cfm

EN1822, ISO-18184

FEATURES

Built in Air Monitor to PM2.5

Country of Origin

Wi-Fi/Smart Home

Warranty/Guaranteed

What's in the Box

Switzerland

Yes / Amazon Alexa

2 Year Warranty

aair Unit with Filter Installed, 4 Pre-Filter Nets

Power Plug Connector, Manual, Quick Setup Guide, AQI Guide

Mobile App OS

Download an theApp Store

eogic play

Color

11.8x11.8x11in

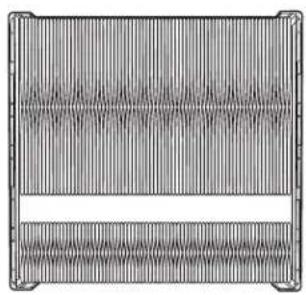

FILTER CONFIGURATION

Media Type

Filter Media Amount

Rating and Efficiency

Filter Life - Max Fan Speed

F9 Pre-Filter, H14 Main Filter both

with Anti-Microbial Zinc-Pyrithione Coating 75ft^2

EN1822, ISO-18184

12 Months based on speed 3, 24/7

AIRFLOW LEVELS BY FAN SPEED

	CFM	Noise dB
Speed 1	60	35
Speed 2	110	38
Speed 3	180	42
Speed 4	210	47
Speed 5	260	53
Speed 6	295	65

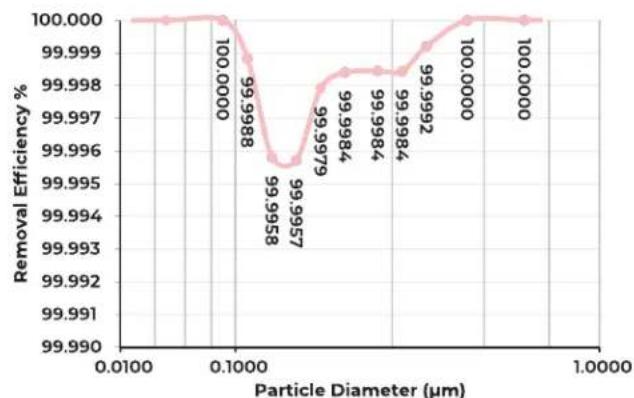

Particle Size Removal Efficiency
Mesured at 4ft/s
