Snow 6001 - Effect machine Eurolite - Free user manual and instructions

Product type	Artificial snow machine
Brand	Eurolite
Model	Snow 6001
Dimensions (L x W x H)	510 x 330 x 355 mm
Weight	11 kg
Power supply	230 V AC, 50 Hz
Power consumption	1350 W
Fuse	F 8 A, 250 V
Tank capacity	2.5 L
Fluid consumption	10 l/h
Snow output	120 ml/min
Spray range	Up to 2 m
Recommended fluid	Eurolite snow fluid (water-based)
Control	Wired remote control with flow adjustment and DMX input/output
Mounting	On stand or suspended (with bracket and safety sling)
Max. tilt angle	15°
Safety distance to public	At least 2 m
Maintenance	Clean with a damp non-linting cloth; replace the fuse with an identical model
Safety	Protect from moisture; unplug before opening; do not use flammable liquids
Intended use	Indoor special effects (discos, theaters, etc.)

Frequently Asked Questions - Snow 6001 Eurolite

What type of fluid should be used with the Eurolite Snow 6001 snow machine?

Use only high-quality water-based snow fluid, such as Eurolite snow fluid. Never use flammable, oil-based, or gas-containing fluids.

How to fill the machine's tank?

Make sure the machine is powered off and unplugged before filling the tank. Pour the snow fluid into the 2.5 L tank without exceeding the maximum capacity.

What is the safety distance to maintain between the machine and the public?

The minimum distance between the output nozzle and the public must be at least 2 meters to avoid any contact with the snow stream, especially near the face and eyes.

How to install the machine at height?

Use the provided mounting bracket and a safety sling compliant with standards (DIN 56927). The mounting surface must support at least 10 times the weight of the machine. Consult a professional installer if necessary.

What to do if the machine does not produce snow?

Check that the machine is turned on and the tank contains fluid. Ensure the remote control is connected and the button is pressed. If the problem persists, the heating element may need a warm-up time (1-2 minutes) or the fuse may be defective.

How to replace the machine's fuse?

Unplug the device. Open the fuse holder on the back with a screwdriver, remove the defective fuse and replace it with a fuse of the same type (F 8 A, 250 V). Close the fuse holder.

Can the snow machine be used outdoors?

The device is designed for indoor use only. Protect it from moisture and do not use in rain or very humid environments.

How to clean the machine after use?

Unplug the device and let it cool down. Clean the exterior with a damp, non-linting cloth. Do not use alcohol or harsh detergents. Empty the tank if not used for an extended period.

Can the machine be controlled via DMX?

Yes, the Snow 6001 has a DMX input and output as well as DIP switches to set the DMX address. The wired remote control remains usable as well.

What is the power consumption of the machine?

The machine has a power of 1350 W at 230 V AC. It must be plugged into a grounded outlet and protected by a 30 mA residual current circuit breaker.

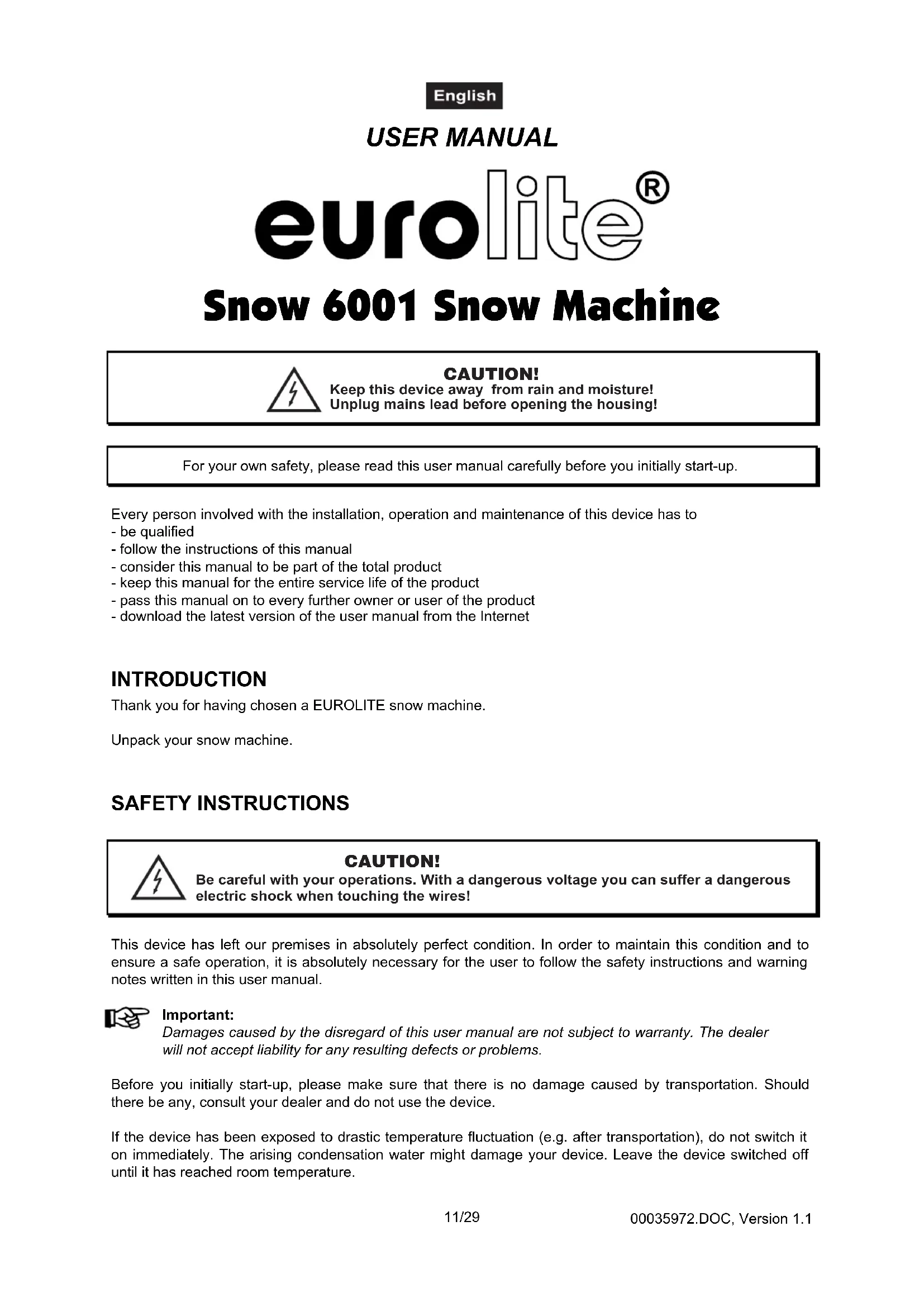

USER MANUAL Snow 6001 Eurolite

Exterior view of a modern electricity spray unit (SPOW 6001) with black metal frame and control panel attached (no visible text or symbols on the device itself)

MULTI-LANGUAGE INSTRUCTIONS

This user manual is valid for the article number 51706320

You can find the latest update of this user manual in the Internet under:

Keep this device away from rain and moisture! Unplug mains lead before opening the housing!

For your own safety, please read this user manual carefully before you initially start-up.

Every person involved with the installation, operation and maintenance of this device has to

• be qualified
• follow the instructions of this manual
• consider this manual to be part of the total product
• keep this manual for the entire service life of the product
• pass this manual on to every further owner or user of the product
• download the latest version of the user manual from the Internet

INTRODUCTION

Thank you for having chosen a EUROLITE snow machine.

Unpack your snow machine.

SAFETY INSTRUCTIONS

CAUTION!

Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

Before you initially start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

English

This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet.

Always plug in the power plug least. Make sure that the power-switch is set to OFF position before you connect the device to the mains.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution!

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.

Never drink fluid or use it on the inside or outside of a human body. If fluid gets in contact with skin or eyes, rinse thoroughly with water. If it is necessary call a doctor immediately!

Keep device upright.

For overhead use (mounting height >100 cm), always fix the fixture with an appropriate safety bond.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Unused machines must be disconnected from the mains. If the power plug or the power switch is not accessible, the device must be disconnected via the mains.

Keep away children and amateurs!

Never leave this device running unattended.

OPERATING DETERMINATIONS

This device is a special effect machine for creating snow effects. This product is only allowed to be operated with an alternating voltage of 230 V, 50 Hz and was designed for indoor use only.

Do not shake the device. Avoid brute force when installing or operating the device.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. Please consider that liquid may be spilt during operation around the device. The resulting slippery surface can cause accidents. There should not be any cables lying around. You endanger your own and the safety of others!

Before filling the device disconnect from mains. Never fill in any hot liquids.

Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!

Store dry!

Always drain the tank and please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

Never remove the serial barcode from the device as this would make the guarantee void.

If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, etc.

DESCRIPTION OF THE DEVICE

Features

Powerful snowmachine

• A lot of "snowflakes" are thrown into the room up to a distance of 2m
• Constant snowing creates a foam/snow build up, which dissolves gradually
• The dissolution of the "blanket of snow" happens nearly without residues
• Snow output is controlled via the control unit at the remote control
• Ideal for a "winter" subject in discos, theatres etc.
• With 2.5 I tank for permanent operation
• Suitable snowfluid: EUROLITE Snowfluid
• DMX512 control via regular DMX controller (occupies 1 channel)
• With bracket for suspended mounting
  • High quality structure
  • High quality at a low price

Overview

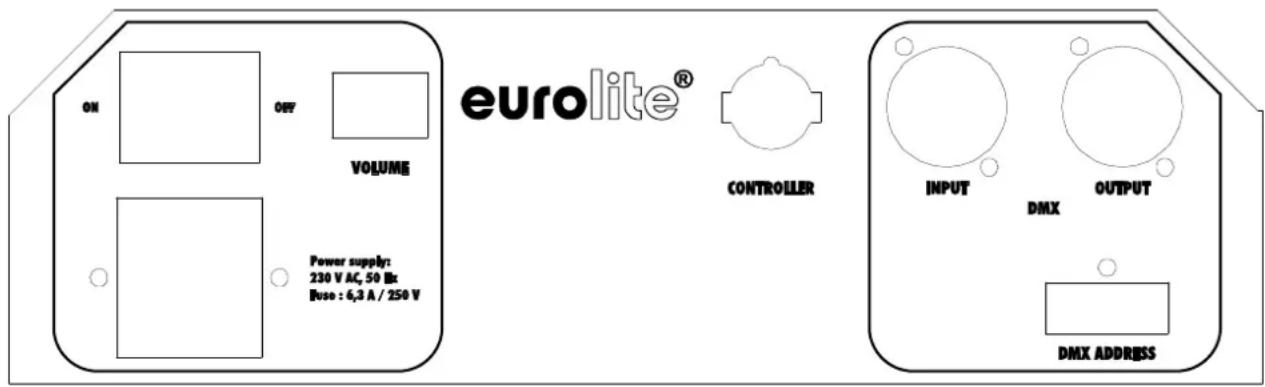

on OFF VOLUME Power supply: 230 V AC, 50 Bx Fuse : 6,3 A / 250 V eurolite® CONTROLLER INPUT DMX OUTPUT DMX ADDRESS

(1) Power switch
(2) Volume switch
(3) Power supply
(4) Fuseholder
(5) Remote control socket
(6) DMX input and output socket
(7) DIP switches

STARTING OPERATION

Install the device on a plane surface.

The liquid tank of the device needs to be filled with snow fluid before starting up operation and always disconnected from the mains as fluid could be spilled.

Only use quality snow fluids available at your dealer. We recommend high-quality Eurolite snow fluids (e.g. EUROLITE Snow Fluid, 5 l). You must not use substances that are classified as "dangerous working material" or "inflammable fluids".

If fluid should get into the interior of the device, disconnect from mains immediately and consult a technician.

Caution! Ensure a minimum distance between snow machine and audience of min. 2 m. Never direct the snow output nozzle to the face or the eyes of people.

English

Installation

Install the device out of the public area. Please consider that liquid may be spilt during operation around the device. The resulting slippery surface can cause accidents. Keep a minimum distance of 20 cm around and above the device.

Only install the machine on scratch resistant and water resistant surfaces.

Please make sure that the inclination angle does not exceed 15^ .

This device is constructed for a standing or hanging installation. If the device is to be installed overhead, the following safety instructions are binding:

DANGER TO LIFE!

Please consider the E#16235-4e1906 anational norms during the installation! The installation must only be carried out by an authorized dealer!

The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.

When rigging, derigging or servicing the device staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.

Procedure:

The device should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the device. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and or damage to property.

The device has to be installed out of the reach of people.

Caution: Devices in overhead installations may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the device!

Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.

For overhead use, always install a safety bond.

You must only use safety bonds complying with DIN 56927, quick links complying with DIN 56926, shackles complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links, shackles and the carbines must be sufficiently dimensioned and used correctly in accordance with the latest industrial safety regulations (e.g. BGV C1, BGI 810-3).

English

Please note: for overhead rigging in public or industrial areas, a series of safety instructions have to be followed that this manual can only give in part. The operator must therefore inform himself on the current safety instructions and consider them.

The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions!

Pull the safety bond through the attachment eyelet and over the trussing system or a safe fixation spot. Insert the end in the quick link and tighten the safety screw.

The maximum drop distance must never exceed 20 cm.

A safety bond which already hold the strain of a crash or which is defective must not be used again.

Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.

DANGER TO LIFE!

Before taking into operation for the first time, the installation has to be approved by an expert!

DMX512 control

The wires must not come into contact with each other, otherwise the devices will not work at all, or will not work properly.

Please note, the starting address depends upon which controller is being used.

Only use a DMX-cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

Occupation of the XLR connection:

DMX-output

XLR mounting-socket:

1: Ground
2: Signal (−)
3: Signal (+)

DMX-input

XLR mounting-plug:

1: Ground
2: Signal (−)
3: Signal (+)

If you are using controllers with this occupation, you can connect the DMX output of the controller directly with the DMX input of the first device in the DMX chain. If you wish to connect DMX controllers with other XLR outputs, you need to use adapter cables.

Building a serial DMX chain:

Connect the DMX output of the first device in the DMX chain with the DMX input of the next device. Always connect one output with the input of the next device until all devices are connected.

Caution: At the last fixture, the DMX-cable has to be terminated. Plug the terminator with a 120 Ω resistor between Signal (−) and Signal (+) in the DMX-output of the last fixture.

English

Addressing

Each device occupies 1 channel. To ensure that the control signals are properly directed to each device, the device requires addressing. This is to be adjusted for every single device by changing the DIP-switches as set out in the table below.

The starting address is defined as the first channel from which the device will respond to the controller. Please make sure that you do not have any overlapping channels in order to control each device correctly and independently from any other fixture on the DMX data link. If two, three or more devices are addressed similarly, they will work similarly.

Occupation of the DIP switches:

Setting the DMX-starting address;	DIP-switch no.		1	2	3	4	5	6	7	8	9
Device number & channels	Starting address		1	2	4	8	16	32	64	128	256
Device 1 - channel 1		On	▲
		Off		▽	▽	▽	▽	▽	▽	▽	▽
Device 2 - channel 2		On		▲
		Off	▽		▽	▽	▽	▽	▽	▽	▽
Device 3 - channel 3		On	▲	▲
		Off			▽	▽	▽	▽	▽	▽	▽
Device 4 - channel 4		On			▲
		Off	▽	▽		▽	▽	▽	▽	▽	▽
Device 5 - channel 5		On	▲		▲
		Off		▽		▽	▽	▽	▽	▽	▽

Device 3 - channel 3	On	▲	▲
	Off			▽	▽	▽	▽	▽	▽	▽
Device 4 - channel 4	On			▲
	Off	▽	▽		▽	▽	▽	▽	▽	▽
Device 5 - channel 5	On	▲		▲
	Off		▽		▽	▽	▽	▽	▽	▽

Controlling:

After having addressed all devices, you may now start operating these via your controller.

Connection with the mains

Connect the device to the mains with the power plug.

The occupation of the connection-cables is as follows:

Cable	Pin	International
Brown	Live	L
Blue	Neutral	N
Yellow/Green	Earth

The earth has to be connected!

If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.

The device must only be connected with an electric installation carried out in compliance with the IEC-standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30 mA.

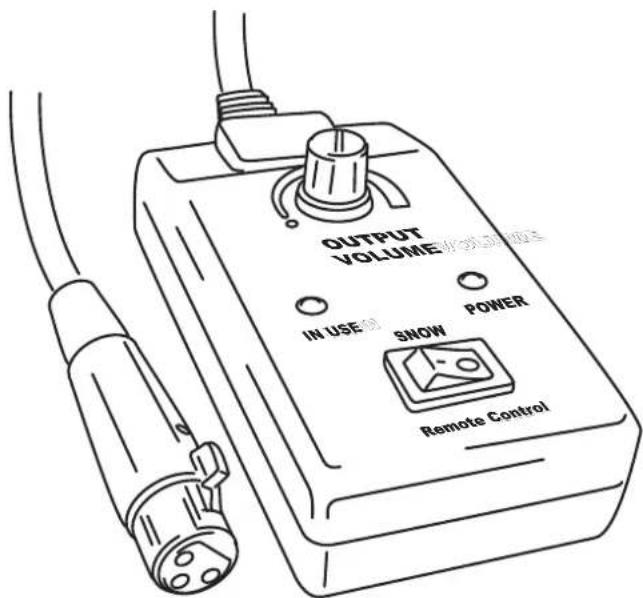

OUTPUT VOLUME IN USE SNOW POWER Remote Control

OPERATION

Switch the device on via the power switch. Connect the remote control with the Remote Control-socket.

By operating the snow switch on the remote control the snow emission starts. It may happen that the stand-by lamp turns off and the snow emission stops. In this case the device is heating up again and will be ready to operate in approx. 1-2 min. This process guarantees an appropriate vaporization temperature and the best snow emission possible. The temperature is regulated by a high quality thermostat.

The volume of snow produced is regulated via the output knob.

CAUTION: The escape nozzle will heat up during operation. Therefore do not touch the nozzle until it has cooled down completely.

DMX protocol

Channel 1 – Snow volume

DMX-value: Volume (%)

0 - 255

Gradual adjustment of the snow volume from 0 to 100 %

CLEANING AND MAINTENANCE

DANGER TO LIFE!

Disconnect from mains before starting maintenance operation!

We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents!

There are no servicable parts inside the device except for the fuse. Maintenance and service operations are only to be carried out by authorized dealers.

Replacing the fuse

If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.

Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuseholder on the rearpanel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuseholder.
Step 3: Install the new fuse in the fuseholder.
Step 4: Replace the fuseholder in the housing.

Should you need any spare parts, please use genuine parts. If the power supply cable of this device becomes damaged, it has to be replaced by a special power supply cable available at your dealer. Should you have further questions, please contact your dealer.

TECHNICAL SPECIFICATIONS

Power supply: 230 V AC, 50 Hz ~
Power consumption: 1350 W
DMX control channels: 1
DMX512 connection: 3-pin XLR
Snow output: 120 ml/min.
Tank capacity: 2.5 litres
Fluid-consumption: 10 l/h
Dimensions (LxWxH): 510 x 330 x 355 mm
Weight: 11 kg
Fuse: F 8 A, 250 V
Accessory:
EUROLITE Snow fluid, 5L No. 51706350
Safety bond AG-15 4x1000mm up to 15kg	No. 58010364

Please note: Every information is subject to change without prior notice. 26.05.2010 ©
