USER MANUAL LWP273B LG

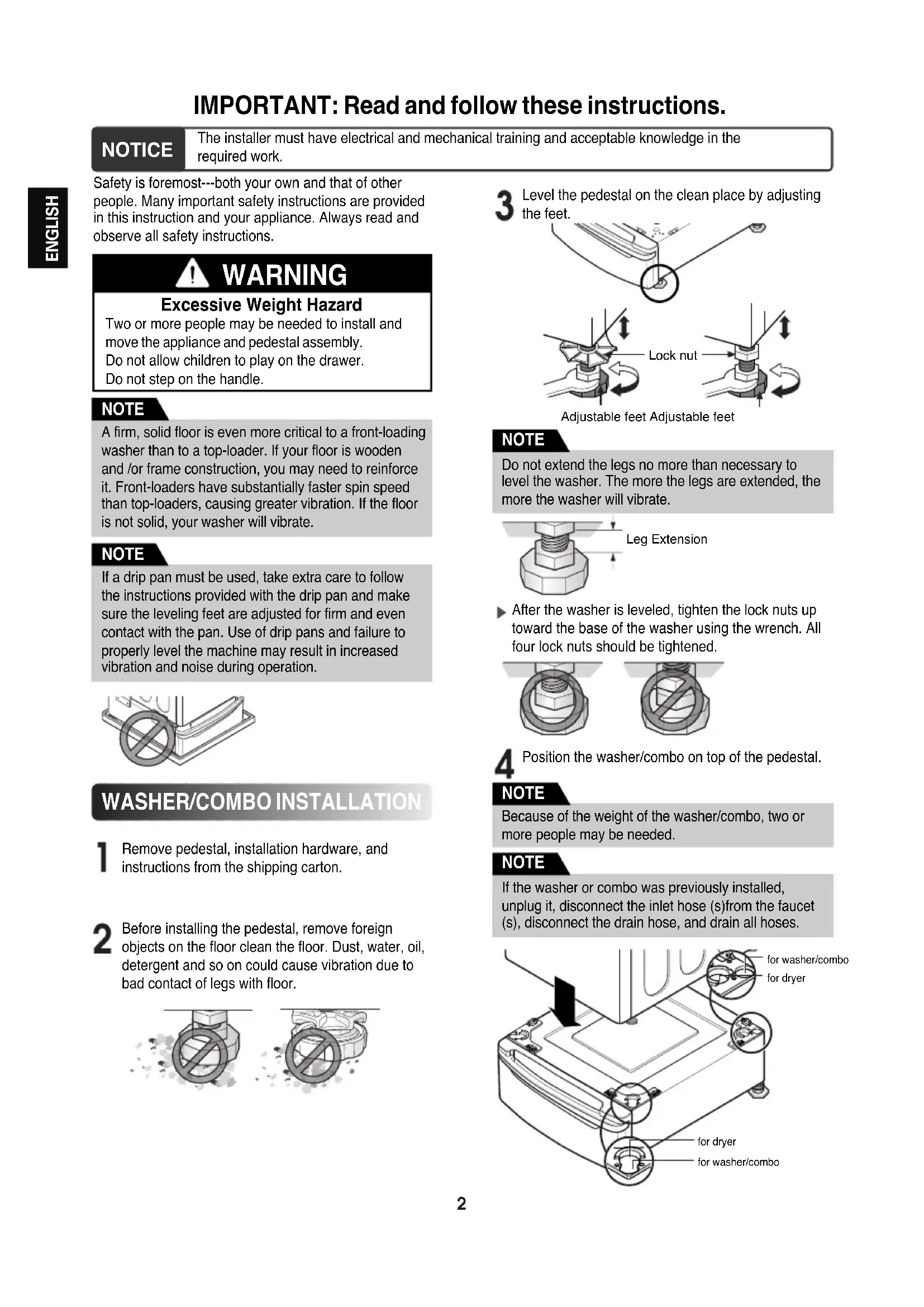

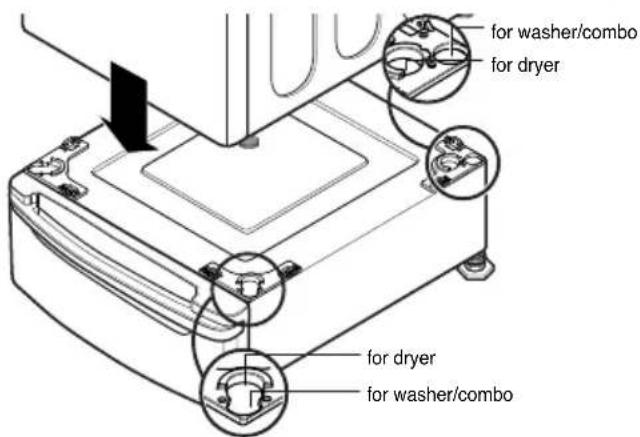

11p 14p 17p ENGLISH FRENCH SPANISH GERMAN SWEDISH NORWEGIAN FINNISH DANISH CHINESE PORTUGAL DUTCH KOREA2 ENGLISHfor washer/combofor dryerfor dryerfor washer/comboLock nutAdjustable feet Adjustable feetLeg Extension IMPORTANT: Read and follow these instructions. NOTICE The installer must have electrical and mechanical training and acceptable knowledge in therequired work.Safety is foremost---both your own and that of otherpeople. Many important safety instructions are providedin this instruction and your appliance. Always read andobserve all safety instructions.Remove pedestal, installation hardware, andinstructions from the shipping carton.Position the washer/combo on top of the pedestal. WARNING Excessive Weight Hazard Two or more people may be needed to install andmove the appliance and pedestal assembly.Do not allow children to play on the drawer.Do not step on the handle.A firm, solid floor is even more critical to a front-loadingwasher than to a top-loader. If your floor is woodenand /or frame construction, you may need to reinforceit. Front-loaders have substantially faster spin speedthan top-loaders, causing greater vibration. If the flooris not solid, your washer will vibrate.

WASHER/COMBO INSTALLATION

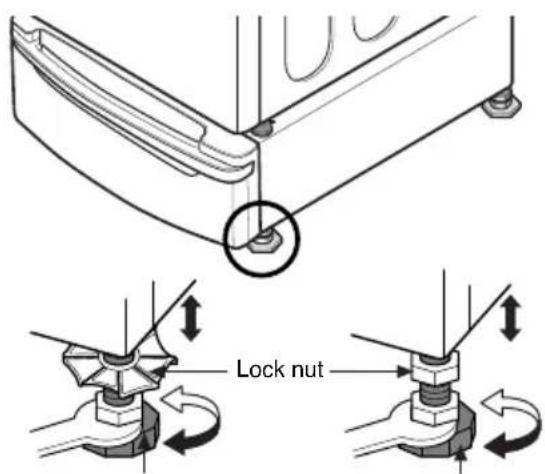

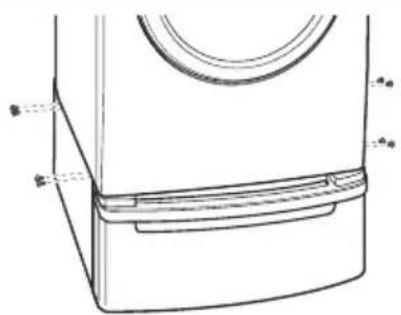

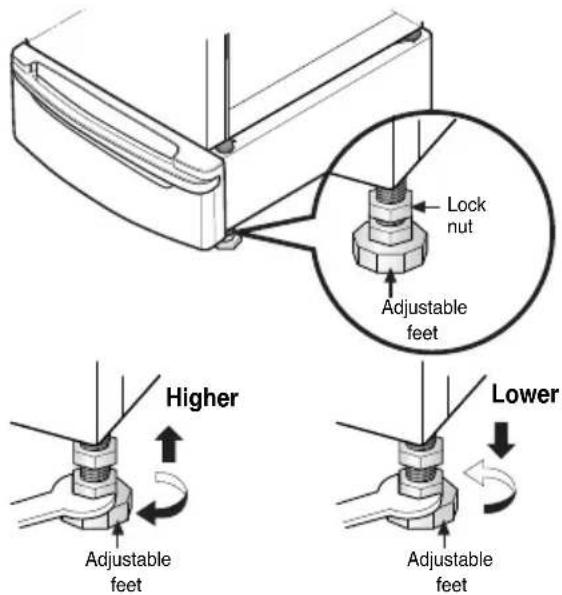

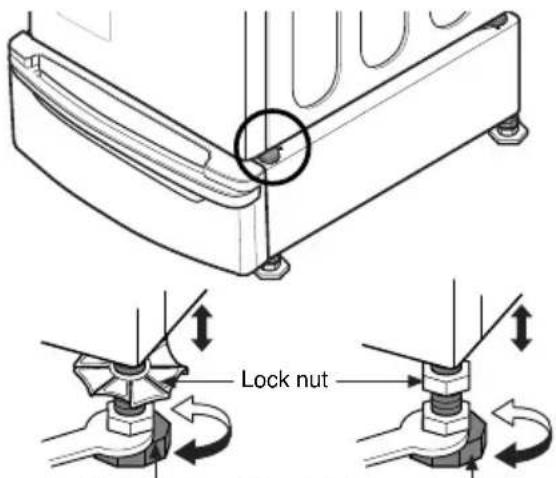

Before installing the pedestal, remove foreignobjects on the floor clean the floor. Dust, water, oil,detergent and so on could cause vibration due tobad contact of legs with floor.After the washer is leveled, tighten the lock nuts uptoward the base of the washer using the wrench. Allfour lock nuts should be tightened.Level the pedestal on the clean place by adjustingthe feet. NOTE If a drip pan must be used, take extra care to followthe instructions provided with the drip pan and makesure the leveling feet are adjusted for firm and evencontact with the pan. Use of drip pans and failure toproperly level the machine may result in increasedvibration and noise during operation. NOTE Do not extend the legs no more than necessary tolevel the washer. The more the legs are extended, themore the washer will vibrate. NOTE Because of the weight of the washer/combo, two ormore people may be needed. NOTE If the washer or combo was previously installed,unplug it, disconnect the inlet hose (s)from the faucet(s), disconnect the drain hose, and drain all hoses. NOTE3 ENGLISH Make sure the holes on the pedestal align with the holes in the appliance, then install 4 screws at each corner to securely attach the appliance to the pedestal. Level the washer/combo on the pedestal by adjusting the feet. Lock nut Adjustable feet Adjustable feet Move the washer/combo to the desired place. Diagonal Check When pushing down the edges of the washing machine top plate diagonally, the machine should not move up and down at all.(Please check both directions.) If the machine rocks when pushing the machine top plate diagonally, adjust the feet again. NOTE To make sure that the washer is properly level, run the washer with a test load: place approximately 6 pounds of laundry in the machine. Then press POWER, press RINSE+SPIN, and then press the START/PAUSE button. See the following sections for additional information on cycle selection and operation. Verify that the washer does not rock or vibrate excessively during the spin cycle. If the washer vibrates or shakes, adjust the leveling feet until the washer is stable and retest. NOTE If the screws are not installed properly, noise and vibration may result. NOTE The appliance and pedestal assembly must be placed on a solid and level floor for proper operation. Adjust the legs of the appliance and pedestal by turning with a wrench. Then, adjust the lock nut toward the pedestal while holding the pedestal leg using a wrench. NOTE Lock nut Adjustable feet Adjustable feet4 ENGLISH Because of the weight of the dryer, two or more people may be needed. NOTE Remove pedestal, installation hardware, and instructions from the shipping carton. Make sure the holes on the pedestal align with the holes in the appliance, then install 2 screws at each corner to securely attach the appliance to the pedestal. DRYER INSTALLATION Position dryer on top of the pedestal. Insert the T-clip of the 4 retainers into the dryer base as shown. Press up on the back of the clip and pull outward to lock into place. for washer/ combo for dryer for dryer for washer/ combo If dryer was previously installed, uninstall it as follows: NOTE A. Uninstalling an electric dryer:

1) Unplug the power supply cord,

2) Pull the dryer away from the wall enough to loosen

the vent clamp. Loosen the clamp and carefully remove the exhaust vent from the dryer exhaust outlet. B. Uninstalling a gas dryer:

1) Unplug power supply cord.

2) Turn off the gas supply.

3) Pull the dryer away from the wall enough to loosen

25.4" (64.5cm) 18.4" (46.7 cm)

(7.7cm) 27" (68.6cm) 13.6" (34.5cm)
