USER MANUAL 49UK6300PVB LG

MANUEL D'UTILISATION

Sécurité et ↔

Téléviseur LED*

RISQUE D'LECTROCUTION NE PAS OUVRIR

AVERTISSEMENT: AFIN DE RÉDUIRE LE RISQUE D'ÉLECTROCUTION, NE RETIREZ PAS LE CAPOT (OU L'ARRÊRE). AUCUNE PIECE N'EST REPARABLE PAR L'UTILISATEUR LUI-MÉME. CONFIEZ L'ENTRETIEN DE CET APPAREIL À UN PERSONNEL QUALIFIÉ.

• Image shown may differ from your TV.
• Image shown on a PC or mobile phone may vary depending on the OS(Operating System).
• App icon positions may vary on the platform, depending on the software version.

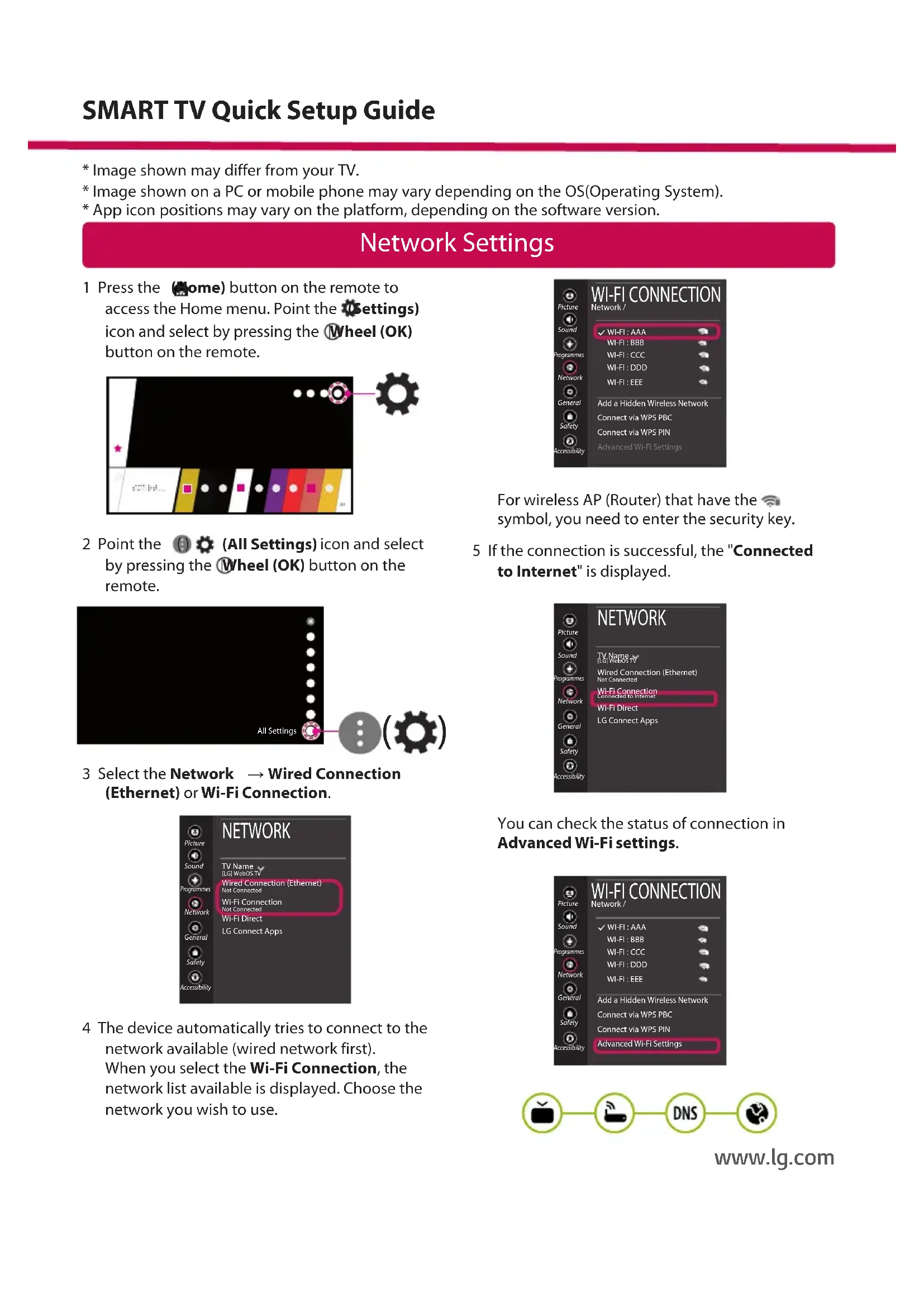

Network Settings

1 Press the Home) button on the remote to access the Home menu. Point the Settings) icon and select by pressing the Wheel (OK) button on the remote.

2 Point the (All Settings) icon and select by pressing the Wheel (OK) button on the remote.

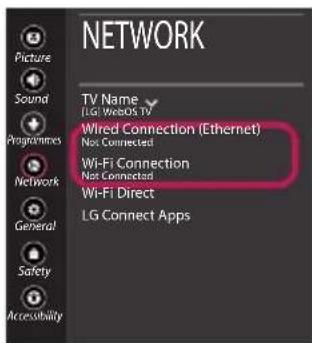

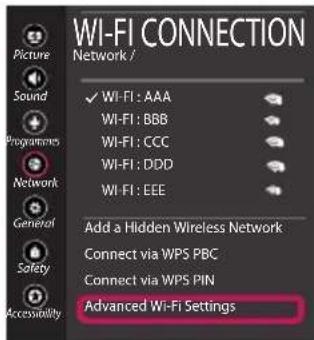

3 Select the Network Wired Connection (Ethernet) or Wi-Fi Connection.

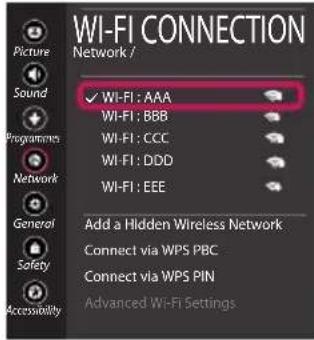

4 The device automatically tries to connect to the network available (wired network first). When you select the Wi-Fi Connection, the network list available is displayed. Choose the network you wish to use.

For wireless AP (Router) that have the symbol, you need to enter the security key.

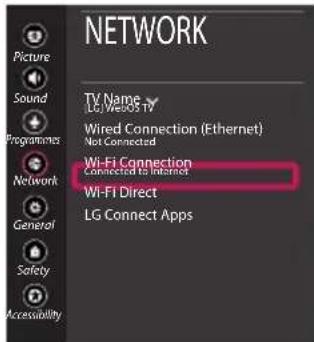

5 If the connection is successful, the "Connected to Internet" is displayed.

You can check the status of connection in Advanced Wi-Fi settings.

www.lg.com

Troubleshooting Network Problems

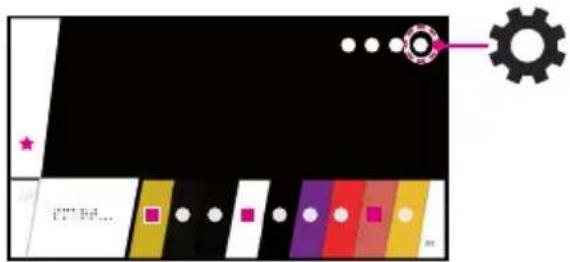

1 Press the Home) button on the remote to access the Home menu. Point the (Settings) icon and select by pressing the Wheel (OK) button on the remote.

2 Point the (All Settings) icon and select by pressing the Wheel (OK) button on the remote.

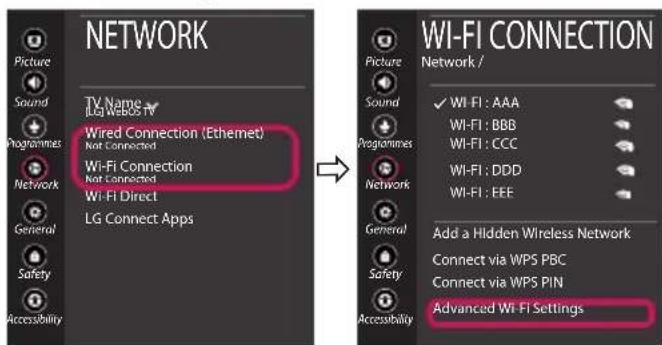

3 Select the Network Wired Connection (Ethernet) or Wi-Fi Connection Advanced Wi-Fi Settings.

Follow the instructions below that correlate to your network status.

Check the TV or the AP (Router).

When X appears next to TV:

1 Check the connection status of the TV, AP (Router).
Power off and power on the TV, AP (Router).
If you are using a static IP, enter the IP directly.
4 Contact internet service provider or AP (Router) company.

Check the AP (Router) or consult your Internet service provider.

When X appears next to Gateway:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
2 Initialize (Reset) the AP (Router).
Contact internet service provider or AP (Router) company.

When X appears next to DNS:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
2 Initialize (Reset) the AP (Router).
3 Check that the MAC address of the TV/AP (Router) is registered with your Internet service provider. (The MAC address displayed on the right pane of the network status window should be registered with your Internet service provider.)
Check the AP (Router) manufacturer's website to make sure your router has the latest firmware version installed.

SmartShare PC SW Installing & Setting

1. Install the SmartShare PC SW programme on your PC.
2. Go to www.la.com. Then, select your region.
   3 Select SUPPORT. Then, select Drivers & Software. SOFTWARE UPDATE or Software & Firmware.
3. Search for your model. Then, select SmartShare PC SW.
   5 You can run the programme when installation is complete.

NOTE

• SmartShare service is only available if TV and other devices are connected via a single AP (Router).

SmartShare Connection to Smartphone

1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network.
2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Open Device Connector application. (Home) Device Connector Smartphone CONTENT SHARE.
5 Select the file type you want to play (movie, audio or photo).
6 Select a movie, music or photo file to play on the TV.
7. Play the media file to view and enjoy it on your TV.

Updating the TV Firmware

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.

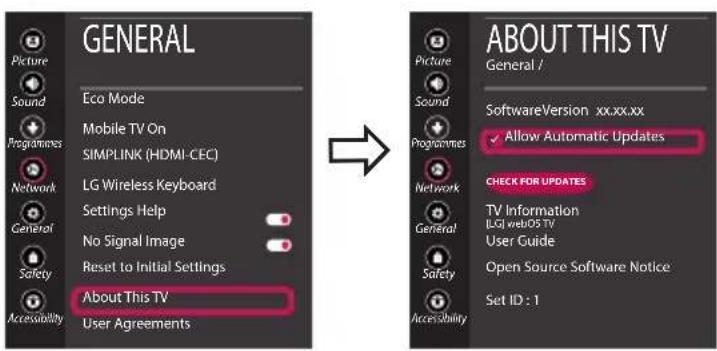

1 (Home) → (Settings) → (All Settings) → General → About This TV → CHECK FOR UPDATES

2 After checking the version of the software, update it. If you check the "Allow Automatic Updates", you can update the software automatically.

Wi-Fi Direct Setting

Home Settings (All Settings) Network Wi-Fi Direct

If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct.

With SmartShare, you can share files or screens of devices connected to Wi-Fi Direct.

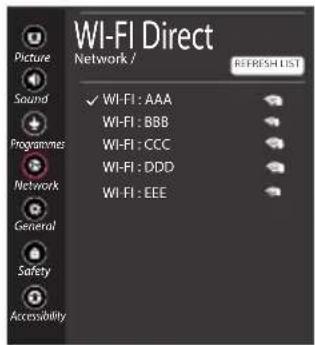

1 When you open Wi-Fi Direct menu, a list of available devices appears.
2 When you are prompted to request connection, select Yes. Wi-Fi Direct is now connected to your TV.

Miracast Setting

Miracast allows a portable device to securely send video and sound to the TV wirelessly.

1 Miracast should be set to "ON" on your portable device.
2 When your TV is detected, select the device on your portable device.

When connection is completed, the device screen appears on the TV screen.

MANUEL D'UTILISATION

CONFIGURATION DU PÉRIPHÉRIQUE DE CONTROLLE EXTERNE

Type DE9 (D-Sub 9 broches) Type

Transmission [k][f][[Set ID][ ][Data][Cr]

Total = ma 00 23 00 00 00 00 01

Total = ma 00 00 00 1E 00 03 22

Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]

[Data 02][Data 03][Data 04][Data 05]

[x][a][ ][[Set ID][ ][[NG][Data 00][x]

Pour le Japon

Total = ma 00 00 00 11 00 01 02

1. Recherche du chaine 30 BS (ISDB-BS).

Total = ma 00 00 00 1E 00 00 07
