USER MANUAL the Smart Waffle BWM640 BREVILLE

Breville Consumer Support

USA

Mail: Breville USA

19400 S. Western Ave

Torrance CA

90501-1119

Phone: [phone]

1-866-BREVILLE

Web: brevilleusasupport.com

Canada

Mail: Breville Canada

3595 boulevard Côte-Vertu,

Saint-Laurent, Québec,

H4R 1R2

Phone: [phone]

Email: [e-mail]

www.breville.com

Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928.

Copyright Breville Pty. Ltd. 2014.

Due to continued product improvement, the products illustrated/photographed

in this book may vary slightly from the actual product.

BWM620XL/BWM640XL - C14

Breville®

the Smart Waffle Pro™

Exterior view of a modern kitchen griddle with digital display and control knobs (no text or symbols on main body)

CONGRATULATIONS

on the purchase of your Breville product

Register online for product support and exclusive offers.\*

USA Consumers: www.brevilleusa.com

Canadian Consumers: www.breville.ca

CONTENTS

4 Breville recommends safety first
6 Know your Breville product
7 Operating your Breville product
8 Care & cleaning
9 Recipes
12 French

At Breville we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

• To protect against electrical shock do not immerse cord, plug, or this appliance in water or any other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Do not leave the appliance unattended when in use.
• Unplug from outlet when not in use and before cleaning. Allow to cool before adding or removing parts, and before cleaning the appliance.
• It is recommended to regularly inspect the appliance and power cord. Do not use the appliance if there is damage to the power cord or plug, or after the appliance malfunctions, or has been damaged in any way. Immediately stop use and call Breville Consumer Support.
• The use of accessory attachments not recommended by Breville may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of tables, counters, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.

• Do not touch hot surfaces. Appliance surfaces are hot during and after operation. To prevent burns or personal injury, always use protective hot pads or insulated oven mitts, or use handles or knobs where available.

• Extreme caution must be used when moving an appliance containing hot oil or other liquids.

• To disconnect, turn the control to the OFF position, then remove plug from power outlet.
• Do not use appliance for anything other than its intended use.
• The appliance is not intended to be operated by means of an external timer or separate remote-control.

ADDITIONAL SAFEGUARDS

• Remove and safely discard any packaging material or promotional labels before using the appliance for the first time.
• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this appliance.
• Ensure that the surface where the appliance operates is stable, level, clean and dry.
• If any of the contained instructions or warnings are not understood please contact Breville Consumer Support for assistance.
• For any maintenance other than cleaning, call Breville Consumer Support or visit a Breville Authorized Servicer.

SHORT CORD INSTRUCTIONS

Your Breville appliance is fitted with a short power supply cord to reduce personal injury or property damage resulting from pulling, tripping or becoming entangled with a longer cord. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use. If an extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the cord should be arranged so that it will not drape over the countertop or table-top where it can be pulled on by children or tripped over unintentionally and (3) the extension cord must include a 3-prong grounding plug.

BREVILLE ASSIST® PLUG

Your Breville appliance comes with a unique Assist® Plug, conveniently designed with a finger hole to ease removal from the power outlet.

CALIFORNIA PROPOSITION 65:

(Applicable to California residents only).

This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

FOR HOUSEHOLD USE ONLY SAVE THESE INSTRUCTIONS

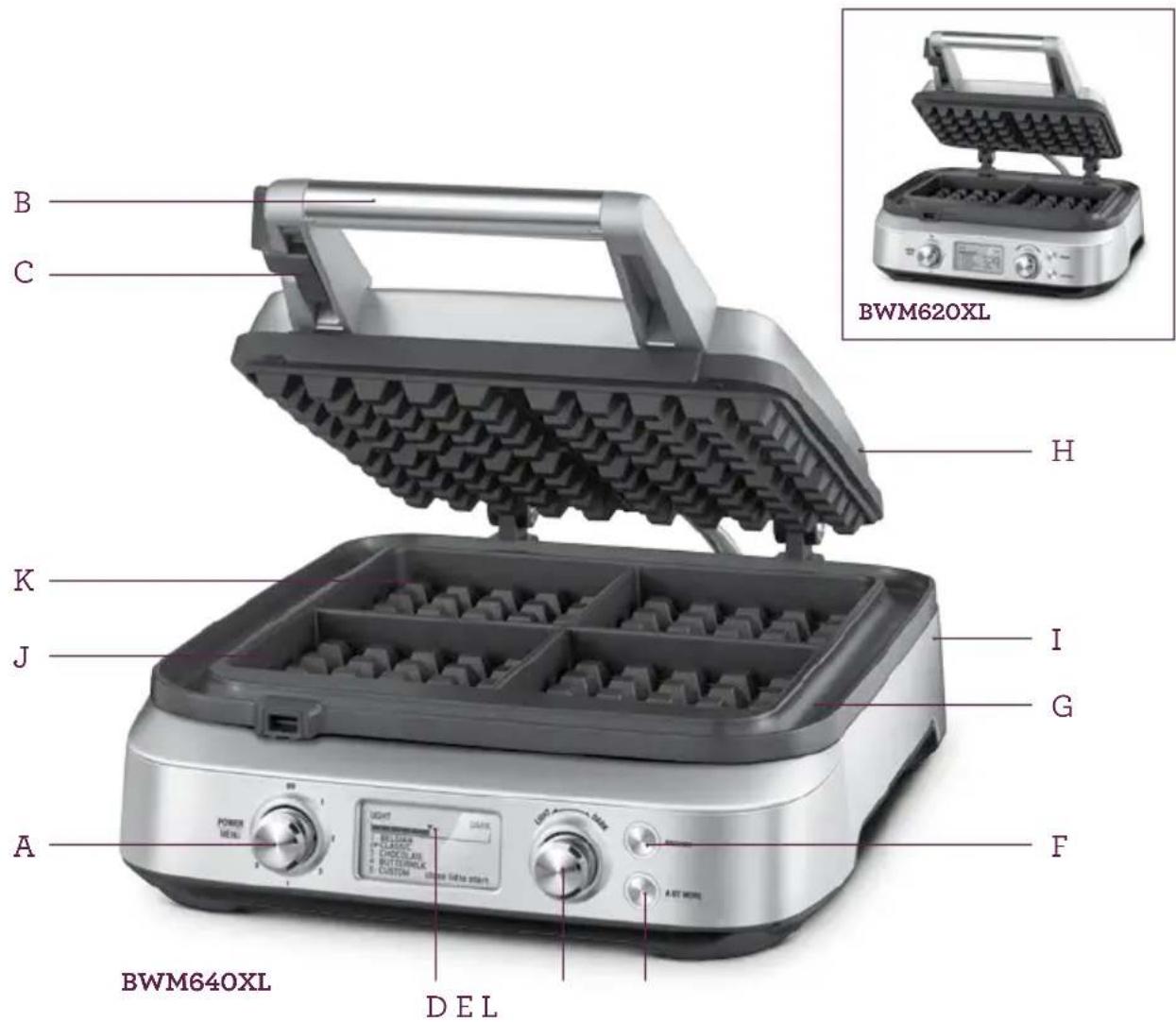

BWM620XL BWM640XL DEL POWER MINI A J K H I G F CUSTOM BWM640XL

A. POWER|MENU dial

Select from four waffle types and a CUSTOM setting.

B. Cool-touch handle

Integrated switch automatically starts the countdown timer when the lid is closed.

C. Locking latch

D. LCD with countdown timer

Color changing LCD indicates when the waffle maker is preheating, ready or cooking.

E. Darkness control dial

12 different darkness settings allow you to customize waffle color from light to dark.

F. RESTART button

Resets the timer for the next batch of waffles.

G. Integrated moat

Overflow moat catches any excess batter and cooks it for mess-free clean up.

H. Stainless steel housing

I. Breville Assist ^® plug (not shown)

J. PFOA-free non-stick

Prevents waffles from sticking.

K. Die-cast aluminum cooking plates

Thicker cooking plates for better heat retention and even browning.

L. A BIT MORE ^® button

Adds additional time to the cooking cycle to get your waffle just right.

M. BPA-free dosing cup (not shown)

Specially designed to portion enough batter for 2 waffles.

OPERATING YOUR BREVILLE PRODUCT

Before first use, remove and safely discard any packing material, promotional labels and tape from the waffle maker.

1. Wipe the waffle maker cooking plates with a damp sponge or cloth. Dry thoroughly and close the lid.
2. Place the waffle maker on a flat, dry surface. Ensure there is a minimum distance of 4" (10cm) of space on all sides of the waffle maker. Do not place anything on top of the waffle maker.
3. Unwind the power cord completely and insert the power plug into a grounded 110/120V power outlet.
4. Turn the POWER|MENU dial clockwise until the dial indicator reaches the desired waffle type or choose the CUSTOM setting. 'HEATING' will be displayed on the LCD.

NOTE

When using the waffle maker for the first time, you may notice a fine smoke haze. This is caused by the initial heating of some of the components and is not a cause for concern.

1. Use the darkness control dial to adjust the brownness of your waffle. There are 12 darkness settings ranging from LIGHT to DARK. The waffle maker will adjust the cooking time based on your selected waffle color. When making your first waffle, we suggest using default setting '6'.
2. Once the waffle maker has completed preheating, an audible alert will sound and the LCD will turn orange.

3. Open the lid. The LCD will turn blue and 'Close lid to start' will appear. Fill the provided dosing cup with batter, then pour approximately 12 cup evenly on the center of each waffle square. The batter should cover the peaks of the waffle plate.

4. Close the lid but keep the locking latch open. The LCD will turn orange and the countdown timer will automatically start.

5. At the end of the cooking cycle, an audible alert will sound and 'End' will appear on the LCD. Open the lid and carefully remove your waffles. Do not use metal utensils as they can scratch the non-stick surface.

NOTE

If waffles are not removed immediately after the cooking cycle has completed, an audible alert will sound every 30 seconds.

1. To cook more waffles, repeat steps 7-9 above. If the countdown timer needs to be reset, press the RESTART button.

NOTE

The cooking time may change on repeat batches. This is Waffle IQ ^™ calculating the cooking time depending on the selected waffle type, darkness setting and temperature of the cooking plates.

1. If you are not cooking any more waffles, turn the POWER|MENU dial to the OFF position.

A BIT MORE®

If your waffle color is too light, one press of this button adds a little extra cooking time. This feature can be selected before, during or immediately after the cooking cycle has finished. The additional cooking time is proportional to the total cooking time of the selected waffle type and darkness setting.

CARE & CLEANING

Before cleaning, ensure the POWER | MENU dial is set to the OFF position and then remove the power plug from the power outlet.

Allow your waffle maker to cool a bit before cleaning. The waffle maker is easier to clean when slightly warm.

Always clean your waffle maker after each use to prevent a buildup of baked-on foods. Wipe cooking plates and overflow moat with a soft cloth to remove food residue.

CAUTION

DO NOT IMMERSE ANY PART OF THE BREVILLE WAFFLE MAKER IN WATER OR ANY OTHER LIQUID.

PFOA-FREE NON-STICK COATING

The cooking plates, hinges and overflow moat are coated with a PFOA-FREE non-stick finish. This minimizes the need for oil, prevents food from sticking, and makes cleaning easier.

Do not use metal or other abrasive cleaning tools on non-stick surfaces as they will damage the coating. Use only warm soapy water and remove stubborn residue with a non-abrasive plastic scouring pad or nylon brush.

NOTE

Do not use non-stick cooking sprays as they can impact the performance of the non-stick surface on the cooking plates.

STORAGE

To store your waffle maker:

1. Ensure the POWER | MENU dial is set to the OFF position and then unplug power cord from the power outlet.
2. Allow the waffle maker to cool completely.
3. Set the locking latch to the locked position.
4. Wrap the power cord around the cord wrap area below the waffle maker.
5. Store the waffle maker on a flat, dry level surface.

NOTE

The locking latch should not be used when batter is in the cooking plates.

RECIPES

CLASSIC WAFFLES

Makes 8-10 waffles

INGREDIENTS

2 cups all-purpose flour

1 tablespoon baking powder

14 cup sugar

1 teaspoon kosher salt

1 34 cups milk

3 eggs

5 ounces butter, melted and slightly cooled

1 teaspoon vanilla

METHOD

1. Whisk dry ingredients together in a medium bowl.

2. Whisk milk, eggs, melted butter and vanilla together in another medium bowl.

3. Make a well in the center of the dry ingredients. Pour the milk mixture into the well and whisk until the ingredients are just combined. Do not over-mix the batter (it will be slightly lumpy). For best results, let the batter rest while preheating the waffle maker.

4. Select CLASSIC setting and the desired darkness setting.

5. Preheat the waffle maker until the LCD turns orange and 'HEATING' disappears.

6. Pour approximately 12 cup of batter evenly on the center of each waffle square. Close the lid but keep the locking latch open.

7. At the end of the cooking cycle, open the lid carefully and remove your waffles. Repeat with remaining batter.

BELGIAN WAFFLES

Makes 8 waffles

INGREDIENTS

2 ^1/4 cups all-purpose flour

1 tablespoon baking powder

3 tablespoons sugar

^1/_2 teaspoon kosher salt

2 cups milk

3 eggs, separated

5 ounces butter, melted and slightly cooled

1 teaspoon vanilla

METHOD

1. Whisk dry ingredients together in a medium bowl.

2. Whisk milk, egg yolks, melted butter and vanilla together in another medium bowl.

3. Make a well in the center of the dry ingredients. Pour the milk mixture into the well and whisk until the ingredients are just combined.

4. Beat egg whites with an electric hand mixer until stiff, but not dry, peaks form. Gently fold egg whites into batter. For best results, let the batter rest while preheating the waffle maker.

5. Select BELGIAN setting and the desired darkness setting.

6. Preheat the waffle maker until the LCD turns orange and 'HEATING' disappears.

7. Pour approximately 12 cup of batter evenly on the center of each waffle square. Close the lid but keep the locking latch open.

8. At the end of the cooking cycle, open the lid carefully and remove your waffles. Repeat with remaining batter.

BUTTERMILK WAFFLES

Makes 8 waffles

INGREDIENTS

2 cups all-purpose flour
1 tablespoon baking powder
3 tablespoons sugar
^1/_2 teaspoon kosher salt
2 cups buttermilk
3 eggs
3 ounces vegetable oil

METHOD

1. Whisk dry ingredients together in a medium bowl.
2. Whisk buttermilk, eggs and vegetable oil together in another medium bowl.
3. Make a well in the center of the dry ingredients. Pour the buttermilk mixture into the well and whisk until the ingredients are just combined. Do not over-mix the batter (it will be slightly lumpy). For best results, let the batter rest while preheating the waffle maker.
4. Select BUTTERMILK setting and the desired darkness setting.
5. Preheat the waffle maker until the LCD turns orange and 'HEATING' disappears.
6. Pour approximately 12 cup of batter evenly on the center of each waffle square. Close the lid but keep the locking latch open.
7. At the end of the cooking cycle, open the lid carefully and remove your waffles. Repeat with remaining batter.

CHOCOLATE WAFFLES

Makes 8 waffles

INGREDIENTS

4 tablespoons butter
2 ounces bittersweet chocolate
1 ½ cups all-purpose flour
12 cup cocoa powder
^1/_2 cup sugar
1 12 teaspoons baking powder
12 teaspoon kosher salt
1 12 cups milk
2 eggs
1 teaspoon instant coffee
12 teaspoon vanilla

METHOD

1. Melt the butter and bittersweet chocolate in a microwave or over a double-boiler.
2. Whisk dry ingredients together in a medium bowl.
3. Whisk milk, eggs, instant coffee and vanilla together in a small bowl to combine.
4. Make a well in the center of the dry ingredients. Pour the milk mixture into the well and whisk until the ingredients are just combined. Add the melted butter and chocolate and whisk to combine. Do not over-mix the batter (it will be slightly lumpy).
5. Select CHOCOLATE setting and the desired darkness setting.
6. Preheat the waffle maker until the LCD turns orange and 'HEATING' disappears.
7. Pour approximately 12 cup of batter evenly on the center of each waffle square. Close the lid but keep the locking latch open.
8. At the end of the cooking cycle, open the lid carefully and remove your waffles. Repeat with remaining batter.
