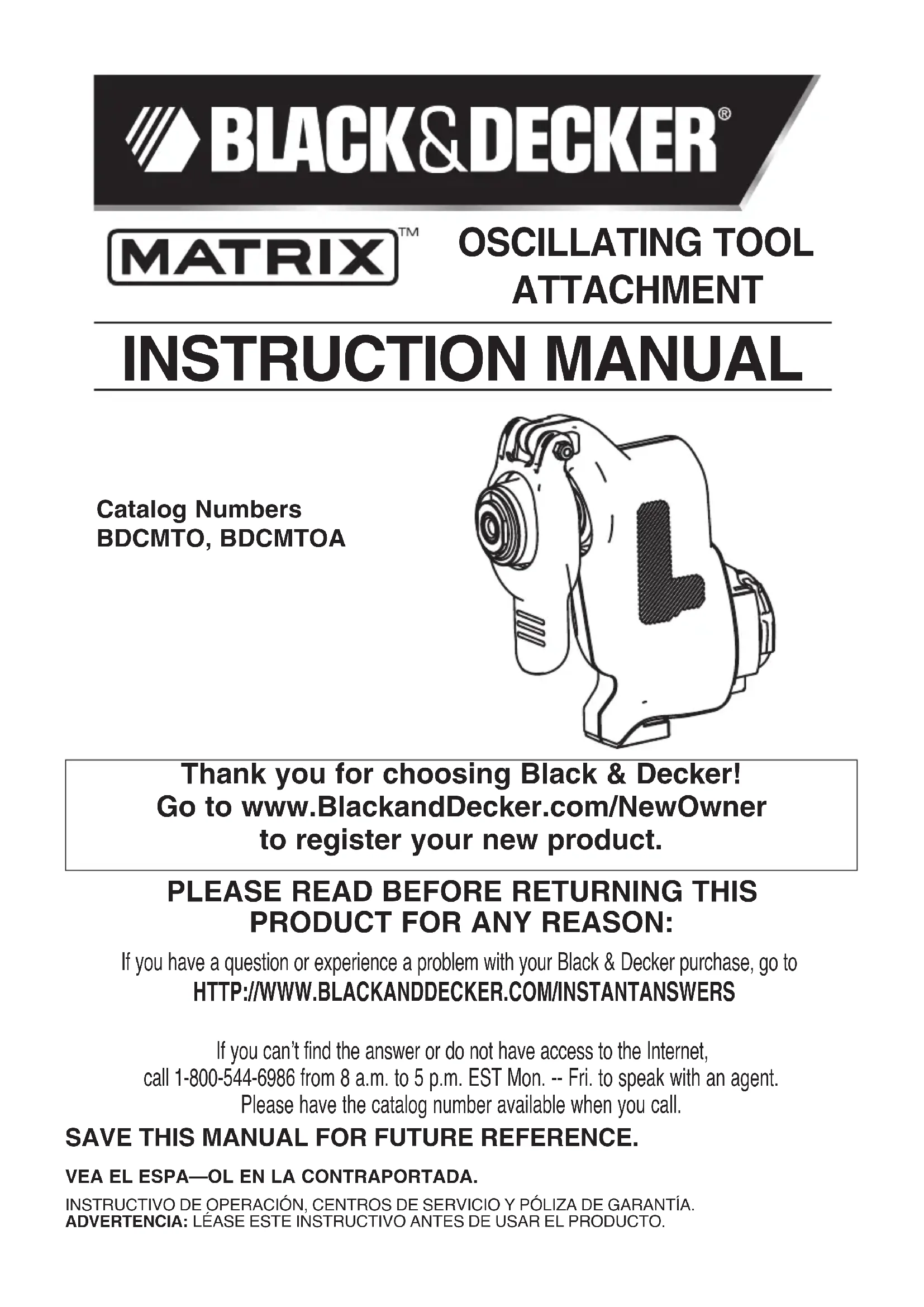

Matrix BDCMTOA - Multitools BLACK & DECKER - Free user manual and instructions
Find the device manual for free Matrix BDCMTOA BLACK & DECKER in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Oscillating Multi-Tool |
| Brand | Black & Decker |
| Model | BDCMTOA (Matrix) |
| Catalog Number | BDCMTO, BDCMTOA |
| Power Source | Battery pack (12 V max) or compatible AC power supply |
| Variable Speed | Yes, via variable speed trigger |
| Accessory Change | Tool-free, via clamping lever |
| Accessory Attachment System | 8 pins for secure attachment |
| Main Applications | Sanding, plunge cutting, scraping, material removal |
| Sanding Pad | Diamond shape, hook and loop attachment |
| Universal Adapter | Yes, compatible with accessories from many manufacturers (except Black & Decker) |
| Included Accessories | Plunge cut blade, sanding pad, abrasive sheets, adapter, bolt and washer, hex key |
| Warranty | 2 years for domestic use |
| Maintenance | Clean with mild soap and a damp cloth |
| Recommended Eye Protection | Safety glasses compliant with ANSI Z87.1 |
| Recommended Hearing Protection | Hearing protection compliant with ANSI S12.6 |
| Recommended Respiratory Protection | NIOSH/OSHA approved dust mask |
| Motor Type | DC electric motor |
| Recommended Use | DIY and household tasks |
| After-Sales Service | Authorized repair centers or contact 1-800-544-6986 |
Frequently Asked Questions - Matrix BDCMTOA BLACK & DECKER
How do I change an accessory on the Black & Decker Matrix BDCMTOA?
To change an accessory, press the accessory clamping lever, remove the old accessory, then slide the new accessory between the shaft and the accessory holder, making sure it engages with the eight pins. Release the lever.
What types of accessories can I use with this tool?
The tool accepts specific oscillating accessories for sanding, plunge cutting, scraping, etc. A universal adapter is provided for using accessories from other brands (except Black & Decker).
How do I install the adapter for universal accessories?
Place the adapter plate on the oscillating tool module with the tabs facing up, put the accessory and the bolt with washer, then tighten with the supplied hex key.
What is the speed of the tool and how do I control it?
The speed is variable via the trigger: the harder you press, the higher the speed. Release the trigger to stop the tool.
Can I use this tool to sand lead-based paint?
It is not recommended to sand lead-based paint. If necessary, follow strict precautions: wear an approved dust mask, seal the work area, and clean thoroughly.
How do I clean the tool?
Clean the tool only with mild soap and a damp cloth. Do not let any liquid enter the tool and never immerse it.
What should I do if the tool does not start?
Ensure the module is correctly inserted into the power supply. If the problem persists, contact customer service at 1-800-544-6986 or check the website for a repair center.
What personal protective equipment should I wear?
Always wear safety glasses compliant with ANSI Z87.1, hearing protection ANSI S12.6, and a NIOSH/OSHA approved dust mask during use.
How do I attach sandpaper sheets to the sanding pad?
Align the sheet edges with the pad edges, press firmly, then briefly run the tool on a flat surface for optimal adhesion. You can rotate the worn sheet.
What is the warranty period and how to use it?
The warranty is 2 years for domestic use. In case of defect, return the product to your dealer or an authorized repair center with proof of purchase. Accessories are not covered.
