MSACFD1B - Computer accessory SONY - Free user manual and instructions

Product type	Memory Stick adapter (3.5-inch floppy disk drive)
Brand	Sony
Model	MSACFD1B
Dimensions (L x W x H)	94 x 3.45 x 90 mm
Weight (with batteries)	45 g
Power supply	2 CR2016 lithium batteries
Power consumption	85 mAh (at 6 V)
Compatible operating systems	Windows 95/98/Windows NT4.0 (Service Pack 3 and 4,5)
Required computer	IBM PC/AT with standard 1.44 MB floppy disk drive
Main functions	Read and write on Memory Stick via floppy disk drive, format Memory Stick, power saving with automatic standby
Read speed (500 KB file)	Approximately 15 seconds
Write speed (500 KB file)	Approximately 20 seconds
Operating temperature	5 °C to 55 °C
Operating humidity	20% to 80% (without condensation)
Maintenance and cleaning	Clean with a soft, dry cloth. Regularly clean the contact surface with the drive head.
Safety	Do not expose to shocks, vibrations, or static electricity. Do not touch the Memory Stick terminals. Keep out of reach of children (batteries).
Spare parts / repairability	Replaceable CR2016 lithium batteries. Adapter not repairable, contact Sony support.
General information	Manufactured in 1999. Compatible only with Memory Stick. Not compatible with Mavica devices.

Frequently Asked Questions - MSACFD1B SONY

How to install the driver for the MSACFD1B adapter?

Insert the supplied CD-ROM, go to Start > Run, type D:\English\Setup.exe and follow the instructions. Restart the computer after installation.

How to replace the adapter batteries?

Remove the battery cover by turning counterclockwise. Insert two new CR2016 batteries with the + sign facing up. Close by turning clockwise to the LOCK mark.

Why doesn't my computer recognize the Memory Stick?

Check that the batteries are installed and in good condition. Ensure that the driver is properly installed and that the adapter is fully inserted into the floppy disk drive.

How to format a Memory Stick with this adapter?

Use the 'Memory Stick Format' program installed with the driver. For more details, refer to the online help by right-clicking the icon in the taskbar.

The adapter is not working, are the batteries the cause?

Yes, weak or incorrectly inserted batteries can prevent access. Always replace both batteries at the same time with new CR2016 batteries.

What to do if the adapter goes into standby and stops responding?

The adapter goes into standby after 5 minutes of inactivity. Remove it from the drive and reinsert it to reactivate. Leave it out of the drive for a few moments if necessary.

Can I use this adapter with a laptop computer?

Yes, but it is recommended to use the optional PC card adapter MSAC-PC1/PC2 for laptops, as the floppy disk drive is not always standard.

How to uninstall the adapter driver?

Go to Control Panel > Add/Remove Programs, select 'Memory Stick/Floppy Disk Adaptor' and click Add/Remove. Confirm the removal.

Is the adapter compatible with Windows NT?

Yes, with Windows NT4.0 (Service Pack 3,4,5). Log in with administrator rights for installation. Note that the 2-mode driver is installed and cannot be used with a 3-mode driver.

What precautions should be taken for cleaning?

Clean the exterior with a soft, dry cloth. Gently wipe the contact surface with the drive head to avoid dust. Do not use chemical products.

USER MANUAL MSACFD1B SONY

For Windows 95/98/Windows NT4.0 Floppy Disk Adaptor for Memory Stick

Before operating the unit, please read this instructions thoroughly, and retain it for future reference.

For the customers in U.S.A.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For the customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

For the customers in Germany

Directive:EMC Directive 89/336/EEC. 92/31/EEC

This equipment complies with the EMC regulations when used under the following circumstances:

Residential area
Business district
- Light-industry district

(This equipment complies with the EMC standard regulations EN55022 Class B.)

• IBM PC/AT compatible desktop computer is required. A 3.5 inch 1.44 MB floppy disk drive must be provided as standard.
• We recommend that you use the optional PC card adaptor for Memory Stick, MSAC-PC1/PC2, when you use a notebook computer.
• You can not use this floppy disk adaptor with Digital Mavica or Mavicap.
• MSAC-FD1B may not work with certain models of personal computers or floppy disk drives.

Table of Contents

Before You Begin

Check the items supplied 4

Setting Up

Installing lithium batteries 5

7

Uninstalling driver 9

Operation

Inserting "Memory Stick" 10

Using MSAC-FD1 12

Icons on task bar 13

Formatting "Memory Stick" 13

On-line help 13

Additional Information

Precautions 14

Troubleshooting 16

Specifications 17

Notes

• Menus shown in the instructions may differ slightly from the actual software menus.

• The explanations in the instructions are based on an assumption of a good grounding in the operations of Windows 95/98/Windows NT4.0. For information on the operation of your computer and operating system, see the respective manuals.

• Dialog box illustrations in the instructions are for Windows 98.

Trademarks

• "Memory Stick" and are trademarks of Sony Corporation.
• Microsoft and Windows/Windows NT are either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
• IBM PC/AT is a registered trademark of International Business Machines Corporation of the U.S.A.
• All other company and product names are registered trademarks or trademarks of their respective companies.

The symbols for "trademark" and "registered," ^TM and ^ ,are omitted in these instructions.

Check the items supplied

Check to make sure the package contains all of the following items. If any item is missing, get in touch with your Sony dealer or local authorized Sony service facility.

MSAC-FD1

Floppy Disk Adaptor for Memory Stick

Driver software (CD-ROM) (1)

CR2016 lithium battery (2)

Operating Instructions for MSAC-FD1B (4)

Warranty (1)

Installing lithium batteries

The power source for the MSAC-FD1 consists of two lithium button batteries (CR2016).

(The CR2016 lithium battery will be indicated below simply as "battery.")

Before beginning operation, follow the steps shown below to install the batteries.

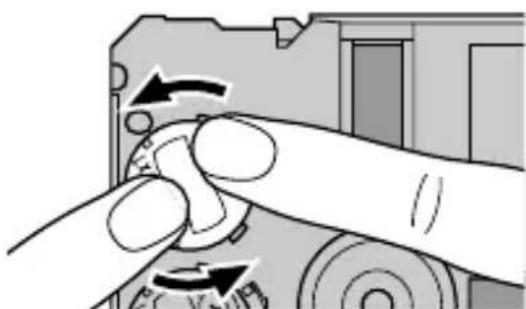

1 Remove battery covers

Place the MSAC-FD1 on a flat surface. With your finger, press and hold the upper groove on the battery cover. Turn the battery cover counterclockwise until it clicks and then remove the battery cover.

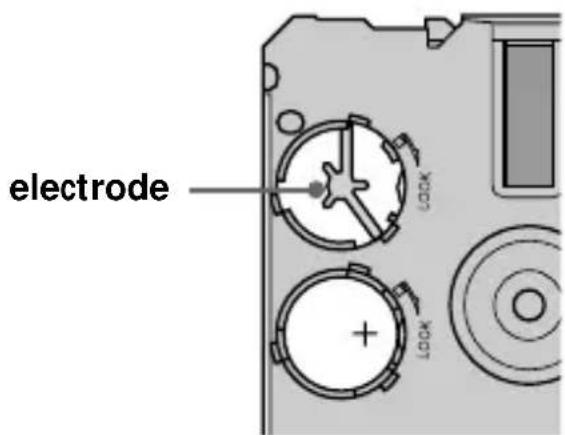

2 Insert batteries

Insert two new batteries into the battery wells, making sure that the plus sign faces upward.

Continued

Installing lithium batteries (continued)

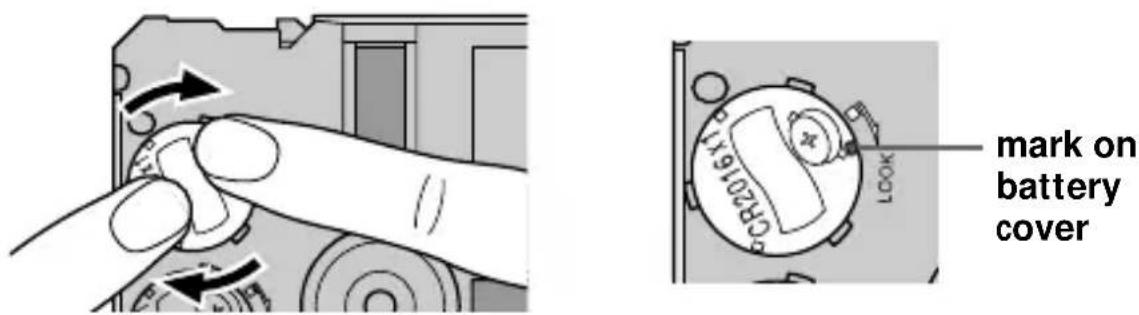

3 Replace the battery covers

After replacing the battery cover, press down and hold the upper groove with your finger and turn it clockwise until the mark is aligned with the arrow LOCK mark.

Notes

• Always replace both batteries at the same time.

• When attaching the battery cover, make sure you do not apply too much force in pressing on the cover. Too much force could break the cover.

WARNING

The battery may explode if mistreated. Do not recharge, disassemble, nor dispose of it in fire.

Lithium Battery

• Use lithium button battery CR2016. Use of any other battery may present a risk of fire or explosion. Discord used batteries according to the manufacturer's instructions.
• Keep the lithium battery out of the reach of children.
• Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to ensure good contact.

Installing driver

Install the software needed to use the adaptor.

If you are using Windows NT, log in with the permission of administrator.

1 Insert the CD-ROM supplied with the adaptor into the CD-ROM drive (in this example, the drive is “D”).

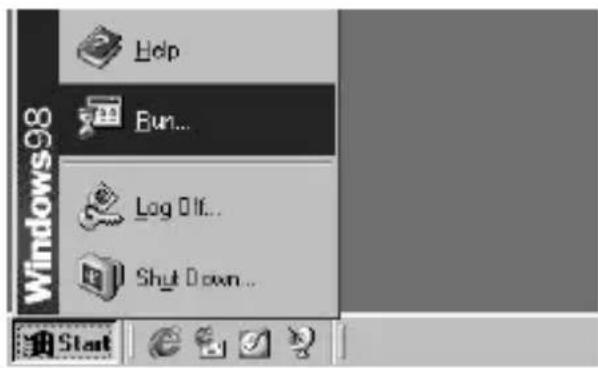

2 Go to the [Start] menu and select [Run...].

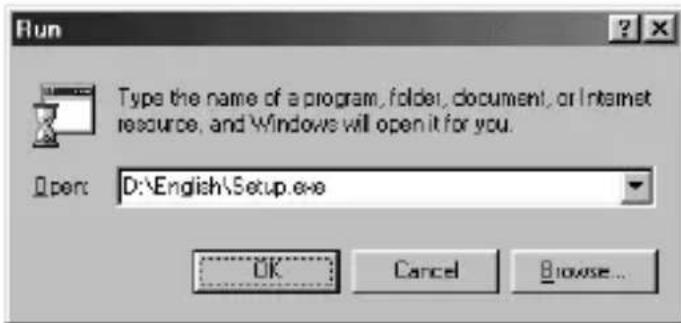

3 Type in "D:\English\Setup.exe" and click [OK].

Continued

Installing driver (continued)

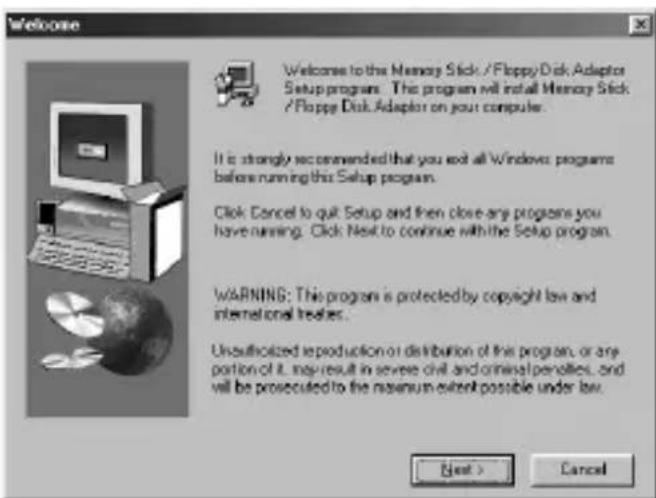

4 That starts up the installation program.

Follow the on-screen instructions to complete the installation of the program file.

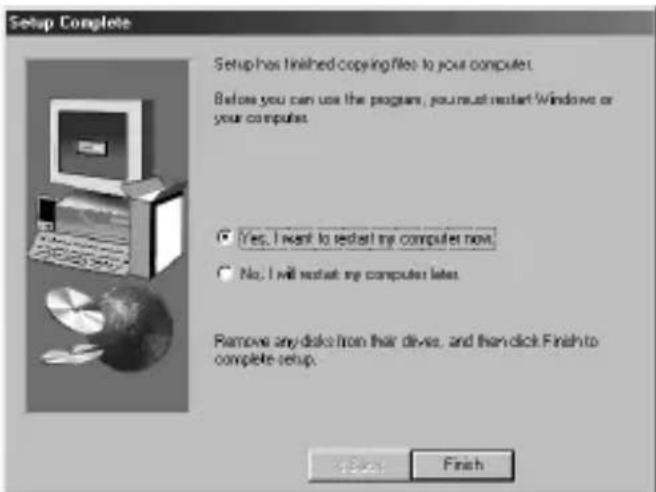

5 When the installation is complete, a message appears telling you to restart the computer. Follow the instructions and restart.

6 After the restart, a floppy disk icon will appear in the task bar. The installation has been successfully completed.

Uninstalling driver

1 Click on [Start], set the cursor on [Settings] and click on [Control Panel].

[Control Panel] window appears.

2 Double-click on [Add/Remove Programs].

[Add/Remove Programs Properties] appears.

3 If "Install/Uninstall" does not appear, click on the "Install/ Uninstall" tab.

The "Install/Uninstall" window then appears.

4 Select "Memory Stick/Floppy Disk Adaptor" and click on "Add/Remove...".

The "Confirm File Deletion" dialog box appears.

5 Click on [Yes].

• For more detailed information on "Add/Remove Programs," see Windows on-line help.

If there is no icon in the task bar, the uninstallation is successful.

Note

The adaptor can no longer be used after uninstall the software.

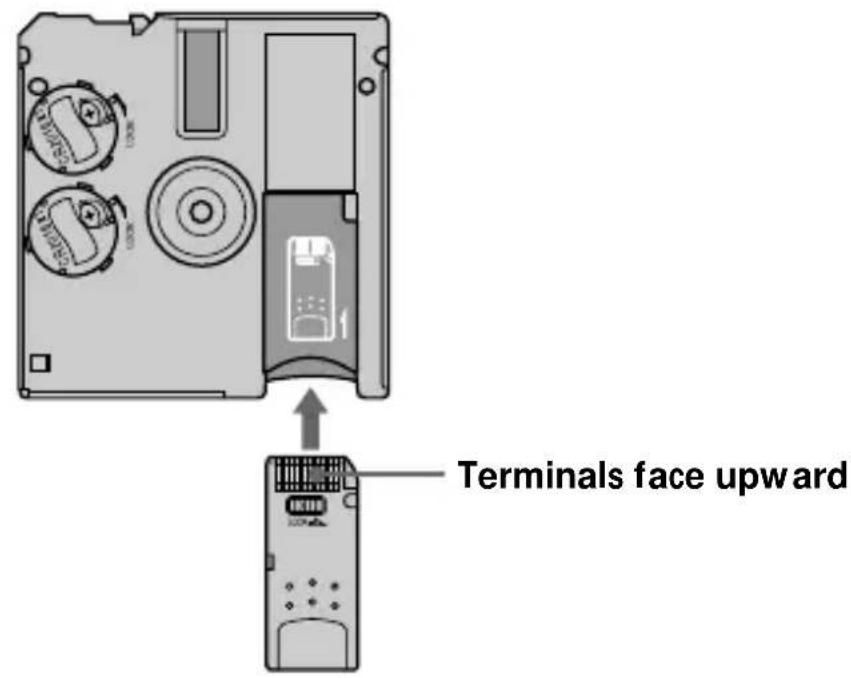

Inserting "Memory Stick"

Insert the "Memory Stick" as shown in the diagram all the way until it clicks.

Make sure that "Memory Stick" is seated securely in the floppy disk adaptor. Otherwise, it will not work correctly.

Note

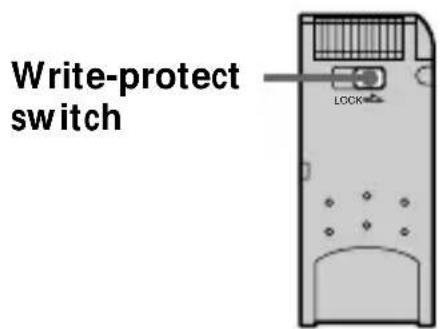

Setting the write-protect switch to "LOCK" position, prevents the writing or deleting of data into "Memory Stick" and formatting the "Memory Stick."

Removing "Memory Stick"

Grasp the "Memory Stick" that protrudes from part A of the floppy disk adaptor and pull out gently.

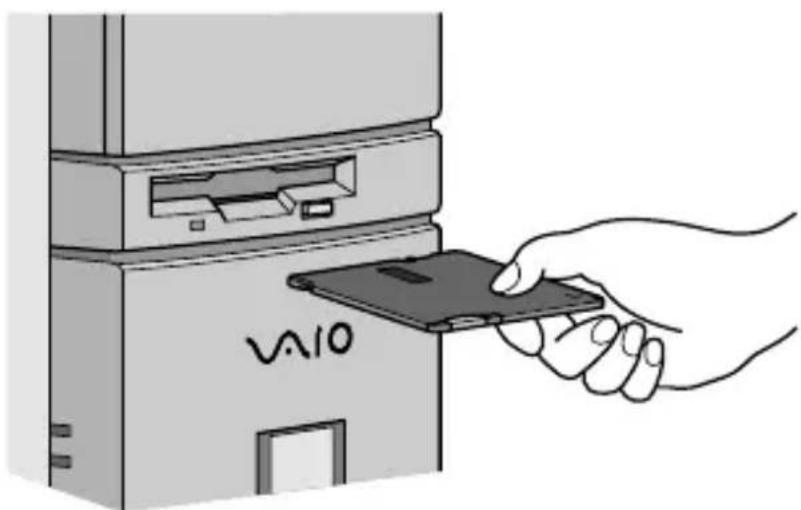

Using MSAC-FD1

Insert MSAC-FD1 into the floppy disk drive and double-click on "3.5 inch FD" that appears in the "My Computer" window.

• Procedures for use are the same as with a floppy disk.

Notes

• When copying a file onto the "Memory Stick" with the adaptor, the computer's "time-remaining" indication may not be correct.
• Do not compress the drive with adaptor inserted.
• Use the "Memory Stick Format" program to format a new "Memory Stick" (see p. 13).
• To conserve battery power, always remove the floppy disk adaptor from the drive when the adaptor is not in use.

If you are using Windows NT

A 2-mode driver is installed in addition to the driver software for this product. MSAC-FD1 cannot be used together with a 3-mode driver. To use a 3-mode driver, uninstall the driver software for this product.

Icons on task bar

For more detailed information on icons, see on-line help.

Icons on the task bar display adaptor and battery status.

• The status shown is that when the adaptor was most recently accessed.

Memo No. 1

• The icon does not change immediately after inserting the adaptor into the floppy disk drive. The icon changes when the adaptor is accessed.
• To show drive number and remaining battery charge, place the cursor on the Status Monitor icon.

Formatting "Memory Stick"

The "Memory Stick Format" program must always be used when the adaptor is used to format a "Memory Stick."

For instructions on how to use the "Memory Stick Format" program, see on-line help.

On-line help

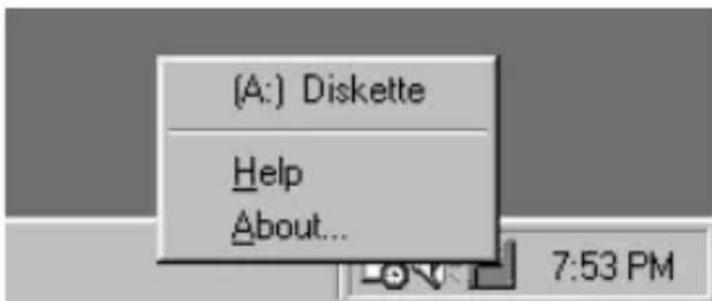

To get on-line help, right-click on the icon in the task bar and then click on [Help]. The on-line help window appears.

Memo

Use on-line help for a detailed description of error messages.

Precautions

MSAC-FD1 General precautions

• Do not carry the adaptor in your pocket or the like. It could be damaged when you sit down.
• Do not use or store the adaptor in any area where it could be subject to strong static electricity or electrical emissions.
• Always backup valuable data.
• To protect the floppy disk drive, remove the adaptor from the drive when it is not in use.
• Do not stick any label other than those specially provided onto the "Memory Stick."
• While the adaptor is being accessed, never remove the adaptor from the floppy disk drive, never turn off computer power, and never bump or apply shock to the computer. Any of these moves could destroy data on the "Memory Stick." (The "Memory Stick" can be used if reformatted but all the data on it will be lost.)
• Do not touch the "Memory Stick" terminals with hands or with metal objects.
• Do not allow foreign objects, dirt or dust to enter the "Memory Stick" insertion slot of the adaptor.

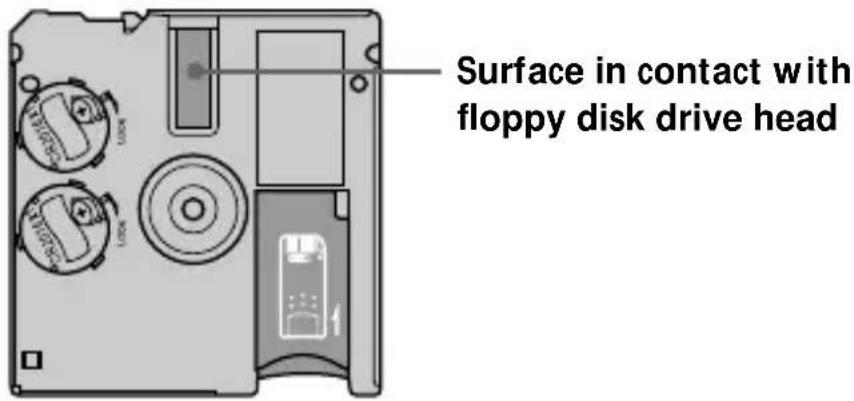

Cleaning

• If there is any dirt on the outside surface of the adaptor, wipe it off with a clean, soft, dry cloth.
• Keep the surface of the adaptor that contact the floppy disk drive head clean at all times. Wipe any dirt away with a clean, soft, dry cloth. If the contact surface gets dirty, floppy disk drive performance may deteriorate, or when a floppy disk is operated in the drive, the floppy disk will be scratched and its data will be lost.

Troubleshooting

Check the items listed below before calling for service. If there is still a problem after making these checks, call your Sony dealer or local authorized Sony Service facility.

Symptom	Remedy
Cannot install	•CD-ROM not inserted in drive. →Insert CD-ROM provided into the drive. •Installation file name is wrong. →See Operating Instructions. (p. 7)
Cannot access "Memory Stick"	•Battery charge is low or batteries have not been inserted into unit. →Replace the two batteries with new ones. (Replace both batteries at the same time.) •Batteries inserted incorrectly. →See Operating Instructions and install batteries correctly. (p. 5)
Power shuts off automatically	If the adaptor is not used for approx. five minutes, it goes automatically into sleep mode to conserve battery power. The adaptor cannot be accessed when it is in sleep mode. To use the adaptor again, remove it and then reinsert. If the adaptor is still in sleep mode, leave the adaptor for a while before reinserting it.

Specifications

os

Windows 95/98/Windows NT 4.0 (service pack 3 and 4,5)

Computer

IBM PC/AT compatible desktop computers

A 3.5 inch 1.44 MB floppy disk drive must be provided as standard.

Operating voltage

3.8 V - 6.6 V

Power consumption

85 mA (at 6V input)

Maximum outside dimensions

3.7 in. (length) · 0.14 in. (wide) · 3.54 in. (height) (94· 3.45· 90mm)

Weight (approx.)

1.6 oz (45 g) (with batteries and without "Memory Stick")

Operating conditions

Temperature: 41^ to 131^ (5^ to 55^)

Humidity: 20% to 80% (no condensation)

Battery operating time (at room temperature)

Continuos read ......... 16 hours (approx.)

Continuous write .... 12 hours (approx.)

(when Sony CR2016 batteries are used)

File access speeds (during use of 4MB "Memory Stick" and 500KB files)

File access speed (reading) .... 15 seconds (approx.)

File access speed (writing) .... 20 seconds (approx.)

The personal computer enviroment, size and number of files performing transfer and state of data recorded on the "Memory Stick" will cause slight changes in speed.

Notes

• We recommend that you use the optional PC card adaptor for Memory Stick, MSAC-PC1/PC2, when you use a notebook computer.
• You can not use this floppy disk adaptor with Digital Mavica or Mavicap.

Design and spesifications are subject to change without notice.

Operations cannot be guaranteed for all computers running in the recommended environment.

Français

Lecture continue .... 16 heures (approx.)

Ecriture continue .... 12 heures (approx.)

If you have any questions/comments related to this product, please visit our Customer Support website at

http://www.sony.com/service

(If you do not have internet access, please call 1-800-222 SONY.)
