USER MANUAL SS60K6050KW SAMSUNG

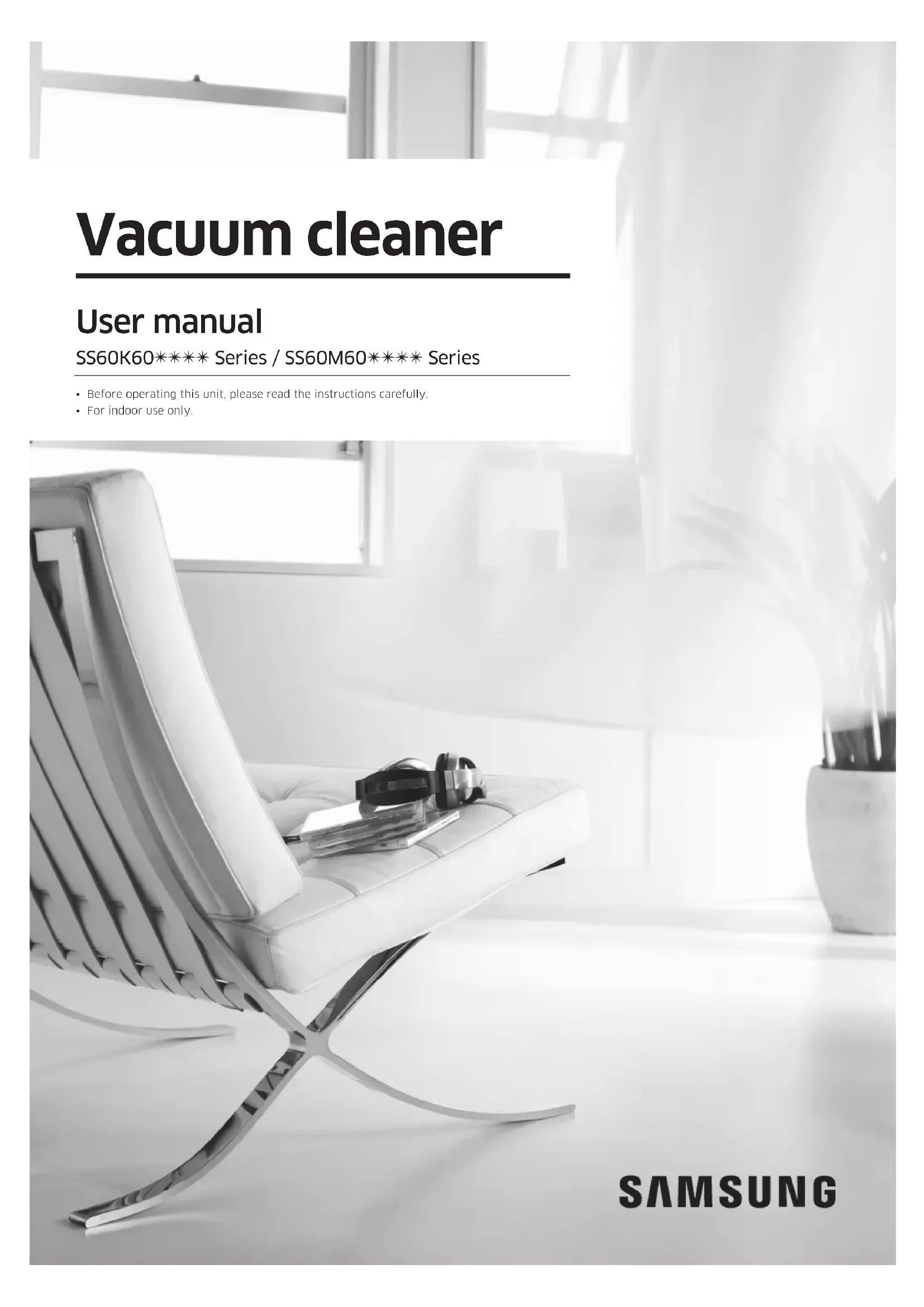

Vacuum cleaner User manual SS60K60

• Before operating this unit, please read the instructions carefully.

Contents PREPARATION Safety information 3 INSTALLATION Name of the parts 11 OPERATIONS Using the vacuum cleaner 12 Charging the stick vacuum cleaner 12 Assembling and Disassembling a battery 12 Using the stick vacuum cleaner 13 Using the handy vacuum cleaner 13 Using the crevice tool and dusting brush 14 Using the Long Reach Tool (option) 14 MAINTENANCE Maintaining the vacuum cleaner 15 Disassembling / Assembling the dustbin 15 Cleaning the dustbin 15 Cleaning the sponge lter 15 Cleaning the air intake 15 APPENDICES Notes and cautions 16 Battery usage 16 Operation 16 Maintenance 17 Troubleshooting 18 Accessories Crevice tool / Dusting brush Power cord Charger / battery User manual Long Reach Tool (option) 1_Stick_VS6000_EN_00745R-00_SW.indd 2 2017-07-13 오후 9:30:45English

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.

• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual. Caution/Warning symbols used WARNING Indicates that a danger of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists. Other symbols used NOTE Indicates that the following text contains additional important information.

• For information on Samsung’s environmental commitments and product specic regulatory obligations e.g. REACH visit: samsung.com/uk/ aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.htm Failure to meet these requirements could cause damage to the internal parts and void your warranty. Safety information PREPARATION 1_Stick_VS6000_EN_00745R-00_SW.indd 3 2017-07-13 오후 9:30:45English

• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.

• WARNING : Do not use the vacuum cleaner when rug or oor is wet.

• Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.

• Do not use the vacuum cleaner without a dustbin.

• Empty the dustbin before it is full in order to maintain the best efciency.

• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.

• Do not block the suction or the exhaust port.

• Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before emptying the dustbin. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

• The plug must be removed from the socket outlet before cleaning or maintaining the appliance. 1_Stick_VS6000_EN_00745R-00_SW.indd 4 2017-07-13 오후 9:30:45English

• The use of an extension cord is not recommended.

• If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in order to avoid a hazard.

• Unplug the cleaner when not in use. Turn off the power switch before unplugging.

• Do not use to suck up water.

• Do not immerse in water for cleaning.

• Please contact the manufacturer or service agent for a replacement. Battery charger

• Do not modify the polarized plug to t a non-polarized outlet or extension cord.

• Do not use outdoors or on wet surfaces.

• Unplug the charger from the outlet when not in use and before servicing.

• Use only the charger supplied by the manufacturer to recharge.

• Do not use with a damaged cord or plug.

• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not mutilate or incinerate batteries as they will explode at high temperatures.

• Do not attempt to open the charger. Repairs should only be carried out by a qualied customer care centre. 1_Stick_VS6000_EN_00745R-00_SW.indd 5 2017-07-13 오후 9:30:45English

• Do not expose the charger to high temperatures or allow moisture or humidity of any kind to come into contact with the charger. Stick vacuum cleaner

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.

• Do not use without a lter in place. When servicing the unit, never put ngers or other objects into the fan chamber in case the unit accidentally turns on.

• Do not put any objects into openings. Do not use with any openings blocked; keep openings free of dust, lint, hair, and anything that may reduce air ow.

• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).

• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

• Do not use to pick up ammable or combustible liquids such as gasoline, nor use on areas where they may be present.

• Do not use STICK vacuum cleaner in an enclosed space lled with vapours given off by oil based paint, paint thinner, moth proong substances, ammable dust, or other explosive or toxic vapours.

• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes, ush them immediately with clean water for a minimum of 10minutes. Seek medical attention. 1_Stick_VS6000_EN_00745R-00_SW.indd 6 2017-07-13 오후 9:30:45English

• Do not bend the power cord with excessive force or do not put heavy object on the power cord. – Otherwise, electric shock or re may occur.

• If there is dust, water, etc. on the pin or contact point of the power plug, wipe them carefully. – Otherwise, abnormal operation or electric shock may occur.

• Do not use a power source other than national rated voltage, do not use a multi outlet to supply power for multiple electronic appliances and do not leave the power cord carelessly on the oor. – Otherwise, electric shock or re may occur.

• Do not use a damaged power plug, power cord or loose power outlet. – Otherwise, electric shock or re may occur.

• If the power cord is damaged, replace the power cord with a new one by a certied repairman. – Otherwise, electric shock or re may occur. Operation WARNING

• Do not touch the terminal of a charger with chop sticks, driver, etc. – Otherwise, fatal damage to the charger may occur.

• Make sure that the terminal of a charger should not come into contact with a conductor such as a bracelet, watch, metal rod, nail, etc.

• Make sure that any liquid such as water or juice is not allowed to enter the charger. – Otherwise, electric shock or re may occur. 1_Stick_VS6000_EN_00745R-00_SW.indd 7 2017-07-13 오후 9:30:45English

• Do not use a charger for other purposes. – Otherwise, fatal damage to the charger or re may occur.

• Do not vacuum liquid, blade, pin, ember, etc. during the cleaning. – Otherwise, abnormal operation or product damage may occur.

• Do not step on the product body or do not give a shock to the product. – Otherwise, an injury or product damage may occur.

• The air intake and air outlet should not be blocked during the cleaning. – Otherwise, product malfunction or re may occur due to overheating of the product.

• This product is intended for household use, so do not use this product for a heavy duty. – Otherwise, abnormal operation or product damage may occur. – Outdoor cleaning: stone and cement – Billiards: chalk powder – Hospital aseptic room

• Do not use the product near a heating appliance such as a heater, combustible spray and ammable materials. – Otherwise, re or product deformation may occur.

• Before using the product, the sponge lter should be inserted. – Otherwise, dust can enter the motor inside the main body and it may cause product damage.

• When there is gas leakage or combustible spray is used, do not touch the power outlet with with hands and open the window for ventilation. – Otherwise, explosion or re may occur.

• When a strange sound, smell, smoke arises, turn off the product immediately and contact a service center. – Otherwise, electric shock or re may occur. 1_Stick_VS6000_EN_00745R-00_SW.indd 8 2017-07-13 오후 9:30:45English

• Before using the stick vacuum cleaner, check that the handy vacuum cleaner is assembled to the main body correctly. – When the handy vacuum cleaner is not assembled to the main body, the stick vacuum cleaner does not work.

• Do not use the product near a combustible material. – In a place where candlelight or desk lamp is placed on the oor. – In a place where heating is turned on without supervision or an ember exists. – In a place where combustible materials such as gasoline, alcohol, thinner, ashtray with unextinguished cigarette, etc. exist.

• Make sure a child does not step onto the charger or sit on the charger. – Otherwise, the child may fall and be injured or fatal product damage may occur.

• Before plugging or unplugging the charger, turn off the main body and handy vacuum cleaner and make sure that the pin of power plug should not come into contact with your hands. – Otherwise, re or electric shock may occur. Maintenance WARNING

• Do not use the vacuum cleaner for other than cleaning purpose. – Otherwise, an injury or product damage may occur.

• When removing foreign matters inside the product, you should turn off the the vacuum cleaner rst and use a tool to remove the foreign matters. – If the product operates while you are removing the foreign matters, an injury or product damage may occur. 1_Stick_VS6000_EN_00745R-00_SW.indd 9 2017-07-13 오후 9:30:47English

• When cleaning the exterior of the product, turn off the product rst and then wipe it with dry towel. Do not spray water directly onto the product or wipe it with volatile materials such as benzene, thinner or alcohol. – If water gets into the product and an error occurs, turn off the product and contact a service center.

• After unplugging the product, clean the charger.

• When cleaning the washable parts, do not use alkaline detergent, acid, industrial detergent, air freshener, acetic acid, etc. – Otherwise, product damages such as plastic breakage, deformation, discoloration, printing deterioration, etc. may occur. Washable Parts Dustbin, sponge Available detergent Neutral Dish washing detergent Prohibited detergent Alkaline Lox, mold cleaner, etc. Acid Parafn oil, an emulsier, etc. Industrial cleaners NV-I, PB-I, Opti, alcohol, acetone, benzene, thinner, etc. Air freshener Jet spray air fresheners (coffee avor, herb, etc.) Oils Animal oils, vegetable oils Etc. Edible acetic acid, vinegar, glacial acetic acid, etc. CAUTION

• Do not push the stick vacuum cleaner while it stands as it may fall. – Otherwise, an injury, product damage, or oor damage may occur. 1_Stick_VS6000_EN_00745R-00_SW.indd 10 2017-07-13 오후 9:30:47English

Battery Spec SS60K60 series : Lithium-ion 21.6 V , 1800 mAh, 6 cell SS60M60 series : Lithium-ion 18.0 V , 1800 mAh, 5 cell Those two batteries are not compatible with each other. 1_Stick_VS6000_EN_00745R-00_SW.indd 11 2017-07-13 오후 9:30:47English

OPERATIONS Using the vacuum cleaner Charging the stick vacuum cleaner NOTE

• Assemble the battery into the charger completely.

• Battery level indicator blinks while the battery is charging. LED display SS60K60✴✴✴✴ Series SS60M60✴✴✴✴ Series

• Before disassembling the battery from a charger, turn off the stick vacuum cleaner. OPERATIONS 1_Stick_VS6000_EN_00745R-00_SW.indd 12 2017-07-13 오후 9:30:48English

OPERATIONS Using the stick vacuum cleaner Power on/off The stick vacuum cleaner starts operating in Turbo mode. Press the button to convert operation mode. (Normal/Turbo) Using the Turbo mode Using the handy vacuum cleaner

Disassembling the handy vacuum cleaner from the main body Power on/off The handy vacuum cleaner starts operating in Turbo mode. The operation mode cannot be changed. 1_Stick_VS6000_EN_00745R-00_SW.indd 13 2017-07-13 오후 9:30:48English

OPERATIONS Using the crevice tool and dusting brush Dusting brush When removing ne dust on curtain, furniture, sofa etc.

When cleaning a place which is narrow and deep or hard to reach by hand such as under furniture or a ceiling 1_Stick_VS6000_EN_00745R-00_SW.indd 14 2017-07-13 오후 9:30:48English

MAINTENANCE Maintaining the vacuum cleaner CAUTION

• Before cleaning the stick vacuum cleaner, turn off the vacuum cleaner. MAINTENANCE Disassembling / Assembling the dustbin

Cleaning the dustbin

• Emptying the dustbin in a simple way Cleaning the sponge lter

Cleaning the air intake

• When a vacuum cleaner does not work after charging a battery, change the battery. If it still does not work with the new battery, contact a service center. CAUTION

• Do not disassemble a battery or a charger.

• Do not apply heat to a battery and do not put a battery on the re.

• As the battery is manufactured only for this product, do not use the battery for other electronic appliances or other purposes.

• Removing a battery during operation may cause product malfunction.

• If the battery is removed while vacuum cleaner motor is operating, the battery may not work for 30seconds after being replaced due to safety reasons.

• If battery charging time and battery usage time are reduced with battery use, replace the exhausted battery with a new one.

• Use a battery with genuine logo ( ) only.

• Before assembling the battery into a charger or a vacuum cleaner, check that the battery is placed in the correct direction.

• When discarding a dead battery, put it into the battery collection box.

• When a vacuum cleaner is not going to be used for a long time, disassemble the battery from a vacuum cleaner. Operation NOTE

• Please charge the battery for the following cases. – When a battery is used for the rst time after purchase or the battery is not used for a long time. – When battery level indicator is on the lowest indication.

• When you are away from home for a long period of time, unplug the battery charger and disassemble the battery from the charger. When a battery is not being charged, it will be discharged. Notes and cautions APPENDICES 1_Stick_VS6000_EN_00745R-00_SW.indd 16 2017-07-13 오후 9:30:50English

• After the handy vacuum cleaner is assembled to the main body, the stick vacuum cleaner operates.

• After using the handy vacuum cleaner, assemble it to the main body.

• Before assembling the handy vacuum cleaner to the main body, the handy vacuum cleaner should be turned off.

• After assembling the handle to the vacuum cleaner, do not disassemble the handle again. – Otherwise, it may cause an injury to you.

• When the brush is rotating, do not touch the brush. – Otherwise, your hand can be caught and it may cause an injury. Maintenance NOTE

• Sometimes the wheel of air intake may scratch oor. Therefore, before using the stick vacuum cleaner, check the wheel status of air intake. – When there are foreign matters which cannot be removed easily on the wheel of air intake, contact a service center. CAUTION

• Drying the parts of the stick vacuum cleaner in the sun for long hours may cause deformation or discoloration. Therefore, after cleaning the parts of the stick vacuum cleaner, dry them in the shade.

• Do not clean the air intake of the stick vacuum cleaner with water as it may cause deformation or discoloration of parts. 1_Stick_VS6000_EN_00745R-00_SW.indd 17 2017-07-13 오후 9:30:50English

APPENDICES Troubleshooting If the requested service is proved as not product malfunction, the service fee will be charged. Therefore, please read the user manual carefully. Problem Solutions The stick vacuum cleaner does not work.

• Check the battery level and charge the battery.

• Check that the product is turned off and press the power button to turn on.

• If the product has not been used for a long time, charge the product. The stick vacuum cleaner does not stop even though I pressed the power button.

• Check whether the handy vacuum cleaner is turned on. If so, press the power button of the handy vacuum cleaner rst and then press the power button of the stick vacuum cleaner. Suction force decreases suddenly and vibrating sound is generated from the stick vacuum cleaner.

• Check whether the air intake is clogged with foreign matters or dustbin is fully lled. If so, remove them.

• Check whether the lter is dirty and clean the lter by referring to the 'Maintaining the stick vacuum cleaner' section of this manual.

• Check the battery level and charge the battery. The vacuum cleaner cannot be charged.

• Check current power voltage of the stick vacuum cleaner. It should be national rated voltage.

• Check that the stick vacuum cleaner is turned on and then check the LED of the battery level indicator is turned on.

• Check the status of charger terminal and remove the foreign matters (dust) on the charger terminal with a cotton swab or soft cloth. The brush inside the air intake does not rotate.

• Check whether the air intake is clogged with foreign matters and remove them.

• Check the stick vacuum cleaner is turned on and then turn off and turn on the vacuum cleaner again. Odor is generated from the air outlet of the stick vacuum cleaner.

• Frequently empty the dustbin and clean the lter. – As your stick vacuum cleaner is a new product, it may have slight odor for the rst 3 months from the purchase. – Accumulated dirt in the dustbin or dust on the lter may generate an odor.

• This vacuum cleaner is compliant with the following regulations: – Electromagnetic Compatibility Directive : 2004/108/EEC – Low Voltage Directive : 2006/95/EC 1_Stick_VS6000_EN_00745R-00_SW.indd 18 2017-07-13 오후 9:30:50English
