USER MANUAL VAC9073RP SAMSUNG

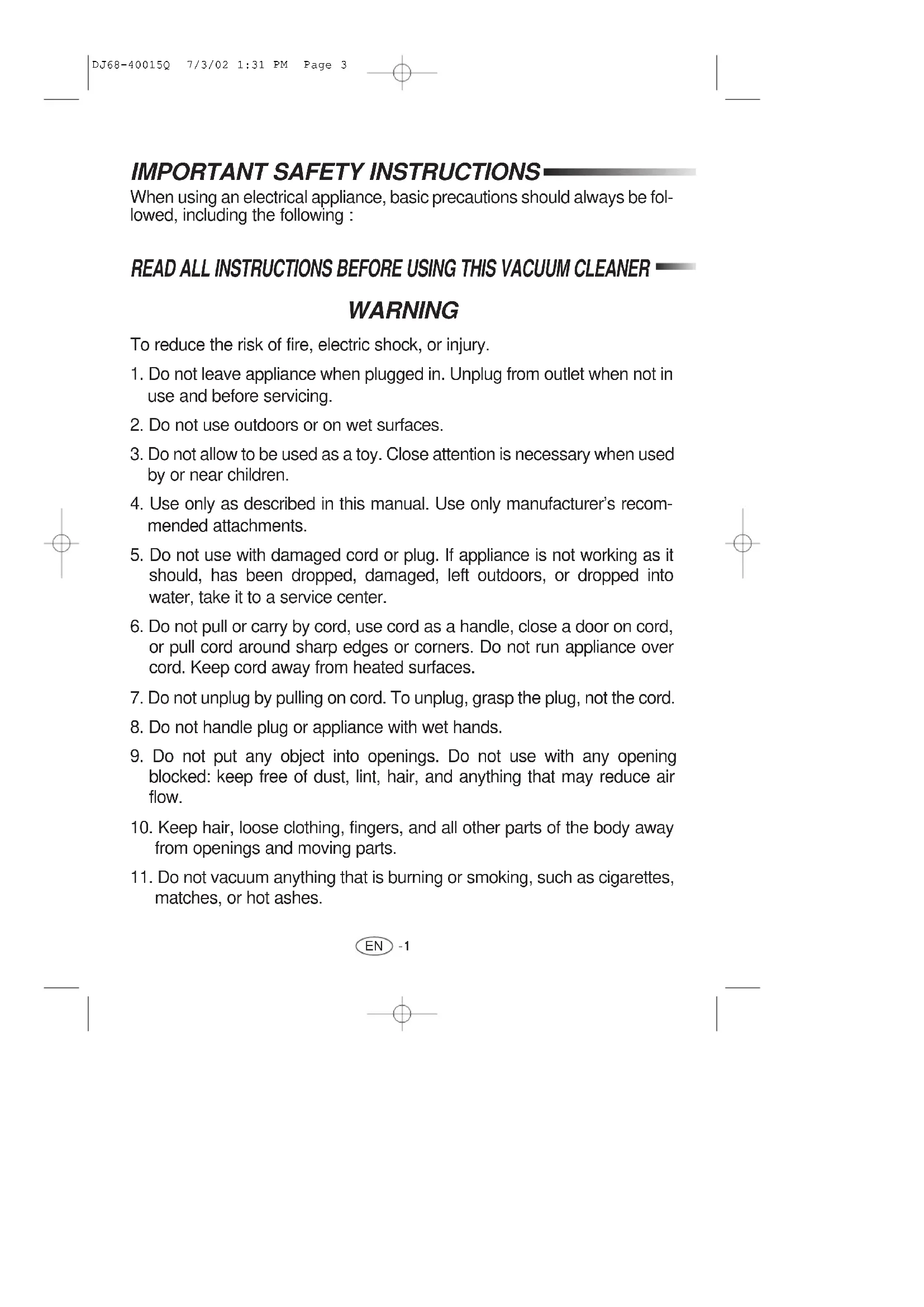

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER When using an electrical appliance, basic precautions should always be fol- lowed, including the following : WARNING To reduce the risk of fire, electric shock, or injury.

1. Do not leave appliance when plugged in. Unplug from outlet when not in

use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow to be used as a toy. Close attention is necessary when used

by or near children.

4. Use only as described in this manual. Use only manufacturer’s recom-

5. Do not use with damaged cord or plug. If appliance is not working as it

should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center.

6. Do not pull or carry by cord, use cord as a handle, close a door on cord,

or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

8. Do not handle plug or appliance with wet hands.

9. Do not put any object into openings. Do not use with any opening

blocked: keep free of dust, lint, hair, and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers, and all other parts of the body away

from openings and moving parts.

11. Do not vacuum anything that is burning or smoking, such as cigarettes,

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, this appliance has a polarized plug(one blade is wider than the other). This plug will fit in a polarized out- let only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper out- let. Do not change the plug in any way.

12. Do not use without dust bag and filters in place.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to vacuum flammable or combustible liquids such as gaso-

line or use in areas where they may be present.

16. Store your vacuum cleaner indoors in a cool, dry area.

17. Do not use extension cords or an outlet with inadequate current carry-

18. Hold plug when rewinding onto cord reel. Do not allow plug to whip

19. Unplug electrical appliances before vacuuming them.

20. The hose contains electrical wires. Do not use if damaged, cut, or punc-

tured. Avoid picking up sharp objects.

21. Always turn off this appliance before connecting or disconnecting either

DUST-FULL INDICATOR If the “Dust-Full” indicator switches to “RED” while you are cleaning, the dust bag is full and must be replaced. If the “Dust-Full” indicator continues to display “RED” even after changing the dust bag, turn the cleaner off and check whether the hose, tube or nozzle is clogged. NOTE : PARTS IDENTIFICATION DJ68-40015Q 7/3/02 1:31 PM Page 5-4

The Extension wand can be adjusted to your height. Hold the central area with one hand while pulling the smallest tube out or pushing into the desired length with the other hand. Attaching the Hose to the Canister Slide the Hose Clamper into the canister Inlet until it “Clicks” into place.(Fig. A-A) Attaching the Extension Wand to the Hose Slide the handle end of hose over the end of the wand until it “Clicks” into place. (Fig. A-B) They can be removed by pressing the button on the Hose. Attaching the Power Brush Slide the end of the Extension Wand onto the Power Brush Wand unitl it “Clicks” into place. (Fig. A-C) They can be removed by pressing the button on the Extension Wand. EXTENSION WAND DJ68-40015Q 7/3/02 1:31 PM Page 6-5

POWER CONTROL With the cord plugged into an electrical outlet, start or stop the vacuum cleaner by stepping lightly on the switch button. The suction power can be adjusted with the electrical power control to suit any situation. MIN = For delicate fabrics, like net curtains. MAX = For hard floors and heavily soiled carpets.

• Manual suction power control The flexible hose hose handle(suction control) has a manual air flow regulator which allows you to briefly alter the suction level : the further open the regulator is, the weaker the suction power. POWER CORD

The power cord is long enough to be drawn out for convenience.

Upon finishing cleaning, disconnect the plug from the electrical outlet and press the cord rewind button lightly with your toe. When removing the power cord from the electrical outlet, grasp the plug, not the cord. NOTE : DJ68-40015Q 7/3/02 1:31 PM Page 7-6

For easy storage and transportation, this vacuum cleaner has a clip system built onto the body, which will keep the tube, hose and noz- zle in a vertical position.

USING THE ACCESSORIES

• Dusting brush - for furniture, shelves, books, etc.

• Upholstery brush - for cushions and drapery.

• Crevice tool - for radiator, crevices, corners, between cushions.

• Power brush -The rotating brush ensures that cleaning is carried out more thoroughly.

OPERATING THE BRUSH HEAD

PARK POSITION Push the ON/OFF switch(A) down. (The brush switches on) Located in the top rear side of the vacuum cleaner, there is a support for a convenient park position during pauses when using the nozzle. DJ68-40015Q 7/3/02 1:31 PM Page 8-7

the cardboard bag collar of the new dust bag into the suction inlet all the way.

1) To open the dust cover of the dust bag

compartment, press the clamp upward located at the side of the dust cover.

4) Press the dust cover down gently until

the clamp relocks. If you are using a cloth filter bag, clean it when it’s full and use it again. NOTE : A used dust bag can be sealed by removing the paper from the adhesive strip and sealing the strip over the suction opening. NOTE :

2) Remove the dust bag from the cleaner.

The hose must be plugged into the canister and the power brush must be plugged into the hose and extension wand (see page 3).

● For best results, move the power brush slowly using short, over- lapping strokes. ● For heavily soiled areas, repeat strokes in several directions. ● Turn height adjustment knob to match the surface beingcleaned.(optional)

3. Checking the Performance of the Power Brush

You may check whether the power brush is operating correctly by lifting up the extension tube slightly to view the back of the brush. The Power Brush will not operate when it is jammed or the unit is turned off. If the Power Brush is jammed, Unplug the power cord from the electrical outlet. Turn the power brush over and remove the jammed object. Turn the power brush back to vacuuming position and resume vacuuming. CAUTION: Do not invert the power brush while it is running

MAINTAINING THE POWER BRUSH

1. Removing the Brush Cover

Before replacing any parts, unplug the vacuum cleaner from the electrical outlet.

Remove 6 screws from the bottom plate and open the brush cover.

1) Remove the Brush Cover as

2) Remove the old bulb from the bulb

socket. Insert the new bulb. You can use a vacuum cleaner lamp rated 120V, 20W.

2) Remove the flat belt from the motor

shaft and the brushroller. Loop the new belt around the motor shaft and then loop it around the brushroller.

1) Remove the brush cover. Grasp the

brushroller firmly, and pull it out. Use with caution when replacing the belt that drives the brushroller. Tension on the belt is high.

3. Replacing the Brushroller Belt

4) Be sure that the belt is not twisted.

Rotate the belt 3 or 4 times to position it correctly on the roller and to make sure all rotating parts move smoothly. Replace the brush cover.

3) Reinsert the brushroller, making sure

that both ends of the brushroller are fit ted into the grooves of the nozzle head.

1) Turn off the vacuum cleaner and unplug the

2) Remove the cover to expose the

3) Cut off any lint, carpet pile or hair that has

accumulated around the brushroller with a pair of scissors. Replace the brush cover.

• The microfilter filters the air which comes out from the vacuum cleaner.

• To open the filter cover, press down and pull it simultaneously.

• Remove and replace the dirty microfilter.

The motor filter protects the motor from dirt and ensures long-lasting and efficient operation. When the filter becomes dirty, wash it in warm water, dry it thoroughly, and position it in place. TROUBLESHOOTING

PROBLEM CAUSE REMEDY

Motor does not start No voltage Check cable, plug and socket. Suction force is gradually reduced Filter,nozzle,suction hose tube blocked, or bag full. Remove the obstruction or replace bag. Cord does not rewind fully Check that the cord is not twisted or wound unevenly Pull the cord out 6~10ft & push down the cord rewind button DJ68-40015Q 7/3/02 1:31 PM Page 12-1
