USER MANUAL Flatground Champion 430 Berg

BERG Flatground Champion

User manual

Gebruikshandleiding

Gebrauchsanweisung

Mode d'emploi

Instruktionsbok

Brugermanual

Technical line drawing of a circular mechanical component with six flanges and central hub (no text or symbols)

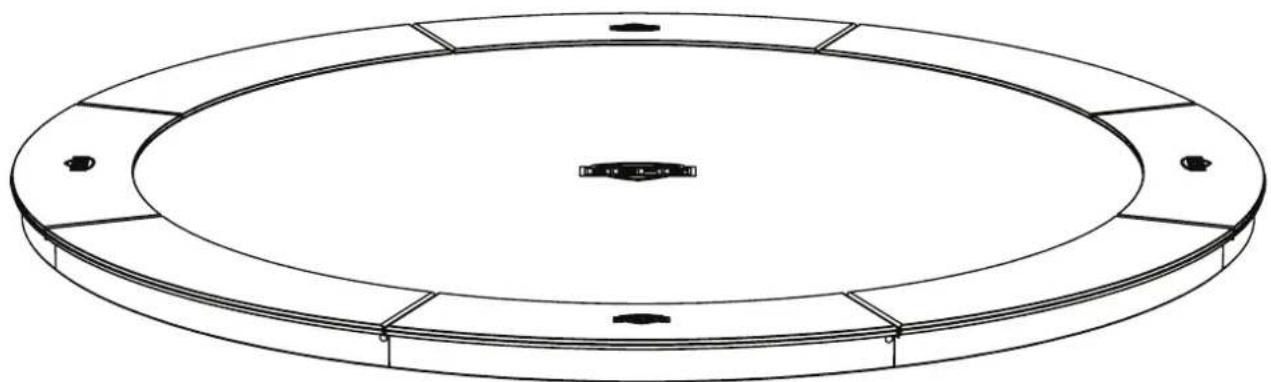

BERG Flatground Champion 430 (14 ft)

www.youtube.com/bergtoys

www.youtube.com/bergtoys

Technical diagram illustrating a circular mechanical assembly with numbered components and directional arrows, including a zoomed-in view of the component.

4

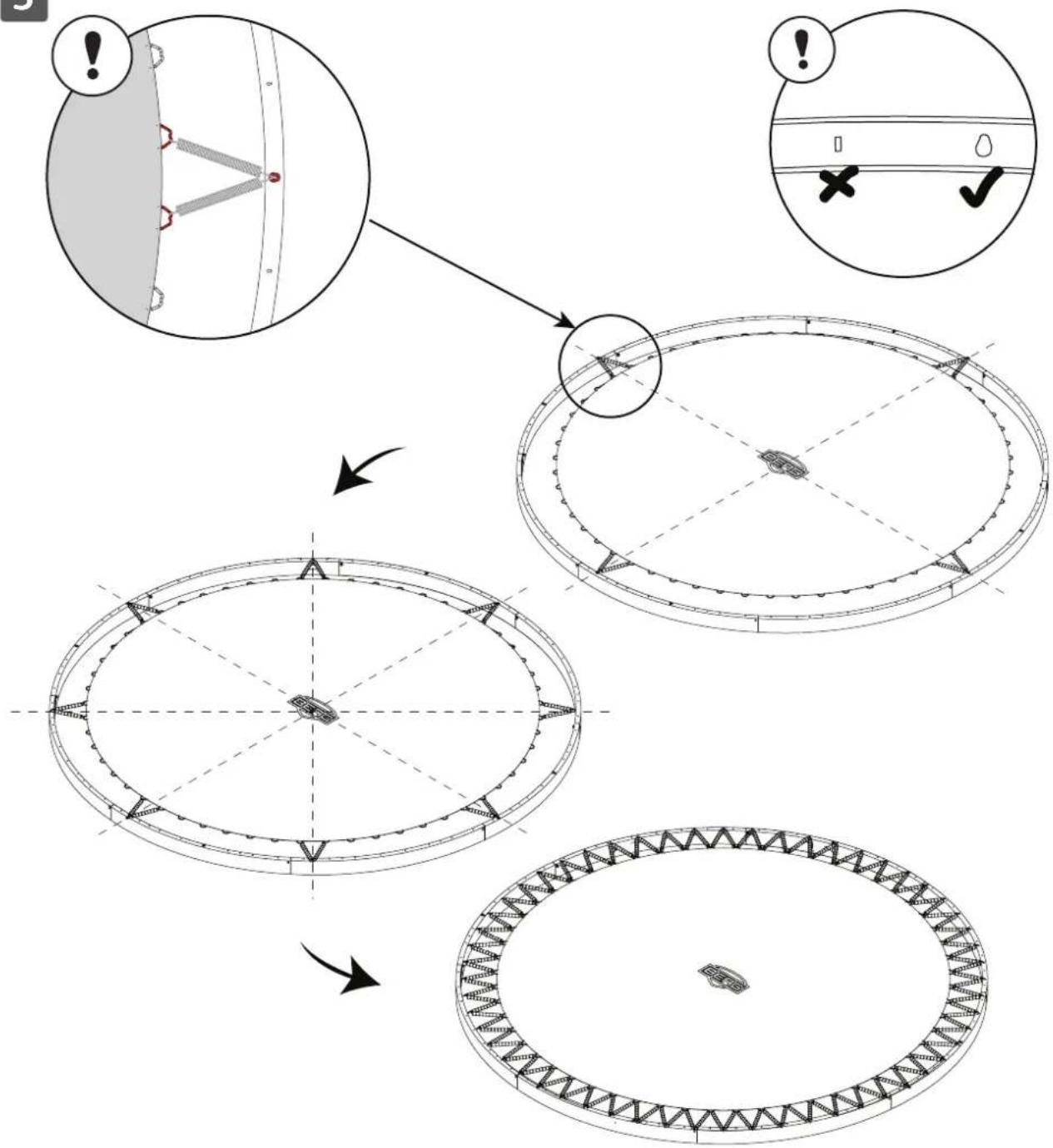

Diagram illustrating cable clamp installation with labeled components and directional arrows

5

6

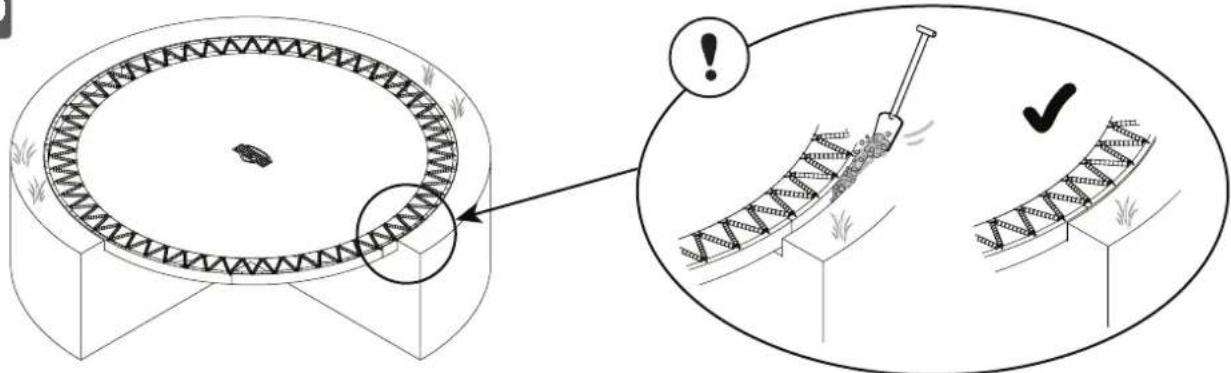

Diagram showing a circle with an exclamation mark, a horizontal line labeled 'I', and two checkmark symbols below it.

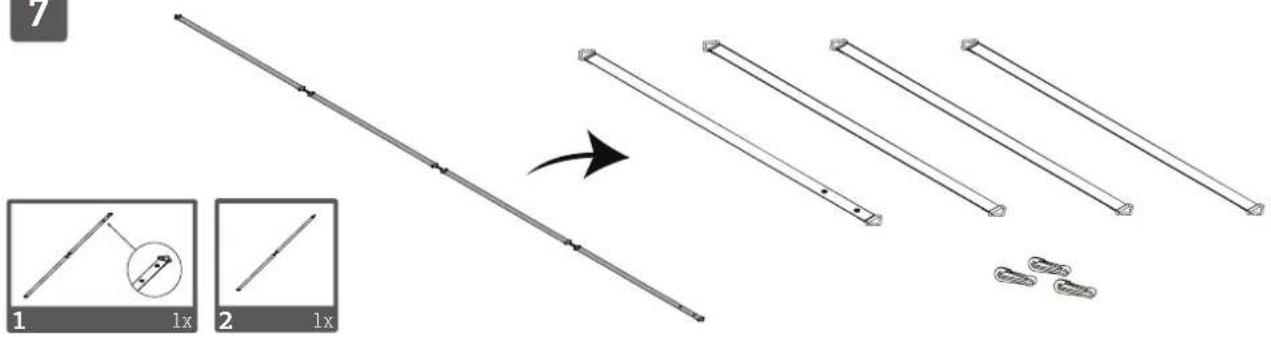

7

Diagram illustrating a mechanical assembly process with labeled parts and an arrow indicating transformation from component 1 to 2.

8

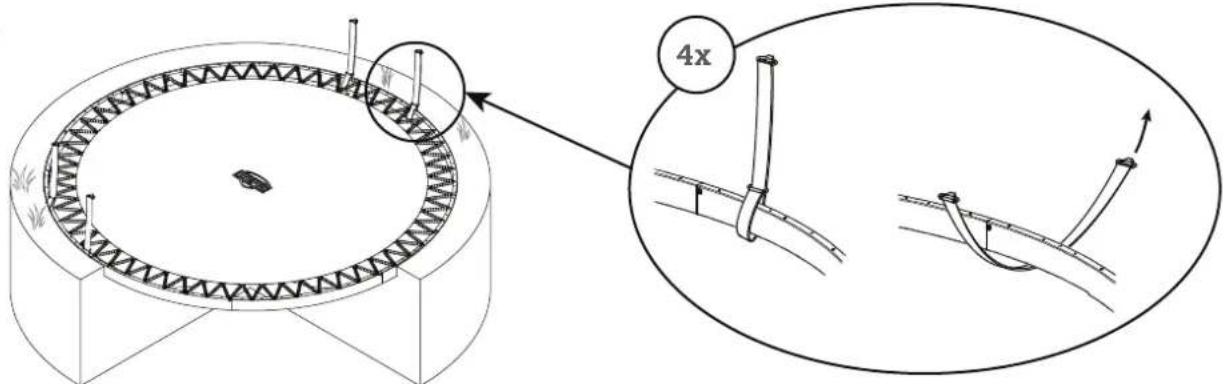

Diagram illustrating a circular structure with directional arrows and human silhouettes, likely representing a mechanical or architectural design.

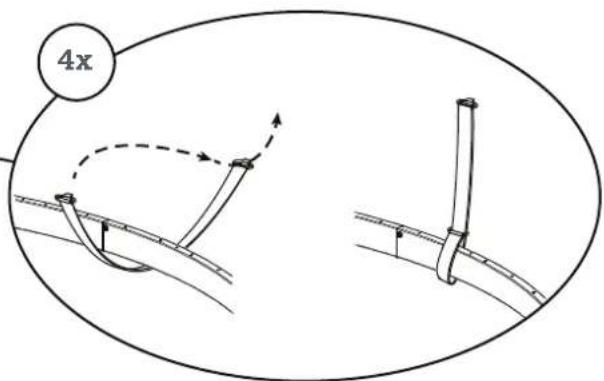

4x

9

4x

10

Diagram illustrating a mechanical assembly with labeled components and warning indicators

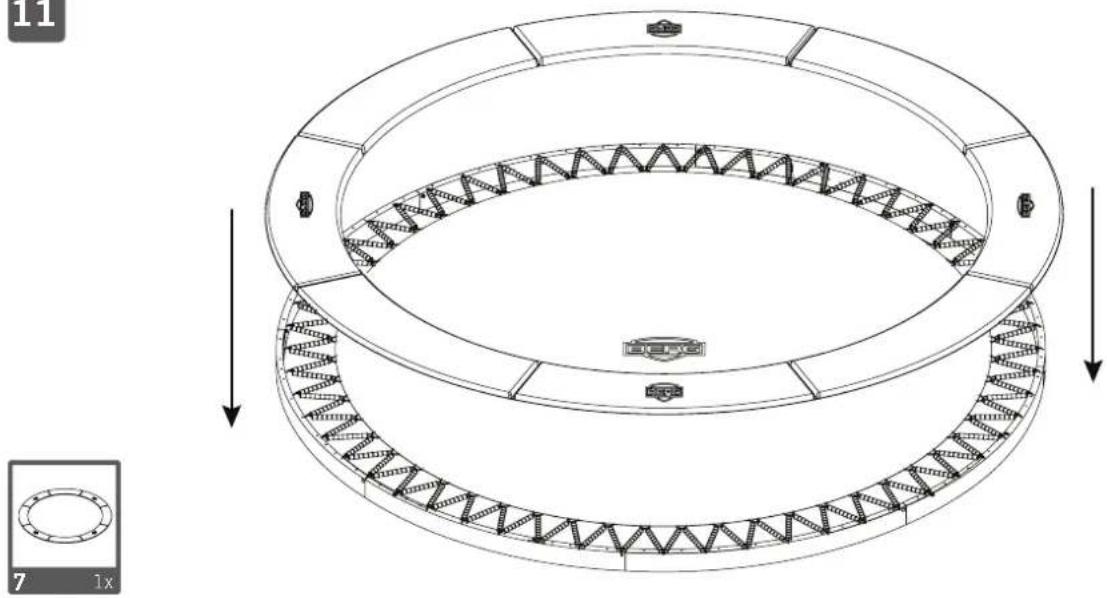

11

11 7 1x

12

    subgraph Top Section
        E["Diagram: Internal components with arrows indicating motion"]
    end

    subgraph Middle Section
        F["Diagram: Internal components with arrows indicating motion"]
    end

    subgraph Bottom Section
        G["Diagram: Internal components with arrows indicating motion"]
    end

    style Top Section fill:#f9f,stroke:#333
    style Middle Section fill:#bbf,stroke:#333
    style Bottom Section fill:#dfd,stroke:#333

13

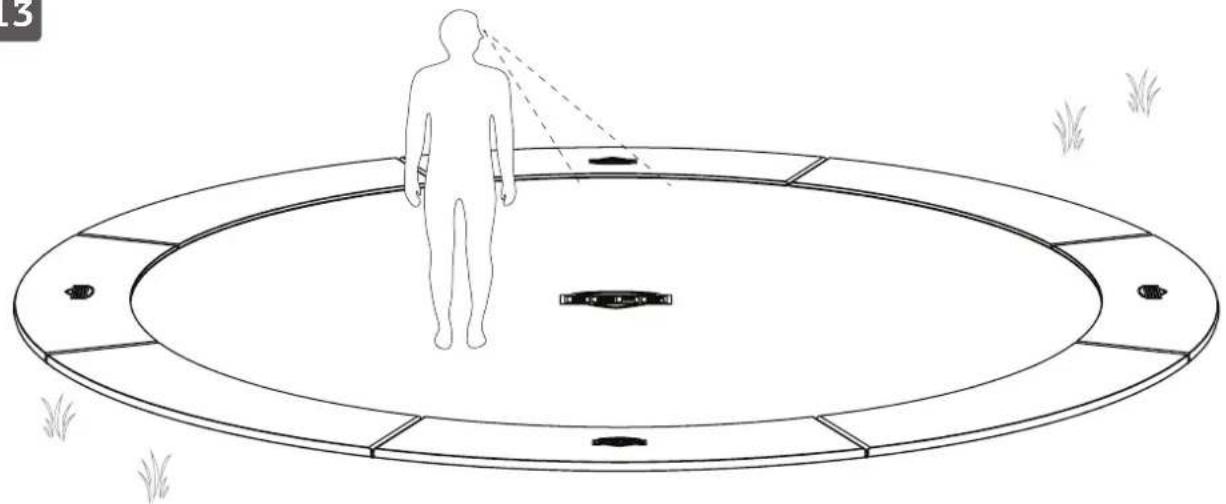

Line drawing of a person standing on a circular platform with a small object inside, surrounded by grass and grass (no text or symbols)

Diagram of a grassy field with a circular overlay showing a person in a boat, no text or symbols present

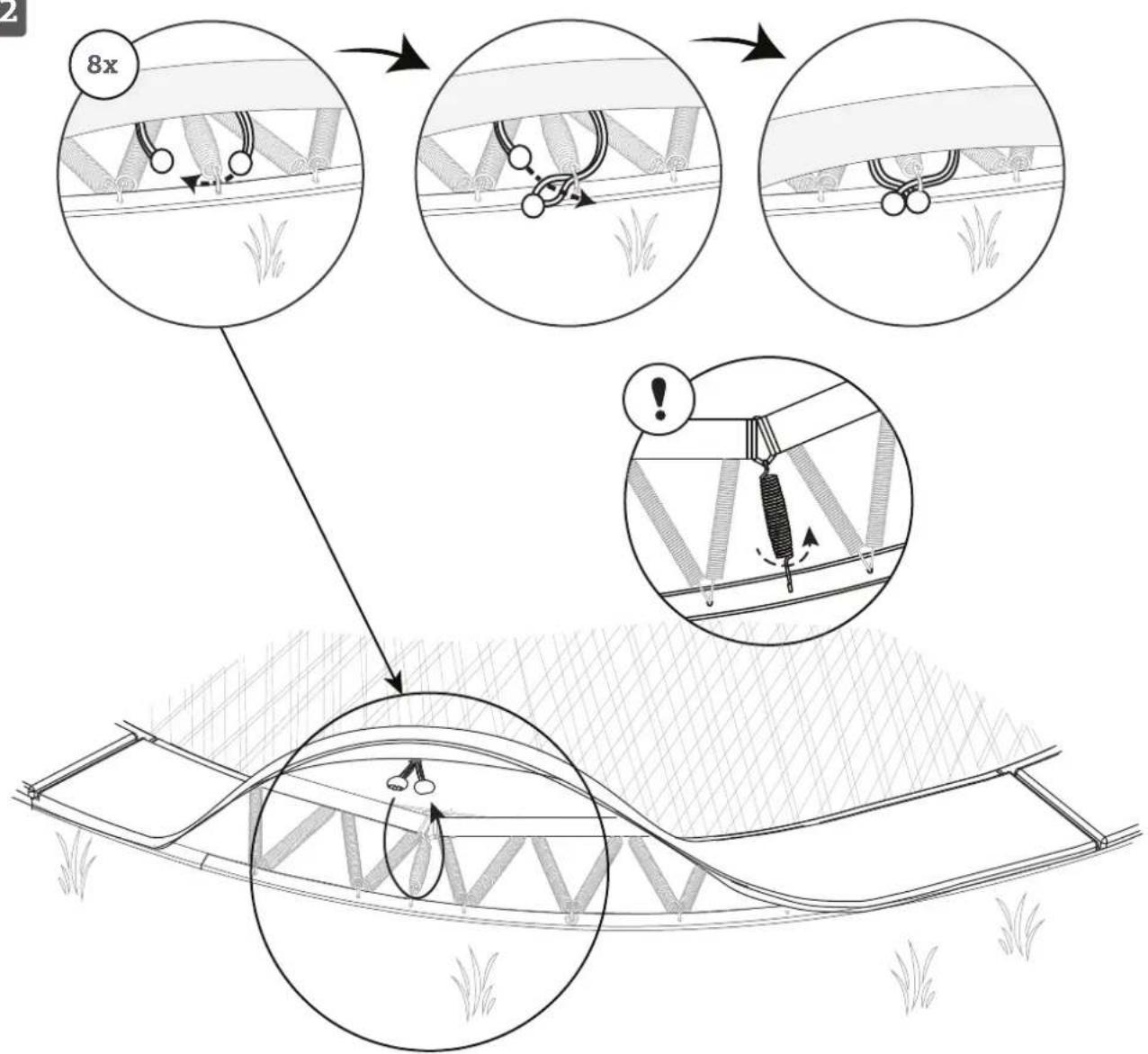

8x

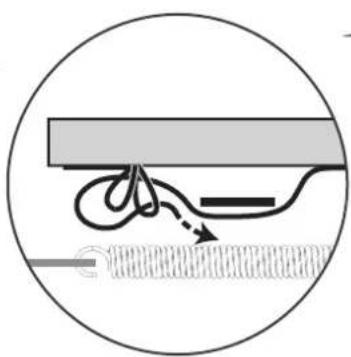

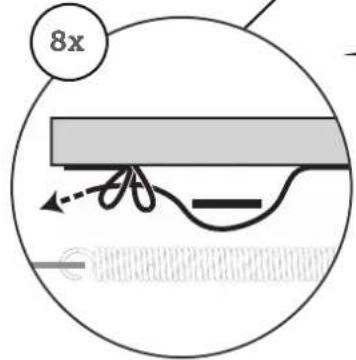

Diagram showing a rope knot being inserted into a cable, enclosed in a circle (no text or symbols)

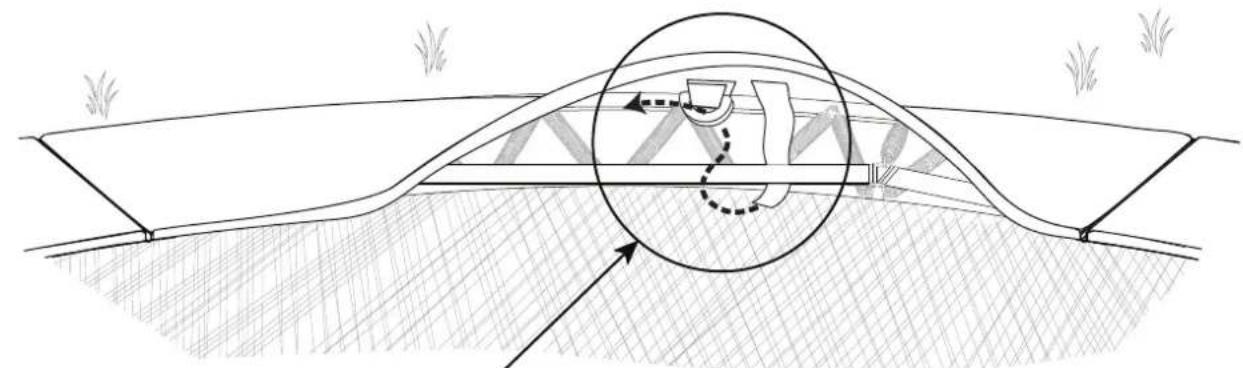

Diagram showing a mechanical or fluid system with arrows indicating flow or movement, enclosed in a circle (no text or symbols)

Index

1. Introduction
2. Warnings
3. Information
4. Product description
5. Jumping instructions

5.1 Before you start jumping
5.2 Jumping instructions
5.3 Basic jumps

1. Assembly and maintenance instructions

6.1 Assembly
6.2 Maintenance instructions
6.3 Disassembly
6.4 Repairs

1. Warranty

7.1 Warranty period
7.2 Warranty conditions

1. Introduction

Trampoline usage encourages active and healthy play. It has a positive impact on stress, physical condition and blood circulation. Trampoline jumping is for the young and young at heart! Thank you for choosing BERG as your trampoline purchase of choice. We are confident you will get many years of beneficial use and jumping pleasure.

This manual provides tips about assembly, safe use and jumping instructions for many years of trouble-free use. Jumping on a trampoline is not dangerous as long as you follow the safety instructions.

Read the instructions carefully and store for future reference.

BERG wishes you a fun and active jumping experience!

2. Warnings

• The weight of the user may not exceed: 120 kg
- The BERG trampoline is not recommended for use by children under 6 years of age.
- Not suitable for children under 36 months. Fall hazard.
- Not suitable for children under 36 months. Choking hazard, small parts.
• Adult assembly required.
- The BERG trampoline is for outdoor use only.
- Read instructions thoroughly and store for future reference.
- The trampoline should be assembled in accordance to the assembly instructions. BERG recommends reviewing final assembly prior to usage.
- Only one user. Collision hazard. Use by multiple persons can cause serious injury.
- Jump without shoes.
- Do not use the mat when it is wet.
• Empty pockets and hands before jumping.
• Always jump in the middle of the mat.
- Do not eat while jumping.
- Do not exit by a jump.
- Limit the time of continuous usage (make regular stops).
- Do not use in strong wind conditions and secure the trampoline.
- No somersaults. Landing on the head or neck can cause serious injury, even when landing in the middle of the bed.
• Adult supervision required.
• Usage of BERG trampoline while under the influence of alcohol or drugs is prohibited.
- Objects, animals or persons are prohibited underneath the BERG trampoline.

3. Information

• BERG product to be used as defined in manual. Usage that deviates from manual instruction may potentially lead to serious injury or damage of product. Read all instructions prior to trampoline usage. To ensure safe and enjoyable usage of the BERG trampoline, warnings, instructions for care and maintenance are included.
• Should the trampoline require movement to another current location (short distance), disassemble the anchors (if any) first prior to relocation. It is recommended the trampoline be lifted via the top rails by 3 adults. Should the trampoline require relocation over a greater distance, it is recommended to disassemble the trampoline parts, re-pack in the original packaging and assemble again at the new location.
• Ensure that the BERG trampoline is level after installation.
• Ensure a minimum clearance of at least 2 meters from trees, fences and any other surrounding obstacles.
• It is required to have a minimum overhead clearance of 7 meters measured from the surface on which the trampoline is standing.
• For safety reasons, unless BERG-approved, modifications or changes to the trampoline is prohibited. Repairs must be carried out by a professional. Please consult your BERG dealer.

4. Product description

• The frame of the BERG Trampoline is galvanized and powder coated to protect against corrosion.
- To ensure many years of enjoyment, The BERG trampoline is manufactured using high-quality materials-only. Proper maintenance and care promotes a long lifespan and injury prevention.

5. Jumping instructions

5.1 Before you start jumping

• Objects, animals or persons are prohibited underneath the BERG trampoline.
• Only use the BERG trampoline when it is clean and dry.
• Objects and other obstacles that can interfere with jumping should be prohibited from the jumping area.

5.2 Jumping instructions

• Proper movement while using the BERG trampoline requires good posture. Correct posture and balance are achieved by tensing the muscles.
• Good posture ensures safe usage of the BERG trampoline. When jumping, the body is exposed to shocks that require correct absorption. By tensing your muscles, you obtain better control over your balance and this results in more the jumping resilience. In contrast, a more relaxed posture leads to loss of energy and jumping resilience. Begin with the basic jumps and jumping positions and only increase complexity when mastered. To come to a stop position when jumping, bend knees when your feet touch the mat.
  • Always jump in the middle of the mat. Avoid jumping on mat edge and trampoline padding.
• To come to a stop position when jumping, bend and flex knees when your feet touch the mat. Learn this skill before attempting others.
• Learn fundamental bounces and body positions thoroughly before trying more advanced skills. A variety of jumping techniques can be carried out solo or in series and/or combinations between bounces.
• Avoid bouncing too high. First obtain jumping control with proper landing position in middle of mat. From a safety perspective, control is more important than height.
• To ensure and maintain control while jumping, ensure jumping posture is straight, head is in upright position and eyes are focused on the jump mat.

5.3 Some basic jumps

Basic bounce

Upright position, head held in upright position. Eyes focused on the jump mat. While jumping upwards, swing arms forward and in circular motion and point your toes downwards. Keep feet positioned together, toes pointed downwards when returning back to the jump mat. When landing on the jump mat, keep your feet approximately 40cm apart.

Hands and knees bounce

Commence with basic bounce. Keep eyes focused on jump mat. Swing arms forward and in circular motion. Land on hands and knees. Push off with hands and return to upright position.

Seat drop

Commence with basic bounce. Keep eyes focused on jump mat. Land in sitting position. Place hands next to hips on jump mat when in sitting position. Push off with hands en return to upright position.

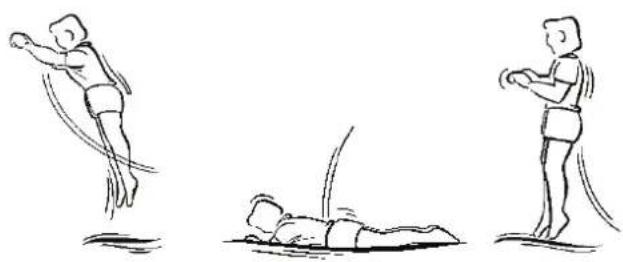

Front bounce

Commence with basic bounce and land on your stomach. Keep head straight. Keep arms extended forwarded on the jump mat. Push off with hands and return to upright position.

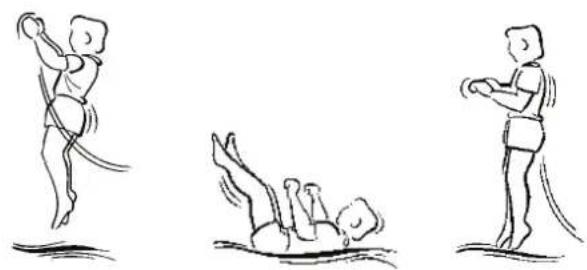

Back drop

Commence with basic bounce and land on your back. Keep chin pressed against your chest during landing. Kick forward and up with legs when returning to a standing position.

Simple line drawing of a person performing a prone exercise (no text or symbols)

Simple line drawing of a person in motion, possibly dancing or jumping (no text or symbols)

6. Assembly and maintenance instructions

6.1 Assembly

• Do not install the trampoline in extreme windy conditions. Wait until wind subsides.
• Gloves are recommended to be worn while installing the BERG trampoline.
• Ensure the BERG trampoline is level after installation. A bubble level is recommended to help qualify.
• The trampoline should be assembled by an adult in accordance to the assembly instructions. BERG recommends reviewing final assembly prior to usage.
• Assembling of the trampoline comprises of fasteners and fittings with self-locking nuts. These self-locking nuts are for single use only. When disassembling and reassembling, the self-locking nuts must be replaced.
• Location: Find a suitable place for the installation of the trampoline ensuring there are no surrounding obstacles. Verify soil condition and characteristics of designated location to determine installation suitability.
• While digging the hole, soil should be firm to avoid collapsing due to erosion. If necessary, strengthen the sides of the hole or make them smooth to prevent this.
• Should the soil hinder digging a hole, best to choose another location or consult a professional excavation company to provide consultation.
• The dug hole should not contain water.
• Verify if a high ground-water level does not contribute to a collection of water in the hole. In addition, verify there is adequate drainage to dispose rain water.

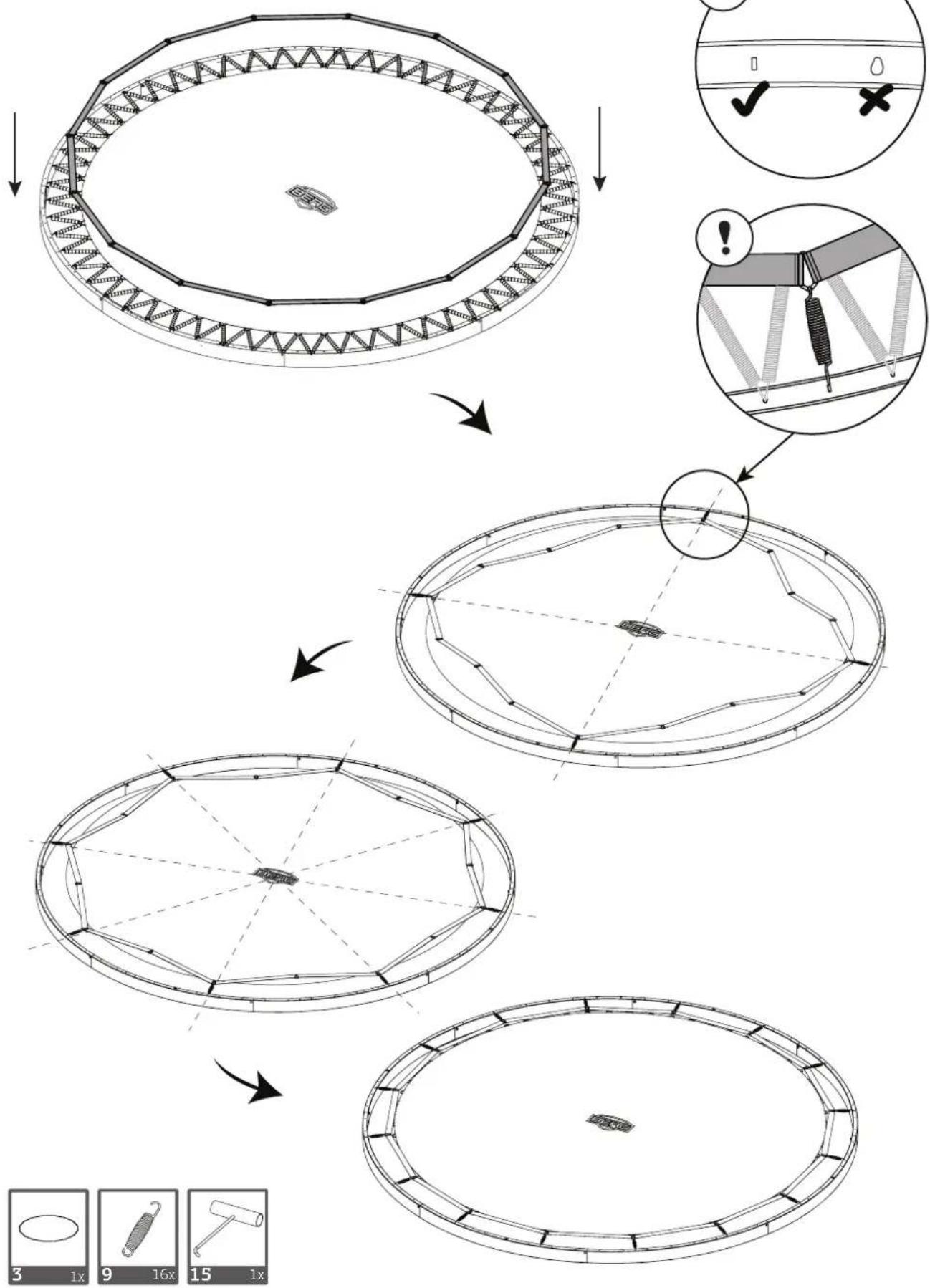

• As per the diagram in the installation manual, use the included tape measure (located in the packaging) to measure and determine the correct diameter, depth and shape of the dug hole.
• Ensure the shape and dimensions of the hole reflect as specified in the installation manual.
• Ensure the frame is deemed level in relation to the ground.
• For installation instructions, refer to page 4.
• For additional trampoline information, contact the manufacturer.
  • Install accessories according to the installation manual /guide.

6.2 Maintenance instructions

As described in the assembly manual, inspect the BERG trampoline before each usage and replace broken, worn or missing parts. Ignoring inspections and neglecting maintenance can lead to dangerous situations and unnecessary risks for the user.

Inspect the hole underneath the trampoline periodically. (Minimum once per year) and if required, take corrective measures. As specified in the installation manual, inspect the hole for:

- Proper depth.

- Proper shape.

• Frame stability and uniformity.

- Unwanted objects.

After a rainy period and prior to usage, inspect the trampoline hole. Ensure there is adequate drainage to dispose of rain water.

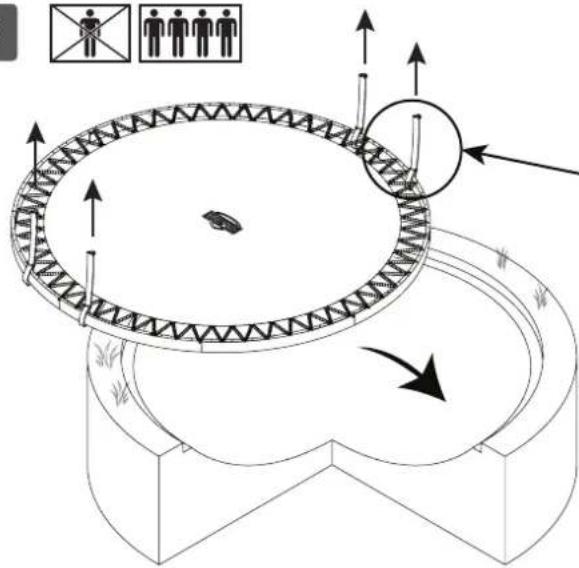

Should the trampoline hole require maintenance, the trampoline must first be removed in its entirety. The straps as included in the box are required to facilitate removal. Refer to installation manual. Strap installation may require some digging to properly position for trampoline removal. It is recommended to have a minimum of 3 adults to remove the trampoline. Once maintenance has been completed, return to original location ensuring the trampoline is level in relation to the ground.

Should the trampoline be removed and placed in an alternative area not close to original location, dissassemble and place in original packaging. Re-assemble in accordance to the assembly and installation instructions.

Pay attention to the following:

• The condition of frame joints. (Eg. Broken welds or bent frame).
• The condition of the springs (damaged or excessive stretching) and attachment of the springs to the frame and jumping mat. Springs and suspension springs are subject to wear and tear. Replace worn parts when required.
• Check bolt connections to ensure tightness, tightening when when required. Check the (push pins) connectors to ensure they will not become dislodged while jumping.
• The condition of the jump mat (damage, incorrect tension or sagging of the mat) The jump mat wears with use and exposure to sunlight (UV radiation). Replace the jump mat in a timely manner when the condition worsened.
• Missing, improperly positioned, or insecurely attached protective padding.
• Incorrect stitching, raffeling, tears or holes in jump mat or protective padding.
• Deterioration in the stitching or fabric of the mat or protective padding.
• Check for sharp edges and frame protrusions.
• The use of fertilisers (artificial fertiliser, fertiliser pellets, etc.) within a radius of 2 metres around the BERG trampoline is prohibited. Using such products can cause components to rust.
• The jump mat and padding can be cleaned with a cloth and cold water. NEVER use solvents, dishwashing liquid, detergent or hot water.

6.3 Disassembly

- Assembling of the trampoline contains fasteners and fittings with self-locking nuts. These self-locking nuts are for single use only. When disassembling and reassembling, the self-locking nuts must be replaced.

6.4 Repairs

Contact our BERG authorized dealers for ordering original parts for the BERG trampoline.

7. Warranty

7.1 Warranty period

- BERG trampolines are of excellent quality. To provide you with years of carefree fun on our trampolines, BERG offers you a functionality warranty. A functionality warranty is a warranty regarding its functional use. Please consult the table below for the term of this warranty (years).

Frame 10
Frame (after product registration)	13 (10+3)
Padding 2
Jump mat 2
Springs 5
Safety Net 2

- With exception to the 1 year warranty of the BERG weather cover basic, the BERG safety nets and accessories are subject to a warranty period of 2 years. Parts that are susceptible to wear and tear (eg. elastics), the influences of weather (eg. rust and discolouration) and the foam on the BERG safety net tubes are excluded from warranty.

7.2 Warranty conditions

The owner of the product can only claim warranty by presenting the original receipt of purchase. The warranty applies only to material and manufacturing defects related to the BERG product and related parts.

The warranty becomes nul and void if:

• The product is used improperly and / or negligently.
• The product is not assembled and maintained in accordance with the instruction manual.
• Technical repairs made to the product are not carried out in a professional manner.
• Replacement parts do not correspond to the technical specifications of the product in question or are installed incorrectly.
• Damage caused by the influences of weather such as rust, UV rays or normal wear and tear.
• Improper burial of the BERG Trampoline.
• The product is used for rental purposes or made available for usage by a 3rd party.
• During the warranty period, all material and construction assessed faults will be repaired or replaced by BERG. Repairs handled at no cost is applicable provided the product is still within its warranty period as stated in article 7.1.
  • BERG warranty can only be honored if inspected by a BERG authorized dealer.
• BERG warranty can only be honored if the original proof of purchase is rendered to the BERG authorized dealer. Should the owner have re-located or the BERG dealer is no longer operational, BERG can recommend an alternative BERG dealership.
• If the warranty claim is not honored, all costs incurred must be paid by the owner.
• This warranty is not transferable to third parties.

BERG

Black-and-white collage showing three children: a girl jumping on a track, a child riding a tricycle, and a car with wheels (no visible text or symbols)

Product registration

Would you like free supplementary guarantee?\*

Don't forget to register your product online immediately! Go to www.bergtoys.com/registration.

This will ensure your 5-year (go-karts), 8-year or 13-year (trampolines) frame guarantee on your purchase.

*For the conditions, please visit www.bergtoys.com/registration

Computer monitor icon depicting a document with a pencil, symbolizing editing or writing (no text or symbols present)

www.bergtoys.com/registration

Index

Three sequential line drawings of a person in different poses: standing, holding an object, and jumping with one leg (no text or symbols)

Three sequential line drawings of a person performing different postures: jumping, stretching, and standing (no text or symbols)

Three line drawings showing different physical poses: a person performing a high kick, a seated person in a kneeling position, and a person holding a high kick (no text or symbols)

Three line drawings showing different physical poses: a person jumping, a person lying on the ground, and a person standing with arms outstretched (no text or symbols)

Three line drawings of human postures in different poses: standing, lying in water, and standing with arms (no text or symbols)

Black-and-white collage showing three children: a girl jumping on a ramp, a child riding a tricycle, and a car with wheels in the background (no visible text or symbols)

Product registration

Wil je extra gratis garantie?\*

Computer monitor icon depicting a document with a pencil, symbolizing editing or writing (no text or symbols present)

www.bergtoys.com/registration

Index

Simple line drawing of a person performing a push-up or exercise pose (no text or symbols)

Simple line drawing of a person jumping with motion lines (no text or symbols)

Black-and-white collage showing three scenes: a girl jumping in a pool, a child riding a stroller with a car, and a child driving a motorcycle on a dirt path (no text or symbols visible)

Product registration

Computer monitor icon depicting a document with a pencil, symbolizing editing or writing (no text or symbols present)

www.bergtoys.com/registration

Index

Simple line drawing of a person performing a push-up or exercise pose (no text or symbols)

Simple line drawing of a person jumping with motion lines indicating movement (no text or symbols)

Black-and-white collage showing three scenes: a girl jumping in a pool, a child riding a stroller with a car, and a child driving a motorcycle on a dirt path (no text or symbols visible)

Product registration

Computer monitor icon with document and pencil symbol (no text or symbols)

www.bergtoys.com/registration

Index

Simple line drawing of a person performing a prone exercise (no text or symbols)

Simple line drawing of a person jumping with motion lines (no text or symbols)

Black-and-white collage showing three scenes: a girl jumping in a pool, a child riding a stroller with a car, and a child driving a motorcycle on a dirt path (no text or symbols visible)

Product registration

Vill du ha extra gratis garanti?\*

Computer monitor icon with a document and pencil symbol, representing editing or writing (no text or symbols present)

www.bergtoys.com/registration

Indholdsfortegnelse

1. Introduktion
2. Advarsler
3. Oplysninger
4. Produktbeskrivelse
5. Hoppeinstruktioner

Simple line drawing of a person performing a prone exercise (no text or symbols)

Simple line drawing of a person jumping with motion lines (no text or symbols)

Black-and-white collage showing three scenes: a girl jumping in a pool, a child riding a stroller with a car, and a child driving a motorcycle on a dirt path (no text or symbols visible)

Product registration

Er du interesseret i en gratis supplerende garanti?\*

Glem ikke at registrere dit produkt online med det samme! Gå til www.bergtoys.com/registration.

Dette vil sikre, at du får en rammegaranti på 5 år (go-karts) samt 8 eller 13 år (trampolinerne).

*For at se betingelserne, så besøg www.bergtoys.com/registration

Computer monitor icon with document and pencil symbol (no text or symbols)

www.bergtoys.com/registration

BERG

www.bergtoys.com
