Product type	Cordless hedge trimmer
Brand	Metabo
Model	AHS 1865 V
Nominal voltage	18 V
Battery type	Li-Ion compatible CAS (Cordless Alliance System)
Blade length	65 cm
Tooth spacing	26 mm
No-load cutting speed	1400 cuts/min
Maximum cutting capacity	27 mm
Weight (without battery)	3.4 kg
Sound pressure level (LpA)	82 dB(A)
Sound power level (LWA)	93 dB(A)
Vibration level (hand)	2.5 m/s²
Protection class	III
Ambient operating temperature	0 °C to 40 °C
Compatible chargers	ASC 30-36, ASC 55, ASC 55 SE, ASC 145, ASC 145 SE, ASC ultra, SC 60 Plus, SC 30
Typical runtime (4 Ah battery)	Approximately 60 min
Typical charging time (4 Ah battery)	30 to 60 min depending on charger
Safety	Blade brake, overload protection, automatic stop in case of jamming
Maintenance	Regular blade cleaning, lubrication with suitable oil, storage in a dry place

Frequently Asked Questions - AHS 1865 V METABO

Which battery to use with the Metabo AHS 1865 V?

Use a Metabo CAS (Cordless Alliance System) compatible 18 V Li-Ion battery with a capacity of 1.3 Ah to 10 Ah. Suitable chargers are the ASC and SC models listed in the manual.

How to change the hedge trimmer blade?

To change the blade, disconnect the battery, remove the fixing screws, replace the worn blade with a new original Metabo blade, then screw back. Refer to the manual for tightening torques.

What to do if the battery does not charge?

Check that the battery is inserted correctly and the charger is plugged in. The warning indicator (4) solid on indicates temperature out of range (0-50 °C); blinking means battery defective. If the problem persists, contact Metabo customer service.

How to clean the hedge trimmer?

After each use, clean the blades with a soft brush and soapy water. Dry thoroughly and apply a thin layer of lubricating oil. Never immerse the device in water.

What is the battery runtime?

Runtime depends on battery capacity and branch thickness. With a 4 Ah battery, expect about 60 minutes in normal use. Larger capacity batteries offer longer runtime.

Can I use a battery from another CAS brand?

Yes, the Metabo AHS 1865 V is compatible with all batteries from the CAS (Cordless Alliance System) of partner brands, provided they are 18 V Li-Ion.

How to store the device in winter?

Remove the battery, clean and lubricate the blades, then store the hedge trimmer in a dry place, protected from frost and humidity. Ideally, use the Metabo wall mount.

What to do if the machine jams?

Immediately release the trigger, remove the battery, then clear the branches stuck in the blades using a non-conductive tool. Check that the blade is not damaged before resuming.

How to adjust the blade tension?

This model is equipped with an automatic tension system. No manual adjustment is necessary. If the blade seems loose, have it checked by a Metabo authorized repairer.

Where to find spare parts?

Spare parts (blade, battery, charger, etc.) are available from Metabo dealers or at www.metabo.com. Always use original parts to ensure safety.

USER MANUAL AHS 1865 V METABO

Two Metabo brand thermocouple units (no visible text or symbols on the devices themselves)

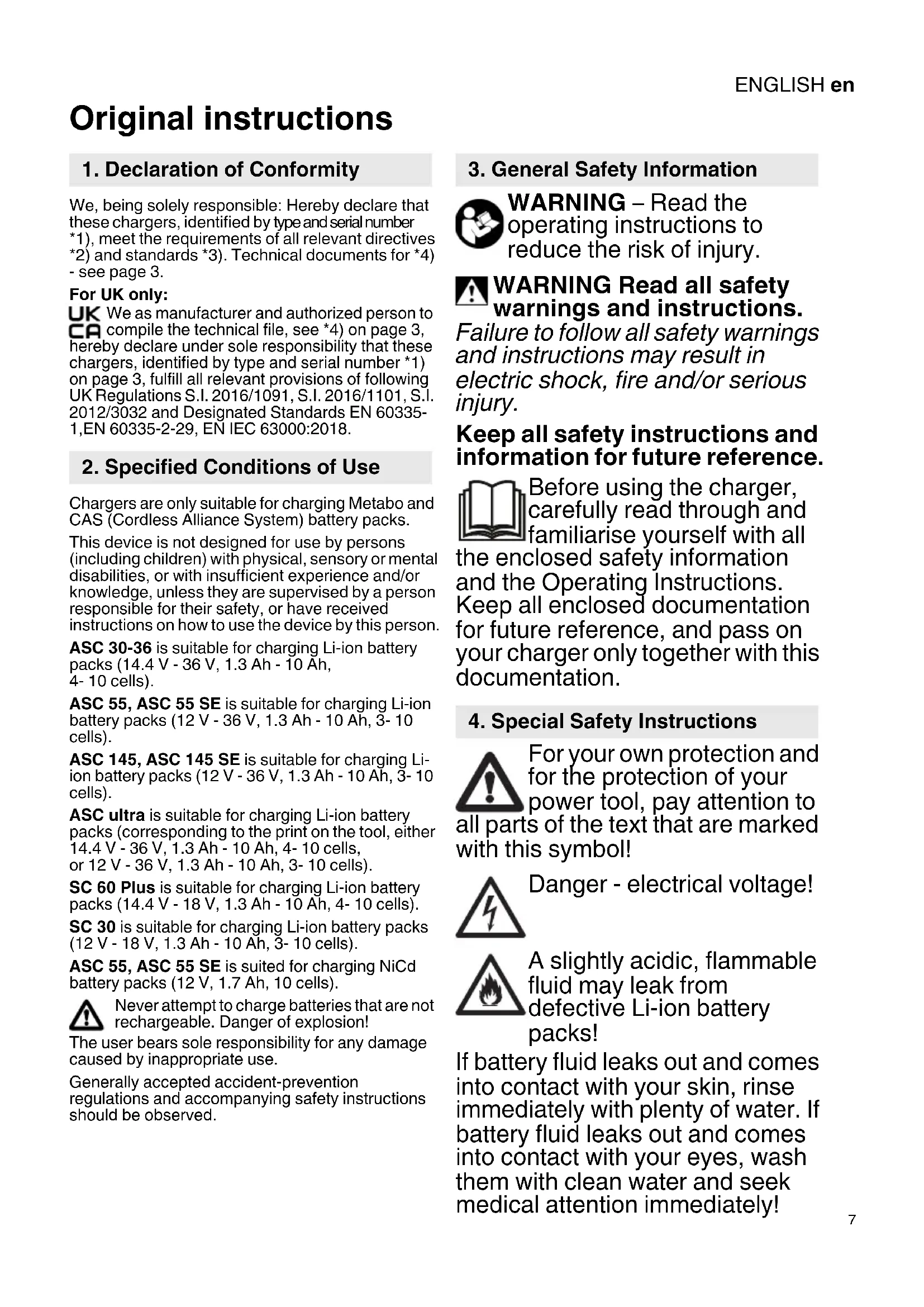

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these chargers, identified by type and serial number *1), meet the requirements of all relevant directives *2) and standards *3). Technical documents for *4) - see page 3.

For UK only:

UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these chargers, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 and Designated Standards EN 60335-1, EN 60335-2-29, EN IEC 63000:2018.

2. Specified Conditions of Use

Chargers are only suitable for charging Metabo and CAS (Cordless Alliance System) battery packs.

This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the device by this person.

ASC 30-36 is suitable for charging Li-ion battery packs (14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells).

ASC 55, ASC 55 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 145, ASC 145 SE is suitable for charging Li-ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC ultra is suitable for charging Li-ion battery packs (corresponding to the print on the tool, either 14.4 V - 36 V, 1.3 Ah - 10 Ah, 4-10 cells, or 12 V - 36 V, 1.3 Ah - 10 Ah, 3-10 cells).

SC 60 Plus is suitable for charging Li-ion battery packs (14.4 V - 18 V, 1.3 Ah - 10 Ah, 4-10 cells).

SC 30 is suitable for charging Li-ion battery packs (12 V - 18 V, 1.3 Ah - 10 Ah, 3-10 cells).

ASC 55, ASC 55 SE is suited for charging NiCd battery packs (12 V, 1.7 Ah, 10 cells).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for any damage caused by inappropriate use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3. General Safety Information

WARNING – Read the operating instructions to reduce the risk of injury.

WARNING Read all safety warnings and instructions.

Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all closed safety information e Operating Instructions.

Keep all enclosed documentation for future reference, and pass on your charger only together with this documentation.

4. Special Safety Instructions

For your own protection and for the protection of your power tool, pay attention to its of the text that are marked is symbol!

Danger - electrical voltage!

A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical attention immediately!

ENGLISHen

Do not recharge a fully charged battery pack!

Only for use in indoor rooms.

Protect the charger from moisture.

Never allow children to use the device.

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!

Do not use faulty battery packs. In areas with high metal dust exposure do not charge any battery packs with AIR COOLED chargers.

5. Overview

See page 2. The illustrations are regarded as exemplary for all devices.

1 Battery pack (not in scope of delivery)
2 Sliding seat
3 Operation display
4 Warning display

6. Initial Operation

Before commissioning, check that the rated mains voltage and mains frequency stated on the type plate match your power supply.

Devices like these that generate direct current can influence simple earth leakage protection devices. Use a type F or better, with a release current of max. 30 mA.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm!

6.1 Self-test

Plug in.

The warning display (4) and the operating indicator (3) light up one after the other for approx. 1 second and the installed fan runs for approx. 5 seconds.

7. Use

7.1 Charging battery pack

Push the battery pack completely to the stop on the sliding seat (2).

The operating indicator (3) flashes.

Note: To have the charge level displayed on Li-ion battery packs, first take the battery pack out of the charger and then press the button on the battery pack.

7.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use.

The operating display (3) lights up continuously.

8. Faults

8.1 Warning display (4) lights up continuously

Battery pack is not charged. Excessive/insufficient temperature. When the temperature of the battery pack is between 0 °C and 50 °C, the charging process begins automatically.

8.2 Warning display (4) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• The battery pack was not pushed correctly onto the sliding seat (2). See chapter 7.1.

9. Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this device is damaged, it must be replaced by the manufacturer

or the Customer Service department of the manufacturer or a similarly qualified person to prevent endangering personnel and property.

If you have Metabo charges that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.

10. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Only for EU countries: never dispose of power tools in your household waste! According to European Directive 2012/19/EU

on Waste from Electric and Electronic Equipment and implementation in national law, used power tools must be collected separately and recycled in an environmentally-friendly manner.

11. Technical Specifications

See page 3.

U = voltage ranges of the battery packs
C = battery pack capacity
l_C = charging current
t = charging time

^1) Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Recommended ambient temperature when charging: 0 °C to 40 °C

Changes due to technological progress reserved.

Device of protection class II

\~ AC Power

FRANÇAISfr

Notice originale

C = accupack-capaciteit

I_C = laadstroom

t = laadtijd

Uju wtuwlyh wupftpp, npn6f qt6tpwg6m1d t6 hwnwnwnm6 hwnw6f, lwpnn t6 mqn9L yhi6ptpt6ghwL mwqwhnl1s u5ywnh7s4lph dpu: Yhpwnld F wkwnlp, lquw wnwljlwqn2j6p 30 d1U, wlsywundwl hwnwlfnl wejwnwnn daqtkp:

^1 npdwnphnufgh wwng hwnqyltf, np onwnphnufwgh mfgftpju hgnfujmds st6: Nmhqnukl wnfujmq6 5 nd hlnwnlpapnjuni wjl wnwnphnuklph gllwnndwdp:

6.1 Ummiqnli

hynngwlq shmgfkl hnuw6f h ympnwlqhi:

UqqnW6cmW6Jh6 (4) h wcjwnwnGfH h6nhlhwwnnpGtph lmjutpp (3) ymnjnu6 t6 hwgnpnpwpw dwnwnlpwnwtu 1 yph. empuftmuh, gtpumppfjmd hnlmgfdh hndwlmpqq mcjwnmmuf k dum. 5 yph. empuftmuh:

7. Чршннід

C = Uwpunlqngh hqnpncpjnufp

IC = lhglw|npduwhnuwlf

t = 1,hgfu|npduw|duufulw|

1) qubqud hghduwupuuhg le yapuwuhfuuh wujuwukphg hghwunpufu hpulwduwuhp lwpn k uwpptpkl fclud duwuhwhwnlwdukphg:

Ighfuwapufu duwufuw ouunfuw ykpudwnuhfu^ hg uhyu 40 ^:

Bcpwqk T ynhnfowg wkjgghwqg pwpkwnfwd Gquwwwnql:

□ II ηωυρ υωσωνωθιρμηδ

\~ Φnμnμmμg hnuugf

№ ЕАЭС RU C-DE.ГБ09.B.00131/20, qnpδnul t, ulquw 10.02.2020 άh624 09.02.2025 pp., mpjbl t, «'Ukqwllhuflwjuw έfwnlρωnhqμ» UΩC' wpnnwnpwufh hwlpwwnnwqpndwi δmpd6h lqn6hg, hwugl (hpwnlwpwnfuql w qnpδnflklnpjw6) ' 115280, θnclwwnnw6, fuwruf U'nuljlu, φnngg Ιθθhghuwjuw U1pnnu, ct6f 19, 2-pn hwph, ut6jwh6tp ' 21w8, 21w9, 21w10, 21w11: Ztnwnpu ' [phone]; ηL. φnwnuh hwugt' [e-mail]: Znwllwwnnwqpndwi ίhujwqhp No POCC RU.0001.11ГБ09 wn 09.09.2014 p.:

Zwduuununluwufprjwh hwnunupwquhp ' No EA3C N RU Д-DE.ГБ09.B.00348/20, qnpdnif k ulquw 04.03.2020 üh6h 26.02.2025 pp., qpugqltl k «Ukqullhuhwju fuwtpwhqw» UH' wpmwnpwgh hwnwnwnqwpdw gmpd6h hnpflg, hwugt (hpwrwpfwhwh b qnpdnftm pyw6)' 115280, fncuunnuwfi, fuqnif Unaljlu, qhnng lLghfuhwju Ulnpnnw, ct6f 19, 2-pn hwph, utgjwl6tp ' 21w8, 21w9, 21w10, 21w11: Zbwnlwnn' [phone]; ξL. qwnwl hwugt' [e-mail]: Zwluwnwnqpwgh yhwjmqhp No POCC RU.0001.11ГБ09 mm 09.09.2014 p.:

Upumnprufng kphhp' Qfghwnwnfg, qjkwngm Upumnprunq "Metabowerke GmbH", Utkwnpnwnlbjk 1, D-72622 Ujnpuhfiqfg, qkpufmfgm Ukpufmdnq fncnuunnwnfgmud "Utkwnpn bilpuuIm" UfC Pncnuunnwug, 127273, Unuqluu Φ. fKpnqnqlwju wltw, umt6 5 a, chg.-6 7, qpwnutgjwlq 106 htn.' [phone]

Upwnnpudw wduwpplp gcalmd k Lhgfwlpudw uwpfh qpm Tnpdft h dwnwnmpjw6 dmuhtpw 7 uwpfh k: hnphmprn sh wpfnd wnuhfg hwiofwqm hnuiqdwh oqwnqnptk l qnpdftp wpwnnpudw wduwpllg uhumd '5 mmph cmpnfdmh wjh wpnhntwnmqlaplg hlaan (wpwnnpudw wduwphlp ndu whunwl h dpw):

Shukhupjuli qianpnh huiup.

Zwduwquwnu]vwGnIpJw6 hwylwunnwqhp.
