USER MANUAL KB 389.1 BOMANN

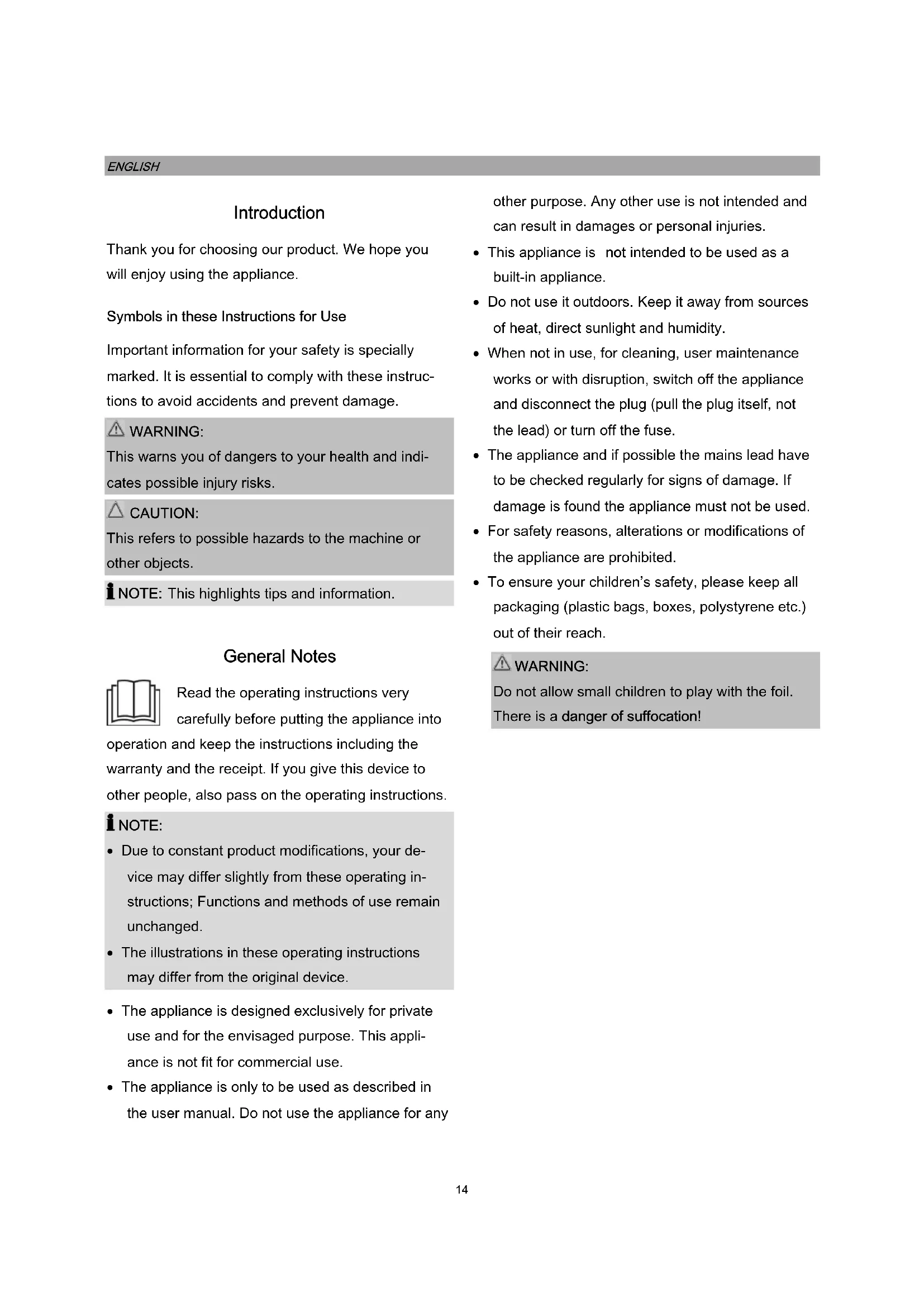

ENGLISH Introduction Thank you for choosing our product. We hope you will enjoy using the appliance. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instruc- tions to avoid accidents and prevent damage.

This warns you of dangers to your health and indi- cates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. General Notes Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

NOTE: Due to constant product modifications, your de- vice may differ slightly from these operating in- structions; Functions and methods of use remain unchanged. The illustrations in these operating instructions may differ from the original device. The appliance is designed exclusively for private use and for the envisaged purpose. This appli- ance is not fit for commercial use. The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries. This appliance is not intended to be used as a built-in appliance. Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity. When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse. The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used. For safety reasons, alterations or modifications of the appliance are prohibited. To ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Do not allow small children to play with the foil. There is a danger of suffocation!15

Special safety Information for this Unit This unit is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environ- ments; - farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; - catering and similar non-retail applications.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the de- frosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery). Do not damage the refrigerant circuit. Do not operate any electrical devices inside the appliance. Do not store explosive substances such as aerosol containers with flammable propellant in the appliance. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and under- stand the hazards involved.

Children shall not play with the appliance.16 Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.

NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power sup- plies at the rear of the appliance. Do not try to repair the appliance on your own. Always contact an au- thorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type. Use the provided collection points of electrical equipment for the dis- posal of the appliance. Coolant

WARNING: Risk of fire / flammable

materials The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance. If the coolant circuit is damaged: avoid any open flames or ignition source, disconnect the plug, thoroughly air the room in which the appliance is installed and contact an authorized technician. Transport and Packaging Transport the appliance Transport the appliance, if possible, in vertical posi- tion. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation ”Prior to first use”. Protect the appliance during transport against weather influences. Unpacking the appliance Remove the appliance from its packaging. Remove all packaging material, such as foils, filler and cardboard packaging. To prevent hazards, check the appliance for any transport damage. In case of damage, do not put the appliance into operation. Contact your distributor.17 NOTE: Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”. Appliance Equipment Appliance overview

Delivery scope 1x grid shelf 1x ice-cube tray, 1x water drip tray Installation Conditions for the installation location Good ventilation is required around the appliance to dissipate the heat properly and to guarantee ef- ficient cooling operation at low power consump- tion. Enough clearance is necessary. - Gap to the back approx. 50～70 mm, to the side walls and above the device each approx. min. 100 mm; - Place the appliance so that the appliance door can open without being impeded. Only install at a location with an ambient tempera- ture suitable for the climate class of the appliance. The climate class can be found under "Technical Data" and on the rating label located in the interior or on the appliance rear. Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

Avoid the installation: - near heaters, next to a stove, direct sunlight or any other heat sources; - at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be suscepti- ble to corrosion under such circumstances; - near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages). - Do not expose the appliance any weather. Electrical connection

The installation to the mains supply must conform to the local standards and regulations. Improper connection may cause to an electric shock

Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist. The accessibility of the power plug must be en- sured to disconnect the appliance from the power supply in case of emergency. Make sure that the voltage supply matches the specifications on the rating label before connect- ing. Connect the mains cable to a properly installed and earthed wall outlet. If the plug after installation is not accessible, a corresponding disconnect device must be availa- ble to meet the relevant safety regulations.18 Reverse the door opening If required, the door opening can be moved from the right (supplied condition) to the left side.

When replacing the door stop, the appliance must be disconnected from the power supply first.

NOTE: Ask another person to assist.

You possibly need: screw wrench, Phillips screw- driver as well as a thin-blade screwdriver.

Remove the blind cap (1) and the hinge cover (2). Dismount the upper door hinge (4) by loosening the screws (3). Open the appliance door a little and lift it out of the lower door hinge. Displace the blind plug (9) of the appliance door accordingly. Place the appliance door safely aside. Tilt the appliance slightly backwards and block it in this position. Unscrew the feet (7+8). Dismount the lower door hinge (5) by loosening the screws (6). Displace and attach the door hinge (5) at the op- posite appliance side. Turn in the feet (7+8) ac- cordingly. Replace the appliance upright. Put the appliance door on the hinge pin and fix it in its intended po- sition. Displace and attach the upper door hinge (4) at the opposite appliance side. Insert in the blind cap (1) at the opposite hole and put on the hinge cover (2) again, which you have removed at the beginning. Check that the door is optimally aligned both vertical- ly and horizontally to ensure a smooth opening and closing of the door. Startup / Operation Prior to first use CAUTION: After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance break- down. Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter “Cleaning and Maintenance”. Starting the appliance Connect the appliance to the power supply. Operate the temperature control. See also the section "Settings". Settings Setting [ 0 ] means that the appliance is in the off state. Turn the temperature control clockwise, start- ing from this setting; the appliance will turn on auto- matically. The power levels [ 1 – 7 ] regulate the different val- ues of the internal temperature. Setting 0: Off sate Setting 1: Lowest setting (warmest inside temp.) Setting 7: Highest setting (coldest inside temp.)

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance. During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. After-19 wards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier. NOTE: In generally a low to medium power level works best for an optimized food storage. A high power level also increases the energy consumption. Storing food NOTE: Recommendation! To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods. CAUTION: Always pay attention to the storage instructions on the sales packaging. Always store food covered or packed to prevent dry- ing-out and transfer of odor or taste onto other food items. You may pack the food with e.g. Polyethylene plastic bags or foil Plastic bowl with lid Special plastic covers with elastic strip Aluminum foil To avoid contamination of food, respect the following instructions: Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems (see “Cleaning and Maintenance”). Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. If the appliance is out of use for long period, fol- low the instructions under "Switching off".

Storage space Depending on requirements, shelves/drawers (par- tially and depending on model) can be adjusted in height or removed to optimize the storage space. NOTE: For the most efficient use of energy, place all shel- ves/drawers in their original position. Temperature zones and storage recommendations The optimal cooling temperature is around 5∼7 degrees for the central area of the cooling. Different cooling zones are created by the air circula- tion. Regardless of the power level, cold air drops off. The coldest zone is on the cooling rear wall and in the lower cooling part. Recommended for storing perishable foods such as meat, fish and sausages at around 2-3 degrees. About that it becomes less cold. For dairy pro- ducts such as yoghurt, cheese and co., the center of the cooling is just the right temperature at around 5 degrees. Well-packed leftovers or preserves needs less cooling. The upper cooling part at around 8 degrees could be the right place. The cooling door is one of the warmest locations. The upper racks are good location for food that needs moderate cooling, such as butter and eggs. There is space for drinks in the lower door racks. The vegetable box (depending on the model) is suitable for fruit and vegetables at a temperature of around 8 degrees, depending on the cooling temperature. To ensure that delicate fruits and vegetables feel good, a glass shelf above avoids the falling cold. Ice compartment The ice compartment allows you to store already frozen food at a temperature up to -4°C temporarily. In addition, observe the recommended storage times on the sales packaging. However, it is especially20 intended for the preparation and storage of ice cu- bes. Operating noise Type of sound Cause Mumbling Compressor during its operation Liquid sounds Circulation of the refrigerant Click sounds The temperature control turns the compressor on or off Disturbing noises Vibration of the shelves or cooling coils Switching off To switch off the appliance turn the temperature con- trol to the off state. If the appliance is out of use for long periods: Remove the appliance content. Disconnect the appliance from the power supply. Defrost (model dependent) and clean the device thoroughly (see ”Cleaning and Maintenance”). Leave open the appliance door to avoid formation of mold and unpleased odor. Tips for Energy saving Disconnect the appliance from the power supply, if it isn’t in use. Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more fre- quently and longer. Ensure enough ventilation at the bottom and rear side. Never block ventilation openings. Place all shelves, racks or drawers (depending on the model) in their original position. Adjust the temperature not colder than necessary. Allow warm food to cool before placing it in the appliance. Open the unit door only as necessary. Defrost the unit regularly (model dependent). The seal of the appliance door must be complete- ly intact, so that the door closes properly. Cleaning and Maintenance

Always disconnect the appliance from the power supply before cleaning and user maintenance. Do not use steam cleaners for cleaning the appli- ance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts. The unit must be dry before restarting operation. CAUTION: Do not use a wire brush or other sharp, abrasive items. Do not use any acidic or abrasive detergents. Do not damage the refrigerant circuit. Cleaning the appliance including interior Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfiber cloth without cleaning agent. Remove the appliance content and storage it at a cool location. After everything was thoroughly dried, you can restart the operation. Defrosting CAUTION: Never use metal objects (e.g. knifes) to remove ice from the evaporator. Otherwise it can be damaged. To achieve better cooling and to save energy, defrost the appliance regularly as follows: To start the defrosting process, disconnect the appliance from the power supply. Remove the food items and keep covered at a cool location.21 When the ice has melted, wipe the condensate away and dry the appliance interior. Then you may restart the appliance by connecting the plug and turning the temperature control.

Troubleshooting Before you contact an authorized specialist Problem Cause / Action Unit is not working properly or at all ∙ Check the power supply / tempera- ture setting / ambient temperature. ∙ Unblock the ventilation openings, install the unit freely. Loading is too warm ∙ Check the temperature setting / ambient temperature. ∙ Open the door only as long as necessary. Loud noise during opera- tion ∙ Check the appliance position. ∙ See the section “Operating noise”. Water on the unit bottom ∙ Check the temperature setting. NOTE: If a problem persists after following the steps above, contact your trader or an authorized technician. Technical Data Climate class SN/N/ST/T : this appliance is intended to be used at ambient temperature ranging from 10°C to 43°C

Electrical connection………………...………………….. Power voltage: ………………...….220-240 V~ / 50 Hz Rated power: ……………….….…………....…….70 W Rated current: ……………………………………0.32 A Dimension H x W x D / Weight…..…...……………….. Appliance size: ……….….….....51.0 x 44.3 x 52.0 cm Net weight: ………………………….…approx. 14.0 kg For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank: https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved. This appliance has been tested according to all rele- vant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Meaning of the “Dustbin” Symbol Protect our environment; do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment. Information concerning where these can be disposed of can be obtained from your local authority.

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.22
