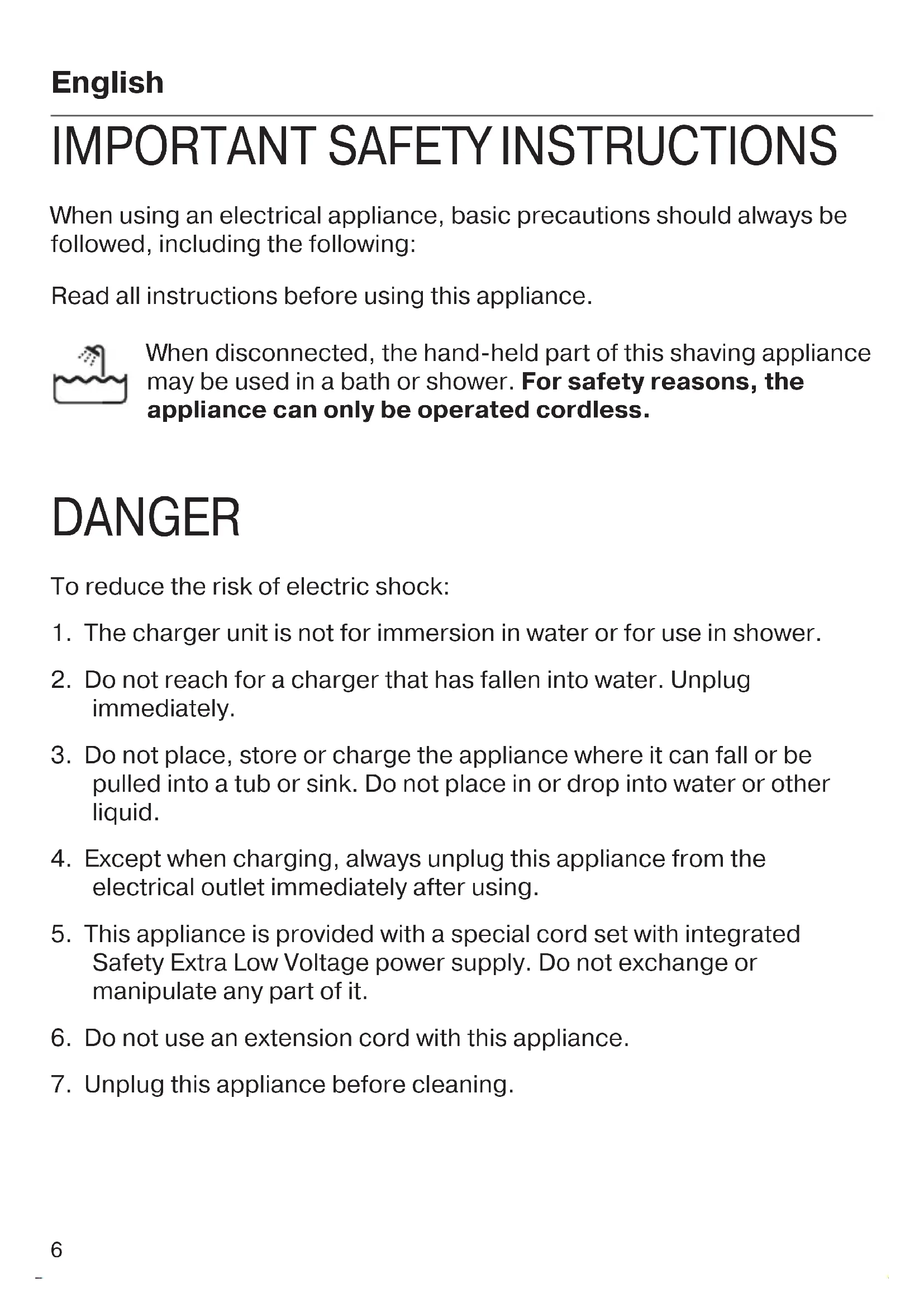

When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this appliance. When disconnected, the hand-held part of this shaving appliance may be used in a bath or shower. For safety reasons, the appliance can only be operated cordless. DANGER To reduce the risk of electric shock:

1. The charger unit is not for immersion in water or for use in shower.

2. Do not reach for a charger that has fallen into water. Unplug

3. Do not place, store or charge the appliance where it can fall or be

pulled into a tub or sink. Do not place in or drop into water or other liquid.

4. Except when charging, always unplug this appliance from the

electrical outlet immediately after using.

5. This appliance is provided with a special cord set with integrated

Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.

6. Do not use an extension cord with this appliance.

7. Unplug this appliance before cleaning.

91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 691845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 6 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 6 of 487 WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or

near children or persons with disabilities.

2. Use this appliance only for its intended use as described in this

manual. Do not use attachments not recommended by the manufacturer.

3. Never operate this appliance if it has a damaged cord or plug, if it is

not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening of the appliance.

6. Do not use outdoors or operate where aerosol (spray) products are

being used or where oxygen is being administered.

7. Do not use this appliance with a damaged or broken foil, as serious

skin injuries may occur.

8. Always attach plug to appliance first, then to outlet. To disconnect,

turn all controls off, then remove plug from outlet.

9. When plugging to an electrical outlet outside North America, use a

plug adapter to match the outlet’s pin configuration.

10. Caution: The battery used in this device may present a fire or

chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C (212 °F), or incinerate.

11. To recharge the battery, only use the detachable power supply

provided with this appliance. If the appliance is marked

SAVE THESE INSTRUCTIONS

91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 791845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 7 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 7 of 488 Our products are designed to meet the highest standards of quality, functionality and design. Thank you for your trust in Braun’s quality, and we hope you enjoy your new Braun shaver. Important Do not open the appliance! Only at the end of the product’s useful life, disassemble the rechargeable battery for disposal reasons as shown in the battery removal section. This product is for household use only. Warning Clean&Charge Station To prevent the cleaning fluid from leaking, ensure that the Clean&Charge Station is placed on a flat surface. When a cleaning cartridge is installed, do not tip, move suddenly or transport the station in any way as cleaning fluid might spill out of the cartridge. Do not place the station inside a mirror cabinet, nor place it on a polished or lacquered surface. The cleaning cartridge contains a highly flammable liquid so keep it away from sources of ignition. Do not expose to direct sunlight and cigarette smoking nor store it over a radiator Do not refill the cartridge and use only original Braun refill cartridges.

DANGER : FLAMMABLE. CONTENTS MAY CATCH FIRE. Do not smoke. Use only in

well-ventilated areas. Keep away from flames such as pilot light, and any object that sparks such as electric motor. Keep locked up. KEEP OUT OF REACH OF CHILDREN. CAUTION : MAY IRRITATE EYES. Do not get in eyes. FIRST AID TREATMENT: Contains ethanol. If swallowed, call a Poison Control Centre or doctor immediately. Do not induce vomiting. If in eyes, rinse with water for 15 minutes. Description Clean&Renew station 1 Cleaning fluid display 2 Lift button for cartridge exchange 3 Station-to-shaver contacts 4 Start button 5 Cleaning program indicators 6 Station power socket 7 Cleaning cartridge (not with all models) Shaver 8 Foil & Cutter cassette 9 Cassette release button 10 Shaver head lock switch 11 Pop-out long hair trimmer 12 On/off switch 13 – setting button (sensitive) 14 + setting button (intensive) 15 Reset button 16 Shaver display 16a Charging lights (green) 16b Low-charge light (red) 16c Replacement symbol 17 Shaver-to-station contacts 18 Shaver power socket 19 Travel case 20 Special cord set (design can differ) 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 891845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 8 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 8 of 489 Before shaving Prior to first use you must connect the shaver to an electrical outlet using the special cord set (20) or alternatively proceed as below. Installing the Clean&Renew station

• Press the lift button (2) to open the housing.

• Hold the cleaning cartridge (7) down on a flat, stable surface (e.g. table).

• Carefully remove the lid from the cartridge.

• Slide the cartridge into the base of the station as far as it will go.

• Slowly close the housing by pushing it down until it locks.

• Using the special cord set (20), connect the station power socket (6) to an electrical outlet. The cleaning fluid display (1) will show how much fluid is in the cartridge: up to 30 cleaning cycles available up to 7 cleaning cycles remaining new cartridge required Charging and cleaning the shaver Insert the shaver head with the front showing and released head lock (10) into the Clean&Renew. The contacts (17) on the back of the shaver will align with the contacts (3) in the cleaning station. Important: The shaver needs to be dry and free from any foam or soap residue! If required, the Clean&Renew station will automatically charge the shaver. The hygiene status of the shaver will also be analyzed and one of the following cleaning program indicators (5) will light up: shaver is clean short economical cleaning required normal level of cleaning required high intensive cleaning required If the station selects one of the required cleaning programs, it will not start unless you press the start button (4). For best shaving results, we recommend cleaning after each shave. Each cleaning program consists of several cycles, where cleaning fluid is flushed through the shaver head. Depending on your Clean&Renew Station model and/or program selected, the cleaning time takes up to 16 minutes. Leave the shaver in the station for drying. It takes several hours until remaining moisture evaporates depending on the climatic conditions. When the program is finished, the blue indicator will light up. Stand-by mode 10 minutes after completing the charging or cleaning session, the Clean&Renew station switches to the stand-by mode: The indicators of the Clean&Renew station turn off. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 991845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 9 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 9 of 4810 Shaver display The shaver display (16) shows the charge status of the battery. Charging lights (16a) The green charging lights show the charge status of the batteries. The green charging light blinks when the shaver is being charged or switched on. When the battery is fully charged, all green charging lights shine permanently, provided the shaver is connected to an electrical outlet. Some minutes after completing the charging, the shaver switches to the stand-by-mode: The display turns off. Low-charge light (16b) The red low-charge light flashes when the battery is running low. The remaining battery capacity is sufficient for 2 to 3 shaves. Charging information

• A full charge will take about 1 hour and provides up to 50 minutes of cordless shaving time. This may vary according to your beard growth and environmental temperature. 5-minute quick charge is sufficient for a shave.

• Recommended ambient temperature for charging is 41 °F to 95 °F / 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 60 °F to 95 °F / 15 °C to 35 °C. Do not expose the shaver to temperatures higher than 122 °F / 50 °C for extended periods of time. Using the shaver How to use Press the on/off switch (12) to operate the shaver:

• The pivoting shaver head and floating foils automatically adjust to every contour of your face.

• To shave hard to reach areas (e.g. under the nose), first slide the shaver head to the back position, afterwards move the head lock switch to the back. The pivoting head is locked at this angle.

• To trim sideburns, moustache or beard, slide the pop-out long hair trimmer (11) upwards. Tips for the perfect dry shave For best shaving results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at right angles (90°) to your skin.

3. Stretch your skin and shave against the direction of your beard growth.

Personalizing your shaver By holding down the accelerator button –/+ (13) or (14) you can adjust the shaving power to your individual needs in the different areas of your face from sensitive to intensive. The pilot light in the on/off switch (12) changes within the following range: 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1091845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 10 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 10 of 4811 (–) sensitive shave – light blue – dark blue – green (+) intensive shave For a thorough and fast shave we recommend the green (intensive) setting. When switching on next time, the last used setting will be activated. Cleaning Automatic cleaning After each shave, return the shaver to the Clean&Renew station and proceed as described above in the section «Before shaving». All charging and cleaning needs are then automatically taken care of. With daily use, a cleaning cartridge should be sufficient for about 30 cleaning cycles. The hygienic cleaning cartridge contains ethanol or isopropanol (specification see cartridge), which once opened will naturally evaporate slowly. Each cartridge, if not used daily, should be replaced after approximately 8 weeks to ensure optimal disinfection. The cleaning cartridge also contains lubricants, which may leave residual marks on the outer foil frame after cleaning. However, these marks can be removed easily by wiping gently with a cloth or soft tissue paper. Manual cleaning Cleaning under running water

• Switch the shaver on (cordless) and rinse the shaver head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.

• Next, switch off the shaver, press the release button (9) to remove the Foil & Cutter cassette (8) and let it dry. The shaver shall not be used until it has dried completely.

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) on top of the Foil & Cutter cassette and the long hair trimmer. The shaver should be cleaned after each foam usage. Cleaning with a brush

• Switch off the shaver. Remove the Foil & Cutter cassette (8) and tap it out on a flat surface. Using a brush, clean the inner area of the pivoting head. However, do not clean the cassette with the brush as this may damage it. Cleaning the housing From time to time clean the housing of the shaver and the Clean&Renew station with a damp cloth, especially inside the cleaning chamber where the shaver rests. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1191845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 11 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 11 of 4812 Replacing the cleaning cartridge After having pressed the lift button (2) to open the housing, wait for a few seconds before removing the used cartridge to avoid any dripping. Before discarding the used cartridge, make sure to close the openings using the lid of the new cartridge, since the used cartridge will contain contaminated cleaning solution. Keeping your shaver in top shape Replacing the Foil & Cutter cassette / reset To maintain 100% shaving performance, replace the Foil & Cutter cassette (8), when the replacement symbol (16c) lights up on the shaver display (after about 18 months) or when cassette is worn. The replacement symbol will remind you during the next 7 shaves to replace the Foil & Cutter cassette. Then the shaver will automatically reset the display. After you have replaced the Foil & Cutter cassette, use a ball-pen to push the reset button (15) for at least 3 seconds to reset the counter. While doing so, the replacement light blinks and goes off when the reset is complete. The manual reset can be done at any time. Accessories Available at your dealer or Braun Service Centres:

• Foil & Cutter cassette 70S

• Cleaning cartridge Clean&Renew CCR Battery removal This appliance contains a rechargeable battery. Before disposing of the appliance, disassemble the housing as shown, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it and invalidate the warranty. Li-Ion

The cleaning cartridge can be disposed of with regular household waste. Subject to change without notice. For electric specifications, see printing on the special cord set. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1291845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 12 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 12 of 4813 Trouble-Shooting Problem Possible reason Remedy SHAVER Unpleasant smell from the shaver head.

1. Shaver head is cleaned

2. Cleaning cartridge is in use

for more than 8 weeks.

1. When cleaning the shaver head with

water only use hot water and from time to time some liquid soap (without abrasive substances). Remove Foil & Cutter cassette to let it dry.

2. Change cleaning cartridge at least

every 8 weeks. Battery Performance dropped significantly.

1. Foil and cutter are worn

which requires more power for each shave.

Shaver head is regularly cleaned with water but not lubricated.

1. Renew Foil & Cutter cassette.

2. If the shaver is regularly cleaned

with water, apply a drop of light machine oil on top of the foil once a week for lubrication. Shaving performance dropped significantly.

1. Foil and cutter are worn.

2. Personal setting of shaving

performance has been changed.

3. Shaving system is clogged.

1. Renew Foil & Cutter cassette.

2. For a thorough and fast shave we

recommend the green (intensive) setting.

3. Soak the Foil & Cutter cassette into

hot water with a drop of dish liquid. Afterwards rinse it properly and tap it out. Once dry apply a drop of light machine oil on the foil. Shaver turns off with fully charged battery. Foil and cutter are worn which requires more power than the motor can deliver. The appliance turns off. – Renew Foil & Cutter cassette. – Regularly oil the shaving system, especially when cleaning with water only. Battery segments in the display are skipped with decreasing battery capacity. Foil and cutter are worn which requires more power for each shave. – Renew Foil & Cutter cassette. – Regularly oil the shaving system, especially when cleaning with water only. Shaving parts have been changed recently but replacement symbol lights up. Reset button has not been pushed. Push the reset button for at least 3 seconds to reset the counter. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1391845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 13 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 13 of 4814 Shaver head is damp.

1. Drying time after automatic

cleaning was too short.

2. Drain of the Clean&Renew

3. Cleaning cartridge has

been used for quite a while.

1. Clean directly after shaving to allow

enough time for drying.

2. Clean the drain with a wooden

toothpick. Regularly wipe the tub clean.

3. The ethanol/isopropanol proportion

has decreased while the oil proportion has increased. Remove residue with a cloth.

Cleaning does not start when pressing the start button.

1. Shaver is not placed

properly in the Clean&Renew station.

2. Cleaning cartridge contains

not enough cleaning fluid (display lights red).

3. Appliance is in stand-by

1. Insert shaver into the Clean&Renew

station (contacts of the shaver need to align with contacts in the station).

2. Insert new cleaning cartridge.

3. Press start button again.

Increased consumption of cleaning fluid. Drain of the Clean&Renew station is clogged. – Clean the drain with a wooden toothpick. – Regularly wipe the tub clean. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1491845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 14 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 14 of 4815 How to obtain service in the USA Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts and accessories: Contact a Braun Authorized Service Center. Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (272-8611). 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1591845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 15 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 15 of 4816 How to obtain service in Canada Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable To obtain original Braun replacement parts & accessories: Contact a Braun Authorized Service Center. Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To speak to a Braun Service Representative: Please call 1-800-387-6657. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1691845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 16 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 16 of 4817 60 day money back satisfaction guarantee for men’s grooming products Braun Shavers Braun Beard Trimmers Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment. Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use. Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase. Please include the following information when you return your product: Name Street City State Zip code Telephone number Please allow 6-8 weeks for handling. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1791845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 17 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 17 of 4818

2 year limited warranty (foil and cutter block excluded) Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase. If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge. Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com. This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1891845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 18 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 18 of 4819

2 year limited warranty (foil and cutter block excluded) In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer. This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts. Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product. 91845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 1991845289_7880cc_7867cc_7865cc_7850cc_NA_S6-48.indd 19 14.03.18 10:5214.03.18 10:52 P&G AUTHORIZED 91869873 Rev 001 Effective Date 2018-03-20 Printed 2018-05-03 Page 19 of 4820 Français
