ET2020AGTK - Desktop computer ASUS - Free user manual and instructions

Product Type	All-in-One desktop computer
Brand	ASUS
Model	ET2020AGTK
Processor	Intel Celeron or Pentium (estimated)
RAM Memory	4 GB (estimated)
Storage	500 GB hard drive (estimated)
Screen	20 inches, 1600x900 resolution (estimated)
Operating System	Windows 8 (according to the manual)
TV Tuner	Digital and analog integrated
Connectivity	Wi-Fi, Ethernet, USB, HDMI, headphone/microphone jack
Dimensions (W x H x D)	Approximately 50 x 40 x 5 cm (estimated)
Weight	Approximately 5 kg (estimated)
Power Supply	90 W AC adapter (estimated)
Main Functions	Live TV viewing, scheduled recording, electronic program guide, parental control, screenshot capture, remote control
Maintenance and Cleaning	Unplug the device, clean the screen with a soft dry cloth, do not use abrasive products
Safety	Do not block ventilation openings, avoid heat sources, unplug during storms
Spare Parts and Repairability	Contact ASUS after-sales service for spare parts
General Information	User manual available in PDF on notice-facile.com

Frequently Asked Questions - ET2020AGTK ASUS

How to configure the TV tuner on the ASUS ET2020AGTK?

Open the ArcSoft TV 5.0 application from the Desktop or via search. The configuration wizard starts automatically. Select your country, the TV tuner card, the TV type (cable or antenna), then click Scan to detect channels.

Can I record a TV program?

Yes, you can schedule a recording from the Scheduling menu of the ArcSoft TV application. Click Add, configure the options (channel, date, time) and confirm. The computer must remain on for the recording.

How to use the electronic program guide?

The guide is available only with a digital TV tuner. Open ArcSoft TV and click the Guide icon or use the remote control. It displays program schedules for each channel.

What to do if the remote control does not work?

Check the batteries, the distance (max 5 m), and that no obstacle blocks the infrared sensor on the computer. If the problem persists, restart the device.

How to switch between digital and analog TV?

Press the TV/AV button in the ArcSoft TV interface. This option is available only if your model has both types of tuner.

Can I use Windows Media Center with this PC?

Yes, if your model has Windows 8 Media Center. You can purchase the Media Center Pack to activate dedicated features. The remote control has specific buttons (Live TV, Guide, etc.).

How to take a screenshot of a TV program?

During playback, click the Camera icon in the on-screen controls of ArcSoft TV, or press the corresponding button on the remote control.

Why does ArcSoft TV not detect any channels?

Make sure a TV cable (antenna or cable) is properly connected to the RF IN port. Restart the scan in the configuration wizard. If nothing changes, check that the tuner card is enabled in Device Manager.

Where can I download the manual in French?

The manual is available for free in PDF format on notice-facile.com. You can also request a translation into your language by providing your email.

How to clean the screen of my ASUS ET2020AGTK?

Unplug the computer. Use a soft, lint-free cloth slightly dampened (clean water). Do not use chemical or abrasive products. Wipe gently without pressing.

USER MANUAL ET2020AGTK ASUS

Before launching your TV Tuner application, check if your digital TV-in or analog TV-in cable is connected.

Launching your TV Tuner Application

To launch ArcSoft TV 5.0 in Windows® 8, do one of the following:

From the Windows desktop, click the ArcSoft TV 5.0 icon.

NOTE: The ArcSoft TV desktop shortcut icon is not available for AIO ET2300.

• Click to launch the search screen for applications. Type "ArcSoft" in the search field and click the ArcSoft TV icon from the search results.

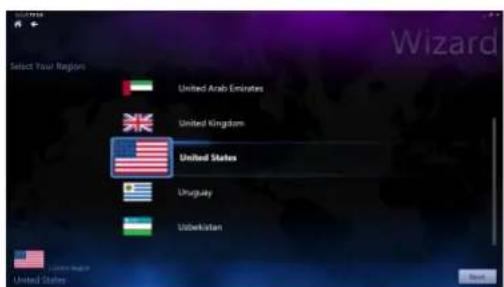

Setting up your TV Tuner Application

To set up ArcSoft TV 5.0:

1. On the main menu, click Live TV.

1. The Setup Wizard will launch to guide you through setting up your TV Tuner application. Select your country or region and click Next to continue.

1. The Setup Wizard will attempt to detect the installed TV Tuner device. Select the appropriate TV tuner card which came with your All-in-One PC.

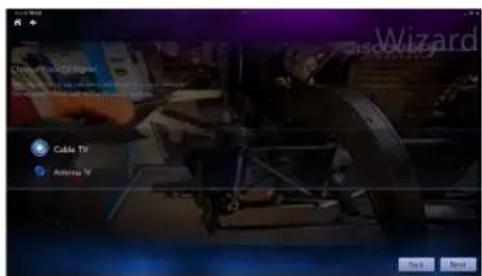

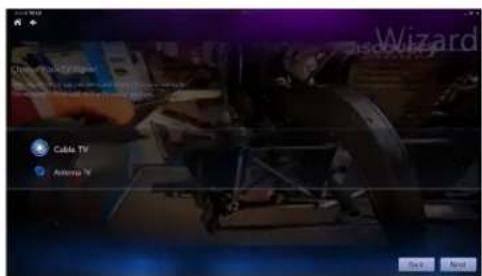

2. Select the type of television service you use.
3. Select Cable TV for cable television.
4. Select Antenna TV for television received via an antenna.
5. Click Scan to begin scanning for available channels.
6. If your All-in-One PC came with both an analog and digital TV tuner, the Setup Wizard will prompt you to set up your second TV tuner.
7. Select Yes to set up the second TV Tuner.
8. Select No to complete the Setup Wizard.

1. Click Finish to complete the Setup Wizard.

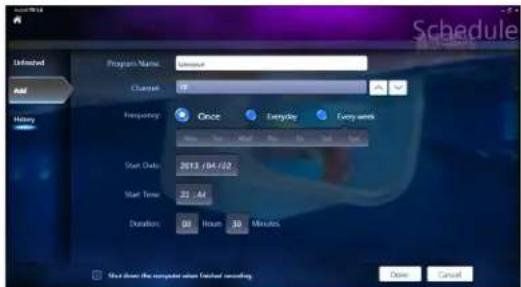

Scheduling recordings of TV broadcasts

To schedule recordings of TV broadcasts:

1. On the main menu, click Schedule.

1. On the left panel, click Add.
2. Configure the following options:

Program Name - Channel Frequency - Start Date/Time - Specify the date/time of recording. Duration - Specify length of recording. - Shut down the computer when finished recording

1. Click Done to save settings and schedule recording.

NOTE: The All-in-One PC needs to be powered on to automatically record TV broadcasts.

1. To schedule additional recordings, repeat steps 1-4.

NOTE: The number of recordings you can schedule is limited by the available storage on your All-in-One PC.

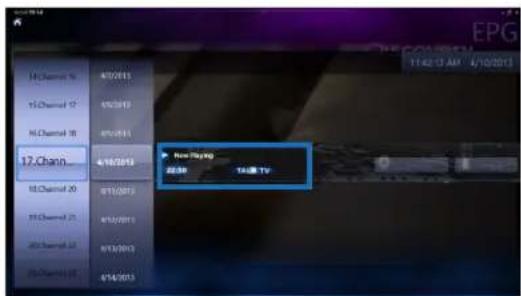

Using the Entertainment Program Guide (EPG)

The EPG displays the time and TV programs playing on a specified channel and date.

NOTE: EPG is only available for All-in-One PCs with a digital TV tuner.

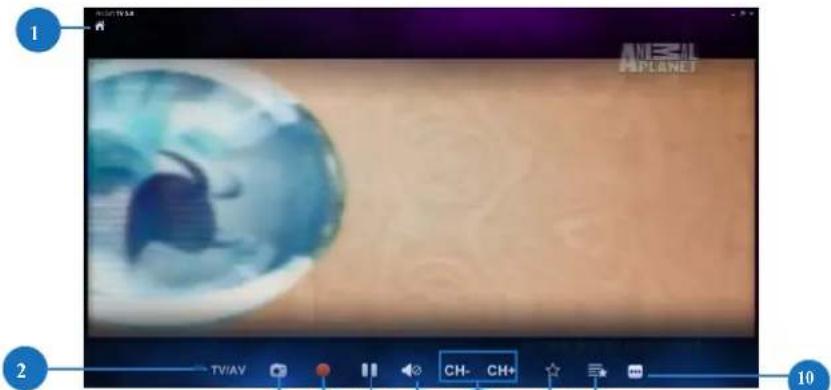

Using the Live TV Onscreen Controls

Home button

Click this icon to go to the Arcsoft TV 5.0 main menu.

2 TV/AV

Click this button to toggle between analog TV and digital TV.*

*This item is only available for All-in-One PCs with both an analog and digital TV tuner.

Take a screenshot

Click this button to take a screen capture of the video or media playing.

4 Record

Click this button to begin recording the television broadcast.

5 Pause

Click this button to pause recording or playback.

Volume Controls

Click this button to display onscreen volume controls to increase/decrease volume.

CH-/CH+

Click this button to increase or decrease the channel by one.

8 Add to Favorites

Click this button to add this channel to the Favorites list.

9 Favorites List

Click this button to display the list of saved Favorites.

Subtitles and Audio Tracks

Click this button to display the list of available subtitles and audio channels/tracks.

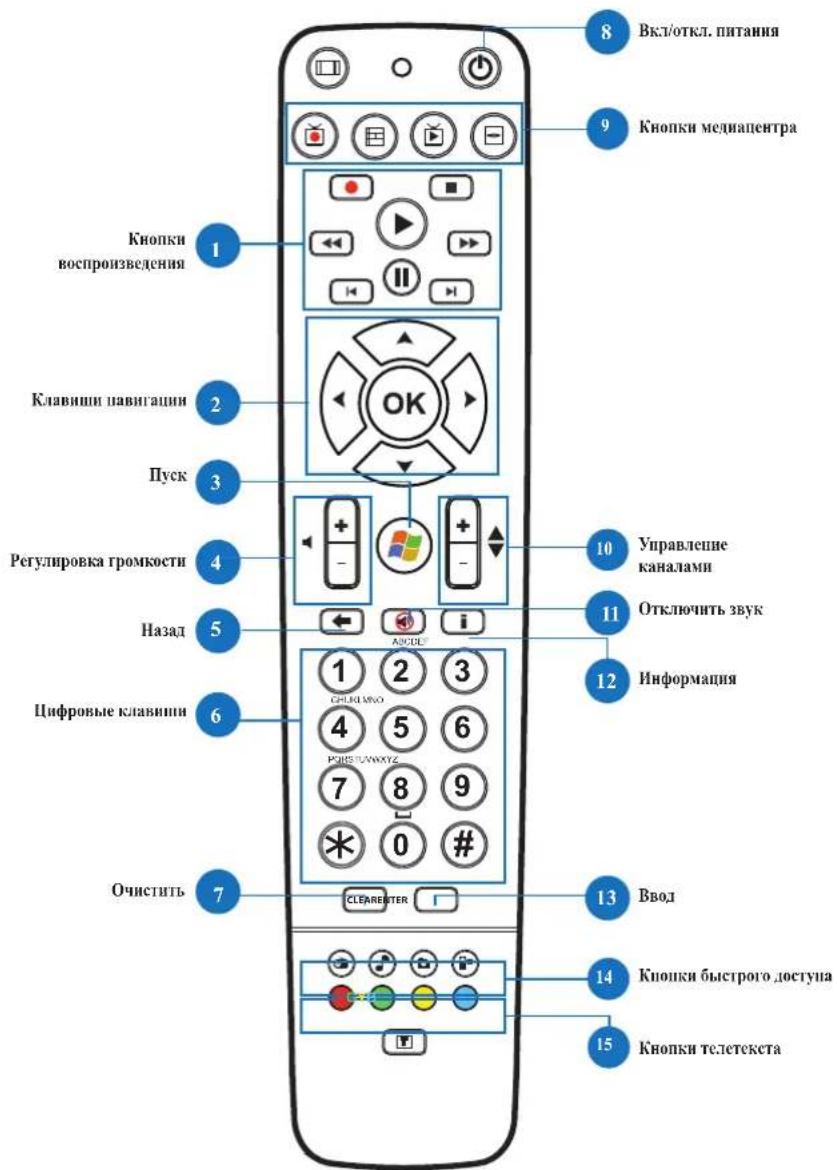

Using the Remote Control

Playback Buttons

Play

Starts playing media. If playback is paused, pressing this button begins playback from the current position.

Pause

Pauses media playback at the current position.

Stop

Stops playing media at the current position.

Record

Record the TV show to disk. If pressed while Live TV is on, records the current show. If pressed from the EPG screen, records a TV show or TV series to disk.

Fast Forward

Speeds up the playback of the media file to the first forward value (3X).

Rewind

Reverses direction of playback and speeds up the time base to the first rewind value (3X).

Skip Forward

Skipping forward one increment when this button is pressed.

Skip Back

Skipping backward one increment when this button is pressed.

Navigation Keys

Press the up/down keys to move through the menu bar in a submenu.

Press the up/down keys to decrease/increase a numerical value.

Press the left/right keys to move through the main menus in the Home screen.

Press the left/right keys to move through the items in a submenu.

Press OK to confirm the selection.

Start*

Takes the user to the Windows Media Center Start menu.

*This button is only available for All-in-One PCs installed with Windows Media Center.

4	Volume controls Press the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5	Back Moves back one position in the user interface,
6	Number keys
7	Clear Clear any entered user input.
8	Power on/off Press this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9	Media Center Buttons*
	Record TV Displays the Recorded TV page in Windows Media Center.
	Guide Displays the media guide in Windows Media Center.
	Live TV Shows live TV on the currently selected channel.
	DVD menu Displays the DVD menu.
	*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10	Channel controls Increases/decreases the current channel by one.
11	Mute Mutes the computer audio.
12	Information Press to display information about the movie, video, or music.
13	Enter Press this button to select an option or input text.

Media Center Shortcut buttons

Displays the main Radio page in Windows Media Center.

Displays the Music Library in Windows Media Center.

Displays the Picture Library in Windows Media Center.

Displays the Video Library in Windows Media Center.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

Teletext buttons*

Press these buttons to access Teletext features when available.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

NOTE:

• To avail of Windows Media Center features, you can purchase a Windows 8 Media Center Pack separately.
• You can download a version of this manual in a different language at the ASUS support site at http://support.asus.com

All-in-OnePC

English

All-in-One PC TV

Quick guide

Select Yes (Ja) to install the second TV tuner. Select No (Nej) to complete the installation guide.

9 Favorites list

Click this button to show the list of saved favorite channels.

10 Subtitles and audio tracks

Shut down the computer when finished

Using the program guide (EPG = Electronic Program Guide)

Shows the main page for radio in Windows Media Center.

1. Press the Live TV button.

1. The installation wizard starts, which will help you configure the TV tuner application. Select your country or region and press Next to continue.

All-in-One PC

1. The installation wizard will try to detect the installed TV tuner. Select the TV tuner that comes with your all-in-one computer.

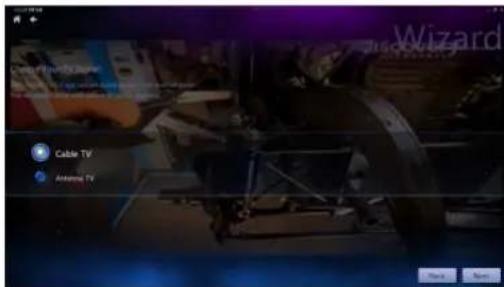

2. Select the type of signal used.

Select Cable TV for cable television. Select Antenna TV for a signal received through an antenna.

1. Press Scan for incoming channels.
2. If your computer is supplied with analog or digital TV tuners, the setup wizard will prompt you to configure the second TV tuner.

Select the settings for the second TV tuner. Do not complete the setup wizard.

1. Press Finish to close the wizard.

All-in-One PC

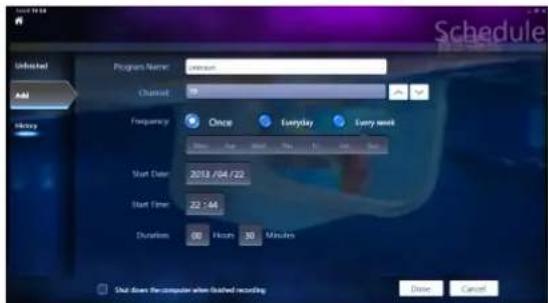

Scheduling TV recordings

To schedule a recording:

1. In the main menu, press Schedule.

1. On the left panel, press Add.
2. Scan the following options:

Program name - Channel - Frequency - Date / Start time - Specify the date/time of the recording. - Duration - Specify the recording duration. - Shut down the computer after the recording is finished.

1. The settings are saved automatically.

NOTE: The laptop must be turned on for automatic transmission.

5. To schedule another recording, repeat steps 1~4

NOTE: The number of scheduled recordings is limited by the available space on the laptop.

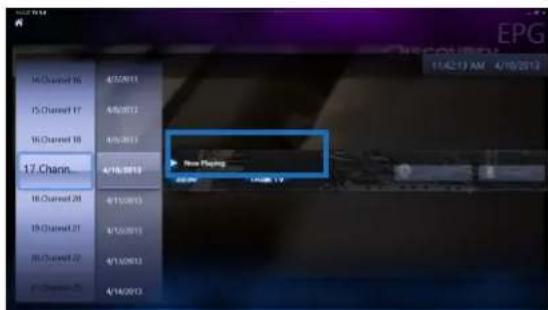

Using the TV Program (EPG)

The TV Program (EPG) displays the channel, date, and time of the TV program.

NOTE: The TV Program (EPG) is available only with a laptop that has an analog or digital TV tuner.

All-in-One PC

Using the Control Elements

Home Button

Press this button to go to the main menu of Arcsoft TV 5.0.

TV/AV

Press this button to switch between analog and digital TV.*

*This function is available only on computers with an analog or digital TV tuner.

6 Volume adjustment

Press the volume adjustment button.

CH-/CH+

Press this button to change the channel.

8 Add to favorites

Press this button to add the current channel to the favorites.

9 Favorites

Press this button to display the favorites list.

10 Subtitles and audio tracks

Press this button to display available subtitles and audio channels/tracks.

All-in-One PC

Using the remote control

6

Playback buttons

Play

Starts playback. If playback is paused, pressing the button resumes playback from the current position.

Pause

Pauses playback at the current position.

Stop

Stops playback.

Record

Records the current program to disk. If pressed during playback, records the current program. If pressed on the EPG screen, records the current program to disk.

Fast forward

Fast forward playback (3x).

Rewind

Rewind playback (3x).

Forward

Increases the fast forward speed.

Back

Increases the rewind speed.

Use the Up/Down arrow keys to navigate in the menu.

Use the Up/Down arrow keys to increase/decrease the value.

Use the Left/Right arrow keys to navigate in the main menu.

Use the Left/Right arrow keys to navigate through the menu items.

Press OK to confirm the selection.

Start

Opens the Start menu in Windows Media Center.

* This button is available only on a computer with Windows Media Center.

All-in-One PC

Displays the TV programs in Windows Media Center.

* These buttons are available only on a computer with Windows Media Center.

Text button*

Use these buttons to access teletext functions, if available.

* These buttons are available only on a computer with Windows Media Center.

To use Windows Media Center, you can purchase Windows 8 Media Center separately. The user manual in other languages can be downloaded from the ASUS website at http://support.asus.com

All-in-One PC TV

Quick Guide

Setting up the Digital/Analog TV tuner
