USER MANUAL VEB34106 VESTEL

1.1 General Safety Warnings

1.4 During Cleaning and Maintenance

2.1 Instructions for the Installer

2.2 Installation of the Oven

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.

• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

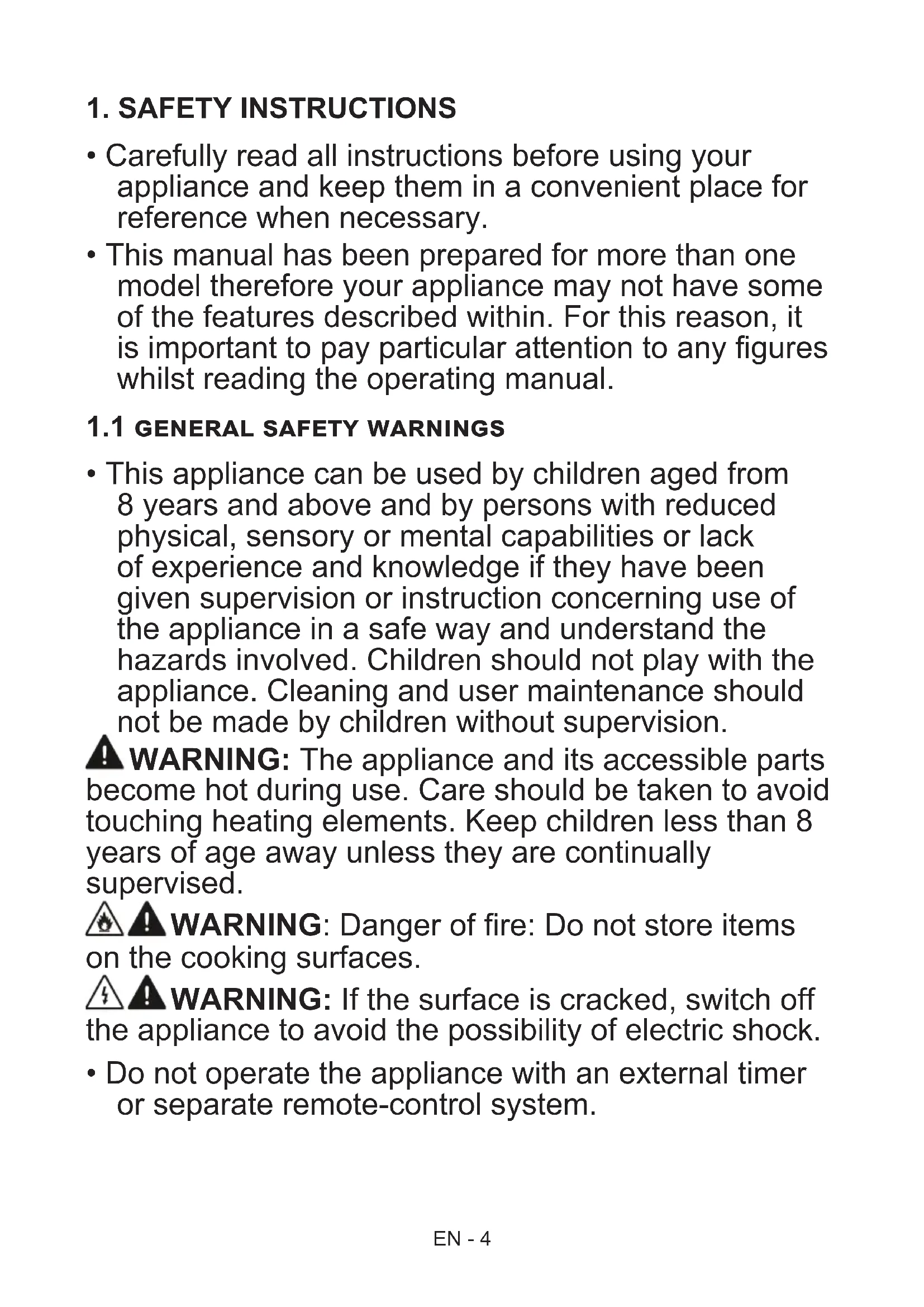

1.1 General Safety WarninGS

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Danger of fire: Do not store items

on the cooking surfaces.

WARNING: If the surface is cracked, switch off

the appliance to avoid the possibility of electric shock.

• Do not operate the appliance with an external timer or separate remote-control system.EN - 5

• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside the oven.

• Handles may get hot after a short period during use.

• Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface. They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.

• Do not use steam cleaners for cleaning the appliance.

WARNING: To avoid the possibility of electric

shock, make sure that the appliance is switched off before replacing the lamp. CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

• Your appliance is produced in accordance with all applicable local and international standards and regulations.

• Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.

• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.EN - 6 CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for heating a room.

• Do not use the oven door handles to lift or move the appliance.

• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.

• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

• Do not let children climb on the oven door or sit on it while it is open.

• Please keep children and animals away from this appliance.

1.2 inStallation WarninGS

• Do not operate the appliance before it is fully installed.

• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.

• When the appliance is unpacked, make sure that it is has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers,EN - 7 Styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance from the atmosphere. Do not expose it to effects such as sun, rain, snow, dust or excessive humidity.

• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C.

• The appliance must not be installed behind a decorative door, in order to avoid overheating.

• When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.

• Do not put flammable or combustible materials in or near the appliance when it is operating.

• Always use oven gloves to remove and replace food in the oven. Do not leave the cooker unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the cooker off and cover the pan with its lid or a fire blanket.EN - 8

• If the product will not be used for a long period of time, turn the main control switch off. Turn the gas valve off when gas appliances are not in use.

• Make sure the appliance control knobs are always in the “0” (stop) position when it is not in use.

• The trays incline when pulled out. Take care not to spill or drop hot food while removing it from the ovens.

• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.

• Do not place heavy or flammable items (e.g. nylon, plastic bag, paper, cloth, etc.) into the drawer. This includes cookware with plastic accessories (e.g. handles).

• Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 DurinG CleaninG anD MaintenanCe

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.

• Do not remove the control knobs to clean the control panel.

• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.EN - 9 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous. The operating instructions apply to several models. You may notice differences between these instructions and your model. Disposal of your old machine This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.EN - 10

WARNING : This appliance must be

installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.

• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.

• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.

• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.

• The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.

• The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.

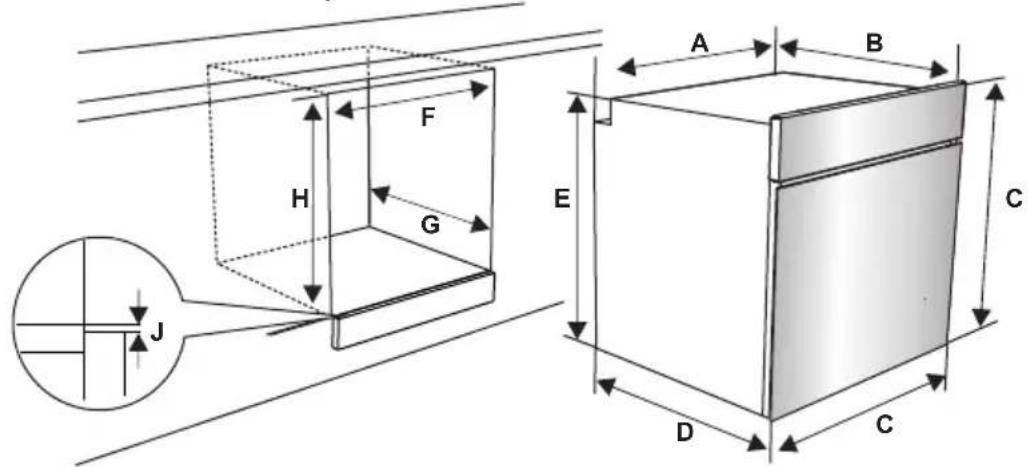

inStallation of the oven The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below. A (mm) 557 min./max. F (mm) 560/580 B (mm) 550 min. G (mm) 555 C (mm) 595 min. H/I (mm) 600/590 D (mm) 575 min. J/K (mm) 5/10 E (mm) 574

Installation under a worktopEN - 11

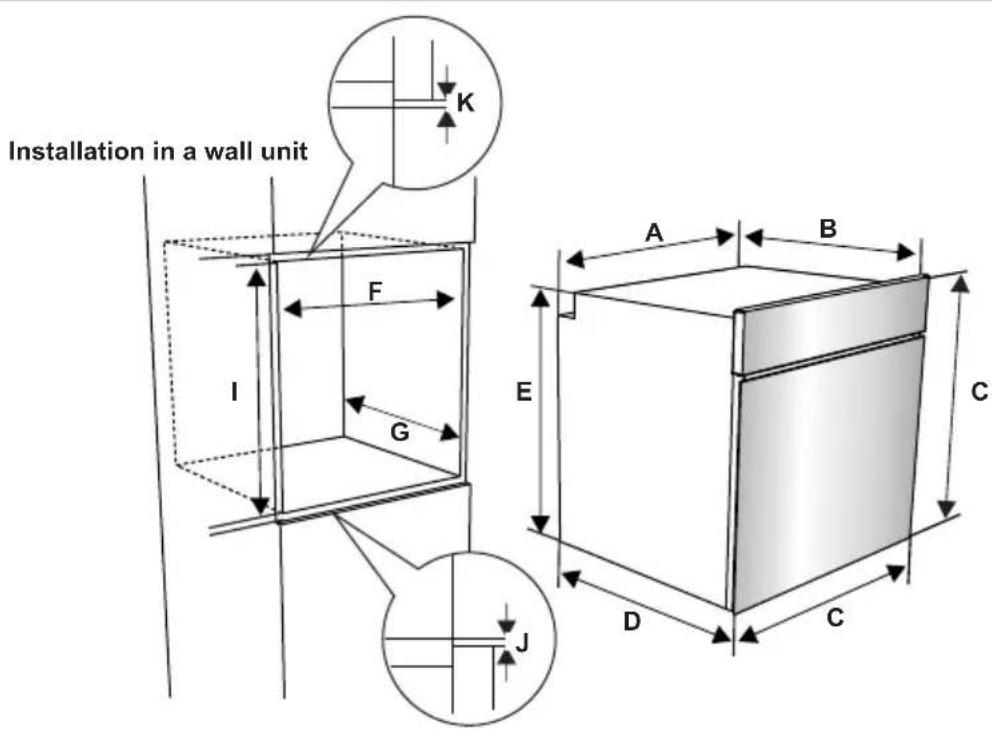

Installation in a wall unit After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

2.3 eleCtriCal ConneCtion anD Safety

WARNING: The electrical connection

of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST

• Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance’s power rating (also indicated on the identification plate).

• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.

• Do not use adaptors, multiple sockets and/or extension leads.

• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.EN - 12

• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.

• The appliance is designed for a power supply of 220-240V ~ and 380-415V 3N~. If your supply is different, contact the authorised service person or a qualified electrician.

• The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.

• Ensure all connections are adequately tightened.

• Fix the supply cable in the cable clamp and then close the cover.

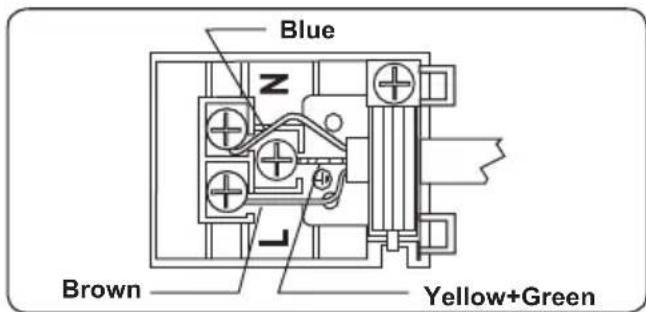

• The terminal box connection is placed on the terminal box. Brown Yellow+Green BlueEN - 13

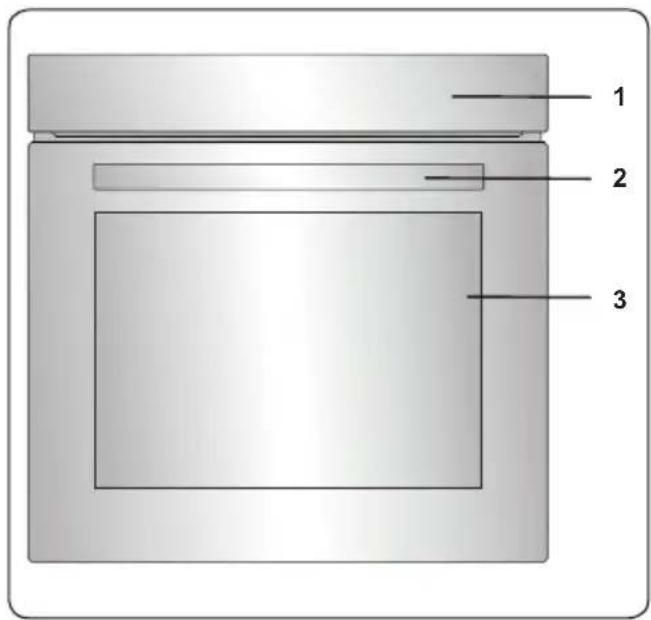

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below. List of Components

• The functions of your oven may be different due to the model of your product. Oven Lamp: Only the oven light will switch on. It will remain on for the duration of the cooking function. Defrost Function: The oven’s warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it. Turbo Function: The oven’s thermostat and warning lights will switch on, and the ring heating element and fan will start operating. The turbo function evenly disperses the heat in the oven so all food on all racks will cook evenly. It is recommended that you preheat the oven for about 10 minutes. Static Cooking Function: The oven’s thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function. Fan Function: The oven’s thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating. This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes. Pizza Function: The oven’s thermostat and warning lights will switch on, and the ring, lower heating elements and fan will start operating. This function is ideal for baking food, such as pizza, evenly in a short time. While the fan evenly disperses the heat of the oven, the lower heating element ensures baking of the food. Grilling Function: The oven’s thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door

must be closed and the oven temperature should be adjusted to 190°C. Faster Grilling Function: The oven’s thermostat and warning lights will switch on, and the grill and upper heating elements will start operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door

must be closed and the oven temperature should be adjusted to 190°C.EN - 15 Double Grill and Fan Function: The oven’s thermostat and warning lights will switch on, and the grill, upper heating elements and fan will start operating. This function is used for faster grilling of thicker food and for grilling of food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door

must be closed and the oven temperature should be adjusted to 190°C

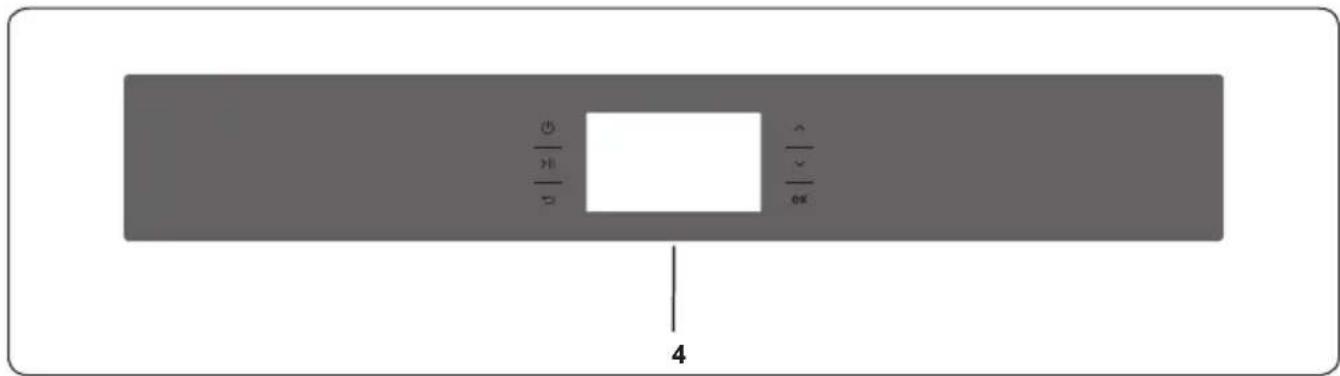

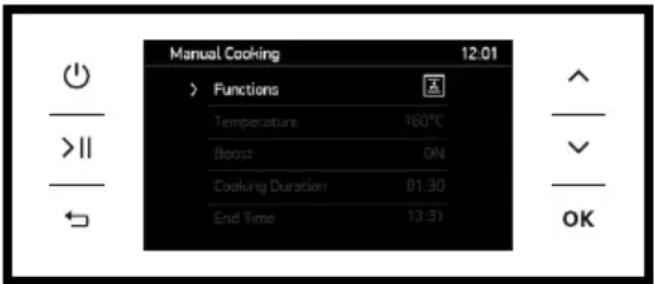

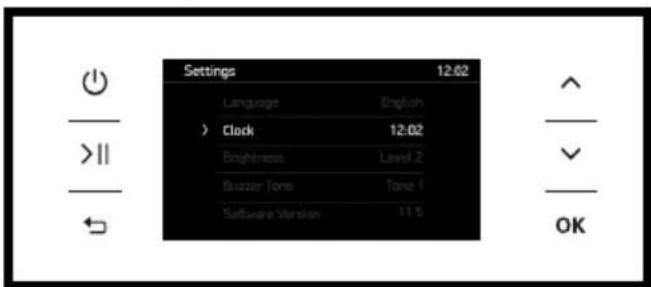

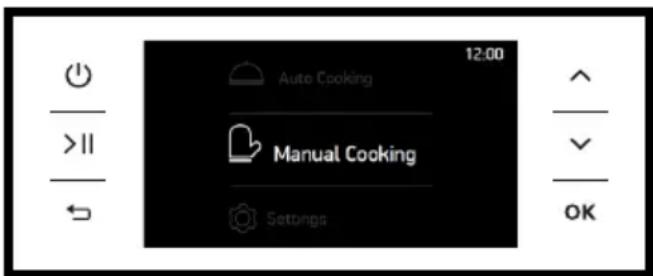

.uSe of the MonoChroMe Control unit The Monochrome Control Unit consists of a 4.3 inch monochrome LCD screen with 6 different touch buttons. The function of the touch buttons is described below. Mode Descriptions

BACK Select The Monochrome Control Unit is designed to help users to use professional recipes easily using the built-in cooking functions. The Monochrome Control Unit menus, such as manual or automatic cooking and their settings, are described below. Manual cooking You can adjust cooking settings using manual cooking, including the 7 different cooking functions, the temperature, the boost function, the cooking duration, and the cooking end time. Follow the steps listed below to navigate the Manual Cooking menu.

• Use the UP and DOWN buttons to navigate the main menu.

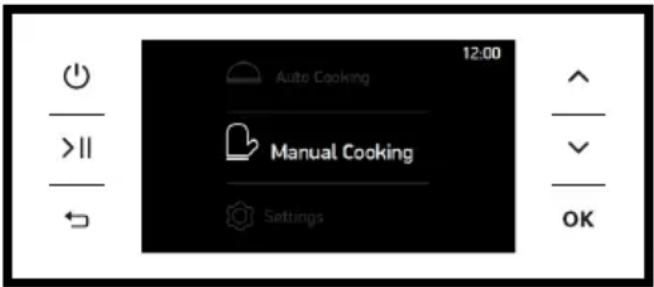

• Press the OK button to select “Manual Cooking” when it appears on the screen. To change any settings, navigate to the desired function using the UP and DOWN buttons. Then, select the setting by pressing the OK button, the selected function will blink. While it is blinking, use the UP and DOWN buttons to adjust the setting. The selection will be finalized when you press the OK button. If the cooking duration is set as 00:00, cooking will continue until you switch the oven off manually. Boost function To set Boost function, Press the OK button to select “Boost” when it appears on the screen. Then, select the settingby pressing the OK button. Use this function to head the oven the desired temperature as quickly as possible. This mode is not appropriate for cooking.

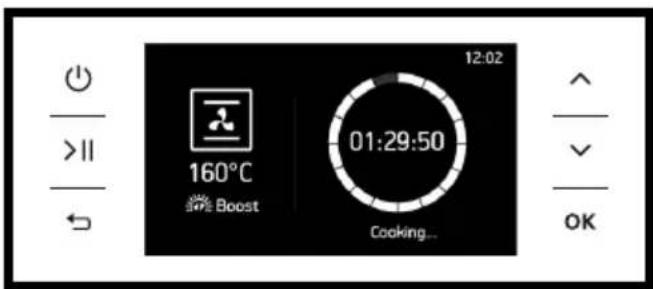

• Use this function to heat the oven the desired temperature as quickly as possible. This mode is not appropriate for cooking.EN - 16

• To start an operation, tap the START/ PAUSE button and the cooking screen will appear. The cooking screen

• Use the START/PAUSE to pause or restart cooking.

• The temperature can be changed by tapping the UP and DOWN buttons.

• The BACK button can be used to navigate between oven function, temperature and cooking time, while any cooking function is active. The value of any specification can be altered using the UP and DOWN buttons.

• Touch the START/PAUSE button to return to the main menu. Then, press the BACK button to return to the cooking screen. Auto cooking The Monochrome Control Unit has built-in, previously determined, recipe functions that you can select in the Auto Cooking menu. You will only be able to select the name of the desired meal. It will not be possible to alter any of the recipe settings as cooking settings, including cooking duration and temperature, are already set. Follow the steps below to perform auto cooking.

• Use the UP and DOWN buttons to navigate the main menu.

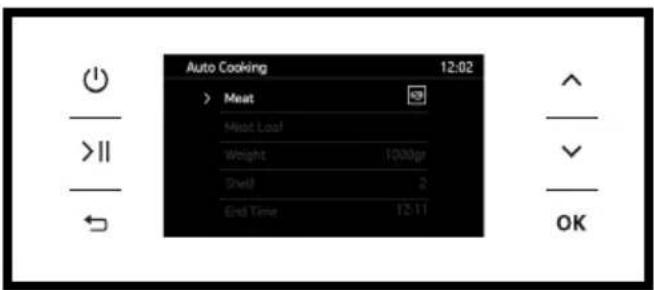

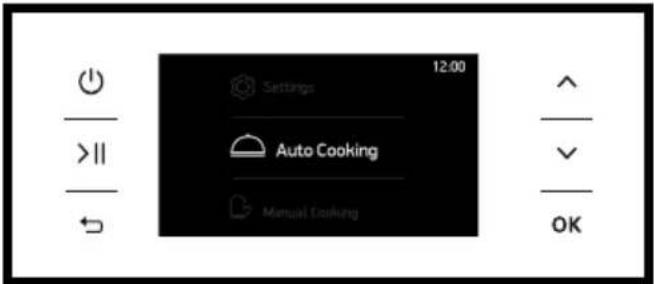

• Press the OK button to select "Auto Cooking" when it appears on the screen. Within the Auto Cooking menu, you will be able to select the category, name and weight of the desired recipe. It will also be possible to change the cooking end time.

• To change any specification, navigate the menu using the UP and DOWN buttons, then press the OK button to select the desired specification. The selected specification will start to blink. While it is blinking, use the UP and DOWN buttons to change the value of the specification. Press the OK button to finalize your change. Place food on the middle shelf to achieve the best cooking results. Press the START/PAUSE button to begin cooking. The cooking screen will appear, as shown below.EN - 17 The cooking screen

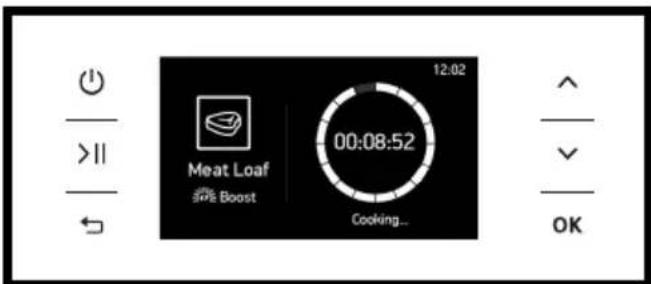

• Use the START/PAUSE button pause or restart cooking.

• To stop cooking and return to the main menu, press the START/PAUSE button, then the BACK button. Settings The time, screen brightness, buzzer tone, and language options can all be set via the Settings menu. You can also display information about the version of software installed on your oven.

• To alter any specification, navigate the menu using the UP and DOWN buttons, then press the OK button to select the desired specification. The selected specification will start to blink. While it is blinking, use the UP and DOWN buttons to change the value of the specification. Press the OK button to finalize your change.

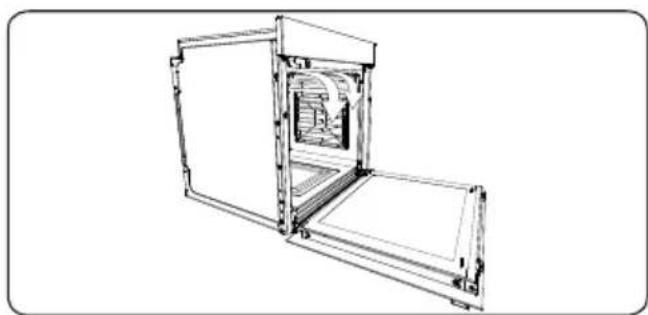

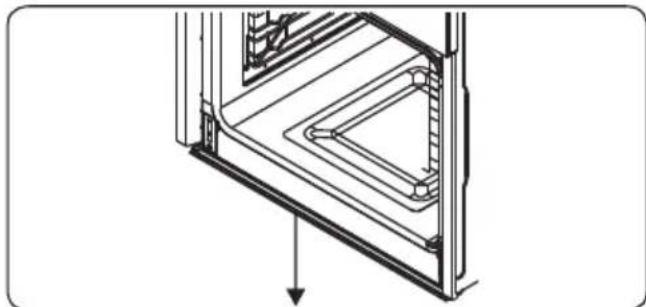

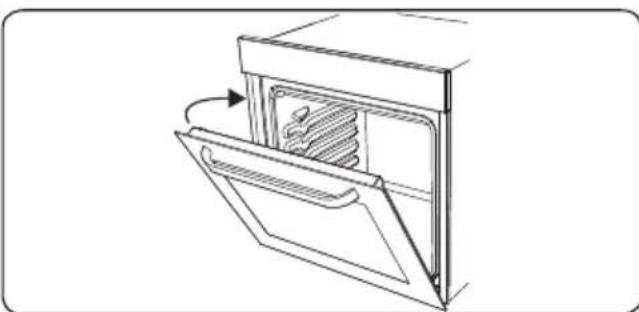

Hot Air Shield System in Built-in Ovens The patented hot air shield system prevents hot air from reaching the end user by creating an air curtain when the oven door is opened. The Shallow Tray The shallow tray is best used for baking pastries. Put the tray into any rack and push it to the end to make sure it is correctly placed. The Wire Grid The wire grid is best used for grilling or for processing food in oven-friendly containers. WARNING Place the grid to any corresponding rack in the oven cavity correctly and push it to the end. Soft-Close Oven Door The oven door closes slowly by itself when it is released just before the closed position.EN - 18 The Water Collector In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction. Open the oven door into the grilling position and leave it in this position for 20 seconds. Water will drip to the collector. Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

WARNING: Switch off the appliance

and allow it to cool before cleaning is to be carried out. General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.

• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces. Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts of your appliance.

• Should any liquids overflow, clean them immediately to avoid parts becoming damaged. Do not use steam cleaners for cleaning any part of the appliance. Cleaning the Inside of the Oven

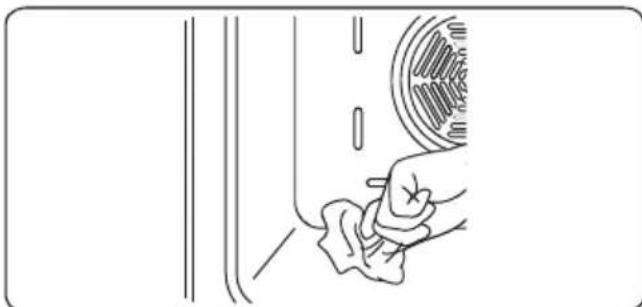

• The inside of enamelled ovens are best cleaned while the oven is warm.

• Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.

• You may need to use a liquid cleaning material occasionally to completely clean the oven. Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.

• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth. Cleaning the Stainless Steel Parts (if available)

• Clean the stainless steel parts of your appliance on a regular basis.

• Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth. Do not clean the stainless steel parts while they are still hot from cooking. Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time. Removal of the Inner Glass You must remove the oven door glass before cleaning, as shown below.

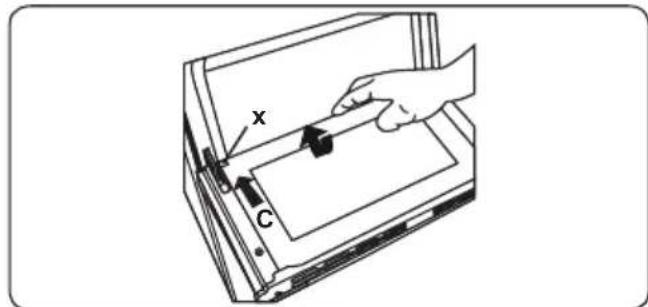

1. Push the glass in the direction of B and

release from the location bracket (x). Pull the glass out in the direction of A.

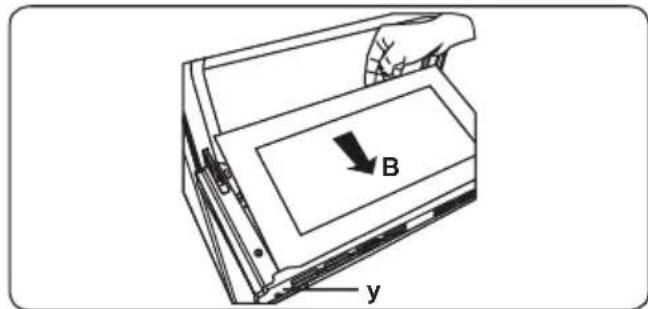

1. Push the glass towards and under the

location bracket (y), in the direction of B.

3. Place the glass under the location

bracket (x) in the direction of C.

If the oven door is a triple glass oven door, the third glass layer can be removed the same way as the second glass layer. Removal of the Oven Door Before cleaning the oven door glass, you must remove the oven door, as shown below.

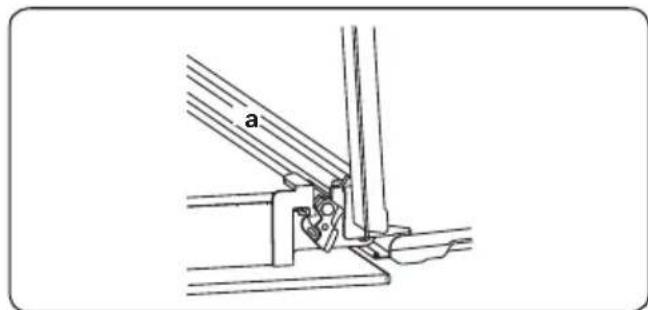

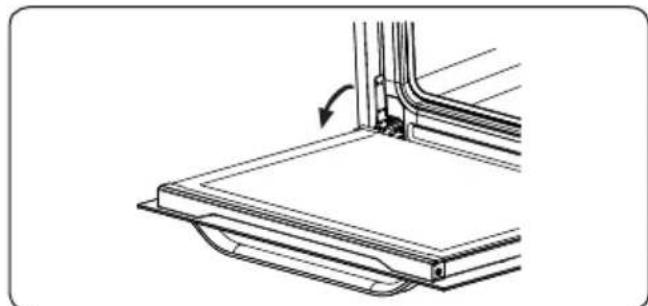

1. Open the oven door.

2. Open the locking catch (a) (with the aid

of a screwdriver) up to the end position.

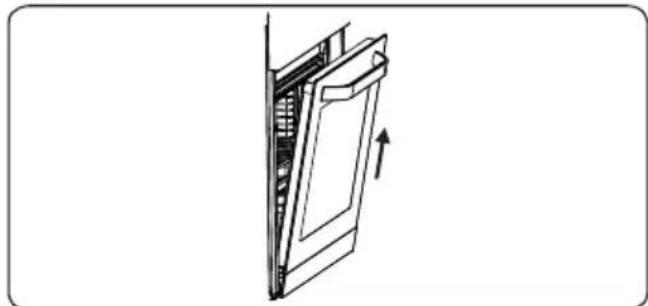

3. Close the door until it is almost in the

fully closed position, and remove the door by pulling it towards you. Removal of the Wire Shelf To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

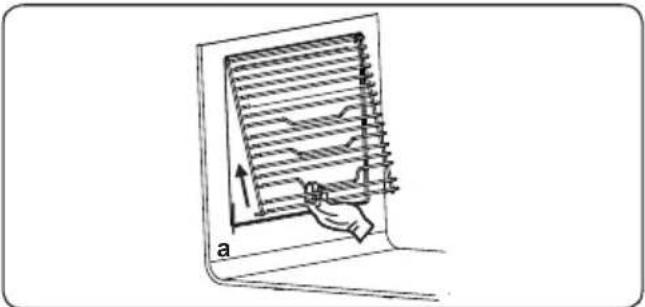

WARNING: The maintenance of this

appliance should be carried out by an authorised service person or qualified technician only. Changing the Oven Lamp

WARNING: Switch off the appliance

and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.

• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).

• Replace the glass lens, and your oven is ready for use. The lamp is designed specifically for use in household cooking appliances. It is not suitable for household room illumination. aThe EasyFix Wire Rack Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

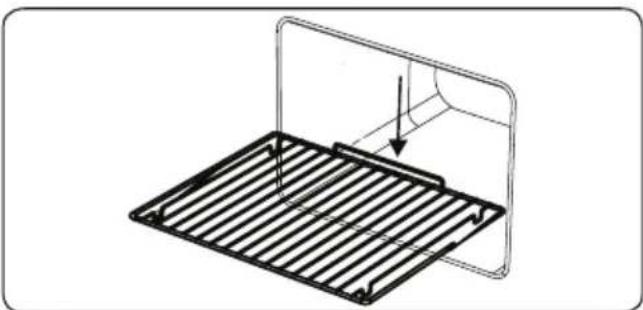

• Insert the accessory to the correct position inside the oven.

• Allow at least a 1 cm space between the fan cover and accessories.

• Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns.

• The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.

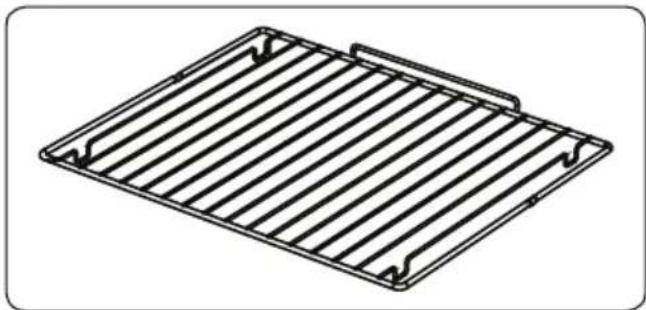

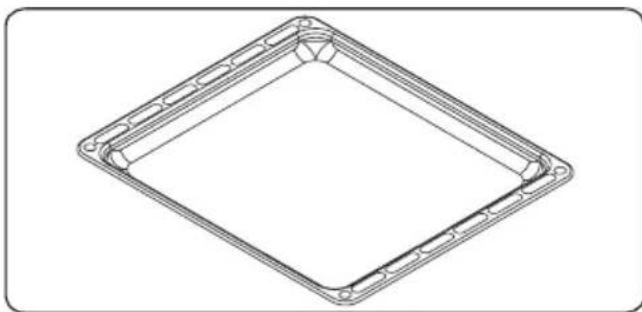

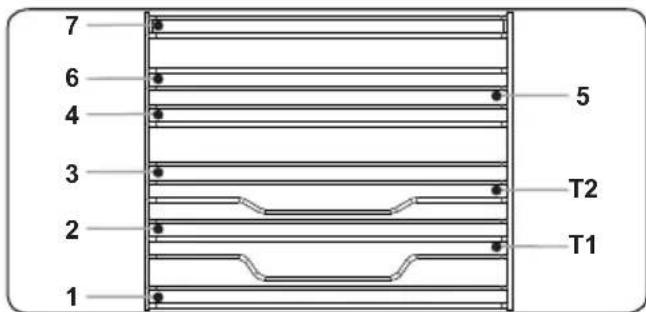

• Trays and wire grids can be positioned on any level from of 1 to 7.

• Telescopic rail can be positioned on levels T1, T2.

• Level 3 is recommended for single level cooking.

• Level T2 is recommended for single level cooking with the telescopic rails.

• Level 2 and Level 4 are recommended for double level cooking.

• The turnspit wire grid must be positioned on Level 3.

• Level T2 is used for turnspit wire grid positioning with the telescopic rails. ****Accessories may vary depending on the model purchased.EN - 20

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician. Problem Possible Cause Solution Oven does not switch on. Power is switched off. Check whether there is power supplied. Also check that other kitchen appliances are working. No heat or oven does not warm up. Oven temperature control is incorrectly set. Oven door has been left open. Check that the oven temperature control knob is set correctly. Oven light (if available) does not operate. Lamp has failed. Electrical supply is disconnected or switched off. Replace lamp according to the instructions. Make sure the electrical supply is switched on at wall socket outlet. Cooking is uneven within the oven. Oven shelves are incorrectly positioned. Check that the recommended temperatures and shelf positions are being used. Do not frequently open the door unless you are cooking things that need to be turned. If you open the door often, the interior temperature will be lower and this may affect the results of your cooking. The timer buttons cannot be pressed properly. There is foreign matter caught between the timer buttons. Touch model: there is moisture on the control panel. The key lock function is set. Remove the foreign matter and try again. Remove the moisture and try again. Check whether the key lock function is set. The oven fan (if available) is noisy. Oven shelves are vibrating. Check that the oven is level. Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel. The cooling fan continues to operate after the oven is switched off. Electronically-controlled oven fan automatically runs for a certain amount of time to cool the oven. The fan switches off automatically when the electronic components have cooled sufficiently. The oven has switched itself off. Electronically-controlled ovens switch off automatically if no function is in operation. The oven will switch itself off automatically to save energy if no other action is taken within a certain time frame after switching it on or after the end of a cooking programme. If the door is opened during a fan-assisted function, the internal fan will stop. Electronically-controlled ovens with a door switch will stop cooking if the oven door is opened. It is a normal operation of the appliance, useful when cooking foods in order to avoid excessive heat escaping. When the door is closed, the oven will restart to normal operation.

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport. If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.Disposal of the device Old devices cannot be placed in the household waste! If the device can no longer be used, every consumer is legally obliged to hand in devices separately from household waste e.g. at a collection site of their local authority / borough. This ensures that the devices are properly recycled and negative effects on the environment are avoided. Therefore, electrical devices are marked with the symbol depicted. Recycling Our packaging is made of environmentally-friendly, recyclable materials: External packaging made of cardboard Moulded parts made of CFC-free polystyrene (PS) Films and bags made of polyethylene (PE) Wrapping straps made of polypropylene (PP). If you have sufcient space to permit it, we recommend you retain the pack- aging, at least during the warranty period. If the device must be returned for repair or brought into a repair drop-off centre, the device is only adequately protected in the original packaging. If you want to no longer retain the packaging, please dispose of this in an envi- ronmentally friendly manner.FR - 2 Icône Type Signification AVERTISSEMENT Risque de blessures graves ou danger de mort RISQUE D’ÉLECTROCUTION Risque d’électrocution INCENDIE Avertissement : Risque d'incendie / matières inflammables MISE EN GARDE Risque de blessures ou de dommages matériels IMPORTANT / REMARQUE Utilisation correcte de l’appareil Merci d’avoir choisi ce produit. Cette notice d’utilisation contient des informations et des consignes de sécurité importantes concernant l’utilisation et l’entretien de votre appareil. Lire attentivement cette notice d’utilisation avant d’utiliser votre appareil et la conserver pour consultation ultérieure.FR - 3
