USER MANUAL weBoost Home MultiRoom Wilson

Package Contents 1
Preparation 2
STEP 1-A & B: Inside Antenna & Booster Placement 3
STEP2: Mount & Point Outside Antenna Toward Nearest Cell Tower 5
STEP 3-A: Route & Connect Outside Antenna To Booster 8
STEP 3-B: Route & Connect Inside Antenna To Booster 9
STEP4: Power Up The Booster & Optimize The System 10
Measuring Booster Performance 12
Light Patterns 14
Troubleshooting 15
Safety Guidelines 16
Specifications 19
Warranty 20

Package Contents

Home MultiRoom

Inside Antenna (314440)

Outside Antenna (314445)

30' & 2-15' Cables (950630), (YX030-15W w/971129 Barrel Connector)

Power Supply (850018)

Window Entry Cable (951177)

Outside Antenna Mounting Bracket

Wall Mount Brackets w/Command Strips

Cable Mounting Clips Qty. 15

Preparation

You Will Need (tools not included)

Make sure the following materials are prepared and ready for your installation.

1 to 2 hours

1 Person (2 people to make antenna calibration easier)

Ladder
Drill (if routing cable through wall)
1"-3" diameter existing pole for mounting Outside Antenna (#90117 Pole Mount can be purchased separately if needed)
Recommended: Power Strip with surge protection

NOTE: These instructions will walk you through a "soft" install process to find the optimal locations for the inside and outside antennas, then through the process of the permanent installation.

Step 1-A & B: Inside Antenna & Booster Placement

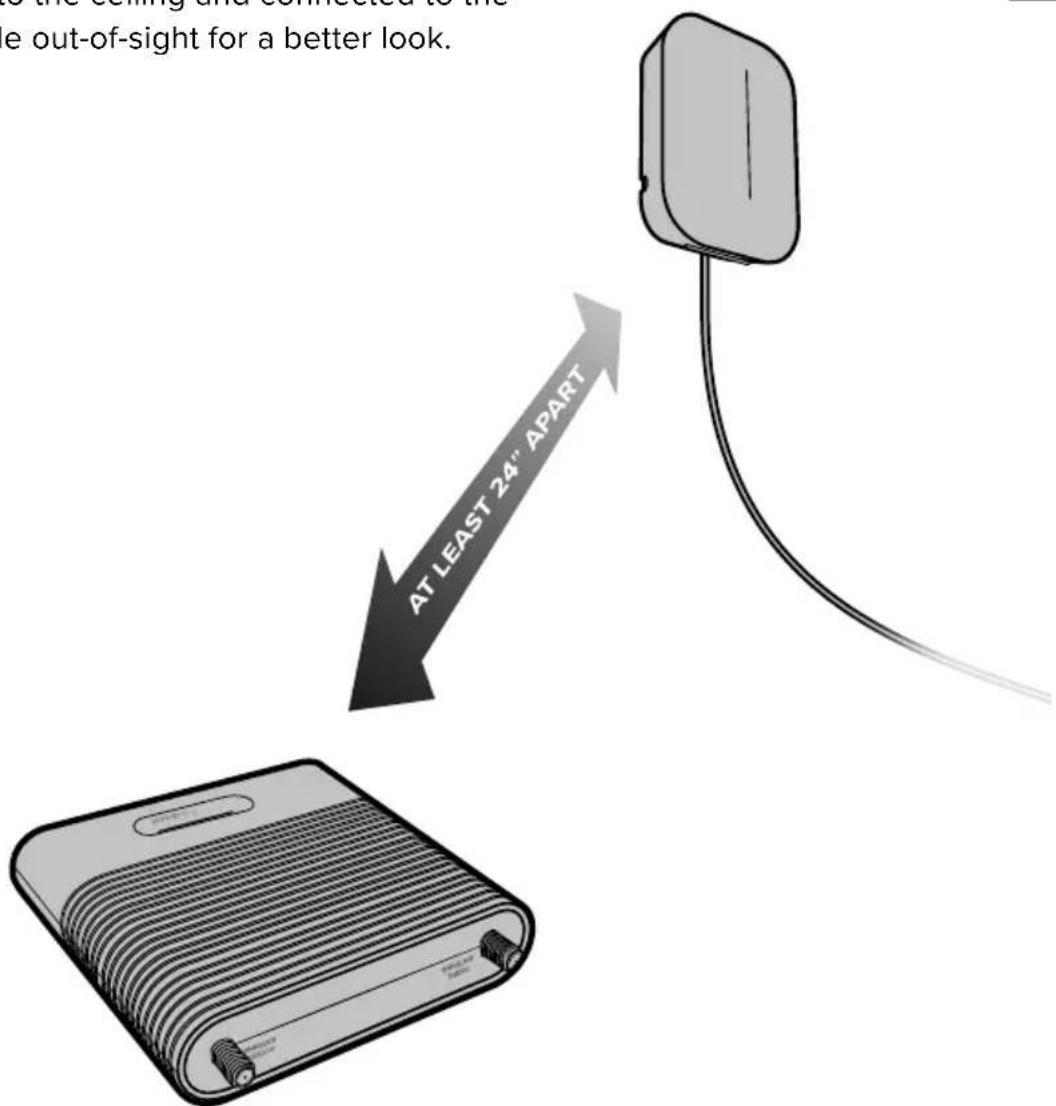

Place the Inside Antenna where you need the greatest signal boost and place Booster in your desired location at least 24" away from Inside Antenna.

NOTE: Do not connect booster to power until the system is fully installed.

TIP: The cable from the Inside Antenna can be routed into the ceiling and connected to the coax cable out-of-sight for a better look.

STEP 1-A & B cont.)

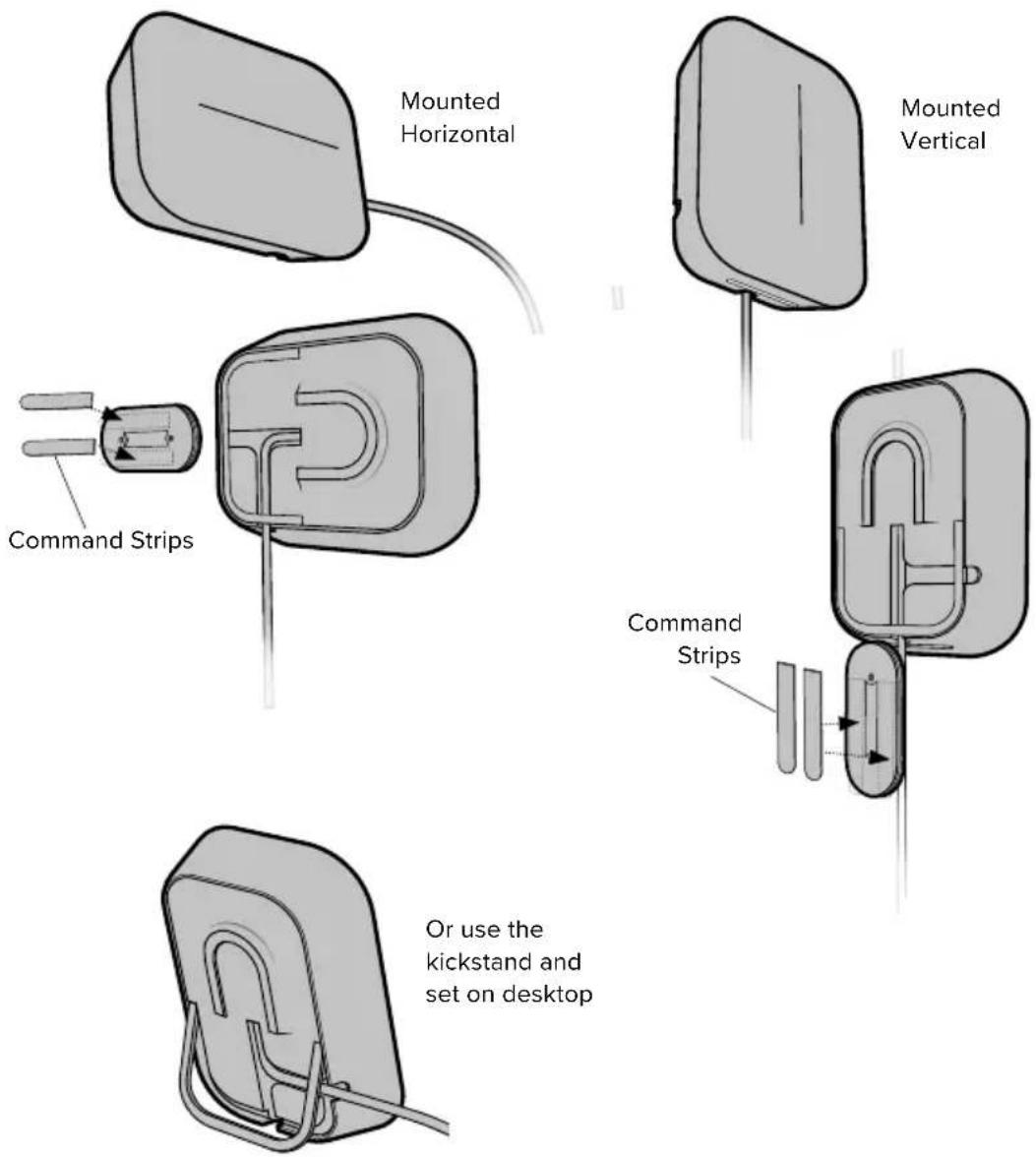

The Inside Antenna can be mounted horizontal, vertical or on a desktop. Command strips can be used to secure mounting bracket.

Inside Antenna Mounting Options

Step 2: Mount & Point Outside Antenna Toward Nearest Cell Tower

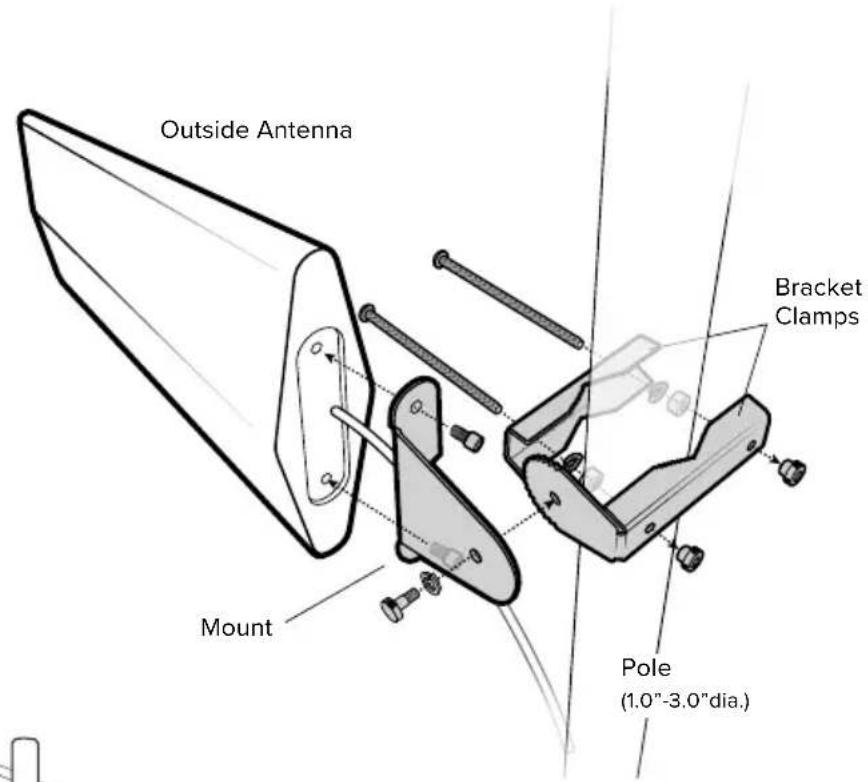

Pole mounting and wall mounting options are included. The pole mounting option is preferred because it will be easier to adjust to the direction of the cell tower.

Attach the Mount to the Outside Antenna and use the Bracket Clamps to attach the Antenna to a pole or exhaust pipe.

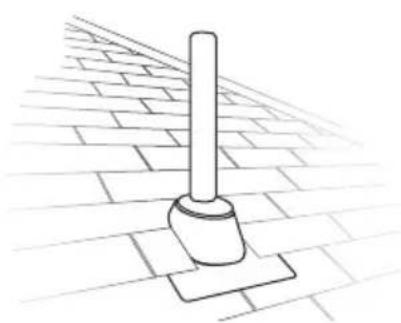

NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch out for power lines.

STEP 2 cont.)

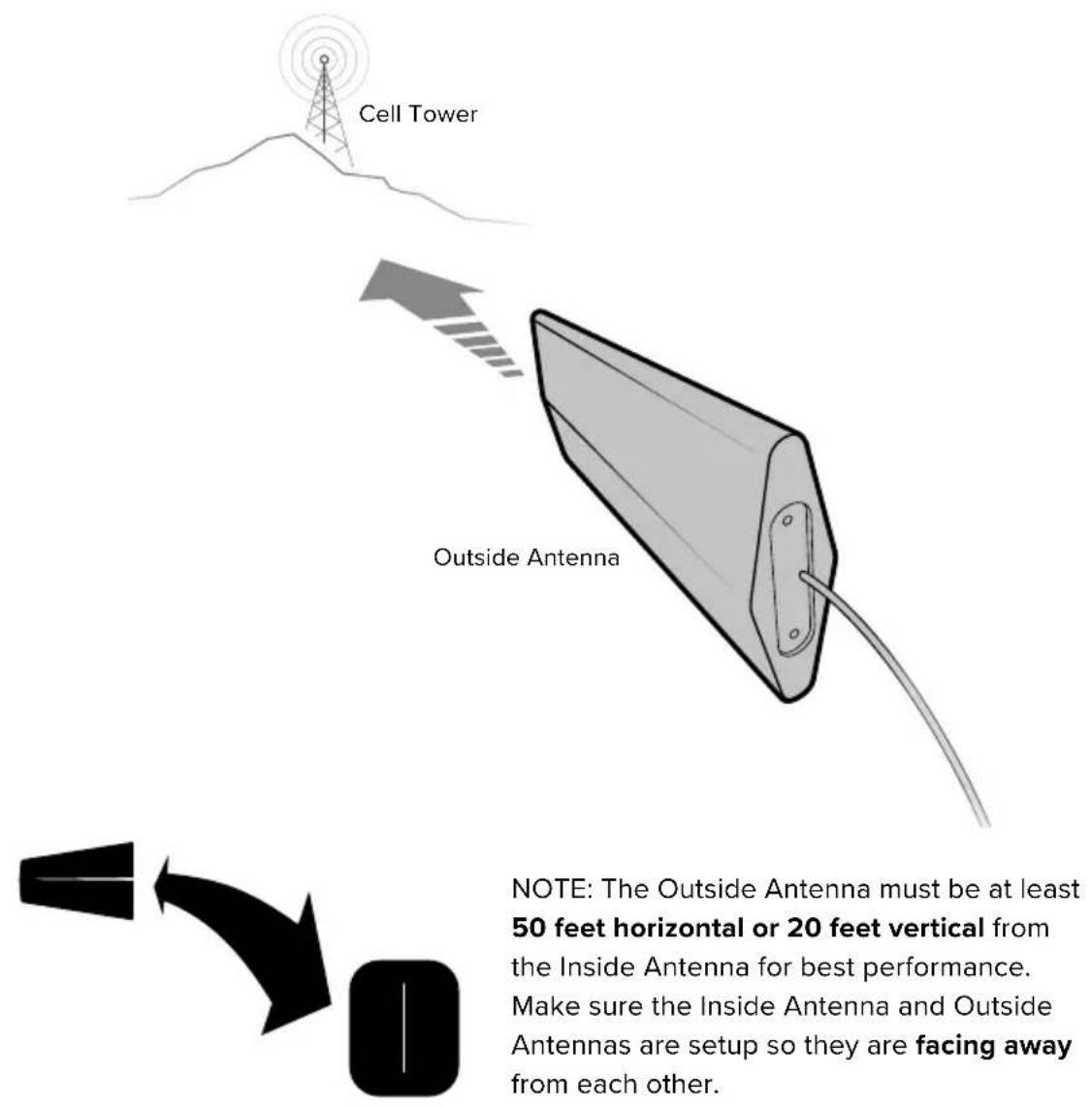

Point the Outside Antenna toward the nearest cell phone tower. To find the nearest tower, use an app such as 'Open Signal'. This is the most critical step of the installation process because it will determine the overall performance of the booster system.

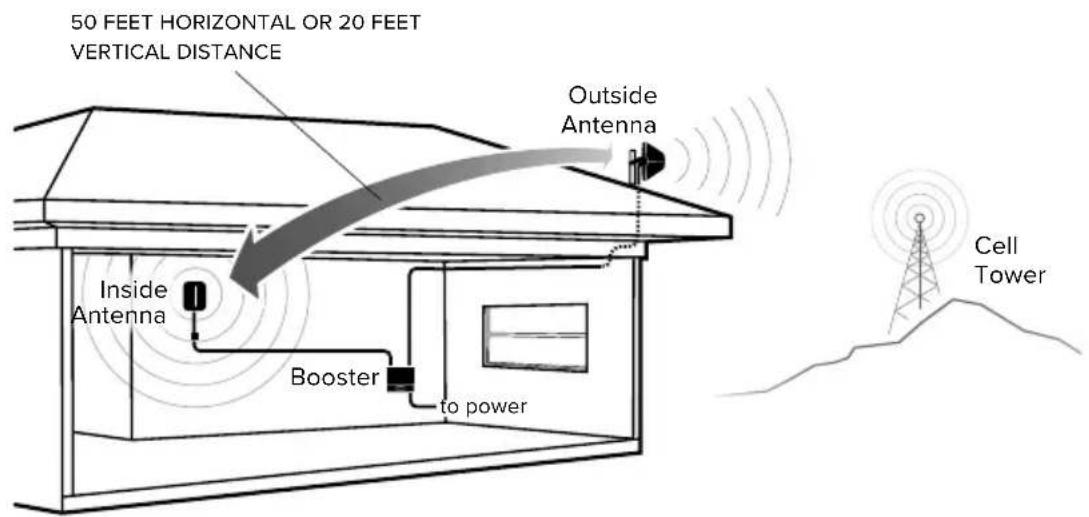

The greater the separation between the Inside and Outside Antennas, the better performance you will get from the booster.

STEP2cont.)

If there's not a pole to easily mount the Outside Antenna, this may be mounted on the fascia by fastening the bracket as shown below.

TIP: Make sure to do the optimization test on Step 4 to find the best side of your house before you mount this on the fascia.

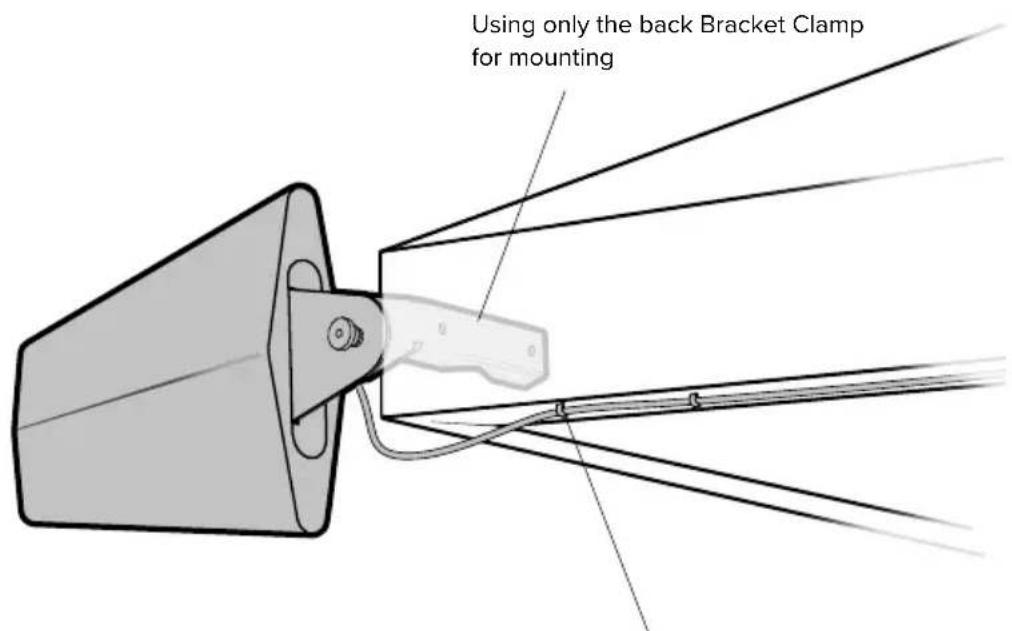

Mounting On Side Of Roof (Fascia)

Cable Mounting Clips provided

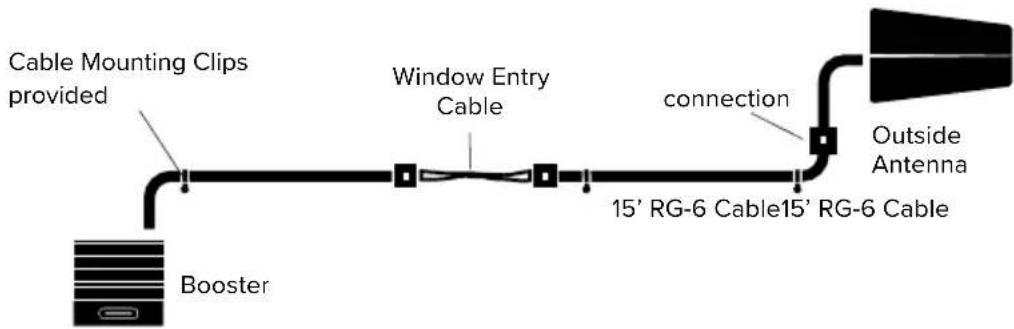

Step 3-A: Route & Connect Outside Antenna To Booster

HS179NE

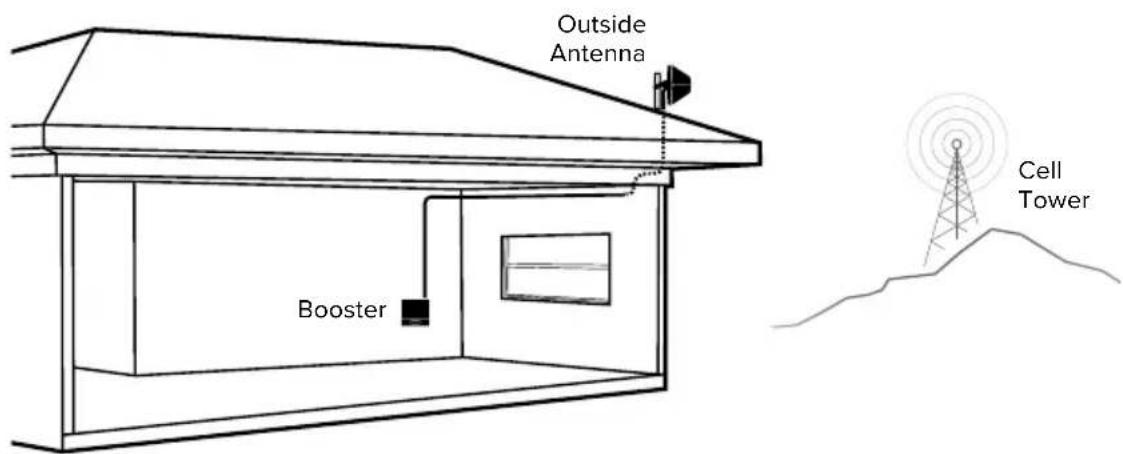

Connect the white RG-6 Cable to Outside Antenna and route cable into the home. A Window Entry Cable is provided to help make cable entry easier. All connections should be finger tightened only.

Route cable to the Home MultiRoom Booster and connect to the port labeled 'OUTSIDE ANTENNA'.

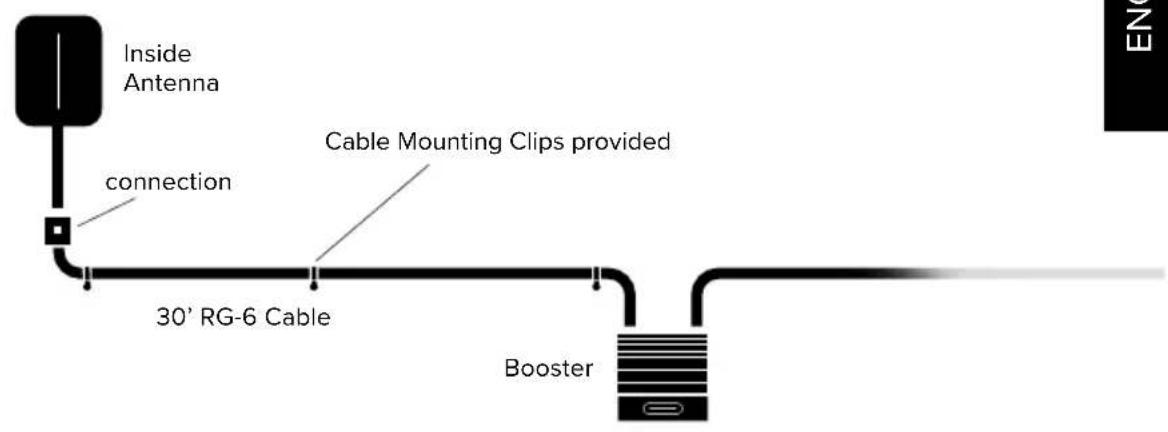

Step 3-B: Route & Connect Inside Antenna To Booster

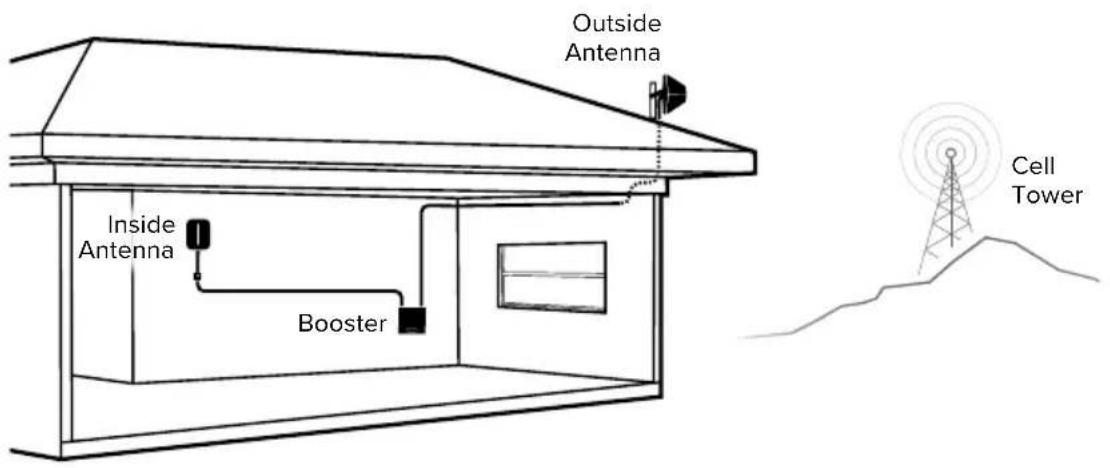

Connect the white 30' Cable to Inside Antenna and route to the Home MultiRoom Booster and connect to the port labeled 'INSIDE ANTENNA'.

Step 4: Power Up The Booster & Optimize The System

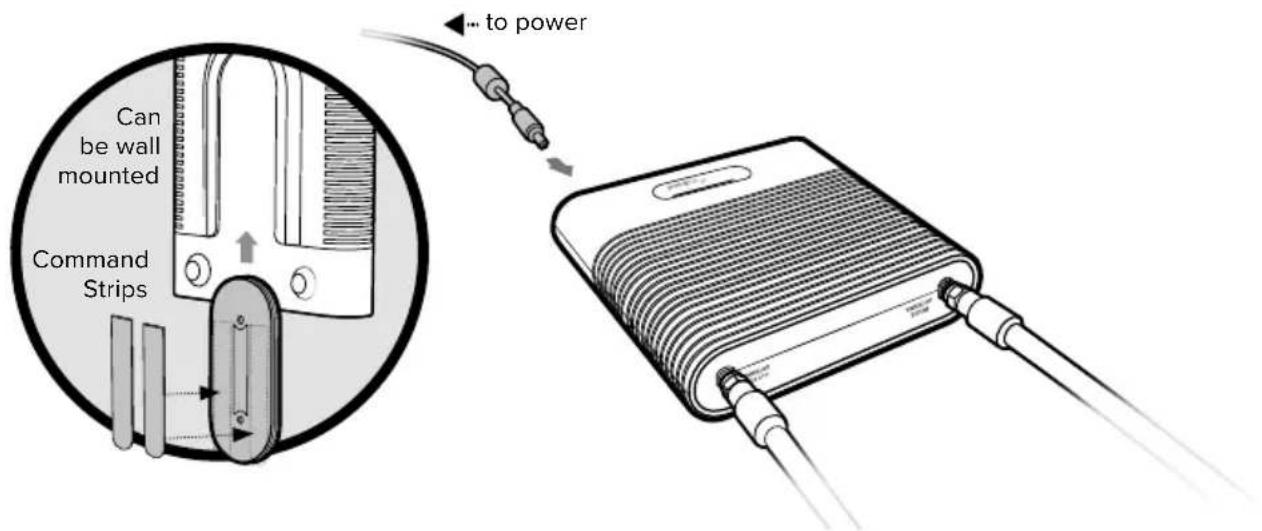

Plug the Power Supply into wall outlet then connect to end of booster labeled “---” (turn 90^ to lock connector).

NOTE: We strongly recommend using a power strip with surge protection.

STEP 4 cont.)

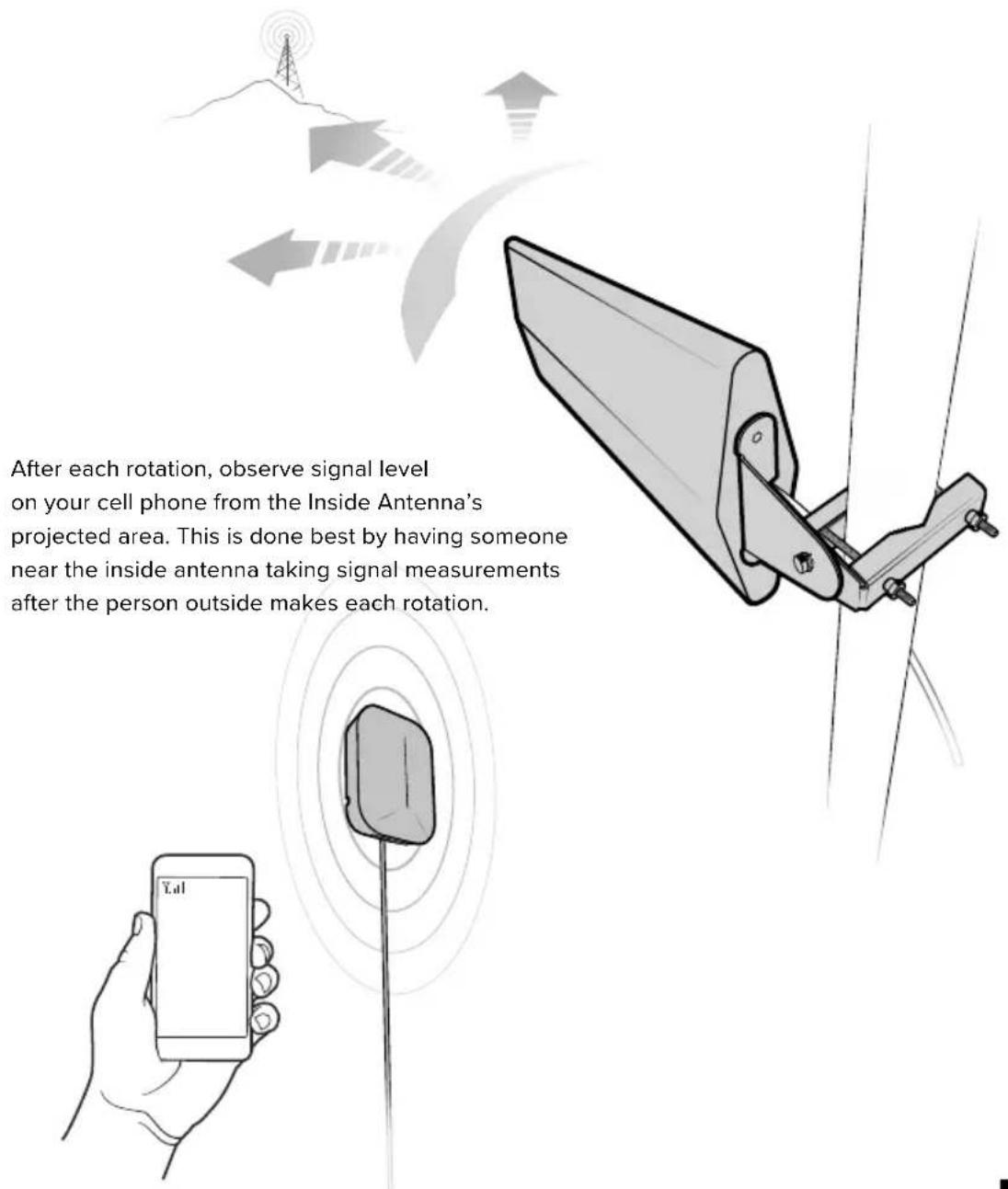

After powering up your system, you are now ready to optimize your system. Rotate the Outside Antenna in 1/8 turn increments, after each turn, unplug and reconnect the booster to power while observing the signal level on your cell phone from the Inside Antenna's projected area. Secure the Outside Antenna in place, pointing in the direction that gives you the strongest signal. Enjoy your boosted signal!

Measuring Booster Performance

How To Get Signal Strength As A Number

iPhone®

iOS 11 and later no longer displays the decibel (dBm) reading in 'Field Test Mode'. Tip: Using the dot signal strength indicator on your cell phone can assist you in finding the strongest signal direction as well as placing calls in different locations.

For changes/updates on this issue, periodically go to weboost.com/signalstrength.

AndroidTM

Settings > About Phone > Status or Network > Signal Strength or Network Type and Strength (exact options/wording depends on phone model).

iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc.

All Other Phones & Alternate Methods

Go to www.webost.com/test-mode-instructions/

(MEASURING BOOSTER PERFORMANCE cont.)

Signal Strength without Booster

Note here:

Signal Strength with Booster

Note here:

Compare Results

Having an accurate measurement of signal strength in decibels (dBm) is crucial when installing your system. Decibels accurately measure the signal strength you are receiving.

SIGNAL STRENGTH	EXCELLENT GOOD FAIR POOR DEAD ZONE			.	∅
3G/1x	-70dBm	-71 to -85dBm	-86 to -100dBm	-101 to -109dBm	-110dBm
4G/LTE	-90dBm	-91 to -105dBm	-106 to -110dBm	-111 to -119dBm	-120dBm

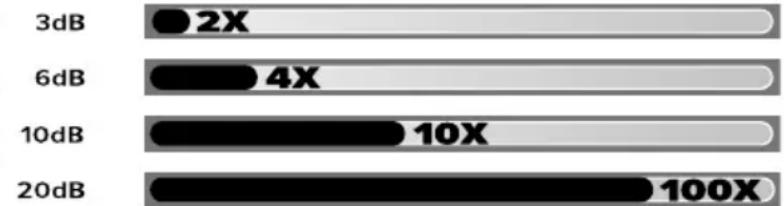

DID YOU KNOW a signal increase of just 3dB is 2 times the power and signal amplification!

GAIN IMPROVEMENT
SIGNAL IMPROVEMENT

Light Patterns

Solid Green

This indicates that your booster is functioning properly and there are no issues with installation.

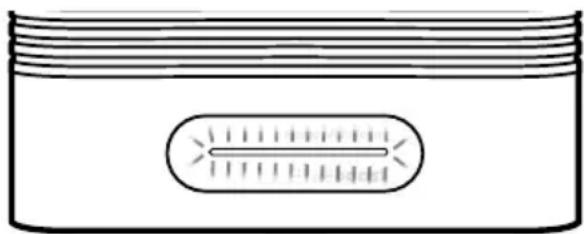

Blinking Green & Red

Band has reduced gain. This indicates

that one or more of the booster bands has reduced power due to a feedback loop condition called oscillation. This is a built in safety feature to prevent harmful interference with a nearby cell tower. If you are already experiencing the desired signal boost, then no further adjustments are necessary. If you are not experiencing the desired boost in coverage then refer to the Troubleshooting section.

Solid Red

Band has shutoff. This is due to a feedback loop condition called oscillation. This is a built in safety feature that causes a band to shut off to prevent harmful interference with a nearby cell tower. Refer to Troubleshooting section.

Blinking Green & Yellow

Band has reduced gain. This indicates that one or more of the booster bands has reduced power due to overload from a nearby cell tower. This is a built in safety feature to prevent harmful interference with a nearby cell tower. If you are already experiencing the desired signal boost, then no further adjustments are necessary. If you are not experiencing the desired boost in coverage then refer to the Troubleshooting section.

Solid Yellow

Band has shutoff due to overload from nearby cell tower. Outside Antenna must be adjusted. Refer to Troubleshooting section.

Light Off

If the Signal Booster's light is off, verify your power supply has power.

Troubleshooting

IF YOU ARE HAPPY WITH THE COVERAGE, THESE LIGHT ISSUES DON'T HAVE TO BE RESOLVED. YOUR CARRIER'S BAND HAS NOT BEEN AFFECTED.

FIXING ANY RED LIGHT ISSUES

This involves Solid Red & Blinking Green/Red lights.

1 Verify Outside and Inside Antenna face away from each other. Un-plug and re-plug in power supply.
2 Verify the Inside Antenna is at least 24" from the Booster and pointed away from the Booster. Unplug and re-plug in power supply.
3 Tighten all cable connections (be sure to finger tighten only, do NOT use tools). You may want to undo and redo the connection completely. Unplug and replug in power supply.
4 Increase the distance (horizontally or vertically) between the Outside and Inside antenna. Add included cable if needed. Un-plug and re-plug in power supply.

FIXING ANY YELLOW LIGHT ISSUES

This involves Solid Yellow & Blinking Green/Yellow lights.

Outside Antenna must be adjusted. Wait 10 seconds between adjustments for the lights to reset.

PoleMountOption:Rotate the Outside Antenna away from the strongest cellular signal in small increments (45^) until the light turns green. Unplug and re-plug in power supply.

Mounting On Side Of Roof Option: Change mount location. Move the Outside Antenna to a different location of the home/building to see if the lights turn green. Un-plug and re-plug in power supply. Then secure in place.

NEED HELP?

www.weboost.ca 866.294.1660

Safety Guidelines

To uphold compliance with network protection standards, all active cellular devices must maintain at least six feet of separation distance from Inside Panel and Dome antennas and at least four feet of separation distance from desktop Antenna.

Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment.

The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 100 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of that range.

RF Safety Warning: Any antenna used with this device must be located at least 8 inches from all persons.

AWS Warning: The Outside Antenna must be installed no higher than 10 meters (31'9") above ground.

This is a CONSUMER device.

BEFORE USE, you MUST meet all requirements set out in CPC-2-1-05.

You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST NOT be installed within 20 cm of any person.

You MUST cease operating this device immediately if requested by ISED or licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

This device may operate in a fixed location only, for in-building use.

FOR MORE INFORMATION ON REQUIREMENTS SET OUT IN ISED CPC-2-1-05, SEE BELOW:

http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html

Antenna Kit Options

This radio transmitter 4726A-460044 has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

	BAND 12/17	BAND 13 BAND 5		BAND 4	BAND 25/2
Outside antenna maximum permissible antenna gain (dBi) 50Ω	4.50 4.50		4.50	3.8	4.7
Inside antenna maximum permissible antenna gain (dBi) 50Ω	3.76	4.13	4.77	4.55	4.83

FIXED INSIDE ANTENNA KIT OPTIONS

				ΩAn
301121-40010	LMR-400	10	Dome	50
301151-0610	RG-6	10	Dome	75
304412-40010	LMR-400	10	Dome	50
304412-5810	RG-58	10	Dome	50
304419-0610	RG-6	10	Dome	75
304419-1110	RG-11	10	Dome	75
304419-17410	RG-174	10	Dome	50
311135-40060	LMR-400	60	Panel	50
311135-5825	RG-58	25	Panel	50
311155-0640	RG-6	40	Panel	75
311155-1170	RG-11	70	Panel	75
311155-40060	LMR-400	60	Panel	50
314440-0630	RG-6	30	4G Panel	75
314440-1160	RG-11	60	4G Panel	75

Cenna TypeCoax Ty

All equivalent or lesser antennas and cables are suitable for use with 460044 Signal Booster.

FIXED OUTSIDE ANTENNA KIT OPTIONS
		Ln(ft)		ΩAntenna TypeCo
301126	RG-174	12.5	Mini-Mag	50
301111-0675	RG-6	75	Yagi	75
301111-1140	RG-11	140	Yagi	75
301111-400170	LMR-400	170	Yagi	50
301111-5850	RG-58	50	Yagi	50
304421-0610	RG-6	10	Omni Consumer	75
304421-1120	RG-11	20	Omni Consumer	75
304421-17410	RG-174	10	Omni Consumer	50
304421-5810	RG-58	10	Omni Consumer	50
304422-1120	RG-11	20	Omni Enterprise	75
304422-40020	LMR-400	20	Omni Enterprise	50
304422-5810	RG-58	10	Omni Enterprise	50
311141-0620	RG-6	20	Grey Brick	75
311141-1120	RG-11	20	Grey Panel	75
311201-0620	RG-6	20	Omni Directional	75
311201-1120	RG-11	20	Omni Directional	75
311203-40020	LMR-400	20	Omni Directional	50
311203-5820	RG-58	20	Omni Directional	50
314411-40075	LMR-400	75	Wide Band Directional	50
314411-5825	RG-58	25	Wide Band Directional	50
314445-0630	RG-6	30	4G Directional	75
314445-100100	LMR-100	100	4G Directional	50
314445-1175	RG-11	75	4G Directional	75
314445-40075	LMR-400	75	4G Directional	50
314453-40075	LMR-400	75	Panel	50
314453-5825	RG-58	25	Panel	50
314473-0640	RG-6	40	Panel	75
314473-1175	RG-11	75	Panel	75
314475-0630	RG-6	30	Wide Band Directional	75
314475-1175	RG-11	75	Wide Band Directional	75

Specifications

	Home MultiRoom
Product Number U650044
Model Number 460044
IC ID 4726A-460044
Connectors F-Female
Antenna Impedance 75 Ohms
Frequency	698-716 MHz, 729-746 MHz, 746-757 MHz, 776-787 MHz, 824-849 MHz, 869-894 MHz, 1710-1755 MHz, 1850-1915 MHz, 1930-1995 MHz, 2110-2155 MHz
Power output for single cell phone (Uplink) dBm AWGN	700 MHz Band 12/17	700 MHz Band 13	800 MHz Band 5	1700 MHz Band 4	1900 MHz Band 25/2
	21.04 20.54 20.48 20.47 20.97
Power output for single cell phone (Downlink) dBm AWGN	700 MHz Band 12/17	700 MHz Band 13	800 MHz Band 5	2100 MHz Band 4	1900 MHz Band 25/2
	11.80 9.0 11.80 11.90 11.80
Power output for single cell phone (Uplink) dBm GSM	700 MHz Band 12/17	700 MHz Band 13	800 MHz Band 5	2100 MHz Band 4	1900 MHz Band 25/2
	22.14	21.69	22.06	22.15	22.16
Power output for single cell phone (Downlink) dBm GSM	700 MHz Band 12/17	700 MHz Band 13	800 MHz Band 5	2100 MHz Band 4	1900 MHz Band 25/2
	12.20	9.40	12.20	12.10	12.00
Noise Figure 5 dB nominal
Isolation		>110 dB
Power Requirements		4.2 VDC

The term "IC" before the radio certification number only signifies that Industry Canada technical specifications were met.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2)) This device must accept any interference, including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.

NEED HELP?

www.weboost.ca

866.294.1660

2 YEAR WARRANTY

weBoost Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer's expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost. weBoost shall, at its option, either repair or replace the product.

This warranty does not apply to any Signal Boosters determined by weBoost to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Replacement products may include refurbished weBoost products that have been recertified to conform with product specifications.

RMA numbers may be obtained by contacting Customer Support

DISCLAIMER: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.

Notes

NEED HELP?

www.webost.ca 866.2941660

:weboost.

3301 East Deseret Drive, St. George, UT

866.294.1660

www.weboost.ca

Copyright © 2019 weBoost. All rights reserved.
weBoost products covered by U.S. patent(s) and pending application(s)
For patents go to: weboost.com/us/patents

Home MultiRoom

(ETAPES 1-A et 1-B, suite)

FORCE DU SIGNAL	EXCELLENTE BONNE MOYENNE FAIBLE ZONE MORTE
	.	.	.	.	.
3G/1x	-70dBm	-71 to -85dBm	-86 to -100dBm	-101 to -109dBm	-110dBm
4G/LTE	-90dBm	-91 to -105dBm	-106 to -110dBm	-111 to -119dBm	-120dBm

http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08942.html

FIXED INSIDE ANTENNA KIT OPTIONS

Kit #	Coax Type	Ln(ft)	Antenna Type	Ω
301121-40010	LMR-400	10	Dome	50
301151-0610	RG-6	10	Dome	75
304412-40010	LMR-400	10	Dome	50
304412-5810	RG-58	10	Dome	50
304419-0610	RG-6	10	Dome	75
304419-1110	RG-11	10	Dome	75
304419-17410	RG-174	10	Dome	50
311135-40060	LMR-400	60	Panel	50
311135-5825	RG-58	25	Panel	50
311155-0640	RG-6	40	Panel	75
311155-1170	RG-11	70	Panel	75
311155-40060	LMR-400	60	Panel	50
314440-0630	RG-6	30	4G Panel	75
314440-1160	RG-11	60	4G Panel	75

All equivalent or lesser antennas and cables are suitable for use with 460044 Signal Booster.

FRANÇAIS

FIXED OUTSIDE ANTENNA KIT OPTIONS
		Ln(ft)		ΩAntenna TypeCo
301126	RG-174	12.5	Mini-Mag	50
301111-0675	RG-6	75	Yagi	75
301111-1140	RG-11	140	Yagi	75
301111-400170	LMR-400	170	Yagi	50
301111-5850	RG-58	50	Yagi	50
304421-0610	RG-6	10	Omni Consumer	75
304421-1120	RG-11	20	Omni Consumer	75
304421-17410	RG-174	10	Omni Consumer	50
304421-5810	RG-58	10	Omni Consumer	50
304422-1120	RG-11	20	Omni Enterprise	75
304422-40020	LMR-400	20	Omni Enterprise	50
304422-5810	RG-58	10	Omni Enterprise	50
311141-0620	RG-6	20	Grey Brick	75
311141-1120	RG-11	20	Grey Panel	75
311201-0620	RG-6	20	Omni Directional	75
311201-1120	RG-11	20	Omni Directional	75
311203-40020	LMR-400	20	Omni Directional	50
311203-5820	RG-58	20	Omni Directional	50
314411-40075	LMR-400	75	Wide Band Directional	50
314411-5825	RG-58	25	Wide Band Directional	50
314445-0630	RG-6	30	4G Directional	75
314445-100100	LMR-100	100	4G Directional	50
314445-1175	RG-11	75	4G Directional	75
314445-40075	LMR-400	75	4G Directional	50
314453-40075	LMR-400	75	Panel	50
314453-5825	RG-58	25	Panel	50
314473-0640	RG-6	40	Panel	75
314473-1175	RG-11	75	Panel	75
314475-0630	RG-6	30	Wide Band Directional	75
314475-1175	RG-11	75	Wide Band Directional	75
