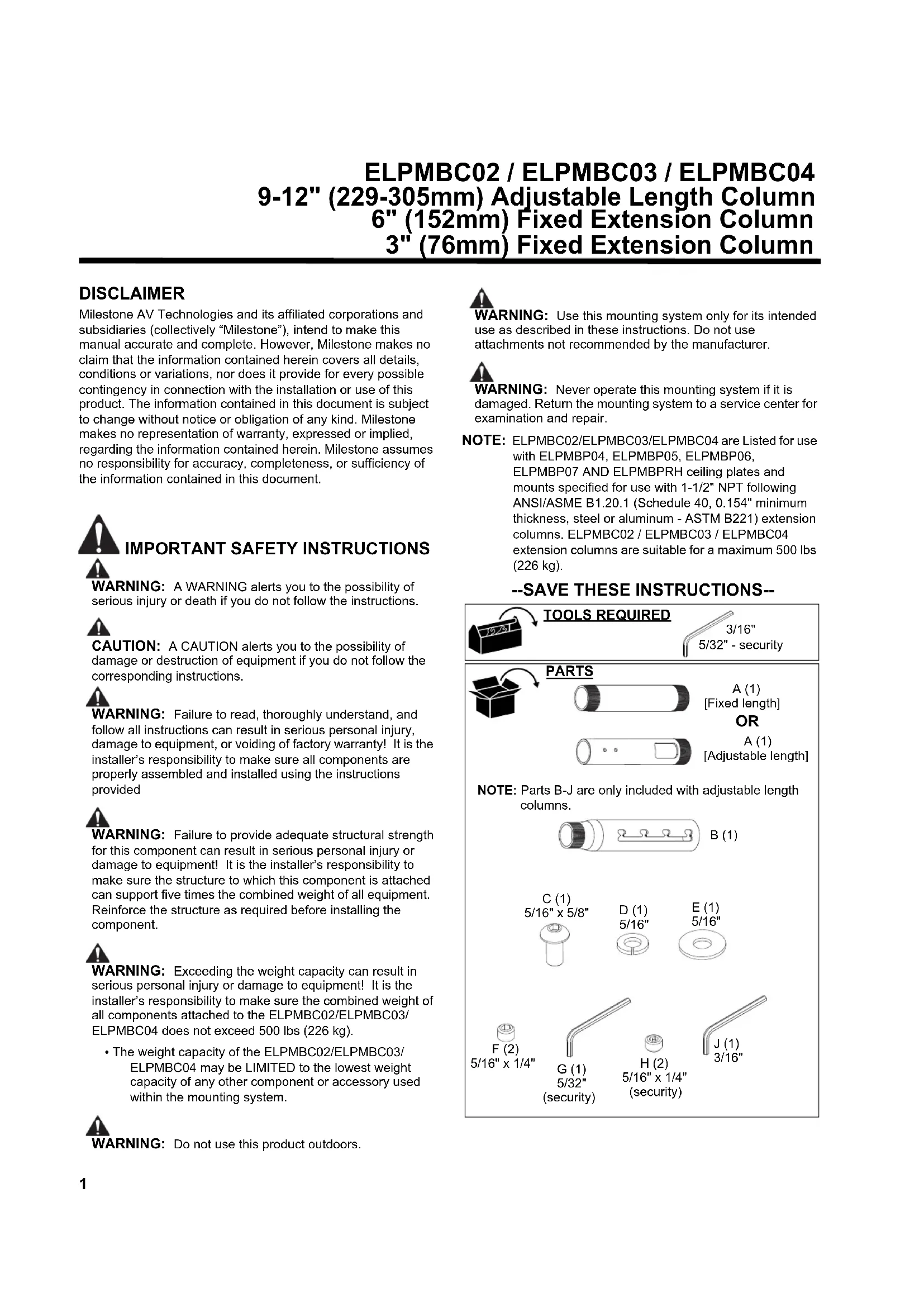

USER MANUAL ELPMBC02 EPSON

9-12" (229-305mm) Adjustable Length Column 6" (152mm) Fixed Extension Column 3" (76mm) Fixed Extension Column DISCLAIMER Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively “Milestone”), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness, or sufficiency of the information contained in this document.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions. CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer’s responsibility to make sure all components are properly assembled and installed using the instructions provided

WARNING: Failure to provide adequate structural strength

for this component can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components attached to the ELPMBC02/ELPMBC03/ ELPMBC04 does not exceed 500 lbs (226 kg).

  • The weight capacity of the ELPMBC02/ELPMBC03/ ELPMBC04 may be LIMITED to the lowest weight capacity of any other component or accessory used within the mounting system.

WARNING: Do not use this product outdoors.

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for examination and repair. NOTE: ELPMBC02/ELPMBC03/ELPMBC04 are Listed for use with ELPMBP04, ELPMBP05, ELPMBP06, ELPMBP07 AND ELPMBPRH ceiling plates and mounts specified for use with 1-1/2" NPT following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness, steel or aluminum - ASTM B221) extension columns. ELPMBC02 / ELPMBC03 / ELPMBC04 extension columns are suitable for a maximum 500 lbs (226 kg).

--SAVE THESE INSTRUCTIONS--

TOOLS REQUIRED 5/32" - security 3/16" PARTS [Adjustable length] A (1) [Fixed length]

B (1) C (1) 5/16" x 5/8" D (1) 5/16" E (1) 5/16" F (2) 5/16" x 1/4" H (2) 5/16" x 1/4" (security) G (1) 5/32" A (1) (security) J (1) 3/16" NOTE: Parts B-J are only included with adjustable length columns.Installation Instructions

FIXED LENGTH EXTENSION COLUMN

IMPORTANT ! : The following procedure assumes that the ceiling plate/adapter (not included) has been properly installed following instructions provided with ceiling plate/ adapter. NOTE: Intended for use with Chief accessories and mounts.

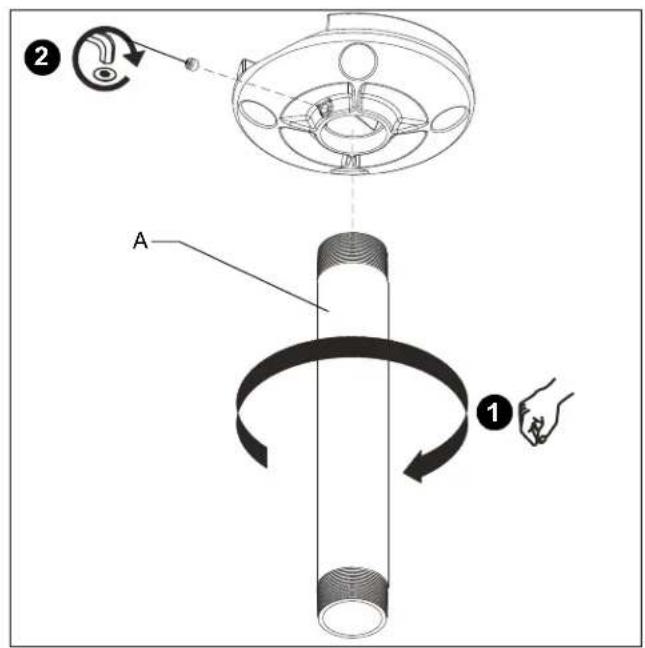

1. Install 1-1/2" NPT threaded column (A) into plate/adapter

(See Figure 1). Securely tighten column.

  • Ensure column (A) engages four full threads into plate/adapter. Figure 1

2. Secure column (A) by tightening set screw in plate/adapter

(See Figure 1). NOTE: Hex key and set screw provided with plate/adapter.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components attached to the ELPMBC02/ELPMBC03/ ELPMBC04 columns do not exceed 500 lbs (226 kg).

  • The weight capacity of the ELPMBC02/ELPMBC03/ ELPMBC04 columns may be LIMITED to the lowest weight capacity of any other component or accessory used within the mounting system.

3. Install and secure projector/display mount (not included) to

lower end of column (A) following instructions included with mount.

ADJUSTABLE LENGTH EXTENSION

COLUMN IMPORTANT ! : The following procedure assumes that the ceiling plate/adapter (not included) has been properly installed following instructions provided with ceiling plate/ adapter. NOTE: Intended for use with Chief accessories and mounts.

1. Install 1-1/2" NPT threaded column (A or B, as applicable)

into plate/adapter (See Figure 2). Securely tighten column.

  • Ensure column (A or B, as applicable) engages four full threads into plate/adapter. Figure 2

2. Secure column (A or B, as applicable) by tightening set

screw in plate/adapter (See Figure 2). NOTE: Hex key and set screw provided with plate/adapter.

3. Install mating column (A or B, as applicable) (See Figure 2).

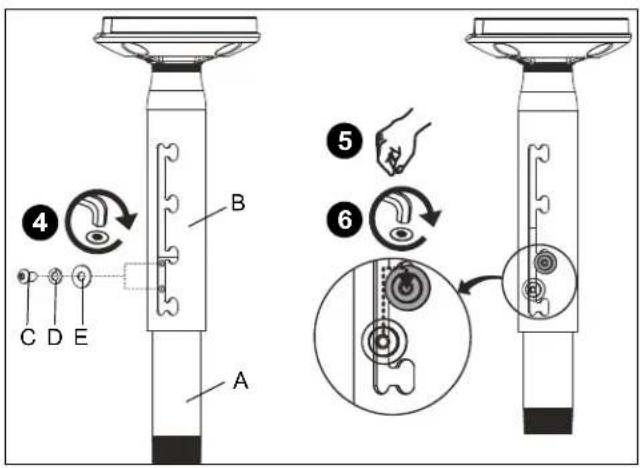

4. Using key (J), loosely install screw (C) through lock washer

(D), flat washer (E), and outer column (B) into adjustment hole in inner column (A) (See Figure 3). NOTE: Two adjustment holes provided in columns 6" or longer (152mm) in length. Either adjustment hole can be used to provide 1" (25mm) adjustment increments. Figure 3

5. Adjust column (A or B, as applicable) to desired length, then

rotate and lock into position (See Figure 3). NOTE: Any locking slot can be used to provide 2" (51mm) adjustment increments.

6. Tighten screw (C) using key (J) (See Figure 3).

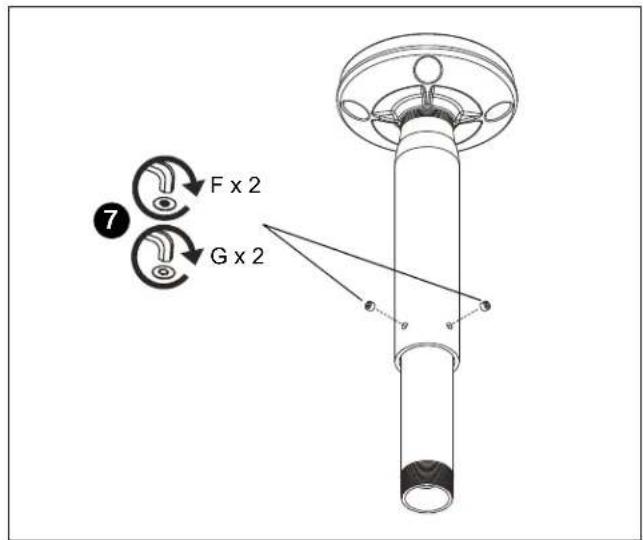

7. Install and tighten set screws (standard (F) or security (G),

as desired) using key (J) (See Figure 4). Figure 4

8. Install and secure projector/display mount (not included) to

lower end of column (A or B, as applicable) following instructions included with mount.

LENGTH DIMENSIONS Fixed Length Column Adjustable Length Column DIMENSIONS: INCHManufactured by: Milestone AV Technologies A 6436 City West Parkway, Eden Prairie, MN 55344 P 800.582.6480 F 877.894.6918 E info@milestone.com (Tech Support 7:00am - 7:00pm CST) www.milestone.com 8800-002773 Rev01 09/15 Installation Instructions Distributed by: Epson America, Inc. 3840 Kilroy Airport Way Long Beach, CA 90806

With the exception of electrical products, Milestone warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Milestone. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Milestone disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Milestone also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty. Milestone’s sole warranty obligation to the owner of its products is to repair or replace (at Milestone’s discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Milestone via prepaid shipping. To the maximum extent permitted by applicable law, Milestone disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Milestone will not be liable for any damages whatsoever arising out of the use or inability to use Milestone products, even if Milestone has been advised of the possibility of such damages. Milestone bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Milestone products performed by someone other than a Milestone employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Milestone will not be responsible for damage to Milestone products caused by misuse, abuse, failure to properly package the product for return to Milestone or for damage caused by carriers during shipment to or from Milestone. Any repairs to Milestone products required due to misuse, abuse or shipping damage or repairs of defective Milestone product outside the warranty period will be performed at the current rates established by Milestone for factory service.5
