Product type	Portable battery (Power Bank)
Brand	V-TAC
Model	VT3503
Battery capacity	5000 mAh (Li-Polymer)
Nominal output capacity	3250 mAh
Input	Micro USB 5V/2.0A
Outputs	2 USB-A ports 5V/2.1A (max 2.1A per port)
Battery type	Li-Polymer
Dimensions (estimated)	100 x 65 x 15 mm
Weight (estimated)	130 g
Level indicator	4 LED (25%, 50%, 75%, 100%)
Flashlight	Integrated, activation by long press on button
Protections	Short circuits, overcharge, discharge, leakage
Automatic functions	Plug & play, automatic standby when no output
Maintenance	Clean with a dry cloth; recharge every 3 months if unused
Operating temperature	-10°C to +45°C
Safety	Do not expose to heat/humidity, do not disassemble, do not short-circuit

Frequently Asked Questions - VT3503 V-TAC

How to check the remaining battery level?

Briefly press the control button: the 4 LEDs indicate the level: 4 LEDs = 75-100%, 3 LEDs = 50-75%, 2 LEDs = 25-50%, 1 LED = less than 25%.

How to recharge the portable battery?

Plug the provided Micro USB cable into the power bank input, then the other end into a USB power adapter (5V/2A recommended) or a computer USB port. Charging starts automatically.

How long does it take to fully charge the power bank?

The first charge or after long inactivity may take 8 to 10 hours. Subsequent charges are faster, about 2 to 3 hours with a 2A charger.

Can I charge two devices at the same time?

Yes, the VT3503 has two USB output ports, each delivering 5V/2.1A. You can charge two devices simultaneously.

Which devices are compatible?

All devices that charge via USB: smartphones, tablets, headphones, speakers, portable consoles, etc. The standard 5V output works with most devices.

How to use the built-in flashlight?

Press and hold the control button for 2 seconds to turn on the flashlight. Press again for more than 2 seconds to turn it off.

What to do if the power bank does not charge or does not charge my devices?

Check the cable and clean the ports. Try another cable or charger. If the problem persists, let the power bank fully recharge (8-10h) and try again.

Is it safe to leave the power bank charging overnight?

Yes, the power bank has overcharge protection. Once the battery is full, charging stops automatically.

Why is the nominal output capacity lower than the battery capacity?

Due to conversion losses (heat, voltage), the actually available capacity is about 65% of the battery capacity. For the VT3503, 5000 mAh gives about 3250 mAh output.

Can I carry this power bank on a plane?

Yes, power banks of 5000 mAh (less than 100 Wh) are allowed in cabin. Check your airline's rules.

USER MANUAL VT3503 V-TAC

Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best. Please read these instructions carefully & keep this user manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

QR code image containing encoded data, no visible human-readable text

Multi-Language Manual QR CODE

Please scan the QR code to access the manual in multiple languages.

(HU) BEVEZETÉS

This product is lightweight, environmentally friendly, high-capacity stylish mobile power for portable devices anywhere, anytime. This product contains a high-performance lithium-ion battery. Using the Micro USB cable, not only can you power portable devices directly, but also can charge the built-in battery. It provides adequate back-up energy for the wild expedition, traveling, Adventure, and travel home.

APPLICABLE FOR

1. Suitable for iPhone, iPod, Tablet, most mobile phone and digital products.
2. Suitable for handheld video games PSP, NDSI, NDSL.
3. Suitable for MP3, MP4, MP5, e-books, GPS, walkie-talkie.
4. Standard USB interface output, compatible with all USB charging devices.

PERFORMANCE

1. Easy to use simply select the appropriate connector to charge.
2. Plug & play, auto-sleep mode function, when no current output the device goes into sleep mode automatically.
3. Short-circuit protection, over Charge protection, over discharge protection, intelligent protection of lithium, high conversion efficiency, leakage protection.

HOW TO USE IT

1. Display capacity (Note: Applicable for models with LED indicator):
   Press control button, capacity LED will be on, 10 seconds later they will be off automatically.
   4 LEDs on: 75%\~100% remained.
   3 LEDs on: 50%\~75%remained.
   2 LEDs on: 25%—50% remained.
   1 LEDs on: less than 25%

2. LED lighting (Note: Applicable for models with LED flashlight)

Press control button over 2 seconds, the flashlight will switch on. Press control button more than 2 seconds to switch off the flashlight.

1. Charge portable power bank

The applicable standard cable plug in the computer USB or USB charger, connect to the Micro USB of mobile power, automatic wake-up charge. During charging, the battery indicator light cycling starts; full power indicator light indicates charging completed.

1. Use portable power bank to provide power to any digital device. Using the cable and adapter for the digital products, the electronic switch will be open automatically, output 5V voltage for use. (See Figure 3)

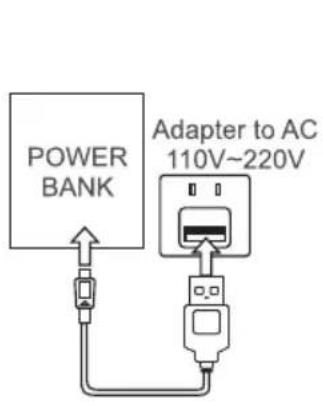

POWER BANK Adapter to AC 110V~220V

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

NOTICE:

Ensure the product's safe operation please read the manual

carefully before using that:

A. Attention:

1. Mobile power bas built-in lithium-ion battery, do not use metal objects to short-circuit products, in order to avoid equipment failure and security risks.
2. Shall not be placed in hot and humid environment.
3. Shall not be demolish or mobile power transformation.
4. The equipment shall meet the specifications required to use DC power, the use of other power supply may cause fire or malfunction.
5. Heavy impact on the product may cause fire or explosion.

B. Terms of Use

1. If using the product for the first time or if it has not been used for a long time, the power bank needs 8-10 hours to charge fully.
2. Temperature range from -10°C to +45°C, for best charging results, please use the device in suitable temperature conditions.
3. When charging and using, this product may get slightly heated, which is normal and not malfunction.
4. If the products not in use for a long time, you need to charge at least once every three months to maintain its charge properties.
5. Mobile power bank left unused for a long time will suffer loss of power, which's normal self-discharge phenomenon, if ready to use, please charge again.
6. Keep the mobile power bank clean, please clean it with dry cloth before using if the port is dirty.

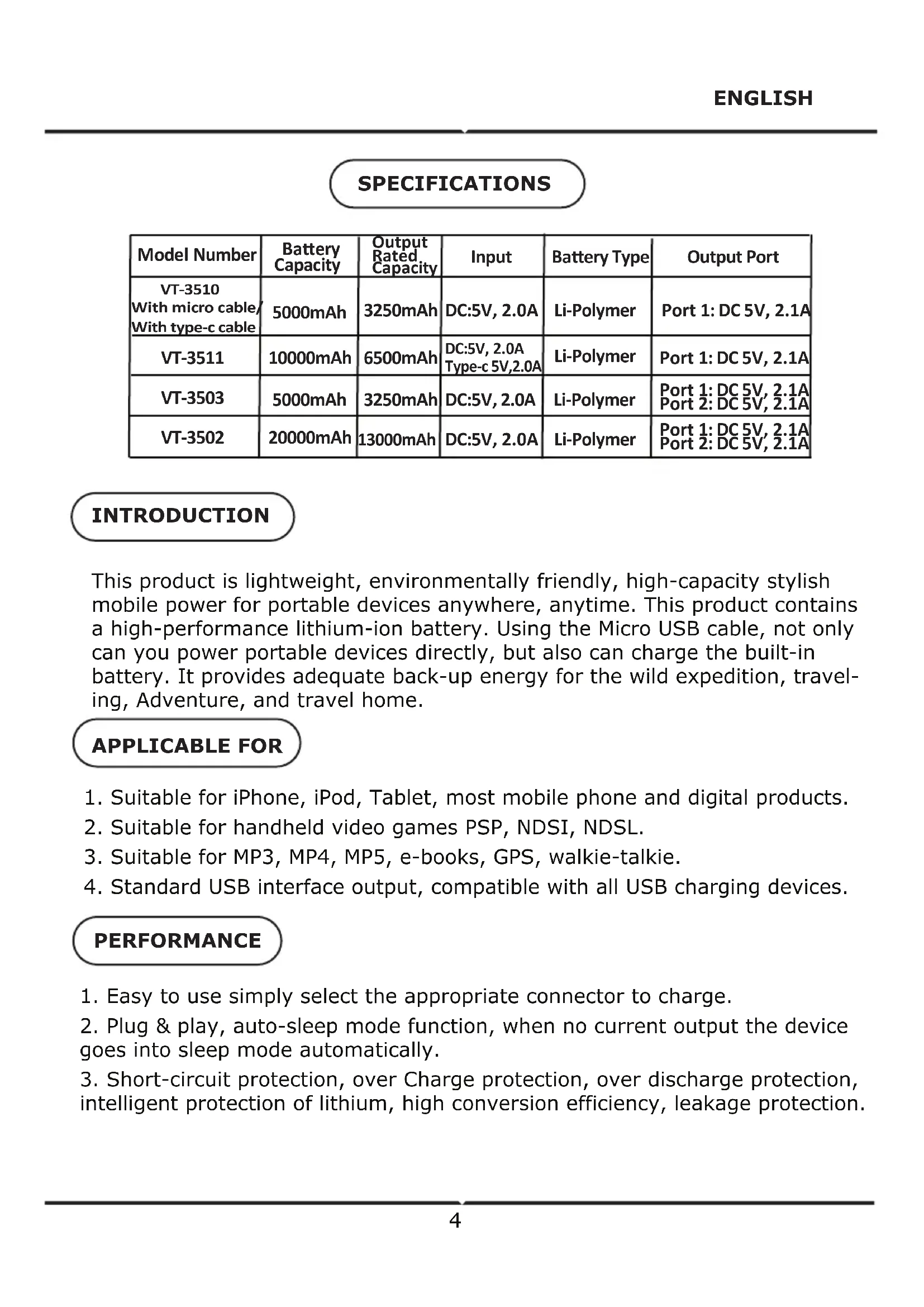

SPÉCIFICATION

Model Number	Battery Capacity	Output Rated Capacity	Input	Battery Type	Output Port
VT-3510With micro cable/With type-c cable	5000mAh	3250mAh	DC:5V, 2.0A	Li-Polymer	Port 1: DC 5V, 2.1A
VT-3511	10000mAh	6500mAh	DC:5V, 2.0AType-c 5V,2.0A	Li-Polymer	Port 1: DC 5V, 2.1A
VT-3503	5000mAh	3250mAh	DC:5V, 2.0A	Li-Polymer	Port 1: DC 5V, 2.1APort 2: DC 5V, 2.1A
VT-3502	20000mAh	13000mAh	DC:5V, 2.0A	Li-Polymer	Port 1: DC 5V, 2.1APort 2: DC 5V, 2.1A

INTRODUCTION

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

NOTICE:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

NOTICE:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

ЗАБЕЛЕЖКИ:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

Notas:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

NOTAS:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

MEGJEGYZÉS:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

ΠΑΡΑΤΗΡΗΣΕΙΣ:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

UWAGI:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

OBSERVATII:

Figure 1 Adapter Charging

Connection diagram

Figure 2 USB Charging

POWER BANK

Figure 3 Charging Mobile phone

POZNÁMKY:
