USER MANUAL WEST204WT NEDIS

8:00 1:00 100.7 25°C 39 SET ALABE & PROC ON HILL

MANUAL (p. 2)

ANLEITUNG (S. 6)

MODE D'EMPLOI (p. 10)

MANUAL DE USO (p. 22)

MANUAL (p. 26)

HASZNÁLATI ÚTMUTATÓ (o. 30)

KÄYTTÖOHJE (s. 34)

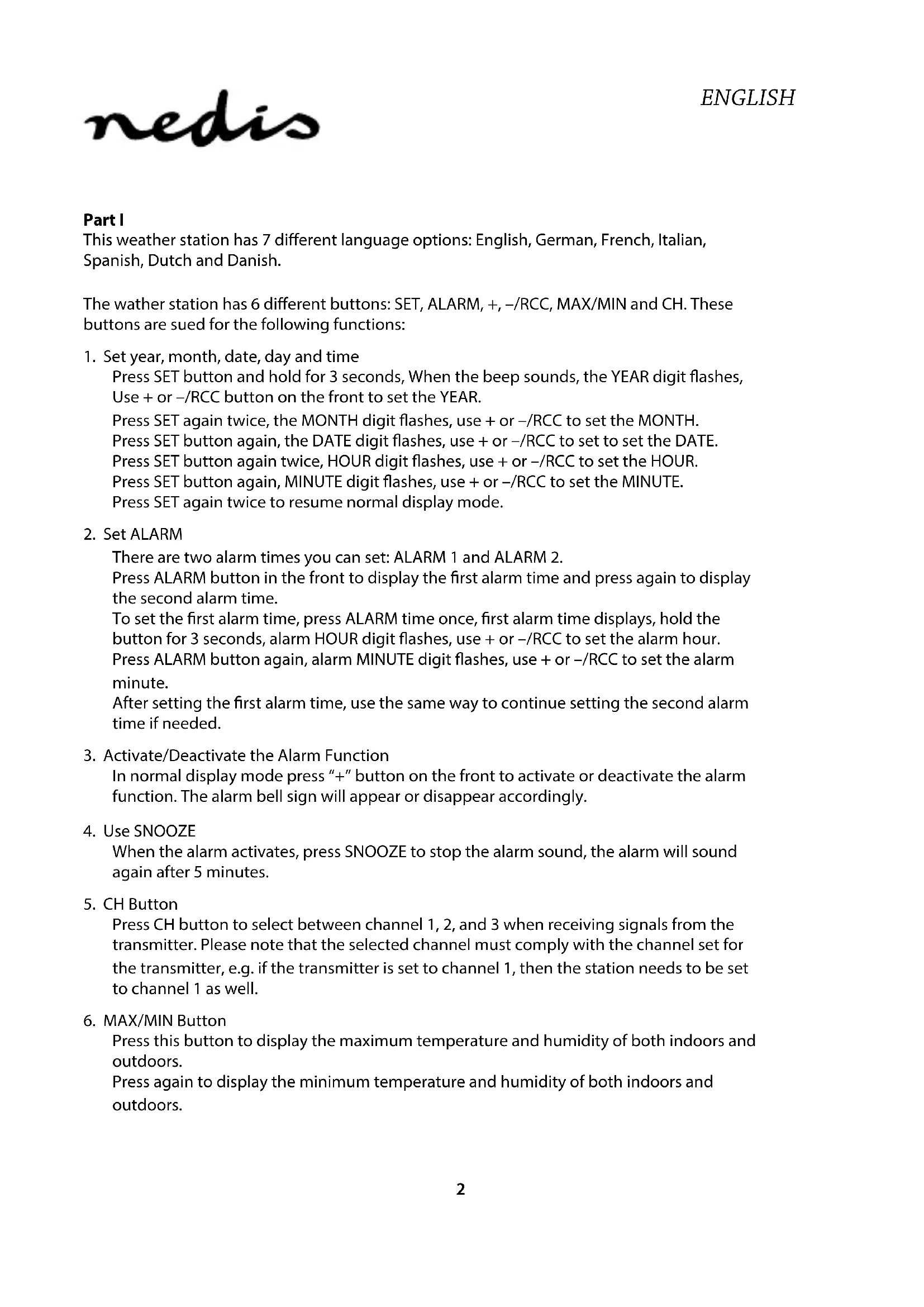

This weather station has 7 different language options: English, German, French, Italian, Spanish, Dutch and Danish.

The wather station has 6 different buttons: SET, ALARM, +, -/RCC, MAX/MIN and CH. These buttons are sued for the following functions:

1. Set year, month, date, day and time

Press SET button and hold for 3 seconds, When the beep sounds, the YEAR digit flashes, Use + or -/RCC button on the front to set the YEAR.

Press SET again twice, the MONTH digit flashes, use + or -/RCC to set the MONTH.

Press SET button again, the DATE digit flashes, use + or -/RCC to set to set the DATE.

Press SET button again twice, HOUR digit flashes, use + or -/RCC to set the HOUR.

Press SET button again, MINUTE digit flashes, use + or -/RCC to set the MINUTE.

Press SET again twice to resume normal display mode.

1. Set ALARM

There are two alarm times you can set: ALARM 1 and ALARM 2.

Press ALARM button in the front to display the first alarm time and press again to display the second alarm time.

To set the first alarm time, press ALARM time once, first alarm time displays, hold the button for 3 seconds, alarm HOUR digit flashes, use + or -/RCC to set the alarm hour.

Press ALARM button again, alarm MINUTE digit flashes, use + or -/RCC to set the alarm minute.

After setting the first alarm time, use the same way to continue setting the second alarm time if needed.

1. Activate/Deactivate the Alarm Function

In normal display mode press "+" button on the front to activate or deactivate the alarm function. The alarm bell sign will appear or disappear accordingly.

1. Use SNOOZE

When the alarm activates, press SNOOZE to stop the alarm sound, the alarm will sound again after 5 minutes.

1. CH Button

Press CH button to select between channel 1, 2, and 3 when receiving signals from the transmitter. Please note that the selected channel must comply with the channel set for the transmitter, e.g. if the transmitter is set to channel 1, then the station needs to be set to channel 1 as well.

1. MAX/MIN Button

Press this button to display the maximum temperature and humidity of both indoors and outdoors.

Press again to display the minimum temperature and humidity of both indoors and outdoors.

7. MOON PHASE

It will calculate the moon phase automatically, the moon phase being divided into 8 degrees.

Temperature and Humidity:

1. Temperature range indoors: 0 °C\~50 °C (32 °F\~122 °F);
   Temperature range outdoors: -50 °C\~70 °C (-58 °F\~158 °F).
2. Range of humidity: 20%–99%.
3. Tendency of temperature change: one check per hour, compared to previous data. If the temperature changes more than 1 °C the arrow will be flat.

Pressure and Weather Forecast:

1. Turn on power to set the height, or it will be 0.
2. Two kinds of pressure units: Hpa/Mb or in Hg.
3. Records the pressure data of the past 12 hours.
4. Compares the pressure data with the previous data every 60 minutes. If the change is more than 2 hpa the pressure arrow will change.
5. Checks data every hour and will display the weather graphics according to the result.

RCC Reception Mode:

1. RCC reception format: DCF, the reception time is about 10 minutes.
2. RCC reception way.
3. It will begin to receive the RCC 3 minutes after turning on the unit.
4. RCC reception graphic:

The tower graphic flashes when receiving, the tower graphic will also flash when lost or has no signal. The tower graphic will not flash when synchronizing the signal, but the arc-shaped antenna symbol on top of the tower graphic is flashing. The whole RCC reception graphic will display when the reception is successful: The tower graphic will turn off and exit RCC when the signal reception fails.

Part II

There are 5 buttons at the rear: UP, DOWN, HISTROY, MAX/MIN, ALERT. These buttons are used for the following functions:

1. ALERT Button

While in normal display mode, press this button to activate or deactivate the temperature alert function. An arrow icon will appear to indicate the function has been activated, or the arrow icon will disappear to indicate the alarm is deactivated.

While in normal display mode, press and hold this button for 3 seconds to enter the temperature alert settings. The door temperature digits will start flashes. Press the ALERT button at the rear to set the temperature (0 °C\~50 °C) at which the station has to sound an alarm.

2. UP Button at the rear

In normal display mode press this button to select pressure unit between Hpa/Mb or Hg. In normal display mode press and hold this button for 3 seconds to enter weather forecast display mode, select by pressing the DOWN button (at the rear) among sunny, cloudy, rainy, etc.

1. DOWN Button at the rear

In normal display mode press this button to toggle between degrees Celsius or Fahrenheit.

1. HISTORY Button

Press this button repeatedly to show the history record of the barometer of the past 12 hours. The hour is displayed in the bottom right corner of the barometer chart. In normal display mode press this button to check the barometer history of 12 the past hours.

In normal display mode press and hold this button for 3 seconds to enter sea level setting.

1. MAX/MIN Button

Press this button display the maximum temperature and humidity of both indoors and outdoors.

Press again to display the minimum temperature and humidity of both indoors and outdoors.

Part III

Use the Transmitter:

For each weather station there is a transmitter. Set the channel after inserting the battery at the rear of the transmitter. There are 3 settings: channel 1, 2 and 3.

The maximum distance between the station and the transmitter is 20 m in open areas.

Greater distance or buildings in-between station and transmitter will affect signal transmission and reception.

Transmitter shall be kept away from rain or water.

Part IV

Points to note:

Tolerance:

- The tolerance for temperature variation is + / - 2^ .

- The tolerance for humidity variation is + / - 5% .

Remarks:

1. 3x AAA batteries or DC 4.5 V adapter are needed to operate the weather station.

2. 2x AAA batteries are needed to operate the transmitter.

3. The transmitter distance is 30 m.

4. Transmits one time every second. The light will flash at the same time.

5. Select the channel and change the temperature unit inside the battery compartment.

6. When the RCC signal flashes, the handset function is turned off. Press -/RCC button once to stop the RCC signal flashing; it will recover the handset function.

7. The system's channel is CHANNEL1.

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorised technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specifications and regulations in the country of sales. Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS
