Product type	Condenser tumble dryer
Brand	Hoover
Model	DXW H9A3TCEXS
Dimensions (H × W × D)	85 × 60 × 60 cm
Drum capacity	115 L
Maximum load	9 kg (cotton)
Electrical supply	220-240 V, 50 Hz, 6 A minimum
Drying programs	All In One, Cotton, Synthetics, Delicates, Wool, Shirts, Jeans, Sport, Rainwear, Duvet, Shoes, Anti-allergy, Refresh
Special functions	Delay start (1-24 h), Adjustable drying level, Quick dry, Super easy ironing, Memo, Child lock, Automatic anti-crease, WiFi (One Fi Extra)
Maintenance and cleaning	Clean the lint filter after each cycle, empty the water tank, clean the condenser regularly
Safety	Child lock, automatic stop when door opened, overheat protection
Spare parts	Available from GIAS service (original manufacturer parts)
Repairability	Repairs exclusively by a GIAS approved technician
Energy class	Consult the energy label provided with the appliance
Noise level	Not specified
Connectivity	Wi-Fi 802.11 b/g/n, NFC (One Fi Extra)

Frequently Asked Questions - DXW H9A3TCEXS HOOVER

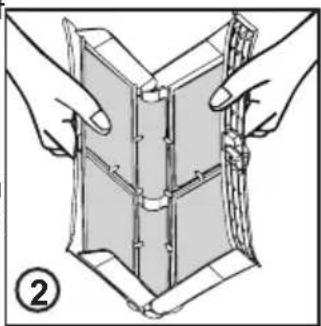

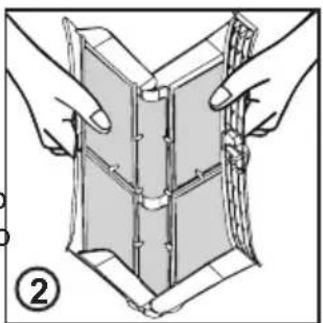

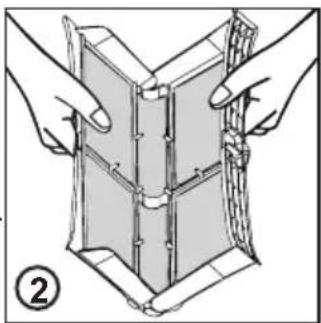

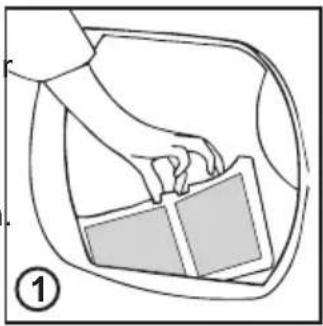

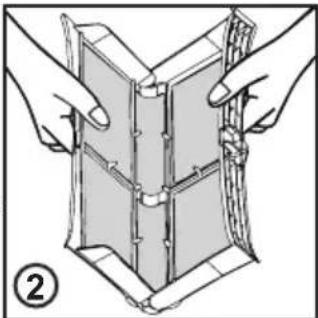

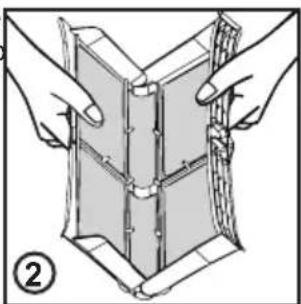

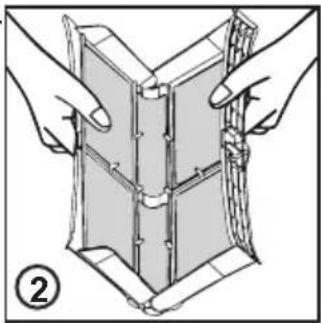

How to clean the lint filter?

Open the door, pull the filter upward, open it and remove the lint with a soft brush or fingers. Put it back. Clean it after each cycle.

Why does the displayed drying time vary?

The remaining time is continuously adjusted based on the actual humidity of the laundry. It is normal for it to increase or decrease.

What to do if the dryer does not start?

Check that the plug is connected, the door is properly closed, the fuse has not blown, and the program has been selected. If the water tank is full, the appliance stops automatically.

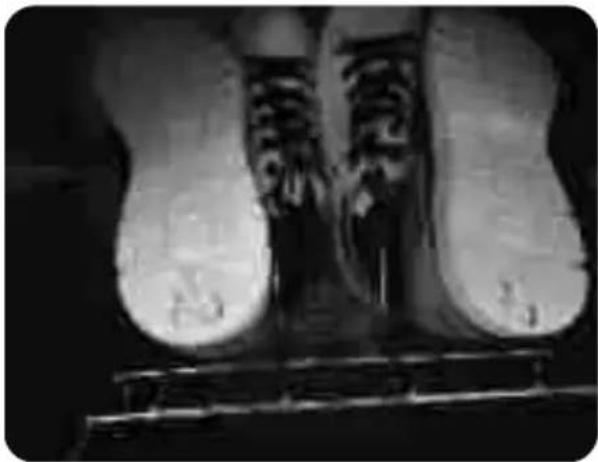

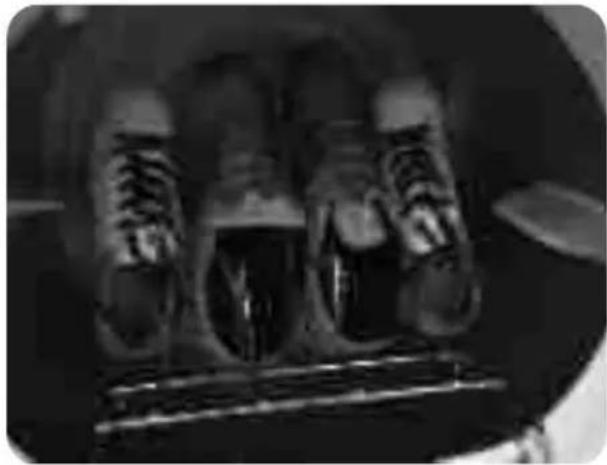

How to use the shoe rack?

Remove the door filter, attach the rack in its place. Place up to 2 pairs of shoes without laces. Rotate the drum manually to ensure they do not block. Select the shoes program.

What does the filter cleaning indicator mean?

The indicator indicates that you need to clean the lint filter in the door and/or the condenser located at the bottom of the appliance.

Can I dry wool garments?

Yes, the Wool program is Woolmark certified to dry up to 1 kg of machine-washable wool. Turn garments inside out.

How to empty the water tank?

Gently pull the water collection drawer by the handle. Empty it into a sink. Put it back by inserting the base first, then the top. The tank can weigh up to 6 kg.

What to do if laundry is still damp at the end of the cycle?

Check that the filter and condenser are clean, the load is not excessive, the program selected is suitable, and the laundry was properly spun before drying.

How to use the delay start?

Press the Delay start button to select a delay of 1 to 24 hours. The remaining time is displayed. Press Start to begin the countdown.

What to do if the screen displays 'LOC'?

Child lock is activated. Press buttons 4 and 5 simultaneously for 2 seconds to deactivate. 'Unl' then appears.

USER MANUAL DXW H9A3TCEXS HOOVER

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Please check that the following items are delivered with the appliance:

• Instruction manual
  • Guarantee card
• Energy label

By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

Index

1. SAFETY REMINDERS
2. DRAIN HOSE KIT: FITTING INSTRUCTIONS
3. PREPARING THE LOAD
4. CLEANING AND ROUTINE MAINTENANCE
5. WATER CONTAINER
6. DOOR AND FILTER AND CONDENSER

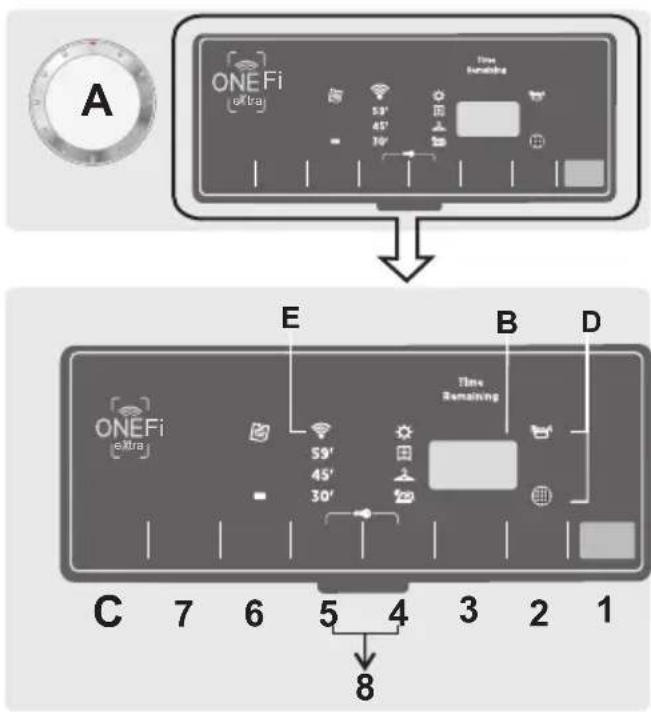

7. CONTROLS AND INDICATORS
8. SELECTING THE PROGRAMME AND SET THE FUNCTION
9. TROUBLESHOOTING CUSTOMER SERVICE

Check that no damage has occurred to

1. SAFETY REMINDS

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance should not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.
• WARNING Misuse of a tumble dryer may create a fire hazard.
• This appliances is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working

may reduce the life of the appliance and may void the manufacturer's warranty.

Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.

• Do not lean on the door when

• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.

• WARNING Where the hot surface symbol is ^N located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the

Installation

• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

Important: During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown;

The Laundry

• Do not dry unwashed items in the tumble dryer.
• WARNING Do not tumble dry fabrics treated with dry cleaning fluids.
• WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.
  • Always refer to the laundry care labels for directions on suitability for drying.
  • Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer.
  • Clothes that are dripping wet

washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Ventilation

• Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

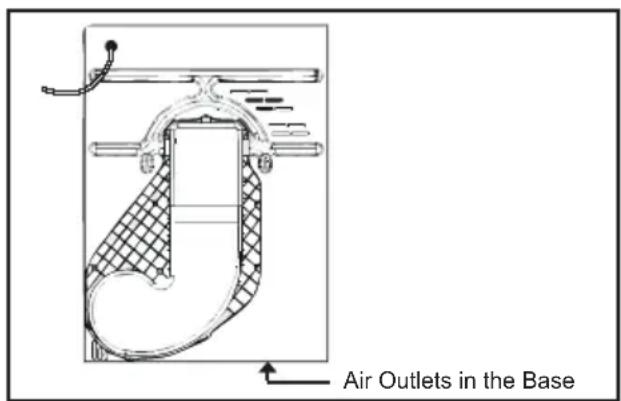

  • Installing the rear of the appliance close to a wall or vertical surface.
  • There should be a gap of at least 10 mm between the

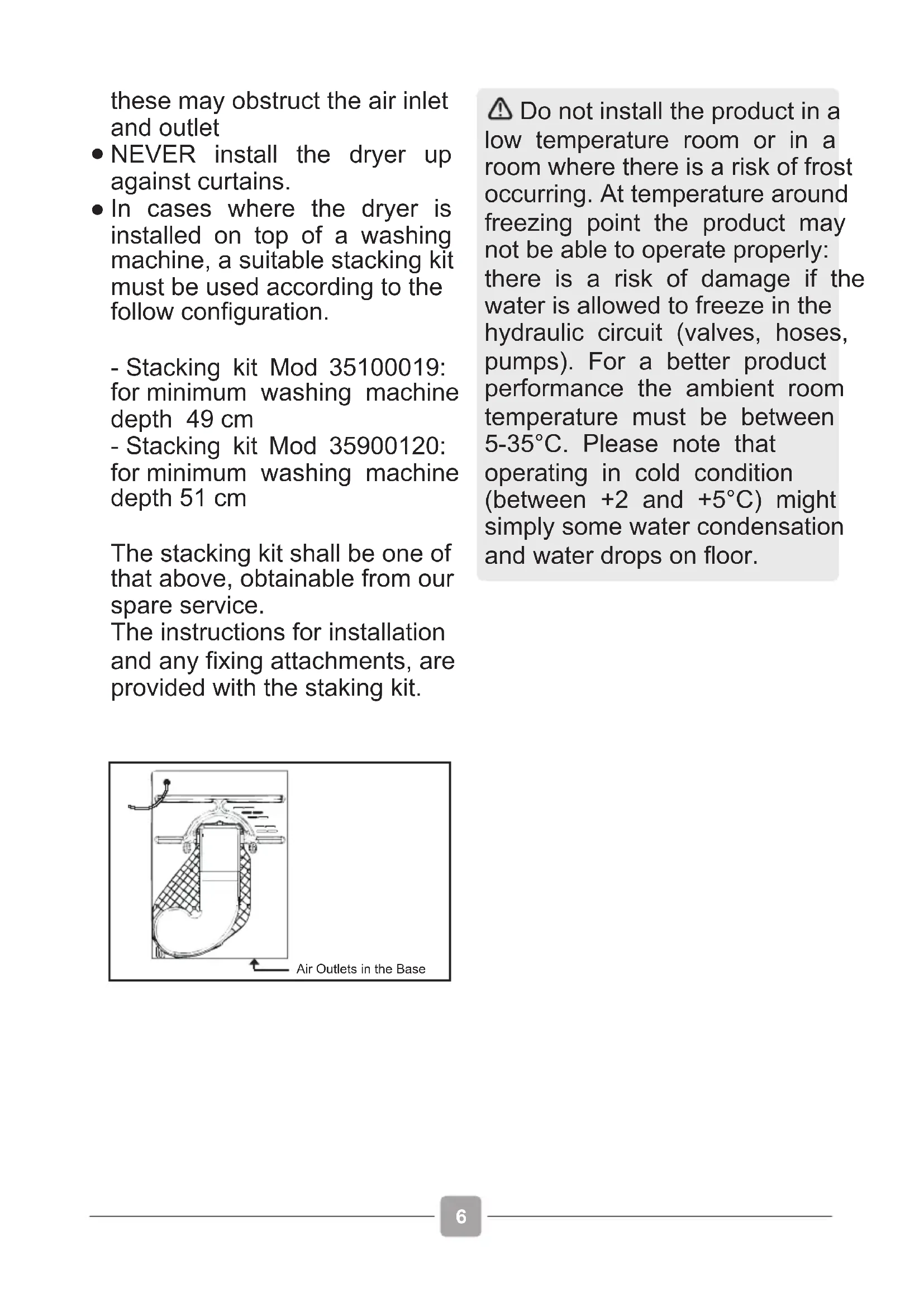

these may obstruct the air inlet and outlet

• NEVER install the dryer up against curtains.
• In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration.

- Stacking kit Mod 35100019: for minimum washing machine depth 49 cm

- Stacking kit Mod 35900120: for minimum washing machine depth 51 cm

The stacking kit shall be one of that above, obtainable from our spare service.

The instructions for installation and any fixing attachments, are provided with the staking kit.

⚠ Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
• To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European irective 20 /ED 12/19

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue, it is essential to follow some basic rules:

• WEEE should not be treated as household waste.
• WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a

one-to-one basis, as long as the equipment is of equivalent type and has the same functions as O the supplied equipment.

GIAS Service

- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase.

Check that the supply circuit is rated to at least 6A.

Electricity can be extremely dangerous. This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has U been installed.

Contains fluorinated greenhouse gases. Hermetically sealed.

R134a / 0,300 [kg] / CO2 equivalent: 0,372[t] GWP1430

You may be charged for a service call if a problem with your machine is caused by incorrect installation.
⚠️ If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.
Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

2. DRAIN HOSE : FITTING INSTRUCTIONS

To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.

The kit consists of:1 hose and 1 tap.

WARNING! Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.

Fit he s Follows:t Hose a

1. Flip the machine slowly to the right side.

Line drawing of a washing machine with a circular vent and buttons, no text or symbols present

1. Attach the black hose from the kit, (using the connector and pipe clips supplied), to the hose removed from the bridge connection.

2. Connect the new drain hose to the waste Water pipe.

Close-up of a hand holding a small electronic device with a probe tip, no visible text or symbols

Close-up of a hand holding a black tool with white tape, attached to a coiled cable or wire (no visible text or symbols)

1. Once the machine is in place, check the bottom to ensure that the new hose does not kink when pushing the tumble dryer into position.

Connect to the mains electricity supply.

Close-up of a white toilet with a black hose and circular vent, next to a brick wall (no visible text or symbols)

1. The waste water pipe is situated at the right-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.

Close-up of hands cleaning a car window with a tool (no visible text or symbols)

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor.

1. Pull the hose off the bridge connection.

Close-up of hands holding a tool or object, possibly a mechanical or electronic component (no visible text or symbols)

3. PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly
• Remove all items packed inside drum
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may ha settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Silk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

- Check that the filter is clean before every drying cycle.

NEVER

- Put dripping wet items into the tumble dryer, this may damage the appliance.

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

• Tumble drying at high temperature.

• Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

4. CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
• Regularly clean the condenser
• After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may be very hot.

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

5. WATER CONTAINER

OPERATION

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the indicator on the control panel will light, and the container MUST be emptied.

However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly until you hear the door 'click' shut.

3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).

To Remove the Container

1. Gently pull out the water container holding the handle. (A) When it is full the water container will weigh about 6 kg.

2. Tilt the water container to empty the water out through the spout. (B)

Technical diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

When empty, replace the water container back as shown; (C) first insert the base of the container into position as shown (1) then gentle push the top into position (2).

Simple line drawing of a container pouring liquid into a container with a pipe nearby (no text or symbols)

1. Press ▷ Button to restart the cycle.

NOTE: If you have the option of drainage near to the dryer you can use the discharge kit to provide a permanent drainage for the water collected in the container of the dryer. This means that you don't have to empty the water container.

1. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.

2. If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.

3. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

4. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programs in order to obtain a proper drying.

6. DOOR and FILTER

Pull on handle to open the door. To restart the dryer, close the door and press Start / Pause button

WARNING! When the tumble dryer is in the drum and door may be VERY HOT.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

1. Pull the filte upwards.
   2.Open filter as shown.
   3.Gently remove lint using a soft brush or your fingertips.
2. Snap the filter together and push back into place.

Line drawing of a hand placing a rectangular object into a car's side panel (no text or symbols)

Illustration of hands assembling a layered structure with no visible text or symbols

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

IF YOU CLEAN FILTER UNDER TER, REMEMBER TO DRY IT.

WARNING! If you open the door mid e, before the cool-down cycle has pleted,the handle may be hot. Please see me caution when attempting to empty water reservoir during the cycle.

To Clean the Condenser Filter

1. Remove the kickplate.
2. Turn the two locking levers anti-clockwise and pull out the front cover.
3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.
4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap turning it so to remove any dust or fluff.
5. Refit the front cover ensuring it is in the correct way (a indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise
6. Refit the kickplate.

Illustration of hands holding a fan or panel with a circular component, no text or symbols present

Simple diagram showing a rectangular container with four small fish icons inside, no text or symbols present.

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a tool over a mechanical component, no text or symbols present

Hand inserting a component into a device housing (no text or symbols visible)

7. CONTROLS AND INDICATORS

A-Programme Selector - Rotating the knob in both directions it's possible to select the desired drying program. To cancel the selections or switch off the dryer rotate the knob on OFF.

B- DisplayDigit shows the remaining time for drying, the postponed time case of delayed start selection and other notifications setting.

C-Buttons -

1. Start/Pause Button

To start the selected program and/or suspend

2.Delay Start Button

It allows to delay the start of the program from to 24 hours in 1-hour intervals. The delay selected is shown on the display. After pressing the START button the time showed decrease hour after hour. Opening of the porthole with delayed start set, after re-closing the porthole, press start again to resume the counting.

3.Time cycle selection

It's possible transform a cycle from automatic t programmed, up to 3 minutes after the start of the cycle.

The progressive pressure increases the time in 10-minute intervals. After this selection to reset the automatic dying functioning is necessary to switch off the dryer In case of incompatibility, all LEDs flash quickly for 3 times.

4. Drying Selection Button

It allows to set the desired dryness level editable option up to 5 minutes after the starting of the cycle:

- Ready to Iron : It leaves the garments slightly wet to facilitate ironing.

- Dry Hanger: To get garment ready to be hang

田 - Dry wardrobe : For laundry that can be directly stored

-Extra-dry: To get completely dry garments, ideal for full load.

This appliances is equipped with Drying Manager Function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of drying reached. In case of incompatibility, all LEDs flash quickly for 3 times.

5.Rapids Button

It's possible switch an automatic program to RAPID program, up to 3 minutes after the start of the cycle. The progressive pressure increases the time (30-45-59 minutes).

After this selection to reset the automatic dying functioning is necessary to switch off the dryer In case of incompatibility, all LEDs flash quickly for 3 times.

6.Best Ironing

This option allows to reduce folds and tangles, thanks to alternating movements of the drum during and after drying and automatically, setting the ironi drying level (the drying level setting can be modified after the option selection)

The option ca be set up to five minutes after the start of the cycle and is activated only on automatic cycles.

7.Memory

This option allows you to store the options set on a cycle.

STORAGE When the cycle is running push the button "memory" for three seconds. The control light "memory" flashes for three times and stores the set options connected to the cycle selected in the flange.

Recall: After the selection of the cycle Push the button "memory" for recall the stored options. (not the cycle)

8. Keylock

This function allows to block unwanted changes of the set options on the bezel, during drying phase. Activation/Inactivation: Push 4 and 5 buttons simultaneously for two seconds. The sign "LOC" appears on the display. Unlocking the option, on the display appears the sign "Uni", only once. In case of opening of 'porthole' with activated key lock, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and restore Start. When the dryer is off, the option is automatically inactivated.

Key lock can be modified at any time of the cycle.

Automatic Anti crease

This option automatically activates an anti-creases movement of the drum, pre cycle in case of activation of the delay and at the end of drying cycle for 6 hours. It is activated every 10 minutes. To stop the movements set the knob to OFF

Useful when it's not possible to remove immediately the laundry.

Drying Guide

The standard cycle COTTON DRY (□) is the most energy efficient and best suited for drying normal wet cotton laundry.

The table in last page shows the approximate time and energy consumption of the main drying programmes.

D-Led

Water tank ^1 - It lights up when it's necessary to empty the condensate water tank.

Filter cleaning ⚙ - It lights up when the cleaning of the filters is requested (the door at the lower filter.)

Power consumption of off-mode	0,40 W
Power consumption of on-mode	0,80 W

Technical Specifications

E-WI-FI (some models only)

In the models with the Wi-Fi option, the icon indicates that the Wi-Fi system is working.

ONE Fi EXTRA area - There is an apposite place in the bezel on which lay the smartphone during the enrollment of the machine to the APP. Follow the indications on the phone display. ( only for Android smartphone equipped with NFC technology)

Drum capacity 115
Maximum load See energy label
Height 85 cm
Width 60 cm
Depth	60 cm
Energy class	See energy label

Information for Test Laboratory

EN 61121 Programme To Use

-DRY COTTON

- COTTON OR

sIRON DRY COTTON -EASY-CARE TEXTILE

-COTTON OR WHITES 2 -DELICATES OR SYNTHETIC

APPAREL CARE

The wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and

⚠ Clean the filters before every cycle

dried according to the instructions on the garment label and those issues by the manufacturer of this machine M1530.

In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark.

The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

Maximum Drying Weight
Cottons	Max.capacity declared
Synthetics or Delicates	Max.4 Kg

1. SELECTING THE PROGRAMME AND SET THE FUNCTION

PROGRAM	PROGRAM DESCRIPTION	CAPACITY(kg)	DRYING TIME(min)
All In One	A new innovative cycle to dry different kinds of fabrics in the same time. The dryer provides an alert when the lightweight fabrics are dry and ready to are taking out. After this step it's necessary to press start again to complete the drying for the leftovers heavier linens.	6	*
	A delicate and specific cycle to dry dark or coloured cotton or syntethics garments.	4	*
[HAA0]	The right cycle to dry cottons, sponges and towels.	Full	*
	Program Eco normative (hang dry) drying. The most efficient program in energy consumption. Suitable for cottons and linens.	Full	*
	This specifics cycle has been conceived to dry shirts minimizing tangles and folds thanks specific movements of the drum. It's recommended to take out the linens immediately after drying cycle.	2.5	*
[177T]	Dedicated to dry uniformly fabrics like jeans or denim. It's recommended flip over the garments before drying.	4	*
[H2TS]	To dry delicate and synthetic fabrics that need an accurate and specific treatment.	4	*
[24WK]	An special service to revitalize the waterproofing treatment of the linens.	2	*
[WST8]	Dedicated to technical garments for sport and fitness, drying gently with special care to avoid shrinking and deterioration of elastic fibers.	4	*
	Perfect cycle to dry uniformly duvets and quilts, revitalizing the smoothness of the feathers.	4	*
[4ATS]	Woolen clothes: the program can be used to dry up to 1 kg of laundry (around 3 jumpers). It is recommended to reverse all clothes before drying. Timing can change due to dimensions and thickness of load and to spinning chosen during washing. At the end of the cycle, clothes are ready to be worn, but if they are heavier, edges can be a bit wet: it is suggested to dry them naturally. It is recommended to unload clothes at the very end of the cycle. Attention: felting process of wool is irreversible; please dry exclusively clothes with symbol (symbol "ok tumble"); this program is not indicated for acrylic clothes.	1 70'
[THKG]	One specifics cycle that dry and in the same time helps to reduce the main allergens as dust mites, pet hair, pollens and residual of powder detergents.	4	Max 220'
	This kind of cycle, thanks a special Rack, allows to dry 2 couples of canvas shoes. It's raccommended take out the laces from the shoes before drying them.	*	Max 120'
[WC34]	The perfect cycle to remove the smells from the linens smoothing creases.	2.5	20'
[AWXE]	Position that you have to select when you want to enable remote control through the App (Wi-Fi). For more details, see paragraph One Fi Extra

*The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

RACK FOR SHOES AND TRAINERS

Close-up of two hand teeth with visible dental restorations (no text or symbols)

Close-up of two ancient wooden feet with intricate patterns, displayed on a dark surface (no visible text or symbols)

The shoes accessory supplied with the dryer, allows to dry up to 4 sneakers. You must remove the door filter replacing it with the rack. Before inserting the shoes, remove any soles and place them in the dryer.

Central hooks are also suitable for men's shoes, while side hooks are more suitable for children's or women's shoes (EU 39- UK 5.5). It is advisable to turn the drum around to check for no interference. Alternatively you can position the two side shoes with the sole up.

ONE FI EXTRA

This appliance is equipped with ONE Fi EXTRA technology that allows you to control it remotely via App, thanks to Wi-Fi function.

MACHINE ENROLLMENT (ON APP)

- DiscoverWizard on your device.

The Hoover Wizard App is available for devices running both Android and iOS, both for tablets and for smartphones.

Get all the details of the ONE Fi EXTRA functions by browsing the App in DEMO mode.

- Open the App, create the user profile and enroll the appliance following the instructions on the device display or the "Quick Guide" attached on the machine.

Using an Android smartphone equipped with NFC technology (Near Field Communication), the enrollment process is simplified (Easy Enrollment); in this case, follow the instructions on the phone display, PLACE AND KEEP IT NEAR the ONE Fi EXTRA logo on the machine dashboard, when requested to do so by the App.

NOTES:

Place your smartphone so that the NFC antenna on its back matches the position of the ONE Fi EXTRA logo on the appliance (as illustrated below).

If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the ONE Fi EXTRA logo until the App confirms the connection. In order for the data transfer to be successful, it is essential TO KEEP THE SMARTPHONE ON THE DASHBOARD DURING THESE THE FEW SECONDS OF THE PROCEDURE; a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away.

Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.

The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones, could result in the NFC antenna removal.

ENABLE REMOTE CONTROL (VIA APP) After the machine enrollment, every time you want to manage it remotely through the App, firstly you have to load the laundry, the detergent, close the door and select the ONE FI EXTRA position on the machine. From that moment on you can manage it through the App commands.

NOTE : In case of door opening with remote controll on, to restore the connection with the App, close the porthole and press start. The cycle will resume from where it stopped.

WIRELESS PARAMETERS

Parameter

Wireless Standard

Frequency range

Max Trasmit Power

Minimum Receiving

Sensitivity

Specifications

802.11 b/g/n

ISO/IEC 14443 Type A and NFC Forum Type 4

Frequency band

13,553-13,567 MHz (centre frequency 13,560 MHz)

Magnetic field limit

< 42dBμA/m (at 10 meters)

With this the Candy Hoover Group Srl, declares that this appliance marked with complies with the essential requirements of the Directive 2014/53/EU. To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com

What Might be the Cause of...

Defects you can remedy yourself

Before calling service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time.

The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
  • Is the dryer overloaded?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as table lamp.
• Is the plug properly connected to the mains supply?

• Is there a power failure?
- Has the fuse blown?
- Is the door fully closed?
- Is the dryer switched on, both at the mains supply and at the machine?
- Has the drying time or the programme been selected?
- Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

- Does the filter need cleaning?

The Indicator is on...

- Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call or service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.

- Has not been installed in accordance with the installation instructions.

- Has been used incorrectly.

Spares

Always use genuine spares, available direct from service.

Service

For service and repairs call your local service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Close-up of hands using a tool to clean or repair a curved surface, no visible text or symbols

1. Retirez le tuyau du raccord.

Close-up of hands holding a cylindrical object, possibly a tool or device (no visible text or symbols)

Close-up of a hand holding a small electronic component, possibly a pen or tool, with no visible text or symbols.

Close-up of a hand holding a cable with a white plastic connector, no visible text or symbols

Exterior view of a white industrial pipe with black hoses on a concrete floor (no visible text or symbols)

Line drawing of a hand opening a car door with a rectangular panel inside (no text or symbols)

Illustration of hands assembling or folding a mechanical component (no text or symbols visible)

Illustration of hands holding a rectangular device with a circular fan inside, no text or symbols present

Simple diagram of a rectangular container with four small fish icons inside, no text or symbols present.

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a mechanical component, no text or symbols present

Hand inserting a component into a device housing (no text or symbols visible)

7. COMMANDES ET INDICATEURS

Close-up of three shoes partially submerged in a dark container (no visible text or symbols)

Close-up of two ancient foot carvings with carved patterns, displayed on a dark base (no visible text or symbols)

Electrical Requirements

Illustration of a person holding a small object with directional arrows indicating motion (no text or symbols)

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Close-up of hands cleaning a curved surface with a tool, no visible text or symbols

Close-up of hands holding a tool or object, possibly a mechanical or electronic component (no visible text or symbols)

Close-up of a hand holding a tool with a probe inserted, no visible text or symbols

Close-up of a hand holding a pen with a coiled cable, no visible text or symbols

Exterior view of a white toilet with black hoses on tiled floor (no visible text or symbols)

Cross-sectional diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

Diagram of a container pouring liquid into a container with a small container nearby (no text or symbols)

BETRIEB

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of hands assembling a layered structure with no visible text or symbols

Flusensieb-Anzeige

Illustration of hands holding a fan with a circular component, no text or symbols present

Simple diagram showing a rectangular container with four small fish-like shapes inside, labeled 'n' and circled number ② (no text or symbols on the shapes themselves)

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a tool over a mechanical component, no text or symbols present

Hand placing a component into a device housing (no text or symbols visible)

Close-up of two black shoes partially submerged in liquid, with no visible text or symbols

Close-up of two white footshells with decorative patterns, mounted on a dark base (no visible text or symbols)

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

2. KIT ACCESSORIO TUBO FLESSIBILE DI SCARICO: ISTRUZIONI PER IL MONTAGGIO

Line drawing of a washing machine with a circular vent and buttons, no text or symbols present

Close-up of hands holding a tool near a vehicle (no visible text or symbols)

Close-up of mechanical components or tools with no visible text or symbols

Close-up of hands using pliers to connect a cable or wire (no text or symbols visible)

Close-up of a hand holding a cable with a connector, no visible text or symbols

Close-up of a white industrial pipe outlet with a black hose and circular number 6 on the left (no visible text or symbols)

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion, labeled A (no text or symbols beyond label)

Simple line drawing of a container pouring liquid into a container on a surface, with no text or symbols present.

FUNZIONAMENTO

Line drawing of a hand holding a rectangular object inside a car door frame (no text or symbols)

Illustration of hands assembling a mechanical component (no text or symbols visible)

Illustration of hands holding a fan or panel with a circular component, no text or symbols present

Simple diagram showing a rectangular container with four small fish-like shapes inside, labeled with number ② (no text or symbols on the shapes themselves)

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a tool or device with a shaded blade, no text or symbols present

Hand inserting a component into a device housing (no text or symbols visible)

7. CONTROLLI E INDICATORI

Close-up of two metal shoes partially submerged in liquid, no visible text or symbols

Close-up of two white ceramic feet with decorative patterns, mounted on a dark base (no visible text or symbols)

Illustration of a hand holding a small object with directional arrows indicating rotation (no text or symbols)

2.AFVOERSLANG KIT: MONTAGE-INSTRUCTIES

Line drawing of a washing machine with a circular vent and base, no text or symbols present

Close-up of hands using a tool to clean or repair a surface, no visible text or symbols

Close-up of a hand holding a small electrical plug with wires, no visible text or symbols

Close-up of a hand holding a pen with a coiled cable, no visible text or symbols

Close-up of a white plastic toilet with black hoses on the floor, no visible text or symbols

Close-up of a hand gripping a cylindrical object, possibly a tool or device (no visible text or symbols)

3. HET WASGOED VOORBEREIDEN

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion, labeled 'A' (no text or symbols beyond label)

Simple line drawing of a container pouring liquid into a container (no text or symbols)

BEDIENING

Line drawing of a hand holding a rectangular object inside a car's side panel (no text or symbols)

Illustration of hands assembling or folding a mechanical component (no text or symbols visible)

Illustration of hands holding a fan or panel with a circular object, no text or symbols present

Simple diagram of a rectangular container with four small fish icons inside, no text or symbols present.

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a mechanical component with a cutting tool, no text or symbols present

Hand placing a component into a device housing (no text or symbols visible)

7. BEDIENINGSKNOPPEN EN INDICATIELAMPJES

1. Rapids - It's possible switch an automatic program to RAPID program, up to 3 minutes after the start of the cycle. The progressive pressure increases the time (30-45-59 minutes).

After this selection to reset the automatic dying functioning is necessary to switch off the dryer In case of incompatibility, all LEDs flash quickly for 3 times.

-DELICAAT OF SYNTHETISCH

TE MAKEN TEXTIEL

Close-up of two black shoes partially submerged in liquid, with no visible text or symbols

Close-up of two white footshells with decorative patterns, mounted on a dark base (no visible text or symbols)

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

2. TUBO DE DRENAGEM: INSTRUÇÕES DE INSTALAÇÃO

Line drawing of a washing machine with a circular vent and side buttons (no text or symbols)

Close-up of hands using a tool to clean or store items (no visible text or symbols)

Close-up of hands holding a cylindrical object, possibly a tool or device (no visible text or symbols)

Close-up of hands holding a tool with a metallic connector, no visible text or symbols

Close-up of a hand holding a tool with a coiled cable or wire, no visible text or symbols

Exterior view of a white toilet with a coiled hose, placed on a tiled floor next to a brick wall (no visible text or symbols)

Cross-sectional diagram of a mechanical component with an upward arrow and circular housing (no text or symbols)

Simple line drawing of a water dispenser pouring liquid into a container (no text or symbols)

Diagram of a mechanical device with labeled parts (1, 2, C) and directional arrows indicating motion or rotation (no text or symbols beyond labels)

UTILIZAÇÃO

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of hands holding a folded or folded object with visible structural details (no text or symbols)

Indicador de Controlo do Estado do Filtro

Illustration of hands holding a fan with a circular component, no text or symbols present

Simple diagram showing a rectangular container with four small fish-like shapes inside, labeled with number ② (no text or symbols on the diagram itself)

Illustration of hands holding a metallic object with a numbered label (3) in the corner, no text or symbols present.

Illustration of hands holding a curved object with a shaded blade, no text or symbols present

Hand inserting a component into a device housing (no text or symbols visible)

SE LAVAR O FILTRO DEBAIXO DE ÁGUA, NÃO SE ESQUEÇA DE O SECAR BEM.

A-Seletor de ciclos -

Close-up of two metal shoes partially submerged in liquid, no visible text or symbols

Close-up of two white footshells with decorative patterns, mounted on a dark base (no visible text or symbols)

Minimum Receiving Sensitivity

Specifiche

802.11 b/g/n

Line drawing of a washing machine with a circular vent and side-mounted buttons (no text or symbols)

Close-up of hands using a tool to clean or inspect a curved surface (no visible text or symbols)

Close-up of a mechanical component with cylindrical parts, possibly a tool or pipe, in grayscale (no visible text or symbols)

Close-up of a hand holding a small electrical plug against a textured background (no text or symbols visible)

Close-up of a hand holding a pen with a coiled cable, no visible text or symbols

Close-up of a white industrial machine with a black coiled hose attached to the floor (no visible text or symbols)

Cross-sectional diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Diagram of a container pouring liquid into a container with a bottle nearby (no text or symbols)

FUNCIONAMIENTO

Line drawing of a person holding a rectangular object inside a car (no text or symbols)

Illustration of hands holding a folded or layered object with visible internal structure (no text or symbols)

Illustration of hands holding a fan or vent device with a circular component, no text or symbols present

Simple diagram of a rectangular container with internal shapes and a central vertical line, no text or symbols present.

Illustration of hands holding a metallic object with internal lines, labeled with number 3 (no text or symbols on the object itself)

Illustration of hands holding a tool or device with a shaded blade, no text or symbols present

7. CONTROLES E INDICADORES

Maximum Drying Weight

Close-up of two metal shoes partially submerged in liquid, no visible text or symbols

Close-up of two white footshells with decorative patterns, mounted on a dark base (no visible text or symbols)

Minimum Receiving Sensitivity

Specifiche

802.11 b/g/n

What Might be the Cause of...
