USER MANUAL LED24SCP090HWDVD SCHNEIDER

Important Safety Instructions....38

Control Panel....41

Connecting Cables....42

Remote Control....44

Base Installation....46

Wall Mounting Instructions....47

Operations

First Time Installation....48

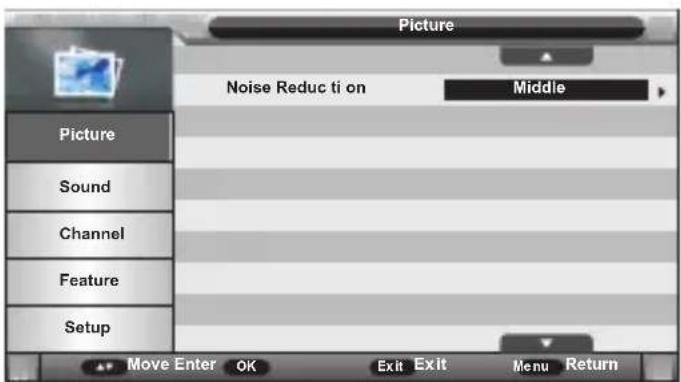

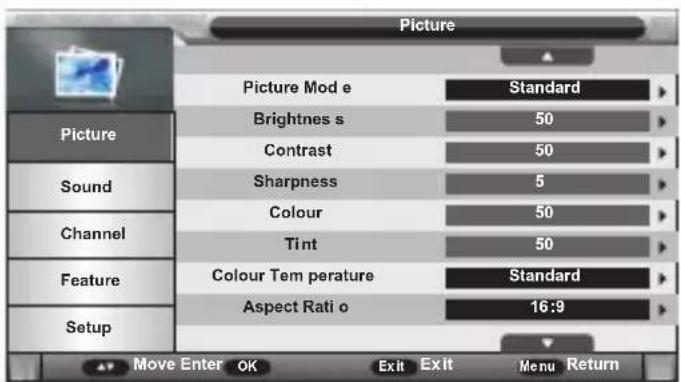

Picture Menu....50

Sound Menu....51

Channel Menu....52

Feature Menu....56

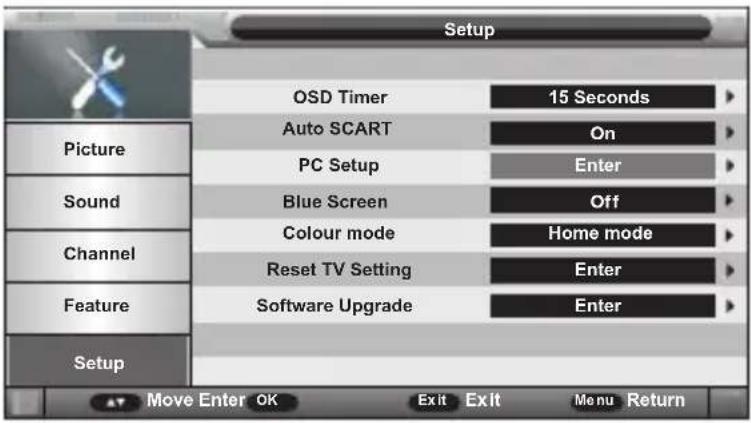

Setup Menu....65

Media Player....66

DVD Player....67

For Reference

Troubleshooting....70

Diagram of a cable being inserted into an open TV, showing wiring and components without any text or symbols.

Illustration of a black remote control with extended screen and angle markings (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a vertical monitor with a control panel and a checkmark icon (no text or symbols)

Line drawing of a flat-screen monitor with a small circular icon and cross symbol (no text or labels)

Illustration of a hand holding a blank screen with two small electronic devices at the bottom (no text or symbols)

Diagram of a mechanical device with two labeled parts (no text or symbols present)

Front view of a flat-screen television displaying (no text or symbols visible)

Technical diagram of a mechanical device with two circular insets showing internal components (no text or symbols)

Illustration of two hands pointing at a blank screen with a small icon below (no text or symbols)

Technical line drawing of a computer monitor chassis with mounting feet and ventilation slots (no text or labels)

taille du VESA:100*100mm

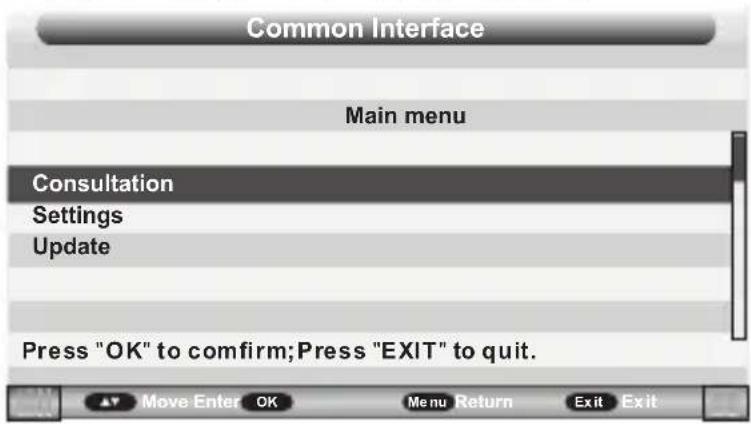

Interface commune Main menu Consultation Settings Update Press "OK" to confirm;Press "EXIT" to quit. Déplac SelectDK Menu Retour Exit Quitter

Remarque :

Four app icons: a portrait, musical note, film clapperboard, and video player (no text or symbols)

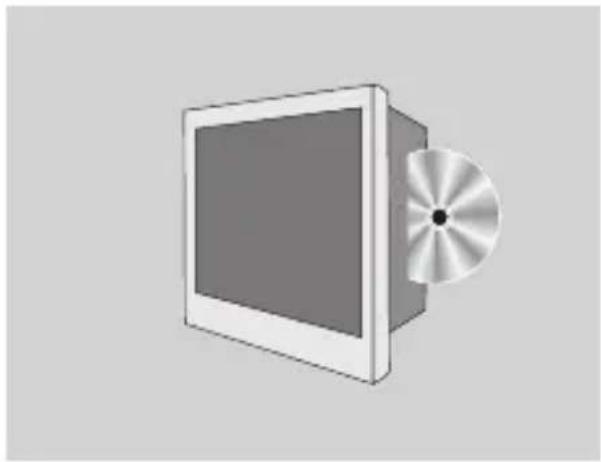

Illustration of a CD or DVD device with a silver disc on its side (no text or symbols)

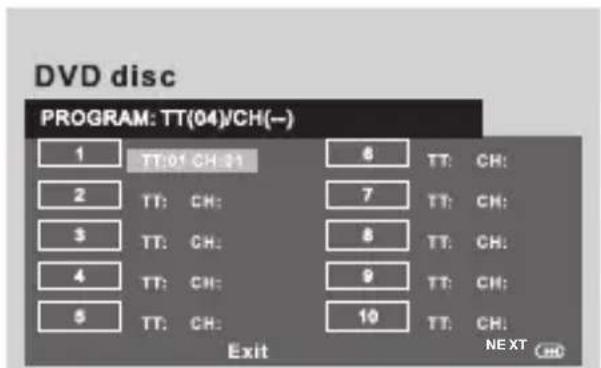

Disque DVD

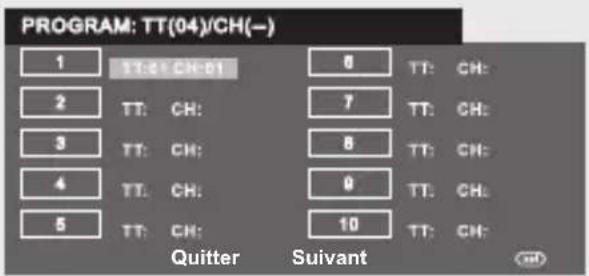

PROGRAM: TT(04)/CH(—) 1 TT: 6 CH:01 2 TT: CH: 3 TT: CH: 4 TT: CH: 5 TT: CH: Quitter Suivant

Disque SVCD/VCD/CD

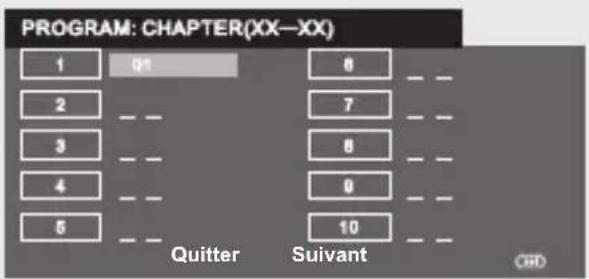

PROGRAM: CHAPTER(XX—XX) 1 01 2 3 4 5 Quitter 6 7 8 9 10 Suivant

Blank white rectangle with black border (no text or symbols)

Pas de son

Cause possible

Illustration of a stylized animal figure in motion, possibly a horse or rodent, with no visible text or symbols.

Cause possible :

Simple line drawing of three geometric shapes: cube, triangle, and circle (no text or symbols)

Cause possible

Black remote control with a red button and a black X mark symbol (no text or labels)

Cause possible :

Important safety instructions

	To reduce the risk of fire or electric shock, do not expose this product to water, rain or moisture. To prevent the risk of electric shock, do not remove the cover or back of this product. In case of product failure, only qualified personnel can repair. There are no user-serviceable parts inside.
	Use of controls, adjustments, or performance of procedures other than those specified herein may result in dangerous radiation exposure. This product is rated as LASER CLASS 1 PRODUCT.CAUTION: Laser radiation when open - never stare into the laser beam.

CAUTION !

Dangerous tension inside the product ! Do not open. Risk of electric shock ! No parts can be repaired by the end-user. Only qualified personnel can repair and maintain this product.

If the electric cord is damaged, it must be replaced by the manufacturer or qualified after-sales personnel in order to avoid any danger.

The product must be installed in accordance with local laws.

Damaged batteries must be properly disposed. In order to protect the environment, please dispose the batteries properly, in accordance with local laws (information is available at your reseller). Remote control batteries (not included) shall not be exposed to excessive heat (e.g. from sun or fire).

Where to install the product

- Place the product on a straight, rigid and stable place. Do not place the product on a carpet.

- Do not place the product on top of another that may cause overheating (for example, a receiver or amplifier).

- Do not place anything underneath the product (for example, CDs or magazines).

Proper ventilation

- Place the product in a sufficiently aerated place to avoid overheating. Allow at least 10cm spacing at the back and top of the product, and 5cm spacing on both sides to prevent overheating.

- Do not place items such as newspapers, tablecloth, curtains, in front of the ventilating openings.

Do not expose the product to high temperatures, moisture, water and dust.

- The apparatus shall not be exposed to dripping or splashing. No object filled with liquids, such as vases, shall be placed on the apparatus.

- Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).

- No naked flame sources, such as lighted candles, should be placed on the apparatus.

Electric supply

- Please unplug the product in case of prolonged non-use.

- If the supply cable is damaged, it must be replaced by the manufacturer or qualified after-sales personnel to avoid any danger.

- This product must be connected to an electrical supply 230V \~ 50Hz.

- The mains plug is used as the disconnect device, so the disconnect device shall remain readily operable.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

- Using cabinets or stands recommended by the manufacturer of the television set.

- Only using furniture that can safely support the television set.

- Ensuring the television set is not overhanging the edge of the supporting furniture.

- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

- Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

- Educating children about the dangers of climbing on furniture to reach the television set or its controls.

- In case this television set is to be relocated to a different location, please keep in mind and apply the above safety instructions.

Technical Specification:

Name: Television

Product Net Weight : 2.7Kg

Operation Temperature: 0°C\~40°C

TV Reception System:DVB-T

CE	This appliance is Television complies with the essential requirements and other provisions of Directive 2014/35/EU & 2014/30EU and the Radio Equipment Directive (RED) 2014/53/EU that goes into effect on 12 June 2016.
	DVD CompatibilityThis product can only play ZONE 2 DVD.
	- This logo set on the product means that the recycling of this apparatus comes within the framework of the directive 2012/19/EU of July 4 2012, concerning the waste on electrical and electronic equipment (WEEE).- The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.- Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste.- As the end user, your role is of prime importance in the cycles of re-using, recycling, and other forms of valorization of this electrical and electronic equipment. Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product.- You have the obligation to use the selective waste collection systems put in place by your local authorities.

Auto Standby

In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode.

Product Introduction

Congratulations! Your have chosen the latest generation high definition television. Endowed with high display quality and light weight, it is power-saving and radiationless with high sensitivity television reception. The new generation television will bring you safe & comfortable brand new visual experience. Thank you for purchasing and using our products!

Accessories

User manual x1

Remote control x1

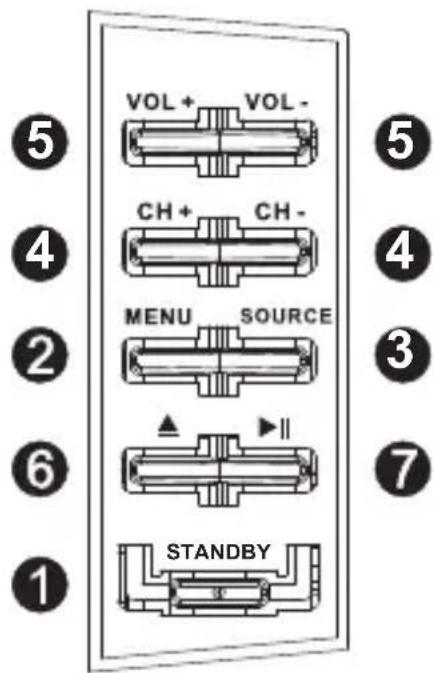

Control Panel

VOL+ VOL- CH+ CH- MENU SOURCE STANDBY

1. Standby button : To turn the TV ON/OFF.
2. Menu button : To enter menu setting page.
3. Source button : To select the input source.
4. CH+/- button : To select next/previous channel or move up/down.
5. VOL +/- button : To increase/decrease the volume level or move left/right.
6. Open/Close button : To eject or close the disc tray.
7. Play/Pause button : To start / pause the playing.

Connecting Cables

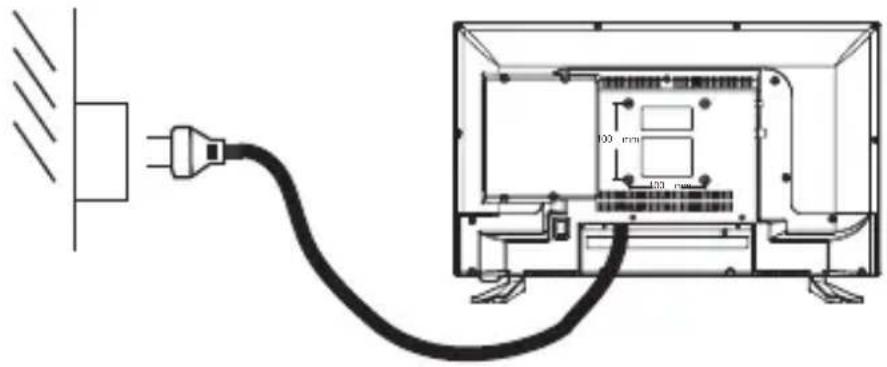

Connecting to power source

Diagram showing cable installation with a power outlet connected to an open TV, including labeled dimensions in millimeters.

1. The television is in standby state when no images arise and the red indicating lamp shines.
2. Press the standby button again on the remote control for the television the indicating lamp becomes green.

Connecting external antenna to the unit

Cable television

We recommend you use a 75Ω antenna cable so as to eliminate the disturbance caused by impedance mismatching. The antenna cable shall not be bundled together with the power cord.

Directly insert the 75Ω antenna cable plug into the antenna socket when applying cable television.

Note: The antenna should be checked periodically. If clear image is not available, shut down the power and then carefully check the antenna.

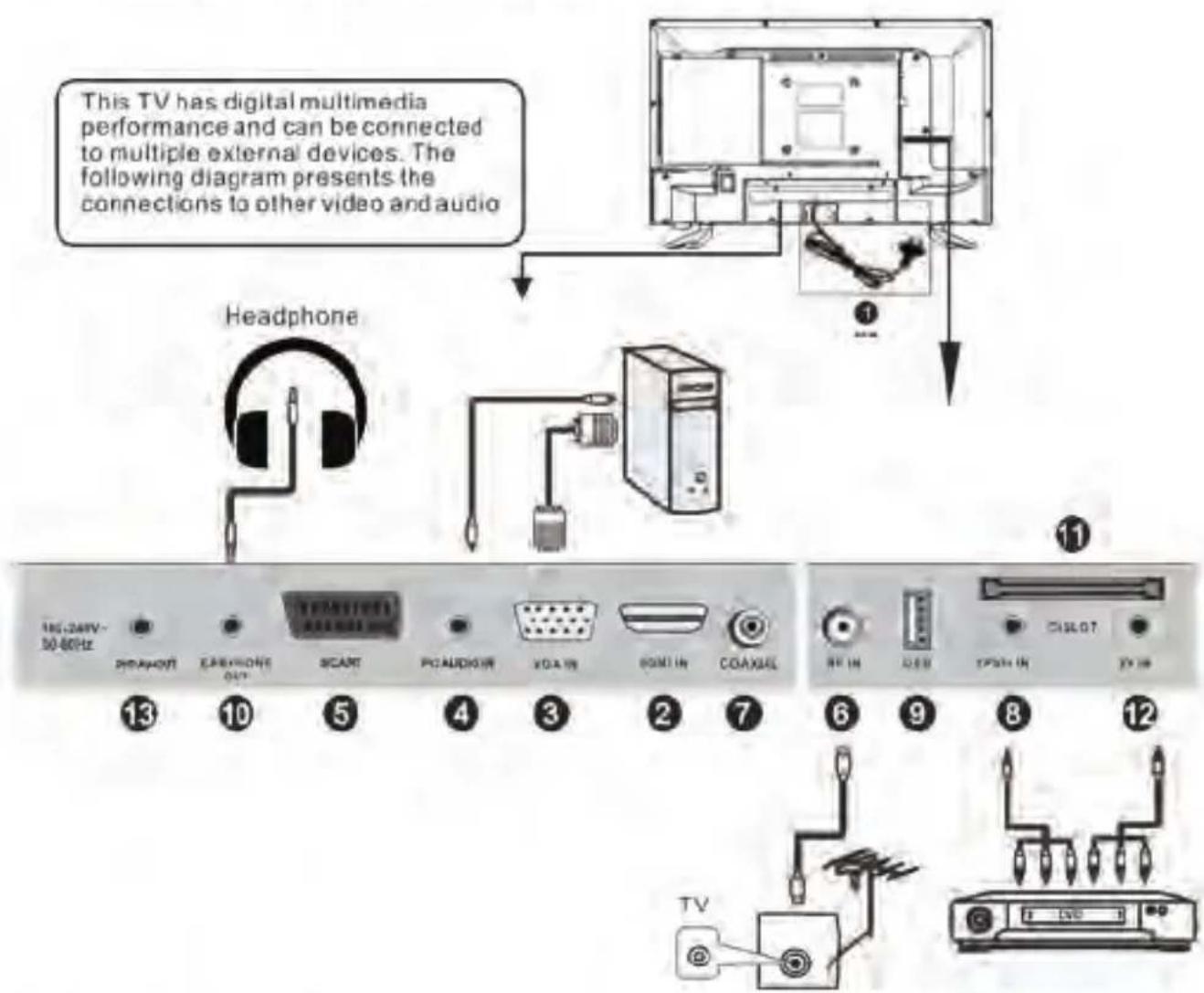

Connecting to multiple external devices

This TV has digital multimedia performance and can be connected to multiple external devices. The following diagram presents the connections to other video and audio Headphone 13 10 5 4 3 2 7 6 9 8 12 TV @

1. AC IN
2. HDMI IN : High-definition multimedia interface (Note: compatible video signal 480P/576P/720P/1080i/1080P)
   3.VGA IN: connect with the D-sub 15 pin signal cable to your computer.
   4.PC AUDIO IN : PC audio input.
   5.SCART INPUT
   6.RFIN: Connect to external aerial.
   7.COAXIAL output: Digital TV sound output.
   8.YPbPr IN : Component input terminal,
3. USB IN : Access multi-media files stored in the USB device. (Note: compatible format includes: *.dat, *.vob, *.ts, *.mpg, *.avi, *.mkv, and *.mp4 for video, *.jpg and *.bmp for photo, *.mp3 for music.)
   10.EARPHONE OUTPUT
   11.CISLOT : Insert a CI (common interface) card.
4. AV INPUT : Connect to the left/right RCA video out connection of any video resource.
5. DVD AV OUTPUT : Composite video output.

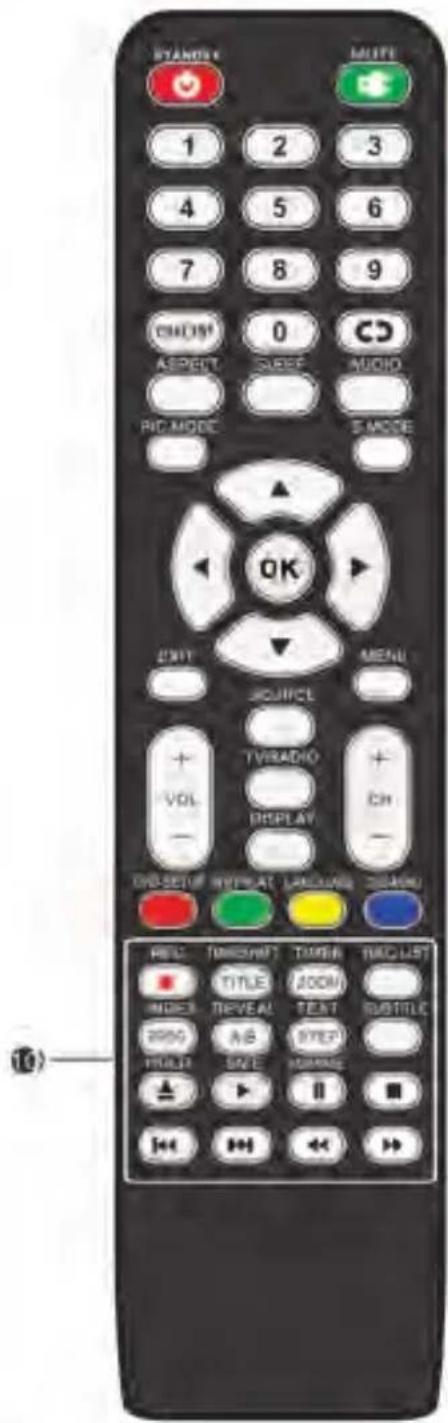

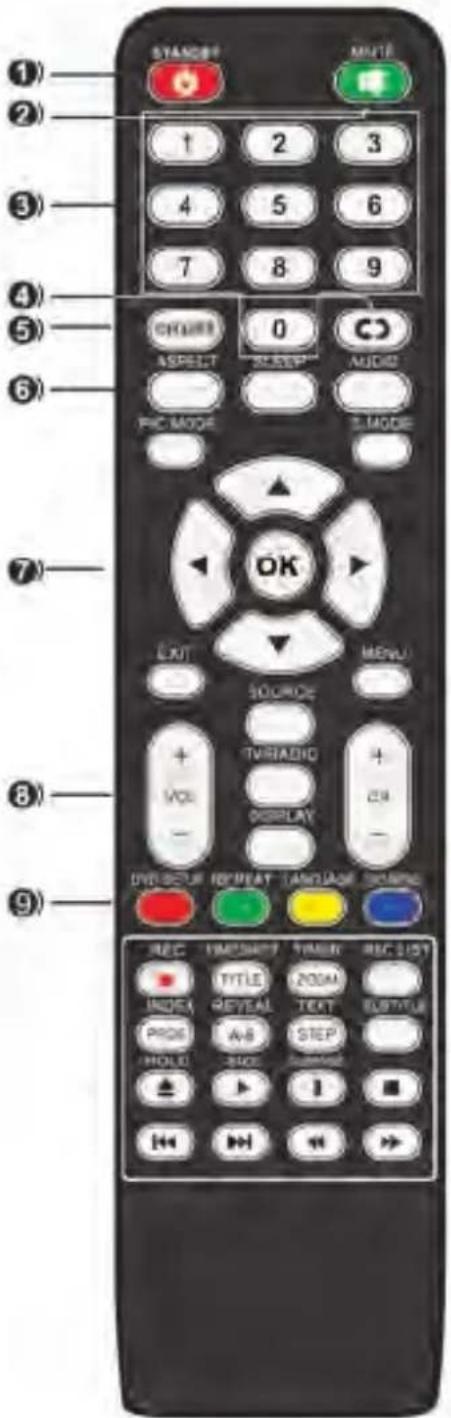

Remote control

SYMBOL MUTE 1 2 3 4 5 6 7 8 9 CHINESE ASPECT 0 MUSIC PIC MODE SINMODE OK EXIT SOURCE TV/RADIO + VOL - DISPLAY VIN/REF REPEAT LANGUAGE SCRING REC TRENGTH TIME REC LIST TITLE 200M INDEX REVEAL TEXT SUBTITLE PROS A-B STEP HOLE BIOC PUMBERG + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

Illustration of a remote control with extended screen and antenna (no text or symbols)

1.STANDBY: To turn the TV ON/OFF
2.MUTE: Mute the sound.
3.0\~9: Input the number information, such as channel number and so on.
4.RECALL: Recall the last program you watched.
5.CH.LIST : Display a list for available channels.
6.ASPECT : Select available screen mode. SLEEP : Set desired sleep time.
AUDIO : Select available sound-track.
PIC.MODE : Switch the picture mode.
S.MODE : Switch the sound mode.

7.▲/▼/◄/►:Navigation buttons

OK : Confirmselection.

EXIT : Exit the menu page.

MENU : Call out the main menu or return to previous menu.

B.VOL +/- : Increase/decrease the volume level.

CH +/- : Play the next/previous program.

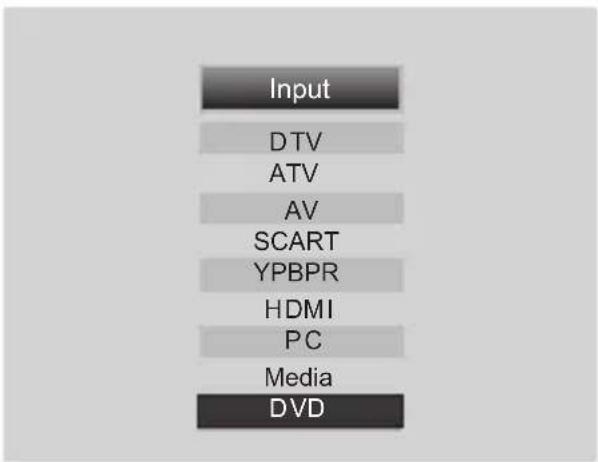

SOURCE : Select desired input source.

TV/RADIO : Switch the unit between TV and Radio.(Digital radio is not available in countries such as France.)

DISPLAY : Display the available program information.

1. RED \GREEN \ YELLOW \ BLUE : available in teletext, DVB-T and TV

Notes:

The remote control shall be applied in effective reception scope of the television. Make the remote control point towards the infrared receiver of the television and ensure that there are no obstacles. Its normal operation distance will be shortened in direct sunlight or lamplight.

Be careful to use the remote control, avoid falling off or being trampled or splashed with liquids.

Remote control

BYANATE 1 2 3 4 5 6 7 8 9 ASSEMB 0 ASSEMB SABB AUDIO RIC MODE S/MODE OK UNIT MENU SOURCE TV/RADIO VOL DISPLAY ON-SIZE HYPER LATANGS GEARNU TITLE TIMER TIME LIST INCHER TELEPHONE TEST SUBTITLE 2000 A/B STEP HYPER SAVE CHANGE 10

Prepare the remote control Insert 2 AAA batteries in the remote control following the polarities signs (+/-) as indicated. (Batteries are not provided)

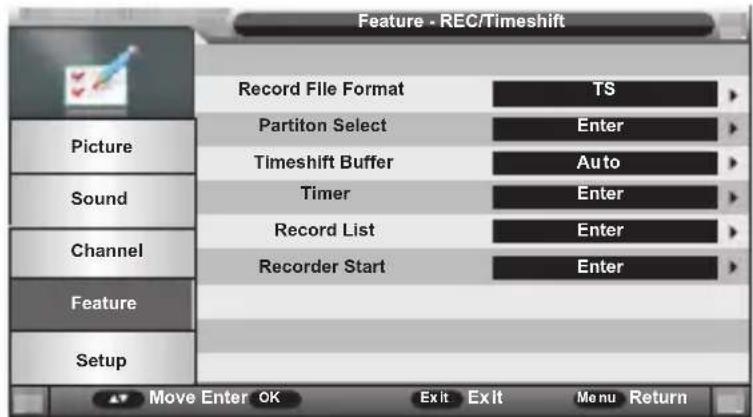

10. REC (for DTV mode only) : Start

RECORDING when watching available digital programs.

TIMESHIFT (for DTV mode only): Start Time-shift when watching available digital programs.

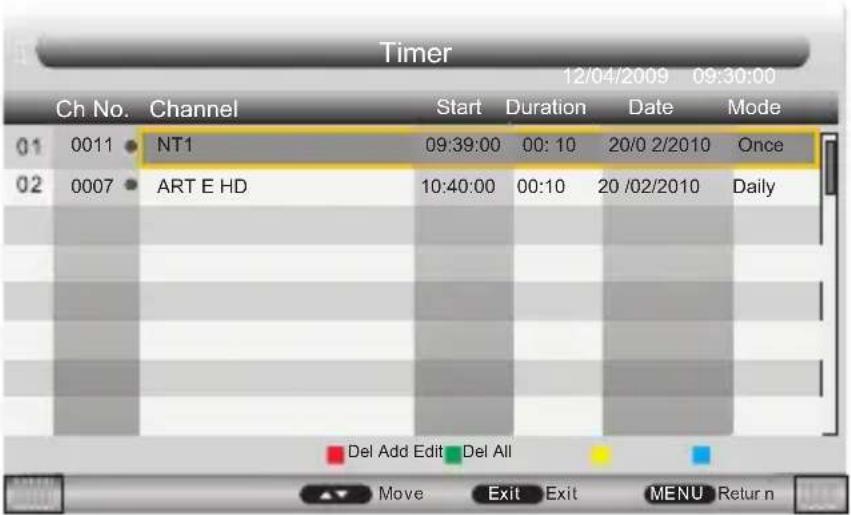

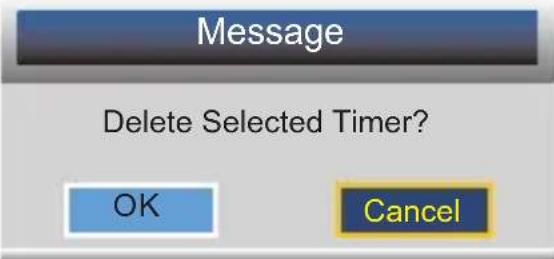

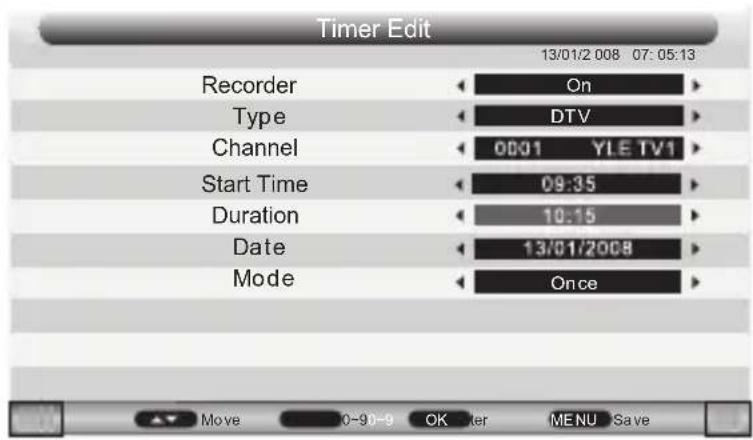

TIMER (for DTV mode only): Enter the menu of timer recording.

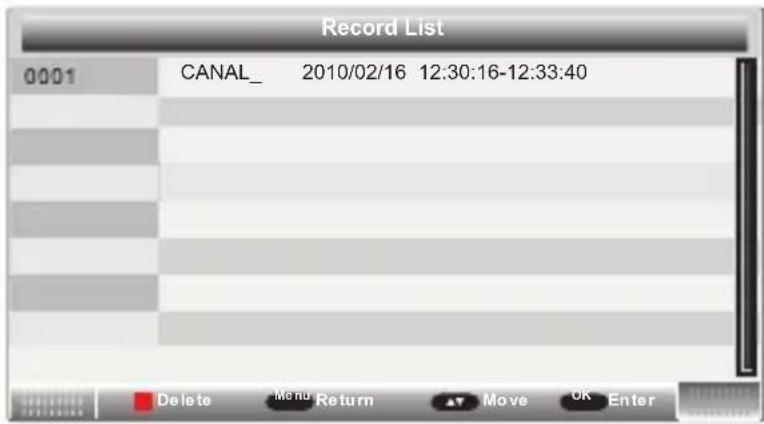

REC.LIST : display the list of recorded programs.

INDEX : Display the Teletext index.

REVEAL: Hide or display some characters in Teletext.

TEXT: Display available teletext.

SUBTITLE : Enable/disable subtitles in digital mode.

HOLD : Hold the Teletext;

SIZE: Switch Teletext size;

SUBPAGE : Enter Teletext sub-page;

▶ : Start playback in USB\Media and DVD mode.

II : Pause playback in USB\Media and DVD mode.

■ : Stop playing in USB\Media and DVD mode.

«/»: Fast backward\forward in USB\Media and DVD mode.

//: Play previous\next file in USB\Media and DVD mode.

Below button are used on DVD :

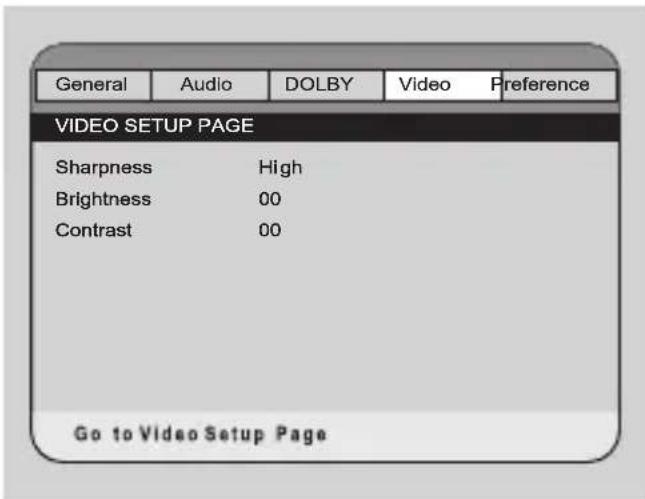

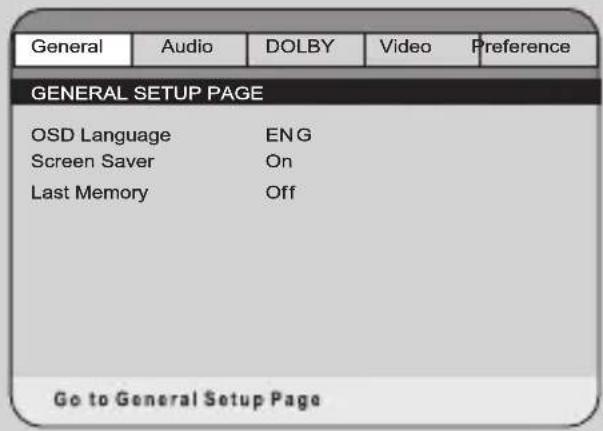

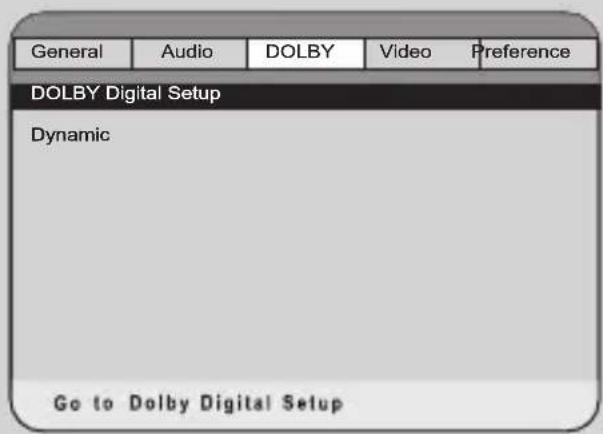

DVD SETUP : enter initial settings menu

REPEAT: Repeat playing one chapter or title.

LANGUAGE: Select sound track

DVD-MENU : Return to DVD root menu

TITLE : Return to title menu

ZOOM : Zoom on/off.

PROG : Program play

A-B: Mark A, then B for A-B repeat playing

STEP: Step playing.

OPEN/CLOSE : To eject or close the disc tray.

Base Installation

- Mounting of the stand

Technical line drawing of a mechanical assembly with two vertical supports and a central base (no text or symbols)

Illustration of a vertical monitor mounted on a stand with a checkmark icon nearby (no text or symbols)

Diagram of a computer monitor with a stand and a small circular symbol (no text or labels)

Illustration of a hand holding a blank screen with two footprints below (no text or symbols)

Technical diagram of a mechanical assembly with two circular insets showing bolt holes (no text or labels)

Front view of a flat-screen television displaying (no text or symbols visible)

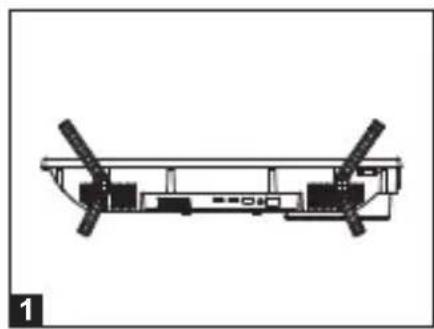

1. Place the machine flat on a desktop (Caution: put a foam cushion under the machine to avoid it from scratching.)

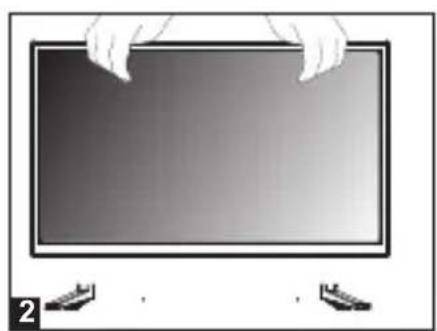

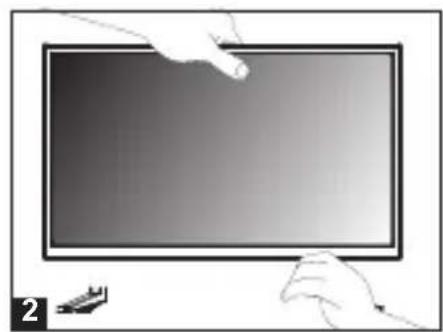

2. Align the screw holes on stand and TV bottom (Figure 2)

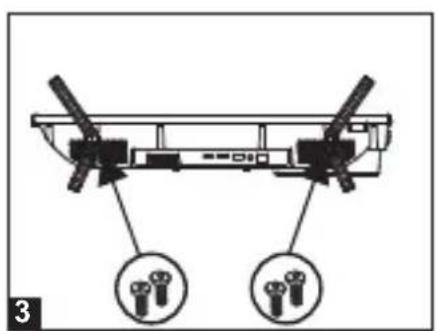

3. Fix the stand and the screen with 4 screws (Figure 3)

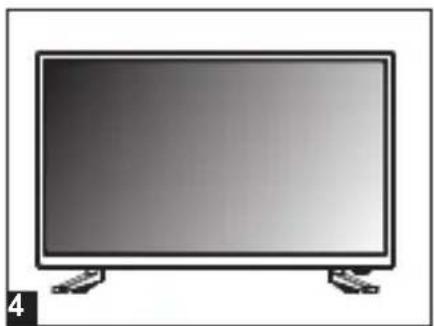

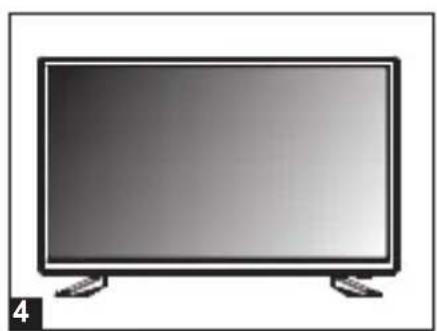

4. The rendering after installed. (Figure 4)

• Disassembly of the stand

Technical diagram of a mechanical assembly with two circular insets showing internal components (no text or symbols)

Illustration of a hand holding a blank screen with a small device nearby (no text or symbols)

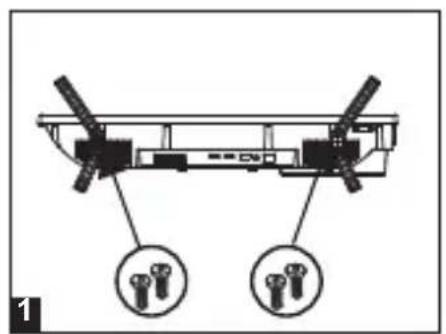

1. Loose the screws between the machine and stand (Figure 1).
2. Remove the 2 stands from the machine (Figure 2).

Wall Mounting Instructions

Technical line drawing of a computer monitor chassis with mounting feet and ventilation slots (no text or labels)

Vesa size:100*100mm

• Use standard M4*8mm screws (4 pieces, not included) to mount this TV.
  Using different screws as specified will damage the wall mounting support and will be outside the scope of product guarantee.
• Contact a professional technician for assistance when wall mounting your TV.
• Do not wall mount the TV while TV is turned on.
• Refer to the instruction of your wall mounting bracket.

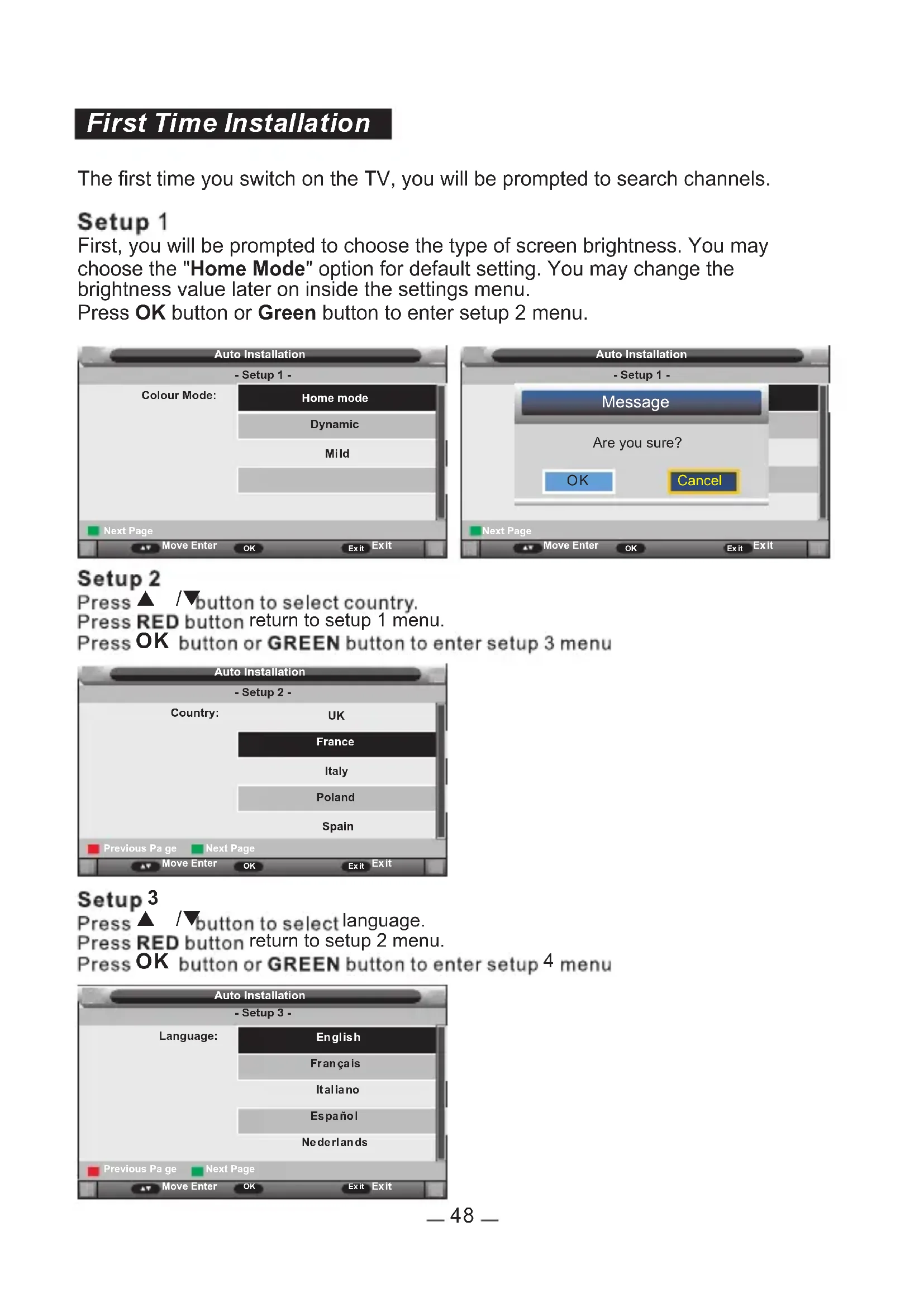

First Time Installation

The first time you switch on the TV, you will be prompted to search channels.

Setup 1

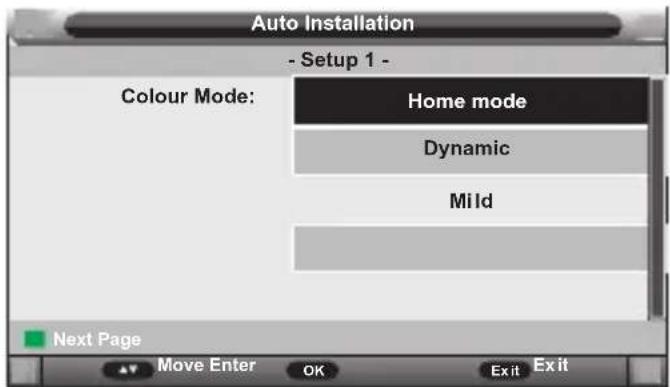

First, you will be prompted to choose the type of screen brightness. You may choose the "Home Mode" option for default setting. You may change the brightness value later on inside the settings menu.

Press OK button or Green button to enter setup 2 menu.

Auto Installation - Setup 1 - Colour Mode: Home mode Dynamic Mild Next Page Move Enter OK Exit Exit

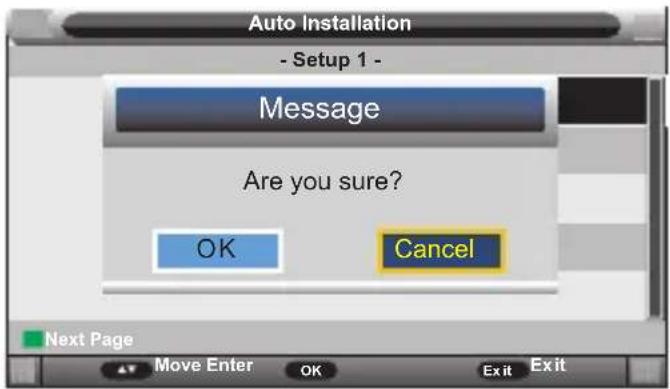

Auto Installation - Setup 1 - Message Are you sure? OK Cancel Next Page Move Enter OK Exit Exit

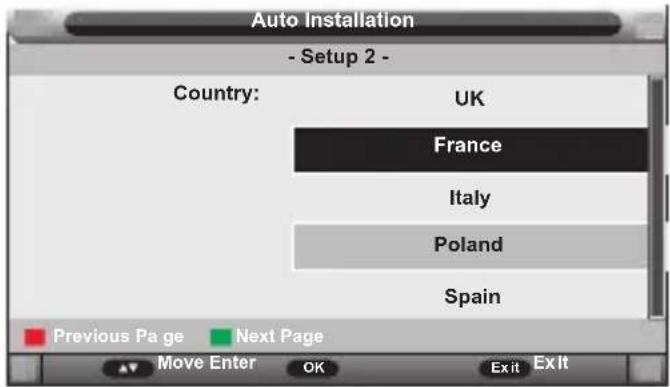

Setup 2

Press ▲ /▼ button to select country.

Press RED button return to setup 1 menu.

Press OK button or GREEN button to enter setup 3 menu

Auto Installation - Setup 2 - Country: UK France Italy Poland Spain Previous Page Next Page Move Enter OK Exit Exit

Setup 3

Press ▲ /▼ button to select language.

Press RED button return to setup 2 menu.

Press OK button or GREEN button to enter setup 4 menu

Auto Installation - Setup 3 - Language: English Français Italiano Español Nederlands Previous Page Next Page Move Enter OK Exit Exit

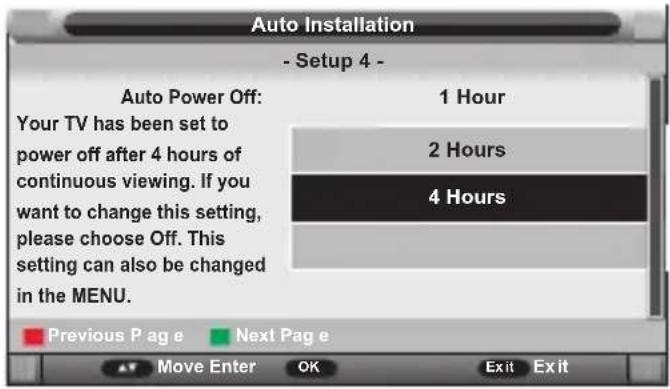

Setup 4

Press ▲ /▼button to select auto power off.

Press RED button return to setup 3 menu.

Press OK button or GREEN button to enter setup 5 menu

Auto Installation - Setup 4 - Auto Power Off: Your TV has been set to power off after 4 hours of continuous viewing. If you want to change this setting, please choose Off. This setting can also be changed in the MENU. 1 Hour 2 Hours 4 Hours Previous Page Next Page Move Enter OK Exit Exit

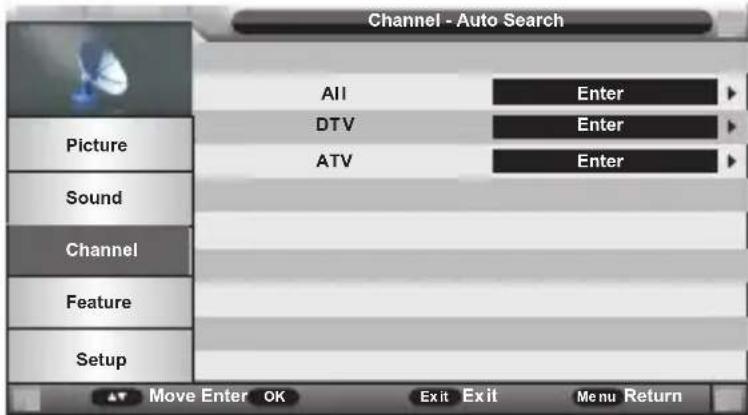

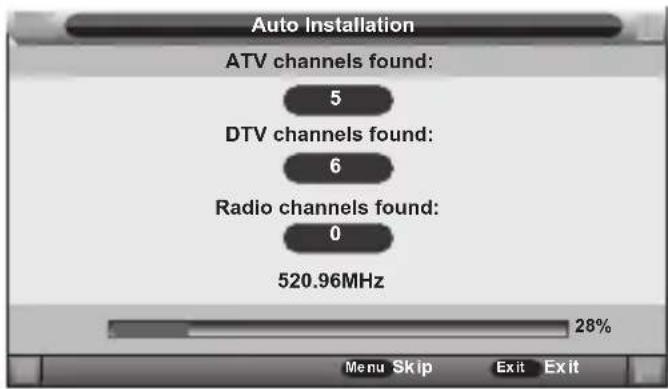

Press GREEN button to start auto search.

Auto Installation - Setup 5 - Auto Search All ATV DTV Previous Page Move Enter OK Exit Exit

Auto Installation ATV channels found: 5 DTV channels found: 6 Radio channels found: 0 520.96MHz 28% Menu Skip Exit Exit

Input

Press STANDBY button to power on the TV, then press SOURCE button to select different input sources.

Press Source on the unit or remote control to select DVB-T input source.

Common procedure for initial settings

• Press MÉNU button on the remote control to display the main menu.
• Press ▲ /▼navigation button to select submenus.
• Press OK or ▶ navigation button to enter submenu page.
• Press ▲ /▼navigation button to select preferred option.
• Press ◀/▶ navigation button to adjust the value.
• Press OK button to confirm selection.
• Press MENU button to return to previous menu page.
• Press EXIT button to exit menu page.

Picture Menu

Picture Picture Mod e Standard Brightnes s 50 Contrast 50 Sound Sharpness 5 Colour 50 Channel Tint 50 Feature Colour Temperature Standard Aspect Ratio 16:9 Setup Move Enter OK Exit Exit Menu Return

Picture Noise Reduc ti on Middle Picture Sound Channel Feature Setup Move Enter OK Exit Exit Menu Return

Picture Mode

Available options: User, Mild, Standard, Dynamic.

Brightness

The brightness value of picture can be adjusted from 0-100.

Contrast

The contrast value of picture can be adjusted from 0-100.

Sharpness

The sharpness value of picture can be adjusted from 0-10.

NOTE: The value of Brightness, Contrast, Color, and Sharpness is adjustable only in User picture mode.

Colour

The colour saturation value of picture can be adjusted from 0-100.

Tint

This item is used to adjust the tone of color in NTSC system from 0-100.

Colour Temperature

This item is used to adjust the optimum colour temperature for suitable viewing. Available options: Standard, Cold, Warm.

Aspect Ratio

This option allows to select the display mode among Panorama, 16:9, 4:3, Just Scan, Zoom1 and Zoom2.

Noise Reduction

This item is used to eliminate the image noise to gain better image effect. Available options: Off, Low, Middle, High.

Sound Menu

Sound Sound Mode Standard Bass 50 Treble 50 Balance 0 Surround Off AVL Off SPDIF PCM Picture Sound Channel Feature Setup Move Enter OK Exit Exit Menu Return

Sound Mode

Available options: Standard, Movie, Music, Speech, User.

Bass

This item is used to adjust the level of lower-pitched sounds from 0-100.

Treble

This item is used to adjust the level of higher-pitched sounds from 0-100. NOTE: The value of Bass and Treble is adjustable only in User sound mode.

Balance

This item is used to adjust the audio output between left and right speaker from -50 to 50.

Surround

Press the "▲/▼" button to select the "Surround" item, and then use "►" button to turn the surround sound function on/off.

AVL

An automatic volume control (AVL) automatically adjusts the volume or loudness, set it "ON" for an ambient volume to make the audio signal better heard.

SPDIF

SPDIF mode allows you to adjust the coaxial audio outputs.

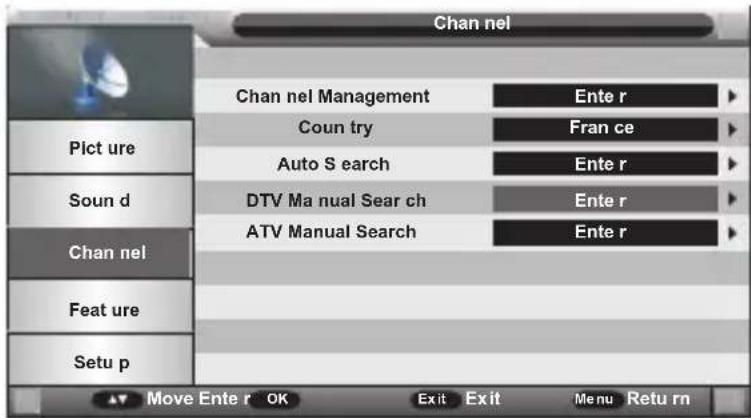

Channel Menu

Chan nel Pict ure Chan nel Management Coun try Auto Search DTV Manual Search ATV Manual Search Ente r Fran ce Ente r Ente r Ente r Move Ente r OK Exit Exit Menu Return

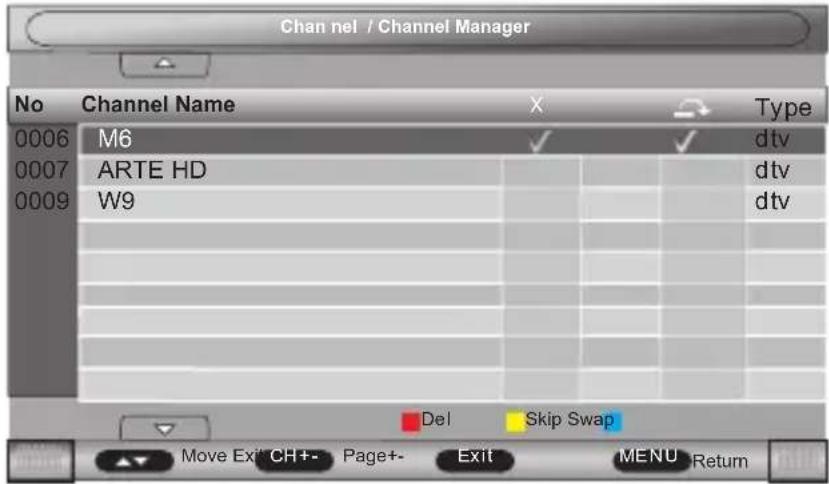

Channel Management

Press "▲/▼" button to select Channel Management, then press OK button or "▶" button to enter.

Channel / Channel Manager No Channel Name X Type 0006 M6 √ √ dtv 0007 ARTE HD dtv 0009 W9 dtv Del Skip Swap Move Exit CH+- Page+- Exit MENU Return

- Press "▲ /▼" navigation button to select preferred program.

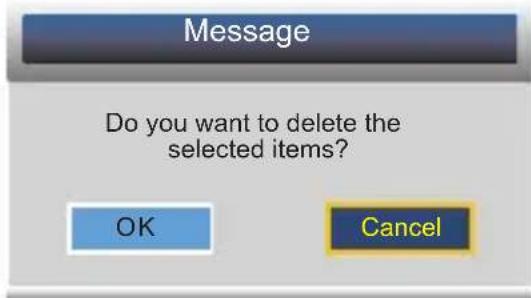

a) Press RED button on remote control and use number buttons to input the password. Then press RED button to add/remove a delete mark on highlighted program. After that, press OK button to enter a dialogue box. Select OK to delete it; select Cancel to cancel this operation.

Message Do you want to delete the selected items? OK Cancel

b) Press YELLOW button on remote control to add/remove skip mark. c) Press BLUE button on remote control to enter MOVE mode. Then use "▲/▼" navigation button to select preferred position and press OK button to move it.

Country

This item is used to choose the country.

Auto Search

Press ▲ /▼button to select Auto Search, then press OK button or ▶button to enter.

Channel - Auto Search All Enter DTV Enter ATV Enter Picture Sound Channel Feature Setup Move Enter OK Exit Exit Menu Return

All Mode: Select “All” item to scan all digital channels carried by current signal mode firstly and then switch to scan all analog channels in selected country automatically. User can skip digital search to analog search directly by pressing “EXIT” key and can also stop auto-scanning directly by pressing “EXIT” during analog scanning.

Channel Tuning ATV channels found: 5 DTV channels found: 6 Radio channels found: 0 306.98MHz Channel Feature 28% Setup Menu Skip Exit Quit

Digital Mode: Select "DTV" item to search all digital channels in selected country carried by current signal mode. User can stop searching directly by pressing "EXIT" key.

Analog Mode: Select “ATV” item to search all Analog channels in selected country carried by current signal mode. User can stop searching directly by pressing “EXIT” key.

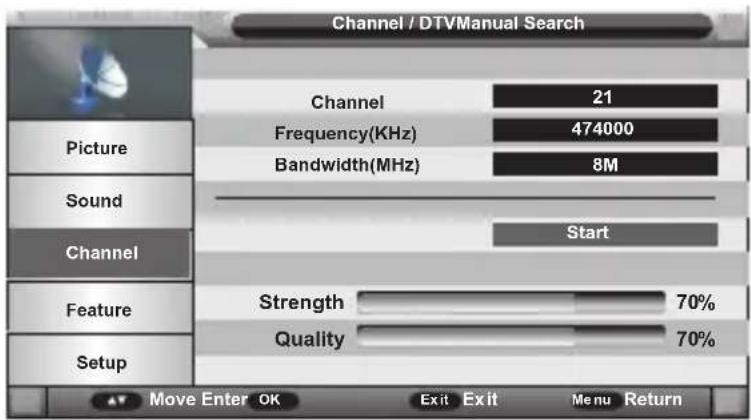

DTV Manual Search

Press ▲/▼ button to select DTV Manual Search, then press OK button or ▶ button to enter.

Channel / DTVManual Search Channel 21 Frequency(KHz) 474000 Bandwidth(MHz) 8M Sound Start Channel Feature Strength 70% Quality 70% Setup Move Enter OK Exit Exit Menu Return

Channel

Press ◀ /▶ button to select Channel.

Move the cursor to the start, Press OK button or ▶ button, the channel tuning menu will appear a few second.

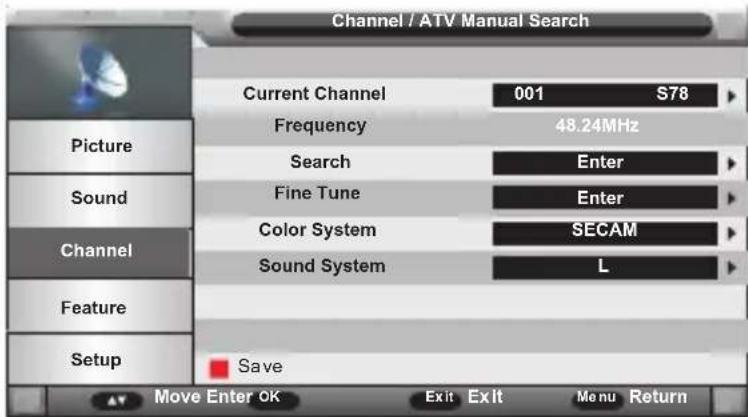

ATV Manual Search

Press ▲ /▼ button to select ATV Manual Search, then press OK button or ▶ button to enter.

Channel / ATV Manual Search Current Channel 001 S78 Frequency 48.24MHz Search Enter Sound Fine Tune Enter Channel Color System SECAM Sound System L Feature Setup Save Move Enter OK Exit Exit Menu Return

Current Channel

Press ▲/▼ button to select Current Channel then press ▶ button to select.

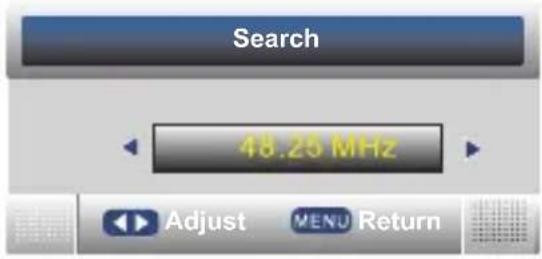

Search

Press ▲/▼ button to select Search, then press OK button or ▶ button to enter, the menu will appear as follows:

Search 48.25 MHz Adjust MENU Return

Press ◀/▶ button shortly to adjust program frequency, and press for a long time to begin search until the units found.

Press MENU button to return back to the previous menu.

Fine Tune

Press ▶ to fine tuning when the signal of the current channel is weak.

Colour System

Press▲/▼ button to select Colour System, then press ▶ button to select Auto, PAL, SECAM.

Colour System

Press ▲/▼ button to select Colour System, then press▶ button to select Auto, PAL, SECAM.

Sound System

Press▲/▼ button to select Sound System, then press ▶ button to select BG, DK, L,L',I.

Feature Menu

Feature Lock Enter Language Enter Clock Enter Sleep Timer Off Auto Power Off 4 Hours Hearing Impaired Off CI Info Enter REC/Timeshift Enter Picture Sound Channel Feature Setup Move Enter OK Exit Exit Menu Return

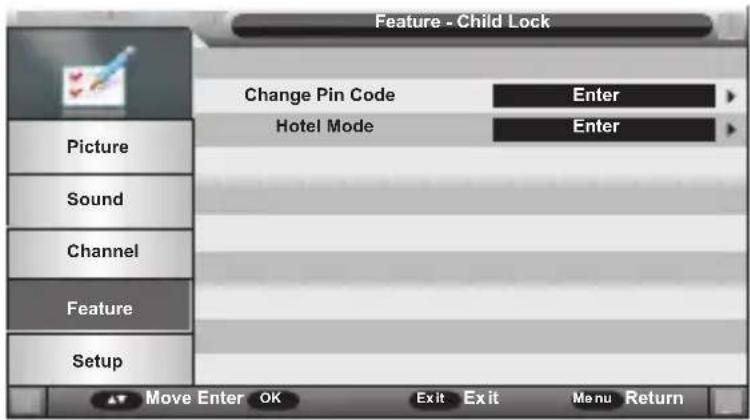

Lock

Press the ▲/▼ button to select the Lock item, and then use OK button or ▶ button to enter. Default password is 0000.

Password

Feature - Child Lock Change Pin Code Enter Hotel Mode Enter Picture Sound Channel Feature Setup Move Enter OK Exit Exit Menu Return

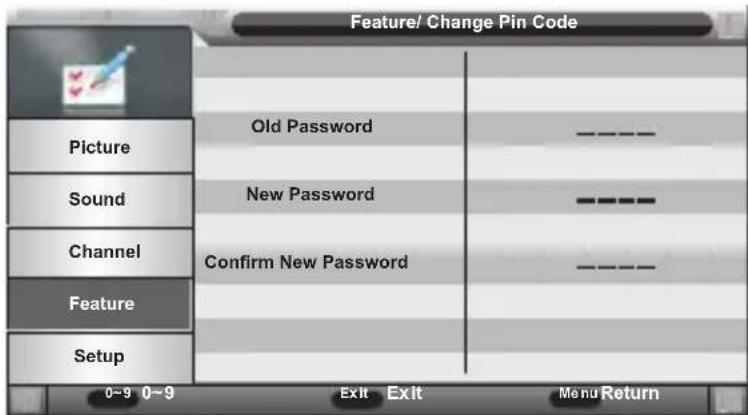

Change Pin Code

Press the ▲/▼ button to select the Change Pin Code item, and then use OK button or ▶ button to enter Change Password.

Feature/ Change Pin Code Picture Old Password ---- Sound New Password ---- Channel Confirm New Password ---- Feature Setup 0-9 0-9 Exit Exit Menu Return

Hotel Mode

Hotel setting allows you to restrict access to some functions by means of password, so that end user cannot change the TV settings. In this menu you will be able to restrict access to such functions such as channel settings and volume control.

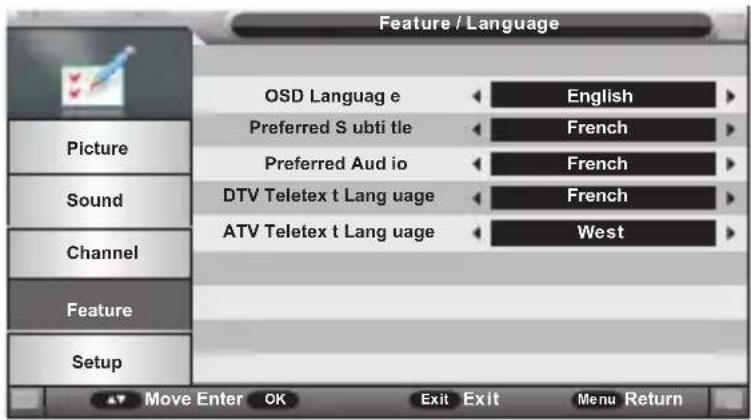

Language

Available options are: OSD Language, Preferred Subtitle, Preferred Audio, DTV Teletext Language, ATV Teletext Language. You can choose your preferred menu language, subtitle, audio and teletext language.

Feature / Language OSD Languag e English Preferred S ubti tle French Preferred Aud io French Sound DTV Teletex t Lang uage French ATV Teletex t Lang uage West Channel Feature Setup Move Enter OK Exit Exit Menu Return

Clock

It is used to check out the current system time and set time zone/DST.

Sleep Timer

Press the ▲ /▼ button to select the "Sleep Timer" item, and then use ▶ button to select sleep Time 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min or off.

Auto Power Off

In order to save energy, the electricity consumption of this product has been reduced in both operation mode and standby mode. Furthermore, if no operation is carried out for four consecutive hours, the unit will automatically enter standby mode. Simply press the Standby button on the remote control to switch the unit back to operation mode.

Hearing Impaired

This function helps the hearing impaired users enjoy the programs with the gestures and symbols on the screen while the signal is available.

CI Info

Ensure a CI card is inserted in the slot provided.

Press ▲/▼ button to select CI Info, then press OK button or ▶ button to enter.

Press OK button or ▶ button to enter.

Common Interface Main menu Consultation Settings Update Press "OK" to confirm;Press "EXIT" to quit.

Notes:

1. This is just an example for reference, different CI module will have different CI menu.

2. Other menu and description are the same as that for TV source.

Recording Function

With this product you can easily record your favorite programs on your USB stick. This unit has two recording modes: immediate recording and scheduled recording (for use in case of absence).

Preparation for the first recording

When using a USB stick with this unit for the first time, you should first format it using this unit. Formatting your USB stick directly on the receiver improves compatibility of the device with the unit. More particularly, FAT file system will be converted into FAT 32. This helps improve recording quality and fluidity. Caution: formatting will deletes all the files on the USB device! You should create a backup of all the files you want to keep beforehand.

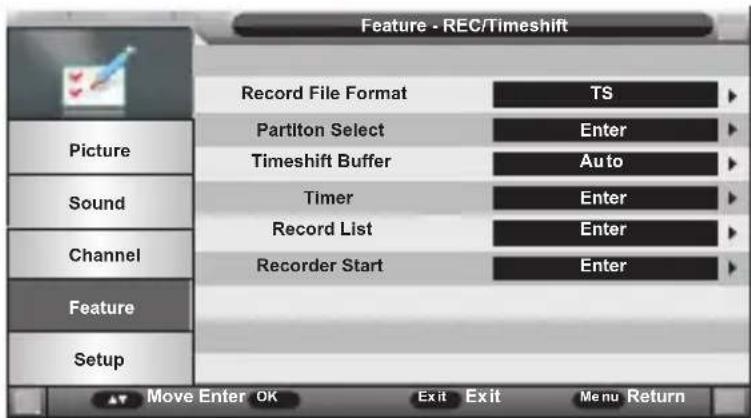

How to access "Format Disk"?

1. Press the "MENU" button on the remote control to enter the OSD menu, then press ▲ /▼ button to select the "Feature" menu.
2. Press the ▶ button to enter the "feature" menu setting, use ▲/▼ to choose "REC/Timeshift" setting as below:

Feature - REC/Timeshift Record File Format TS Picture Partition Select Enter Timeshift Buffer Auto Sound Timer Enter Record List Enter Channel Recorder Start Enter Feature Setup Move Enter OK Exit Exit Menu Return

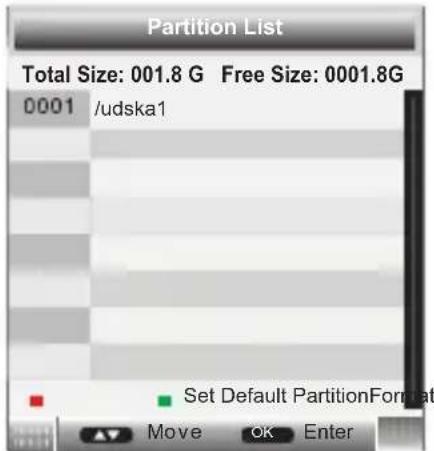

3. Choose "Partition Select"

Partition List Total Size: 001.8 G Free Size: 0001.8G 0001 /udska1 Set Default PartitionFormat Move OK Enter

a) Format partition: Press RED button to format the focus partition. Before format, there is a prompted popup window to confirm ; If format successfully there is a message "Format Success!", otherwise, there is a "Format Fail!".
b) Set default partition: Press GREEN button to set the focus partition as the default partition.

The recorders are stored in the default partition. It need to be reset if the default partition is full in recording progress.

Recording a program by using a USB

This unit allows you to record your favorite DVB-T programs in a simple and friendly way. You just need a USB key and insert it into the unit. The recording will be made on the key and you can view the recordings later from this unit or any other compatible multimedia devices.

Notes: Do not remove your USB stick while playback is in progress; otherwise the content of your USB drive could be damaged. Press the STOP button to stop playback and then remove your USB stick.

Immediate Recording

Insert a compatible USB device which has been previously formatted by the TV (please refer to previous section). Wait for about 5 seconds until the device is recognized. Simply press the REC button on the remote control in order to start immediate recording. Please note this function allows recording of DVB-T channels only, other sources such as analog TV will not be recorded.

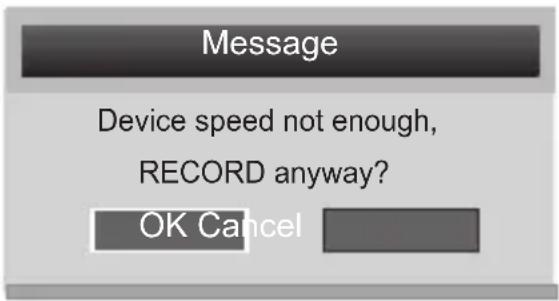

If your device speed is not enough, there will be a dialog as follows:

Message Device speed not enough, RECORD anyway? OK Cancel

You'd better change a high speed device or select "OK" to continue. Select "OK" to start recording. You'll see the dialog:

Message Initializing Recorder...

During recording, the icon REC is displayed on the left.

Press REC ● again to set the recording time.

Use numeric keys to enter values and direction keys to move from a field to another.

Rec Duration Time 00:00

Press □ on the remote control to stop recording.

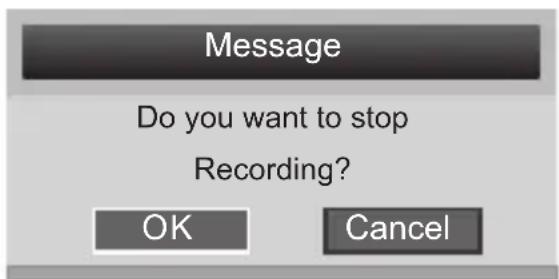

Message Do you want to stop Recording? OK Cancel

To stop recording choose "OK", to continue recording choose "Cancel".

Timer (Scheduled Recording)

The scheduled recording mode allows you to set the channel to be recorded, start time and duration.

You can also program one or more weekly recordings.

Press ▲/▼ button to select Timer, then press OK button or ▶ button to enter.

(Tips: You can press "TIMER" button on the remote control to enter.)

Timer 12/04/2009 09:30:00 Ch No. Channel Start Duration Date Mode 01 0011 NT1 09:39:00 00:10 20/0 2/2010 Once 02 0007 ART E HD 10:40:00 00:10 20 /02/2010 Daily Del Add Edit Del All Move Exit Exit MENU Return n

Press ▲/▼ button to select CH No, then press Red button to delete selected channel, the menu will appear as follows:

Message Delete Selected Timer? OK Cancel

Return back to the previous menu if you select "Cancel" and press OK button. Select "OK" and press OK button to delete the selected program from the timer list.

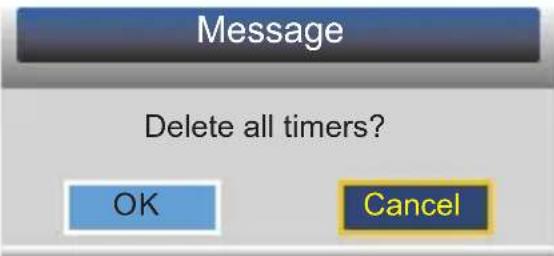

Press Green button to delete all timers, the menu will appear as follows:

Message Delete all timers? OK Cancel

Return back to the previous menu if you select "Cancel" and press OK button. Select "OK" and press OK button to delete all timers.

Press ▲/▼ button to select channel that you want to edit, Press Blue button to edit selected channel, the timer edit menu will appear. Press Yellow button to add channel to the timer list, the menu will appear as follows:

Timer Edit 13/01/2 008 07:05:13 Recorder Type Channel Start Time Duration Date Mode On DTV 0001 YLE TV1 09:35 10:15 13/01/2008 Once Move 0-90-9 OK Enter MENU Save

View recorded programs

1. Press the MENU button on the remote control to enter the OSD menu, then press ▲/▼ button to select the Feature menu.
2. Pess the▶ button to enter the Feature menu setting, use ▲/▼ to choose REC/Timeshift setting as below:

Feature - REC/Timeshift Record File Format TS Picture Partition Select Enter Timeshift Buffer Auto Sound Timer Enter Record List Enter Channel Recorder Start Enter Feature Setup Move Enter OK Exit Exit Menu Return

3. Choose "Recorded List"

Record List menu manages the Recorded programs, User can playback recorders in this menu.(Tips: You can press "REC.LIST" button on the remote control to enter.)

Record List 0001 CANAL_ 2010/02/16 12:30:16-12:33:40 Delete Menu Return Move OK Enter

Notes on recording and USB functions

- Information on the recording format: Recording is done in MPEG-TS format which allows recording in HD quality identical to the signal received. To play your recordings on another multimedia device, it may be necessary to install a compatible video codec.

- If you want to record a film or a long program, use a memory stick of larger capacity (eg. 4GB). If you want to save several films, opt for external hard drives of large capacity.

- The loading time of the USB device is too long: When you insert a USB support, the loading time can sometimes be a minute or more. This depends on the size of your support, the number of files on it and above all, the complexity of its directories. You can reduce loading time by avoiding the use of multiple sub- directories in your USB disk. Avoid such multiple-subdirectories like “Directory/Subdirectory/Subsubdirectory/....” and store files in a single simple directory.

USB Device Recognition Problems

- After connecting your USB device to the unit, you may need to turn the device on before it can be detected.

- This unit does not support direct USB connection with computer. It is necessary for you to transfer your data/files on a USB stick or MP3 player.

- If you are using an external hard drive to be connected via USB, you must connect the hard drive simultaneously with a power source and with the unit. If you are using a portable video player with hard drive, you must make sure that the internal battery is fully charged.

- Verify that the file system of your USB device is properly formatted in FAT 32. USB media formatted in NTFS is not compatible with this unit. Please refer to the manual of your USB device to ensure that formatting is possible without altering its functionality.

- The USB device used may not be fully compatible with USB 2.0. In this case, try a different USB stick in order to identify the problem.

Recording Quality

- If your recording is shaky or choppy The data stream to be recorded is very important. Certain USB sticks, even some new USB 2.0 ones, do not allow sufficient data transfer rate. If this happens, try with a newer USB device or with an external hard drive. With external hard drives, data transfer rate is sufficiently high and this problem should be solved.

Time Shift Function

This TV presents a function called "Time Shift" which allows recording of TV program onto a digital storage medium (e.g. USB stick or external hard disc, not supplied). You may then watch the program at a later time that is more convenient to you. Want to put the television on pause? It is now possible with the "Time Shift" function, which records the TV program during your phone call or your coffee break. With "Time Shift", you will not miss anything anymore!

Note: This Function only works in DVB-T mode.

HOW TO USE THE SERVICE TIMESHIFT

1) Please insert a USB key into USB port before you activate TIMESHIFT function.

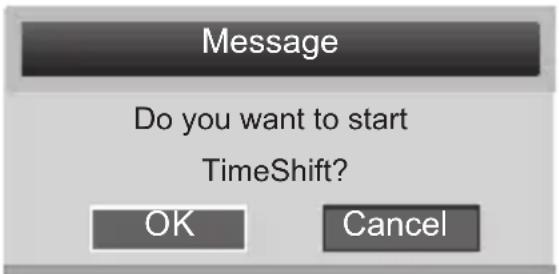

2) Press the button TIMESHIFT once, it will pop up below menu, choose "OK" to confirm Time Shift.

Message Do you want to start TimeShift? OK Cancel

The broadcasting TV program is stopped and the image is frozen on screen. During this time, the TV program is being recorded and you can take a break.

3) Press ▶ button to resume the TV program from the point is was paused, and the recording will continue. During playback, you can:
- Press PAUSE button to pause the playback, press PLAY button to resume playback.
- Press ◀ or ▶ to scan backward or forward.
- If you want to stop the recording and playback, please press STOP button.

Message Do you want to stop TimeShift? OK Cancel

Note on Use of the Time Shift Function

The Time Shift function requires a high data transfer rate between the USB device and the unit. Indeed, a recording and a (deferred) playback simultaneously take place on the USB device. Certain USB sticks, even some new USB 2.0 devices, may lead to shaky image or choppy sound. If you encounter this problem, it is necessary to change the USB device. External hard drives, self-powered by mains, provide the highest transfer rates and allow you to use the Time Shift function optimally. In case of recording quality problems or playback problems such as choppy or blocked image, you may also try to format your USB device.

Setup Menu

Setup OSD Timer 15 Seconds Auto SCART On PC Setup Enter Sound Blue Screen Off Colour mode Home mode Channel Reset TV Setting Enter Feature Software Upgrade Enter Setup Move Enter OK Exit Exit Menu Return

Menu Timer

Available Timer: 5 Seconds, 10Seconds, 15Seconds, 20Seconds, 25Seconds, 30Seconds.

Auto Scart

This items allows you to view the programs by Scart automatically while Scart cable is connected.

Blue Screen

This item is used to set the blue background ON or OFF. The screen background will turn blue at very weak or no signal condition, if Blue is ON.

Colour Mode

This item allows you to change the screen brightness effect.

Reset TV Setting

This item is used to reset the unit to factory default settings.

The menu will appear as follows:

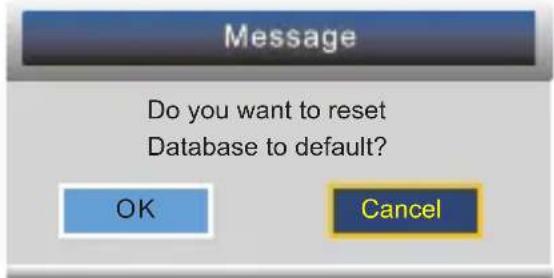

Message Do you want to reset Database to default? OK Cancel

Return back to the previous menu if select "Canel" and press OK button.

If select"OK" and press OK button, the resetting menu will appear a few second.

Then the first time installation menu will appear.

Software Upgrade:

Update the software via the USB port. Making an update always involves some risks. Use only the update software provided by the manufacturer and adapted to this unit. The use of any other updates software not only makes the unit inoperable and irreparable but also voids the warranty.

Media Player

Before operating MEDIA menu, plug in USB device, then press SOURCE button to set the input source to Media.

Press ◀/▶ button to highlight your preferred submenu: Photo, Music, Movie and e-Book, press OK button to confirm.

Four grayscale app icons on black background: a video player icon, musical note, film clapperboard, and music player (no text or symbols)

Basic operation for photo, music and movie:

1) RED: Delete highlighted files.
2) GREEN: Add/remove all the files to play list
3) OK: Add/remove highlighted file from play list.
4) CH+/-: Page up/down
5) Press ▶ button to start playing.

Remark: Depending on the capacity of the device, the reading can take more than 1 minute before lauching the video.

The unit cannot read my USB device.

• Once you have plugged your device to the unit, you may need to switch on the USB device before it can operate.
• This unit does not support a direct USB connection with a computer. You need to use a USB device, a MP3 player or a PMP (Portable Multimedia Player with hard disk).
• If you are using a USB external hard disk: you need to connect your device simultaneously to an external power source and to the unit. If you are using a self-powered PMP, make sure that the battery is sufficiently loaded.

- Check that the files system of your USB device is formatted into the FAT 32 format. USB device formatted into NTFS are not compatible with this unit. Caution: if you attempt to modify your file system, formatting your device will erase all data.

Please refer to your USB device's instruction manual first.

- Warning: Connect your USB device directly to the USB port of the device. Using an extension cable is not recommended and may cause interference and failure of data transfer.

The supported file format of media playing:

VIDEO	AUDIO	PHOTO	E-book
*.MKV,*.MPG,*.DAT (MPEG1/MPEG2),*.TSmax: 1080* 720*480*30 decoding NTSC	MP3(*.mp3)	JPEG(*.JPG)BMP	Txt(*.txt)
*.VOB (MPEG-2MP@ML)max: 1080* 720*480*30 decoding NTSC
*.AVI (MPEG-4),*.MP4max: 1080* 720*480*30 decoding NTSC

DVD Player

Input DTV ATV AV SCART YPBPR HDMI PC Media DVD

1.Enter DVD mode

Press the "SOURCE" button on remote control or "SOURCE" button on front panel to open the source list, use the ▲ /▼ select DVD item then press ▶to enter into DVD mode.

Illustration of a computer monitor with a CD inside, no text or symbols present

2. Put the disc into TV

Insert the disc into TV gently, the disc will be inbreathed and read automatically.

Note:

• Please insert the DVD with the mirror side in front.
• To eject a disc, press ▲key from the remote control.

DVD disc PROGRAM: TT(04)/CH(—) 1 TT:01 CH:21 6 TT: CH: 2 TT: CH: 7 TT: CH: 3 TT: CH: 8 TT: CH: 4 TT: CH: 9 TT: CH: 5 TT: CH: 10 TT: CH: Exit NEXT CH0

3. Program play

1). Press the "PROG" button on the remote control to come into program status, enter the desired track number, then using navigation buttons to move the cursor to "start", then press "OK" button to starting playing, it will stop automatically when played over. You can choose 20 programs at most.

2).Select the " 🔍", then press "OK" button to enter the second page.
3).Select the " ", then press "OK" button to return to the first page.
4).Select the "EXIT", then press "OK" button to exit the programmed play mode.

SVCD/VCD/CD disc PROGRAM: CHAPTER(XX—XX) 1 01 6 2 7 3 8 4 9 5 10 Exit NEXT

4. DVD SETUP

Press the "DVD-SETUP" button to enter DVD setting menu, use the /◀ buttons to select the different menu page, and use ▲▼buttons to select the items in each menu, then use ▶button to enter the selected item, at last press "OK" button to confirm the value you changed. Press the ◀button to return to the upper menu.

General Audio DOLBY Video Preference GENERAL SETUP PAGE OSD Language ENG Screen Saver On Last Memory Off Go to General Setup Page

General setup page

OSD language: Set the language of the setup menu on screen display. Screen saver: Set the screen protection Last memory: Remember the last program you watched.

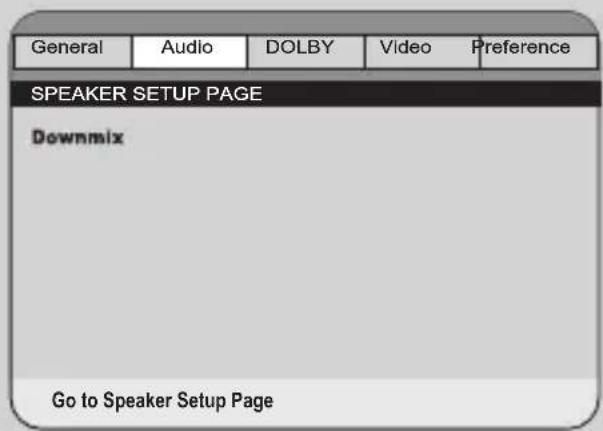

General Audio DOLBY Video Preference SPEAKER SETUP PAGE Downmix Go to Speaker Setup Page

Analog audio setup page

Downmix: This setting it suitable for films. If you only need two channels to enjoy music, it's recommended to select the second option. Where 5.1 theater sound is available, the third option is recommended.

General Audio DOLBY Video Preference DOLBY Digital Setup Dynamic Go to Dolby Digital Setup

Dolby Digital Setup

Dynamic: Adjust sound dynamic range.

General Audio DOLBY Video Preference VIDEO SETUP PAGE Sharpness High Brightness 00 Contrast 00 Go to Video Setup Page

Video setup page

Sharpness: Adjust the sharpness of the image.

Brightness: Adjust the brightness of the image.

Contrast: Adjust the contrast of the image.

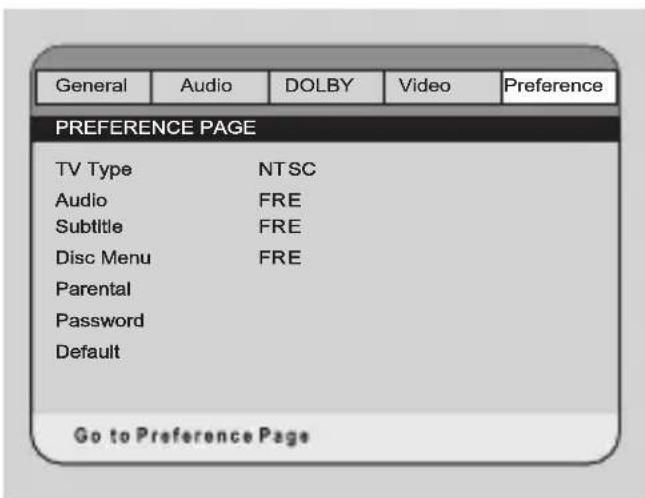

General Audio DOLBY Video Preference PREFERENCE PAGE TV Type NTSC Audio FRE Subtitle FRE Disc Menu FRE Parental Password Default Go to Preference Page

Preference page (Note: this menu page will pop up before putting the disc into the DVD.)

TV type: Select the local TV system (such as PAL, NTSC, Auto)

Audio: Provides the built-in disc dubbing language options.

Subtitle: Select the preset subtitle language.

Disc menu: Select the language of the disc menu.

Parental: For a film to be restricted for children, provides parental guide function. (Note: the initial password is 0000.)

Password: Change the password.

Default: This option will resume the original settings.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.

No image and voice

Blank gray rectangle with black border (no text or symbols)

Possible causes:

*Power cord, antenna or input devices are not connected;
*The TV set is not powered on.

Solutions:

*Check Power cord, antenna and input devices;

*Press Power key on the remote control;

*Press Power key on the set to power it off for 5 seconds and then re-power it on.

No voice

Simple line drawing of a sad face with closed eyes and a frowning expression (no text or symbols)

Possible causes:

*The volume is too low; Muted or cancelled;

*Incorrect sound system.

Solutions:

*Press Volume key to turn up the volume;

*Press Mute key to cancel Mute mode.

Well connect vonconnection to the background sound;

*Change the sound system in the menu.

Snows and noises:

Abstract black-and-white sketch of a stylized figure with curved lines and a small bird, set against a striped background (no text or symbols)

Possible causes:

*The cable is damaged or gets loose;

*Incorrect channel preset;

*Improper antenna positioning .

Solutions:

*Check whether the connection of the antenna cable, DVD and the cables is correct;

*Reset channels or fine tune the channel;

*Adjust the direction of the antenna.

Achromatic colour

Simple line drawing of a cube, a triangular prism, and a sphere (no text or symbols)

Possible causes:

*Incorrect Colour system settings; Low chroma level setting ;

*Improper antenna positioning .

Solutions:

*Change the colour system into the local system in the menu;

*Increase chroma level;

*Adjust the direction of the antenna.

Troubleshooting

Remote control has no response:

Illustration of a black remote control with a small 'X' mark on the right (no text or symbols on the device itself)

Possible causes:

*Battery runs up;

*Incorrect battery loading;

Solutions:

*Check the battery electricity or replace the battery;

*Check if the poles of the battery are correct.

Note: To properly watch CANAL+ using this product, carry out DVB-T channel search when CANAL+ is unscrambled, from 12:30 p.m. to 1:30 p.m. and from 7:00 p.m. to 8:30 p.m.

Important Notice

The display of this television is made up of a large number of colour pixels. Although it has at least 99.999% of effective pixels, some black dots or bright spots (red, green or blue) may appear constantly on the screen. This is a characteristic of the screen (according to industrial standards), and is not a defect. Sometimes, the screen may include an unlit pixel, which will be seen as a blue, red, green or black dot. This does not affect the functioning of the product and should be considered normal.

Note on Defective Pixels

Your product has been manufactured with great care. Nevertheless, it is possible that some pixels remain constantly on or unlit. Please refer to the table below about the tolerance level for defective pixels on this product.

Screen Size	Resolution	No. of Bright or Dark Sub-Pixels (Color Pixels)	No. of Bright or Dark Pixels (White or Black)	Continuous Line
24	1366*768	5	2	0

Technical Data Sheet

Sheet of household television according to EU directive 1062/2010

Trade mark	SCHNEIDER
Model no.	LED24-SCP090HDVDLED24-SCP090HWDVD
Energy efficiency Class	A
Visible Screen Diagonal	60cm / 24 inches
On mode Power consumption	25W
Annual energy consumption	36.5kWh per year
Power consumption in off mode	0W
Standby power consumption	<0.5W
Screen Resolution (pixel)	1366(H) x 768(V)

Note:

1. Energy efficiency class: A++ (most efficient) to E (least efficient)

2. Annual energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

The above value has been measured in accordance with standards under specified operating conditions. Result may vary according to operation time, contrast, brightness, operating mode....etc

SAV

ADMEA / LOGISAV

Position: Quality Assurance Engineer

Signature:

Date: 12 March 2018
