Stromschlaggefahr!

Simple line drawing of two children holding a large rectangular object (no text or symbols)

BEVOR SIE DEN KUNDENDIENST RUFEN

Symbolic illustration of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Old and out-of-order fridges 27

Safety warnings 27

Installing and operating your fridge 28

Before Using your Fridge 28

THE VARIOUS FUNCTION AND POSSIBILITIES ...... 29

Thermostat Setting 29

Warnings for Temperature Settings.... 29

Accessories 30

Ice tray 30

ARRANGING FOOD IN THE APPLIANCE 30

Refrigerator Compartment 30

Freezer Compartment 30

CLEANING AND MAINTENANCE 32

Defrosting 33

Replacing The Light Bulb 34

SHIPMENT AND REPOSITIONING 34

Repositioning the door 34

BEFORE CALLING YOUR AFTER SALES SERVICE ...... 35

Tips For Saving Energy 36

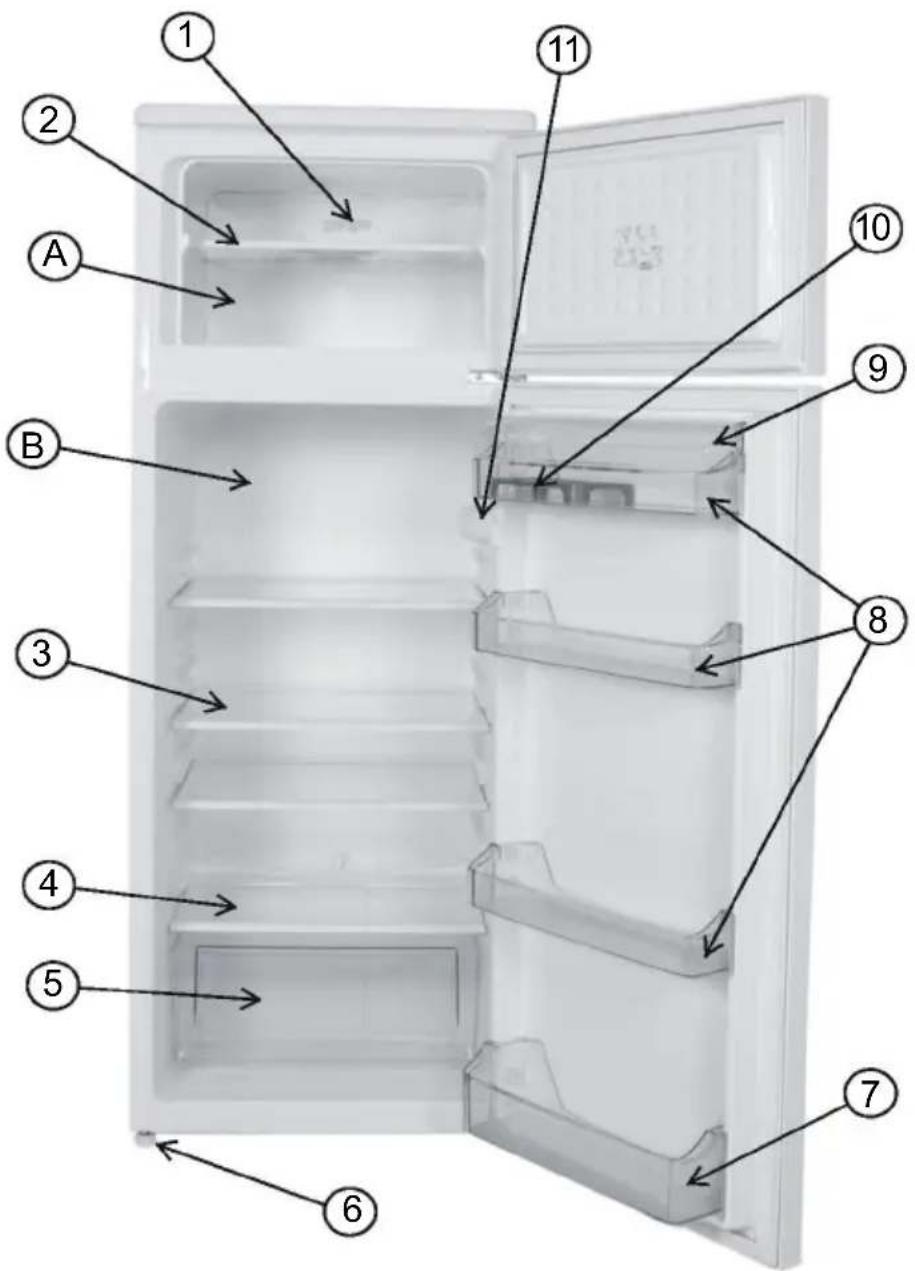

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS .....37

PART - 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and installation to prevent your appliance’s cooling elements from being damaged. Although R600a is an environmentally friendly and natural gas. As it is explosive, in the event of a leak due to damage to the cooler elements, move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and similar applications such as;

- staff kitchen areas in shops, offices and other working environments

- farm houses and by clients in hotels, motels and other residenti type environments

• bed and breakfast type environments;
• catering and similar non-retail applications

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

Pure diagram of a trash bin with diagonal lines crossing it, no text or symbols present

- Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

- Do not use multiple receptacles or extension cord.

- Do not plug in damaged, torn or old plugs.

- Do not pull, bend or damage the cord.

Illustration of three hands performing a manual labor procedure with tools and a tool, no text or symbols present.

- This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

- Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!

- Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.

- Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.

- When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

- Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!

Illustration of three cartoon characters: a smiling face, a crossed-out prohibition symbol, and a bottle with paint (no text or symbols present)

- Do not re-freeze frozen goods after they have melted. This may cause health issues like food poisoning.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

- Operating voltage for your fridge is 220-240 V at 50Hz.

• We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 ~cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

- The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.

Diagram showing two curved heat exchanger-like structures with internal flow arrows (no text or symbols)

- Refrigerator should be placed against a wall with a free distance not exceeding 75 mm.

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

Thermostat Setting

Technical line drawing of a handheld hair dryer with spiral ventilation slots and a circular handle (no text or symbols)

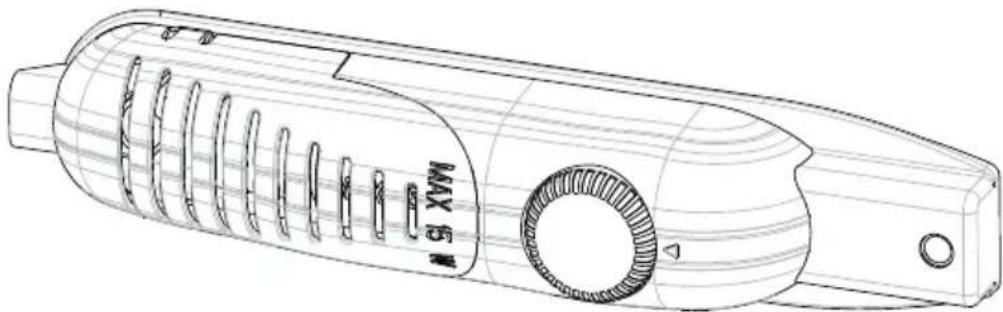

Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

• For short-term storage of food in the freezer compartment, you can set the knob between 1 and 3 position.
• For long-term storage of food in the freezer compartment, you can set knop 3-4 position.

Note that ; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

Warnings for Temperature Settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.
• The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.

- Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.

Climate Class	Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Accessories

Ice tray

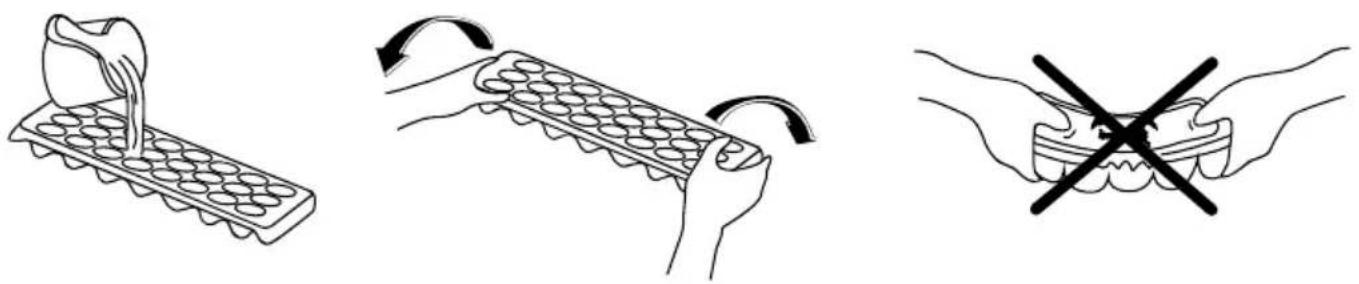

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a dental procedure: feeding, holding an abacus, and removing teeth (no text or symbols present)

PART - 3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator Compartment

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
- Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
- Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
- Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment (that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
- You can put the fruits and vegetables into crisper without packing.

Freezer Compartment

• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.

- Do not put fresh food with frozen on side by side as it can thaw the frozen food.

- While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you will use in one time.

- Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.

- Never place warm food in the freezer compartment. As it will disturb the frozen foods.

- For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

- When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.

- Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.

- If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

- The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

PART - 4. CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water onto it.
• You can wipe the inner and outer sides of your appliance with a soft cloth or a sponge using warm and soapy water.

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food nearby (no text or symbols)

- Clean the accessories separately with soap and water Do not clean them in the washing machine.

• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

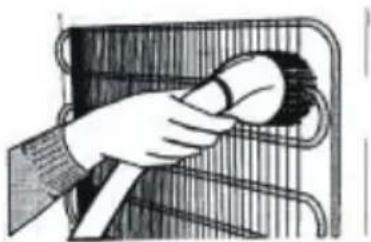

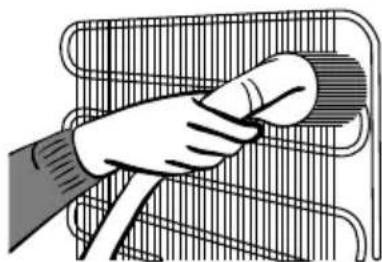

• The condenser (the back part with black wings) should be cleaned using a vacuum cleaner or a dry brush at least once a year. This will help your fridge to operate more efficiently and save energy.

do clean it.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small bottle and cup (no text or symbols)

Simple line drawing of a refrigerator with a red X symbol crossed out (no text or symbols present)

Cartoon illustration of a smiling book character with arms and legs, accompanied by two penguin characters (no text or symbols)

Illustration of a hand using a tool to clean or inspect a wire mesh structure (no text or symbols)

Defrosting

Refrigerator Compartment;

Technical line drawing of a structural component and its magnified cross-section showing internal components (no text or symbols)

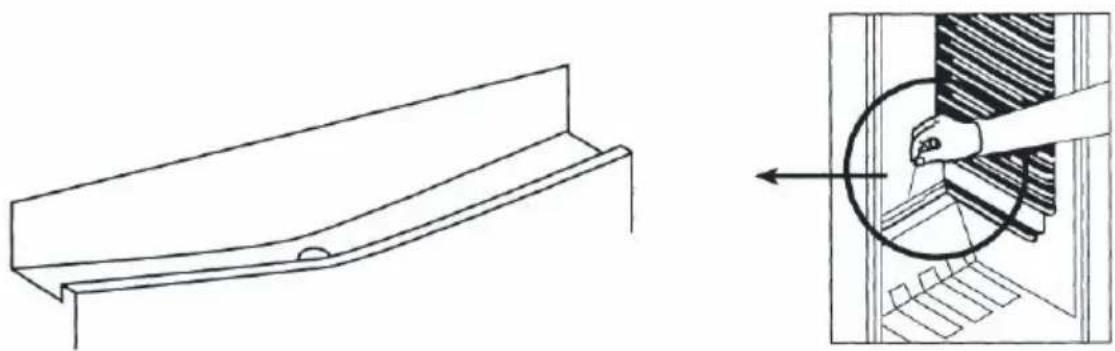

• Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour 1/2 glass of the water to drain hole to clean inside.

Freezer Compartment;

The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

For this;

- The day before you defrost, set the thermostat dial to "5" position to freeze the foods completely.

- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

- Set thermostat knob to position “•” or unplug the unit; leave the door open until completely defrosted.

- To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

- Dry the inside of the unit carefully and set the thermostat knob to MAX position.

Replacing The Light Bulb

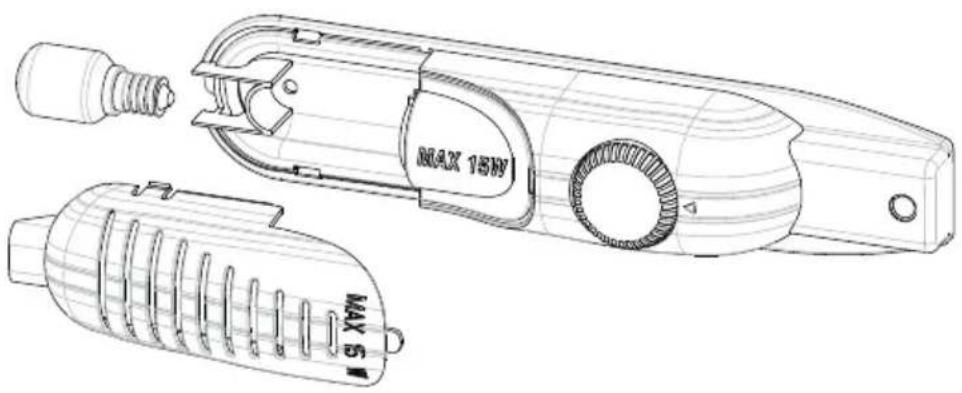

MAX 15W MAX 5 W

To replace the bulb in freezer and fridge departments;

1- Unplug your fridge.

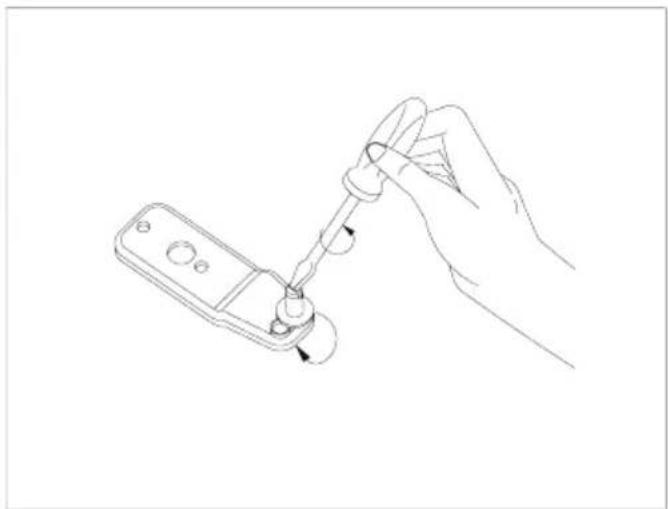

2- Remove the cover of the box from the claws using a screwdriver.
3- Replace with a bulb of maximum 15 Watts.
4- Install the cover.

5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

PART - 5. SHIPMENT AND REPOSITIONING

Transportation and changing of installation position

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

Carry your fridge in the upright position.

Simple line drawing of two children playing a game with a large block (no text or symbols)

Repositioning the door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorised Service to have the opening direction changed.

PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is disconnected,
• The thermostat setting is on “•” position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

The appliance is well levelled,

• Nothing is touching the rear.
• The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

Recommendations

• While power cut, to prevent any compressor problem you should plug out the refrigerator. You should delay plugging in 5 – 10 minutes after you power supply. If you plug out the refrigerator for a reason you should wait at least 5 min to replug. It is important for avoiding damage to refrigerator's components.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.
• If you will not use your fridge for a long time (e.g. in summer holidays), put the thermostat to “•” position. After defrosting, clean your fridge and leave the door open to prevent humidity and smell.

- If the problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service.

- The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasise that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period.

- The lifetime of your appliance stated and declared by the Department of the Industry (the period for retaining parts required for the proper functioning of the appliance) is 10 years.

Conformity Information

- This appliance is designed for use at an ambient temperature within the 16°C - 38°C range.

- The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Tips For Saving Energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.

2- Allow ward food and drinks to cool down outside the appliance.

3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.

4- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.

5- When placing food and drinks, open the appliance door as briefly as possible.

6- Keep close the covers of any different temperature compartment in the appliance (crisper, chiller ...etc ).

7- Door gasket must be clean and pliable. Replace gaskets if worn.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Labeled diagram of a refrigerator interior showing 12 numbered compartments and storage areas

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

Pure electrical circuit lines without any symbols

Illustration of four hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a smiling refrigerator with hands and a crossed-out hand gesture, accompanied by a close button (no text or symbols)

Simple line drawing of two bottles and a glass with explosion effects (no text or symbols)

Cartoon illustration of a distressed container character holding a box labeled 'KG', with no readable text or symbols beyond the label.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

SECTION 2. FONCTIONS ET POSSIBILITES DIVERSES

Line drawing of a hair dryer with spiral blades and a circular button (no text or symbols)

Illustration showing three steps of a food preparation: adding sauce, handling egg trays, and removing it (no text or symbols)

SECTION 3. MISE EN PLACE DES ALIMENTS DANS L'APPAREIL

Partie de refrigeration

Cartoon illustration of a hand cleaning a door with a smiling face (no text or symbols)

Simple line drawing of a smiling emoji on a notepad with a hand holding it (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding a cup and a bottle nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms and legs, giving thumbs up (no text or symbols)

Simple line drawing of a refrigerator with a red X symbol crossed out (no text or symbols present)

Illustration of a hand cleaning a metal grate (no text or symbols)

LA PRISE DOIT ETRE DEBRANCHEE.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

MAX 15W MAX 6 W

Simple line drawing of two children playing a game with a large block (no text or symbols)

Labeled diagram of a refrigerator interior showing 11 numbered compartments and storage areas

- bed and breakfast e simili,

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Illustration showing three different techniques for using a tool, no text or symbols present

Cartoon illustration of a person inside a refrigerator with arms and legs open (no text or symbols)

Illustration of a hand holding a smiling face, a crossed-out hand gesture, and a prohibition symbol (no text or labels)

Simple line drawing of two bottles and a glass with scattered stars (no text or symbols)

Cartoon illustration of a distressed milk cart character holding a box labeled 'KG', with arms and facial expressions (no text or symbols beyond the label)

Simple line drawing of a smiling emoji on a square object held by a hand (no text or symbols)

PARTE 2. FUNZIONI E POSSIBILITA'

Technical line drawing of a handheld device with spiral slots and a circular button (no text or symbols)

Illustration showing three steps of dental tool manipulation: feeding teeth, handling a grid tray, and removing teeth with a black X (no text or symbols)

PARTE 3. SISTEMAZIONE DEL CIBO NEL FRIGORIFERO

Scomparto Frigo

Cartoon illustration of a hand cleaning a refrigerator with a magnifying glass (no text or symbols)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand cleaning it, accompanied by a small bottle and cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Illustration of a refrigerator with a red X symbol crossed out, indicating no text or symbols present.

Cartoon illustration of a smiling rectangular box with a sad face and two patty bags nearby (no text or symbols)

Illustration of a hand holding a circular object over a wire mesh structure (no text or symbols)

Technical line drawing of a structural component and its magnified cross-section showing internal components (no text or symbols)

Simple line drawing of two children playing a game with a large block (no text or symbols)

Labeled diagram of a refrigerator interior with numbered compartments and doors

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration showing three hand positions demonstrating a cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a person climbing a door with arms outstretched (no text or symbols)

Cartoon illustration of a distressed refrigerator with arms and legs, no text or symbols present

Two abstract diagrams showing a bird-like figure and a bird-like figure inside a coiled tube, with no text or symbols present.

Simple line drawing of a hand holding a smiling face icon next to a square (no text or symbols)

Technical line drawing of a mechanical component with internal gear and housing (no text or symbols)

Illustration showing three steps of a hand holding an abacus, with one being crossed out (no text or symbols present)

DEEL 3. VOEDSEL IN HET APPARAAT PLAATSEN

Koelingscompartiment

Simple line drawing of a hand holding a tool near a box with a sad face (no text or symbols)

Cartoon illustration of a refrigerator with a smiling face and two smaller containers nearby (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands giving thumbs up, next to a bowl of food (no text or symbols)

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by two small figurines (no text or symbols)

Illustration of a hand holding a tool inside a rack (no text or symbols visible)

Ontdooien

Koelingscompartiment

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

Line drawing of a mechanical tool or device with no visible text or symbols

Simple line drawing of two children playing a board game (no text or symbols)

Labeled diagram of a refrigerator interior showing 11 numbered compartments and storage areas
