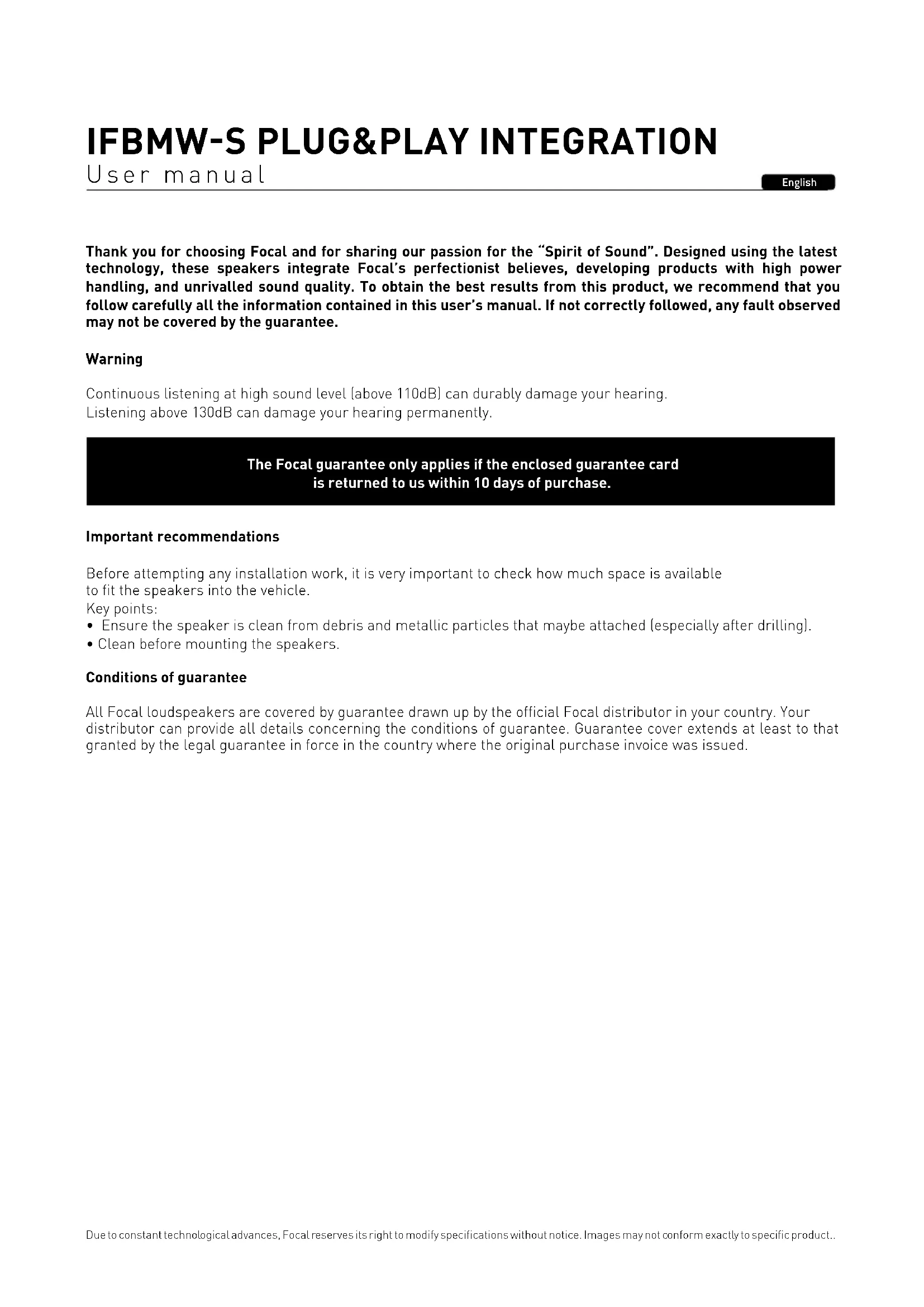

Thank you for choosing Focal and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing.

Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

2 way kit IFBMW-S installation

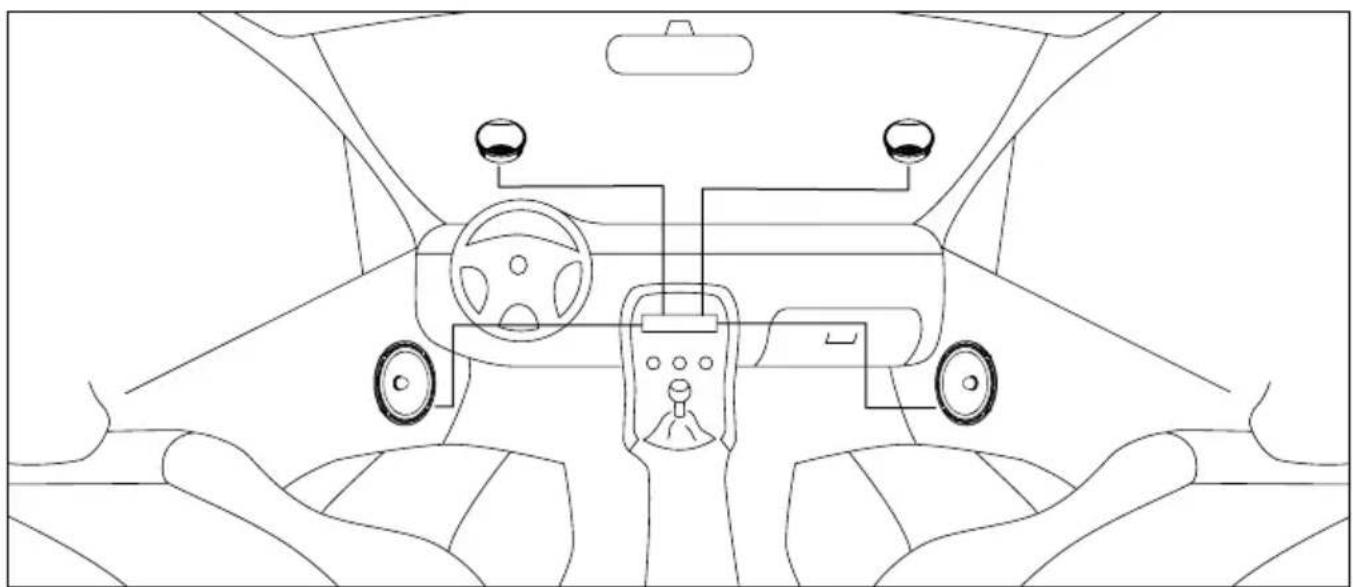

Installation 100% dedicated to BMW® (serie 1/3/x1) in less than an hour (BMW® is a trademark of BMW®). Watch the demonstration video: http://mobi.focal.com/ifbmw-s/en/

• This kit has been designed for installation in a BMW® (serie 1/3/x1)
• The components of this dedicated kit are compatible with this vehicle's original connectors and fixings.
• Take extreme care when installing.
• Only the use of appropriate quality tools can guarantee optimal installation.
• Connectors are fragile electronic components. Handle with care.
• Follow these instructions correctly to ensure the proper functioning of the IFBMW-S kit.
• Before restarting your system, check your car radio settings (which differ according to the vehicle's model, version and engine).

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

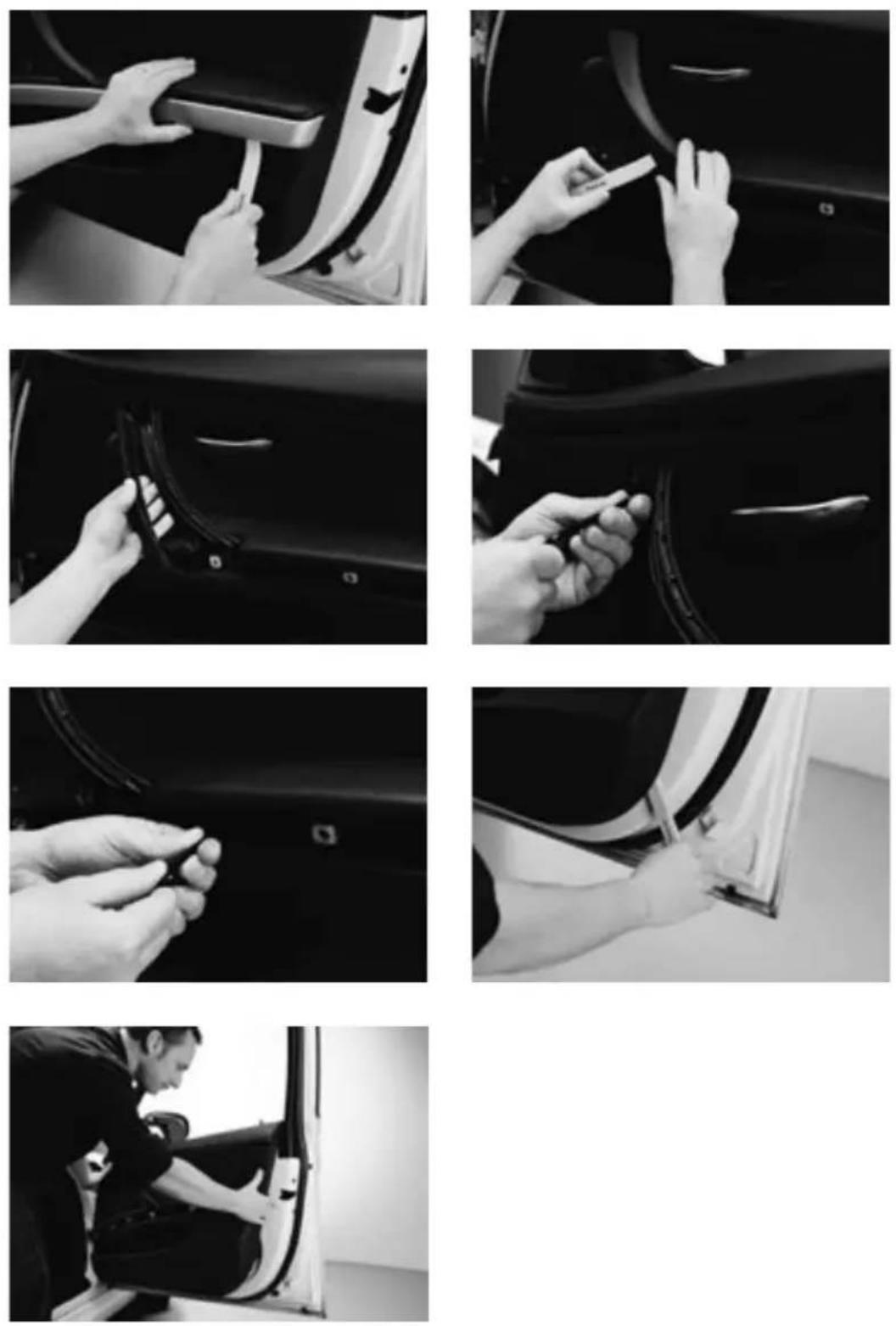

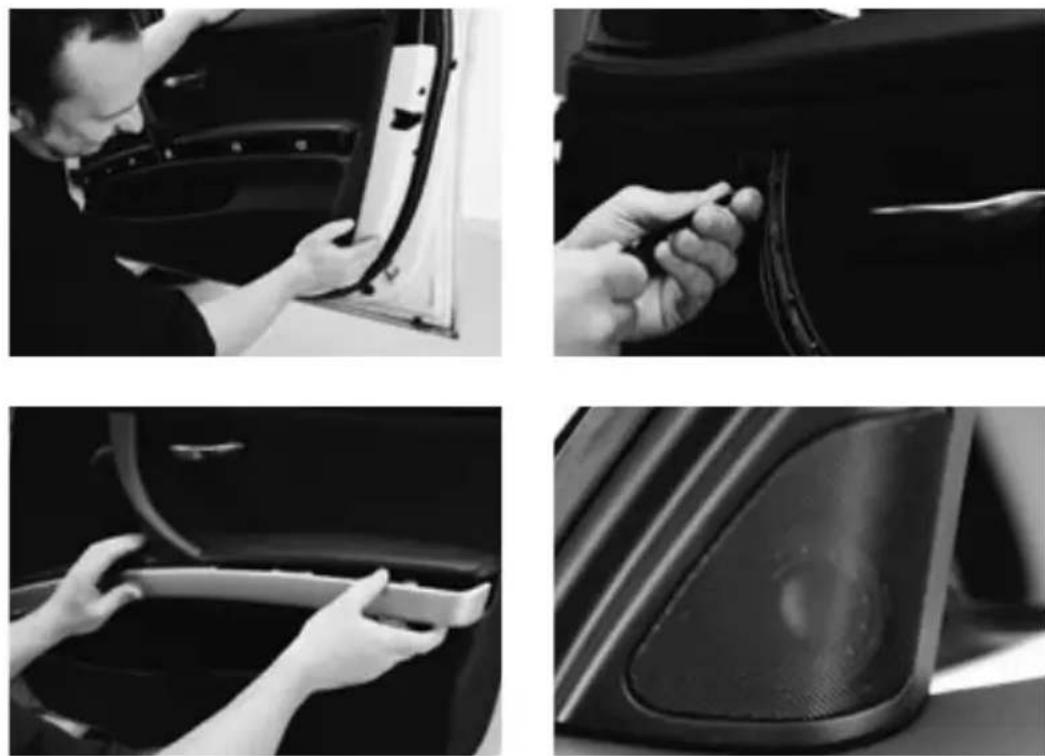

1. Dismantling the door panel with the focal and torx tool (supplied with the kit).

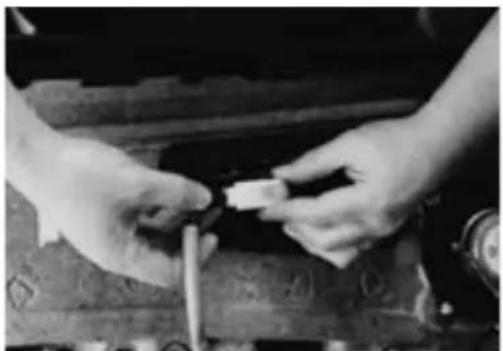

1. Dismantle the door control and the speaker connector.

Close-up of hands installing or adjusting a small component on a mechanical component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

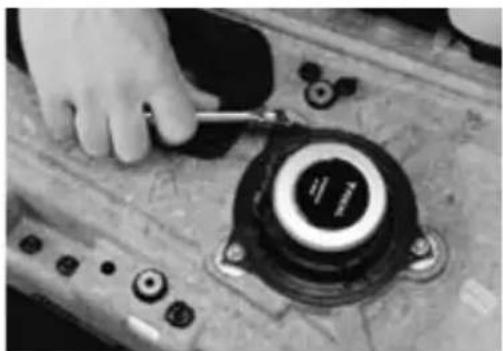

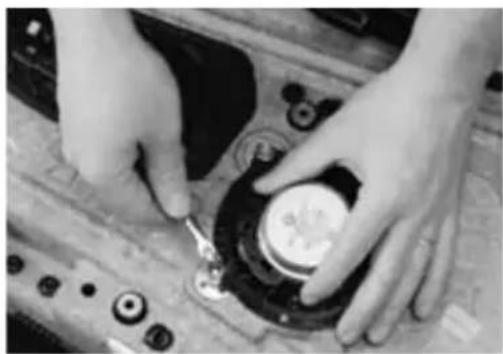

1. Speaker disassembly: used a 8 mm key (not supplied with the speaker kit).

Close-up of hands operating a mechanical component with a circular dial (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

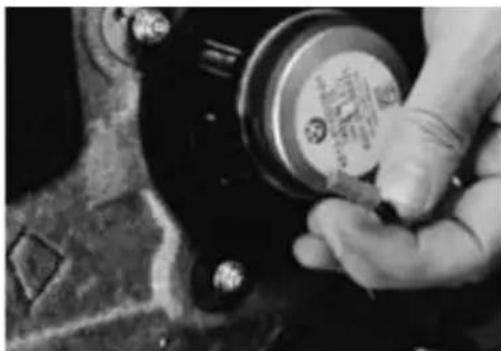

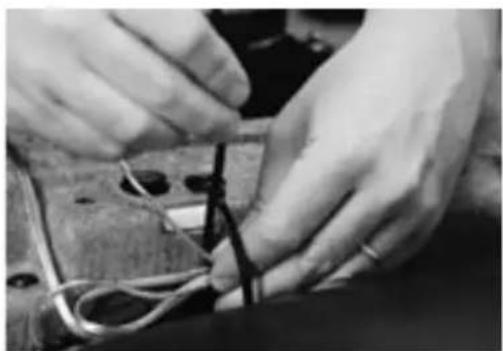

1. Focal wire plug on the driver and cable fixing inside the door panel (to reduce all parasite noises).

Close-up of hands connecting wires to a mechanical component (no visible text or symbols)

Close-up of hands assembling or repairing electronic components with wires (no visible text or symbols)

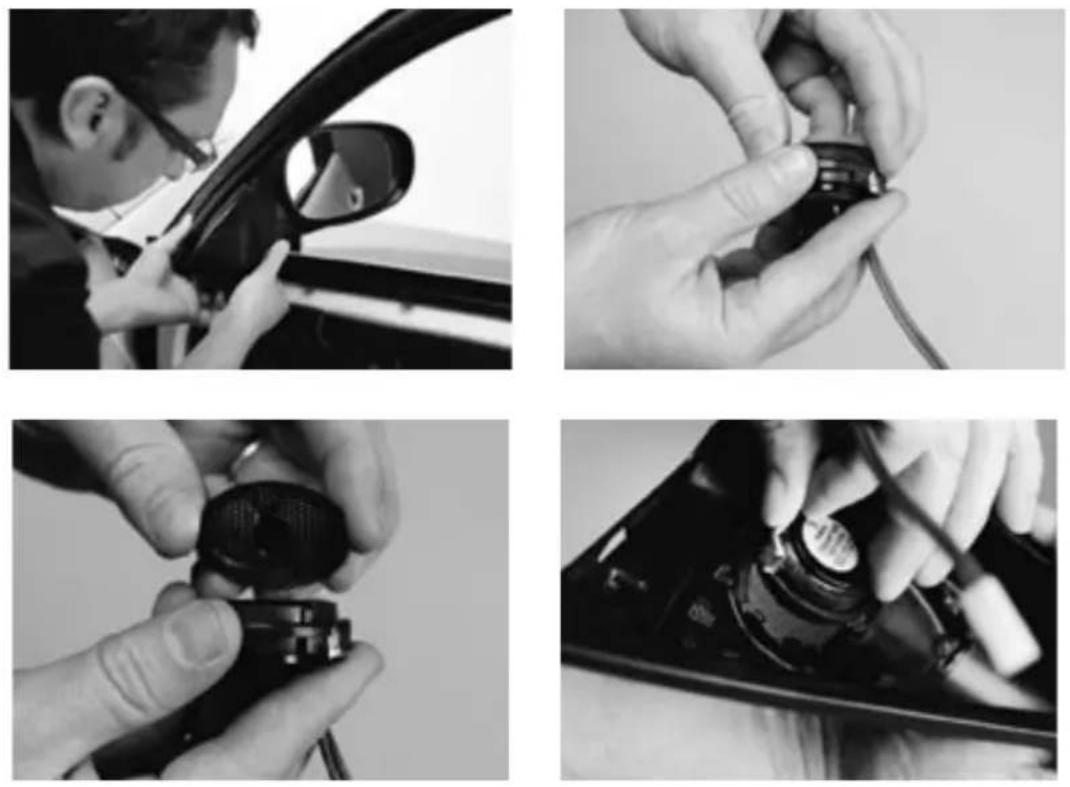

1. Tweeter assembly in factory space (takes off the grille and be careful to the tweeter cone).

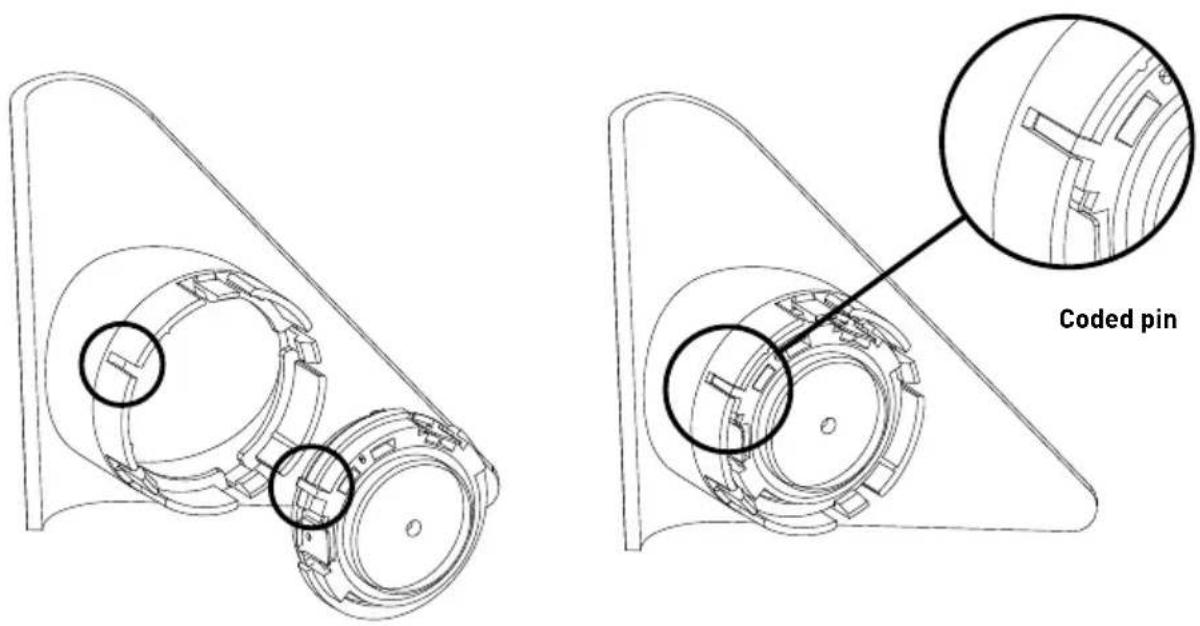

WARNING: use the coded pin location.

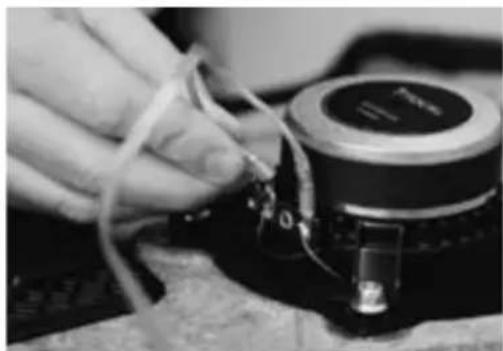

1. Connect the tweeter wire directly to the focal connector plugged on the midrange driver.

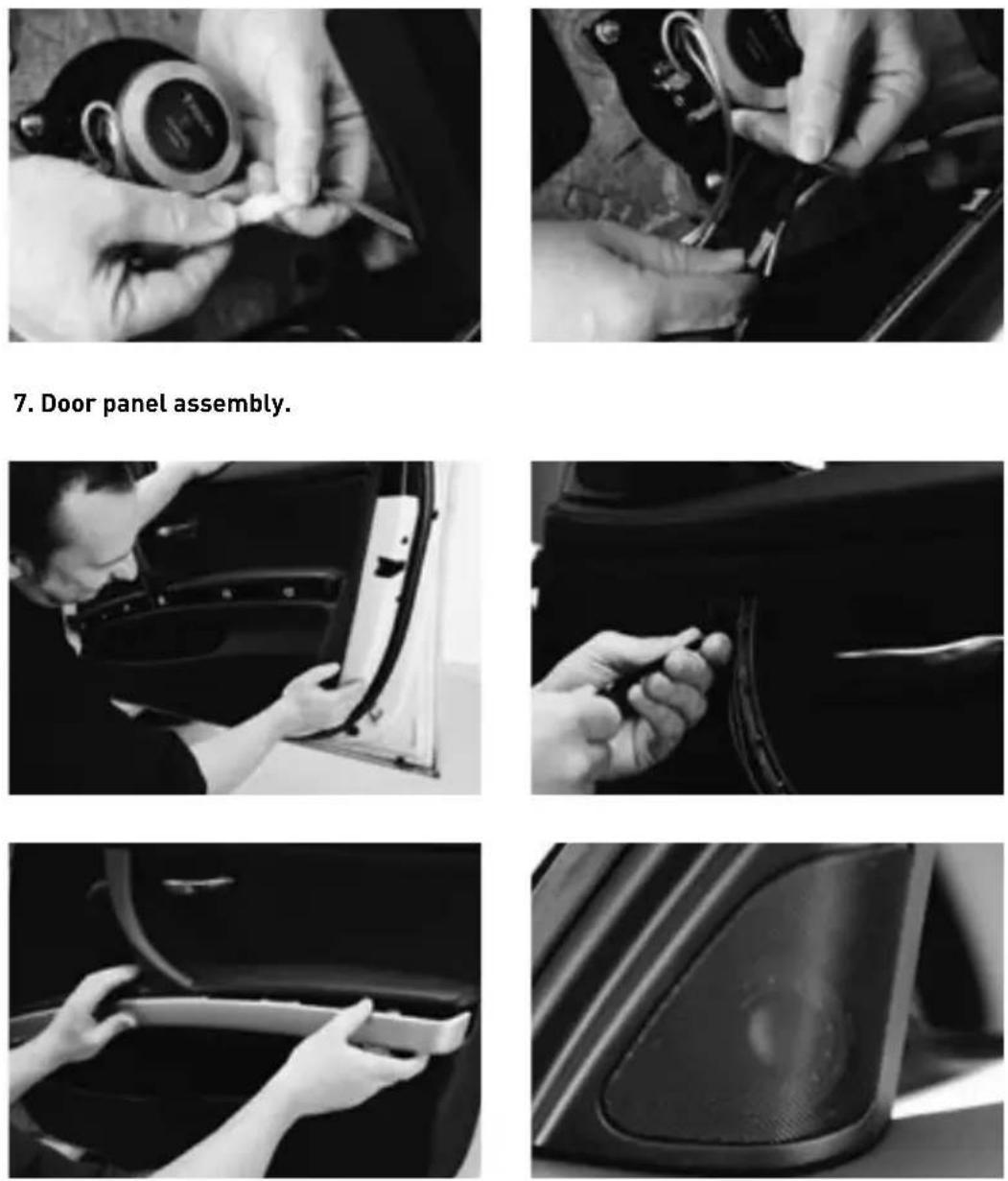

1. Door panel assembly.

You can used the IFBMW-S in a "non equipped" 2 way component BMW® car.

You have 2 possibilities :

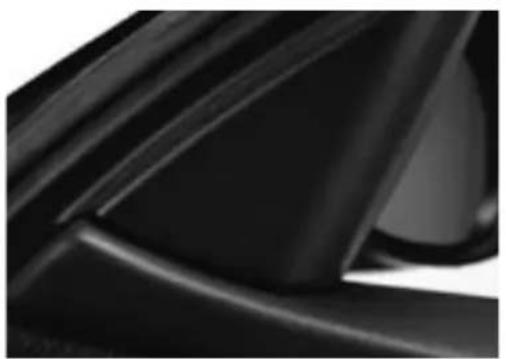

1. Order to your BMW® car seller, the original spare part dedicated for your car (in case of a hifi system) (different parts either with a plastic part behind the mirror, either a full door trim).

2. Use our tweeler part supplied in the IFBMW-S kit (in this case, please read carefully the instruction below)

3. Cut the templates (scale 1:1) enclosed to this service manual (respect the right side).

4. Adjust the templates on the Factory plastic parts.

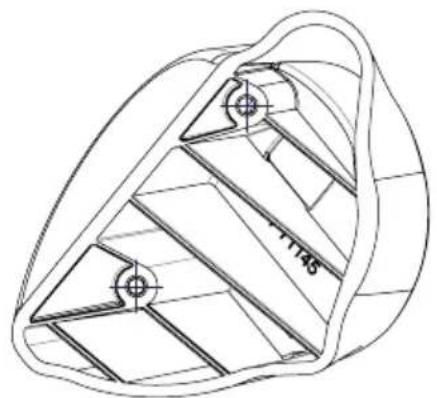

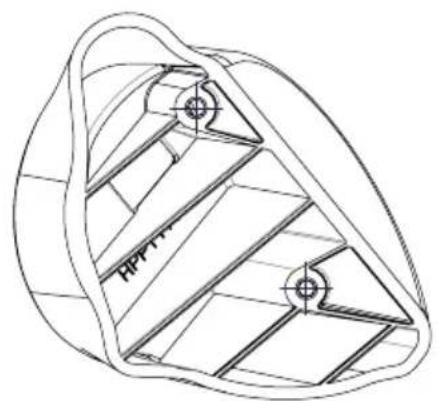

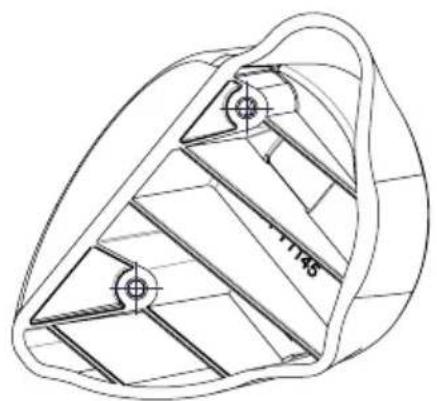

5. Adjust the focal tweeter support (supplied in the IFBMW-S kit) (REF HPPT1145 left side or HPPT1146 right side) to find the best staging and aesthetic in your car.
6. Drill holes for the 2 screws and the focal wire (diameter = 4mm for the 2 screw and 12 mm for the wire hole).
7. Screw the 2 vis (from the interior of the original plastic part).

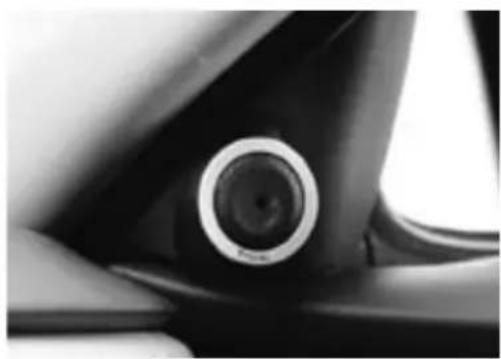

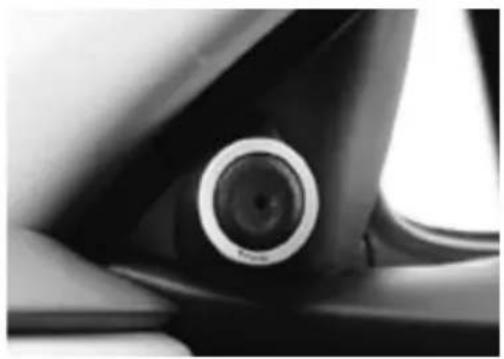

8. Mount the tweeter and lock it thanks to the grey ring with the FOCAL logotyp (which might be in down position).

Close-up of a glossy black fabric or material surface with smooth curves and folds (no text or symbols visible)

Close-up of a camera lens mounted on a vehicle wheel (no visible text or symbols)

Technical line drawing of a mechanical component with internal triangular sections and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with internal layered structure (no text or symbols)

HPPT1145 - Left HPPT1146 - Right

Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

Top-down line drawing of a car interior showing steering wheel, dashboard, and steering wheel (no text or symbols)

Close-up of hands installing or adjusting a small component on a mechanical component (no visible text or symbols)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands operating a mechanical component with a circular dial (no visible text or symbols)

Close-up of a hand using a wrench to adjust a mechanical component (no visible text or symbols)

Close-up of hands connecting wires to a mechanical device (no visible text or symbols)

Close-up of hands assembling or repairing a mechanical component with wires (no visible text or symbols)

Close-up of glossy black fabric or material with smooth curves and highlights (no text or symbols)

Close-up of a camera lens mounted on a vehicle wheel (no visible text or symbols)

Technical line drawing of a mechanical component with internal triangular sections and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with layered structure and mounting holes (no text or symbols)

HPPT1145 - Left HPPT1146 - Right

2x Ø 4 mm Ø12 mm

Pure geometric diagram with concentric circles and crosshairs, enclosed by a dashed oval (no text or symbols)

INTEGRATION IFBMW-S
