USER MANUAL PI 640 AS (AN) R INDESIT

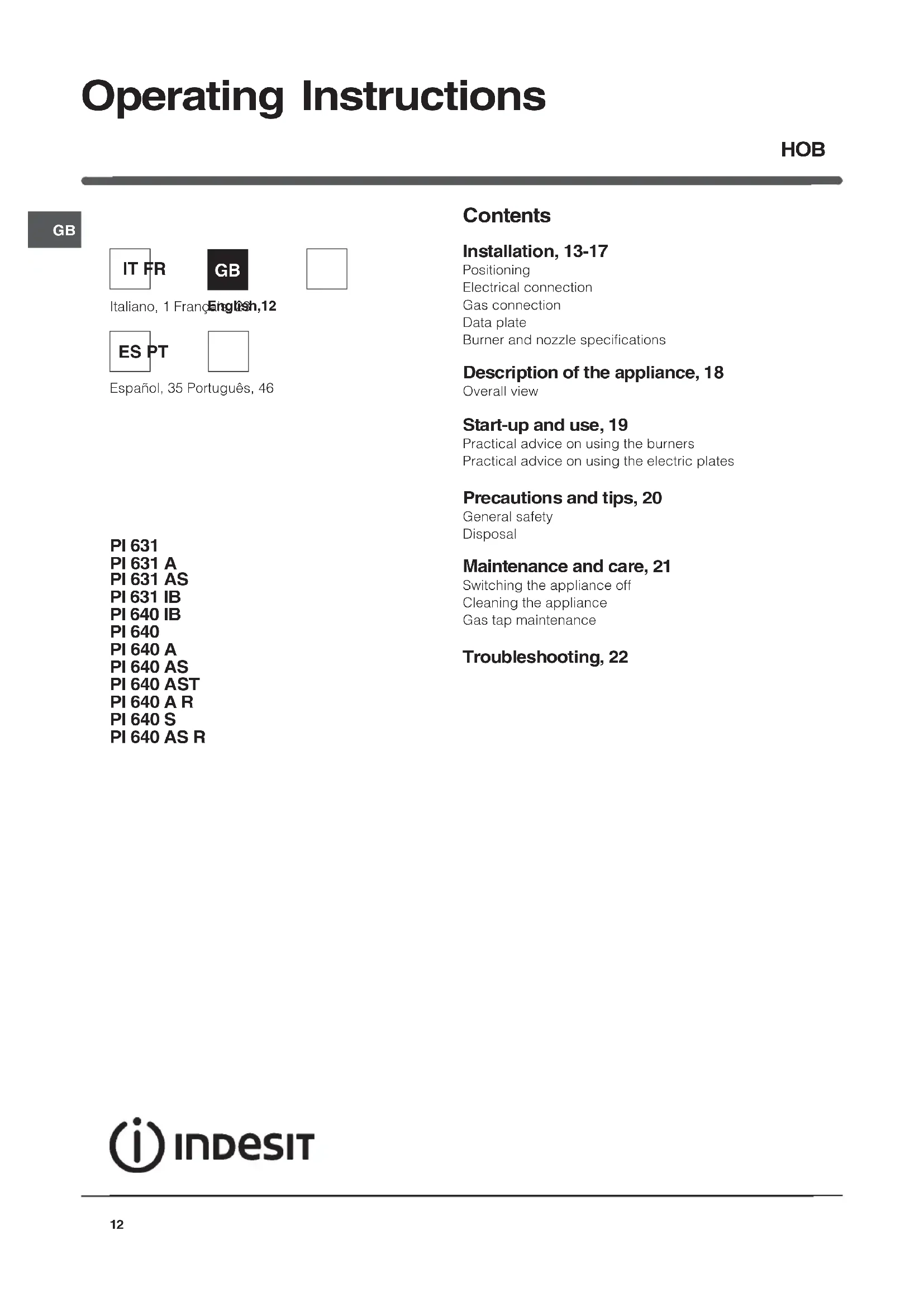

HOB PI 631 PI 631 A PI 631 AS PI 631 IB PI 640 IB PI 640 PI 640 A PI 640 AS PI 640 AST PI 640 A R PI 640 S PI 640 AS R Contents Installation, 13-17 Positioning Electrical connection Gas connection Data plate Burner and nozzle specifications Description of the appliance, 18 Overall view Start-up and use, 19 Practical advice on using the burners Practical advice on using the electric plates Precautions and tips, 20 General safety Disposal Maintenance and care, 21 Switching the appliance off Cleaning the appliance Gas tap maintenance Troubleshooting, 22 Operating Instructions Italiano, 1 Français, 23 Español, 35 Português, 46 English,12 IT FR ES PT

Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips). The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property. This unit may be installed and used only in permanently ventilated rooms in accordance with British Standard Codes Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The following requirements must be observed: The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on. The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2 m

/h per kW of installed power. The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm

; the opening must not be vulnerable to any type of blockages. The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard. Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc. ) which could raise the temperature of the cylinder above 50°C. Fitting the appliance Gas and mixed hobs are manufactured with type X degree protection against overheating. The following precautions must be taken when installing the hob: Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob. Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob. Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure). If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob (see figure). The installation cavity should have the dimensions indicated in the figure. Installation Enlarging the ventilation slotbetween window and floor.Adjacent Room Room to beVented Examples of ventilation holesfor comburant air.In a chimney stack or branched flue. (exclusively for cooking appliances)Directly to the Outside600mm min.600mm min.700mm min.14

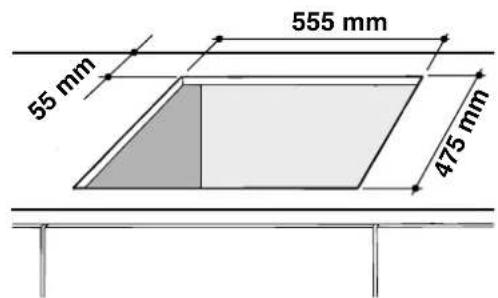

Fastening hooks are provided, allowing you tofasten the hob to tops that are between 20 and 40mm thick. To ensure the hob is securely fastened tothe top, we recommend you use all the hooksprovided. 555 mm 55 mm 475 mm Hook fastening diagram

Hooking position Back for top H=40 mm Use the hooks contained in the accessory pack Where the hob is not installed over a built-in oven, awooden panel must be installed as insulation. Thismust be placed at a minimum distance of 20 mmfrom the lower part of the hob.VentilationTo ensure adequate ventilation, the back panel of thecabinet must be removed. It is advisable to install theoven so that it rests on two strips of wood, or on acompletely flat surface with an opening of at least 45 x560 mm (see diagrams).Where a hob is installed above an oven without aforced ventilation cooling system, adequate ventilationmust be provided inside the cabinet by means of airholes through which air can pass (see figure).! The PI 640 AST hob can only be installed abovebuilt-in ovens with a cooling ventilation system. Electrical connection Hobs equipped with a three-pole power supply cableare designed to operate with alternating current at thevoltage and frequency indicated on the data plate(this is located on the lower part of the appliance). Theearth wire in the cable has a green and yellow cover.If the appliance is to be installed above a built-inelectric oven, the electrical connection of the hob andthe oven must be carried out separately, both forelectrical safety purposes and to make extracting theoven easier. Connecting the supply cable to the mains Install a standardised plug corresponding to the loadindicated on the data plate.The appliance must be directly connected to the mainsusing an omnipolar circuit-breaker with a minimumcontact opening of 3 mm installed between theappliance and the mains. The circuit-breaker must besuitable for the charge indicated and must comply withcurrent electrical regulations (the earthing wire must notbe interrupted by the circuit-breaker). The supply cablemust not come into contact with surfaces withtemperatures higher than 50°C. The installer must ensure that the correct electricalconnection has been made and that it is compliantwith safety regulations. 560 m

Before connecting to the power supply, make sure that: The appliance is earthed and the plug is compliant with the law. The socket can withstand the maximum power of the appliance, which is indicated on the data plate. The voltage is in the range between the values indicated on the data plate. The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. The cable must not be bent or compressed. The cable must be checked regularly and replaced by authorised technicians only (see Assistance). The manufacturer declines any liability should these safety measures not be observed. Gas connection The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph Adapting to different types of gas. When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations. Check that the pressure of the gas supply is consistent with the values indicated in Table 1 (Burner and nozzle specifications). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption. Connection with a rigid pipe (copper or steel) Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance. There is an adjustable L -shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. Connecting a flexible jointless stainless steel pipe to a threaded attachment The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment. These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed. Only use pipes and seals that comply with current national regulations. Checking the tightness of the connection When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame. Adapting to different types of gas To adapt the hob to a different type of gas other than default type (indicated on the rating plate at the base of the hob or on the packaging), the burner nozzles should be replaced as follows:

1. Remove the hob grids and slide the burners off their

and replace them with nozzles for the new type of gas (see table 1 Burner and nozzle characteristics).

3. Reassemble the parts following the above

procedure in the reverse order.

4. Once this procedure is finished, replace the old

rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres. Adjusting the burners primary air : Does not require adjusting.16

Setting the burners to minimum:

1. Turn the tap to the low flame position.

2. Remove the knob and adjust the adjustment screw,

which is positioned in or next to the tap pin, until the flame is small but steady.

3. Having adjusted the

flame to the required low setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.

4. Some appliances have a safety device

(thermocouple) fitted. If the device fails to work when the burners are set to the low flame setting, increase this low flame setting using the adjusting screw.

5. Once the adjustment has been made, replace the

seals on the by-passes using sealing wax or a similar substance. If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres. Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations). DATA PLATE Electrical connections voltage of 220-230V ~ 50/60Hz or 220-240V ~ 50/60Hz (see data plate ) maximum power absorbed 1500W This appliance conforms to the following European Economic Community directives: -2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments. - 90/336/EEC dated 29/06/90 (Gas) and subsequent amendments. - 2002/96/EC and subsequent amendments.GB

(1) Only for appliances with the security device.

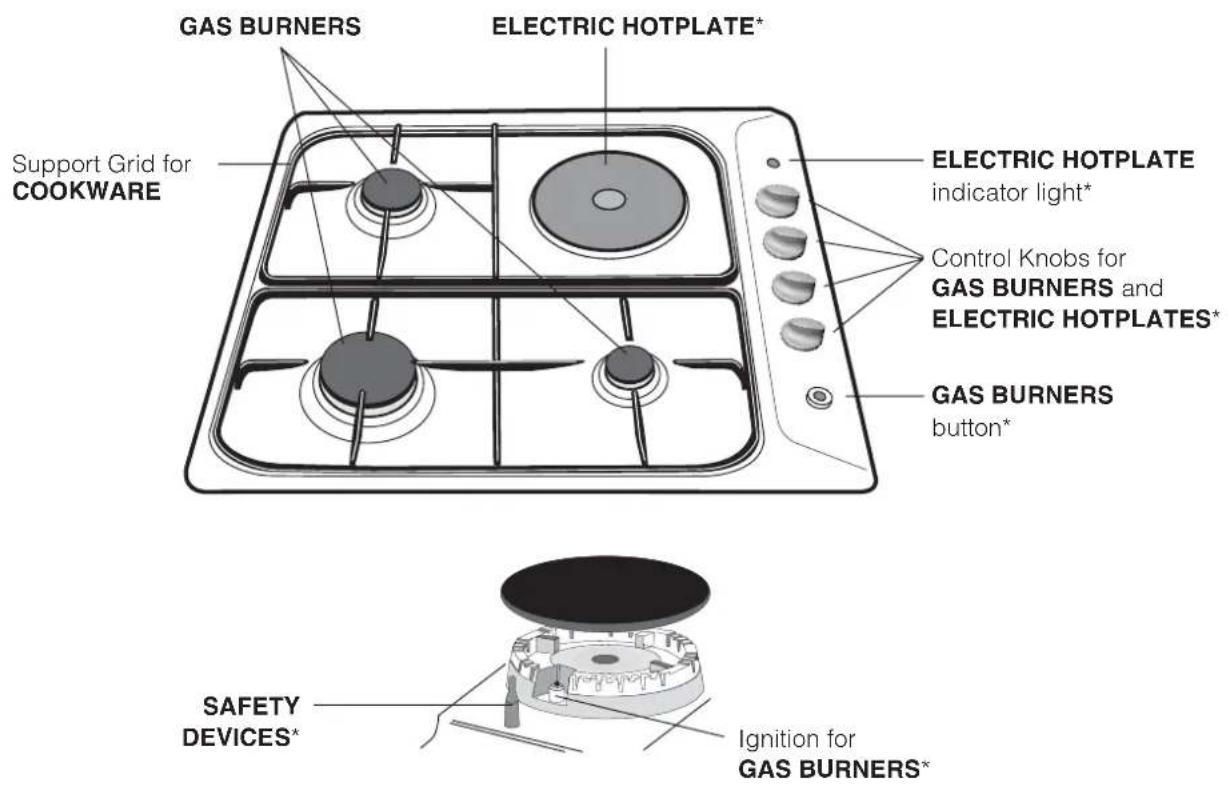

Only available on certain models. ELECTRIC HOTPLATES may have different diameters and operate at different power levels. These power levels may be normal or rapid (the latter may be distinguished from the others by a red spot in the middle of the hotplate). The ELECTRIC HOTPLATE INDICATOR LIGHT switches on whenever the selector knob is moved from the off position. GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with. Control Knobs for GAS BURNERS and ELECTRIC PLATES* adjust the power or the size of the flame. GAS BURNER ignition* enables a specific burner to be lit automatically. SAFETY DEV ICE* stops the gas flow if the flame is accidentally extinguished.GB 19The position of the corresponding gas burner orelectric hotplate* is shown on every knob. Gas burners Each burner can be adjusted to one of the followingsettings using the corresponding control knob: OffMaximumMinimumTo light one of the burners, hold a lit match or lighternear the burner and, at the same time, press downand turn the corresponding knob anti-clockwise to themaximum setting.Since the burner is fitted with a safety device, theknob should be pressed for approximately 6 secondsto allow the automatic device keeping the flame alightto heat up.When using models with an ignition button, light thedesired burner by first pressing the gas burnersbutton (identifiable by the symbol), then pressingdown the corresponding knob as far as possible andturning it anticlockwise towards the maximum setting. If a flame is accidentally extinguished, turn off thecontrol knob and wait for at least 1 minute beforetrying to relight it.To switch off the burner, turn the knob in a clockwisedirection until it stops (when reaches the position). Electric hotplates* The corresponding knob may be turned clockwise oranti-clockwise and set to six different positions: Setting Normal or Fast Plate

High When the selector knob is in any position other thanthe off position, the on light comes on. Practical advice on using the burners To ensure the burners operate efficiently: Use appropriate cookware for each burner (seetable) so that the flames do not extend beyond thebottom of the cookware. Always use cookware with a flat base and a cover. When the contents of the pan reach boiling point,turn the knob to minimum.Burner ø Cookware Diameter (cm)Fast (R) 24 - 26Semi Fast (S) 16 - 20Auxiliary (A) 10 - 14Triple Crown (TC) 24 - 26 Practical advice on using the electric hotplates To avoid heat loss and damage to the hotplates, usepans with a flat base, whose diameter is no less thanthat of the hotplate itself.Setting Normal or Fast Plate

Cooking vegetables, fish Cooking potatoes (using steam) soups,chickpeas, beans. Continuing the cooking of large quantitiesof food, minestrone For roasting (average) For roasting (above average) For browning and reaching a boil in ashort time. Before using the hotplates for the first time, you should heat them at maximum temperature forapproximately 4 minutes, without placing any pans onthem. During this initial stage, their protective coatinghardens and reaches its maximum resistance. Start-up and use

Precautions and tips This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety This is a class 3 built-in appliance. Gas appliances require regular air exchange to maintain efficient operation. When installing the hob, follow the instruction

provided in the paragraph on Positioning the appliance. These instructions are only valid for the countries whose symbols appear in the manual an d on the serial number plate. The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. When moving or positioning the appliance, always use the handles provided on the sides of the oven. Do not touch the appliance with bare feet or with wet or damp hands and feet. The appliance must be used by adults only, to cook food according to the instructions in this manual. Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven. The openings used for ventilation and dispersion of heat must never be covered. Always make sure the knobs are in the l/ ¡ position when the appliance is not in use. When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. Never carry out any cleaning or maintenance work without having detached the plug from the mains. In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance). Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns. Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot. Do not leave the electric hotplate switched on without a pan placed on it. Do not use unstable or deformed pans. The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. Do not let children play with the appliance.

IMPORTANT SAFETY INFORMATION FOR UK

MARKET: Please note that this product is not fitted with a flame supervision device. It is NOT suitable for f itting or use in high rise flats or multiple dwellings. If you are in any doubt please contact a CORGI registered gas engineer for advice. Disposal When disposing of packaging material: observe local legislation so that the packaging may be reused. The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out wheeled bin symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.GB

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair. Never use steam cleaners or pressure cleaners on the appliance. It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll. The removable parts of the burners should be washed frequently with warm water and soap and any burnt-on substances removed. For hobs which ligth automatically, the terminal part of the electronic instant lighting devices should be cleaned frequently and the gas outlet holes should be checked for blockages. The electric hotplates should be cleaned with a damp cloth and lubricated with a little oil while still warm. Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water. Maintenance and care Gas tap maintenance Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced. This procedure must be performed by a qualified technician authorised by the manufacturer.22

Troubleshooting It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open. The burner does not light or the flame is not even around the burner. Check whether: The gas holes on the burner are clogged. All the movable parts that make up the burner are mounted correctly. There are draughts near the appliance. The flame dies in models with a safety device. Check to make sure that: You pressed the knob all the way in. You keep the knob pressed in long enough to activate the safety device. The gas holes are not blocked in the area corresponding to the safety device. The burner does not remain lit when set to minimum. Check to make sure that: The gas holes are not blocked. There are no draughts near the appliance. The minimum setting has been adjusted properly. The cookware is unstable. Check to make sure that: The bottom of the cookware is perfectly flat. The cookware is positioned correctly at the centre of the burner. The pan support grids have been positioned correctly. If, despite all these checks, the hob does not function properly and the problem persists, call the nearest Customer Service Centre. Please have the following information handy: The appliance model (Mod.). The serial number (S/N). This information can be found on the data plate located on the appliance and/or on the packaging. Never use unauthorised technicians and never accept replacement parts which are not original.TABLE DE CUISSON PI 631 PI 631 A PI 631 AS PI 631 IB PI 640 IB PI 640 PI 640 A PI 640 AS PI 640 AST PI 640 A R PI 640 S PI 640 AS R Sommaire Installation, 24-29 Positionnement Raccordement électrique Raccordement gaz Plaquette signalétique Caractéristiques des brûleurs et des injecteurs Description de lappareil, 30 Vue densemble Mise en marche et utilisation, 31 Conseils pratiques pour lutilisation des brûleurs Quelques conseils utiles pour bien utiliser votre plaque électrique Précautions et conseils, 32 Sécurité générale Mise au rebut Nettoyage et entretien, 33 Mise hors tension Nettoyage de lappareil Entretien robinets gaz Anomalies et remèdes, 34 Mode demploi Italien, 1 Français, 23English,12 IT GB ES PT
