USER MANUAL CMV334RVS ETNA

Your combi-microwave

Introduction 4

Description 5

Control panel 6

Materials 7

Use

Before first use 8

Operating instructions

Setting the clock 9

Cooking using the microwave 9

Instant cooking 10

Hot-air cooking 10

Cooking using the grill 11

Combination cooking 11

Defrosting 12

Multistage cooking 12

Pre-set function 13

Auto menu 13

Cooking table auto menu 14

Checking the settings 15

Childproof lock 15

Maintenance

Cleaning 16

Positioning

17

Faults / Technical data

18

Environmental aspects

Disposal of appliance and packaging 19

Introduction

You have opted to purchase an Etna combi-microwave. Optimum user comfort and easy operation were paramount during the development of this product.

The combi-microwave combines the properties of a microwave with those of a traditional oven. The wide range of programming options makes it possible to choose your preparation method precisely. However, the controls are still simple, partly because of the automatic cooking and defrosting programmes.

This manual gives insight into all the possibilities this appliance offers. The different functions are listed clearly in the chapter on controls. Tips that may help you are also included.

First read the user instructions carefully and completely before starting to use the appliance, and keep them safely for future reference.

The manual also serves as reference material for service technicians. The appliance identification card contains all the information that the service technician will need in order to respond appropriately to your questions.

Happy cooking!

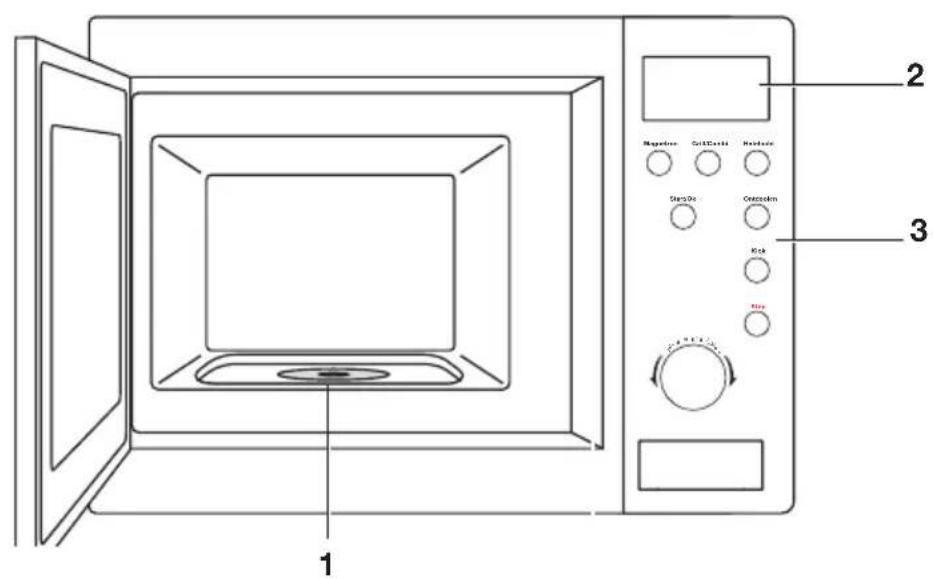

Description

1. Drive
2. Display
3. Control panel

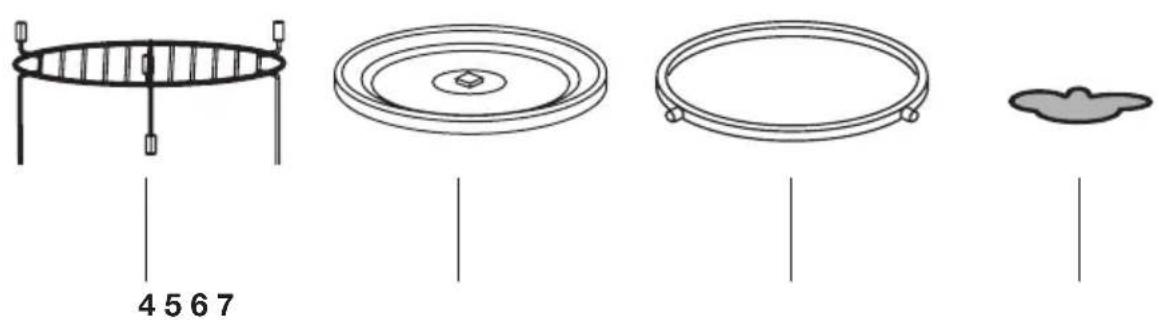

4. High rack
5. Turntable
6. Roller stay
7. Cam for turntable

The microwave may not be used without the guiding ring and turntable.

The turntable should be fitted with the opening for the drive shaft facing downwards.

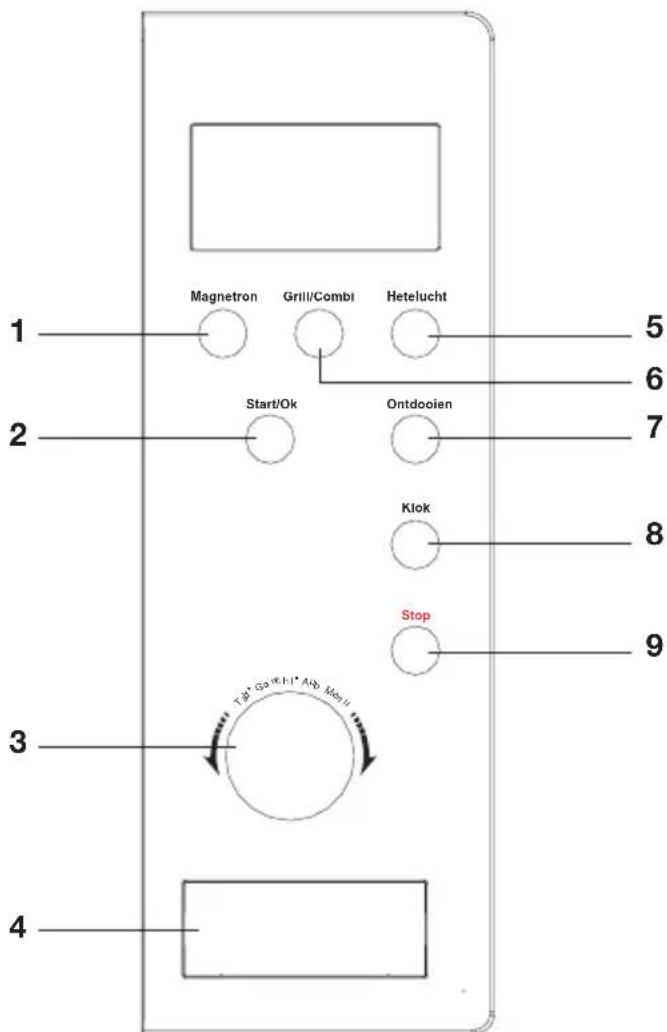

Control panel

1. Microwave
2. Start/OK
3. Time/weight/auto-menu
4. Open door
5. Hot air
6. Grill/combi
7. Defrost
8. Clock
9. Stop

Read the separate safety instructions before use.

Materials

Not all materials can be used in the microwave. The table below indicates which materials you can and cannot use.

Material Microwave
Paper yes*
Aluminium foil yes**
Cling film yes
Aluminium trays no
Heat-resistant plastic yes
Unglazed pottery no
Metal cooking utensils no
Normal glass yes
Pyrex, other oven-safe glass and ceramics yes
Plates with metallic decorative edging no
Metal closing strips no
Mercury thermometer no
Closed pot no
Bottle with a narrow neck no
Roasting bags yes

• Use non-decorated kitchen paper to cover a dish or place under bread during defrosting.
  ** By covering thinner areas of food (such as chicken legs) you prevent them from cooking too quickly.

Before first use

• Open the door, remove the packaging and check the microwave for damage. Do not install the microwave if it is damaged, but contact your supplier.
• Remove the protective film from the casing.
• Clean the oven interior and accessories with a damp cloth. Don't use any abrasive cleaner or strong-smelling cleaning products.
• Place the guiding ring in the middle of the oven interior.
  • Place the turntable on the guiding ring with the opening for the drive shaft facing downwards.

Please note!

The microwave may not be used without the guiding ring and turntable.

• Test that the microwave works properly: place a glass of water in the oven interior and turn on the microwave for one minute on the highest setting (press twice on the start button). Afterwards the water should be hot.

Standby mode

This appliance automatically switches to standby mode when the microwave is not in use. Press any key to wake up the microwave from the standby mode.

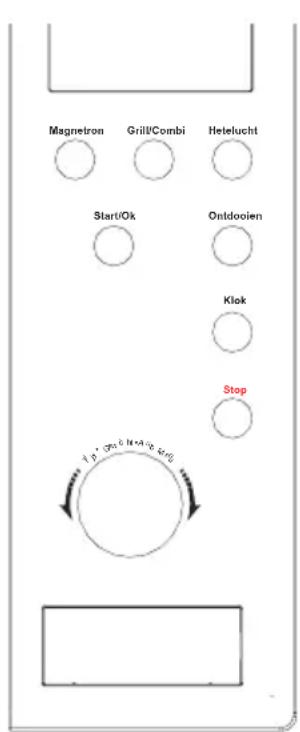

Setting the clock

1. Press the 'Klok' button. Select either 12-hour or 24-hour notation.
2. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the hours (between 0 and 23 for 24-hour notation / between 1-12 for 12-hour notation).
3. Press the 'Klok' button. The minutes-display starts to flash.
4. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the minutes (from 0-59).
5. Press the 'Klok' button. The time that you have set is displayed (":" flashes). If you press 'Stop' while setting the clock the previous clock setting will be displayed.

Remarks

When the microwave is connected to the electricity supply the display will show "0:00".

Cooking using the microwave

1. Press the 'Magnetron' button to select the microwave function. The display shows "P100".
2. Press the 'Magnetron' button repeatedly or turn the 'Tijd/Gewicht/Auto Menu' control knob to adjust the microwave power.
3. Press the 'Start/OK' button to confirm the microwave power.
4. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time (the maximum cooking time is 95 minutes).
5. Press the 'Start/OK' button to start the set programme.

Example:

You want to cook the dish at 80% of the microwave power level for 20 minutes.

1. Press the 'Magnetron' button once. The display shows "P100". Press the 'Magnetron' button again to set the power level to 80% . The display shows "P80".
2. Press the 'Start/OK' button.
3. Turn the 'Tijd/Gewicht/Auto Menu' control knob until the display shows "20:00" (the maximum cooking time is 95 minutes).
4. Press the 'Start/OK' button to start the set

Microwave power level table

Power level Press the Magnetron' button

100% (P100) 1x

80% (P80) 2x

50% (P50) 3x

30% (P30) 4x

10% (P10) 5x

Instant cooking

1. Press the 'Start/OK' button. Cooking will now be for 30 seconds at a microwave power level of 100% .

Each subsequent time you press the 'Start/OK' button the cooking process is extended by 30 seconds. The maximum cooking time

Hot-air cooking

Using the pre-heating function

1. Press the 'Hetelucht' button once. The display shows "150".
2. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired temperature (the temperature can be set between 150 and 240^ ).
3. Press the 'Start/OK' button to confirm the temperature setting.
4. Press the 'Start/OK' button to start the set programme.

Two beeps will sound when the pre-heating temperature is achieved. The temperature can be seen flashing in the display.

1. Place the meal in the oven and close the door. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time (the maximum cooking time is 95 minutes).
2. Press the 'Start/OK' button to start the set programme.

Hot-air cooking

Without using the pre-heating function

1. Press the 'Hetelucht' button once. The display shows "150".
2. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired temperature (the temperature can be set between 150 and 240^ ).
3. Press the 'Start/OK' button to confirm the temperature setting.
4. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time (the maximum cooking time is 95 minutes).
5. Press the 'Start/OK' button to start the set programme.

Cooking using the grill

1. Press the 'Grill/Combi' button once. G-1 flashes.
2. Press the 'Start/OK' button to confirm the set programme.
3. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time (the maximum cooking time is 95 minutes).
4. Press the 'Start/OK' button to start the set programme.

Two beeps will sound when the grilling time reaches the halfway point. We recommend turning the dish at this time to achieve a better result.

1. Press the 'Start/OK' button again to resume grilling.

Combination cooking

1. Press the 'Grill/Combi' button once. G-1 flashes.
2. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Select the desired combination programme (C-1, C-2, C-3 or C-4).
3. Press the 'Start/OK' button to confirm the set programme.
4. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time (the maximum cooking time is 95 minutes).
5. Press the 'Start/OK' button to start the set programme.

Table of combinations

Instructions	Display	Microwave	Grill	Hot-air
1	C-1	■
2	C-2	■
3	C-3
4	C-4	■

Defrosting

By setting the weight

1. Press the 'Ontdooien' button once. The display shows "dEF1".
2. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired weight (between 100 and 2,000 grams).
3. Press the 'Start/OK' button to start the set programme.

By setting a time

1. Press the 'Ontdooien' button twice. The display shows "dEF2".
2. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired defrosting time (the max. time that you can set is 95 minutes).
3. Press the 'Start/OK' button to start the set programme.

Preferably use the oven grid when preparing meals. Never place cold (frozen) meals directly on the glass turntable. The difference in temperature may cause it to crack!

Multistage cooking

You can set a maximum of 3 cooking stages. Set the defrost function (if applicable) as the first stage. A beep sounds after the end of each stage and the next stage will start.

The Auto-menu cannot be used with this mode.

Example

You want to defrost for 5 minutes and to cook for 5 minutes at a microwave power level of 80% .

1. Press the 'Ontdooien' button twice. The display shows "dEF2".
2. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the defrosting time to 5 minutes.

Pre-set function

1. Press the 'Magnetron' button twice for a microwave power level of 80% .
2. Press the 'Start/OK' button to confirm the microwave power.
3. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the cooking time to 7 minutes.
4. Press the 'Start/OK' button to start the set programme.

First set the clock (see the chapter entitled "Setting the clock")

1. Set a cooking function. A maximum of 3 functions can be set (apart from the defrost function). When using the "Auto menu", only one function can be set.
2. Press the 'Klok' button. The current time is shown in the display. The hours flash.
3. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired hours.
4. Press the 'Klok' button. The minutes flash.
5. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired minutes.
6. Press the 'Start/OK' button to confirm the set programme. When the set time arrives two beeps will sound and the cooking programme will start.

Auto menu

1. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired programme (A1, A2...A10).
2. Press the 'Start/OK' button to confirm the set programme.
3. Turn the 'Tijd/Gewicht/Auto Menu' control knob. Set the desired weight or quantity.
4. Press the 'Start/OK' button to start the set programme.

Cooking table auto menu

Menu Weight/Quantity Display Power
A1 reheat	150 g 150g		100%
	250 g 250g
	350 g 350g
	450 g 450g
	600 g 600g
A2 potato	1 (appr. 230 g) 1		100%
	2 (appr. 460 g) 2
	3 (appr. 690 g) 3
A3 meat	150 g 150g		100%
	300 g 300g
	450 g 450g
	600 g 600g
A4 vegetables	150 g 150g		100%
	350 g 350g
	500 g 500g
A5 fish	150 g 150g		80%
	250 g 250g
	350 g 350g
	450 g 450g
	650 g 650g
A6 pasta	50 g (with cold water 450 g) 50g		80%
	100 g (with cold water 800 g) 100g
	150 g (with cold water 1200 g) 150g
A7 soup	200 ml 200		100%
	400 ml 400
	600 ml 600
A8 cake	475 g 475g Preheat at 180		°C
A9 pizza	200 g 200g		C-4
	300 g 300g
	400 g 400g
A10 chicken	500 g 500g		C-4
	750 g 750g
	1000 g 1000g
	1200 g 1200g

Checking the settings

1. Press the 'Magnetron', 'Grill/Combi' or 'Hetelucht' button during cooking. The set power level is shown on the display for 2-3 sec.
2. Press the 'Klok' button while using the pre-set function. The current auto-start time is shown on the display for 2-3 sec.
3. Press the 'Klok' button during cooking. The time is shown on the display for 2-3 sec.

Childproof lock

Turn the childproof lock on

1. Press the 'Stop' button for 3 seconds. A "long" beep will sound. The display shows '0:00'.

Turn the childproof lock off

1. Press the 'Stop' button for 3 seconds. A "long" beep will sound.

Cleaning

• DO NOT USE any abrasive cleaners or metal scrapers to clean the glass door. This will scratch the surface which may cause the glass to break.
• DO NOT USE high pressure cleaners or steam cleaners to clean the microwave.
• Clean the interior directly after use. Use a damp cloth to remove condensation, boiled over liquid and food remnants. Remnants of crumbs and moisture absorb microwave energy and increase cooking time.
• Clean the interior and outer casing regularly; use some washing-up liquid and water and dry the microwave well with a dry cloth.
• Ensure that the cover of the microwave distributor is clean. Dirt in the cover can lead to spark formation.
• Clean the accessories regularly; use some washing-up liquid and water with a brush and dry the accessories well with a dry cloth. The accessories may also be washed in the dishwasher.
• Smells will disappear if you place a glass of vinegar or water with lemon in the microwave area. Switch the microwave on at full power for two minutes. Then rub down with a damp cloth.
• Check the door closure and the door rubber regularly for damage. Do not use the microwave if the door or door closure is damaged.
• If the seal of the microwave is very dirty, the door won't close properly. The front of adjacent furniture can become damaged. Keep the seal clean.
• Salt is extremely aggressive. When this is deposited in the oven interior, rust patches can be created.
• Spicy sauces such as ketchup and mustard or salty dishes such as salted meat contain ingredients that can erode the surface. After use, you should always clean the oven interior.

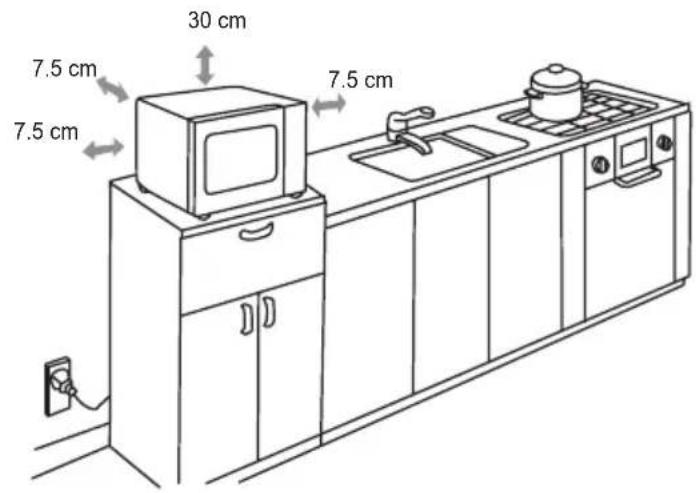

Put the microwave on a solid, flat surface.

Ensure that there is adequate ventilation around the microwave.

Do not cover the ventilation openings.

The adjustable feet may not be removed.

Do not place the microwave in the vicinity of heat sources.

Broadcasting and transmitting equipment such as radios and TVs can affect the working of the microwave.

If you are uncertain about whether your appliance is functioning properly, this does not automatically mean there is a defect. Try to deal with the problem yourself first by checking the points mentioned below: If the recommendations below do not solve your problem, call our service department.

Is the plug in the socket?
- Is the door closed properly?
- Is the fuse in the fuse box faulty?
- Are the power settings and times set properly?
- Are there objects in the microwave that shouldn't be there?
- Did you use the correct kitchen utensils?
- Are the ventilation openings blocked?
- Has the food been defrosted sufficiently?
- Did you turn over or stir the food during preparation?
Is the child lock activated?

Sparks in the microwave

If you see sparks in the microwave, turn the microwave off immediately. Sparks can be caused by:

• metal or aluminium foil that touches the interior of the microwave;
• aluminium foil that is not correctly covering the food (points that stick up act as an antenna);
• metal from a closing strip or tableware with metallic edges;
  recycled paper that contains small metal particles.

Technical data

The data plate indicates the total nominal load, the required voltage and the frequency.

This appliance meets all relevant CE guidelines.

Connection 230V ~ 50Hz
Connected load 2.5 kW
Microwave power 900 W
Grill power output 1.1 kW
Oven power 2.5 kW
Volume 25 litres
Weight 18.1 kg
Dimensions (whexd) 513 x 306 x 492 mm

Disposal of the appliance and packaging

Sustainable materials have been used during manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. The government can provide you with information about this.

The appliance packaging is recyclable. The following materials may have been used:

cardboard;
polyethylene film (PE);
CFC-free polystyrene (PS hard foam).

You should dispose of these materials responsibly and in accordance with government regulations.

The product has been marked with a crossed-out dustbin symbol to remind you of the obligation to dispose of electrical household appliances separately. This means that the appliance may not be included with normal domestic refuse at the end of its service life. The appliance must be taken to a special municipal centre for separated waste collection or to a dealer providing this service.

Separate collection of household appliances helps to prevent any potential negative impact on the environment and on human health caused by improper disposal. It ensures that the materials of which the appliance is composed can be recovered to obtain significant savings in energy and raw materials.

Declaration of Conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

716180
