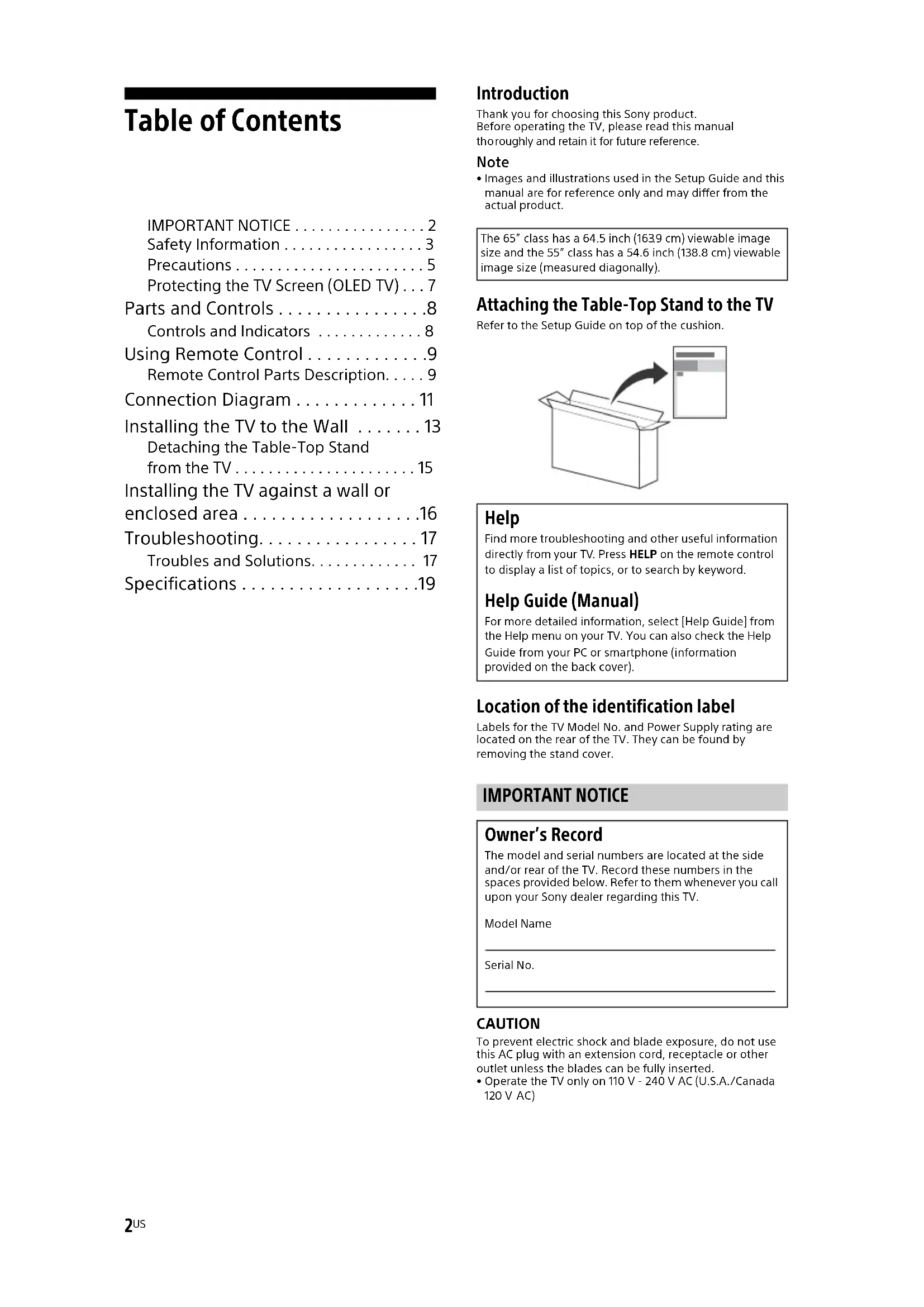

USER MANUAL Bravia Oled XBR65A8F SONY

• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product. Attaching the Table-Top Stand to the TV Refer to the Setup Guide on top of the cushion. Location of the identification label Labels for the TV Model No. and Power Supply rating are located on the rear of the TV. They can be found by removing the stand cover. CAUTION To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted. • Operate the TV only on 110 V - 240 V AC (U.S.A./Canada

0 V AC) The 65” class has a 64.5 inch (163.9 cm) viewable image size and the 55” class has a 54.6 inch (138.8 cm) viewable image size (measured diagonally). Help Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword. Help Guide (Manual) For more detailed information, select [Help Guide] from the Help menu on your TV. You can also check the Help Guide from your PC or smartphone (information provided on the back cover). IMPORTANT NOTICE Owner’s Record The model and serial numbers are located at the side and/or rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.Model NameSerial No.3

Note Note This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider. FCC Related Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced r adio/TV technician for help. Safety and Regulatory This device complies with Industry Canada’s licence- exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including int erf erence that may cause undesired operation of the device. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. 5 GHz bands are restricted to indoor operations only. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This

ipment should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). This device and its antenna(s) must not be co-located or operat ing with any other antenna or transmitter except Grant condition. High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650- 5850 MHz and that these radars could cause interference and/o r damage to LE-LAN devices. WARNING Stability Hazard The television set may fall, causing serious personal injury or death. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the

anuf acturer of the television set.

• Only using furniture that can safely support the television set.

Ensuring the television set is not overhanging the edge of the suppo rting furniture.

• Not placing the television set on tall furniture (for exam ple, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials tha t m ay be located between the television set and supporting furniture.

• Educating children about the dan gers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and reloc ated, the same considerations as above should be applied. Before setting up your TV Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. See page 13 (Installing the TV to the Wall) if you want to mount the TV to a wall. If you are not mounting the TV to a wall, you will nee d to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the supplied screws to complete the task, refer to the Setup Guide. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequat e nu mber of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very import ant for safety and to avoid damage.

• Ensure your TV has adequate ventilation, see page 16.

• For best picture quality, do not e xpose th e screen to direct illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and floor m aterials. Safety Information Declaration of Conformity Trade Name: SONY Model: XBR-65A8F/XBR-55A8F Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230 This device complies with part 15 of the FCC rules. Oper

ion is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Pursuant to FCC regulations, you are cautioned that any

hanges or modifications not expressly approved in this manual could void your authority to operate this equipment.4

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on. Securing the TV Sony strongly recommends taking measures to prevent the TV from toppling ov er. Unsecured TVs may topple and result in propert y damage, serious bodily injury or even death. Preventing the TV from Toppling

• Secure the TV to a wall and/or Stand.

• Do not allow children to play or climb on furniture and TV sets.

Avoid placing or hanging items on the TV.

lippery, unstable and/or uneven surfaces. Furniture that can easily be used as steps, such as a chest o f drawers.

• Install the TV where it cannot be pulled, pushed, or knocked over

• Install the TV so that the TV bottom does n ot protrude out from the Stand (not supplied). If the TV bottom protrudes out from the Stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Route all AC power cords and connecting cables so that

hey ar e not accessible to curious children. Recommended Measures to Secure the

Consider the following measures when securing your TV to a Stand (not supplied). 1 Secure the Stand for the TV. Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the Stand. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.

• Attach the other side to the Stand. 2 Secure the TV to the Stand. Use the optional hardware listed as follows (not supplied):

• M4 machine screw (screwed into the TV’s stand base).

• A screw or similar (attach it to the Stand).

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain. The length of the M4 machine screw differs depending

e rope or chain diameter. Please refer to below illustration. 3 Anchor the TV to the wall by using bolts, wall anchor and chain (or rope). Angle brace (not supplied) Stand Rope or chain (not supplied) Screw (not supplied) M4 machine screw (not supplied) Screw hole on the stand base 6 mm - 7 mm Screw (M4) Rope or chain TV’s stand base M6 eye bolts (not supplied) Wall-mount holes Rope or chain (not supplied)5

Please refer to below illustration for M6 eye bolt length. Note Note

• Your TV is shipped with screws attached to the rear of the TV depending on the TV model. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV to a wall.

• Securing the TV to the Stand without securing the TV and the Stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended. How to care for your BRAVIA TV Safety is very important. Please read and follow the safety documentation (Safety Booklet) separately provided. Unplug the TV and other con nected equipment from the wall outlet before you begin cleaning your TV.

• Wipe the screen gently with a soft clo th.

• Stubborn stains may be remove d with a cloth slightly moistened with a solution of mild soap and warm water.

ret reated cloth, please follow the instruction provided on the package.

y drip t o the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a thinner, alcohol or benzin e fo r cleaning.

• Do not plug in the TV into the wall outlet until the mois ture from cleaning has evaporated.

• Do not touch the TV if your hand is covered in any chemica l substance such as hand cream or sunblock. The TV should also be placed on a stable surface to prevent it from t oppling over (see page 4). If you have young children or pets at home, check regularly to ensure the TV is securely f astened. Recommendation for an F type plug Projection of the inner wire from the connection part must be less than 1.5 mm. Precautions Wall-anchor (not supplied) 10 mm - 14 mm TV’s rear cover M6 eye bolt

(Reference drawing for an F type plug) 7 mm max.6

• For details of supported formats, refer to the “Specifications” in this manual.

• For supported PC formats, refer to the Help Guide. The BRAVIA® 4K TV Experience Thank you for choosing Sony! Your new BRAVIA® TV opens the door to the “4K TV Experience”. This document will help you get the most out of your TV. Please take a moment to register your TV at: U.S.A.: http://productregistration.sony.com Canada: http://www.sony.ca/registration Four Steps to a 4K TV Experience Set, Source, Sound, and Setup.

Set Now that you have made the best selection in OLED TV technology, be su re to remove all of the accessories from the packaging before setting up your TV.

Source To experience the stunning detail of your BRAV IA TV, you need access to HD programming.

• Upgrade your signal or content source to high-definition (4K) by contacting your HD service provider.

• Bring the astonishing resolution of your Sony 4K Ultra HD TV t o life with Sony 4K Ultra HD Blu-ray Player. (The availability depends on region)

• Receive over-the-air HD broadcasts with an HD-quality antenna connected directly to the back of your TV. Visit htt p://www.antennaweb.org fo r more information on antenna selection and setup.

• Discover the wealth of entertainment now available on super-high r esolution Blu-ray Disc™ player and other Sony HD equipment.

Sound Complete the high-definition experience with a BRAV IA Sync™ surround sound system or A/V receiver from Sony.

Setup Install your TV and connect your sources. See page 11 for sample conne ction diagrams. To help assure the highest quality for your HD experience, use Premium High Speed HDMI (High-Definition Multimedia Interface) cables. To learn more about 4K TV, visit: U.S.A.: http://www.sony.com/HDTV Canada: http://www.sony.ca/hdtv This TV displays all video input signals in a re solution of 3,840 dots × 2,160 lines.7

Precautions to Protect the Screen from Damage Image retention OLED TV‘s are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention. The following are examples of images that may cause image retention:

• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition)

• Static images such as photos.

• Video games that might have static content in some part of the scr een.

• On-screen menus, program guides, channel logos etc.

• Static content from applications.

• On-screen tickers, such as those used for news and

adlines. To reduce the risk of image retention:

• Sony recommends that you turn off the TV normally by pressing the power button on the remote control or the TV.

• Fill the screen by changing [Wide mode] to eliminate the black

rs. Select [Wide mode] other than [Normal].

• Turn off the OSD (On Screen Display) by pressing the DISPLAY button, and turn off the menus from connected equipment. For details, refer to the instruction manuals for the connected equipment.

• Avoid displaying static images with bright colors (includin g w hite), clocks or logos on any portion of the screen.

• Set the picture settings based on the ambient conditions.

he S tandard Picture is recommended for home use and when viewing content that often displays the station logos, etc. The TV has following features to help reduce/ prevent

age r etention. Panel refresh Panel refresh will automatically run to adjust the uniformity of the TV screen after it has been in use for long periods of time. Panel refresh can also be performed manually and should only be used if image retention is very noticeable or you see the following message: [Panel refresh did not finish…] Caution:

• The Panel refresh function may affect the panel. As a reference, perform the Panel refresh only once a year, do not perform it more than once a year as it may affect the usable life of the panel.

• Panel refresh takes about one hour to complete.

• A white line may be displayed on the screen during the

anel r efresh, this is not a malfunction of the TV.

• Panel refresh will only work when the room temperature is betwe en 50 ºF and 104 ºF (10 ºC and 40 ºC). Pixel shift Automatically moves the image on the screen to prevent image retention. Other feature The screen brightness is automatically reduced when displaying still images, clocks, bright colors or logos etc. Protecting the TV Screen (OLED TV)8

Parts and Controls (Power) / + / – When the TV is off,Press to power on.When the TV is on,Press and hold to power off.Press repeatedly to change the function, then press + or - button to:•Adjust the volume.• Select the channel.• Select the input source of TV. Remote Control sensor* / Light sensor* / Illumination LED The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Guide.* Do not place anything near the sensor. Controls and Indicators ȩUsing Remote Control Remote Control Parts Description The remote control shape, location, availability and function of remote control buttons may vary depending on yo ur region/country/TV model.

MIC (Google Assistant) / (Microphone) Use the Google Assistant* (only on limited region/country/ language/TV model) or Voice Search. (e.g., Search various content by voice.) STB MENU Display the connected Set Top Box (cable/satellite box) menu after connecting and setting up the IR Blaster (page 12). //// (Navigation D-Pad) On screen menu navigation and selection. Switch to a TV channel or input and display the TV Menu Bar.

• The Google Assistant will be available when software is updated. INPUT Display and select the input source. (TV standby) Turn on or turn off the TV (standby mode). SYNC MENU Display the BRAVIA Sync Menu. Number buttons Use with the 0-9 buttons to select digital channels. DISPLAY Display information about the channel/ program/input you are viewing. Google Play Access the “Google Play” online service. NETFLIX (Only on limited region/ country/TV model) Access the “NETFLIX” online service. Color buttons Execute corresponding function at that time.

Display a list of contextual functions. GUIDE Display the digital program guide. APPS Access various services and applications. BACK Return to the previous screen. HOME Display the TV Home Menu. VOL +/– (Volume) Adjust the volume. JUMP Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected. MUTING Mute the sound. Press again to restore the sound. CH +/– (Channel) Select the channel. AUDIO Change the language for the program currently being viewed.

Operate media contents on the TV and connected BRAVIA Sync-compatible device. SUBTITLE/CC Turn subtitles on or off (when the feature is available). HELP Display the Help menu. Help Guide can be accessed from here. WIDE Change the screen format. PIC OFF Turn the picture off, while sound remains on. Guidelines for IR Remote Control

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the rem ote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.

Connection Diagram For more information on connections, refer to the Help Guide by pressing HELP on the remote control. Note Note

• When connecting the cable to the Cable/Antenna input, finger tighten only, over tightening the connection can damage the TV. HDMI Device VCR/Video game equipment/DVD player/ Camcorder Audio System with Optical Audio Input Home Controller Cable/ Antenna Router IR Blaster HDMI Device Digital still camera/ Camcorder/ USB storage media Headphone/Audio System/Subwoofer Audio System with ARC/ HDMI Device < 14 mm Home Controller HDMI Device Digital still camera/ Camcorder/USB storage media12

• These jacks are for receiving the external control signal. Enables extended control of the TV using RS- 232C via the RS-232C and IR IN jacks. RS-232C: connect to the RS-232C terminal of the home controller. IR IN: connect to the IR out terminal of the home co ntroller.

• Take care to not connect to headphones or an ex ternal audio system. / VIDEO IN

• To listen to the TV's sound through the connected equipment, press HOME. Select [Settings] [Sound] [Headphone/Audio out] and then select the desired item. IR BLASTER*

• Use your Sony remote control to control your Set Top Box (cable/ satellite box). Connect the IR Blaster Cable (supplied) to the IR Blaster port on your TV. Place one or both of the other two ends as shown below.

• To perform IR Blaster setup, press HOME and select [Settings] [External inputs] [IR Blaster setup]. USB 1/2, USB 3

• Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port. HDMI IN 1/2/3/4

• HDMI interface can transfer the digital video and audio on a single cable.

• HDMI IN 2/3 To enjoy high quality 4K 50p/60p contents, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format]. For details of supported formats, refer to the “Specifications“ in this manual (page 19-20).

• HDMI IN 3 ARC (Audio Return Channel) Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

• Only on limited region/country/TV model. Note Note

• You cannot attach the side cover while the cables are connected to side terminal.

• Be sure to store the side cover in a safe place for

Installing the TV to the Wall This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. If the Table- Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand; see page 15 (Detaching the Table-Top Stand from the TV). Prepare the TV for the Wall-Mount Bracket before making cable connections. For product protection and safety reasons, Sony strongly recommends that installation of your TV on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount

ack et thickness. Please refer to below illustration.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are

ead y to attach the Table-Top Stand. Keep the screws away from small children. Note Note

• Read the supplied Safety Booklet for additional safety information.
• You can remove the foot parts and screws after the TV is completely installed to the wall.
• Be sure to store the removed foot parts and screws in a safe place, keeping them away from children.• Be sure to attach the foot parts and screws at original position when using the Table-Top Stand. If using an ele ctric screwdriver, set the torque at approximately 0.4 N·m {4 kgf·cm}. Wall-Mount Bracket Screw (M6) 10 mm - 14 mm TV’s rear cover Foot part Screw14

Installing the TV to the Wall from Table-Top Stand 1 Remove the stand cover and terminal covers. 2 Remove the screws from the rear of the TV. 3 Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied). Note Note

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.• You cannot use some of the cable holders on the rear of the TV when using a Wall-Mount Bracket (not supplied).

Wall-Mount Bracket (not supplied)Screw (not supplied)15

• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV.

• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV with the panel facing down.• When attaching the Table-Top Stand again, be sure t o fa sten the screws (previously removed) to the original holes on the rear of the TV. Detaching the Table-Top Stand from the TV16

Installing the TV against a wall or enclosed area Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space around the TV s et as shown below. Installed with stand Installed on the wall Note Note

• Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or cause a fire.

inches (6 cm)Leave at least this much space around the set. 4 inches(10 cm)4 inches(10 cm)Leave at least this much space around the set.4 inches (10 cm)

inches (30 cm) Never install the TV set as follows: Air circulation is blocked. Do not block the air circulation area. Air circulation Wall Wall17

Troubleshooting General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps. 1 Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the TV from the AC power cord for three minutes and then plug it in again. 2 Refer to the Help menu by pressing HELP on the remote control. 3 Connect your TV to the Internet and perform a software update. 4 Visit Sony support website (information provided on the front cover). 5 Perform the factory data reset. Refer to “How to reset the TV to factory settings” (page 17). When [A new TV system software update is available…] message is displayed. Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating…] will appear and the illumination LED flashes white while software is updating. Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes. When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV. It takes time to initialize the system. Wait for about one minute, then operate it again. How to reset the TV to factory settings

WARNING: The reset will clear all of your

customized settings including the parental lock setting. Turn on the TV. You can reset the TV to factory settings by pressing HOME, then select [Settings] [Storage & reset] [Factory data reset]. To force factory data reset, unplug the AC power cord. Press and hold both and – buttons on the TV, then plug in the AC power cord. Release both buttons when the illumination LED blinks in green. For security purposes, be sure to remove all personal and account information before discarding, selling or passing your TV to someone else by: unlinking/unregistering, signing out of and deactivating all network services as well as factory reset the TV. Troubles and Solutions When the illumination LED is flashing in red. Count how many times it flashes (interval time is three seconds). Reboot the TV by disconnecting the AC power co rd from the TV for three minutes, then turn on the TV. If the problem persists, disc onnect the AC power cord, and contact Sony Customer Support (information provided on the front cover) with the number of times the illumination LED flashes. There is no picture (screen is dark) and no sound. Check the cable/antenna connection. Connect the TV to the AC power, and press the power button on the TV or the remote control. Some programs cannot be tuned. Check the cable/antenna connection. The remote control does not function. Replace the batteries. The STB MENU button on the remote control does not work. Check the connection and set up of the IR Blaster (page 12). The parental lock password has been forgotten. Enter 4357 for the password and select [Change PIN]. Updating...18

The restricted profile password has been forgotten. Perform the force factory data reset. Refer to “How to reset the TV to factory settings” (page 17). The TV and its surroundings become warm. When the TV is used for an extended period of time, the TV and its surroundings may become warm to the touch. This is not a malfunction of the TV. The screen becomes darker while watching TV. If the whole image or part of the image remains still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV. You are concerned about image retention. If the same image is displayed repeatedly or for long periods of time, image retention may occur. To reduce image retention, we recommend that you turn off the TV normally by pressing the power button on the remote control or the TV. Note Note

• Perform Panel refresh manually only when image retention is particularly noticeable. As a reference, perform it only once a year. Avoid performing it more than once a year because it may affect the usable life of the panel.

• Images that include clocks, logos and bright colors (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur. A white line appears on the screen. Panel refresh automatically runs after the TV has been used for long periods of time to reduce image retention. Panel refresh starts after the TV is turned off and takes about one hour to complete. A white line may be displayed on the screen during the Panel refresh. This is not a malfunction of the TV. The message [Panel refresh did not finish…] is displayed. Panel refresh automatically runs after the TV has bee n used for long periods of time to reduce image retention. If the TV is turned on, the AC power cord is unplugged, or the room temperature falls outside of the range between 50 ºF and 104 ºF (10 ºC and 40 ºC) during the Panel refresh, the process will not be completed and this message will appear. If Panel refresh started automatically, it will restart when you turn off the TV with the remote control. If Panel refresh initiated manually, you must select it again.19

When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2].

HDMI IN 2/3 only. To support 18 Gbps, set [HDMI signal format] to [Enhanced format].

Refer to the Help Guide for details. Audio:

5.1 channel linear PCM: 32/44.1/48/88.2/

96/1 76.4/192 kHz 16/20/24 bits, Dolby Digital, Dolby Digital Plus and DTS ARC (Audio Return Channel) (HDMI IN 3 only) (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS) DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, DTS) AUDIO OUT / (Stereo mini jack) Headphone, Audio output, Subwoofer 1, 2, 3 USB port 1 and 2 support High Speed USB (USB 2.0) USB port 3 supports Super Speed USB (USB 3.1 Gen 1) LAN 10BASE-T/100BASE-TX connector (Connection speed may differ depending on the network environment. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.) Refer to the Help Guide for supported files and f orma ts in Home Network. REMOTE RS-232C mini jack, IR IN mini jack These jacks are for receiving the external cont rol signal. IR BLASTER *

Less than 0.5 W with 120 V AC and less than

inches wall-mount hole pattern XBR-65A8F: 300 × 300 mm XBR-55A8F: 300 × 200 mm wall-mount screw size (mm) M6 (length: refer to diagram on page 13.) Mass (Approx.) with stand XBR-65A8F: 28 kg / 61.7 lb. XBR-55A8F: 22.2 kg / 48.9 lb. without stand XBR-65A8F: 24.4 kg / 53.8 lb. XBR-55A8F: 18.7 kg / 41.2 lb.

Only on limited region/country/TV model.

Specified standby power is reached after the TV finishes necessary internal processes.

Standby power consumption will increase when your TV is connected to the network. Note Note

• Optional accessories availability depends on countries/region/TV model/stock.• Design and specifications are subject to change without notice. Licensing Information

• The terms HDMI and HDMI High- Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

• Manufactured under license from Dolby Labor

ories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA”, and BRAVIA Sync are trademarks or registered marks of Sony C orpor ation.

• Gracenote, the Gracenote logo and logotyp e, “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

ewd S oftware AS. All rights reserved.

• Google, Android TV, Google Play, Chr ome cast built-in, YouTube and other related marks and logos are trademarks of Google LLC.

• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and Mirac ast® are registered trademarks of Wi-Fi Alliance.

• Wi-Fi Protected Setup™ is a trademark

• The Wi-Fi CERTIFIED™ Logo is a

ert ification mark of Wi-Fi Alliance.

tured under license from DTS, Inc. DTS, the Symbol, & DTS and the Sym bol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos

registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Netflix is a registered trademark of

• TUXERA is a registered trademark of Tux era Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is

gistered trademark of USB Implementers Forum, Inc.

• All other trademarks are the property

their respective owners.21

• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® et
