Product Type	DVD Player with Multimedia Receiver
Brand	Kenwood
Model	Excelon DDX8906S
Installation Dimensions (W × H × D)	178 × 100 × 160 mm
Screen Size	6.95 inches (diagonal)
Screen Resolution	800 × 480 pixels (TFT LCD)
Power Supply	12 V DC (car battery)
Maximum Audio Output Power	50 W × 4 channels
Preamp Output Level	5 V / 10 kΩ
Supported Audio Formats	MP3, WMA, AAC, FLAC, WAV, OGG (depending on source)
Supported Video Formats	MPEG-1/2, H.264, WMV, MKV, MP4
Disc Player	DVD-Video, VCD, CD-DA, CD/DVD with files
USB Connectivity	2 USB ports (front/rear) – 5 V, 1.5 A max each
Bluetooth	Version 5.0, profiles HFP, A2DP, AVRCP, PBAP
Built-in Wi-Fi	802.11 a/b/g/n/ac, dual band 2.4/5 GHz
Smartphone Compatibility	Apple CarPlay (wired/wireless), Android Auto (wired/wireless)
Radio	FM (87.9–107.9 MHz), AM (530–1700 kHz), RDS
HD Radio / SiriusXM	Built-in HD Radio, SiriusXM ready (optional tuner)
Rear Camera Input	Yes (compatible with front/rear camera)
Wireless Mirroring	Yes (compatible Android devices)
Graphic Equalizer	13 bands, individual adjustment
2/3 Way Crossover	Yes (high-pass, low-pass, band-pass filters)
Security Code	Configurable (4 or 8 digits)
Recommended Cleaning	Soft dry cloth; avoid solvents and alcohol
Operating Temperature	0 °C – 60 °C (overheat protection)

Frequently Asked Questions - Excelon DDX8906S KENWOOD

How to connect my iPhone to Apple CarPlay wirelessly?

For a wireless connection, make sure the iPhone's Bluetooth and Wi-Fi are enabled. First, register the iPhone via the USB port (black) or from the Apple CarPlay device list in the AV menu. Then, when selecting the Apple CarPlay source, choose the registered iPhone from the device list. The wireless connection requires the GPS antenna and speed pulse input to be connected.

How to set the clock automatically with GPS?

Go to the SETUP menu > User Interface. Set Clock to GPS-SYNC. The time synchronizes automatically with GPS signals. You can also choose Manual for manual adjustment.

What to do if the unit displays 'Mecha Error'?

This is a disc player malfunction. Try ejecting the disc by holding the ▲ button for 2 seconds, then touch DISC EJECT. If the problem persists, contact your Kenwood dealer.

How to clean the screen and front panel?

Use a soft dry cloth (silicone type). For stubborn stains, lightly dampen the cloth with a neutral cleaning product, then wipe with a dry cloth. Do not use solvents (alcohol, gasoline) or rough cloth that could damage the surface.

Can I use a USB flash drive with video files?

Yes, the unit plays MPEG-1/2, H.264, WMV and MKV video files (max size 1920×1080, bitrate 8 Mbps). The USB drive must be formatted in FAT16, FAT32, exFAT or NTFS. Connect it to a USB port, select the USB source, then touch the video icon in the list.

How to set the security code?

Press MENU, touch SETUP, then Security. Enable Security Code Set and enter a 4 or 8 digit code. Confirm by re-entering it. Note that the code cannot be changed once activated, and the function cannot be disabled without the code.

Why is the sound cut off or very low?

Check that the volume is not at 0 or in attenuated mode (ATT). Make sure the MUTE function is not enabled. If you are using a speaker with impedance lower than 4 Ω, the protection circuit may activate. Refer to the Troubleshooting section of the manual.

How to use the DVD menu during playback?

During DVD playback, touch the key display area to show the control screen. Touch MENU CTRL to access the disc menu. Use the TOP (main menu), MENU, Return, Enter keys and direction arrows. You can also activate highlight control by touching Highlight.

How to update the unit's firmware?

System updates are available at http://www.kenwood.com/cs/ce/. Download the latest firmware version and follow the provided instructions. It is recommended to check for updates regularly to benefit from new features.

What to do if the screen remains black after power-on?

Check that the unit is properly powered (battery voltage 12 V). If the screen was intentionally turned off (Display OFF mode), touch the screen to reactivate. If the problem persists, check the cable connections and fuse. Refer to the manual for detailed troubleshooting.

USER MANUAL Excelon DDX8906S KENWOOD

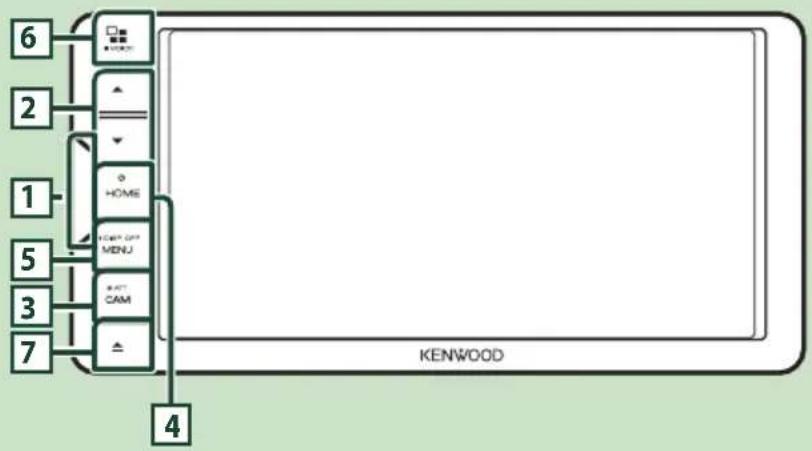

Diagram of a device with a panel and clamped components, no text or symbols present

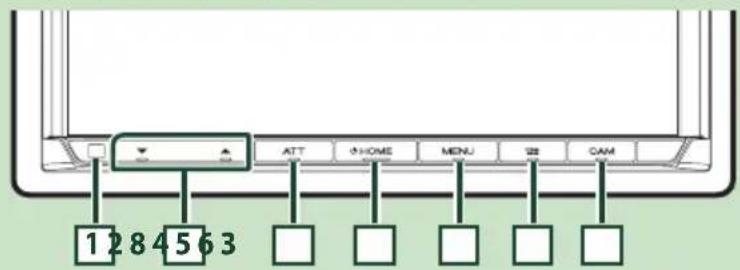

DMX906S / DMX9706S

DDX819WBTL

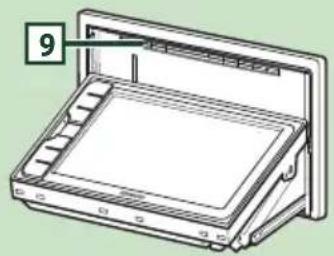

Line drawing of a mechanical device with a labeled component (no text or symbols present)

REMARQUE

[Language]

REMARQUE

1 Angle de vue

Hand cursor icon pointing at a button (no text or symbols)

Hand cursor icon pressing a circular button on a light green background (no text or symbols)

REMARQUE

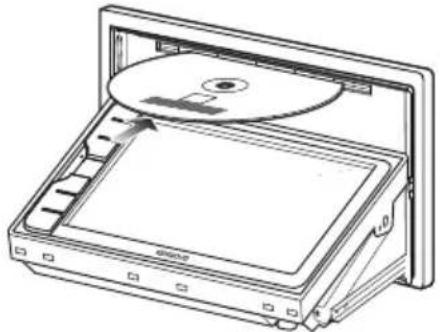

[Photo Frame is .....]

Technical line drawing of a CD or DVD disc assembly with an arrow indicating motion (no text or symbols present)

DDX819WBTL

Diagram of a CD or DVD drive assembly with an open lid and internal compartments (no text or symbols)

Scenic coastal landscape with three framed photos of wildflowers and sea, numbered 6 and 7 to 8 (no text or symbols on the landscape itself)

La lecture commence.

Coastal landscape with green foliage and ocean background, no visible text or symbols

Cityscape with highway traffic and two inset images of high-speed rail infrastructure (no visible text or symbols)

REMARQUE

Coastal landscape with green foliage and ocean background under a partly cloudy sky (no text or symbols visible)

■Menu Language/Subtitle Language/Audio Language]

■[Dynamic Range Control]

[Menu Language], [Subtitle Language], [Audio Language].

Apple CarPlay is connected

REMARQUE

1

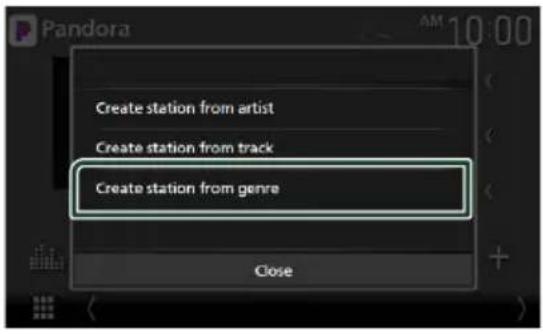

1 Touchez [Create station from genre].

Line drawing of a USB connector with a cable, showing a port and connector (no text or symbols)

▶ (lecture), ▶▶ (avance rapide),

◀◀ (retour rapide), ▪ (pause).

Scenic coastal landscape with green foliage and distant mountains under a cloudy sky (no text or symbols)

REMARQUE

REMARQUE

REMARQUE

Fermer le tiroir

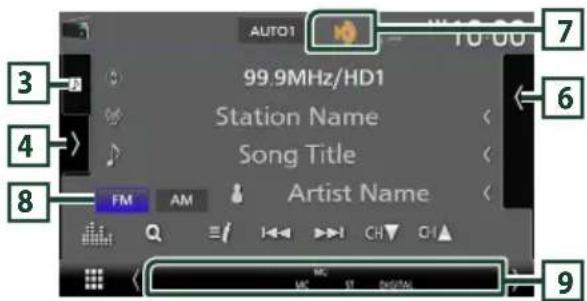

HD2/HD3

[Auto]

REMARQUE

Enregistre un favori.

REMARQUE

REMARQUE

2 Touchez [Traffic & Weather].

[Listen]

REMARQUE

REMARQUE

REMARQUE

REMARQUE

[√ All]

SiriusXM®

REMARQUE

[Edit]

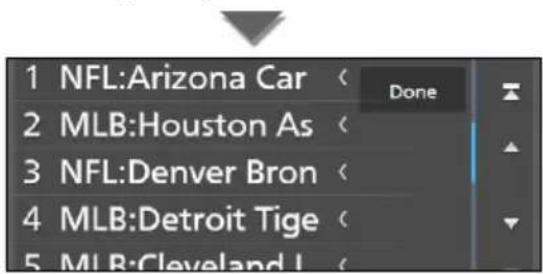

3 Touchez [Done].

REMARQUE

■ HFP [Hands Free1/Hands Free2/No Connection.]

[TEL (HFP) 1], [TEL (HFP) 2]

[√ All]

La lecture commence.

REMARQUE

REMARQUE

DDX819WBTL

■[Add number from phonebook]

[√ All]

[Bluetooth HF/Audio]

REMARQUE

[Rear Camera Interruption]

[Parking Guidelines]

[Front Camera Interruption \*3]

1 [Picture from view camera]

1 [Picture from view camera]

Two-panel image showing a coastal scene with banana plants and ocean, one with a magnified inset highlighting the sea (no text or symbols)

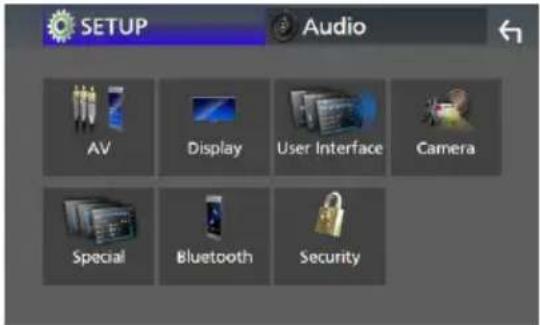

2 Touchez [Screen Adjustment].

■ [Backlight/Contrast/Black/Brightness/Color/Tint]

[Beep Volume] (DDX9906XR)

REMARQUE

Configuration

5 Touchez [Learning completed].

REMARQUE

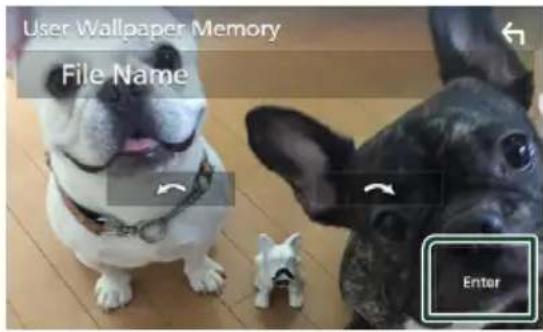

[Wallpaper Customize]

[User]

3 Touchez [Enter].

■[Speech Quality Adjust]

5 Touchez [Enter].

Contrôle de l'audio

[Speaker]

REMARQUE

[HPF FREQ]

[Phase Inversion] ^4

■ [FREQ] (Bande passante haute)

[Fader / Balance]

REMARQUE

Décalage du volume

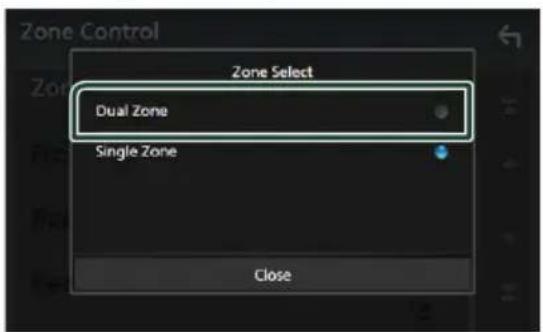

5 Touchez [Dual Zone].

[Zone Select]

[Front Source], [Rear Source]

[Bass Boost]

"OFF", "Low" (Bas), "High" (Haut)

[Drive Equalizer]

3 Touchez [Position/DTA].

[Sound Image LR (Front)]

[Sound Image LR (Rear)]

[Audio SETUP Memory]

[Audio SETUP Recall]

Diagram of a mobile phone rear panel with battery and switch components (no text or labels)

Mode AUD

Top-down schematic of a computer case with internal components and a central fan-like device (no text or labels)

Ventilateur

[1] Sauf DDX819WBTL
[2] DDX819WBTL uniquement
[3] DDX9906XR/ DDX8906S/ DMX906S

uniquement

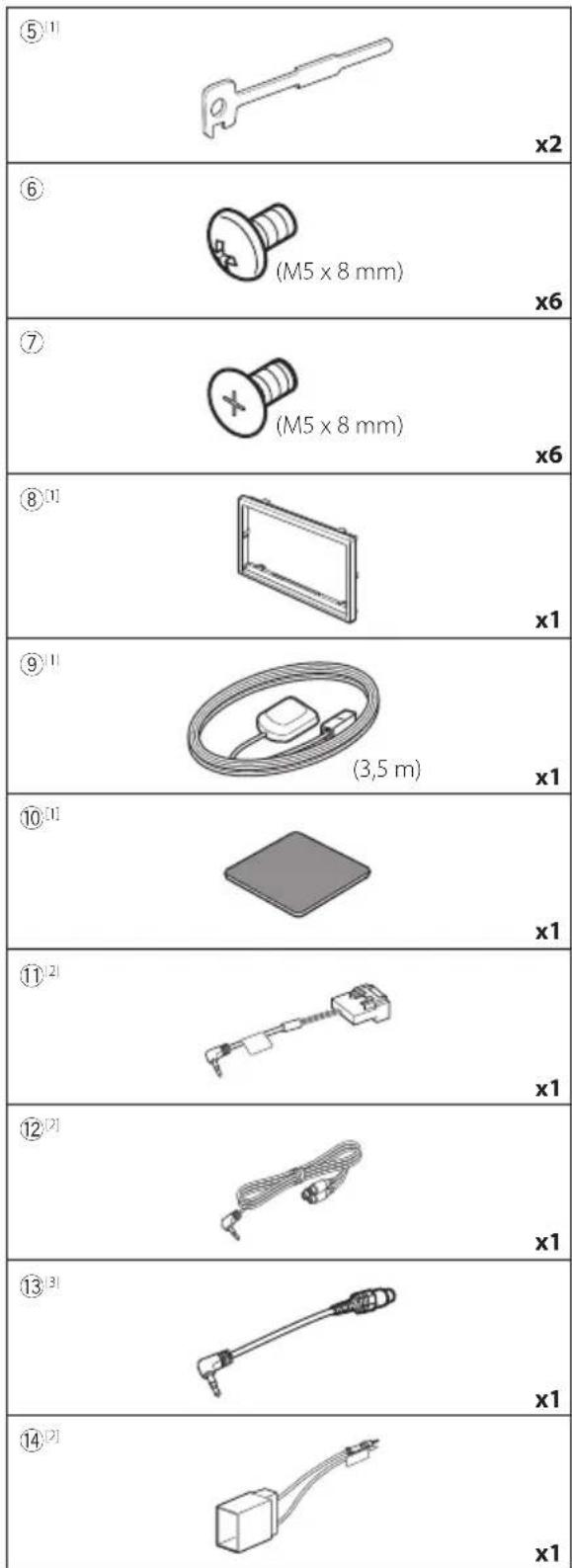

Connexion/Installation

Diagram showing a rectangular box being inserted into a frame, with an arrow indicating the direction of insertion (no text or symbols present)

Antenne GPS

(Sauf DDX819WBTL)

REMARQUE

Diagram showing light rays interacting with a rectangular object, with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical component with a triangular tool and numbered part (no text or symbols)

Illustration of hands using a tool to adjust or install a rectangular object (no text or symbols visible)

REMARQUE

Line drawing of a hand holding a rectangular device with mounting brackets (no text or symbols)

Technical illustration of a mechanical component with two cylindrical parts connected by a shaft (no text or symbols)

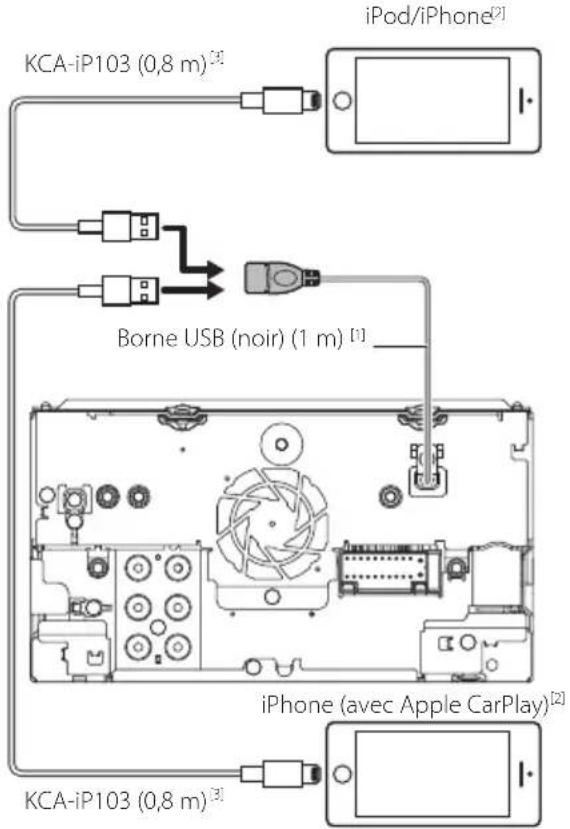

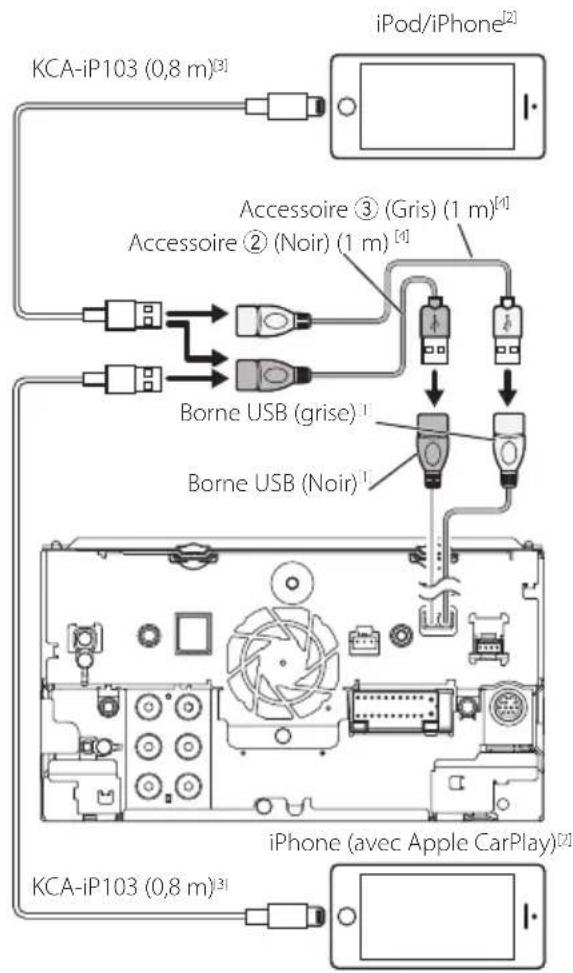

Branchement d'un iPod/iPhone
