CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound.

RECOMMENDED ENCLOSURES

This manual outlines two specific types of enclosures that provide distinctly different performance. This section is to help you decide which type is best for your application.

SEATED ENCLOSURES

Sealed enclosures are the simplest to build. The most important part of building a sealed enclosure is to make sure that the enclosure is airtight. Using glue and some type of sealant on all seams will ensure solid construction and prevent air leaks. The box volume will directly impact the performance of the speaker. Larger enclosures will provide flatter response and deeper bass where smaller boxes will provide a bump in the response curve and generally higher output for greater SPL.

Advantages of sealed enclosures:

• Small enclosures
• Linear (Flat) response
  No port noise
  High power handling at all frequencies
  Excellent for sound quality
• Extended low frequency output when compared to vented enclosures

VENTED ENCLOSURES

Vented enclosures vary only from the sealed enclosure in that a vent or port is added to "tune" the enclosure. The enclosures recommended are designed for great overall performance. Larger boxes tend to be easy to tune to lower frequencies while medium and small boxes are easier to tune to higher frequencies. The vented design is less linear in response than the sealed box but with noticeably more output at the tuning frequency.

Advantages of vented enclosures:

Higher average output than sealed
- Tuning frequency can be easily adjusted by changing port length
- Deep bass response with lower power requirements
- Great for high output with limited power

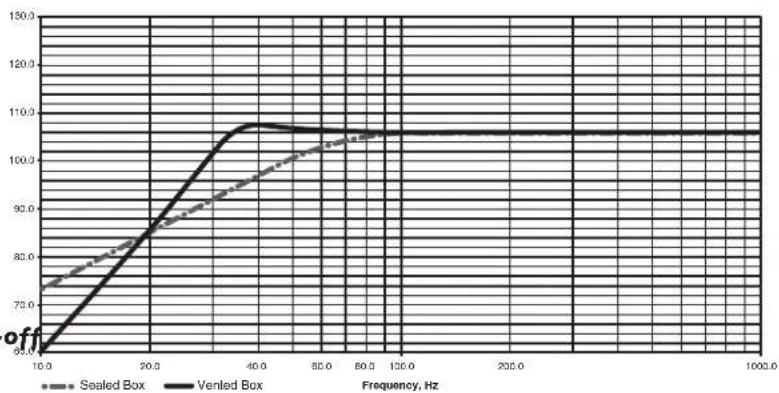

The graph shown here is a sample of how the F3 drop-off point differs between sealed and vented enclosures.

CARTON CONTENTS

(1) Punch P3 Series Subwoofer
(1) Painted aluminum decorative trim ring
(8) Socket head wood screws
(1) Socket head driver bit

BUILDING AN ENCLOSURE

To work properly, the walls of the enclosure must be rigid and not flex when subjected to the high pressures generated by the speaker's operation. For optimum performance, we recommend using 3/4'' MDF (Medium Density Fiberboard) and internal bracing. The enclosure should be glued together and secured with nails or screws.

CALCULATING VOLUME

Calculating volume is merely a matter of measuring the dimensions in inches and using the formula: H × W × D divided by 1728 (cubic feet). See block below.

Box Volume Height x Width x Depth" Divided by (cubic feet) 1728

If two facing sides are of uneven length, add them together and divide by two to take the average. Using this number will give you the volume without the necessity of calculating the box in sections and adding the sections together. The thickness of the baffle material reduces the internal volume so this must be subtracted from the outside dimensions to determine the internal volume. The speaker itself also reduces the internal volume. The amount of air displaced by each model is listed on the specification sheet and should also be subtracted from the gross volume calculation.

VENTED VS SEATED

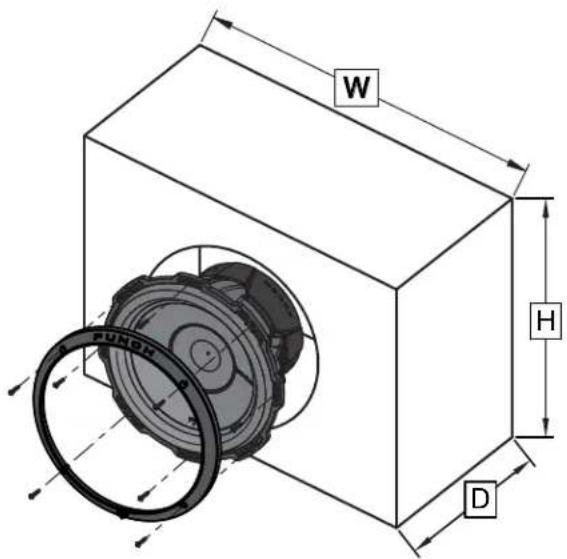

NOTE: Vb is the gross volume, which is the TOTAL internal volume, before any speaker and/or port displacement. All external dimensions were based on the use of 3/4'' (1.90cm) materials.

NOTE: When using enclosures other than recommended, call Technical Support for correct application.

Optimum Sealed Enclosure Recommendation

SEATED ENCLOSURES 10" 12" 15"P3D2-10 / P3D4-10 P3D2-12 / P3D4-12 P3D2-15 / P3D4-15
\( V_{b} \)- Internal Area cu. ft. 0.59 1.02 1.58(Liter)	(16.71)	(28.88)	(44.74)
\( F_{3} \)- -3dB Point (Hz)	40.6 42.2 36.2
Qtc- Enclosure Damping	0.76	0.78 1.01
H - Height-inch(cm)	12.0(30.48)	14.0 18.0(35.56)	(45.72)
W - Width-inch(cm)	14.0(35.56)	18.0(45.72)	21.0(53.34)
D - Depth-inch(cm)	9.25(23.50)	10.0(25.40)	10.0(25.40)

Recommended Sealed Enclosure Volume Range

SEATED ENCLOSURES 10" 12" 15" P3D2-10 / P3D4-10 P3D2-12 / P3D4-12 P3D2-15 / P3D4-15
Vb- Volume Range cu. ft. (Liter)	0.50 to 0.75 (14.16 to 21.24)	0.75 to 1.25 (21.24 to 35.40)	1.50 to 3.00 (42.48 to 84.95)

Specifications subject to change without notice

VENTED ENCLOSURES

NOTE: Vb is the gross volume, which is the TOTAL internal volume, before any speaker and/or port displacement. All external dimensions were based on the use of 3/4'' (1.90cm) materials.

NOTE: When using enclosures other than recommended, call Technical Support for correct application.

Optimum Vented (Ported) Enclosure Sizes

VENTED ENCLOSURES	10" 12" 15" P3D2-10 / P3D4-10 P3D2-12 / P3D4-12 P3D2-15 / P3D4-15
\( V_D \) - Internal Area cu. ft. 1.40 (Liter)	1.79 (39.64)	2.66 (50.69)	(75.32)
\( F_D \) - Tuning Frequency (Hz)	40.0	40.0	32.0
\( F_3 \) - 3dB Point (Hz)	31.2	32.8	29.8
H - Height-inch (cm)	12.0 (30.48)	14.0 (35.56)	18.0 (45.72)
W - Width-inch (cm)	20.0 (50.80)	25.0 (63.50)	28.0 (71.12)
D - Depth-inch (cm)	14.0 (35.56)	12.0 (30.48)	12.0 (30.48)
P - Port Diameter and Length-inch (cm)	(1) 4 x 14 (1) (10.16 x 35.56)	(1) 4 x 10 (1) (10.16 x 25.40)	(1) 4 x 10 (1) (10.16 x 25.40)

Number of ports noted in ()
Specifications subject to change without notice

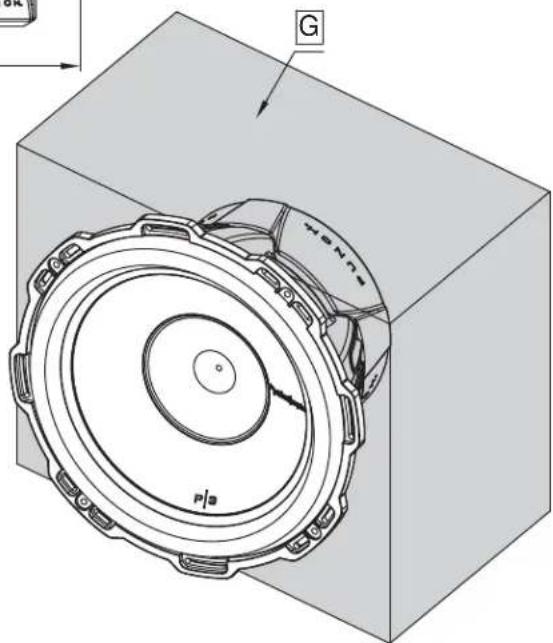

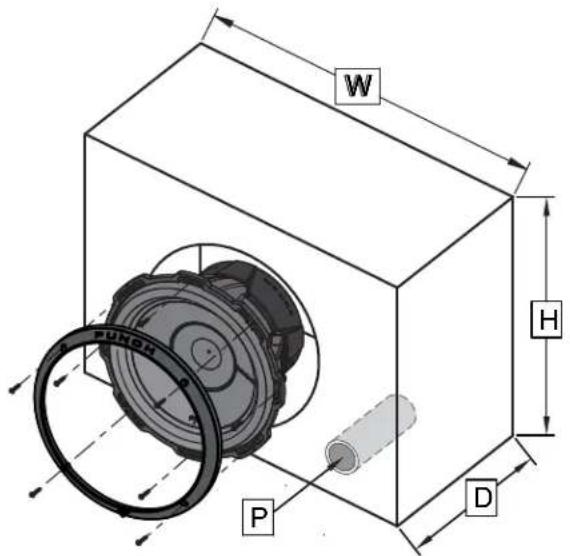

NOTE: The port shown can be placed on any face of the enclosure as long as the port ends are not obstructed.

NOTE: When using vented endosures, for maximum reliability and power handling ensure that a subsonic or "infrasonic" filter is used so that only usable low frequency signal is sent to the subwoofer.

Specifications subject to change without notice

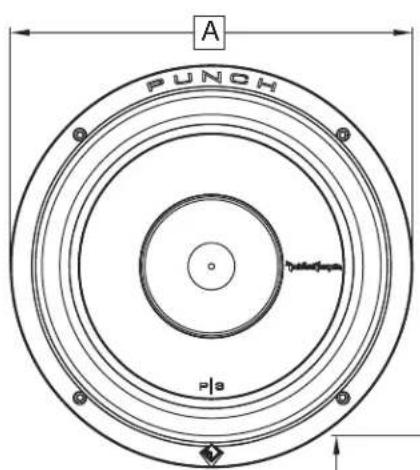

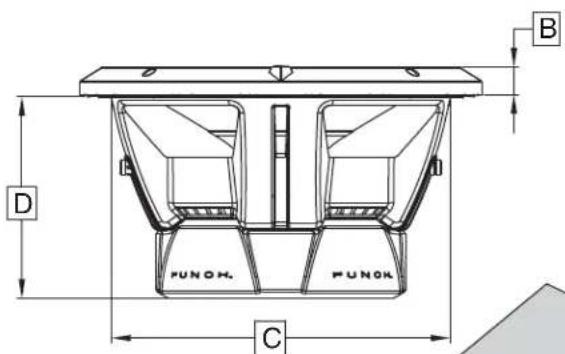

	P3D2-10 / P3D4-10 P3D2-12 / P3D4-12 P3D2-15 / P3D4-15		"51"21"01CVD

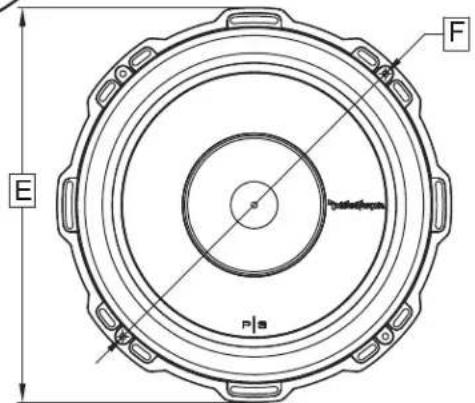

A- Trim Ring Diameter-inch (μm)	11.26(28.60)	13.31(33.80)	16.38(41.60)
B - Trim Ring Height-inch (μm)	0.89(2.26)	0.91(2.30)	0.89(2.26)
C - Mounting Diameter-inch (μm)	9.125(23.20)	11.25(28.50)	13.94(35.30)
D - Mounting Depth-inch (μm)	6.18(15.68)	6.66(16.93)	7.58(19.25)
E - Overall Diameter-inch (μm)	11.02(28.00)	13.07(33.20)	16.14(41.00)
F - Screw Hole Diameter-inch (μm)	10.16(25.80)	12.28(31.20)	14.96(38.00)
G - Speaker Displacement - cu. ft.(Liter)	0.127(3.60)	0.194(5.50)	0.247(7.00)

P3D2-10 / P3D4-10 P3D2-12 / P3D4-12 P3D2-15 / P3D4-15
Nominal Impedance (ohms) 2 x 2 / 2 x 4 2 x 2 / 2 x 4 2 x 2 / 2 x 4
Frequency Response (Hz)	26.6-250 / 28.0-250	26.5-250 / 27.7-250	21.7-250 / 22.4-250
Voice Coil Diameter - inch	2.5 (4-Layer)	2.5 (4-Layer)	2.5 (4-Layer)
m(c)	(6.55)	(6.55)	(6.55)
Displacement - cu. ft.	0.074	0.094	0.107
(Liter)	(2.10)	(2.66)	(3.03)
Fs - Free Air Resonance (Hz)	26.6 / 28.0	26.5 / 27.7	21.7 / 22.4
tQ	0.49 / 0.56	0.49 / 0.52	0.54 / 0.57
Vas - cu. ft.	0.95	2.04	5.50
l(at)	(27.0)	(57.7)	(155.8)
Xmax - inch	0.524 / 0.547	0.524 / 0.547	0.524 / 0.547
)m(c)	(1.33 / 1.39)	(1.33 / 1.39)	(1.33 / 1.39)
SPL (dB @ l/w/lm)	82	85	86
Power Handling-Watts (RMS)	500	600	600
(Peak)	1000	1200	1200

3PHC

Specifications subject to change without notice

WIRING CONFIGURATIONS

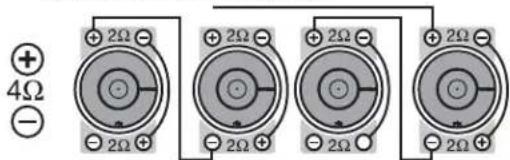

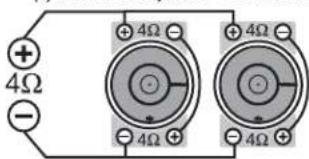

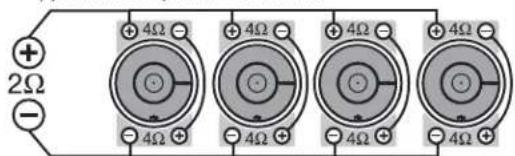

By varying the wiring configuration of your speakers you can create an impedance load to match your system. Altering the wiring configurations gives a range of options for impedance loads. Series, Parallel, or Series-Parallel wiring configurations are different techniques for wiring speakers that provide different loads. Series configuration is a string method where speakers are wired end to end. Parallel configuration uses two or more speakers wired across common terminals. Series-Parallel configuration combines both techniques. Choose the wiring diagram that corresponds to the number of woofers and the impedance of your amplifier.

SUBWOOFER CROSSOVERS

There are two operational types of crossovers, passive and active. Passive crossovers (coils or inductors) are placed on the speaker leads between the amplifier and speaker. An active crossover is an electronic filter that separates the audio signal fed to different amplifiers. For optimum subwoofer performance, we recommend using an active 80-100Hz low-pass crossover at 12dB/octave.

(1) 4 ohm DVC Speaker = 2 ohm Load

(1) 2 ohm DVC Speaker = 4 ohm Load

(2) 4 ohm DVC Speaker = 1 ohm Load

(2) 2 ohm DVC Speaker = 2 ohm Load

(2) 4 ohm DVC Speaker = 4 ohm Load

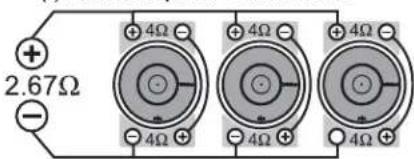

(3) 4 ohm DVC Speaker = 2.67 ohm Load

(4) 4 ohm DVC Speaker = 2 ohm Load

(4) 2 ohm DVC Speaker = 4 ohm Load

Français

Anodized aluminum heat sinking cone and dust cap.
- Dual tear & fatigue resistant poly-cotton spiders.
- Tall profile true Santoprene™ VAST™ surround.
- High temp voice coil with spun-laced NomexTMsulating reinforcement collar.
- Optimized motor magnetics with extended pole and bumped backplate.
- Double stack ferrite magnet structure.
- Fatigue resistant and reduced strain "stitched on" flexible lead wire design.
- Multi-point high-temp/high-strength neck joint bonding technique.
- Sturdy 16 gauge compound bend frame geometry.
- Semi-flexible PVC removable protective motor cover.
- Custom insulated/isolated compression input terminal assembly.
- Proprietary spider venting/cooling technique.
- Decorative die-cast aluminum trim ring.
