USER MANUAL CI152TFS WOLF

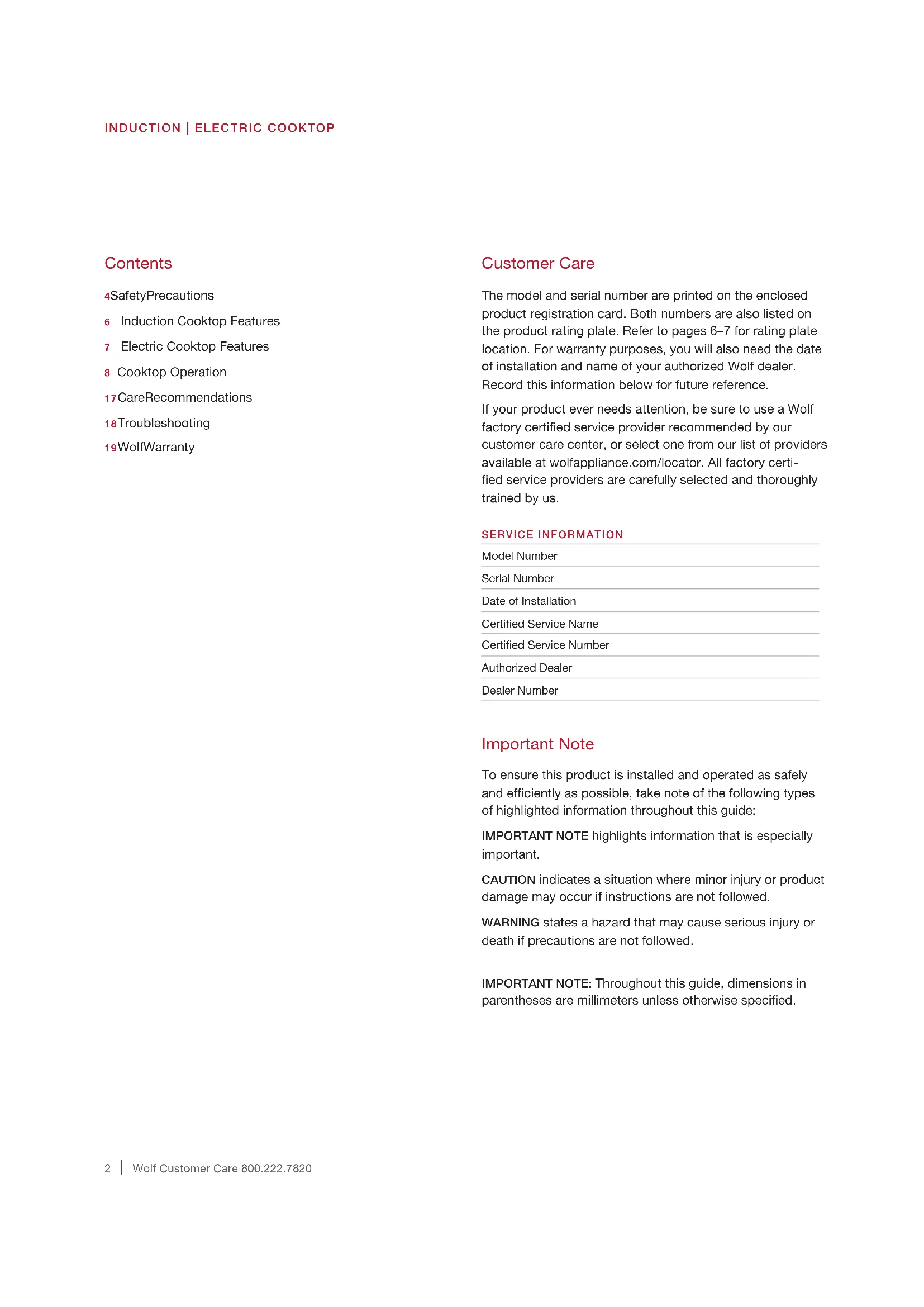

Customer Care The model and serial number are printed on the enclosed product registration card. Both numbers are also listed on the product rating plate. Refer to pages 6–7 for rating plate location. For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. Record this information below for future reference. If your product ever needs attention, be sure to use a Wolf factory certied service provider recommended by our customer care center, or select one from our list of providers available at wolfappliance.com/locator. All factory certi- ed service providers are carefully selected and thoroughly trained by us. SERVICE INFORMATION Model Number Serial Number Date of Installation Certied Service Name Certied Service Number Authorized Dealer Dealer Number Important Note To ensure this product is installed and operated as safely and efciently as possible, take note of the following types of highlighted information throughout this guide: IMPORTANT NOTE highlights information that is especially important. CAUTION indicates a situation where minor injury or product damage may occur if instructions are not followed. WARNING states a hazard that may cause serious injury or death if precautions are not followed. IMPORTANT NOTE: Throughout this guide, dimensions in parentheses are millimeters unless otherwise specied.wolfappliance.com

Thank You Thank you for your purchase. We look forward to being part of your home for decades to come. As a third-generation family-owned company, we take a very personal stake in the preparation of your family’s food. We built our business and our reputation on helping families serve the nest food possible. With your purchase, you receive one of the strongest warranties in the appliance industry. Take a moment to read the full warranty statement on page 19. It’s also important to register your Wolf appliance to ensure that you don’t miss out on exclusive owner ben- ets, such as; assurance that you will be taken care of in the unlikely event that service becomes necessary during the warranty period, and a proof-of-purchase record in case of a home insurance claim. You may register by one of the following options:

• Mail in the completed Wolf product registration card.

• Register online at wolfappliance.com/register and create a personalized My Sub-Zero/ Wolf account using the serial number on your product.

• Register by phone by calling Wolf Customer Care at 800-222-7820. As a Wolf owner, you can count on ongoing support, day in and day out. Our customer care center is available 24 hours a day, seven days a week and staffed by knowledgeable product experts at our factory in Madison, Wisconsin. Should the need arise, simply call 800-222-7820 and speak with one of our product experts. They will help troubleshoot any issues you might have. We are condent this guide will answer your questions about the features, operation, and maintenance of your Wolf, but if you have additional questions, please contact us at 800-222-7820 or visit us online at wolfappliance.com.4

• Wear proper apparel. Never let loose clothing or other ammable materials come in contact with the elements while in operation. Fabric may ignite and result in personal injury.

• Use only dry pot holders when removing pans from the cooktop. Wet or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders touch hot heating elements.

• Select cookware of the proper size, material and construction for the particular type of cooking being done. This unit is equipped with heating elements of different size. Refer to element rating on pages 6–7.

• Always turn pan handles inward so they do not extend over adjacent work areas, heating elements or edges of cooktop to reduce the risk of burns, ignition of ammable materials and spillage due to unintentional contact with pan. Do not turn handles toward the room, where they may be bumped or easily hit.

Never heat an empty pan. It may damage the cooktop or cookware and overheat the unit.

Do not heat cookware with water droplets on the outside of the pan. The droplets may begin to boil and splatter. Cookware should always be dry.

Do not use aluminum foil on the surface of the cooktop.

Never use the cooktop to warm or heat a room. IMPORTANT INSTRUCTIONS IMPORTANT NOTE: Read all safety instructions before using this appliance.

• Read this use & care guide carefully before using your new cooktop to reduce the risk of re, electric shock or injury to persons.

• Ensure proper installation and servicing. This appli- ance must be properly installed and grounded by a qualied technician. Have the installer show you the location of the circuit breaker or fuse so that you know where to turn off power.

• Warranty service must be performed by Wolf factory certied service.

• Before performing any service, disconnect the power supply to the cooktop by switching off the circuit breaker or removing the fuse. IMPORTANT NOTE: Performance may be compro- mised if the electrical supply is less than 240 volts.wolfappliance.com

When using the cooktop, do not touch the glass surface directly above or adjacent to the heating elements or induction zones. The glass surface may become hot enough to cause burns.

Do not leave children alone or unattended in the area where the cooktop is in use. Never allow children to sit or stand on the appliance. Do not let children play with the cooktop.

Do not store items of interest to children above or at the back of the cooktop, as they could climb on the appliance to reach items and be injured.

Do not repair or replace any part of the appliance unless it is specically recommended in literature you received. All service should be referred to Wolf factory certied service.

Do not use water on grease res. Smother the ame or use a dry chemical or foam-type extinguisher.

Never leave the cooktop unattended when using high heat settings. Boilovers and greasy spillovers may smoke or ignite.

Do not operate the cooktop if the glass-ceramic surface is broken or severely pitted. Call Wolf factory certied service to repair the cooktop.

Do not store ammable materials near hot compo- nents or let grease or other ammable substances accumulate on the cooktop.

Do not clean the cooktop while it is still hot. If using a damp sponge or cloth, wait until the cooktop has cooled sufciently to prevent steam burns. Also, some cleaners give off noxious fumes when applied to hot surfaces. Refer to care recom- mendations on page 17.

Do not use a griddle, open roaster or sh poacher across two heating elements unless the bridge element is turned on. This type of use without the bridge element turned on could damage or crack the glass. Refer to bridge element on page 13.

Do not block the cooling fan exhaust or intake vents. The cooling fan automatically turns on to cool internal parts. It may continue to run even after the cooktop has been turned off. CALIFORNIA PROPOSITION 65 WARNING This product may contain chemicals known to the state of California to cause cancer or reproductive harm.6

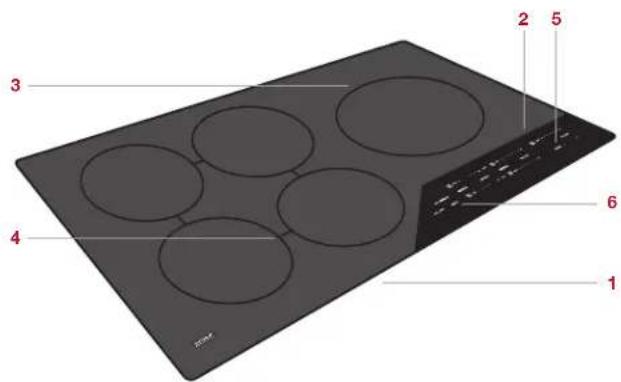

Wolf Customer Care 800.222.7820 INDUCTION COOKTOP In induction cooking, the electricity ows through a coil to produce a magnetic eld under the glass-ceramic surface. When an induction-compatible pan is placed on the cooktop, currents are induced in the pan and instant heat is generated. Cookware made of magnetic materials, such as cast iron or magnetic stainless steel is required for induction cooking.

Product Rating Plate (bottom of cooktop)

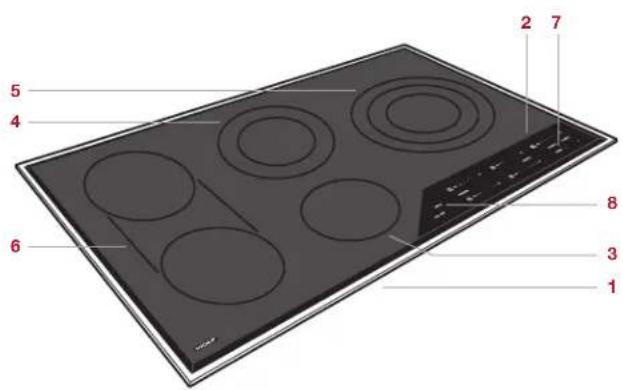

ELECTRIC COOKTOP Wolf electric cooktops operate by using high-frequency pulsation, cycling the heating elements between zero power and full power. As the heat is increased on the control panel, the element will stay at full power for longer periods and have shorter periods of zero power.

/2" (165) Single with Oval 2400

Product Rating Plate (bottom of cooktop)

Wolf Customer Care 800.222.7820 Getting Started We know you are eager to start cooking, but before you do, please take some time to read this use & care guide. Whether you are an occasional cook or an expert chef, it will be to your benet to familiarize yourself with the safety practices, features, operation and care recommendations of your Wolf induction or electric cooktop. To ensure all residual oil from the manufacturing process has been removed, clean the cooktop thoroughly with hot water and a mild detergent prior to use. Rinse and dry with a soft cloth. Refer to care recommendations on page 17. Cooktop Operation CONTROL PANEL The control panel features illuminated touch controls that are invisible when the cooktop is off. A power level indicator for each control displays the heat setting from SIM (MLT) to HI. Each control is positioned to the corresponding heating element. Refer to the illustration below. Indicators on the control panel will illuminate to indicate specic cooktop operation. Some indicators are unique to either induction or electric cooktops. Refer to the charts on the following page. CAUTION Do not place hot cookware directly over the control panel. COOKTOP OPERATION Touch controls. ELEMENT CONTROLwolfappliance.com

The control panel lock feature prevents unwanted cooktop operation. Touch and hold LOCK for three seconds to lock and unlock the control panel. will illuminate when the control panel is locked. The control panel will automatically lock after 10 minutes of inactivity. This automatic lock feature can be disabled through the extended options menu. Refer to page 16. When the cooktop is powered up for the rst time and after a power outage, the cooktop will default to lock mode.10

When an element is activated, a power level indicator will illuminate above the corresponding control indicating the level of heat. The lowest heat is represented by the small ame, varying levels of heat by additional indicators (dots), and the highest heat by all indicators including the large ame. Refer to the chart and illustration below. Power level indicator. COOKTOP OPERATION

SETTING POWER LEVEL USES

Melt 1 (small ame) indicator Melting butter, holding chocolate and sauces. Simmer 2–6 indicators Simmering sauces and steaming rice. Medium 6–7 indicators Making French toast and pancakes, heating milk, cream sauces, soups and gravies. Medium High 7-8 indicators Sauteing, browning and frying. High 8–10 (large ame) indicators Boiling water, searing meat and canning.wolfappliance.com

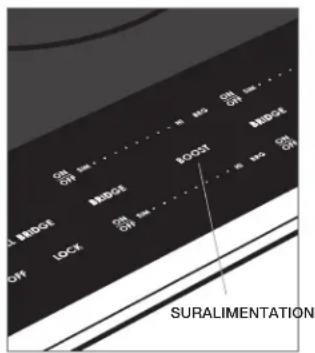

BOOST MODE (INDUCTION) For induction cooktops, boost mode boosts power on one element by diverting power from an adjacent element. If the adjacent element is on high, the power output will be reduced. The reduction in power will be displayed on the power level indicator of the adjacent element. Refer to the illustration below. will illuminate when an element is in boost mode. Boost mode will deactivate automatically after approxi- mately 15 minutes of continuous operation and can be reactivated if desired. Cooktop Operation

SINGLE ELEMENT AND INNER ZONE

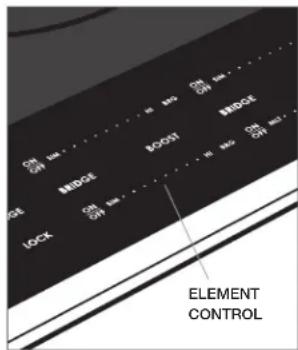

Setting controls: 1 To activate a heating element, touch ON/OFF for the desired single element on the control panel. Power level indicator will ash and all indicators for that zone will ash. Refer to the illustration below. 2 To complete the activation, touch HI for highest heat, SIM (MLT) for lowest heat, BOOST (induction) to activate boost mode, or touch desired power level indicator. 3 To change heat setting while the element is on, touch or slide to desired power level. 4 To turn element off, touch ON/OFF. IMPORTANT NOTE: For induction cooktops only, if no cookware or an incompatible pan is placed on an induction element after activation, the control will ash for 30 sec- onds, then the element will turn off automatically. COOKTOP OPERATION Element activation. ON/OFF Boost mode. BOOST12

Wolf Customer Care 800.222.7820 Cooktop Operation DUAL-ZONE OR OVAL ELEMENT (ELECTRIC) Setting controls: 1 To activate dual-zone or oval element, touch ON/OFF on the control panel. Power level indicator will ash and all indicators for that zone will ash. 2 Set desired heat level for inner zone as described on page 11. Outer zones cannot be turned on indepen- dently of inner zone. 3 Touch ZONE 2 or OVAL. Outer zone will be set to the same heat setting as inner zone. or will illumi- nate to indicate outer zone is on. Refer to the illustration below. 4 Change heat setting for the entire dual-zone or oval element the same as for a single element. Both zones maintain the same heat setting. 5 To turn outer zone off, touch ZONE 2 or OVAL. To turn the entire element off, touch ON/OFF. TRIPLE-ZONE ELEMENT (ELECTRIC) Setting controls: 1 To activate triple-zone element, touch ON/OFF on the control panel. Power level indicator will ash and all indicators for that zone will ash. 2 Set desired heat level for inner zone as described on page 11. Outer zones cannot be turned on indepen- dently of inner zone. 3 Touch ZONE 2. Middle zone will be set to the same heat setting as inner zone. will illuminate to indicate middle zone is on. 4 Touch ZONE 3. Outer zone will be set to the same heat setting as inner and middle zones. will illuminate to indicate outer zone is on. Refer to the illustration below. 5 Change heat setting for the entire triple-zone element the same as for a single element. All three zones maintain the same heat setting. 6 To turn outer zone off, touch ZONE 3. To turn middle zone off, touch ZONE 2. To turn the entire element off, touch ON/OFF. COOKTOP OPERATION Dual-zone element activation. ZONE 2 Triple-zone element activation. ZONE 2 ZONE 3wolfappliance.com

Cooktop Operation BRIDGE ELEMENT (INDUCTION) Setting controls: 1 To activate bridge, select desired power level on one of the single elements. 2 Touch BRIDGE between corresponding element con- trols to bridge elements front to back, BRG to bridge elements side to side, or ALL BRIDGE to bridge all elements. , or will illuminate respectively. 3 To change power level, adjust the power level on any active bridged element. 4 To turn off, touch ON/OFF on any active bridged element. For 36" induction cooktops, ALL BRIDGE should be used for cookware larger than 12" (305) in diameter. For smaller cookware, use the right rear element. COOKTOP OPERATION Bridge element activation. BRIDGE BRIDGE ELEMENT (ELECTRIC) Setting controls: 1 To activate bridge, select desired power level on one of the single elements. 2 Touch BRIDGE. will illuminate.3 To change power level, adjust the power level on either active bridged element. 4 To turn off, touch ON/OFF on either active bridged element.14 Wolf Customer Care 800.222.7820 Cooktop Operation GRIDDLE USE The bridge element provides an oblong heating area for use with a griddle, open roaster or sh poacher. To preheat a griddle, set the bridge element power level to high for ve minutes, then reduce for cooking. CAUTION A griddle, open roaster or sh poacher should not be used when the bridge element is off or with any other combination of heating elements. COOKTOP OPERATION TIMER The timer can be set in one-minute increments up to 99 minutes. Once a time is set, will illuminate on the control panel and the countdown is visible on the timer display. The timer is independent from the cooktop. Refer to the illustra- tion below. Setting timer: 1 Touch TIMER.2 Touch and hold + or – until desired time is shown in the timer display. Timer will begin the countdown in minutes. 3 Timer will chime with one minute left and completes the countdown in seconds. 4 When complete, timer will chime and continue to chime until TIMER is touched. Timer controls. TIMERwolfappliance.com

will illuminate on the control panel and may remain illuminated even when the cooktop is off. ALL OFF When one or more heating elements are on, will illu- minate on the control panel. To turn off all elements at the same time, touch ALL OFF.16

Wolf Customer Care 800.222.7820 Cooktop Operation EXTENDED OPTIONS The extended options feature allows the user to set prefer- ences for volume, tone, control panel lock and Sabbath feature. Setting adjustment: 1 While unit is off and unlocked, touch and hold ALL OFF for ve seconds. 2 Power level 1 on the rear element control will be dis- played and ‘VO’ will appear on the timer display. Touch SIM (MLT) or HI on the front element control to adjust volume. 3 Touch + on the timer control to adjust tone. Power level 2 on the rear element control will be displayed and ‘Fr’ will appear on the timer display. Touch SIM (MLT) or HI on the front element control to adjust tone. 4 Touch + on the timer control to adjust automatic control panel lock. Power level 3 on the rear element control will be displayed and ‘Lo’ will appear on the timer display. Touch SIM (MLT) or HI on the front element control to turn automatic lock feature off or on respectively. 5 Touch + on the timer control to enter Sabbath mode (electric cooktop only). Power level 4 on the rear element control will be displayed. Touch HI on the front element control to initiate Sabbath feature. ‘SA’ will appear on the timer display. Touch SIM (MLT) on the front element control to activate or deactivate the feature. 6 Touch ALL OFF at any time while in extended options to conrm settings and return cooktop to idle. COOKTOP OPERATION Sabbath (ELECTRIC COOKTOP) This appliance is certied by Star-K to meet strict religious regulations in conjunction with specic instructions found on www.star-k.org.wolfappliance.com

CARE RECOMMENDATIONS Care Recommendations CLEANING Stainless steel Use a nonabrasive stainless steel cleaner and apply with a soft lint-free cloth. To bring out the natural luster, lightly wipe surface with a water-dampened microber cloth followed by a dry polishing chamois. Always follow the grain of stainless steel. Control panel Use a spray degreaser to remove ngerprints and food soil. Spray on a cloth before wiping panel. IMPORTANT NOTE: Do not spray cleaners directly on the control panel. Glass-ceramic surface Allow to cool. Use a spray degreaser to remove ngerprints and a non-abrasive Ceran® cooktop cleaner for food soil. Do not allow any item that could melt to come in contact with the glass-ceramic surface when hot. If this occurs, use the razor blade scraper provided with the cooktop to remove.18

Wolf Customer Care 800.222.7820 TROUBLESHOOTING Troubleshooting OPERATION Cooktop does not operate.

• Verify electrical power to cooktop and home circuit breaker is on.

• Cooktop is in lock mode. Touch and hold LOCK for three seconds to unlock control panel.

• Cooktop will automatically turn off after 2 hours of con- tinual use (high), 6 hours (medium) and 8 hours (simmer), except in Sabbath mode. Cooktop temperature issue.

• Contact Wolf customer care at 800-222-7820 for recommendations. SERVICE

• Maintain the quality built into your product by contacting Wolf factory certied service. For the name of the nearest Wolf factory certied service, check the contact & support section of our website, wolfappliance.com or call Wolf customer care at 800-222-7820.

• When contacting service, you will need the model and serial number of your product. Both numbers are listed on the product rating plate. Refer to pages 6–7 for rating plate location.

• For warranty purposes, you will also need the date of installation and name of your authorized Wolf dealer. This information should be recorded on page 2 of this guide. Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design, are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries. All other trademarks are property of their respective owners in the United States and other countries.Wolf Appliance Residential Limited Warranty

FULL TWO YEAR WARRANTY*

For two years from the date of original installation, this Wolf Appliance product warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product that proves to be defective in materials or workmanship. All service provided by Wolf Appliance under the above warranty must be performed by Wolf factory certied service, unless otherwise specied by Wolf Appliance, Inc. Service will be provided during normal business hours.

LIMITED FIVE YEAR WARRANTY

For ve years from the date of original installation, Wolf Appliance will repair or replace the following parts that prove to be defective in materials or workmanship: gas burners (excludes appearance), electric heating elements, blower motors (ventilation hoods), electronic control boards, magnetron tubes and induction generators. If the owner uses Wolf factory certied service, the service provider will repair or replace these parts with the owner paying for all other costs, including labor. If the owner uses non-certi- ed service, the owner must contact Wolf Appliance, Inc. (using the information below) to receive repaired or replacement parts. Wolf Appliance will not reimburse the owner for parts purchased from non-certied service or other sources.

TERMS APPLICABLE TO EACH WARRANTY

The warranty applies only to products installed for normal residential use. The warranty applies only to products installed in any one of the fty states of the United States, the District of Columbia or the ten provinces of Canada. This warranty does not cover any parts or labor to correct any defect caused by negligence, accident or improper use, maintenance, installation, service or repair. THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES THAT WOLF APPLIANCE, INC. WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WOLF APPLIANCE, INC. WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDEN- TAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS, IMPLIED OR STATUTORY. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights and you may also have other legal rights that vary from state to state. To receive parts and/or service and the name of Wolf factory certied service nearest you, contact Wolf Appliance, Inc., P.O. Box 44848, Madison, WI 53744; check the contact & support section of our website, wolfappliance.com, email us at customerservice@subzero.com or call 800-222-7820. *Stainless steel (doors, panels, handles, product frames and interior surfaces) are covered by a limited 60-day parts and labor warranty for cosmetic defects. *Replacement lters for ventilation hood recirculating kits are not covered by the product warranty.2
