Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

! DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

■ To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

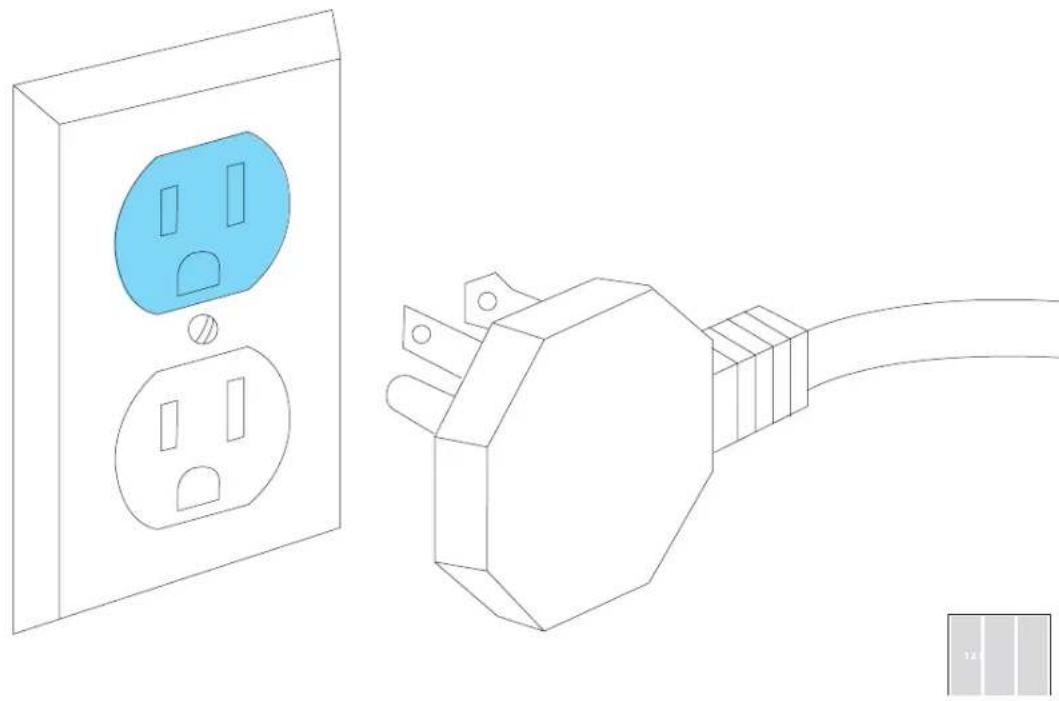

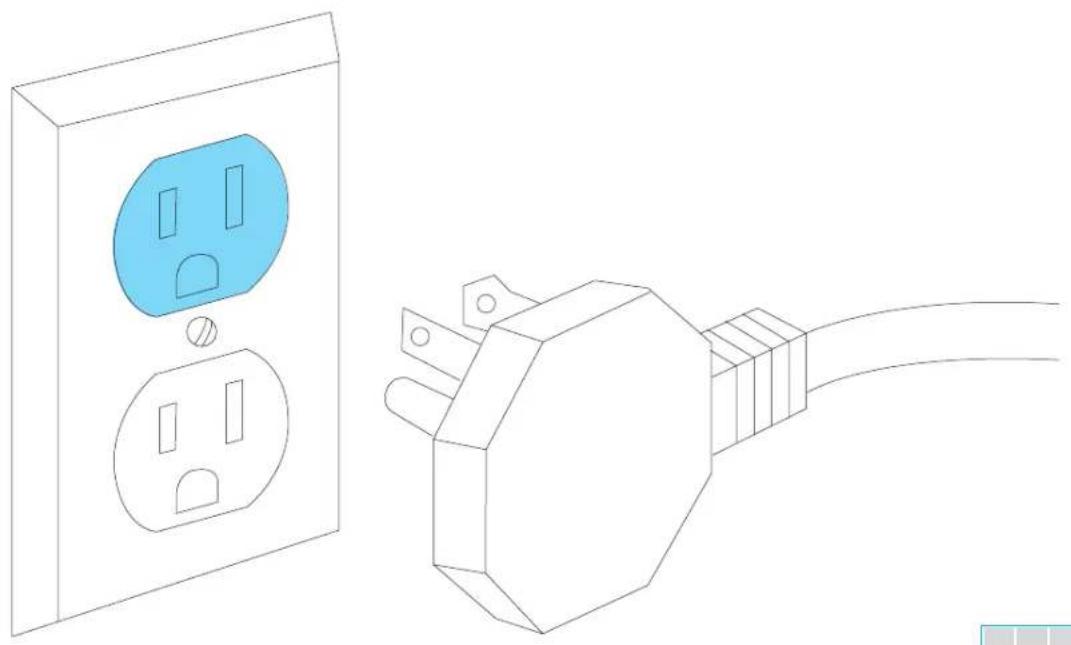

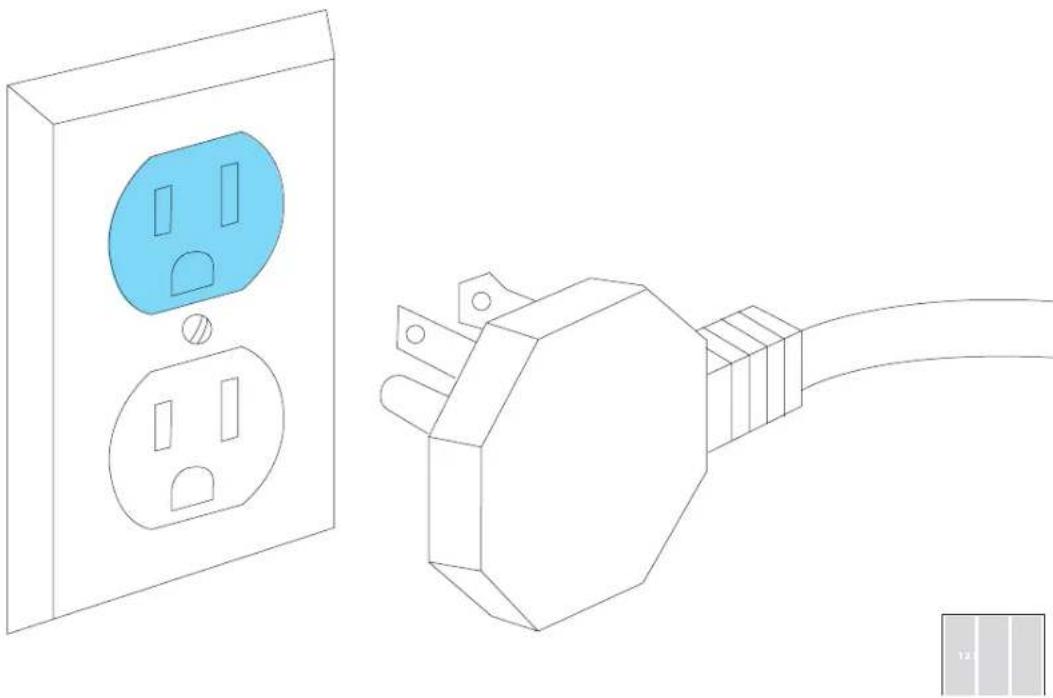

■ Plug into a grounded 3 prong outlet.
■ Installation shall be performed only by manufacturer, or an authorized agent.
■ Do not remove ground prong.
■ Do not use an adapter.
■ Do not use an extension cord.
■ Disconnect power to all units before servicing.
■ Replace all parts and panels before operating.
■ Remove doors from your old refrigerator.
■ Use nonflammable cleaner.
■ Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.
■ Do not store explosive substances such as aerosol cans with a flammable propellant in this refrigerator.
■ Do not use or place electrical devices inside the refrigerator compartments if they are not of the type expressly authorized by the manufacture.
■ Use two or more people to move and install refrigerator.
■ Disconnect power before installing ice maker (on ice maker kit ready models only).

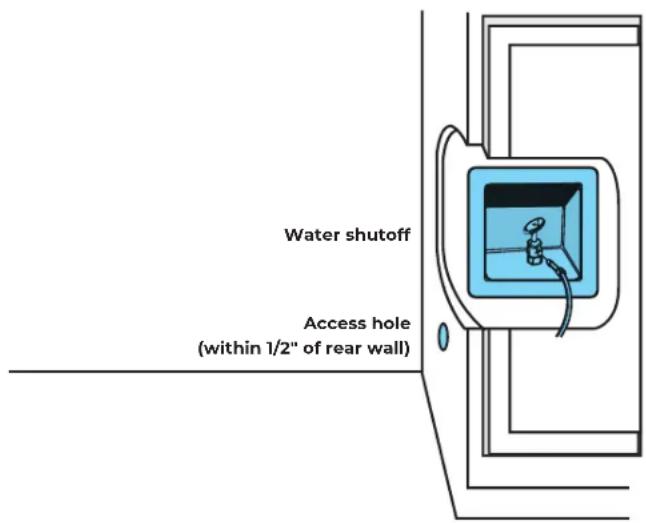

■ A qualified service technician must install the water line and ice maker. See installation instruction supplied with ice maker kit IC13B for complete details.

■ Connect to a potable water supply only.
■ Use a sturdy glass when dispensing ice (on some models).
■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Children should be supervised to ensure that they do not play with the appliance.
■ To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the refrigerator.
■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
■ This refrigerator is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices, and other working environments
– farm houses and by clients in hotels, motels, and other residential type environments
– bed and breakfast type environments
– catering and similar non-retail applications

SAVE THESE INSTRUCTIONS

WARNING

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

Important information to know about disposal of refrigerants:

Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for "just a few days." If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.
■ Leave the shelves in place so that children may not easily climb inside.

EASE. SPEED. SAFETY.

With the launch of the first ever JennAir ^® columns, we reimagined the entire columns installation process, eliminating problems that affect our sub-par competitors. Some of the features professional installers are most excited about:

- Concealed six-point panel adjustment Easy and precise alignment

• Metal fascia Increases durability

- Site-tailored Rotter system shims and badass bracket Guide and keep column in position

- Solid wood core stainless steel panels Easy to prep and hang and do not require drilling through steel

- Precision four-point front leveling On sturdy rollers that easily bear full weight

- Expanded utility areas Reduced changes to replace built-ins or upgrade from competitor columns

And with your help, we'll just keep getting better.

Contact the JennAir Epicenter through jennair.com or at 1-800-JENNAIR (536-6247) to report installation tips and tricks, or to consult with experts who know the installation process inside and out.

WHY WE LOVE JENNAIR INSTALLERS

THEY'RE TOTAL PROFESSIONALS (AND PERFECTIONISTS).

It's all about getting that seamless flush execution, that down-to-the-millimeter adjustment. Flawless installation is incredibly important to the function, appearance and lifetime enjoyment of our products, and our installers make it happen every day.

THEY DO THEIR HOMEWORK. AND HELP US WITH OURS.

These experts know JennAir ^® products inside and out. They train extensively on JennAir installation, learning the latest techniques and insider tips so they can install our cutting edge appliances with ease. And we value their input, incorporating installer feedback to refine and perfect our installations.

THEY THINK THROUGH EVERY DETAIL OF THE EXPERIENCE.

Above and beyond dedication is the baseline. The JennAir experience starts the minute an installer brings the customer's column home. Keeping the site spotless, taking extreme care with both the appliances and the home and providing an unforgettable introduction to columns is all part of the game plan.

TABLE OF CONTENTS

INTRODUCTION

02 SAFETY INSTRUCTIONS
06 TOOLS & PARTS
10 CONFIGURATIONS
12 PRODUCT DIMENSIONS
14 DOOR STYLE
16 OPENING DIMENSIONS
20 SITE PREP
23 INSTRUCTION KEY

PREPARATION

24 SECTION 1 // PREPARE COLUMNS
31 SECTION 2 // PREPARE JOIN KIT
36 SECTION 3 // PREPARE POSITIONING BRACKET
39 SECTION 4 // BADASS BRACKET INSTALLATION
48 SECTION 5 // PREPARE FURNITURE

INSTALLATION

54 SECTION 6 // FIRST COLUMN INSTALLATION
64 SECTION 7 // SECOND COLUMN INSTALLATION
72 SECTION 8 // THIRD COLUMN INSTALLATION
80 SECTION 9 // PREPARE COLUMN FOR USE

ACCESSORIES

86 SECTION 10 // TOE-KICK: CUSTOM WOOD PREPARATION
89 SECTION 11 // TOE-KICK: STAINLESS STEEL PREPARATION

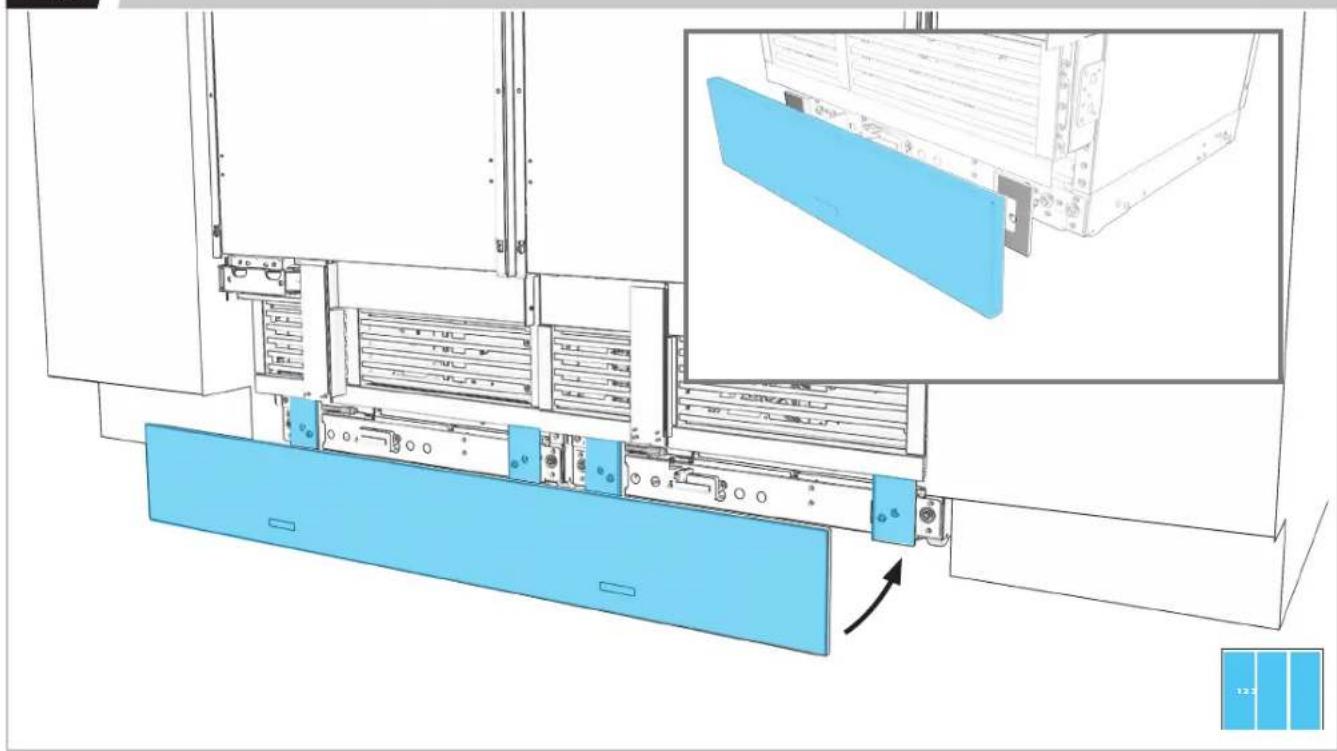

92 SECTION 12 // TOE-KICK: ALIGN AND INSTALL

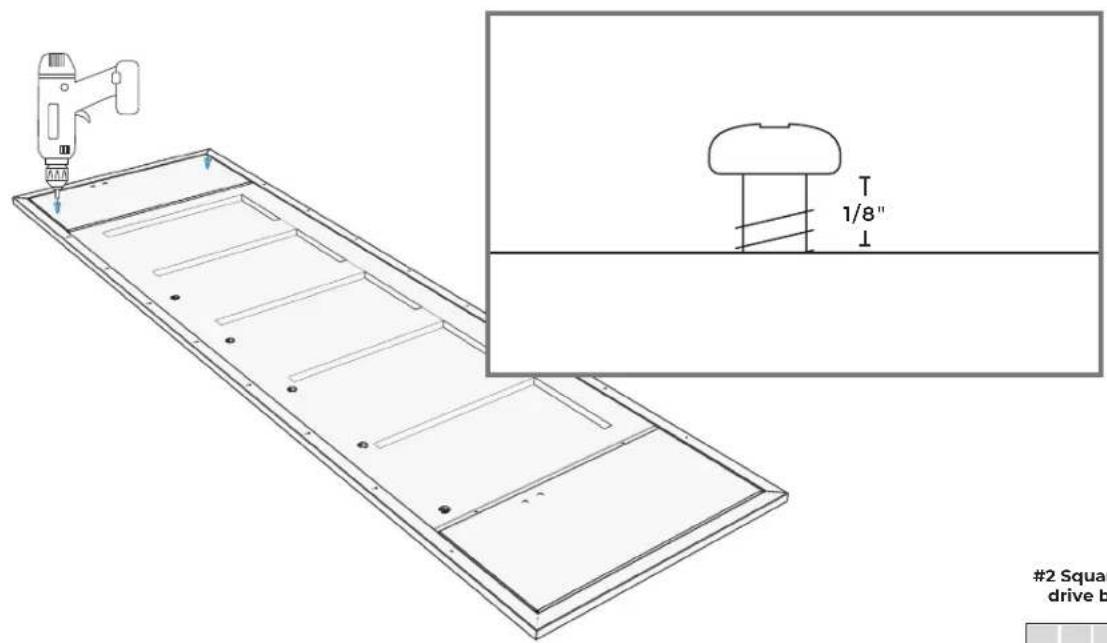

97 SECTION 13 // PANEL: CUSTOM WOOD PREPARATION
102 SECTION 14 // PANEL: STAINLESS STEEL PREPARATION
105 SECTION 15 // PANEL: HANG AND ALIGN

COMPLETE

112 SECTION 16 // COMPLETE INSTALLATION

115 FINAL CHECKLIST

119 TABLE DES MATIÈRES

TOOLS + PARTS

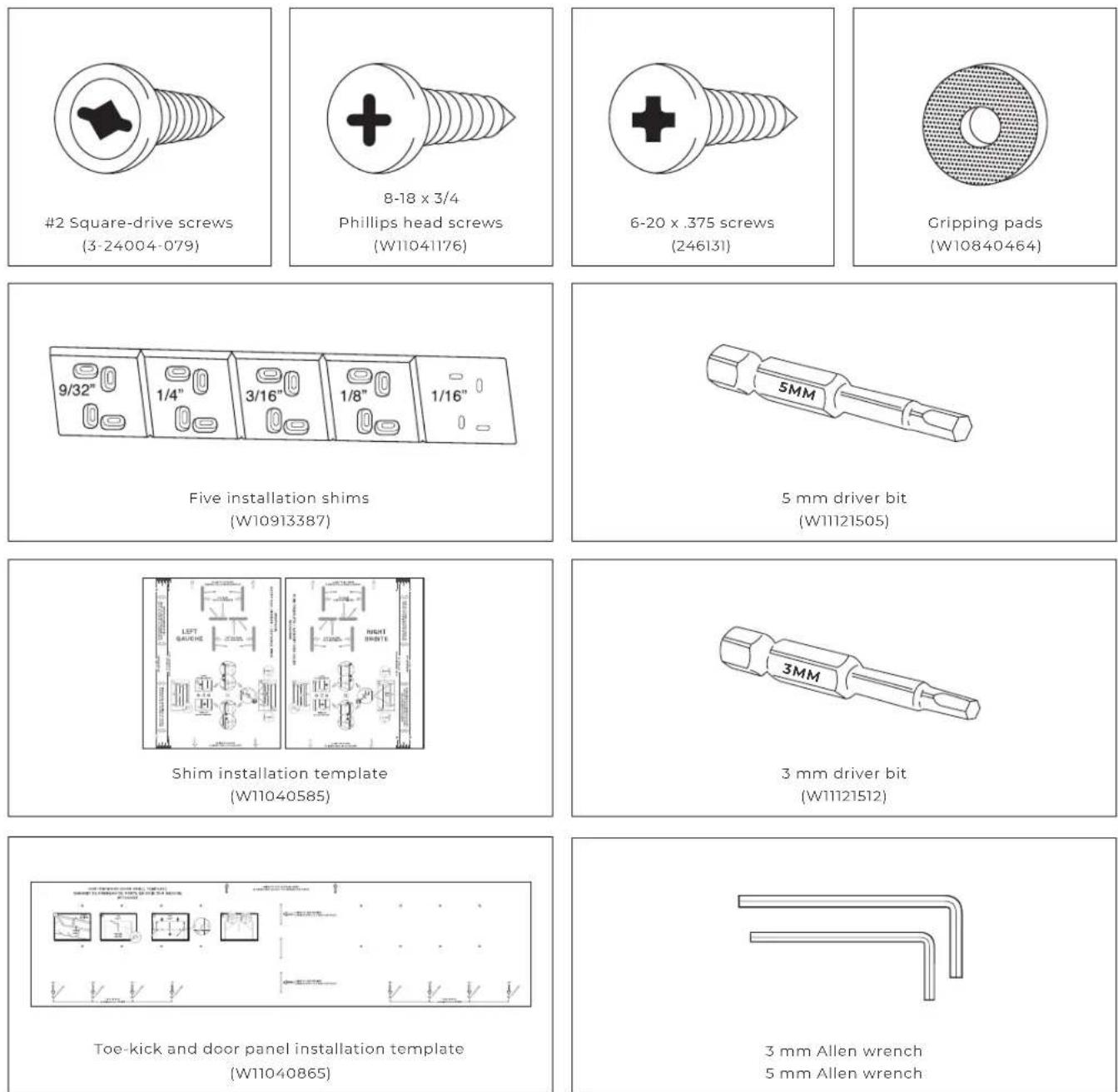

PROVIDED

READ AND FOLLOW THE INSTRUCTIONS PROVIDED WITH ANY OF THE TOOLS LISTED.

JOIN KIT TOOLS + PARTS

PROVIDED

10-13 x 2.0 FL CR

10-13 x PN CR (W1117666)

(17) Flat washers (8534057)

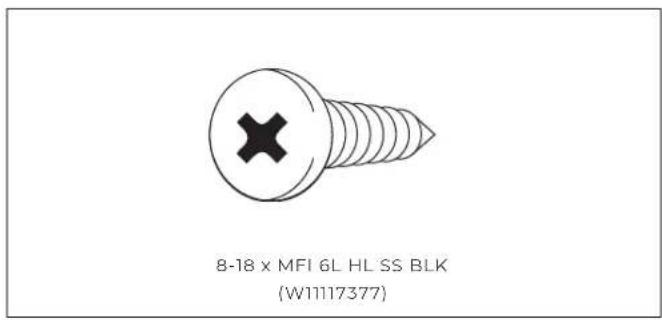

8-18 x MFI 6L HL SS BLK (W11117377)

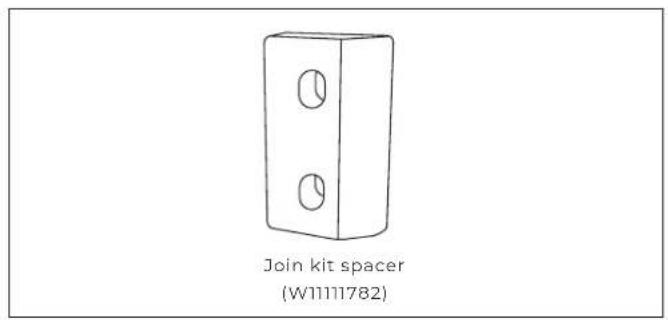

Join kit spacer (W11111782)

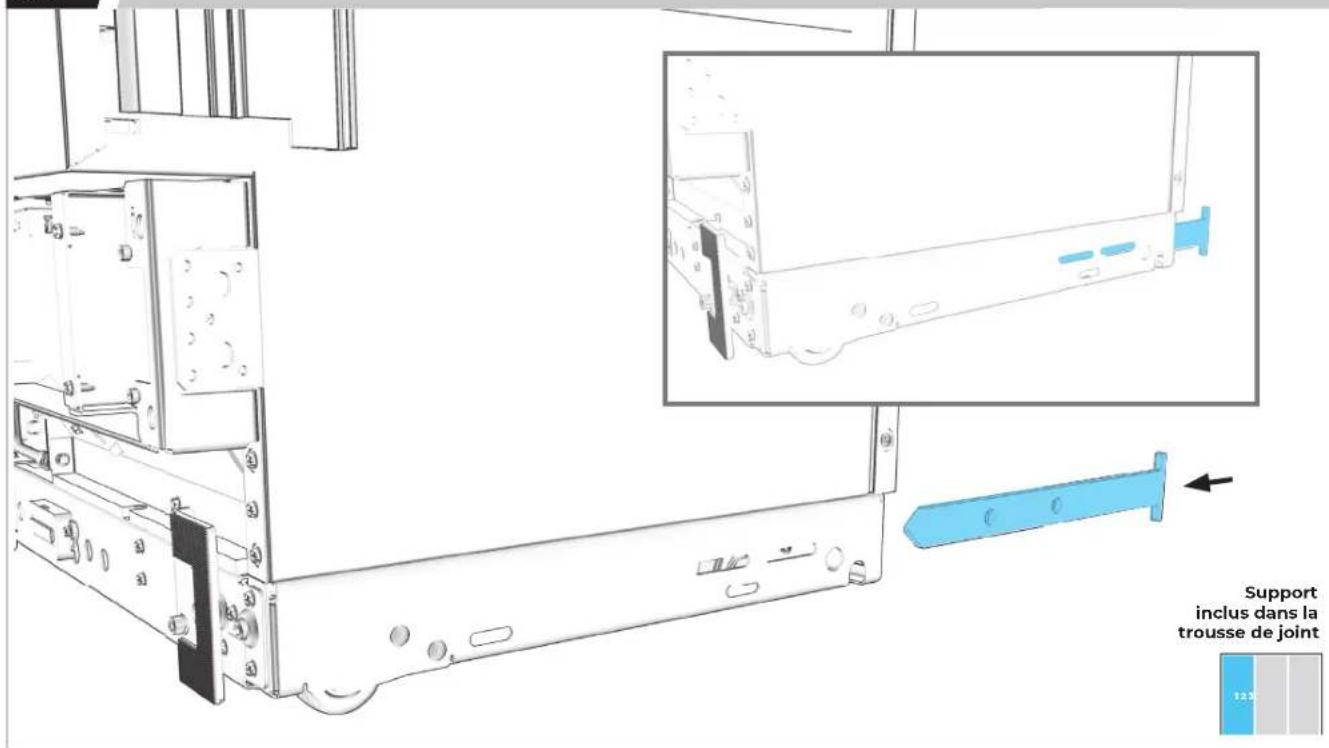

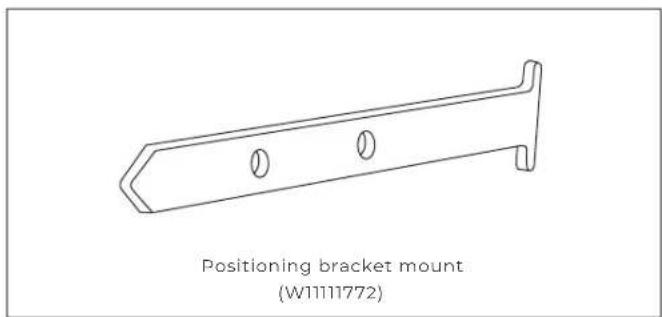

Positioning bracket mount (W1111772)

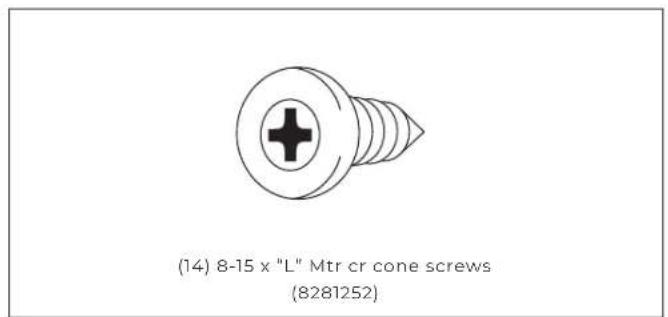

(14) 8-15 x "L" Mtr cr cone screws (8281252)

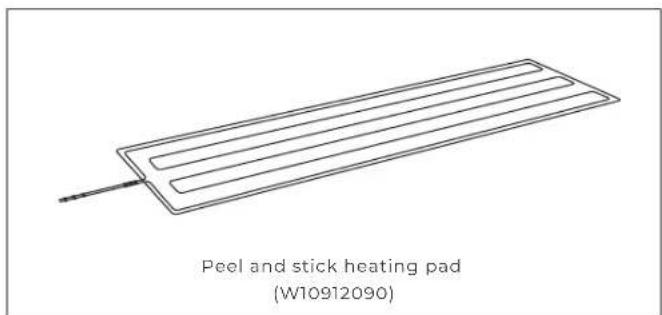

Peel and stick heating pad (W10912090)

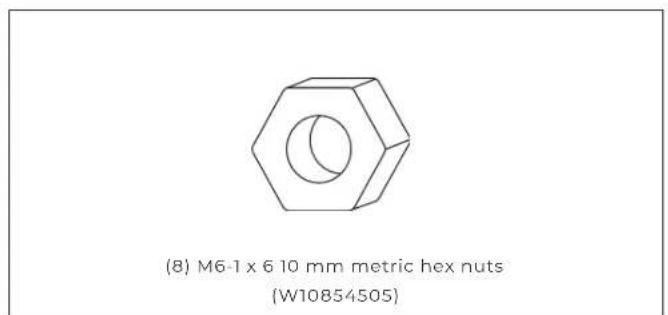

(8) M6-1 x 6 10 mm metric hex nuts (W10854505)

READ AND FOLLOW THE INSTRUCTIONS PROVIDED WITH ANY OF THE TOOLS LISTED.

ADDITIONAL JOIN KIT PARTS

PROVIDED

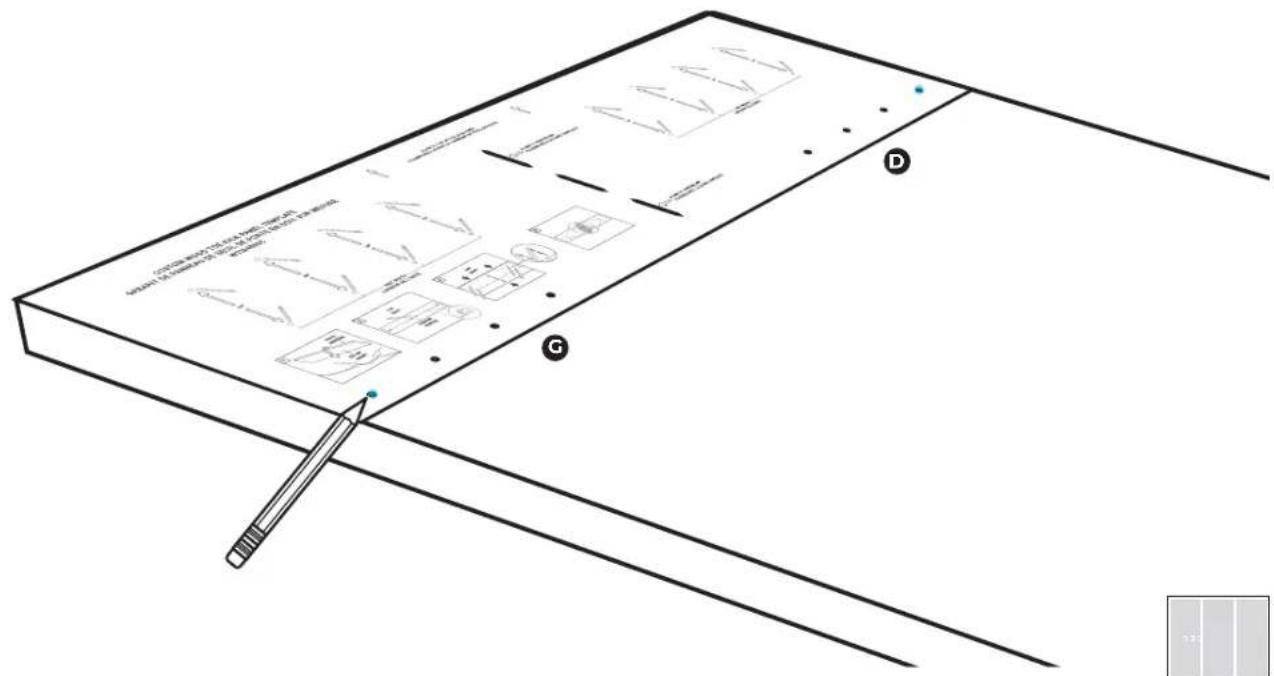

Soffit bracket installation template (W11040584)

Technical line drawing of a metal bracket with four circular holes (no text or symbols)

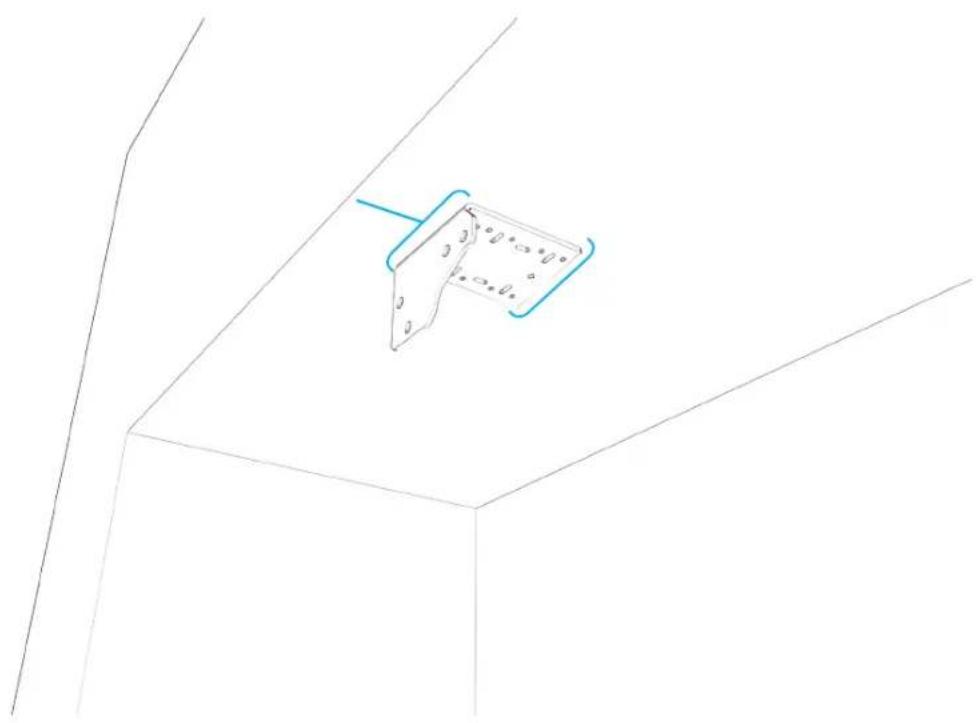

Badass soffit bracket (W1111754)

Line drawing of a metal bracket with slots and mounting holes (no text or symbols)

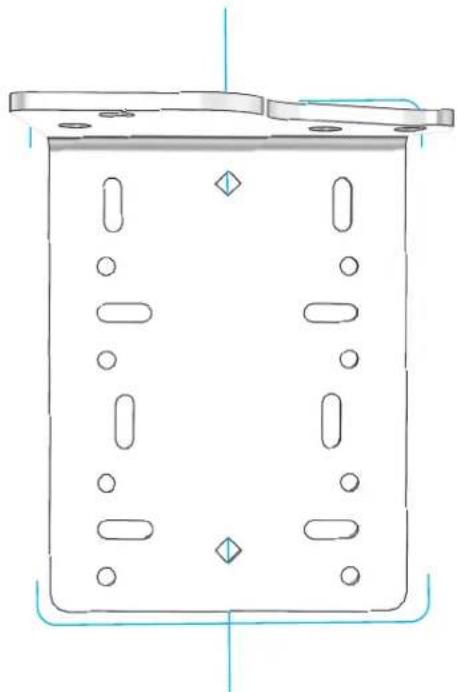

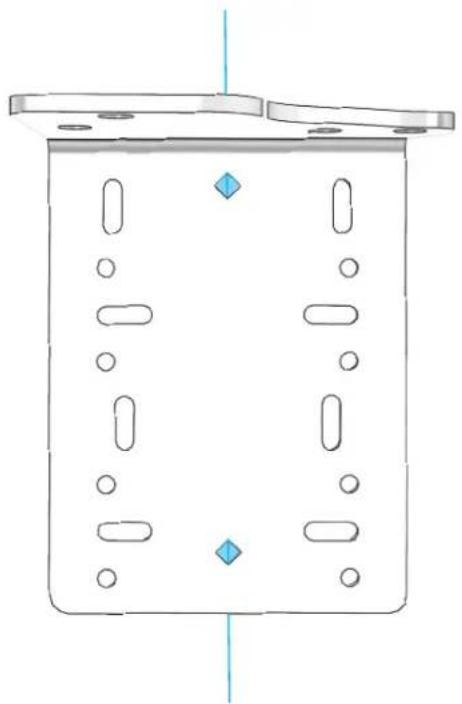

Positioning bracket (W1111771)

JOIN KIT TRIMS

Handle-to-handle join kit (W11103739)

Left-hand (handle) trim (W1103734)

Right-hand (handle) trim (W1103737)

Handle-to-hinge join kit (W11103738)

Left-hand (handle) trim (W1103734)

Right-hand (hinge) trim (W11103736)

Hinge-to-handle join kit (W1110340)

Left-hand (handle) trim (W11103737)

Right-hand (hinge) trim (W11103735)

READ AND FOLLOW THE INSTRUCTIONS PROVIDED WITH ANY OF THE TOOLS LISTED.

TOOLS + PARTS

NOT PROVIDED

TOOLS

☐ Cordless drill and drill bits or impact driver
☐ Drill bit set including 3/32" and 1/8" diameter bits
□ Two adjustable wrenches
□ #2 Phillips bit
☐ 1/4" magnetic nut driver

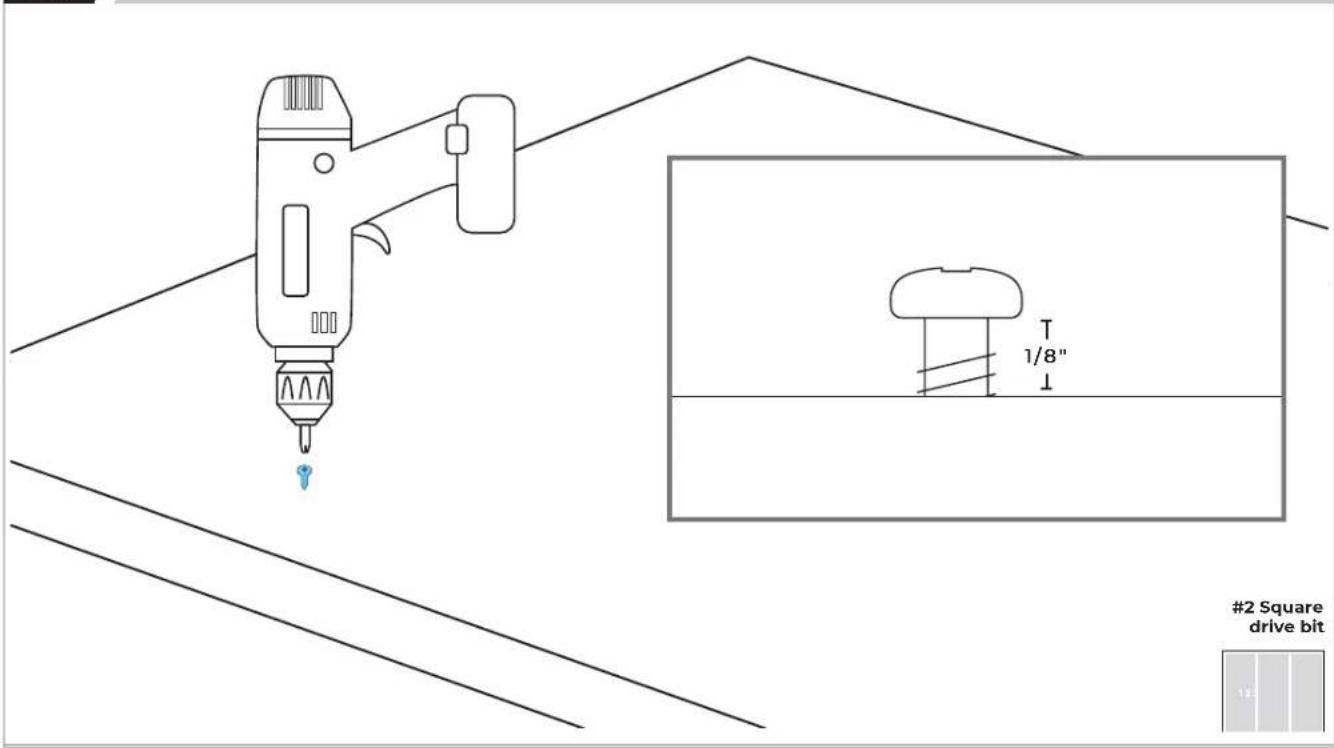

□ #2 square-drive bit
☐ 48" or longer level or straight edge (Can substitute a factory-installed trim piece, once removed.)
☐ 3/8" and 1/2" open-end wrenches
□ Tape measure
□ Utility knife
□ Masking tape
□ Appliance dolly
☐ Right angle drill adapter
□ 6" drill extension
☐ #8 pan head wood screws of assorted lengths including 1", 1-1/4", 1-1/2"

PARTS

☐ Flexible code-approved water supply line
□ Custom door overlay panels

• Stainless steel panels: order from JennAir
- Custom wood panels: consult a qualified cabinetmaker or carpenter
☐ Additional fasteners will be required according to the kitchen furniture construction

WHY USE

ROTTER

SYSTEM

SHIMS

AND THE

BADASS

BRACKET?

This recommended process might be unfamiliar to you as an installer, but it adds enormous value to both you and your client. Use the Rotter system to:

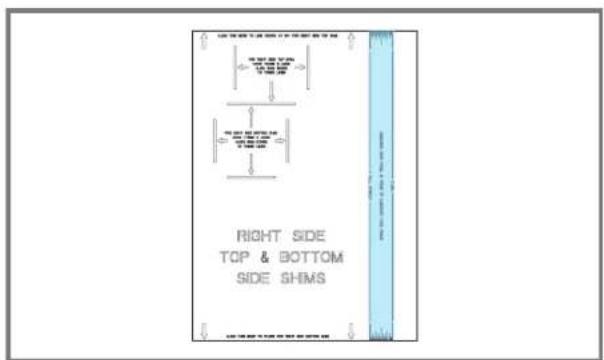

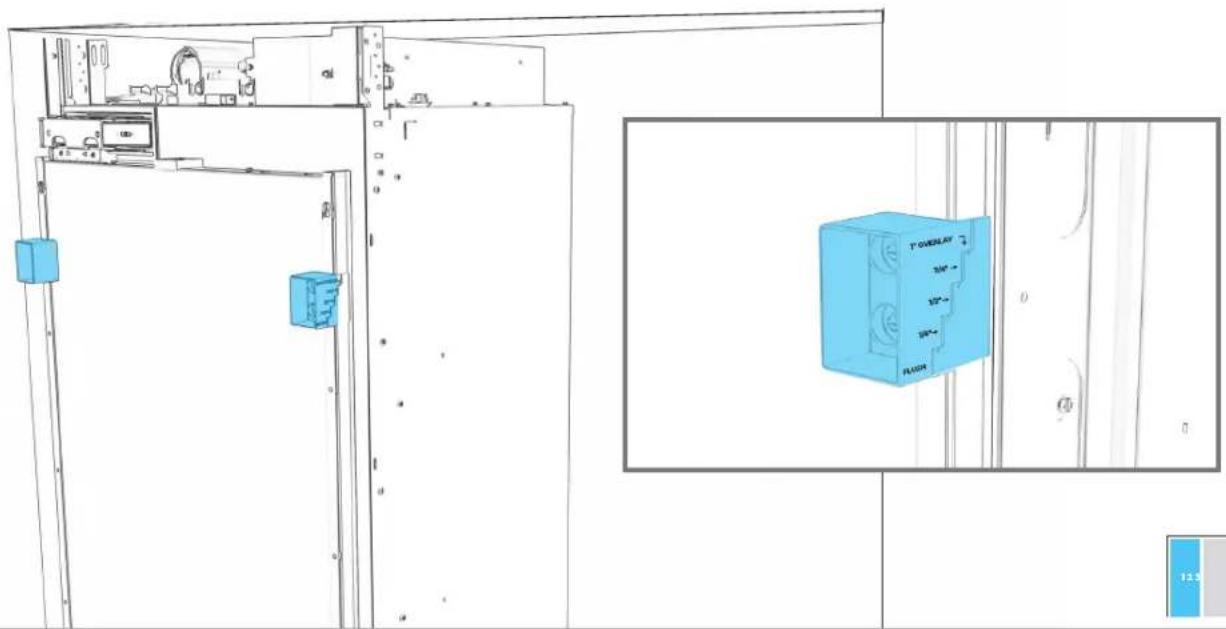

• Help position column without scratching
• Create precise 1/8" reveals on each side
  • Always have ready-made shims tailored to each site
• Keep column stable in cutout over lifetime
• Eliminate misalignment issues for your client

9/32" 1/4" 3/16" 1/8" 1/16"

CONFIGURATIONS

2-UNITS

CAUTION

Pinch Hazard

Installation of door panels with less than a 3/8" (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching.

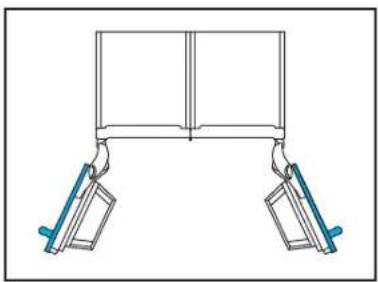

PERMISSABLE 2-UNIT CONFIGURATIONS

Handle-to-handle

join kit

(W11103739)

Hinge-to-handle

join kit

(W11103740)

Handle-to-hinge

join kit

(W11103738)

Simple line drawing of a mechanical support structure with two vertical arms and blue clamps (no text or symbols)

Simple line drawing of two hanging objects with blue clips, no text or symbols present

Simple line drawing of two hanging metal clips with blue clips, no text or symbols present

NON-PERMISSABLE 2-UNIT CONFIGURATIONS

Hinge-to-hinge

Simple line drawing of a mechanical assembly with a bracket and a cross symbol (no text or labels)

CONFIGURATIONS

3-UNITS

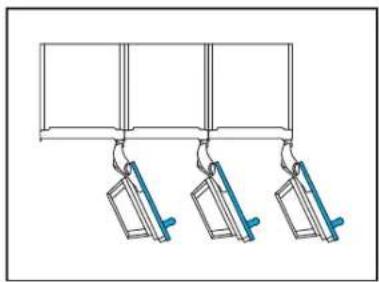

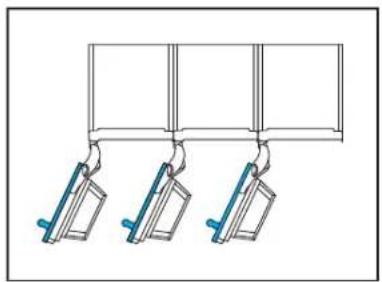

PERMISSABLE 3-UNIT CONFIGURATIONS

Handle-to-hinge and

handle-to-hinge

join kits:

W11103738 (X2)

Hinge-to-handle and

hinge-to-handle

join kits:

W11103740 (x2)

Pure diagram of three hanging metal objects with blue connectors, no text or symbols present

Handle-to-hinge and

handle-to-handle

join kits:

W11103738 and W11103739

Pure diagram of three hanging objects with blue brackets, no text or symbols present

Handle-to-handle and

hinge-to-handle

join kits:

W11103739 and W11103740

Simple line drawing of a three-panel support structure with two hanging clips (no text or symbols)

Pure diagram of three hanging objects with blue connectors, no text or symbols present

NON-PERMISSABLE 3-UNIT CONFIGURATIONS

Hinge-to-hinge

Diagram showing two hand gestures lifting a rectangular object, with a cross symbol and letter X (no text or labels)

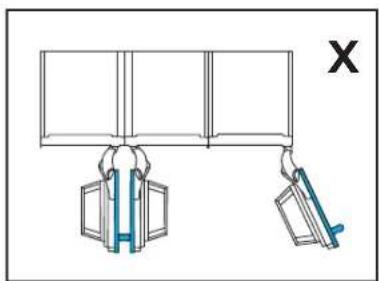

Hinge-to-hinge

Diagram showing two hanging objects with blue accents, one labeled 'X' (no text or symbols on objects)

DIMENSIONS

PRODUCT

OVERALL PRODUCT (NO PANEL)

Width See unit width table below
Height 79-7/8" – 85-5/16" (202.9 – 215.9 cm)
Depth 24-1/8" (61.3 cm)
Raw Door Height 79-7/8" (202.9 cm)
Toe-kick Height 3-9/16" (9.1 cm)
Toe-kick Depth 3-1/4" – 4-7/8" (8.3 – 12.4 cm)

PRODUCT WIDTH

Model Width
18"JBZFR18IGXJBZFL18IGX	17-3/4"(45.1 cm)
24"JBRFR24IGXJBRFL24IGXJBZFR24IGXJBZFL24IGX	23-3/4"(60.3 cm)
30"JBRFR30IGXJBRFL30IGXJBZFR30IGXJBZFL30IGX	29-3/4"(75.6 cm)
36"JBRFR36IGXJBRFL36IGX	35-3/4"(90.8 cm)

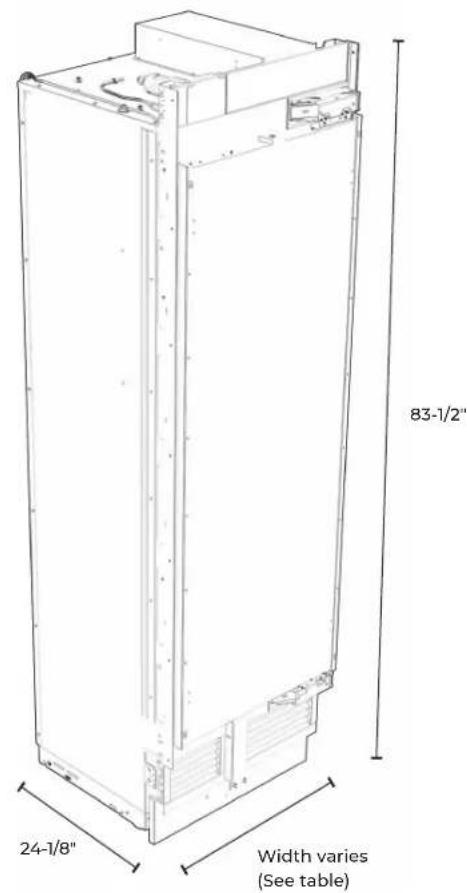

83-1/2" 24-1/8" Width varies (See table)

DIMENSIONS

ACCESSORIES

STAINLESS STEEL PANEL

Height 80" (203.2 cm)
Thickness 13/16" (2.1 cm)

CUSTOM TOE-KICK

Height 3-9/16" (9.1 cm)
Thickness 3/16"-3/4" (4.8 -1.9 mm)

CUSTOM PANEL

Thickness 3/4" (1.9 cm) max.

Weight 60 lbs. (27.2 kg) max.

Typical Height 80" (203.2 cm)

DOOR STYLE

CUSTOM PANEL WIDTH

CAUTION

Pinch Hazard

Installation of door panels with less than a 38 " (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching.

MODEL FLUSH WIDTH

18" 17-3/4" (45.1 cm)

24" 23-3/4" (63.5 cm)

30" 29-3/4" (75.6 cm)

36" 35-3/4" (90.8 cm)

MODEL OVERLAY WIDTH

18" 18-3/8" (46.7 cm)

24" 24-3/8" (61.9 cm)

30" 30-3/8" (77.2 cm)

36" 36-3/8" (92.4 cm)

Panel Panel Furniture 1/6" 1/6" 1/6"

Furniture Panel Panel H H H 5/8" 1/6" 5/8"

MODEL FLUSH WIDTH

18" 17-3/4" (45.1 cm)

24" 23-3/4" (63.5 cm)

30" 29-3/4" (75.6 cm)

36" 35-3/4" (90.8 cm)

DIMENSIONS

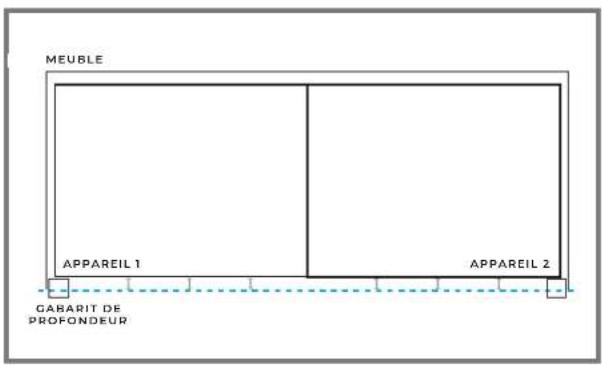

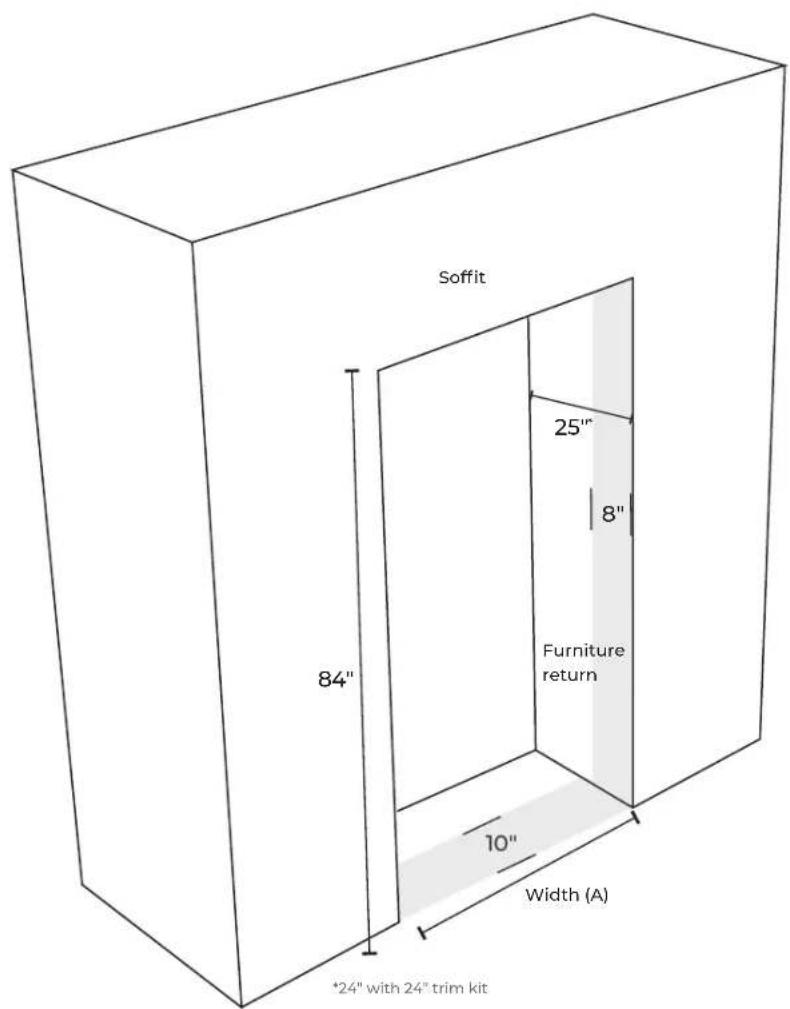

OPENING

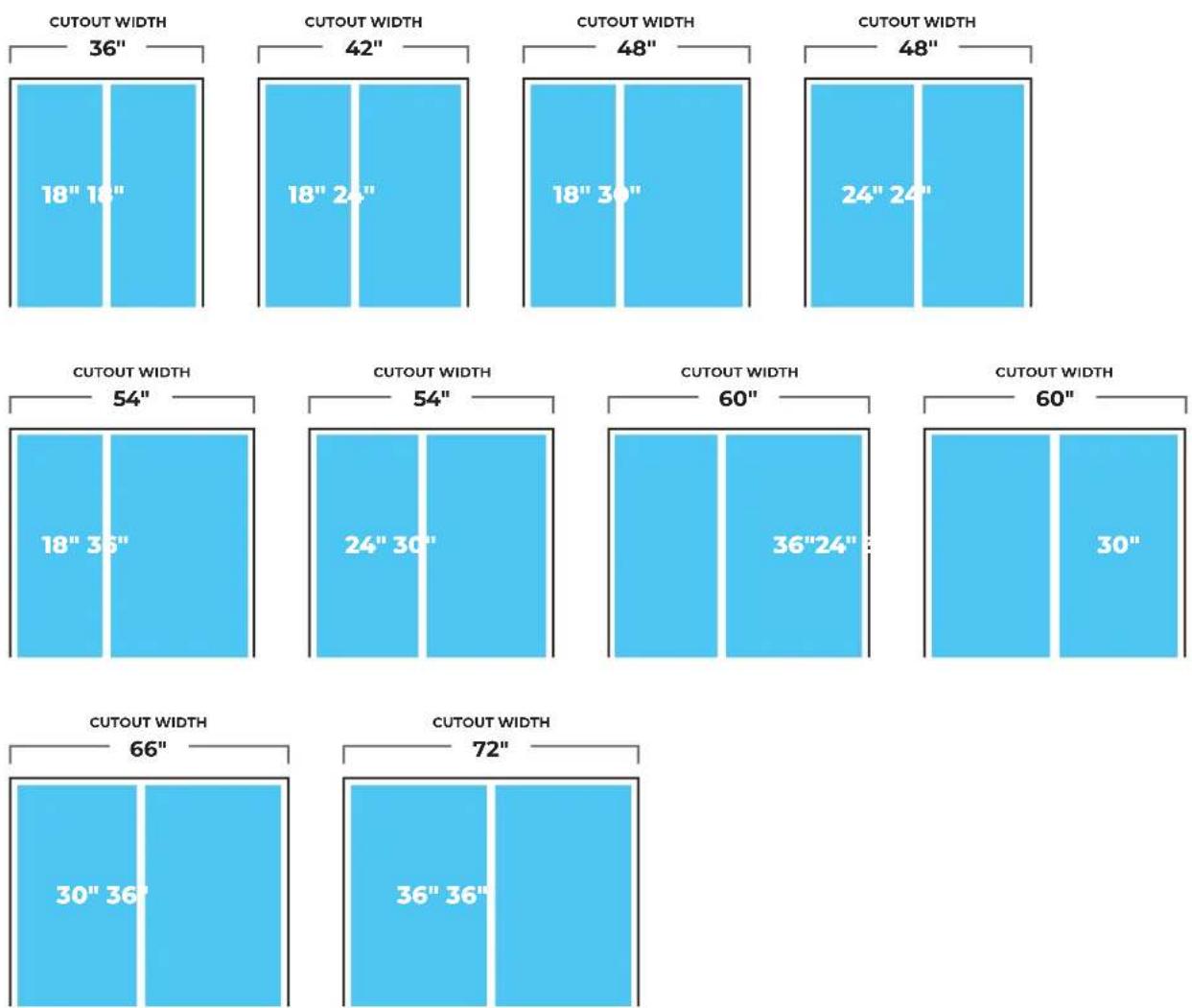

2-UNIT CONFIGURATIONS

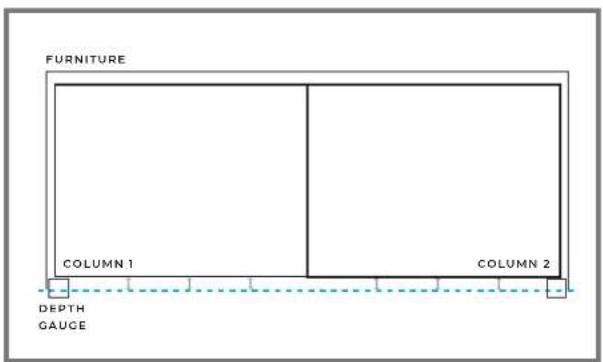

NOTE: These diagrams show cutout width of product combinations.

Products may be arranged into any permissible configuration shown on pg. 10-11.

DIMENSIONS

OPENING

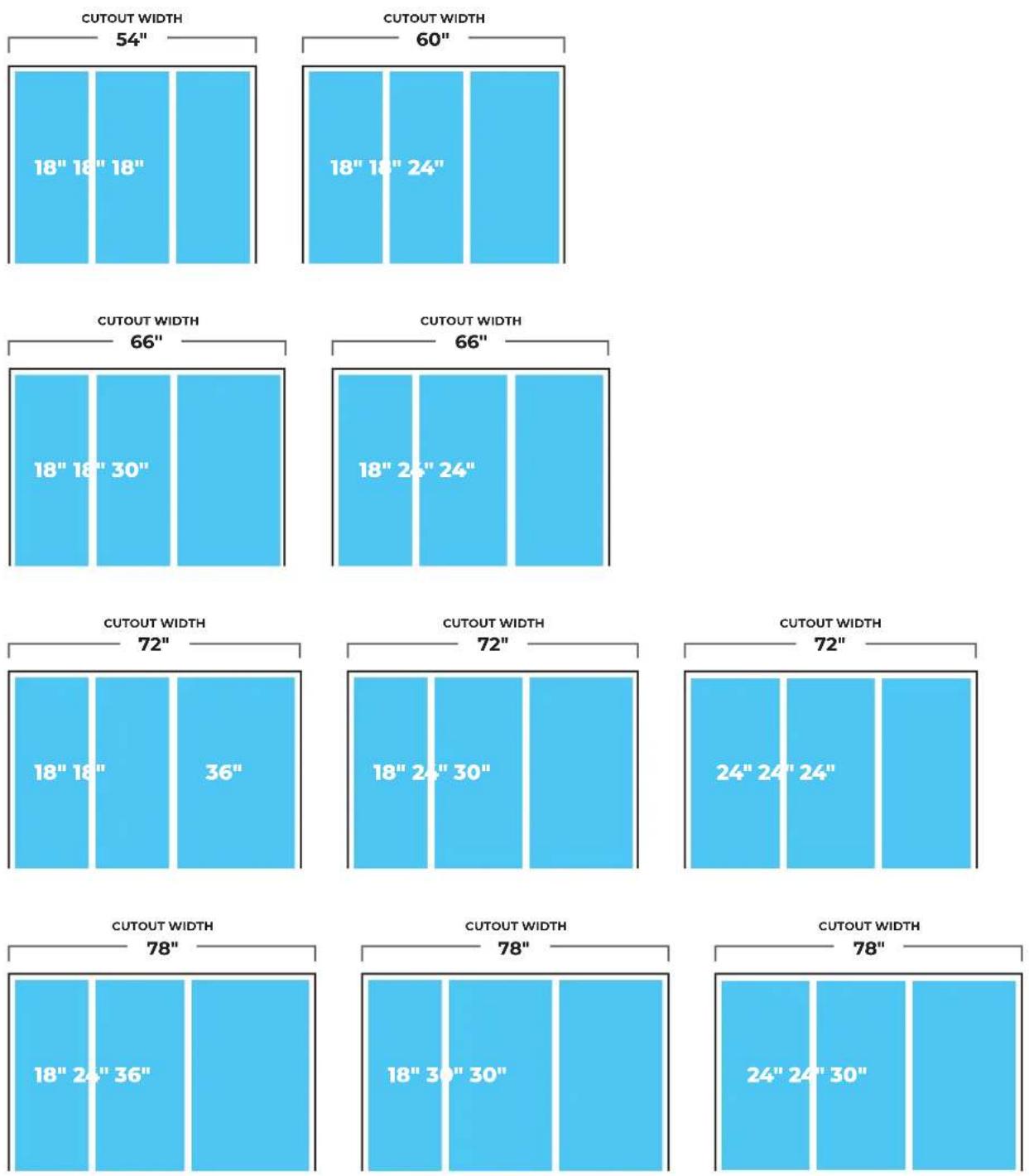

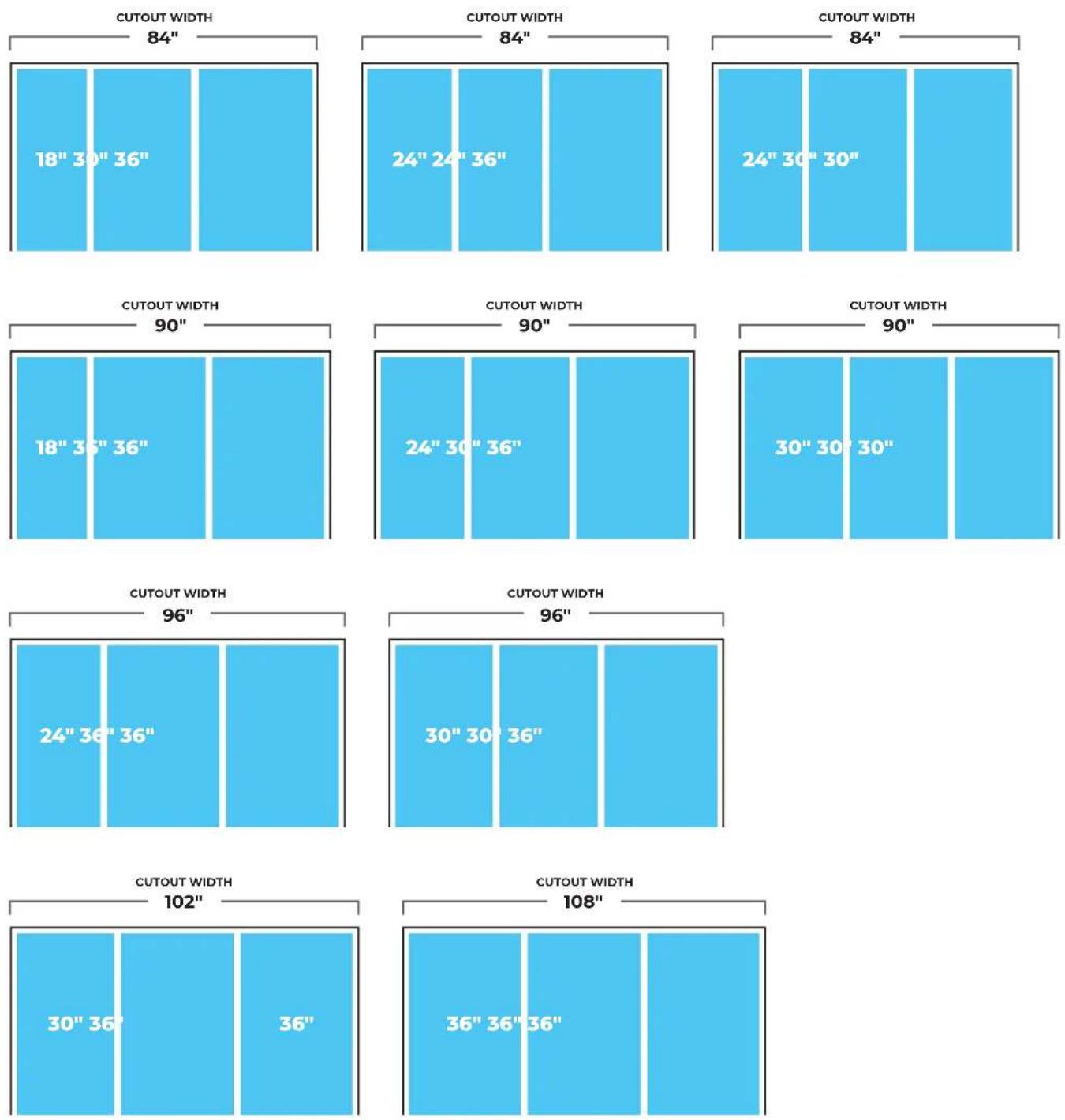

3-UNIT CONFIGURATIONS

NOTE: These diagrams show cutout width of product combinations.

Products may be arranged into any permissible configuration shown on pg. 10-11.

DIMENSIONS

OPENING

3-UNIT CONFIGURATIONS

NOTE: These diagrams show cutout width of product combinations.

Products may be arranged into any permissible configuration shown on pg. 10-11.

DIMENSIONS

OPENING

CAUTION

Pinch Hazard

Installation of door panels with less than a 38 " (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching.

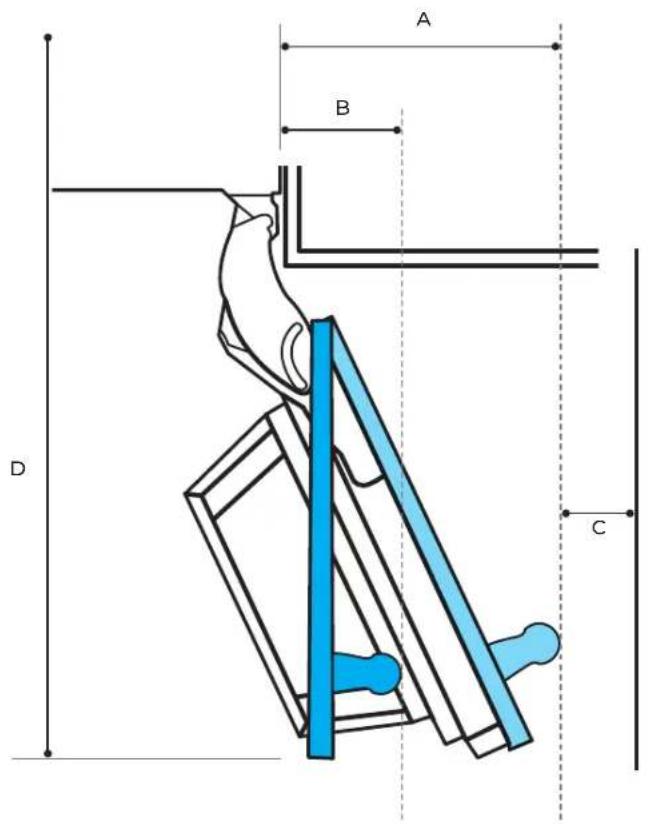

DOOR SWING REQUIREMENTS

Model 115° Door Swing "A" 90° Door Swing "B" Wall Gap "C" Door Open Depth "D"
18" 10-1/2" (26.7 cm) 5" (12.7 cm) 2-1/2" (6.4 cm) 44-1/2" (113 cm)
24" 13" (33 cm) 5" (12.7 cm) 2-1/2" (6.4 cm) 50-1/2" (128.3 cm)
30" 15-1/2" (39.4 cm) 5" (12.7 cm) 2-1/2" (6.4 cm) 56-3/8" (143.2 cm)
36" 18" (45.7 cm) 5" (12.7 cm) 2-1/2" (6.4 cm) 62-7/16" (158.6 cm)

Dimensions give 2-1/2" spacing between stainless steel handle accessory and wall to avoid pinching.

For a custom wood panel, consider handle depth to maintain 2-1/2" spacing.

A B D C

DIMENSIONS

OPENING

OPENING WIDTH

Model Width (A)
18"JBZFR18IGXJBZFL18IGX	18"(45.7 cm)
24"JBRFR24IGXJBRFL24IGXJBZFR24IGXJBZFL24IGX	24"(61 cm)
30"JBRFR30IGXJBRFL30IGXJBZFR30IGXJBZFL30IGX	30"(76.2 cm)
36"JBRFR36IGXJBRFL36IGX	36"(91.4 cm)

Soffit 84" 25" 8" Furniture return 10" Width (A) *24" with 24" trim kit

SITE PREP

1. CHECK THE FURNITURE

☐ Measure to make sure all opening dimensions are correct. (See previous page.)
☐ Side panel construction: 3/4" (1.9 cm) thick plywood.

IMPORTANT: Cannot be constructed of pressed fiber material such as MDF.

☐ Soffit height: 84" (213.4 cm).
☐ A single water supply line may be split 2 or 3 ways to service all columns.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

2. CHECK THE INSTALLATION SITE

□ Away from ovens, radiators or other heat sources.
☐ Temperature will not fall below 55^ F ( 13^ C).
☐ Floor supports more than 600 lbs. (272 kg) plus door panel and contents weight.
☐ Floor level with the room.
□ Furniture face plumb.

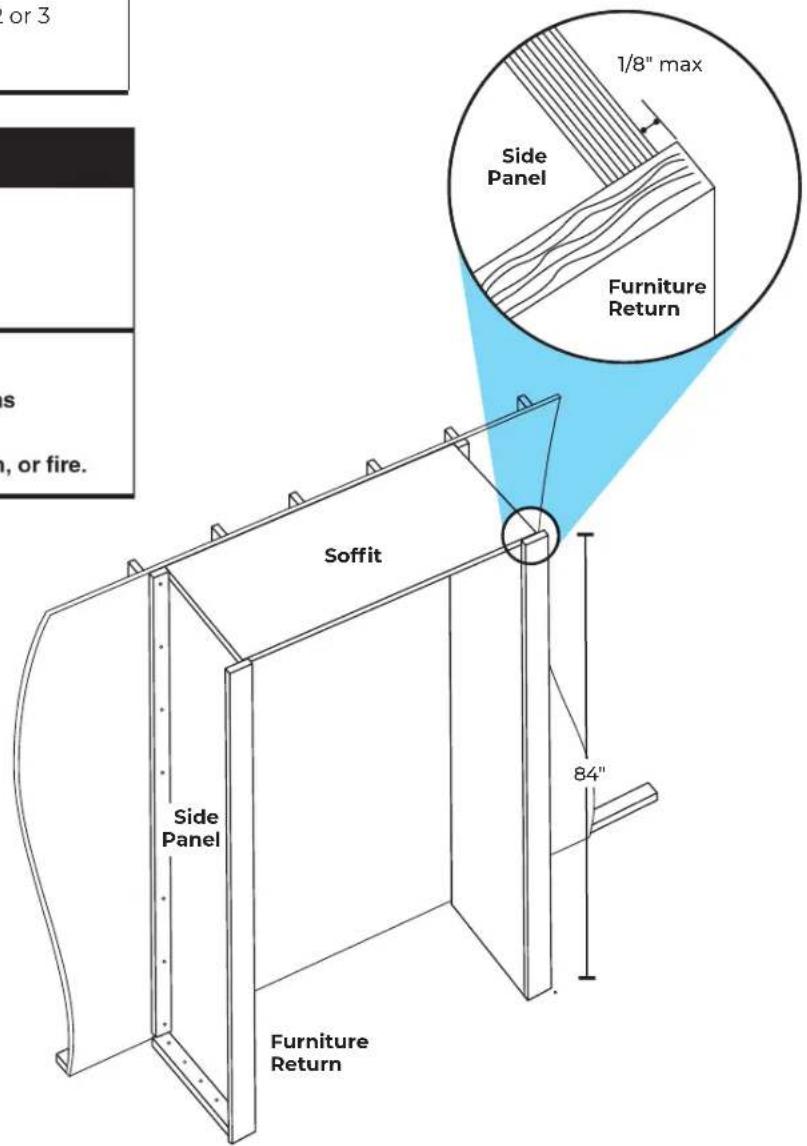

or 3 s , or fire. 1/8" max Side Panel Furniture Return Soffit Side Panel Furniture Return 84"

SITE PREP

3. CHECK THE WATER SUPPLY

□ Water supply meets local plumbing codes.
☐ Water shutoff in base cabinet, as shown, or accessible area.
☐ Access hole through the cabinet is within 1/2" (1.3 cm) of the rear wall.
☐ Install any additional tubing only where temperatures remain above freezing. Check for leaks.
☐ Not using a piercing-type or 3/16" (4.8 mm) saddle valve. See refrigerator dealer for saddle-type valve kit that complies with local plumbing codes.
☐ If water pressure to reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

- Check sediment filter to see if it is blocked. Replace filter if necessary.

- Allow the storage tank to refill after heavy usage.

- Remove the water filter cartridge. No filter bypass is necessary.

WATER SUPPLY REQUIREMENTS

Water Pressure 30 – 120 psi (207 – 827 kPa)
Water Pressure to Reverse Osmosis System	Minimum 40 – 60 psi (276 – 414 kPa)
Excess Water Line for Connection	30" (76.2 cm)
Supply 1/4" OD copper, braided stainless steel or PEX tubing

Water shutoff Access hole (within 1/2" of rear wall)

?

IF YOU HAVE QUESTIONS ABOUT YOUR WATER SUPPLY, CALL A LICENSED, QUALIFIED PLUMBER.

SITE PREP

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

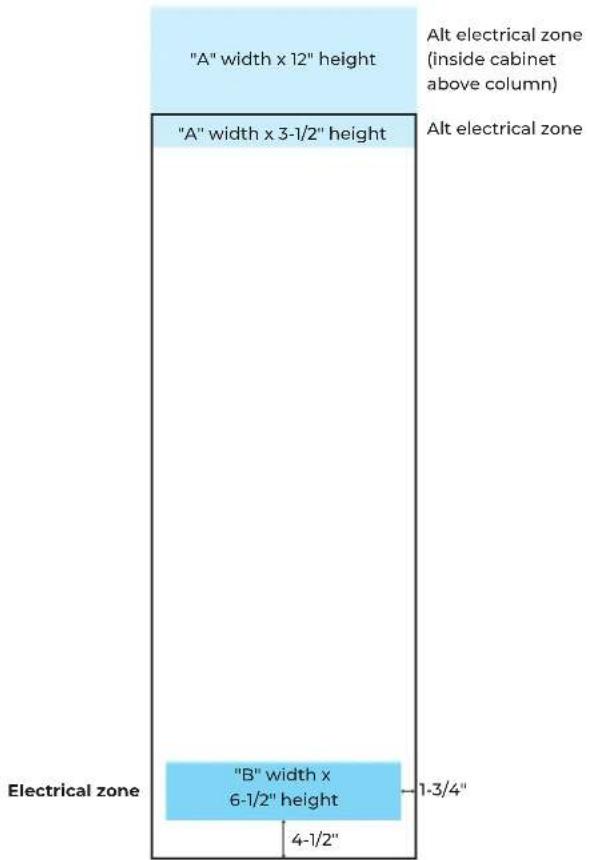

4. CHECK THE ELECTRICAL

☐ Column on a separate circuit. Outlet cannot be turned off by a switch.
□ Not using an extension cord.
□ Not using a GFCI protected outlet.
□ Electrical installed in the zones highlighted. (See graphic to the right.)

ELECTRICAL REQUIREMENTS

Product Width/Alternate Electrical Zone Width "A"	Electrical ZoneWidth "B"
18" (45.7 cm) 14-1/2" (36.8 cm)
24" (60.1 cm) 20-1/2" (52 cm)
30" (76.2 cm) 26-1/2" (67.3 cm)
36" (91.4 cm) 32-1/2" (82.6 cm)

"A" width x 12" height Alt electrical zone (inside cabinet above column) "A" width x 3-1/2" height Alt electrical zone "B" width x 6-1/2" height 1-3/4" 4-1/2" Electrical zone

?

IF YOU HAVE QUESTIONS ABOUT YOUR ELECTRICAL SUPPLY, CALL A LICENSED, QUALIFIED ELECTRICIAN.

SITE PREP

5. PRE-INSTALLATION CHECK

□ Verify customer's selected door style.
☐ Remove all installation materials from the deli drawer.
☐ Mark selected door style on templates and door depth gauges with a permanent marker.
☐ Verify that the diagonal measurements of opening match.
☐ Check design considerations document to verify panel and toe-kick dimensions, as well as gaps and overlays.
☐ Check for correct join kits based on configuration, left/right side, hinge/non-hinge and installation order.

INSTRUCTION KEY

This helpful key tells you where you'll be performing the steps in the following sections.

Note that columns are installed and numbered from left to right.

Perform the step on the column highlighted in blue.

Perform the step on every column you are installing.

123

Perform the step on the furniture.

123

Perform the step on a part that is not attached to a column, such as a door panel or toe-kick.

PRE PAR E

COLUMNS

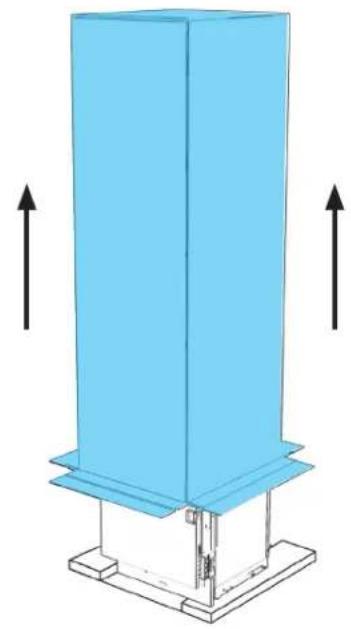

1.1

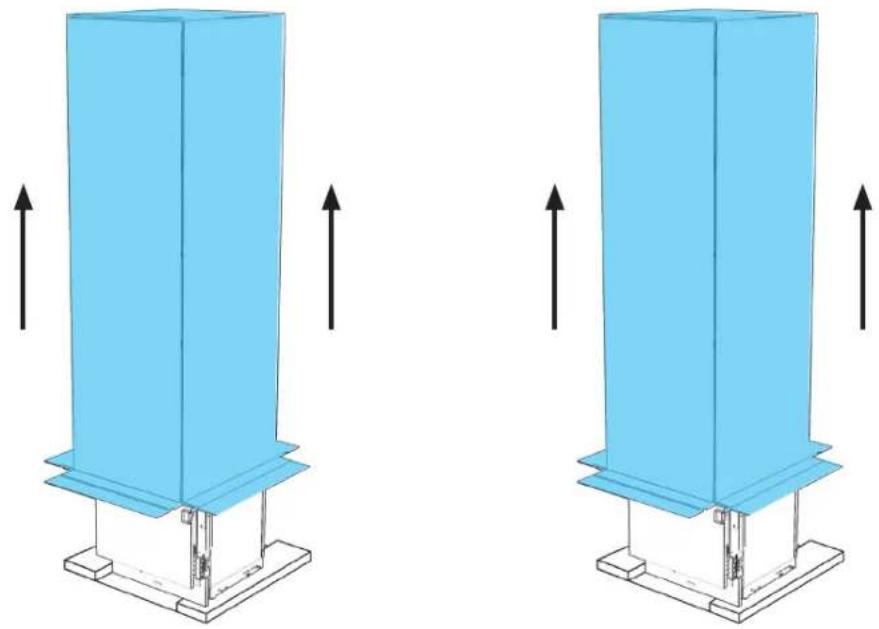

UNCRATE COLUMNS AND JOIN KITS, DISCARDING CARTONS.

Two identical blue structural supports with upward arrows indicating vertical motion, mounted on a base (no text or symbols)

REMOVE INSTALLATION KITS FROM DELI DRAWERS WHILE ON SKIDS.

BEFORE MOVING COLUMNS, REVIEW ALL WARNINGS.

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or "walk" the refrigerator when trying to move it, as floor damage could occur.

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

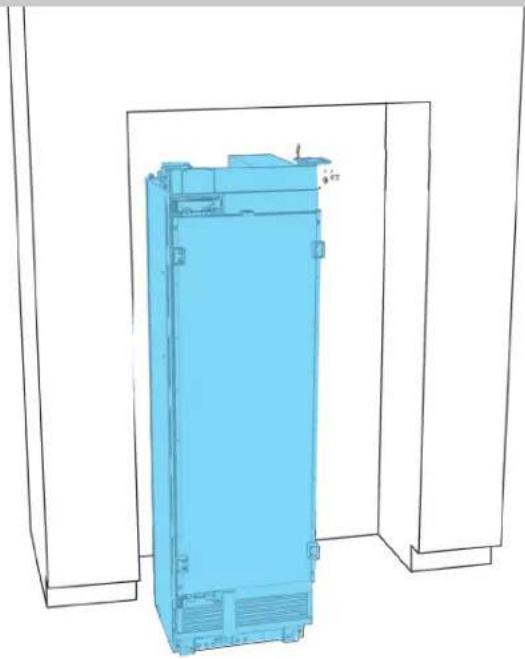

1.2

EACH COLUMN: MOVE IN FRONT OF OPENING.

3D wireframe diagram of a blue industrial cabinet or enclosure with mounting brackets (no text or symbols)

USE TWO PEOPLE. DO NOT OPEN DOORS UNTIL COLUMN IS SECURED.

1.3

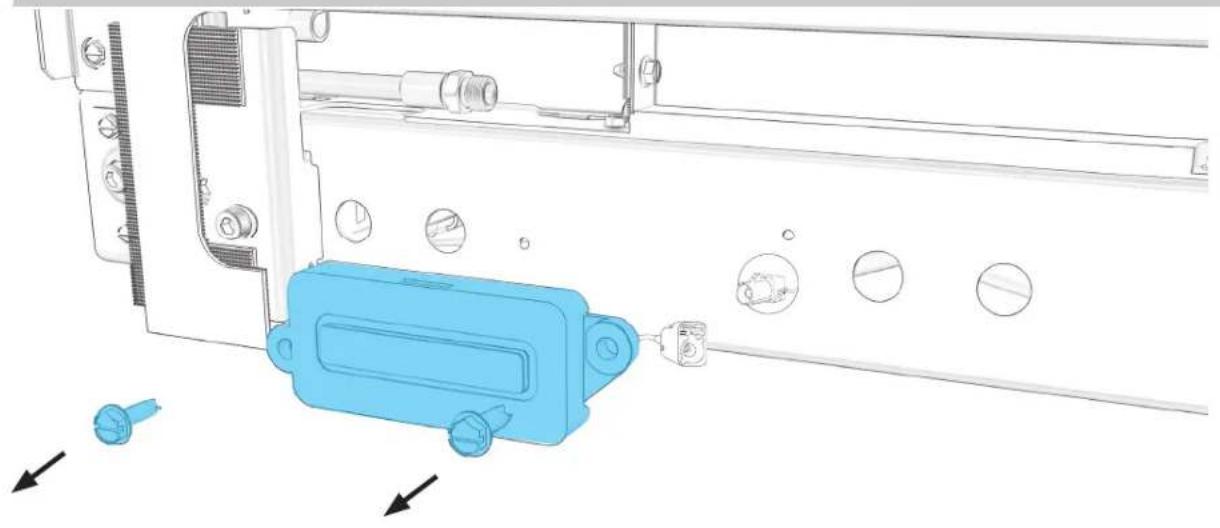

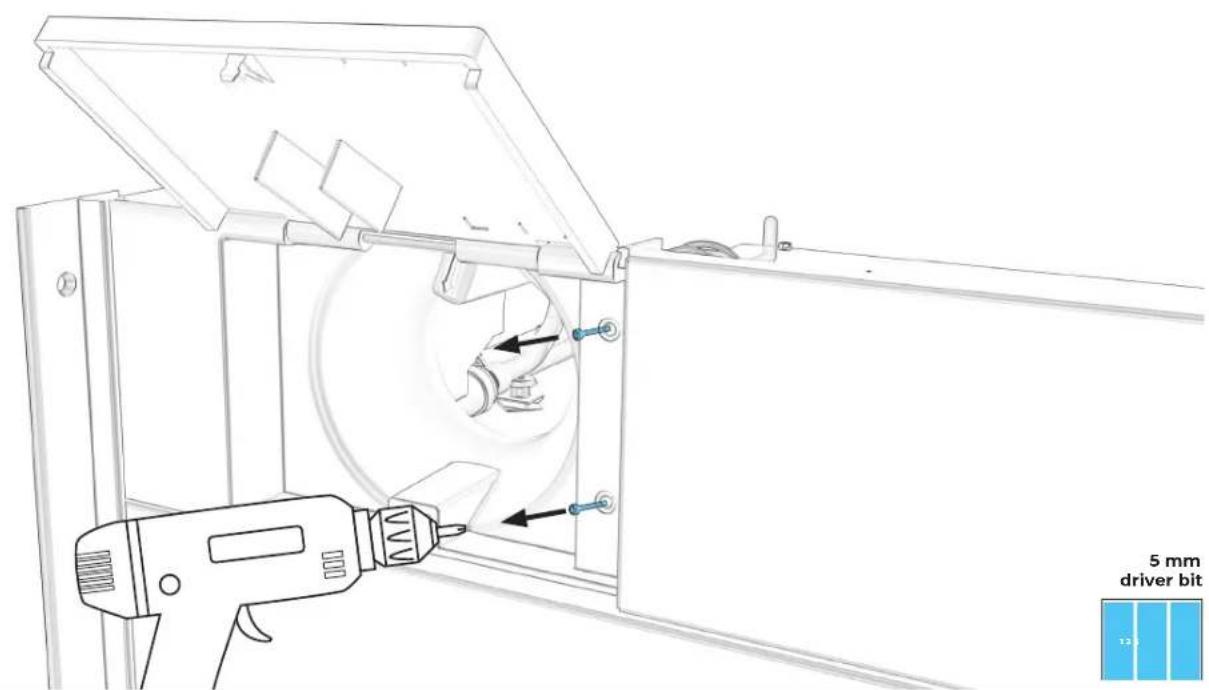

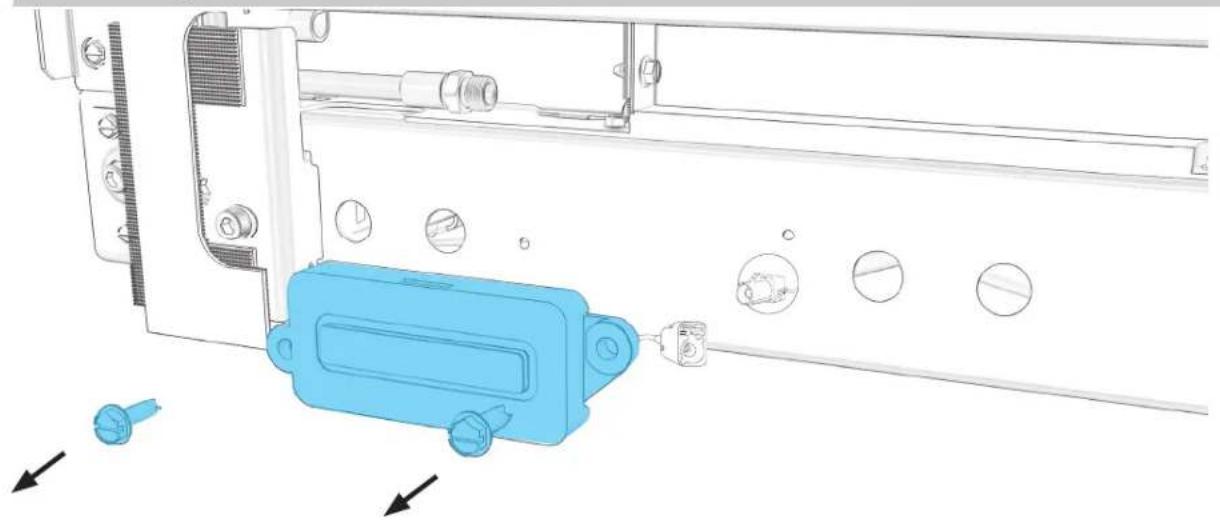

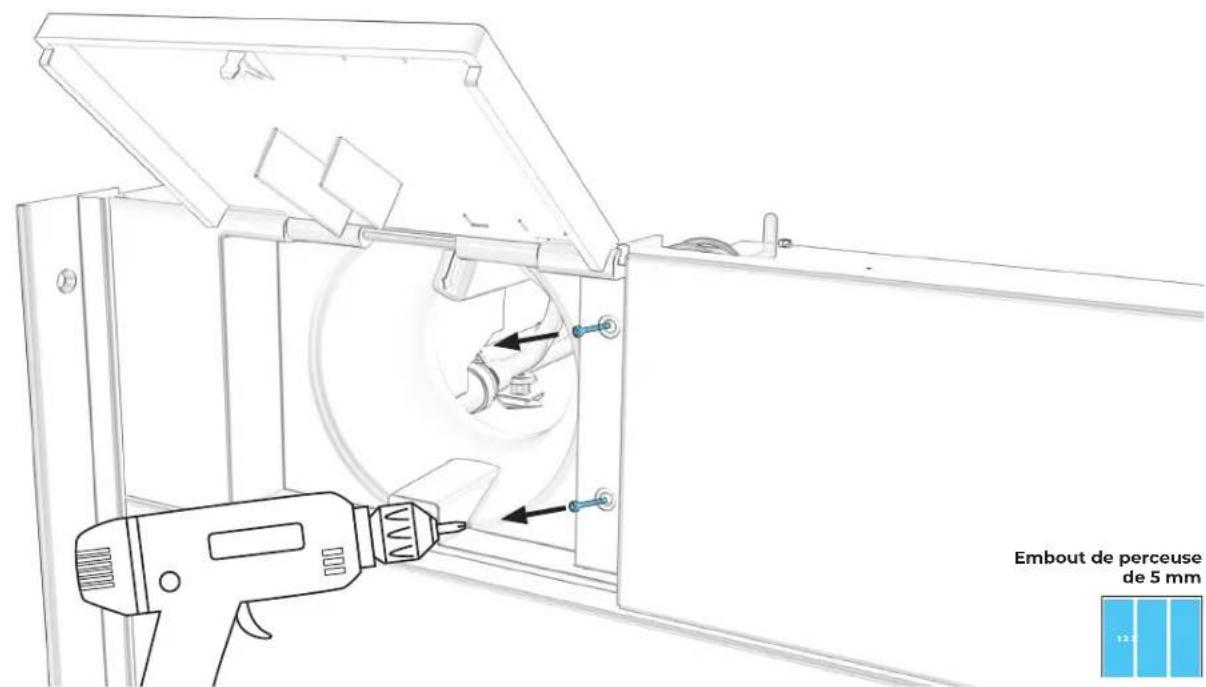

EACH COLUMN: REMOVE BOTH WATER FILTER SCREWS.

5 mm driver bit

1.4

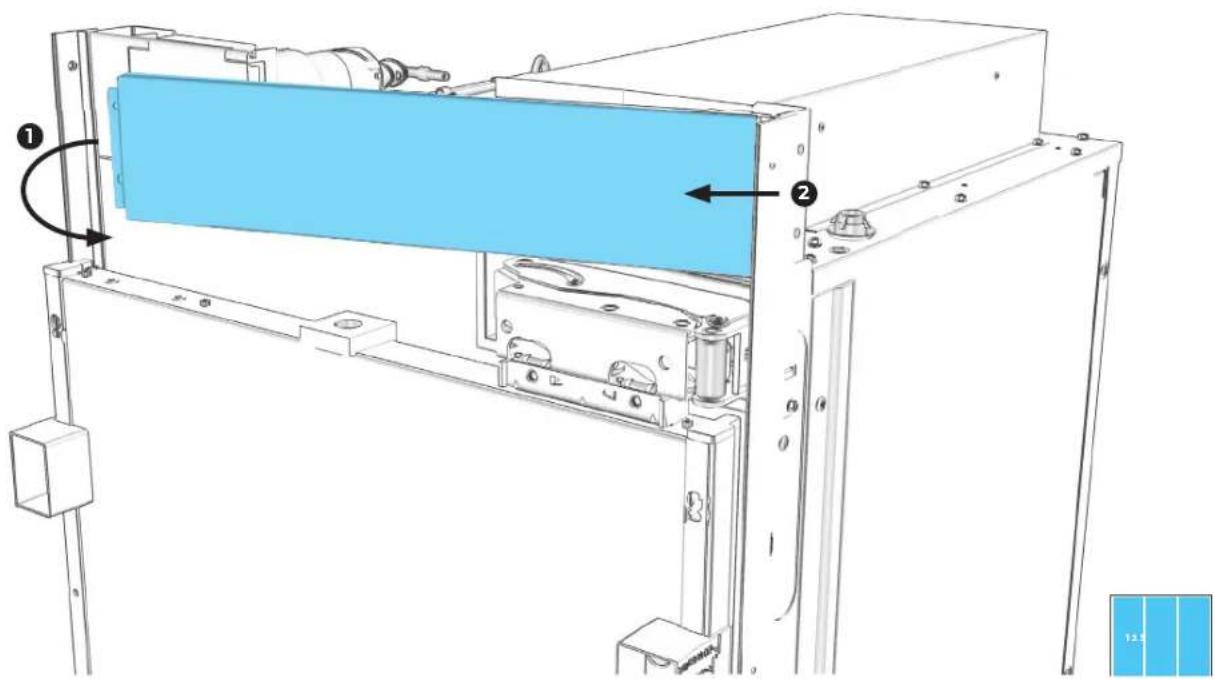

EACH COLUMN: PULLING LEFT, REMOVE FACEPLATE.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or movement.

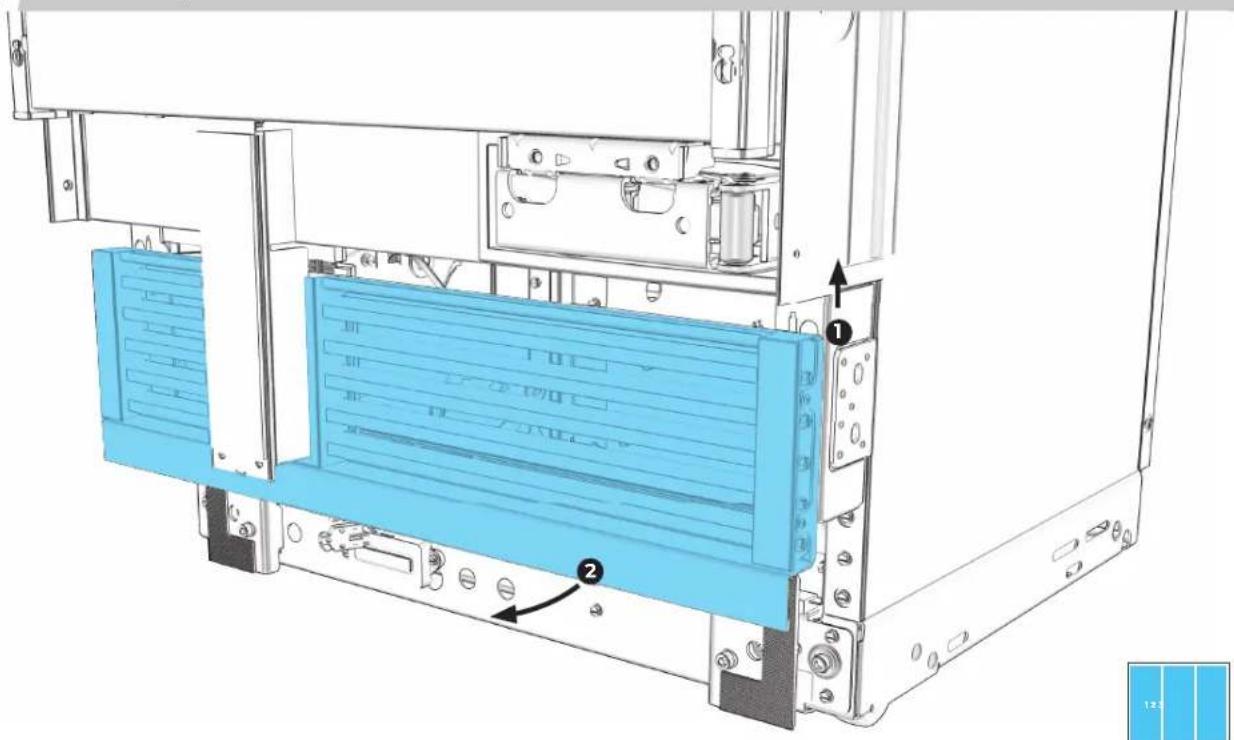

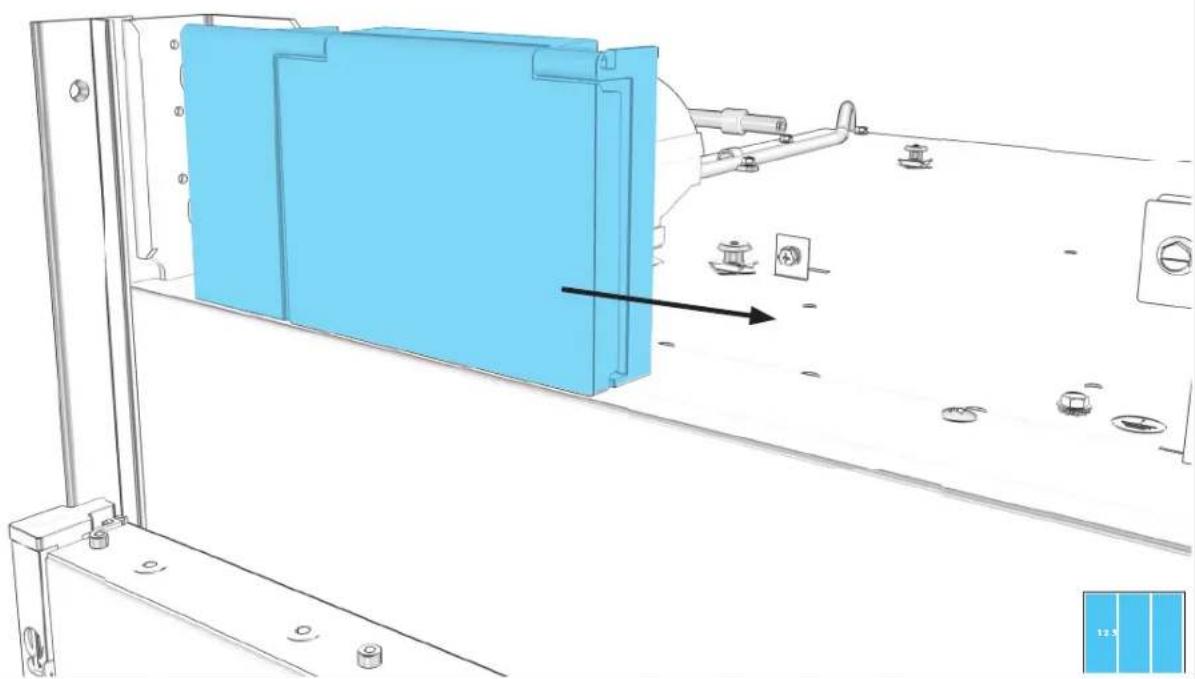

1.5

EACH COLUMN: PULL HOUSING FORCEFULLY RIGHT, REMOVE.

Technical line drawing of a mechanical assembly with blue panel and mounting holes (no text or symbols)

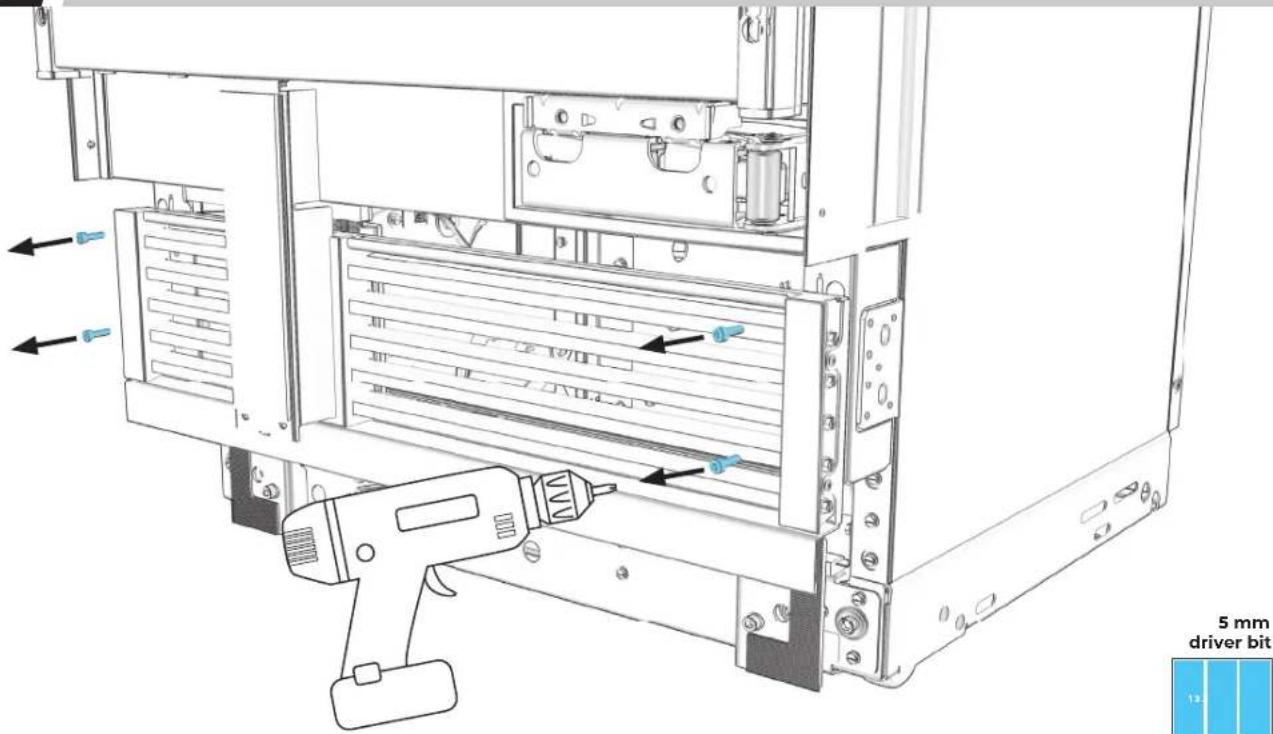

1.6

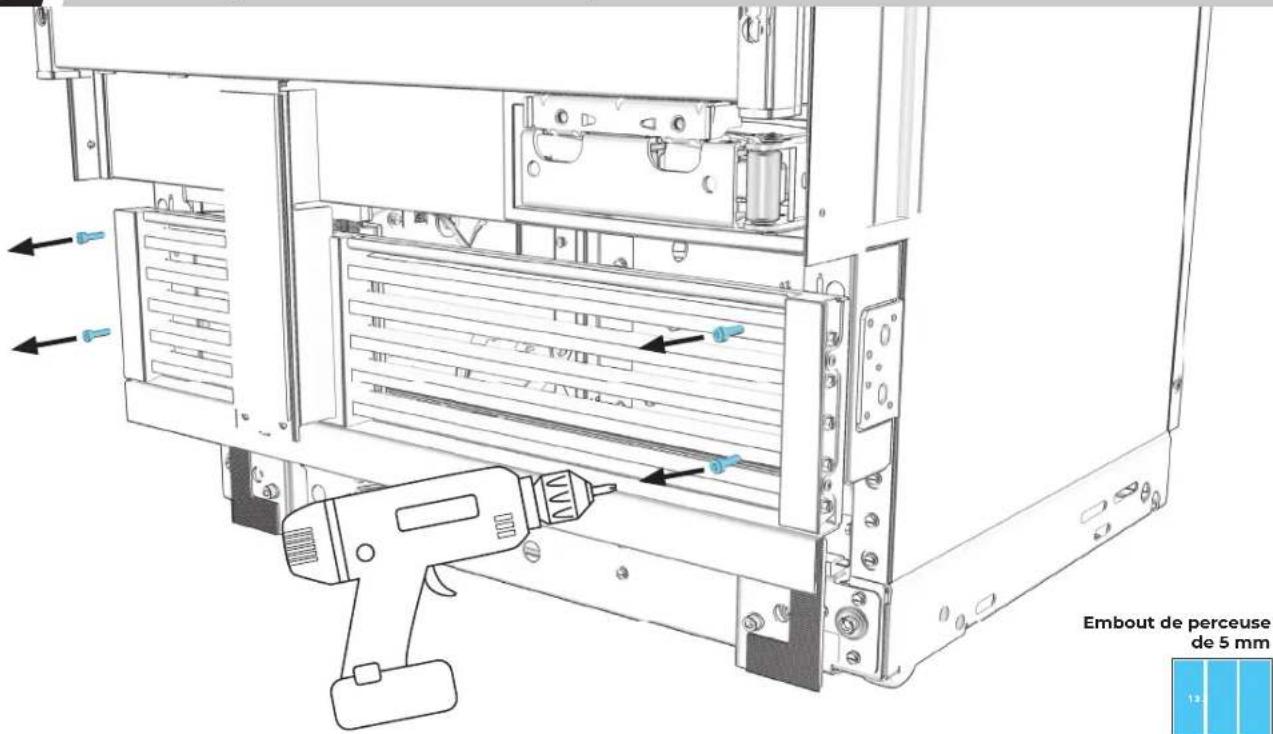

EACH COLUMN: REMOVE FOUR AIR GRILLE SCREWS.

Technical diagram of a server rack with labeled components and a 5 mm driver bit specification

1.7

EACH COLUMN: REMOVE BASE AIR GRILLE.

Technical diagram of a server rack with labeled components and directional arrows indicating assembly or movement.

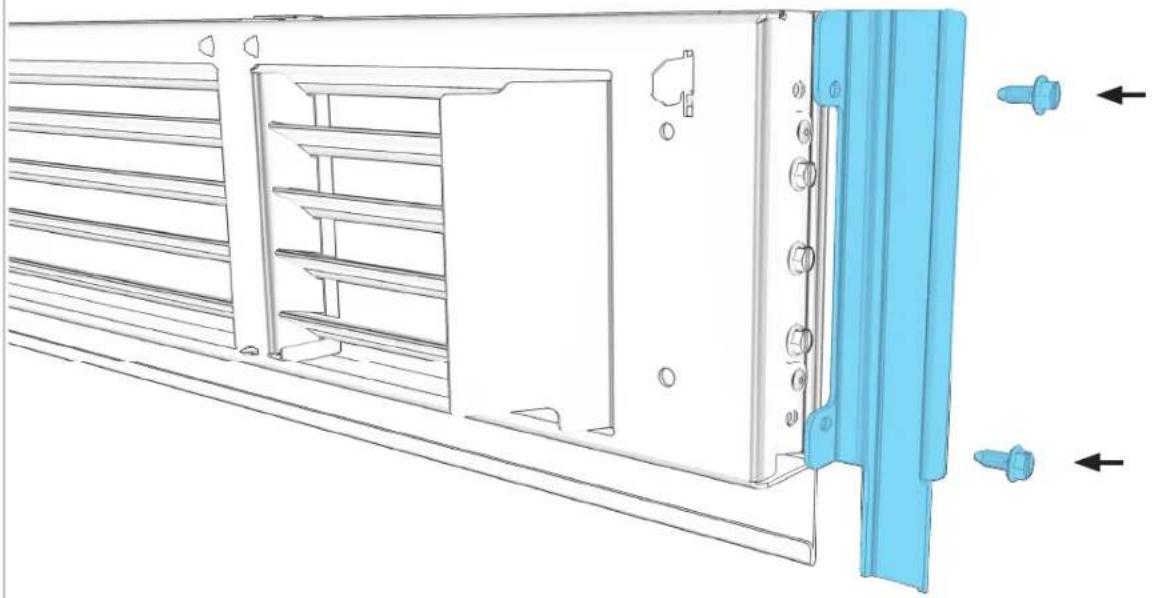

1.8

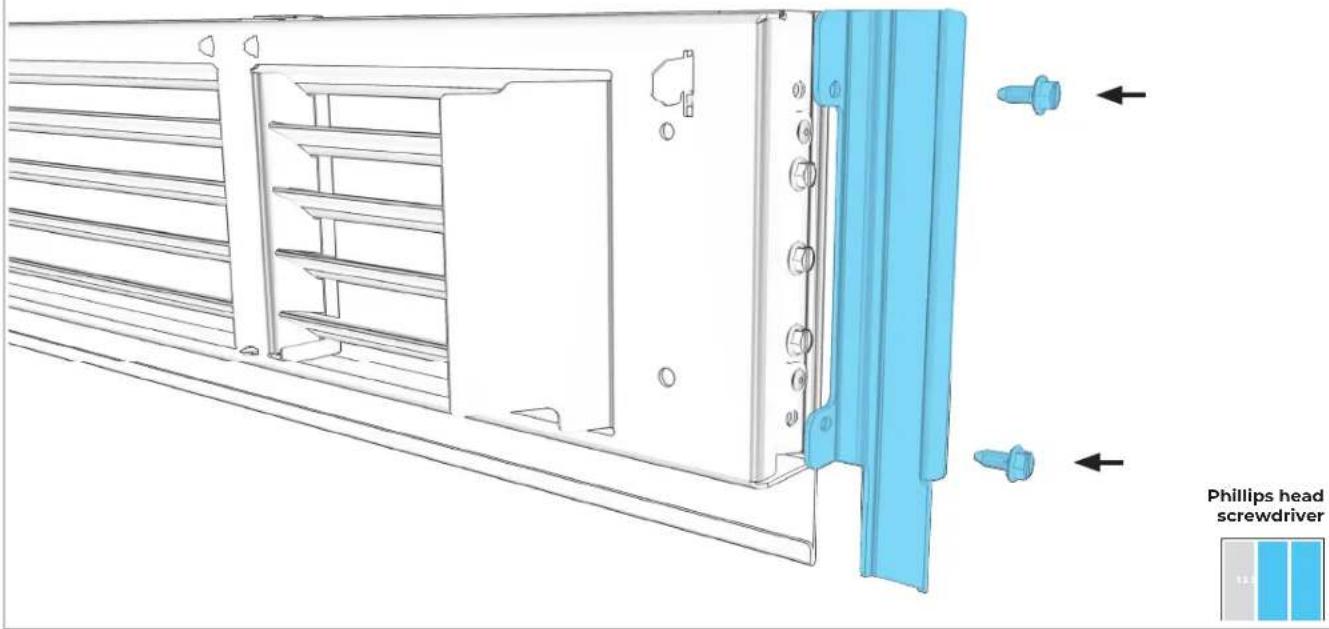

SECOND (AND THIRD, IF APPLICABLE) COLUMN: INSTALL AIR GRILLE TRIM.

Phillips head screwdriver

1.9

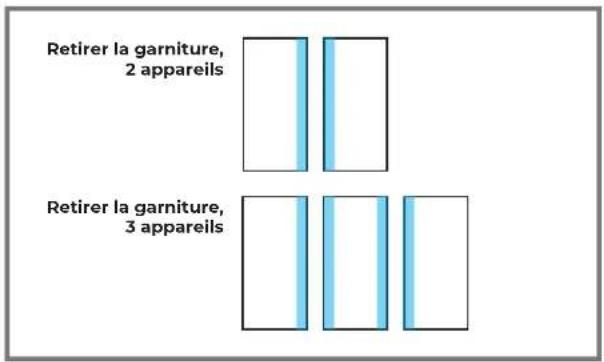

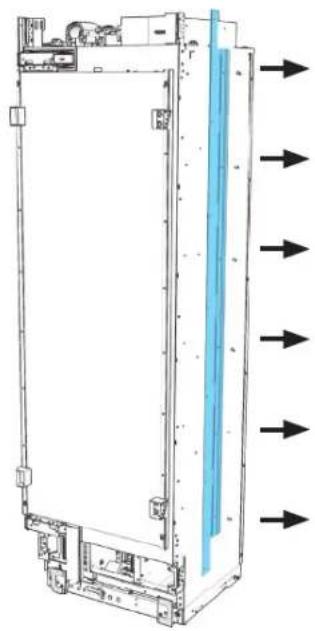

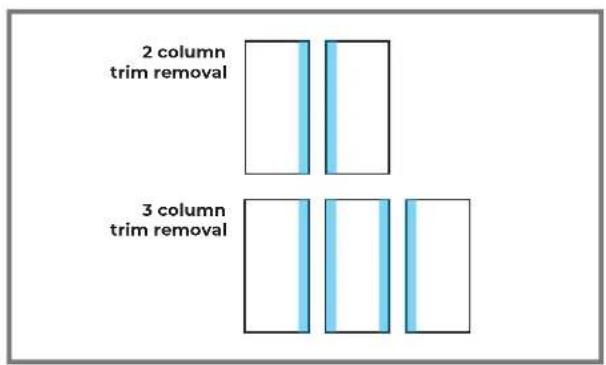

REMOVE TRIMS BETWEEN COLUMNS.

Technical line drawing of a rectangular electronic device with internal components and directional arrows indicating flow or force (no text or symbols present)

2 column trim removal 3 column trim removal

LEAVE TRIMS IN PLACE ON FURNITURE SIDES.

1.10

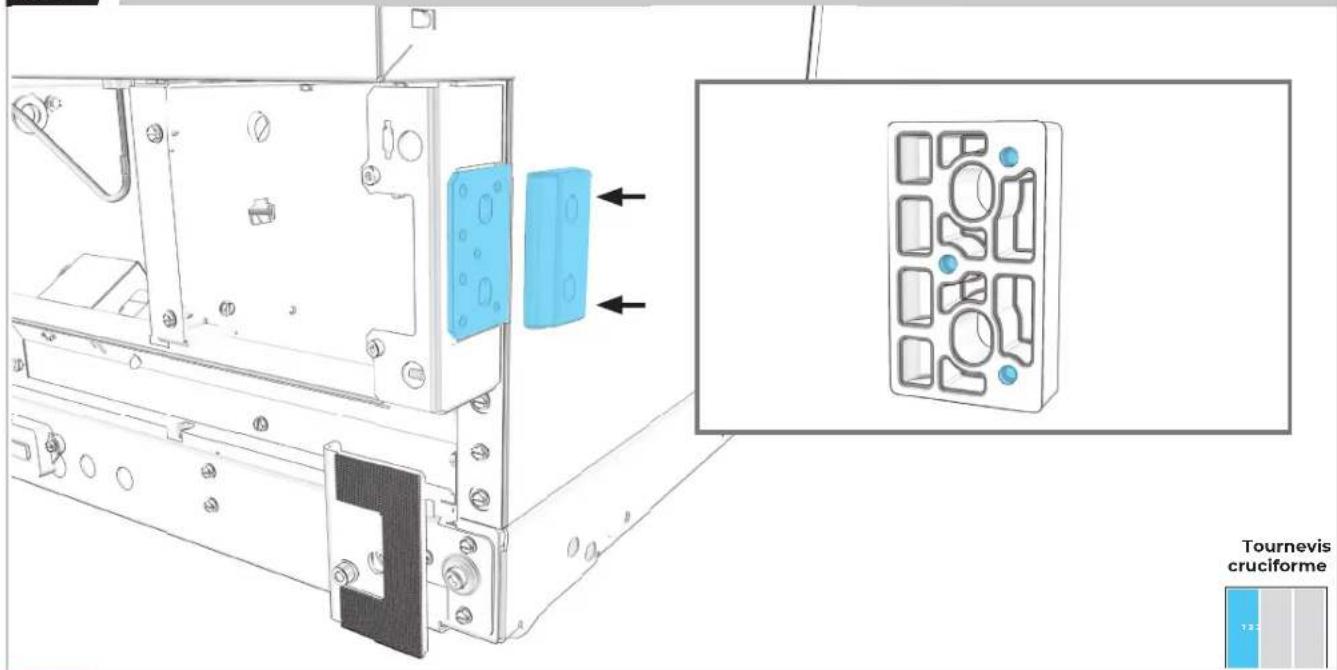

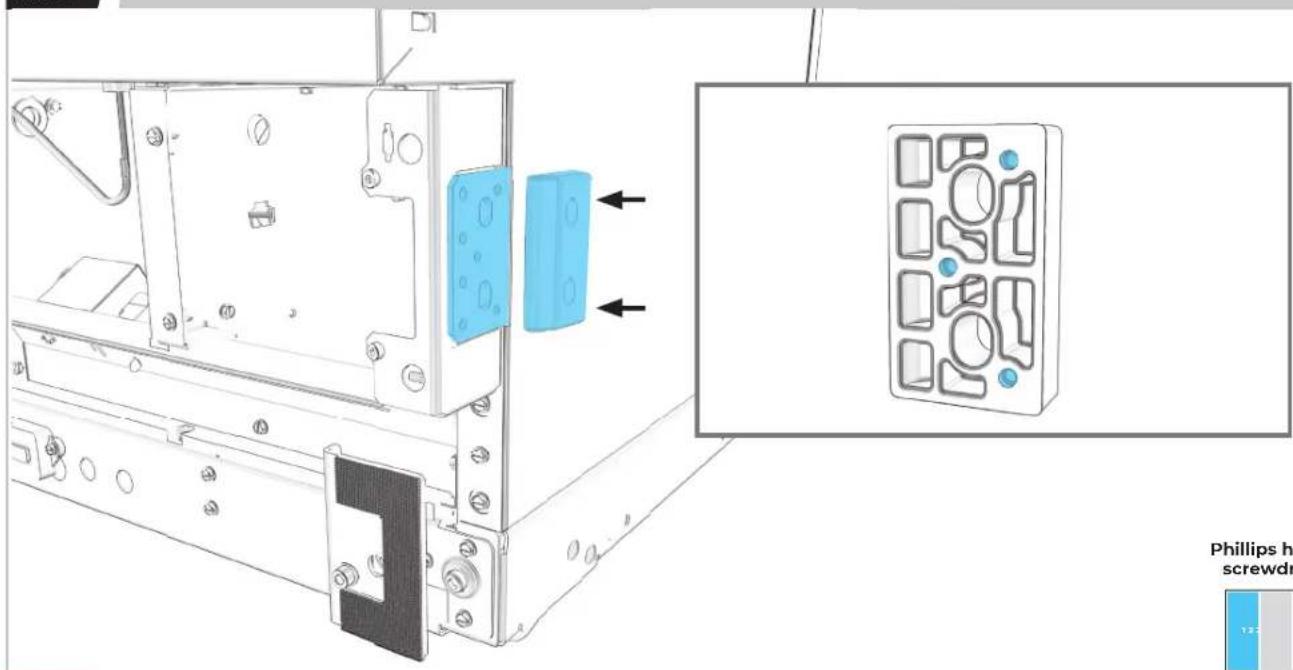

FIRST COLUMN: INSTALL SPACER.

Phillips h o screwdr 12.5

Phillips head screwdriver

MAKE SURE NARROW EDGE FACES OUT.

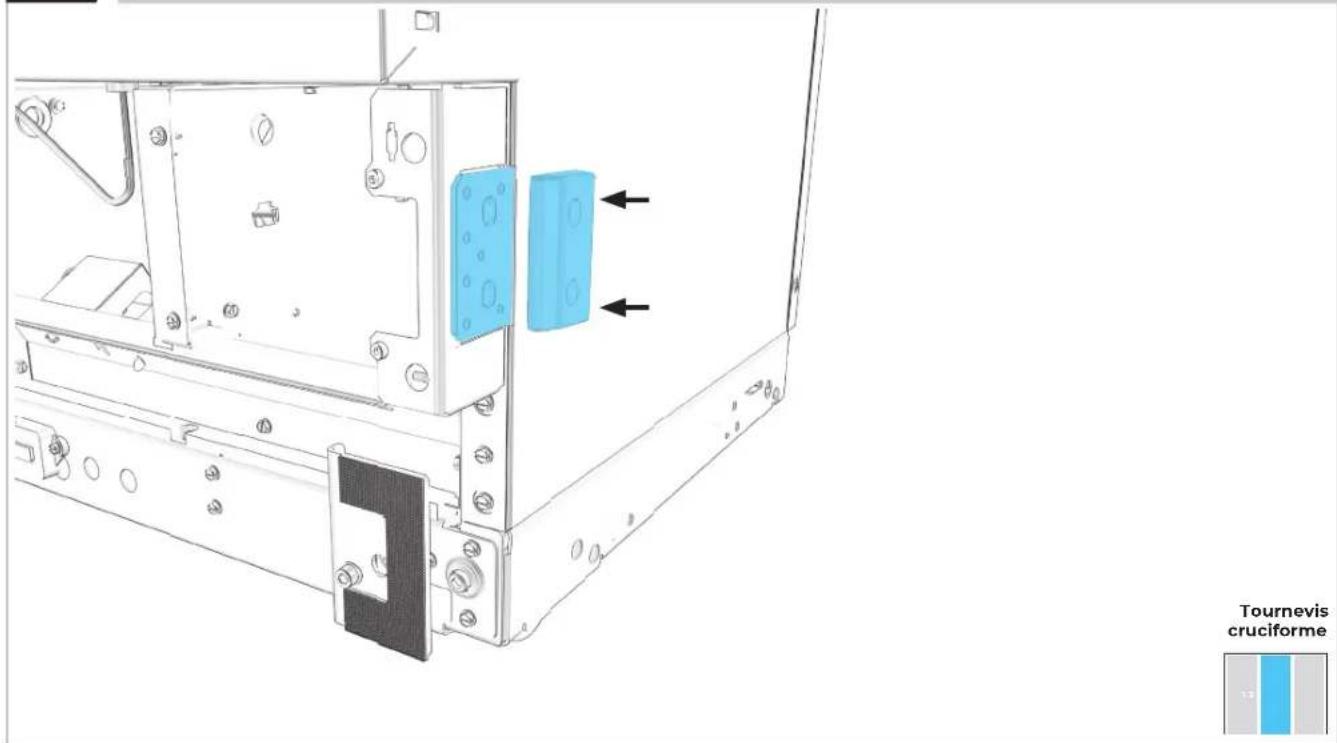

1.11

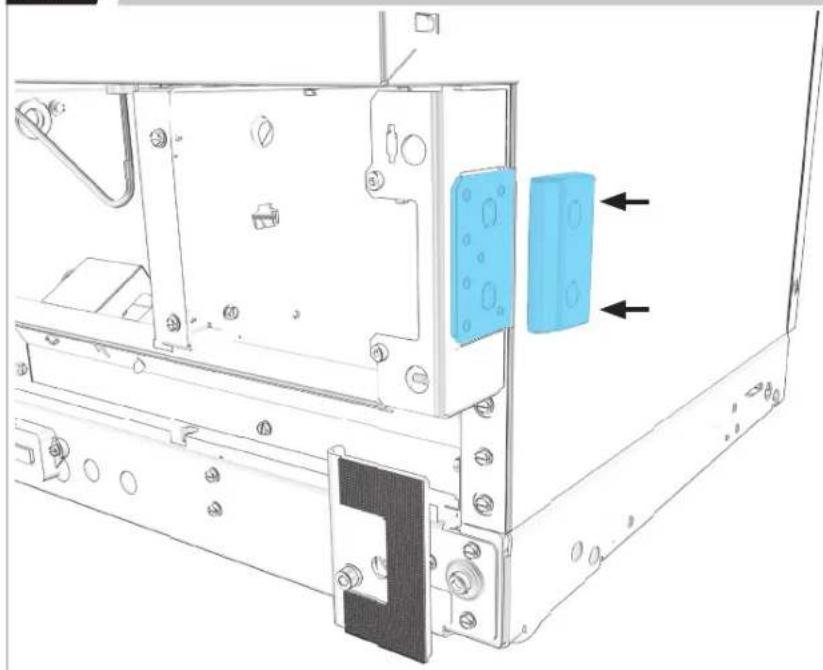

IF INSTALLING THREE COLUMNS: REPEAT 1.10 ON SECOND COLUMN.

Technical line drawing of a mechanical assembly with mounting brackets and a blue component (no text or symbols)

Phillips head screwdriver

PRE PAR E

JOIN KIT

2.1

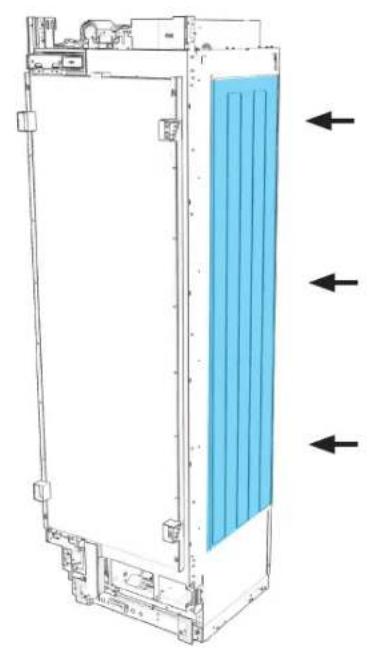

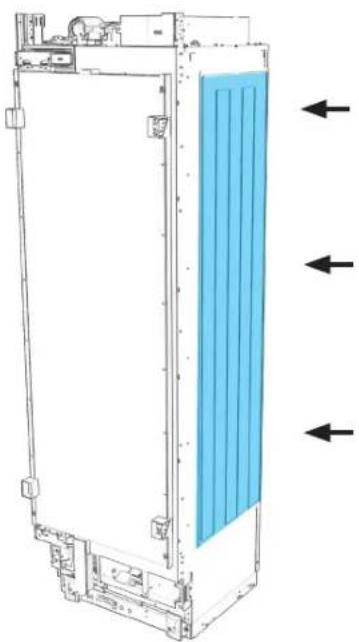

FIRST COLUMN: ALIGN AND ADHERE HEATER.

Technical line drawing of a vertical panel or enclosure with internal blue insulation and directional arrows indicating flow or movement (no text or symbols present)

2.2

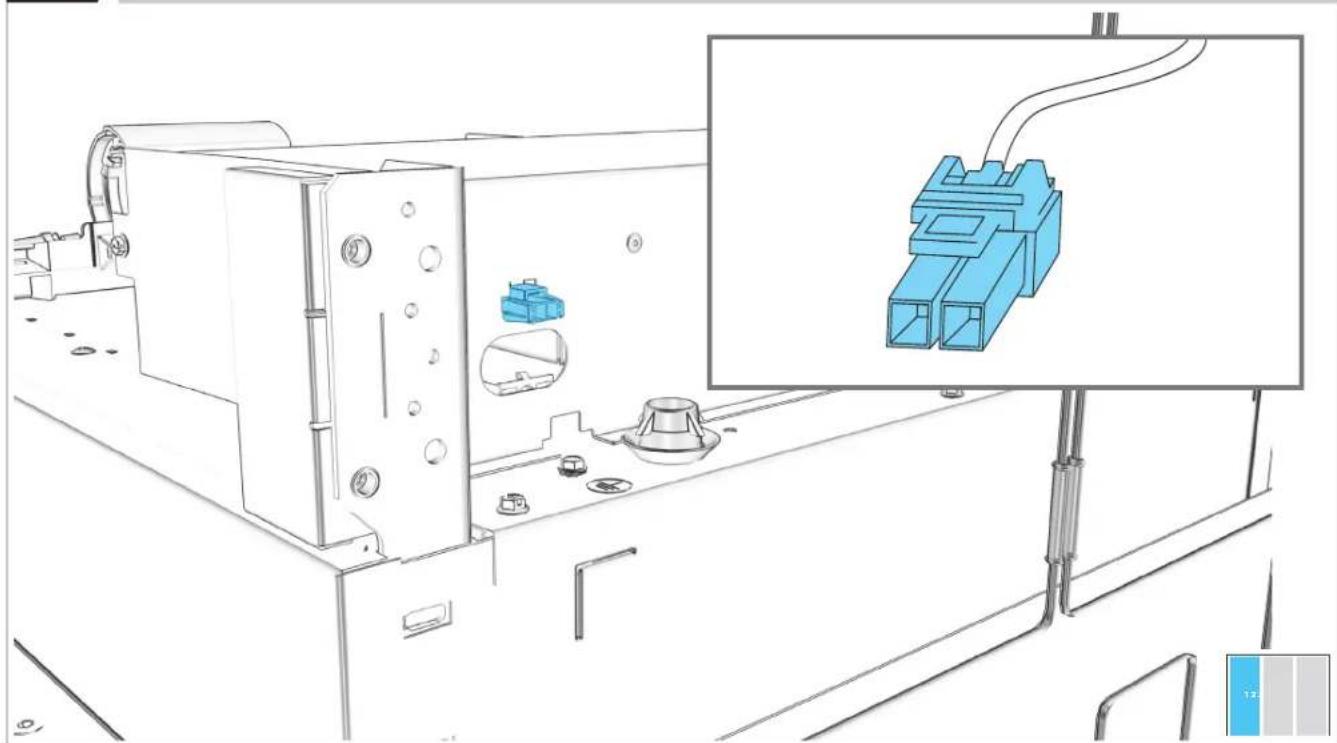

PLUG HEATER INTO COLUMN.

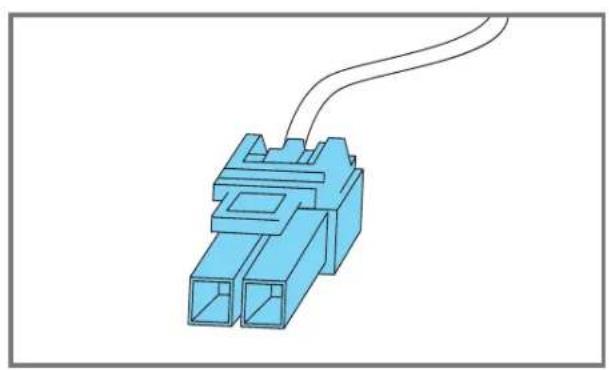

Technical line drawing of a mechanical assembly with blue connector housing and component blocks (no text or symbols)

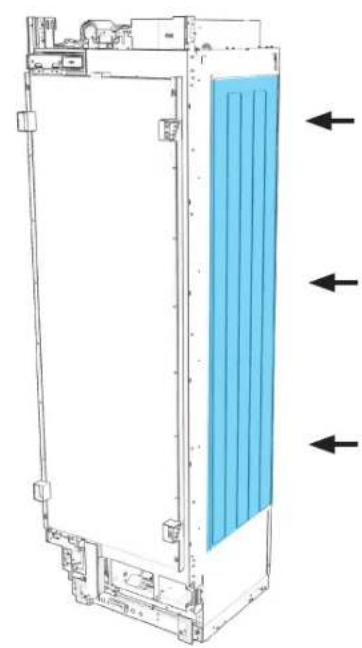

2.3

REPEAT 2.1-2.2 ON SECOND COLUMN.

Technical line drawing of a rectangular device with internal blue panel and directional arrows indicating flow or movement (no text or symbols)

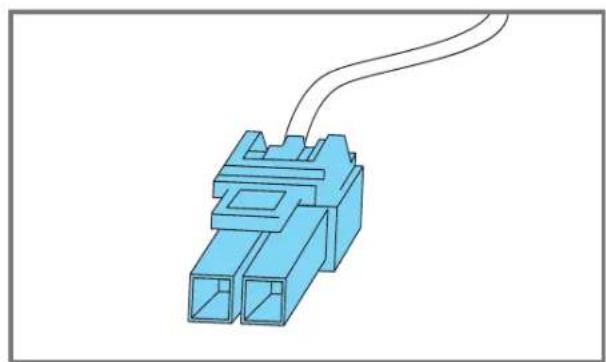

Blue plastic electrical connector with two ports and a coiled cable (no text or symbols)

2.4

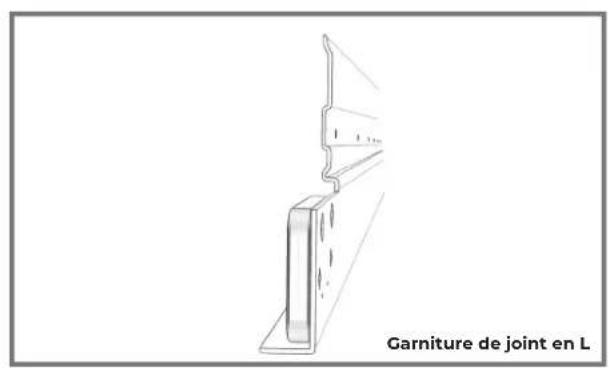

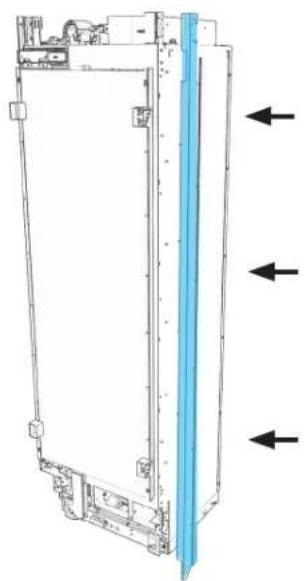

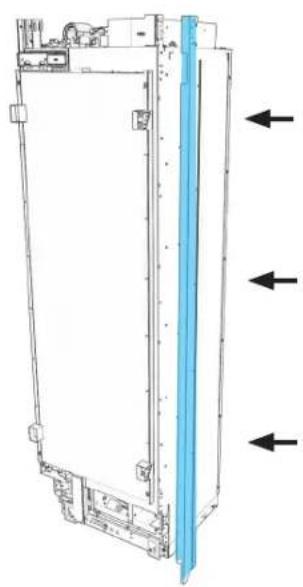

FIRST COLUMN: INSTALL "L" JOIN TRIM.

Technical line drawing of a vertical panel or enclosure with directional arrows indicating flow or movement (no text or symbols present)

"L" join trim

Phillips head screwdriver

2.5

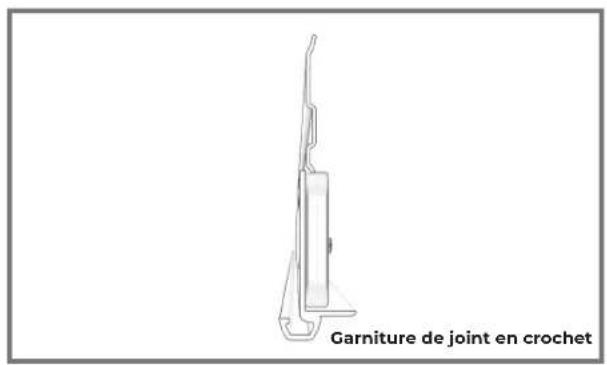

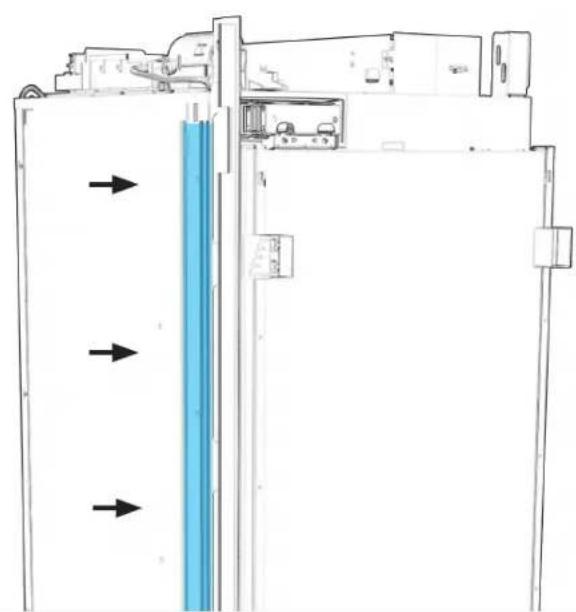

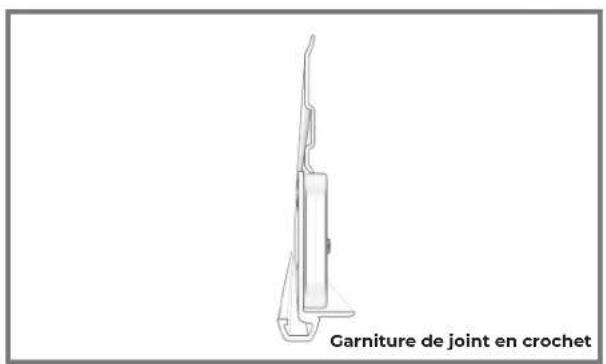

SECOND COLUMN: INSTALL "HOOK" JOIN TRIM.

Diagram of a refrigerator interior with blue vertical stripe and directional arrows indicating flow or movement (no text or symbols)

Line drawing of a hook join trim device (no text or symbols on the diagram itself)

Phillips head
screwdriver

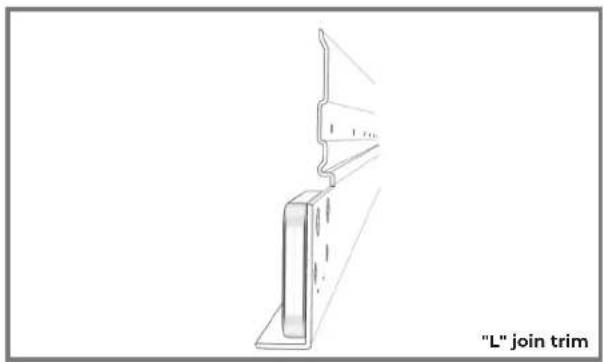

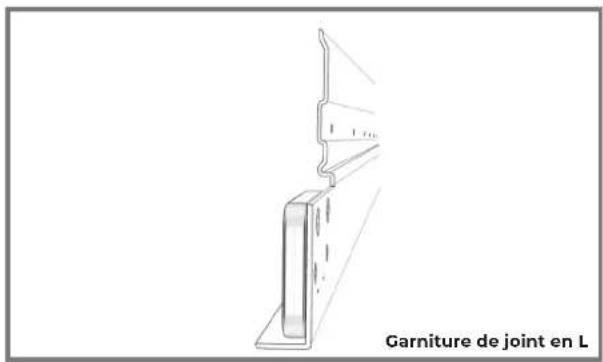

2.6

IF INSTALLING THREE COLUMNS: INSTALL "L" JOIN TRIM ON SECOND COLUMN.

Technical line drawing of a vertical mechanical component with directional arrows indicating force or movement (no text or symbols present)

"L" join trim

Phillips head
screwdriver

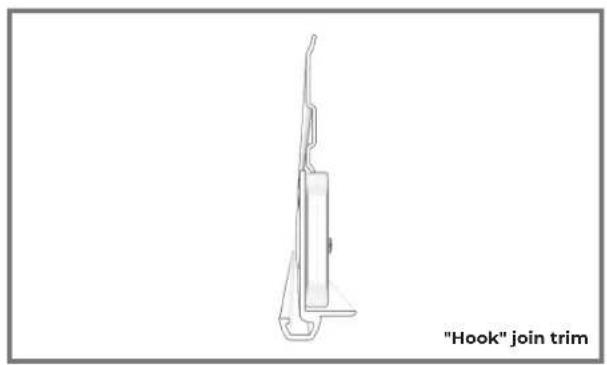

2.7

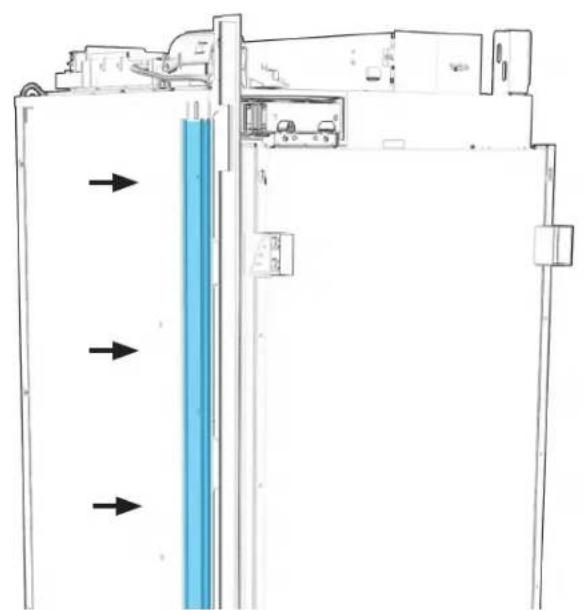

IF INSTALLING THREE COLUMNS: INSTALL "HOOK" JOIN TRIM ON THIRD COLUMN.

Diagram of a refrigerator interior with blue vertical panel and directional arrows indicating flow or movement (no text or symbols)

Line drawing of a hook join trim device (no text or symbols on the diagram itself)

Phillips head screwdriver

PRE PAR E

POSITIONING BRACKET

3.1
FIRST COLUMN: SLIDE MOUNT INTO INSTALLATION SLOT.

Mount located in join kit

3.2
USE SCREWDRIVER TO ENSURE HOLES ARE ALIGNED.

Phillips head screwdriver

3

PREPARE

POSITIONING BRACKET

3.4

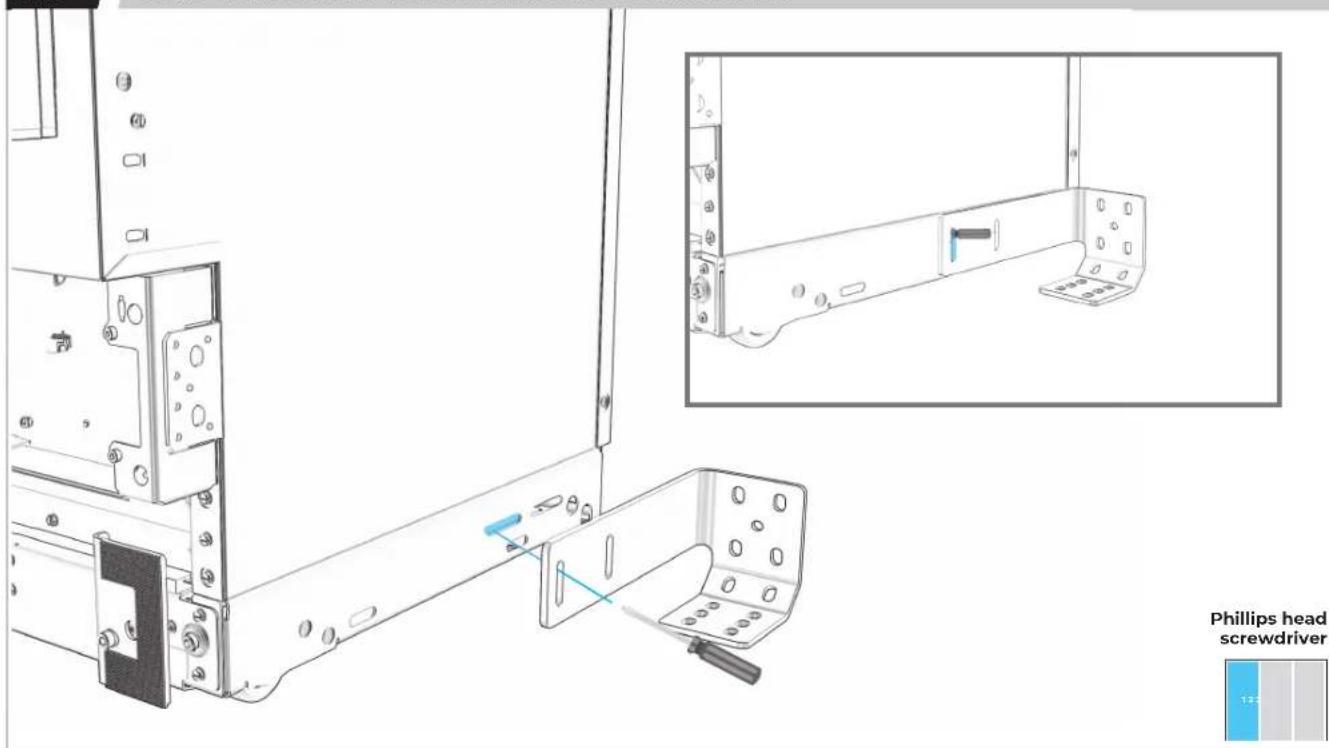

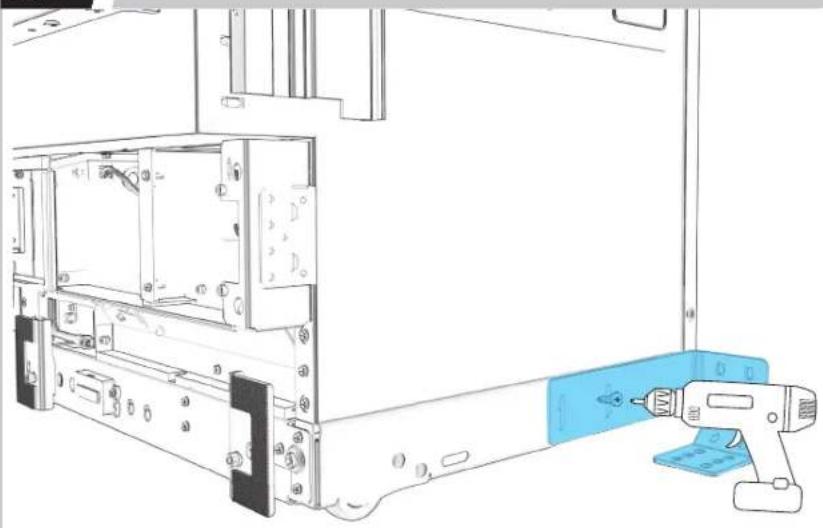

LOOSELY ATTACH POSITIONING BRACKET TO MOUNT.

Technical line drawing of a computer monitor internal structure with a blue drill bit inserted (no text or symbols)

M6 socket

FINAL PLACEMENT DETERMINED ONCE COLUMNS ARE FULLY RAISED.

3.5

IF INSTALLING A THIRD COLUMN: REPEAT 3.1-3.4 ON SECOND COLUMN.

Technical line drawing of a computer monitor internal frame with an electric drive, showing no text or symbols.

M6 socket

BADASS

BRACKET INSTALLATION

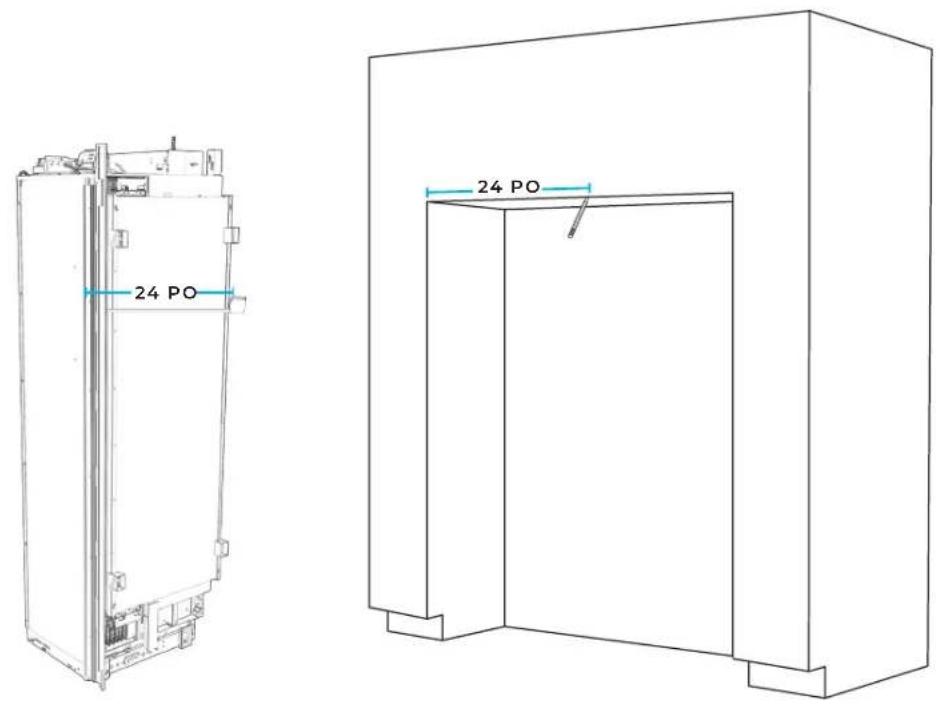

4.1

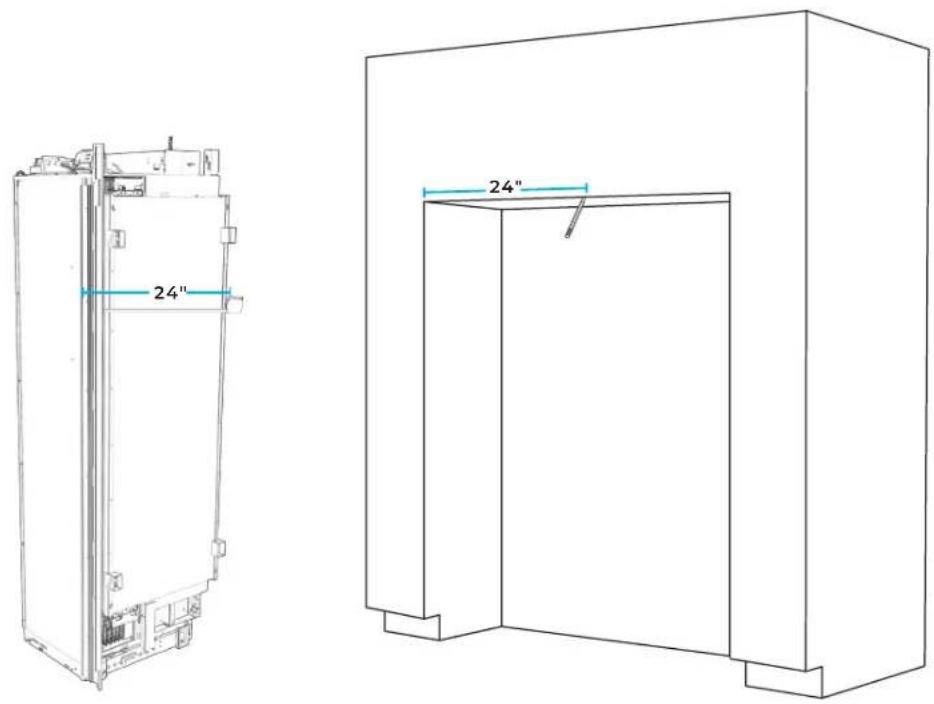

MARK LINE AT FIRST COLUMN'S WIDTH FROM LEFT-SIDE FACE FRAME.

Technical line drawing of a refrigerator with side and front views, showing 24-inch dimensions (no text or symbols)

4.2

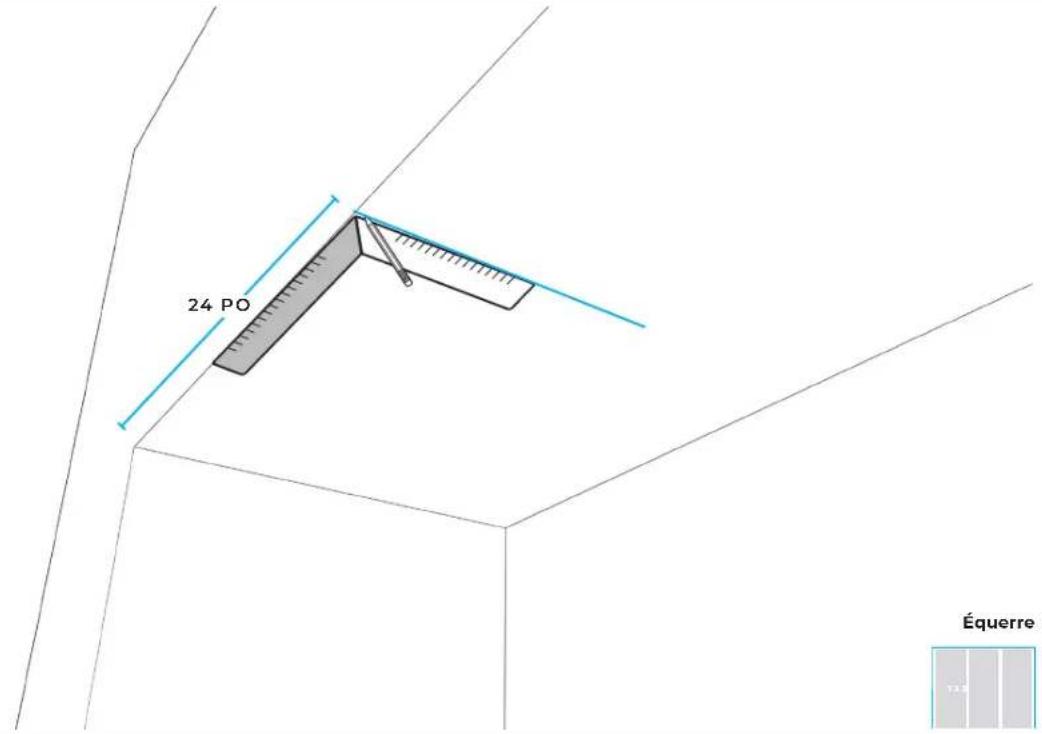

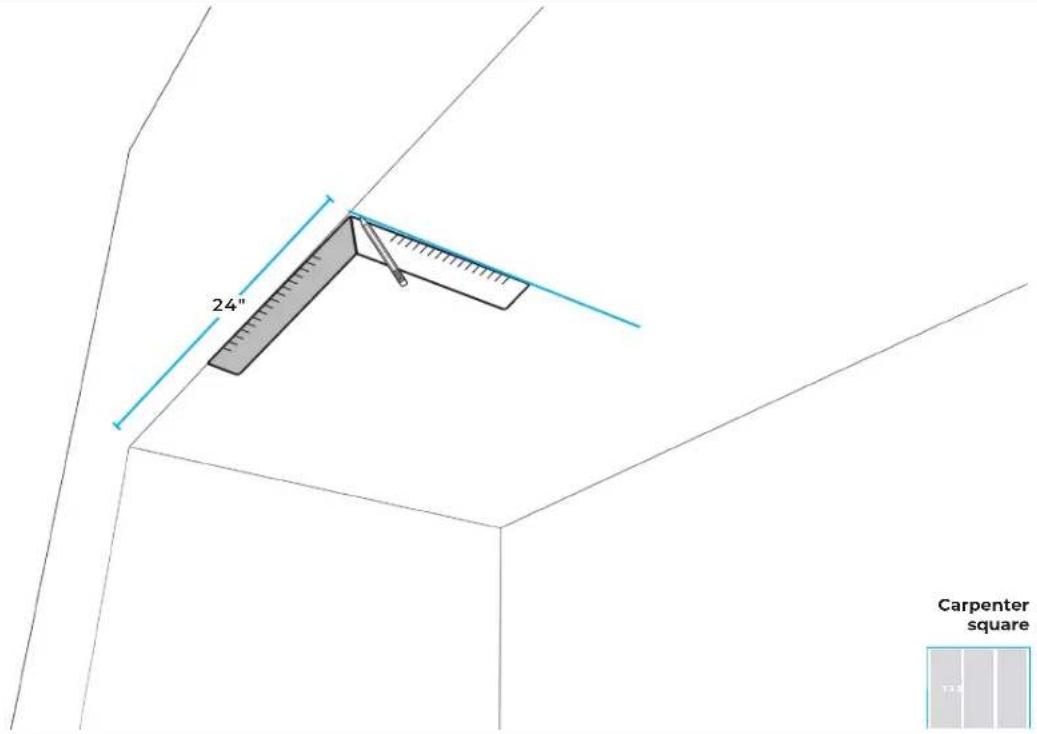

WITH CARPENTER SQUARE, DRAW LINE PERPENDICULAR TO FACE FRAME.

24" Carpenter square

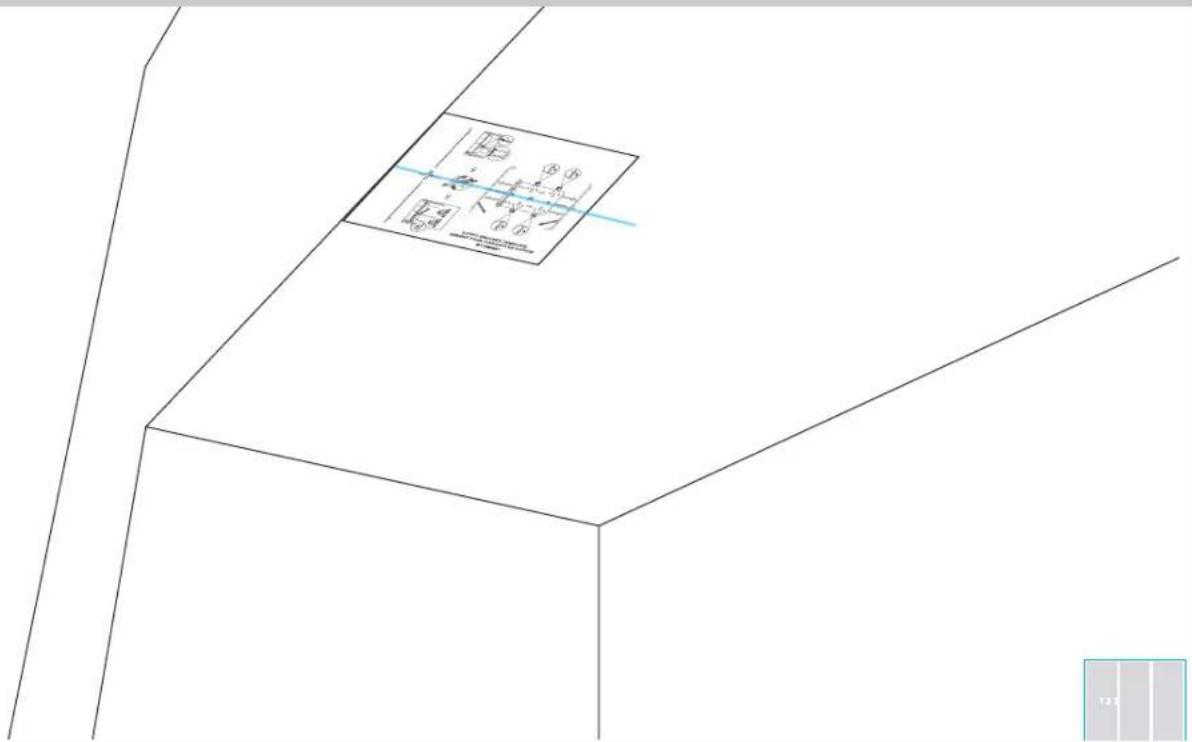

4.3

ALIGN BRACKET TEMPLATE CENTER SLOTS WITH WIDTH LINE.

12 ① (6) -4 -5 -4 -6 ⑥ (6) -4 -5 ④ (6) 12.2

4.4

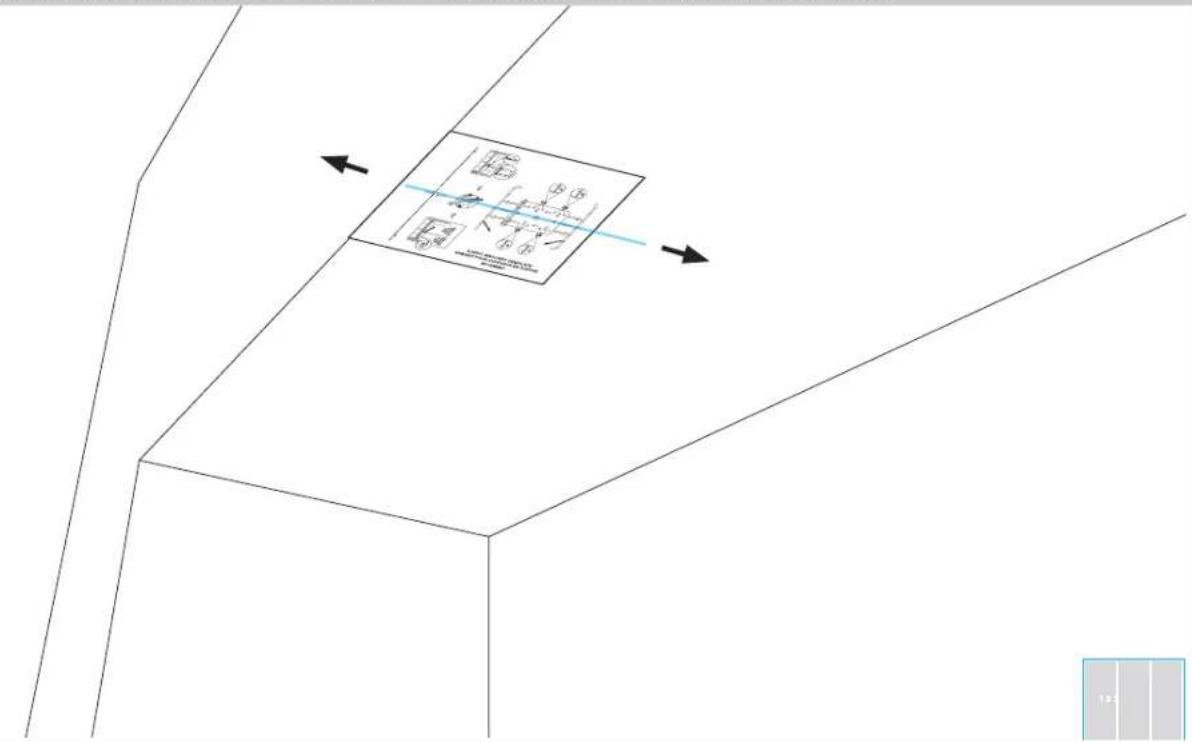

ALIGN THE PREVIOUSLY SELECTED DOOR STYLE LINE WITH CABINET FACE.

Diagram showing a 3D coordinate system with labeled axes and directional arrows, likely illustrating a geometric or physical concept.

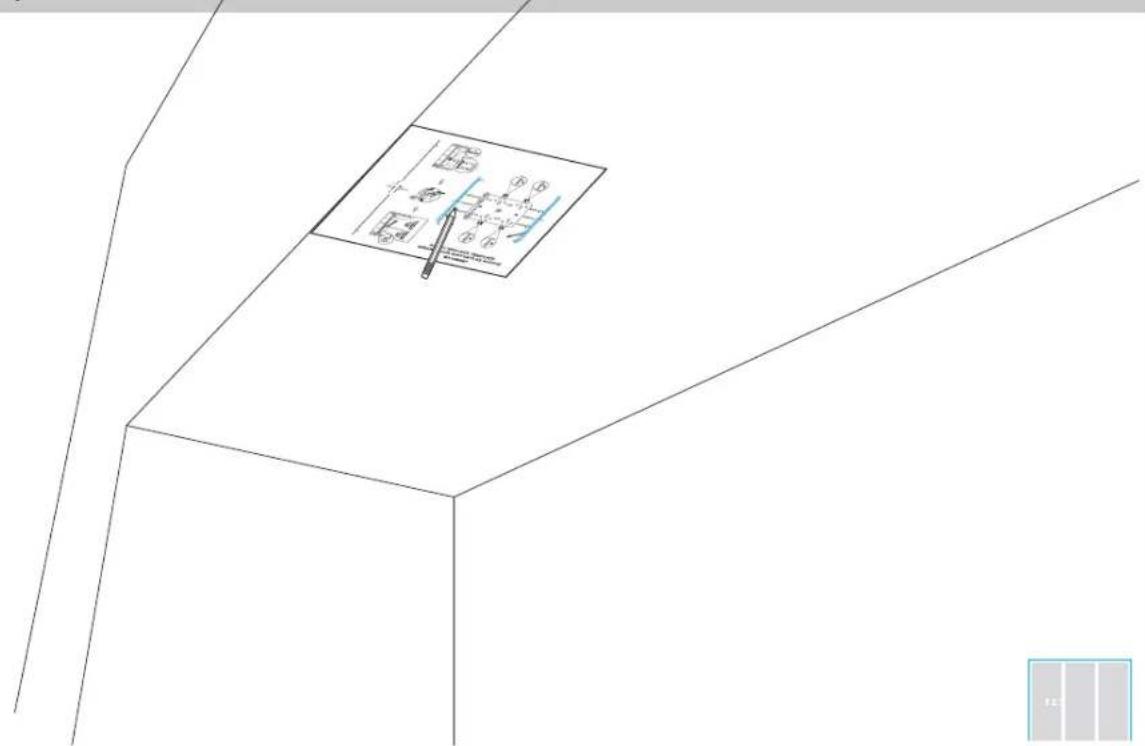

4.5

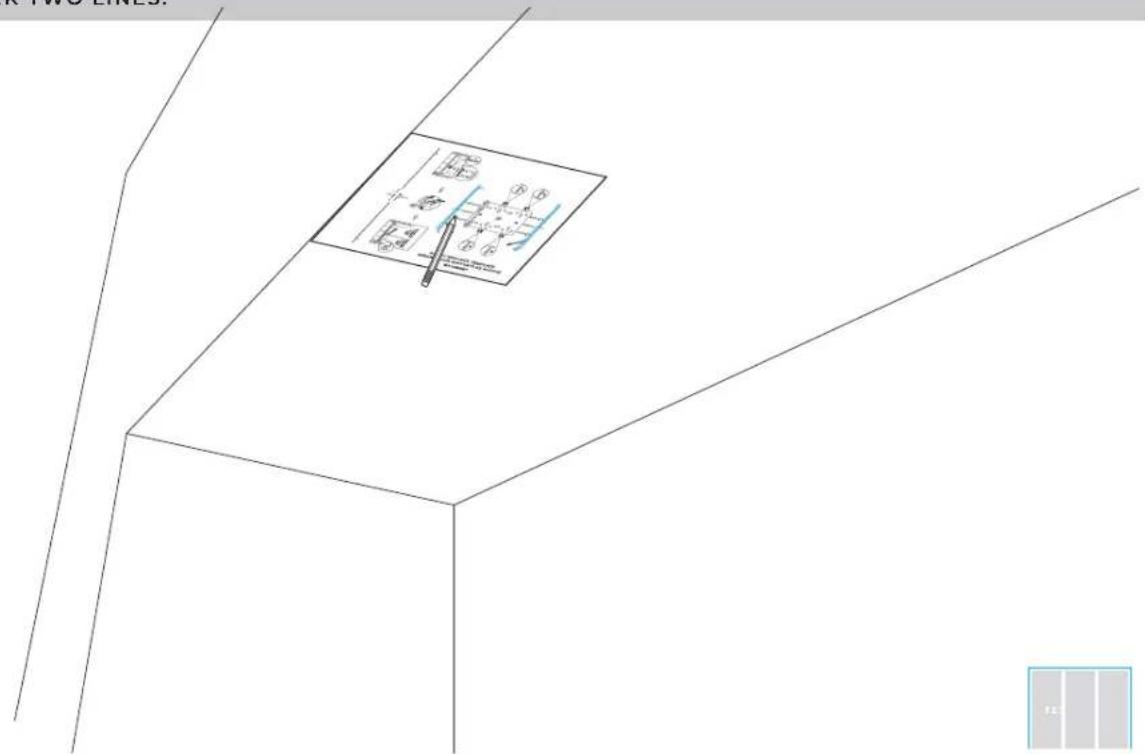

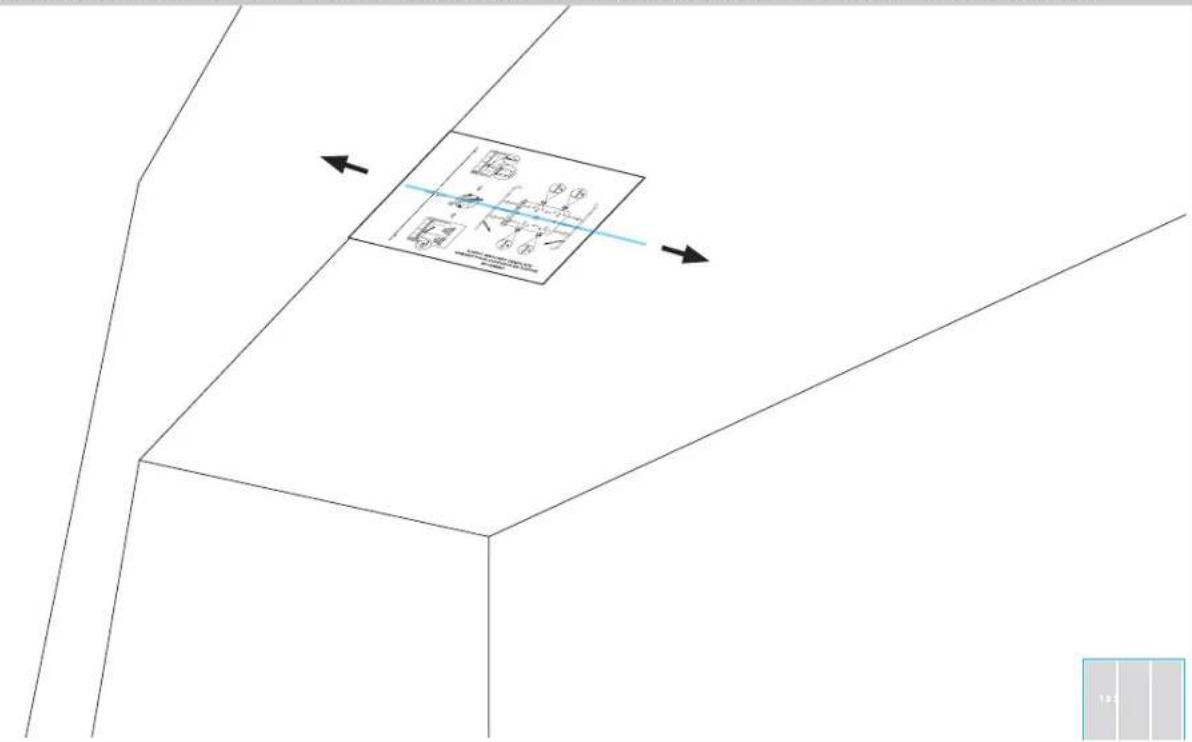

MARK TWO LINES.

Technical diagram showing a 3D coordinate system with labeled axes and a magnified inset of a plane, likely from an engineering or physics context.

4.6

ALIGN BRACKET.

Simple line drawing of a 3D geometric shape with a blue bracket and small circular elements inside (no text or symbols)

4.7

ALIGN POINTS OF DIAMOND-SHAPED HOLES WITH WIDTH LINE.

Simple line drawing of a container with internal compartments and circular holes, no text or symbols present.

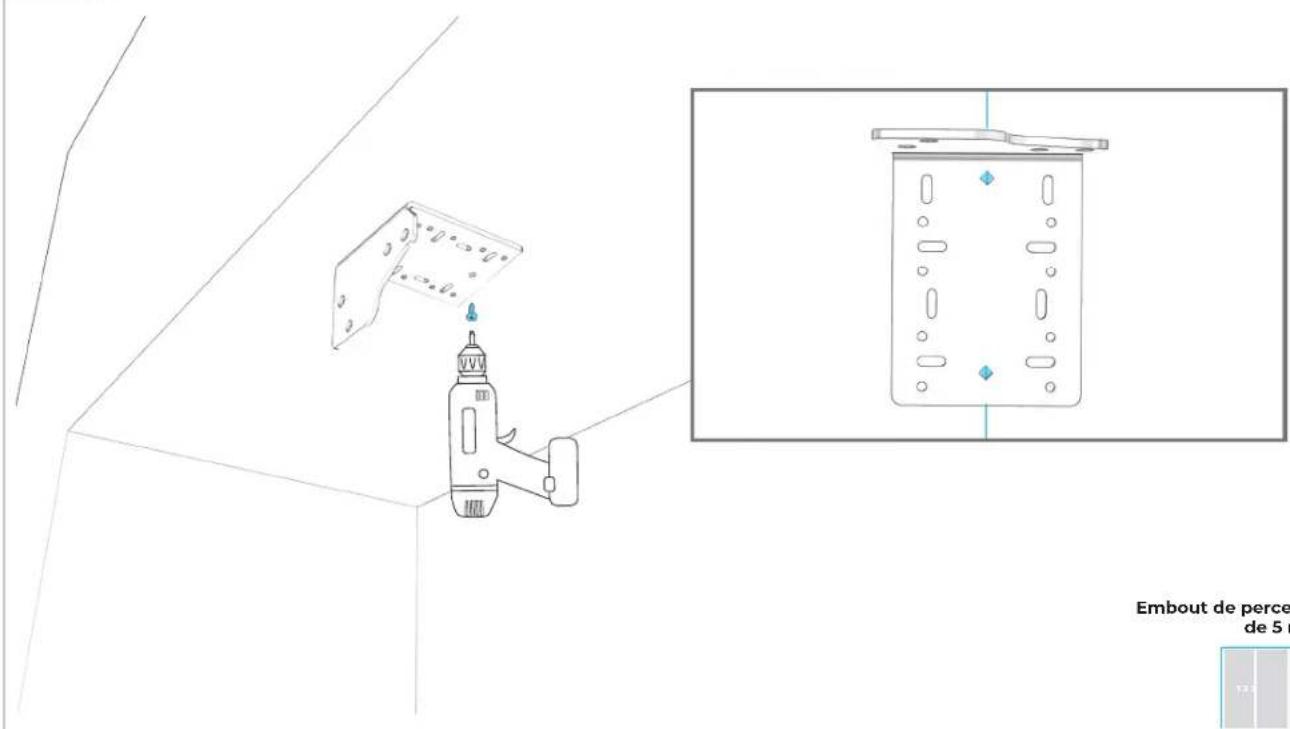

4.8

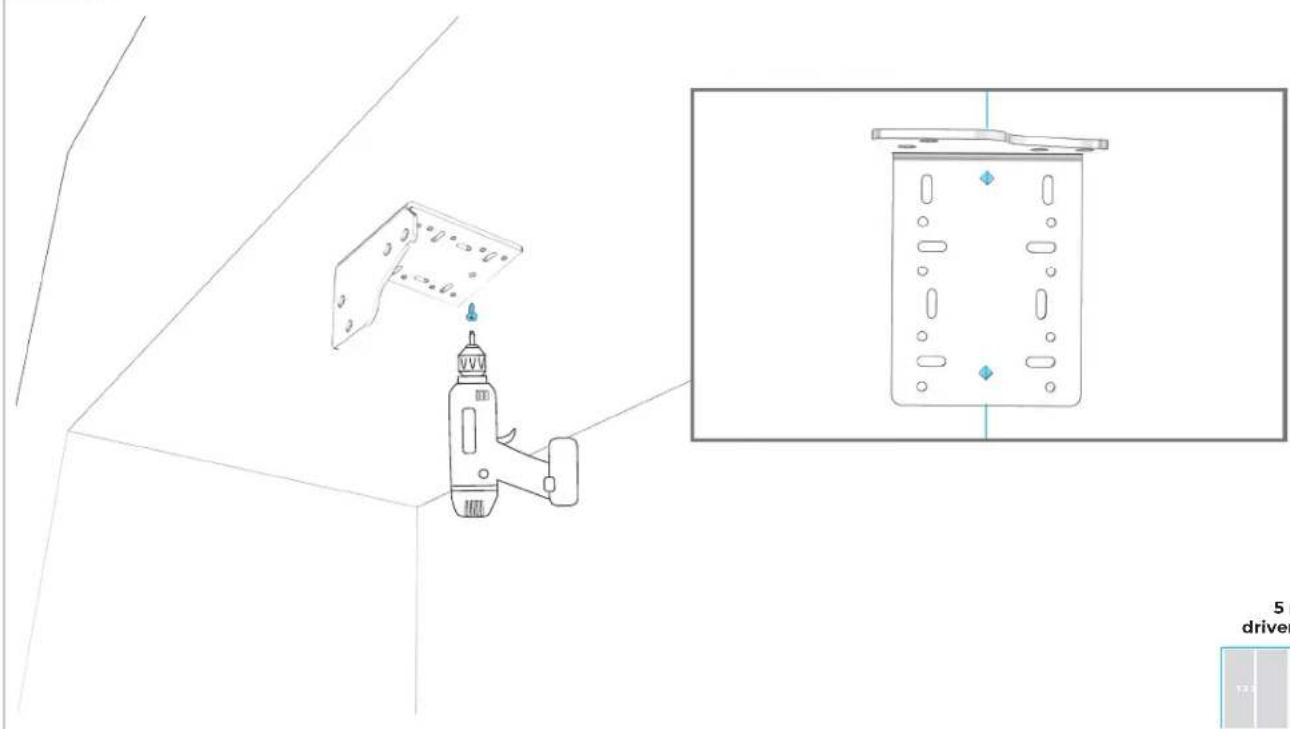

LOOSELY ATTACH BRACKET TO SOFFIT.

Technical line drawing of a mechanical device with a 3D panel and inset showing its exterior view (no text or symbols)

5 mm ver bit

4.9

REALIGN BRACKET EDGES WITH ALIGNMENT LINES.

Technical line drawing of a rectangular device with internal compartments and mounting points (no text or symbols)

4.10

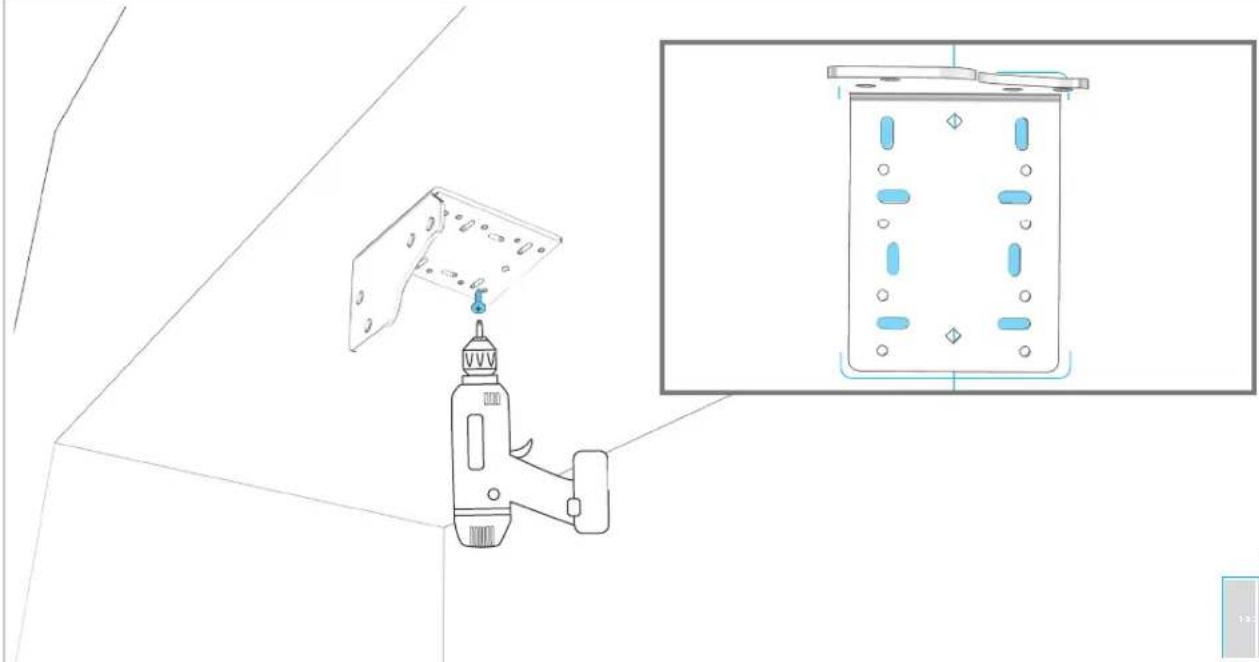

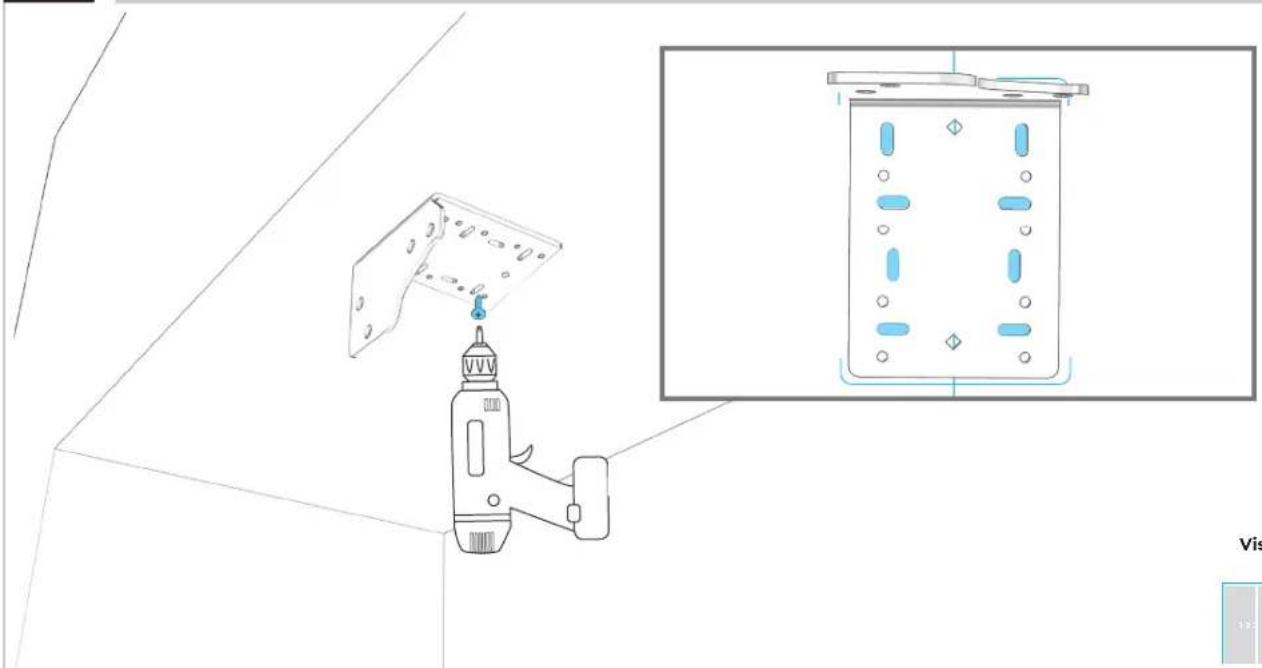

TIGHTEN 8 SCREWS.

Technical line drawing of a mechanical clamp assembly with a close-up inset showing internal components (no text or symbols)

Wood screws

USE WOOD SCREWS OF AN APPROPRIATE LENGTH

4.11

SECURE BRACKET TO CABINET THROUGH ROUND HOLES.

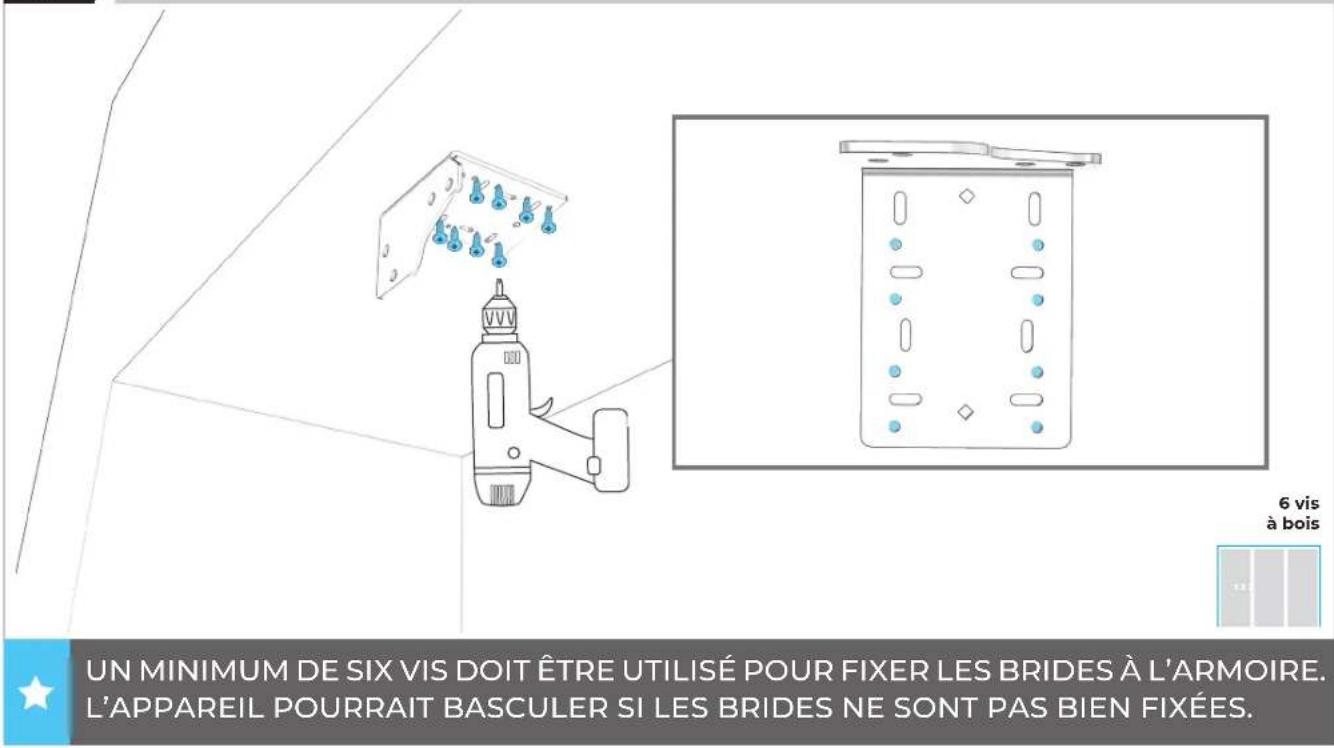

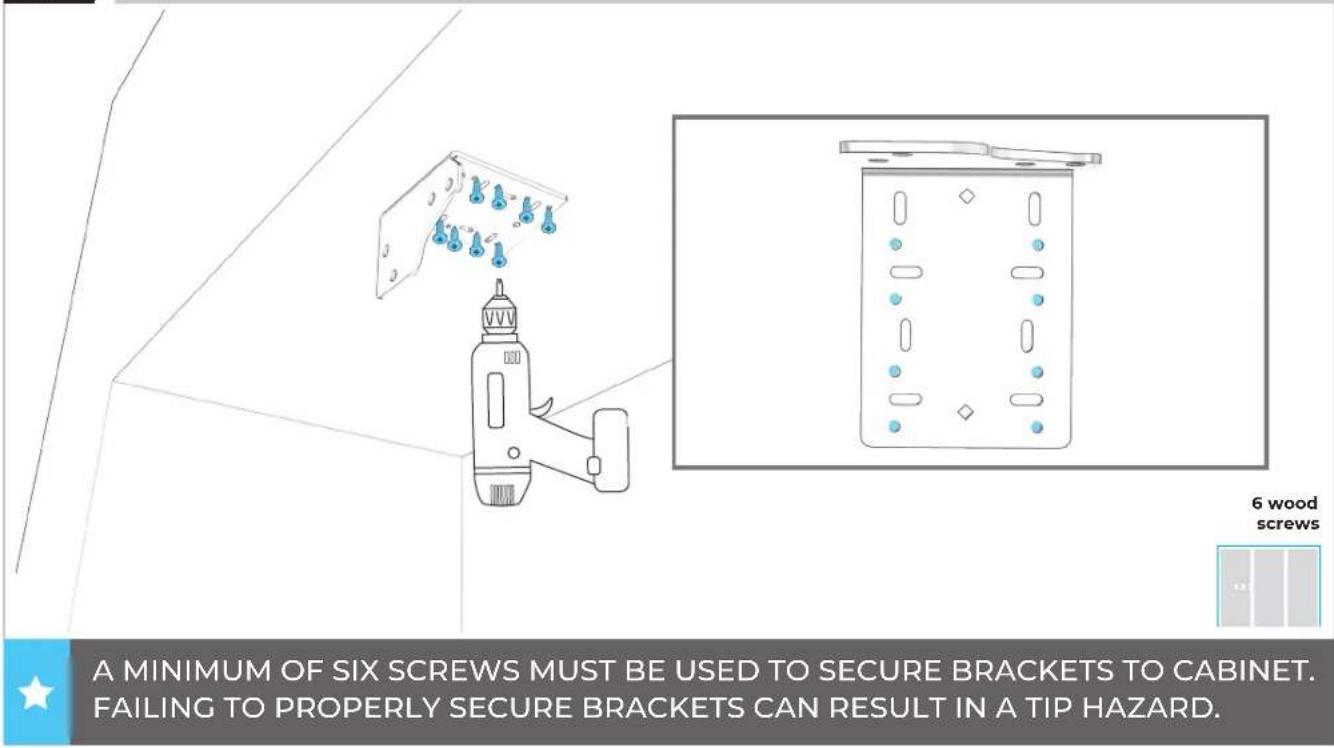

A MINIMUM OF SIX SCREWS MUST BE USED TO SECURE BRACKETS TO CABINET. FAILING TO PROPERLY SECURE BRACKETS CAN RESULT IN A TIP HAZARD.

A MINIMUM OF SIX SCREWS MUST BE USED TO SECURE BRACKETS TO CABINET. FAILING TO PROPERLY SECURE BRACKETS CAN RESULT IN A TIP HAZARD.

4.12

IF INSTALLING ONLY TWO COLUMNS:

GO TO SECTION 5

4.13

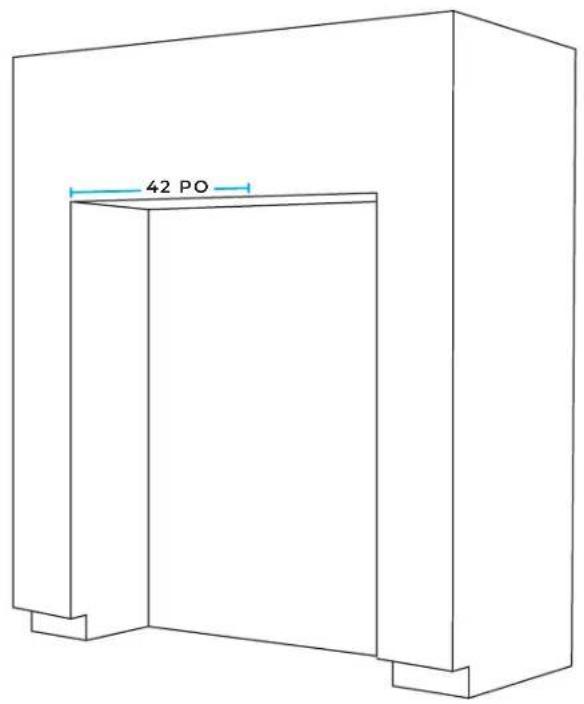

IF INSTALLING THREE COLUMNS: ADD TOGETHER MODEL WIDTHS OF FIRST AND SECOND COLUMNS.

CUTOUT WIDTH 42" 18" 24"

Line drawing of a 3D rectangular box with a 42-inch height dimension labeled on its top face (no other text or symbols)

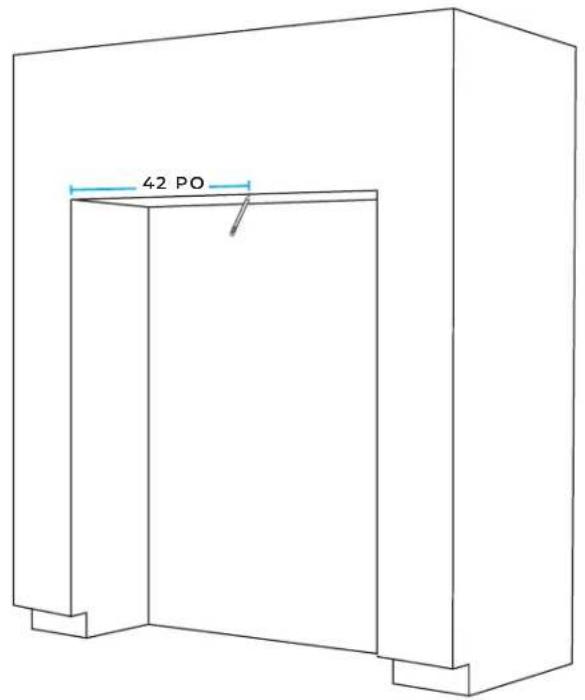

4.14

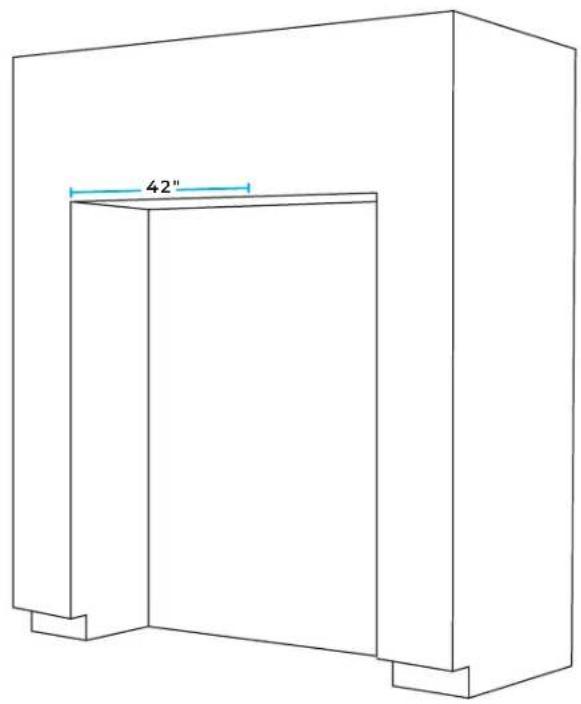

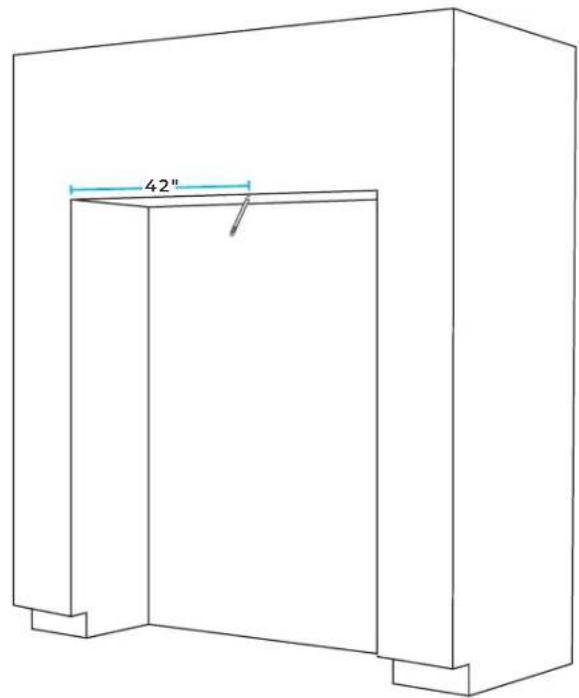

MARK LINE AT CALCULATED WIDTH.

42"

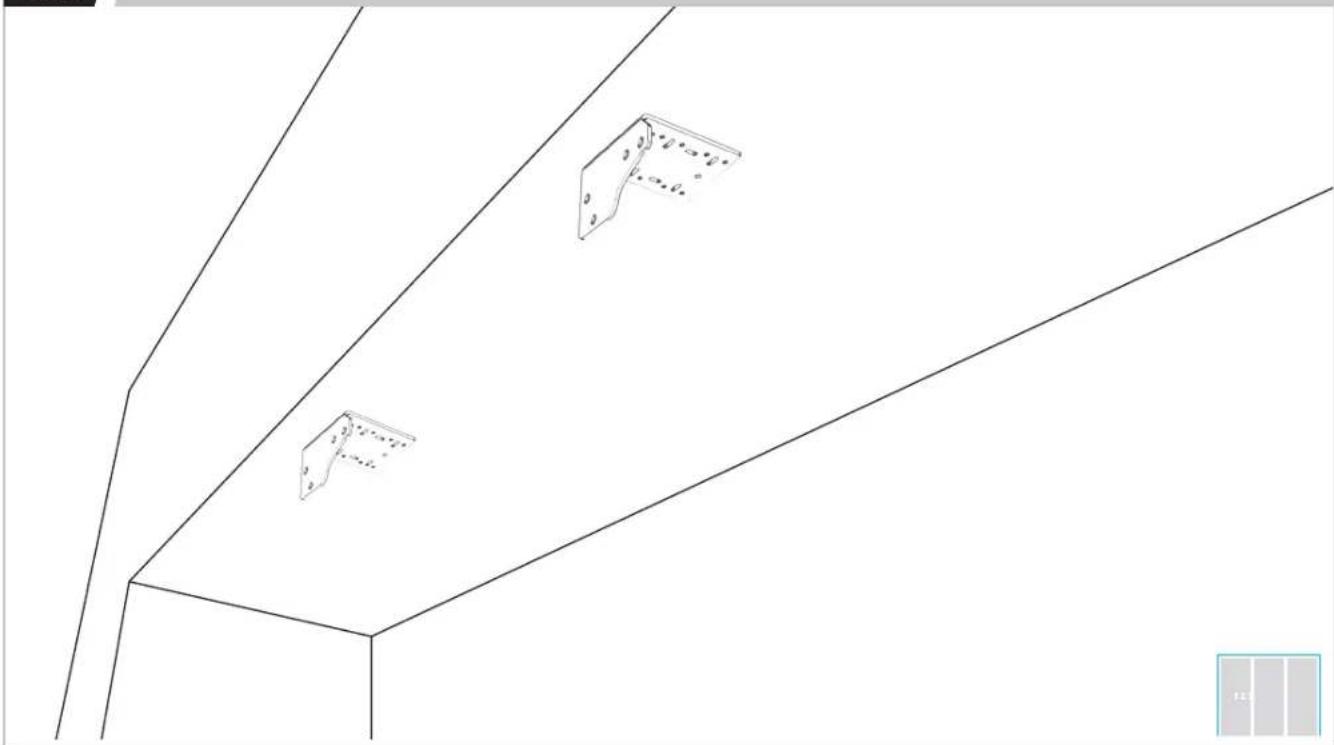

4.15

COMPLETE 4.2-4.11.

Pure architectural line drawing of a roof structure with three metal bracket symbols (no text or labels)

PRE PAR E

FURNITURE

5.1

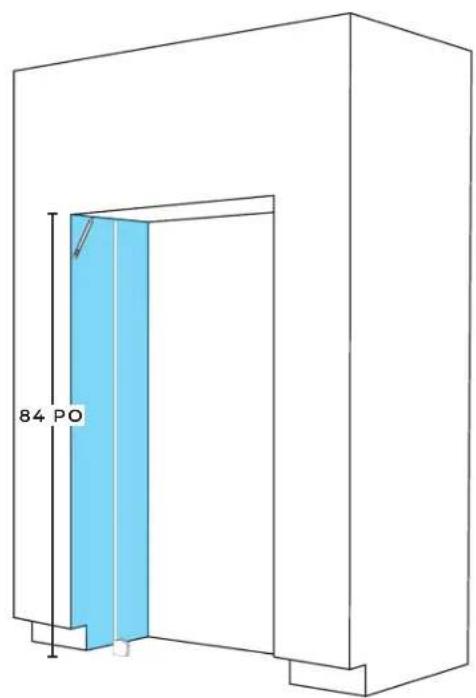

MEASURE AND MARK LEFT PANEL LINE.

Diagram of a 3D room corner with a blue door and dimension label (84") showing width, no text or symbols present.

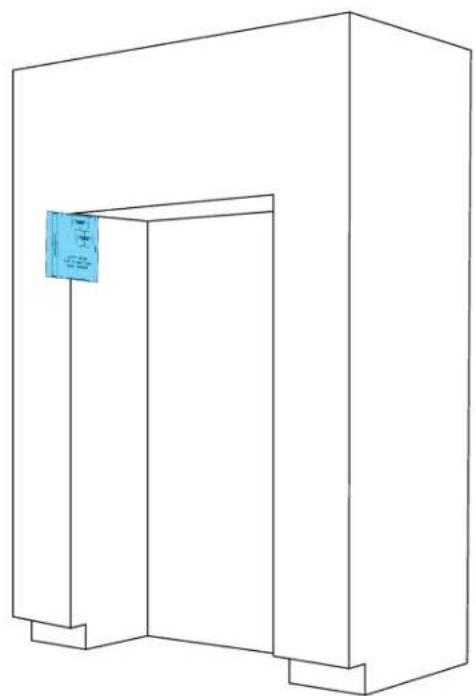

5.2

POSITION TEMPLATE ON LEFT PANEL.

Line drawing of a 3D rectangular structure with a small blue label on the top (no text or symbols present)

5.3

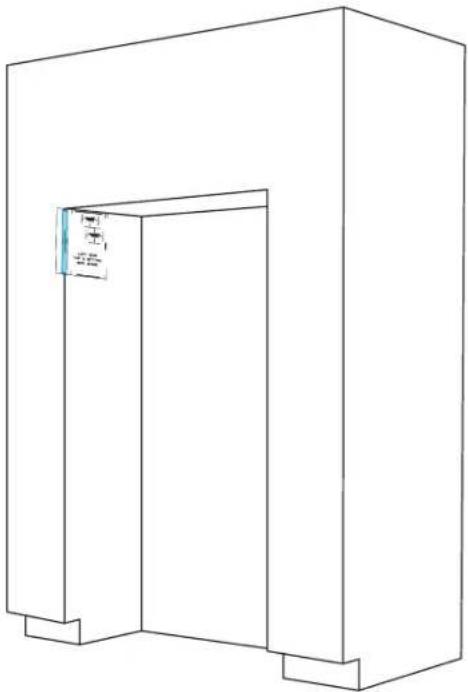

ALIGN DOOR STYLE LINE WITH CABINET FACE AND MARK ALIGNMENT LINES.

Line drawing of a 3D rectangular structure with a small blue label on the top left corner (no text or symbols on the main diagram)

5.4

REPEAT 5.1-5.3 ON RIGHT PANEL.

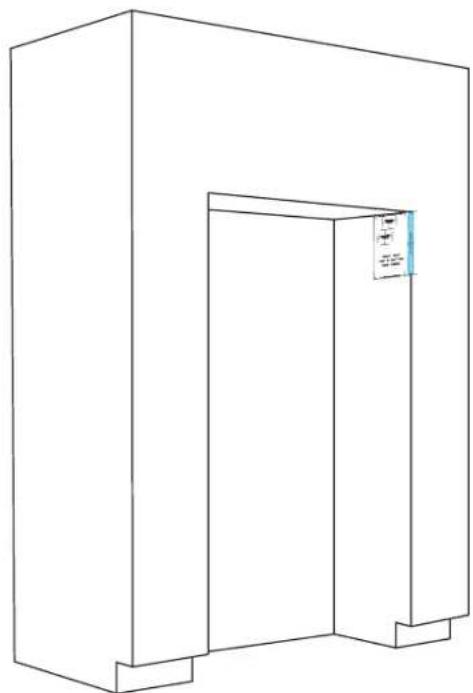

Line drawing of a simple 3D rectangular structure with a vertical door and corner supports (no text or symbols)

RIGHT SIDE TOP & BOTTOM SIDE SHIMS

5.5

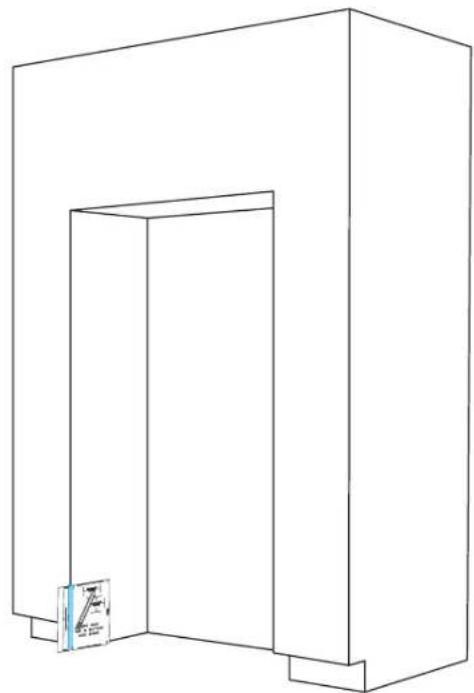

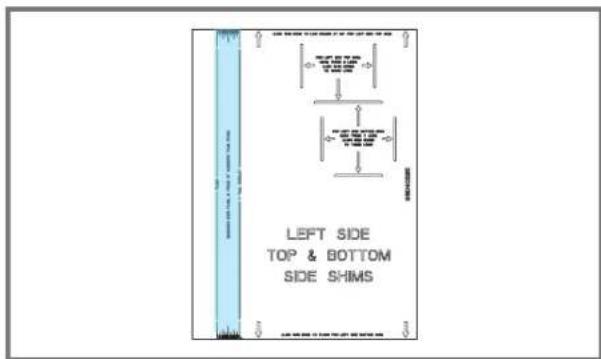

POSITION AND ALIGN TEMPLATE ON BOTTOM LEFT PANEL, MARKING SHIM ALIGNMENT LINES.

Line drawing of a simple 3D rectangular structure with a small inset image showing a blue object (no text or symbols)

LEFT SIDE TOP & BOTTOM SIDE SHIMS

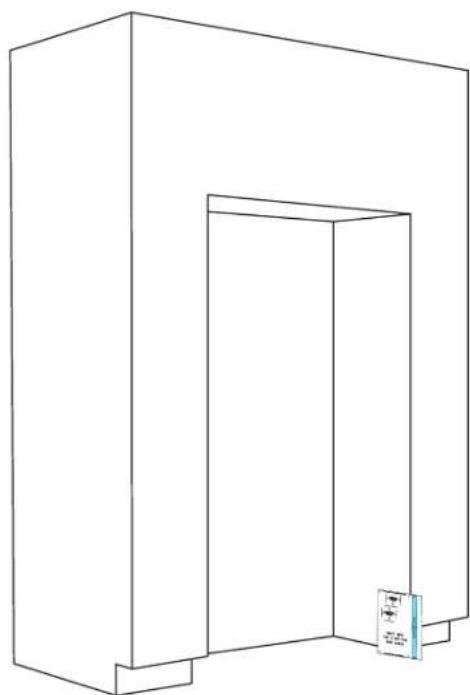

5.6

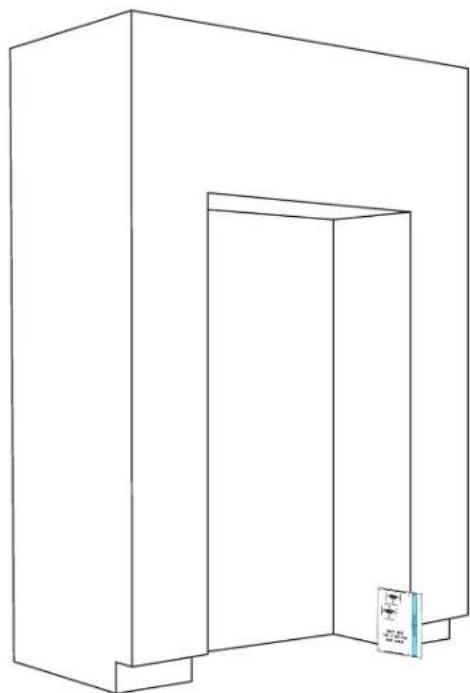

REPEAT STEP 5.5 ON RIGHT PANEL.

Line drawing of a simple 3D rectangular structure with a vertical door and a small labeled object on the right side (no text or symbols)

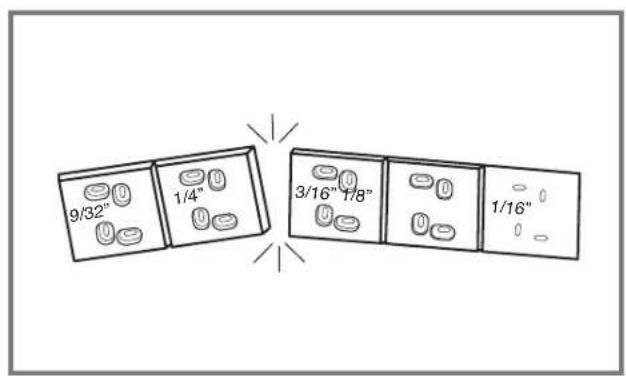

5.7

CRACK APART ROTTER SHIMS, ADHERE TO FOOTPRINTS.

Line drawing of a 3D rectangular structure with a central doorway and corner supports (no text or symbols)

9/32" 1/4" 3/16" 1/8" 1/16"

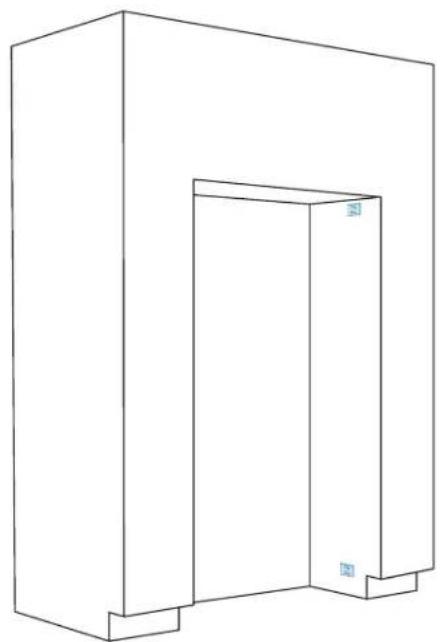

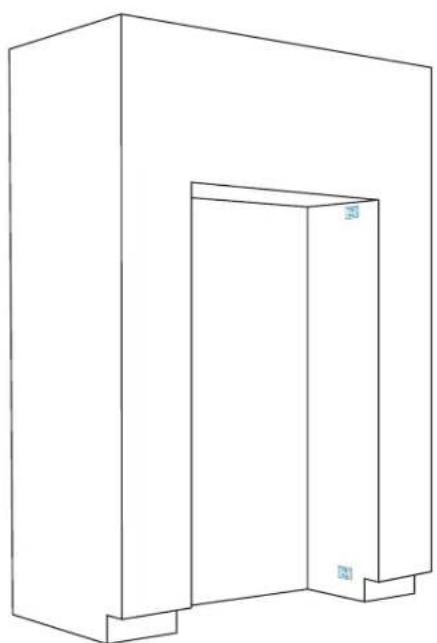

5.8

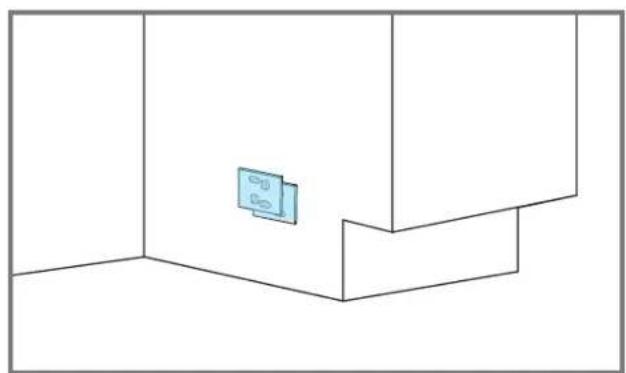

STACK ADDITIONAL SHIMS AS NEEDED.

Line drawing of a 3D rectangular structure with a double door and corner supports (no text or symbols)

Pure architectural line drawing of a corner wall with a small blue component on the left side (no text or symbols)

5.9

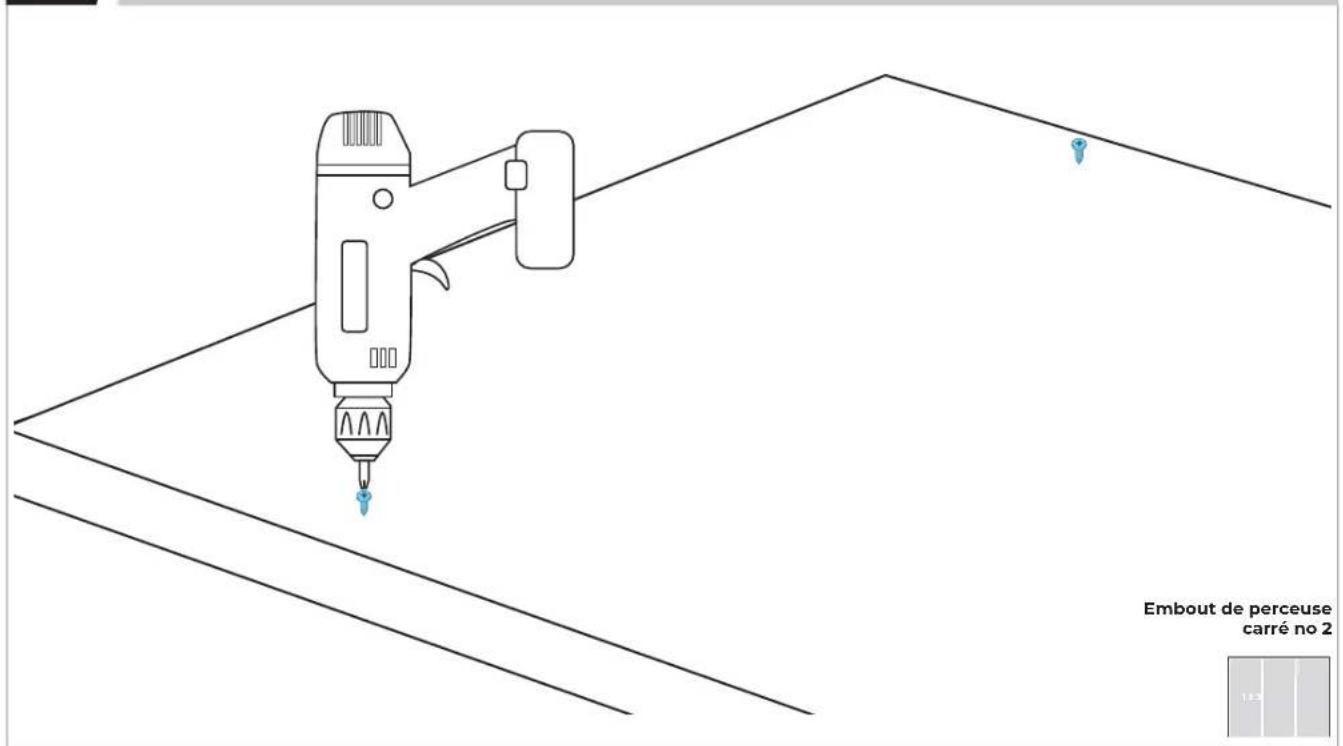

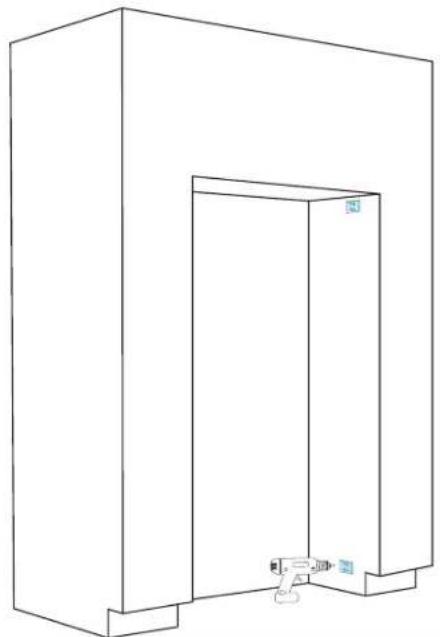

SECURE SHIMS TO SIDE PANELS (TWO SCREWS REQUIRED).

Line drawing of a 3D rectangular structure with a central opening and two small components, no text or symbols present.

Wood screws

USE WOOD SCREWS OF AN APPROPRIATE LENGTH

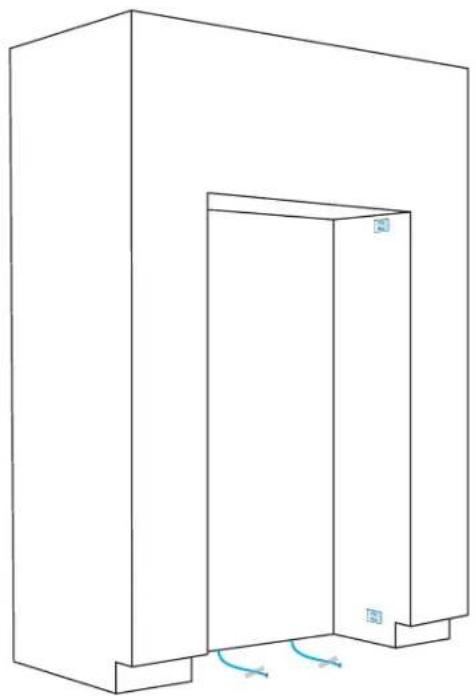

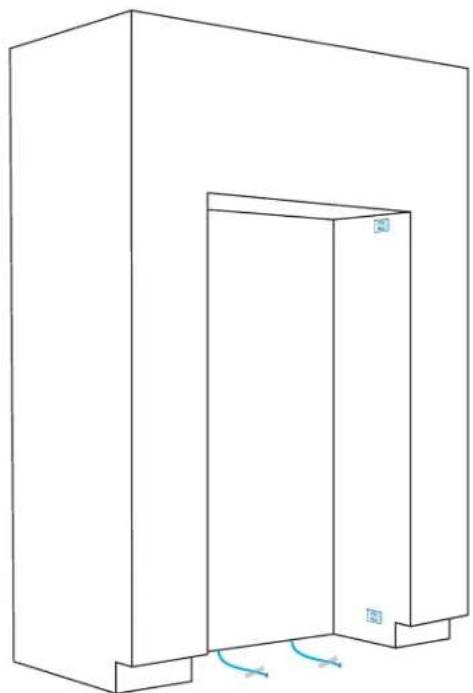

5.10

TAPE WATER LINES TO FLOOR.

Line drawing of a 3D rectangular structure with a double door and corner supports, showing no text or symbols.

FIRST

COLUMN INSTALLATION

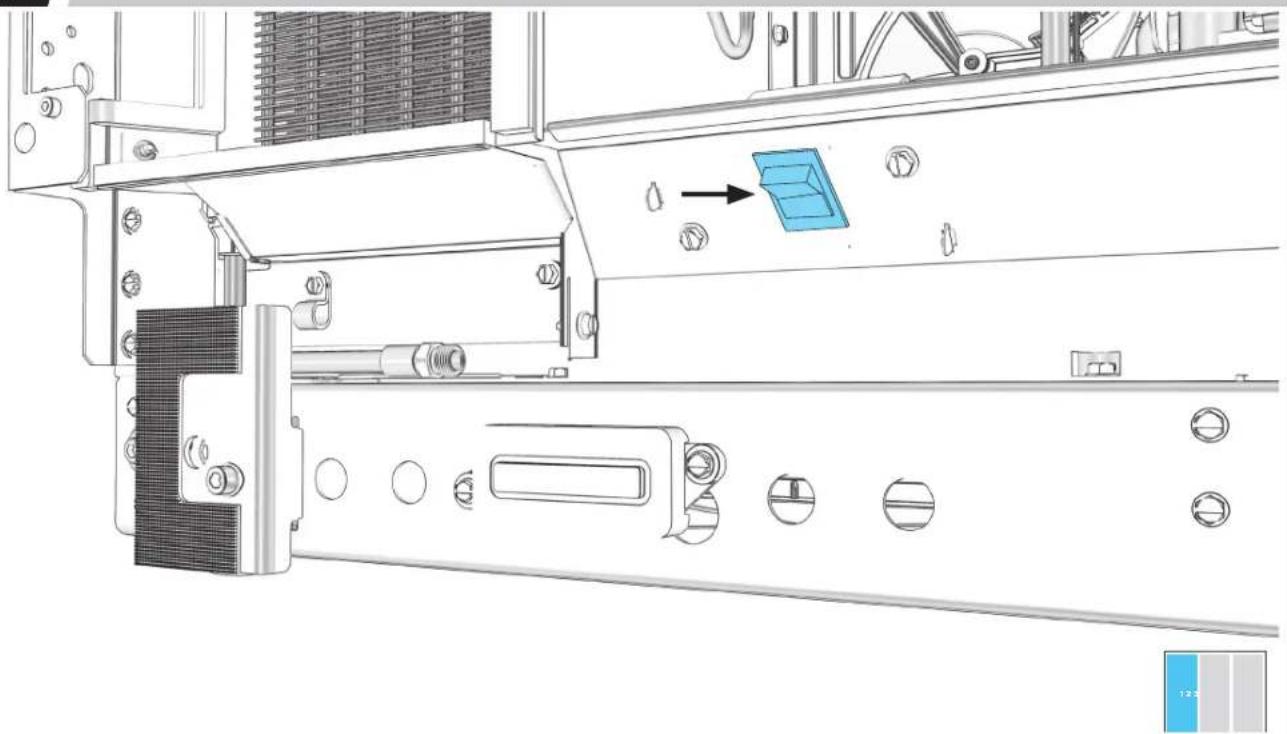

6.1
SWITCH POWER OFF.

Technical line drawing of a mechanical assembly with no visible text or symbols

BEFORE PLUGGING IN COLUMN, READ WARNING.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

6.2

PLUG INTO GROUNDED 3-PRONG OUTLET.

Line drawing of a wall socket connected to an electrical outlet plug (no text or symbols)

BEFORE MOVING COLUMN, READ WARNING.

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or "walk" the refrigerator when trying to move it, as floor damage could occur.

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

6.3

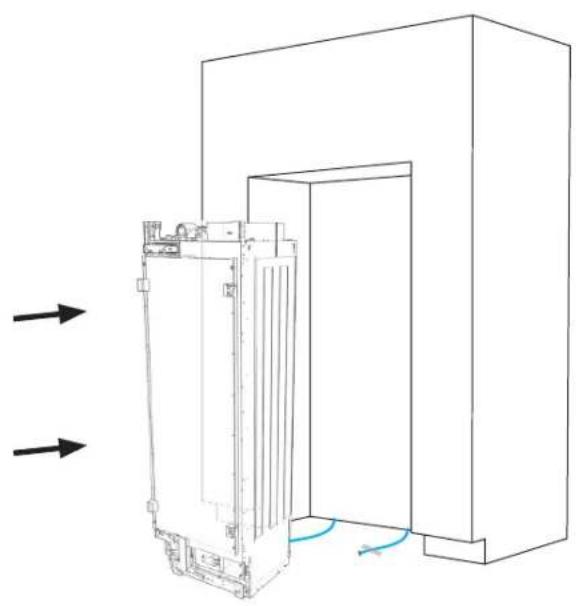

MOVE COLUMN INTO THE CUTOUT.

Technical line drawing of a mechanical device with internal components and directional arrows indicating flow or movement (no text or symbols)

DO NOT DAMAGE THE WATER LINE.

6.4

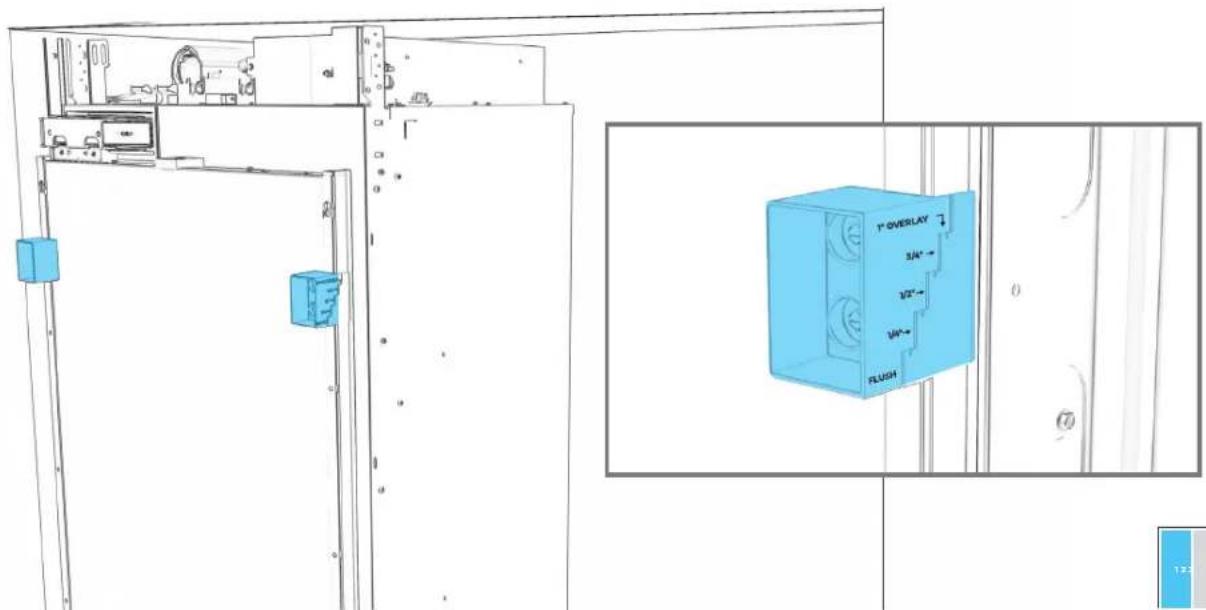

USE DEPTH GAUGES TO ALIGN (BASED ON DOOR STYLE).

CHECK THAT DEPTH GAUGES INDICATE SAME DEPTH.

Technical line drawing of an electrical enclosure with a 3D display unit and component details (no text or symbols)

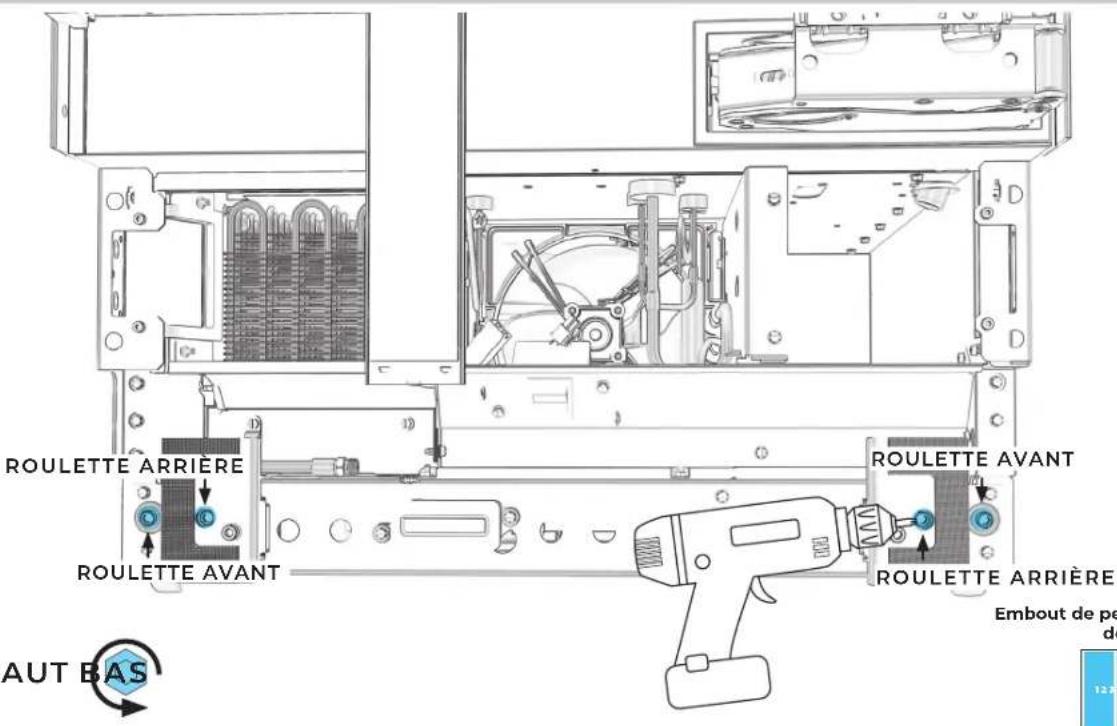

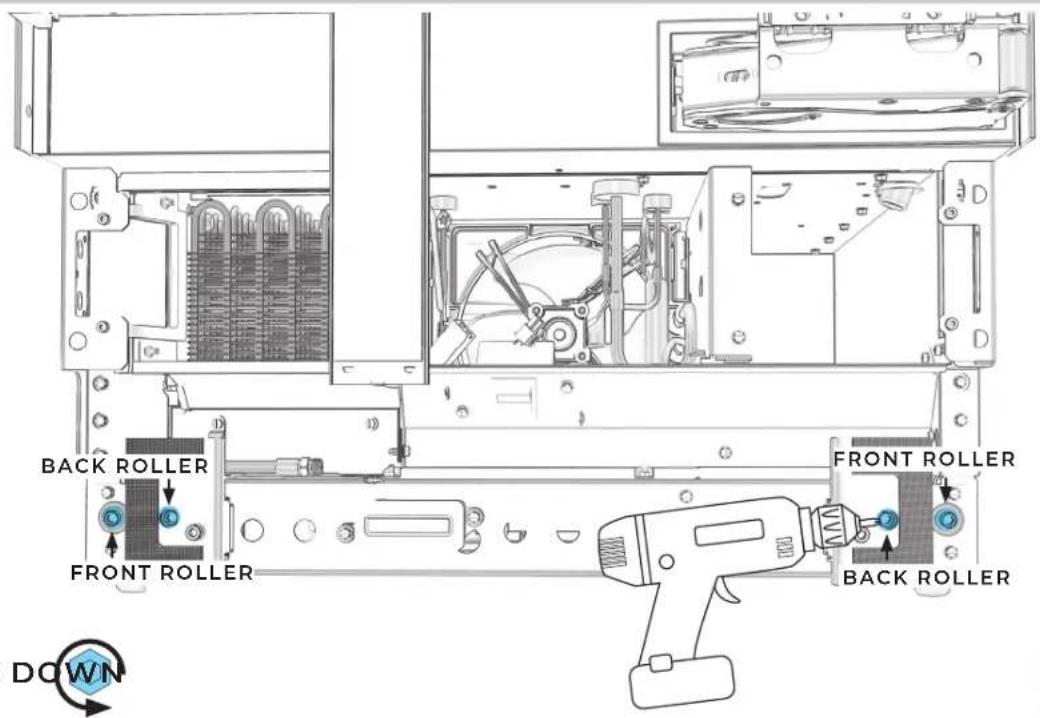

6.8

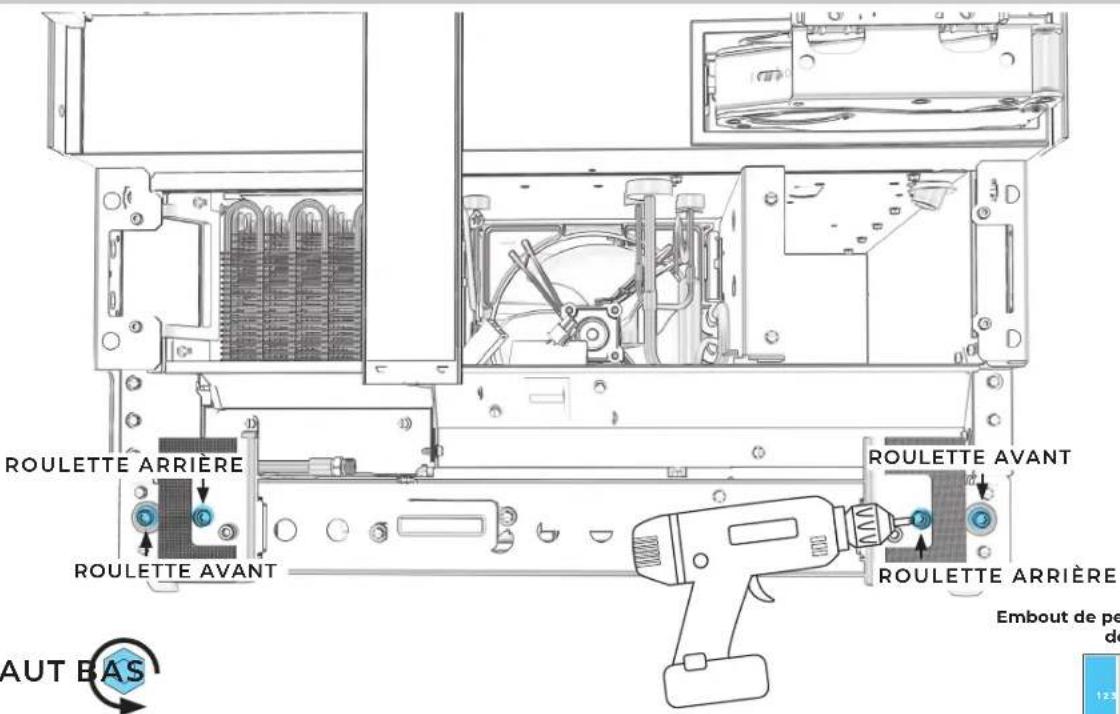

ADJUST ROLLERS UNTIL DEPTH GAUGES MATCH.

#2 square drive 12.5

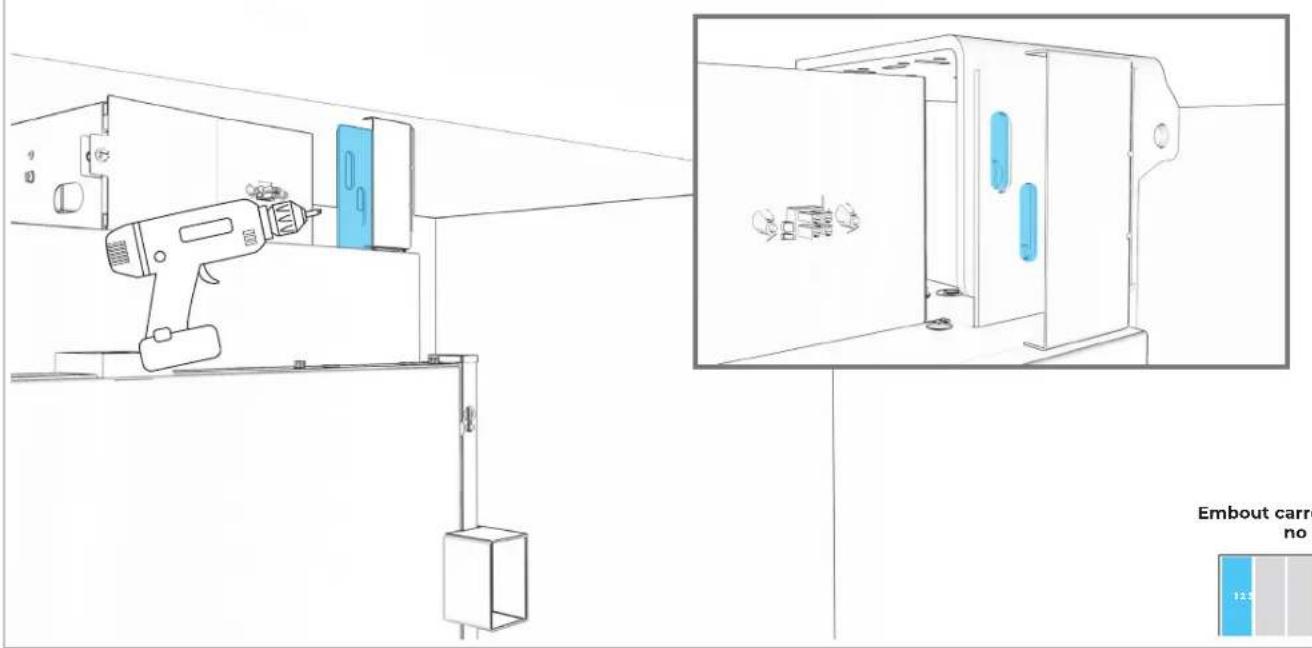

6.10

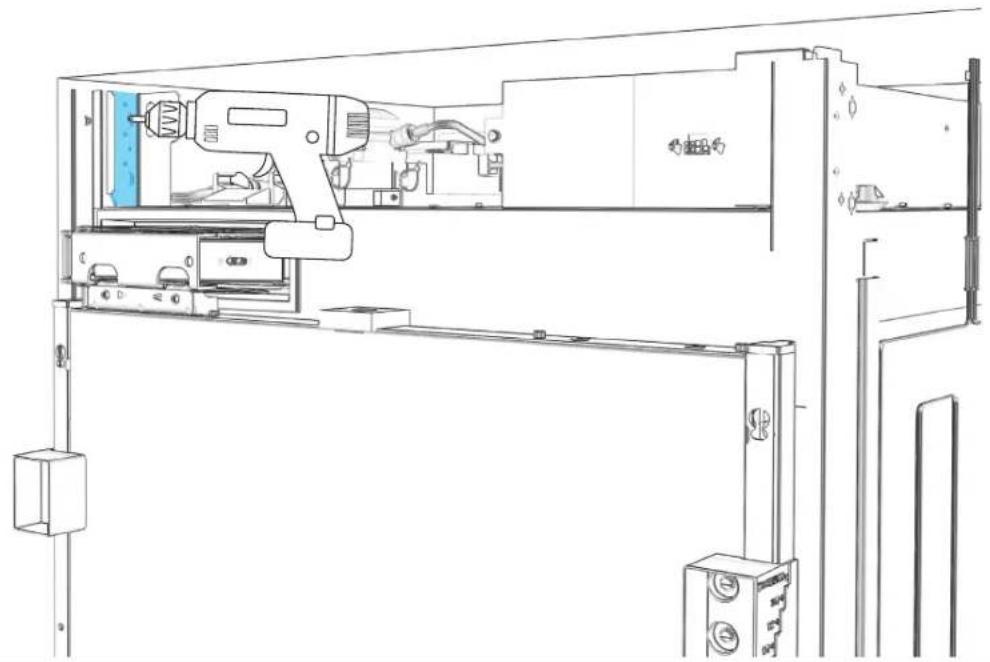

SECURE TOP INSTALLATION BRACKET TO FURNITURE.

Technical line drawing of a mechanical assembly with no visible text or symbols

5 mm
driver bit

6.11

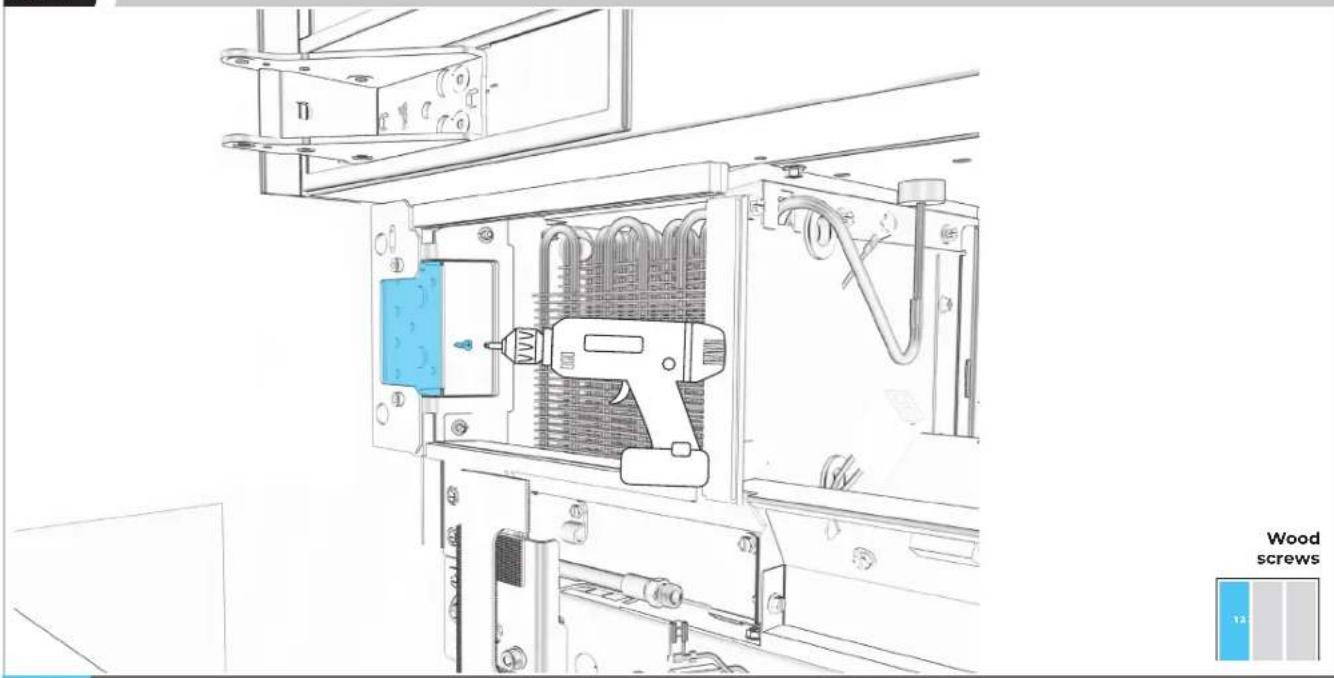

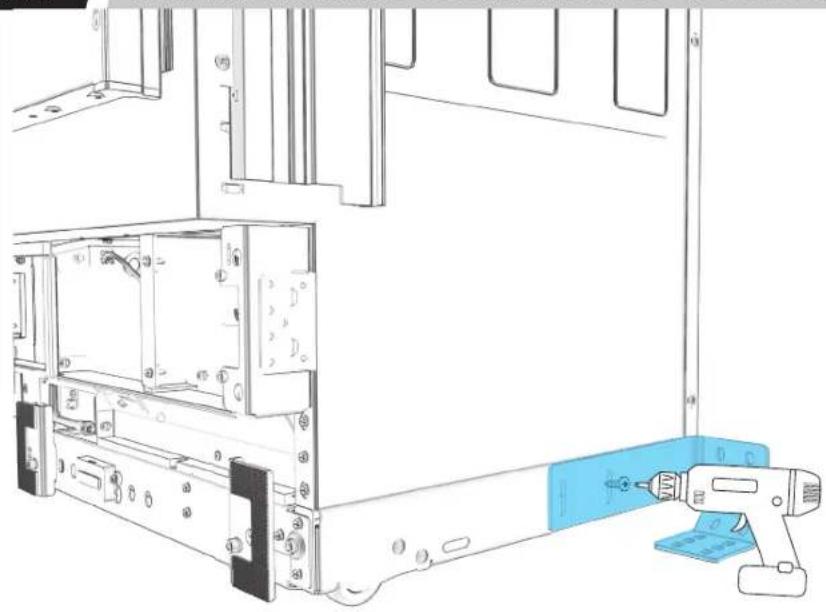

SECURE BOTTOM INSTALLATION BRACKET TO FURNITURE.

Technical line drawing of an electrical enclosure with a drill bit and a blue component, no text or symbols present

USE WOOD SCREWS OF AN APPROPRIATE LENGTH.

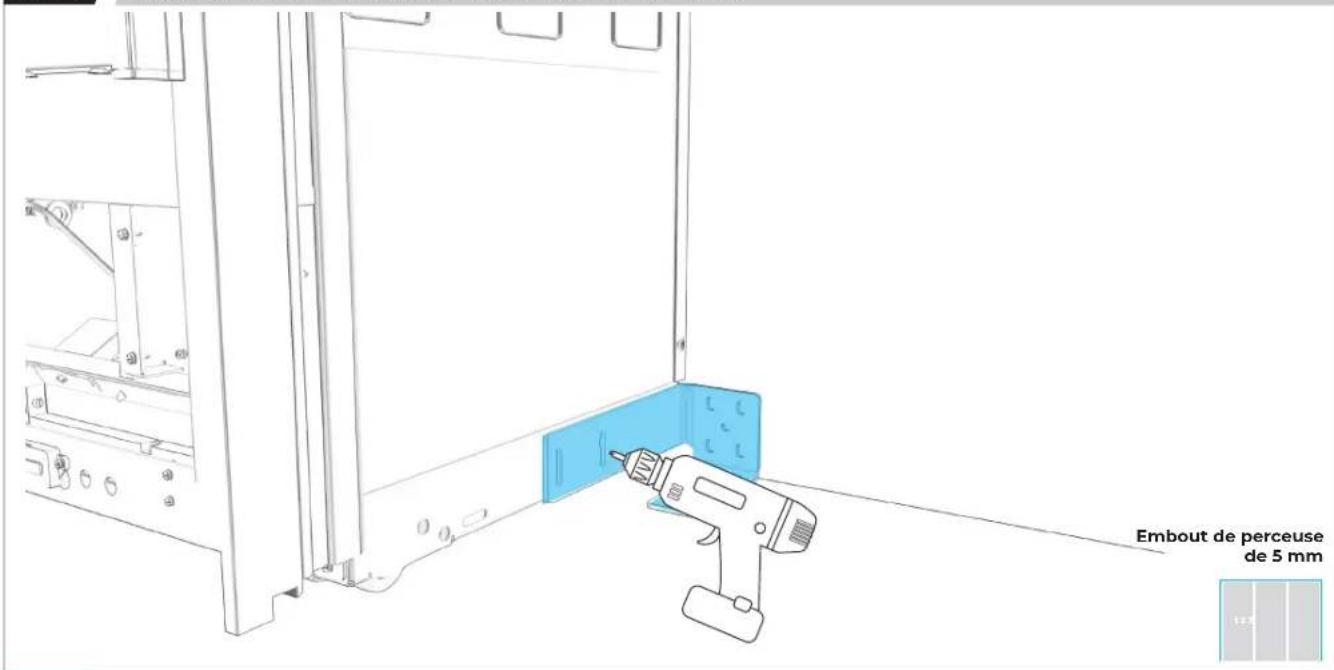

6.12

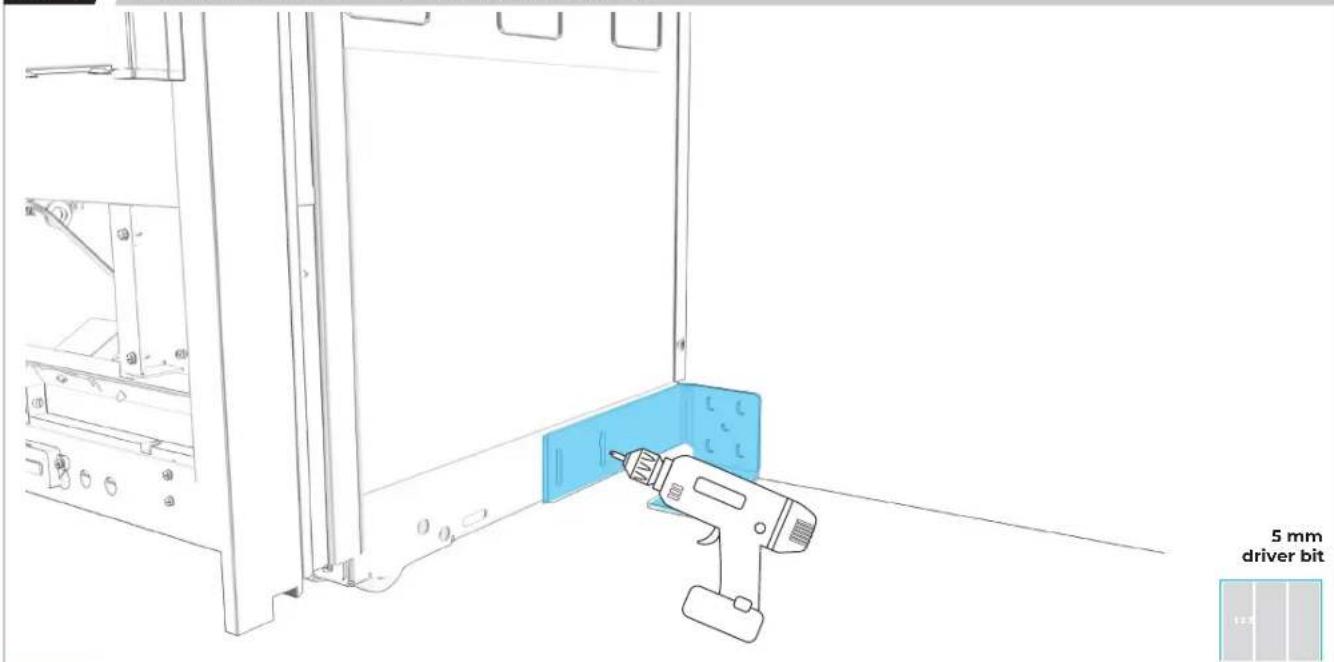

POSITION BRACKET TO FLOOR AND WALL.

5 mm driver bit

CONSIDER WALL AND FLOOR CONSTRUCTION AND MATERIALS.

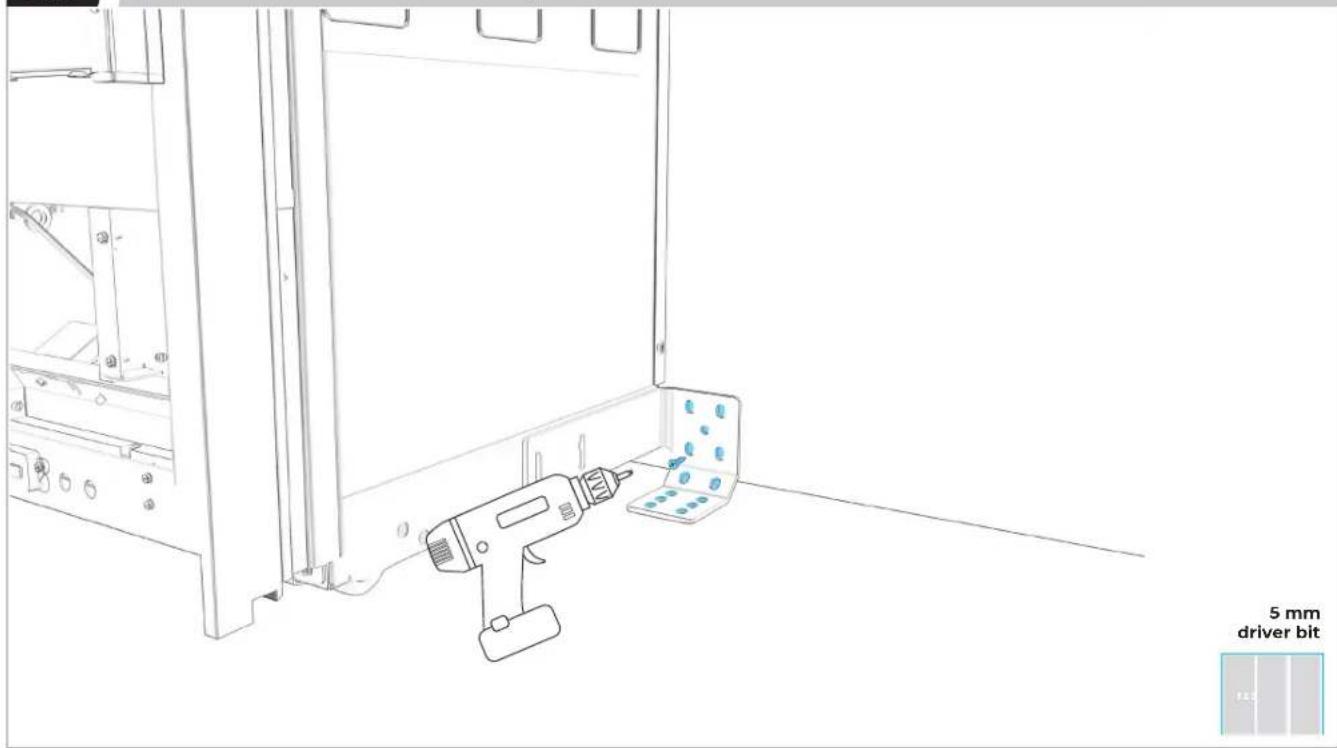

6.13

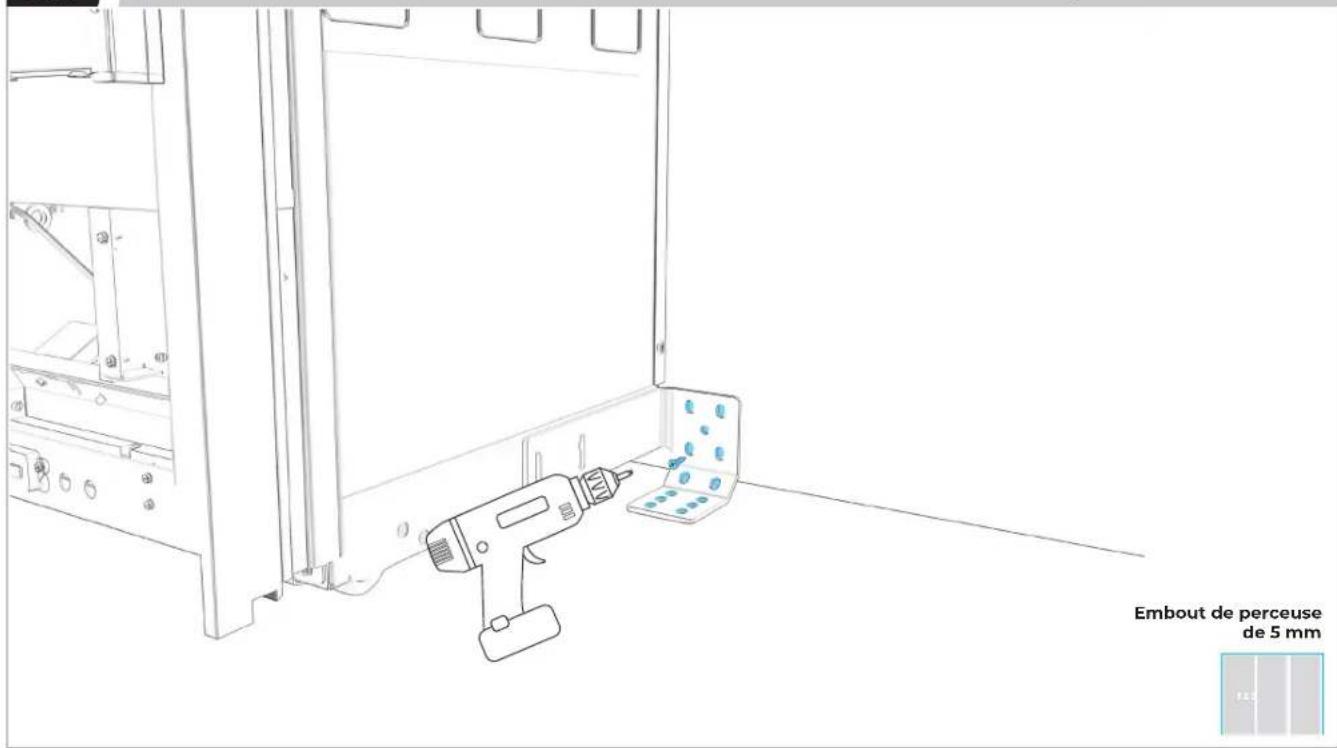

SECURE POSITIONING BRACKET, USING AS MANY SLOTS AS POSSIBLE.

5 mm driver bit

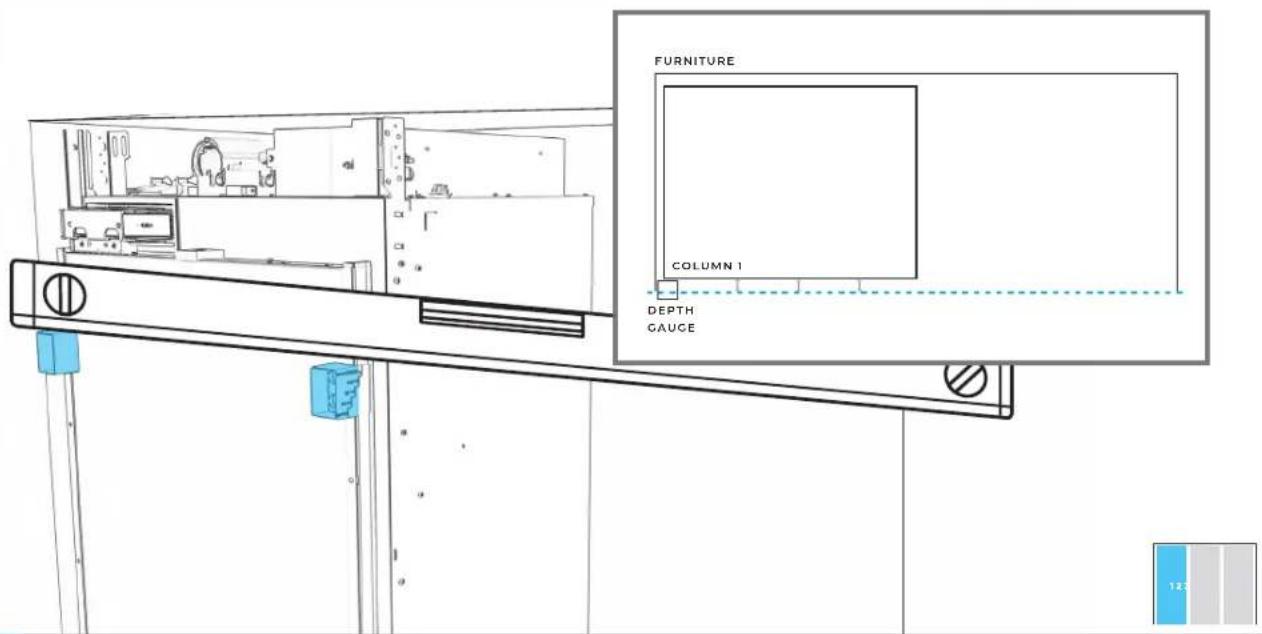

6.14

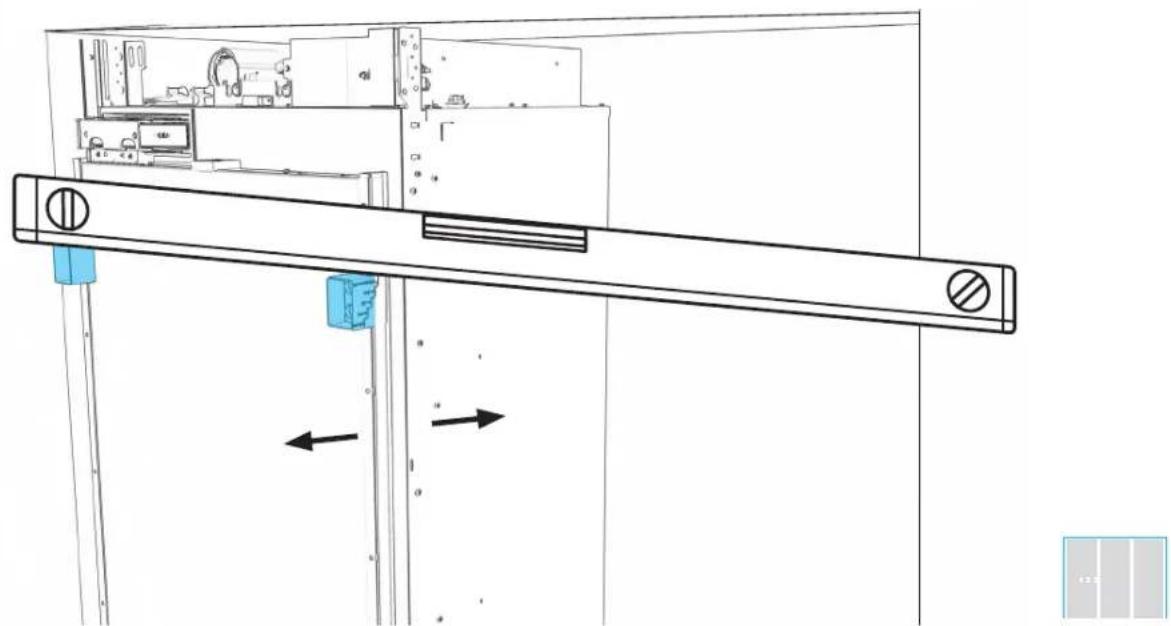

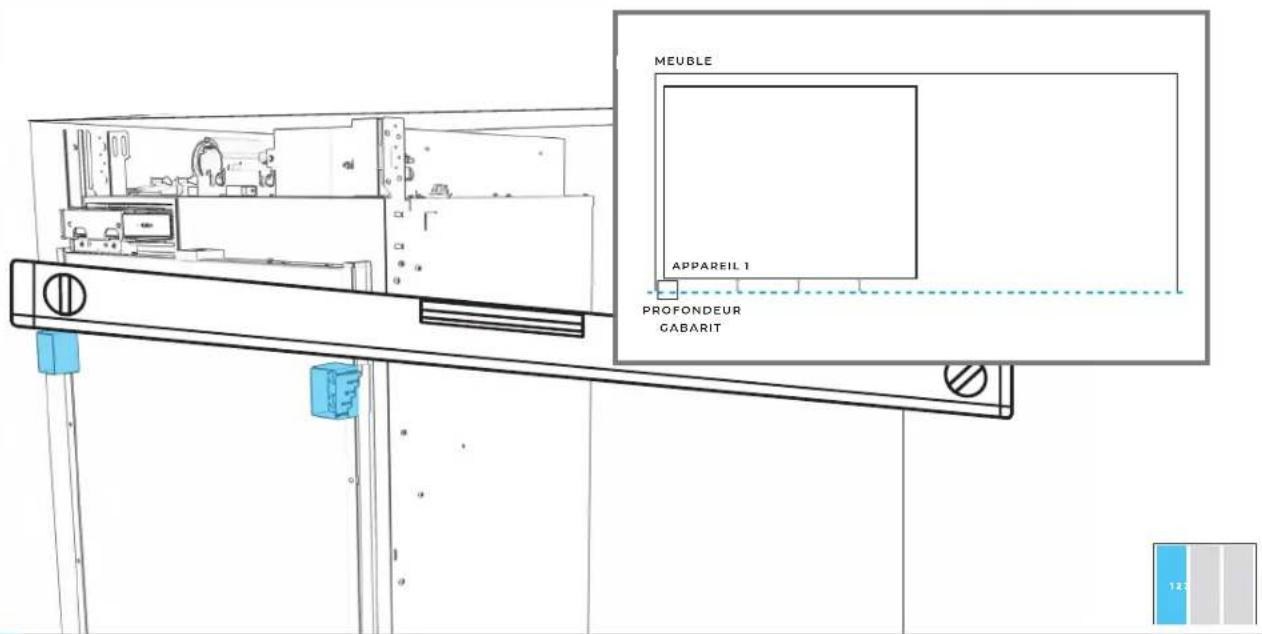

USE LEVEL TO CHECK DEPTH FROM FACE FRAME AT MULTIPLE POINTS.

FURNITURE COLUMN 1 DEPTH GAUGE 12.5

MAY SUBSTITUTE TRIM PIECE FOR LEVEL.

6.15

READJUST COLUMN SO THAT ALL DEPTHS MATCH.

Technical line drawing of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

SECOND

COLUMN INSTALLATION

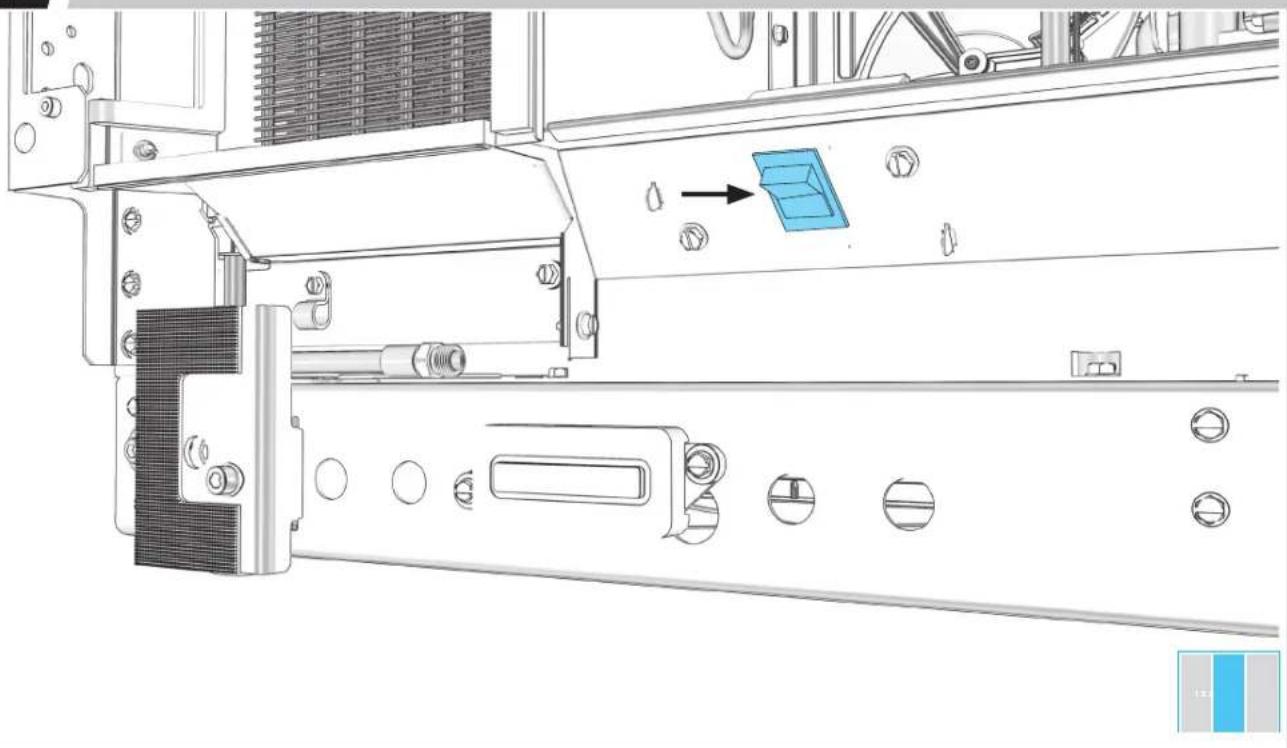

7.1

SWITCH POWER OFF.

Technical line drawing of a mechanical assembly with no visible text or symbols

BEFORE PLUGGING IN COLUMN, READ WARNING.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

7.2

PLUG INTO GROUNDED 3-PRONG OUTLET.

Line drawing of a wall socket connected to an electrical outlet plug (no text or symbols)

BEFORE MOVING COLUMNS, REVIEW ALL WARNINGS.

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping.

Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

7.3

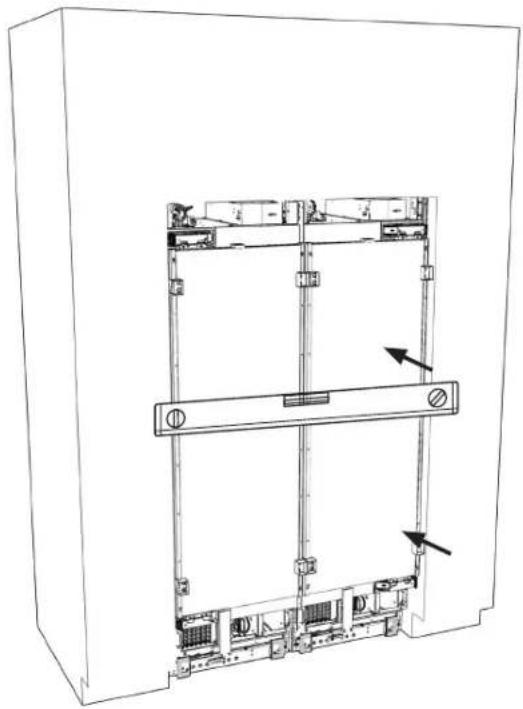

SECOND COLUMN: MOVE INTO THE CUTOUT.

Technical line drawing of an electrical enclosure with internal components and mounting holes (no text or symbols)

7.4

IF INSTALLING THREE COLUMNS:

GO TO SECTION 8

7.5

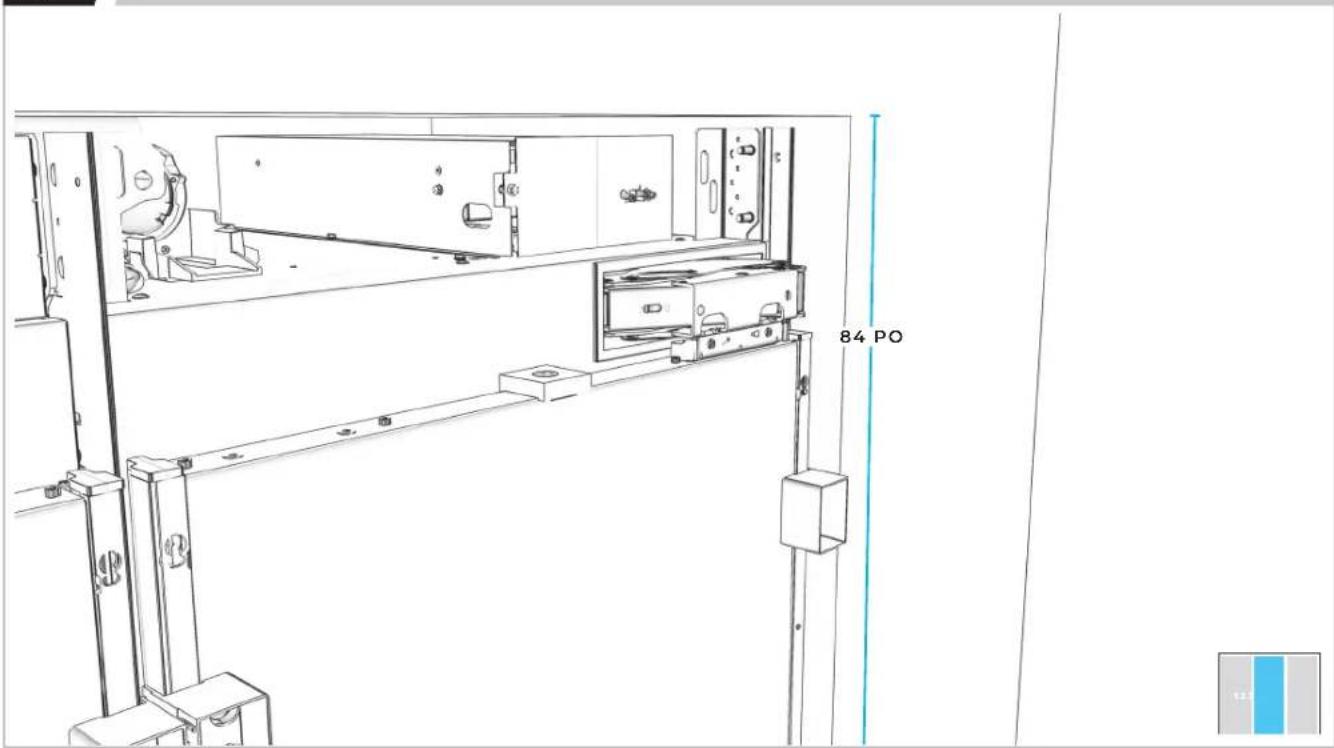

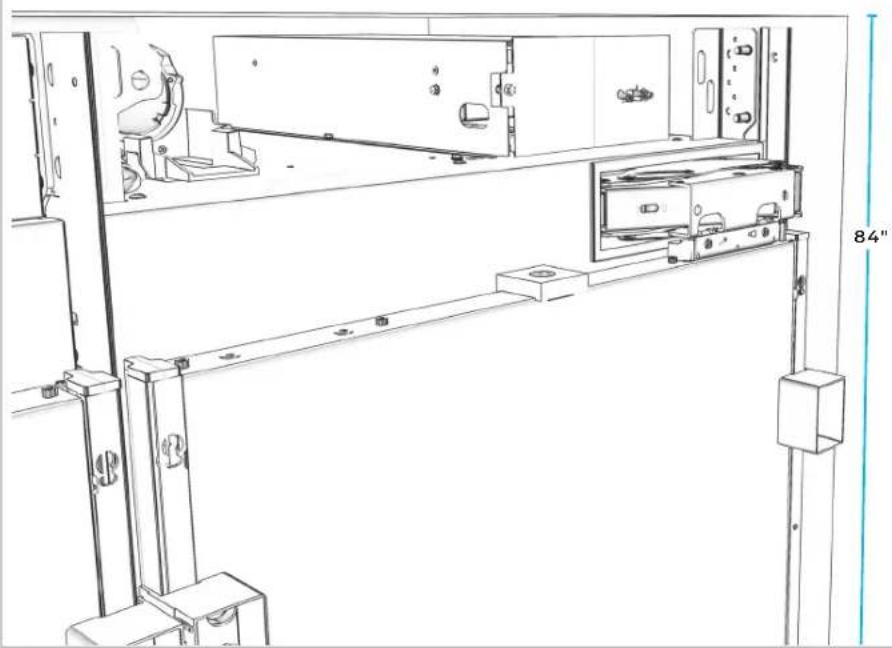

SECOND COLUMN: RAISE TO 84" LINE.

Technical line drawing of a mechanical assembly with mounting brackets and a vertical dimension label (84")

7.6

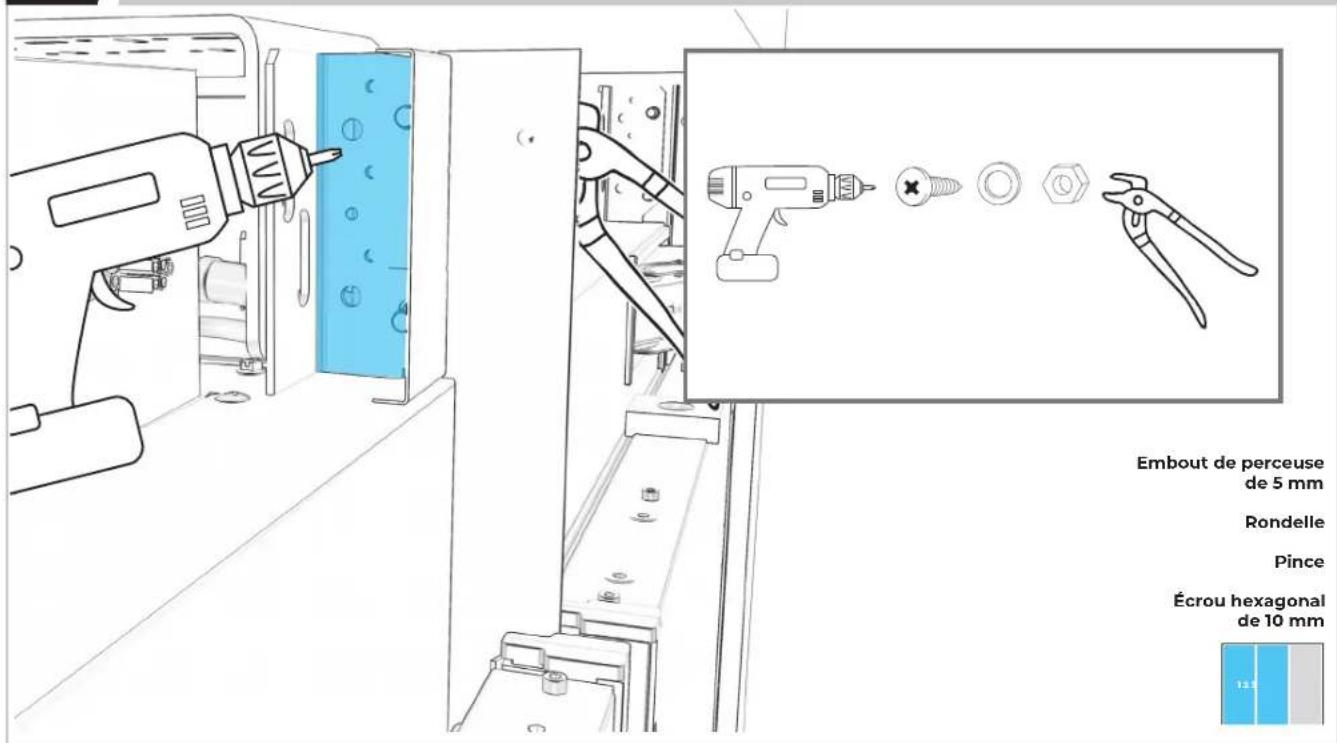

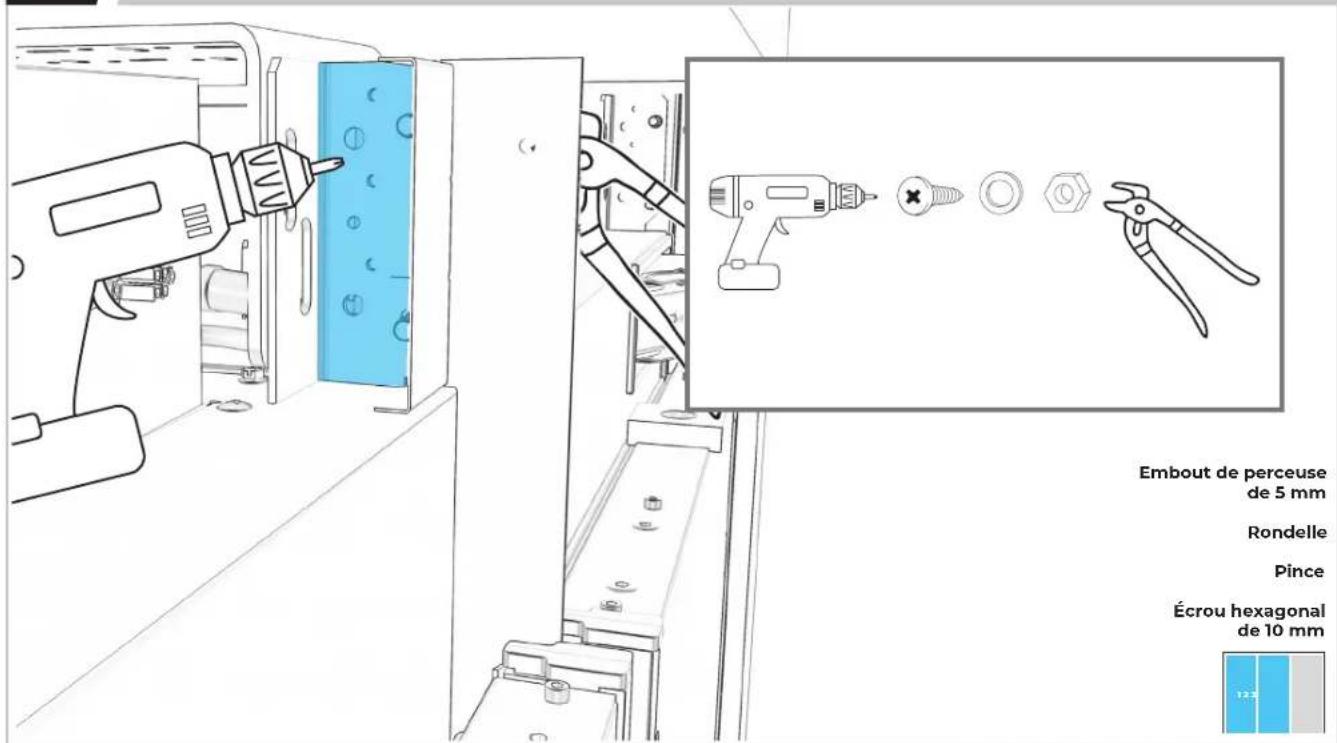

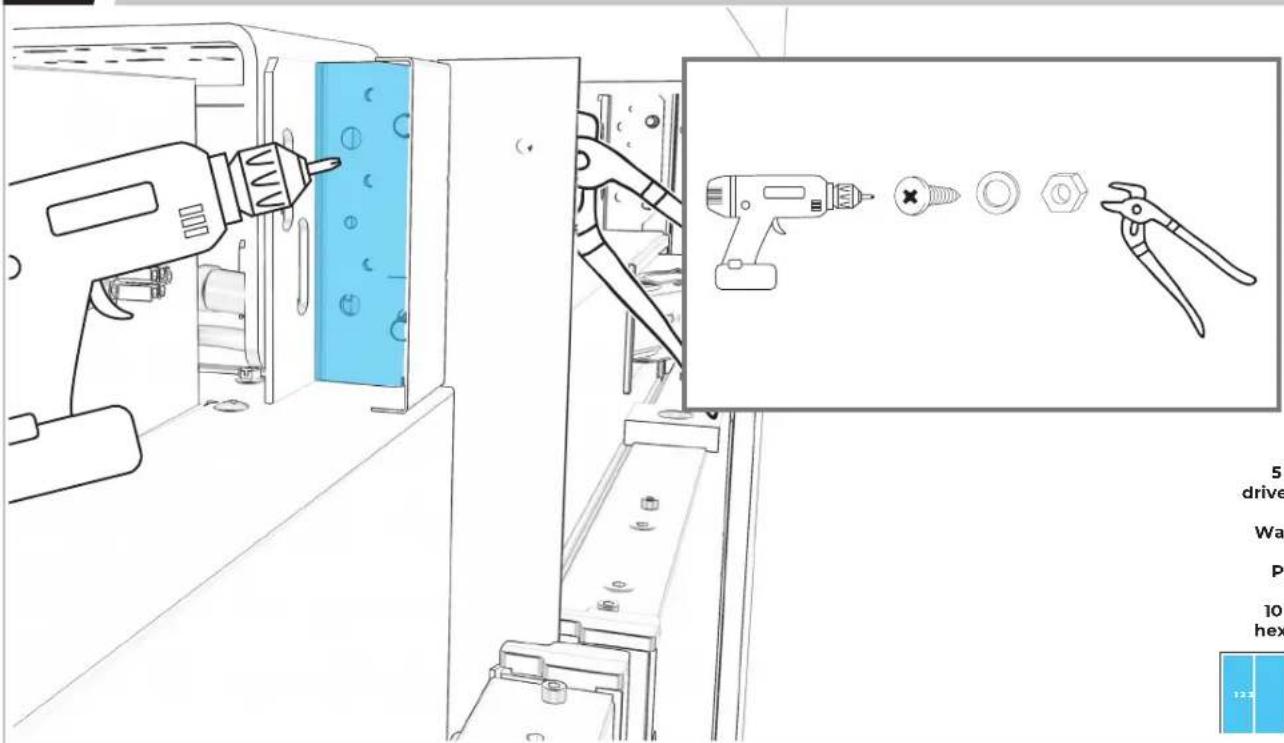

SECURE FIRST UNIT TO SECOND UNIT AT TOP.

Technical diagram showing a tool in a machine with a close-up of a drill bit and pliers, accompanied by a technical description panel.

5 mm driver bit

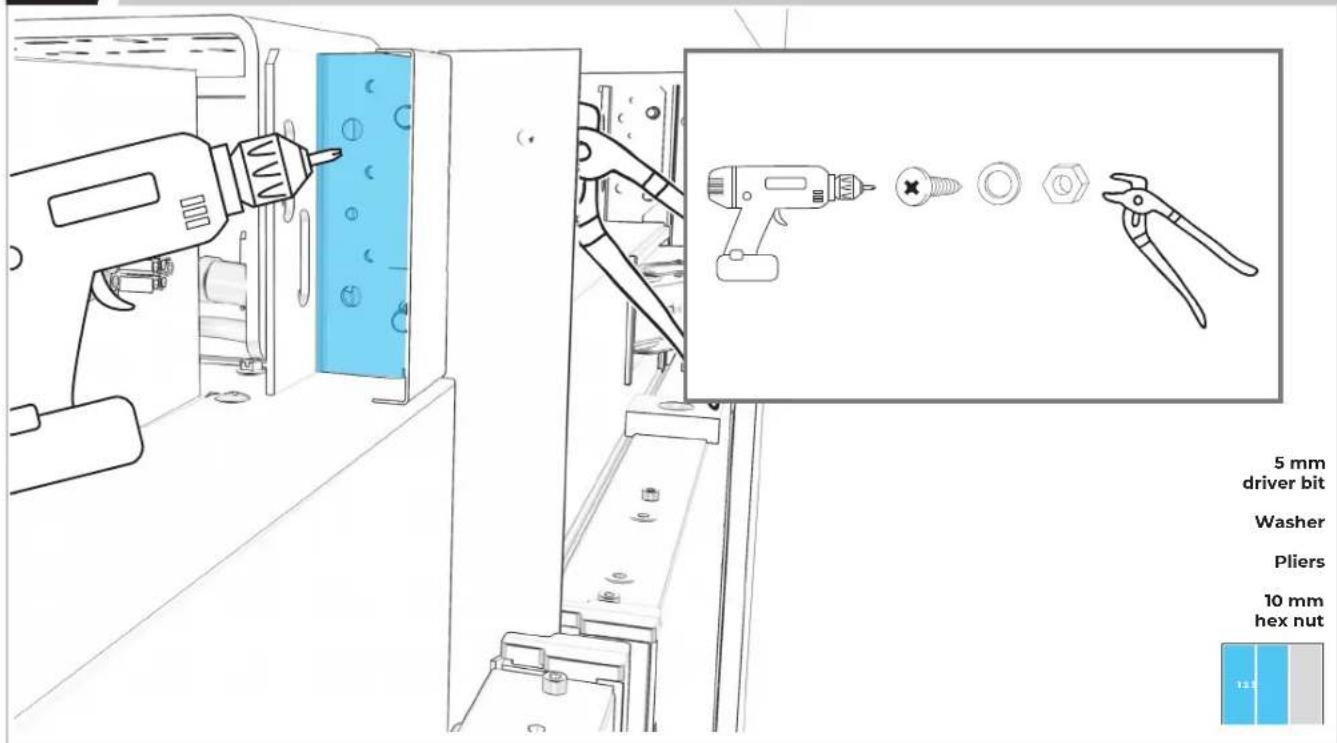

Washer
Pliers
10 mm hex nut

7.7

REPEAT ON BOTTOM BRACKET.

5 mm driver bit Washer Pliers 10 mm hex nut

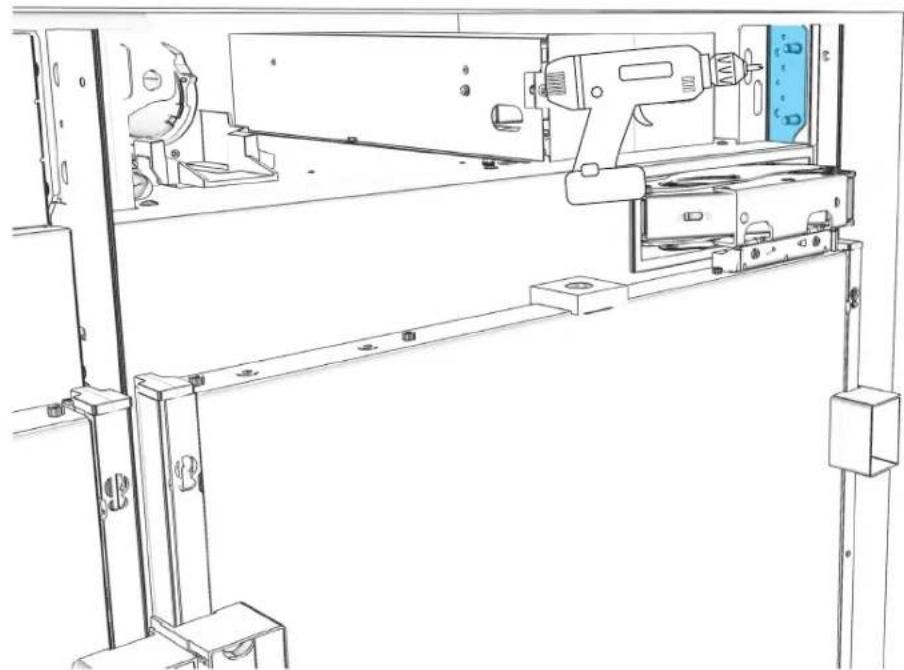

7.8

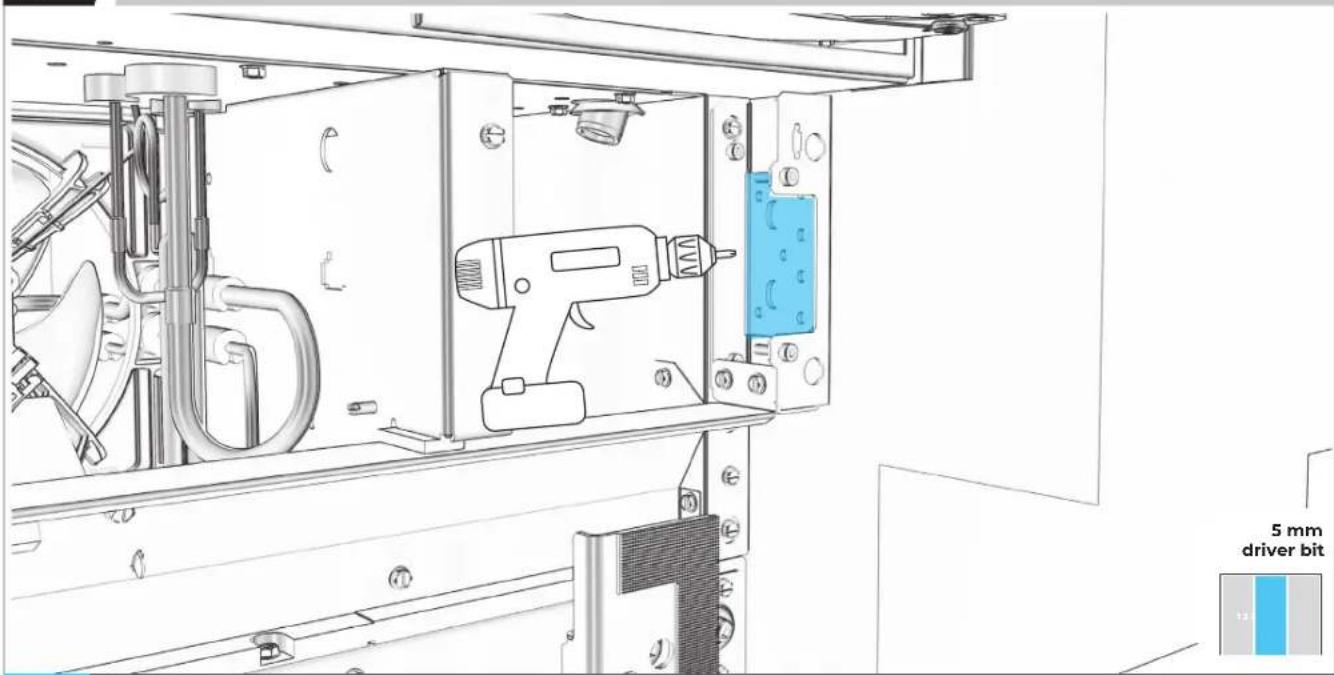

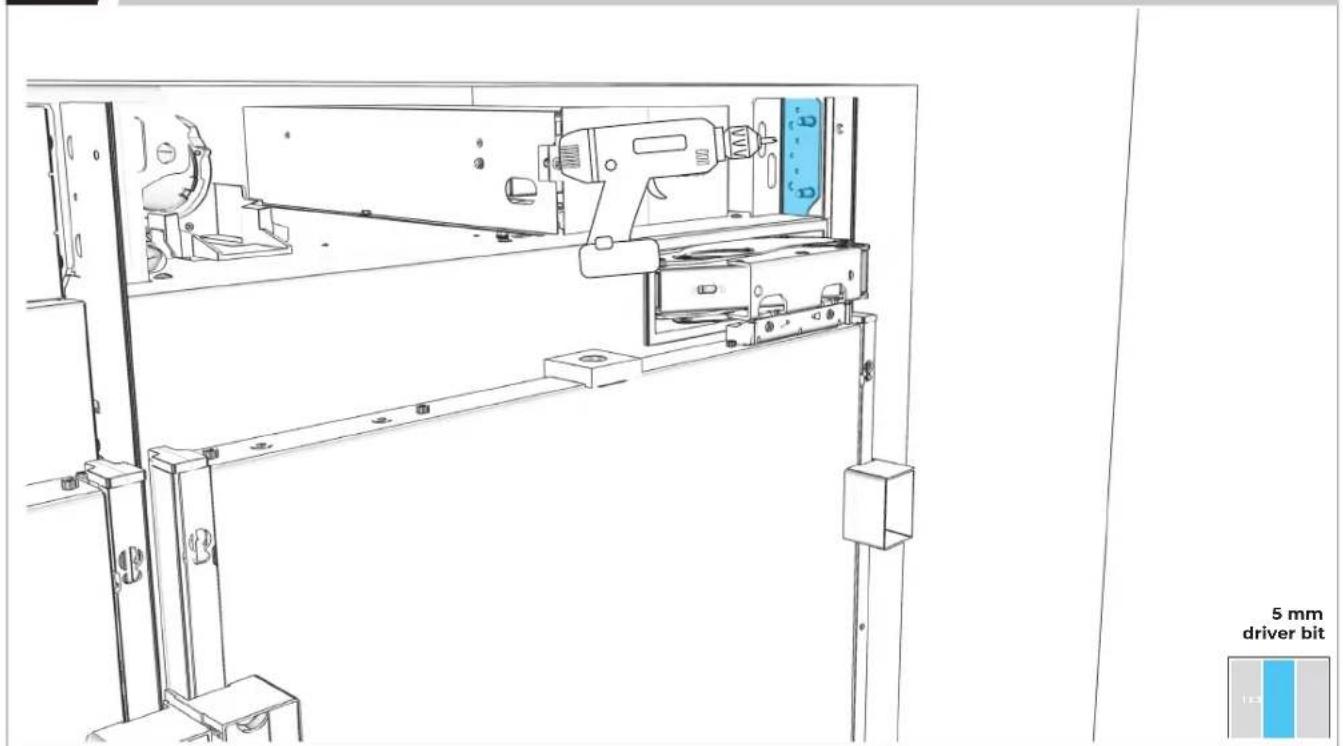

SECURE TOP INSTALLATION BRACKET TO FURNITURE.

5 mm driver bit

7.9

SECURE BOTTOM INSTALLATION BRACKET TO FURNITURE.

Technical line drawing of an electrical enclosure with a drill bit and 5 mm driver bit indicator (no text or symbols on the diagram itself)

USE WOOD SCREWS OF AN APPROPRIATE LENGTH

7.10

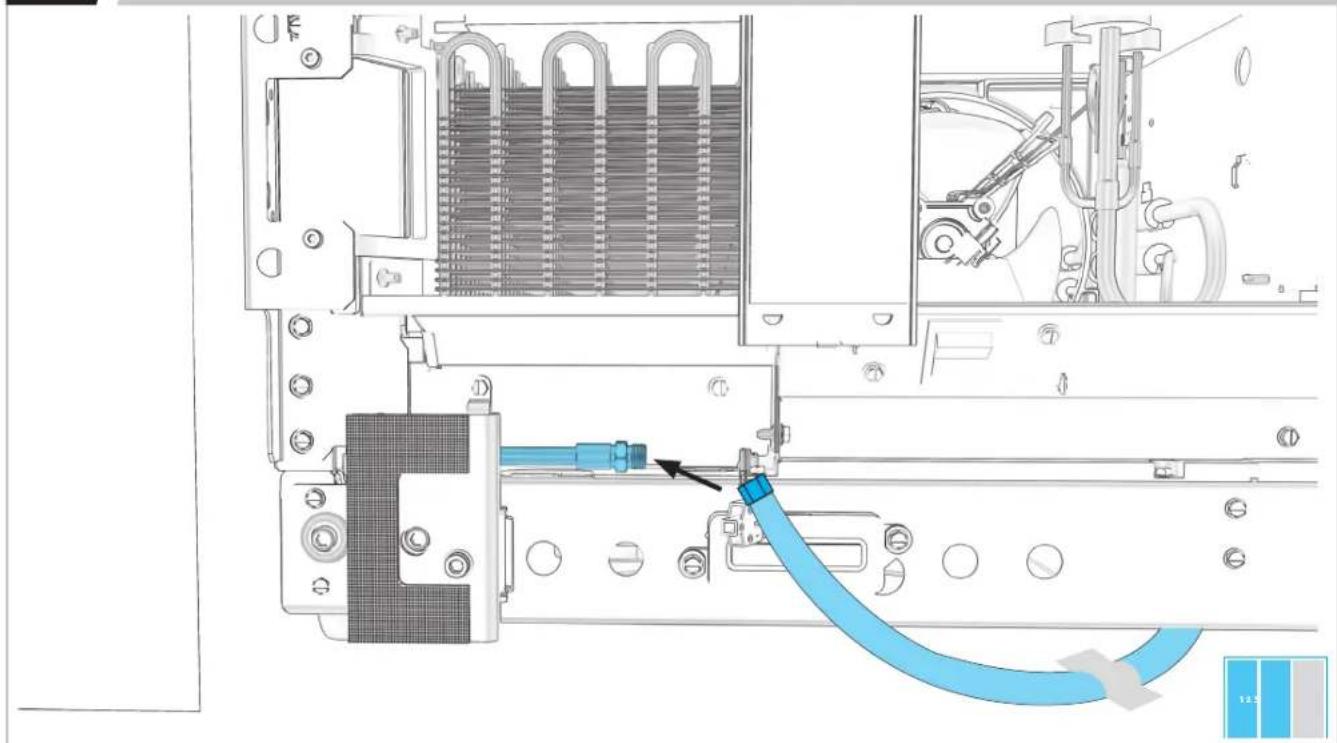

CONNECT THE WATER SUPPLY LINES.

Technical diagram of a mechanical assembly with a blue cable and component, no visible text or symbols

7.11

IF INSTALLING ONLY TWO COLUMNS:

GO TO SECTION 9

THIRD

COLUMN INSTALLATION

8.1

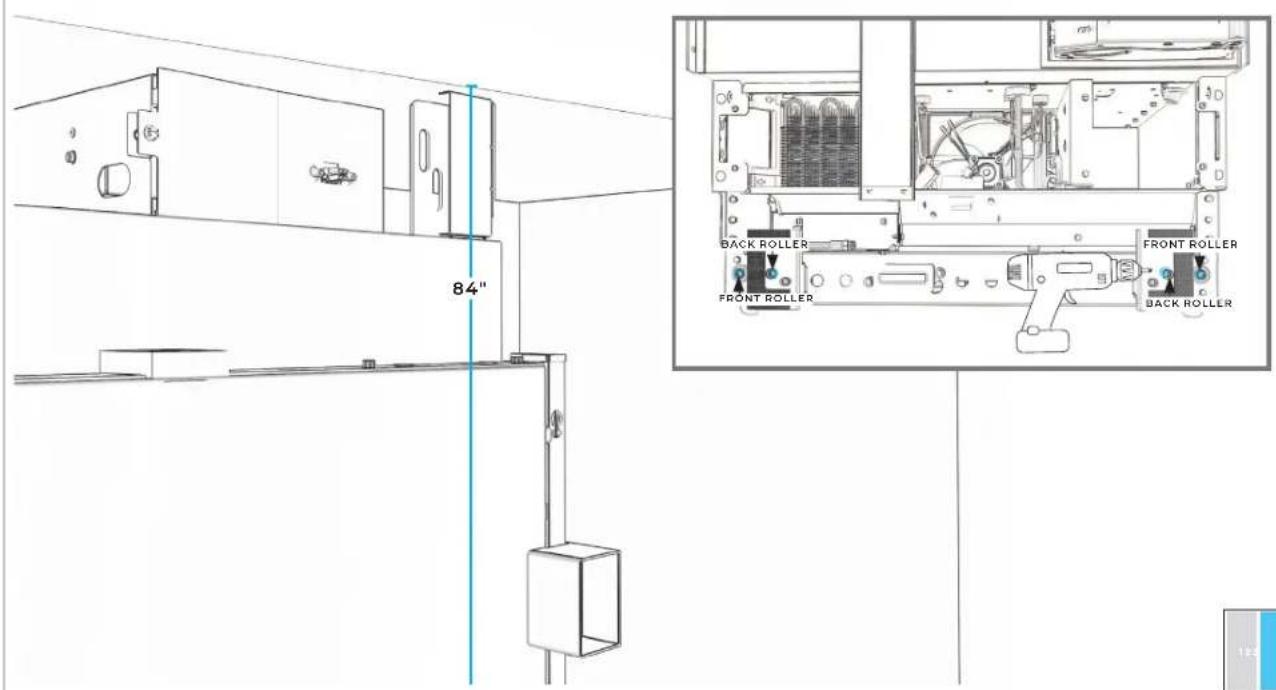

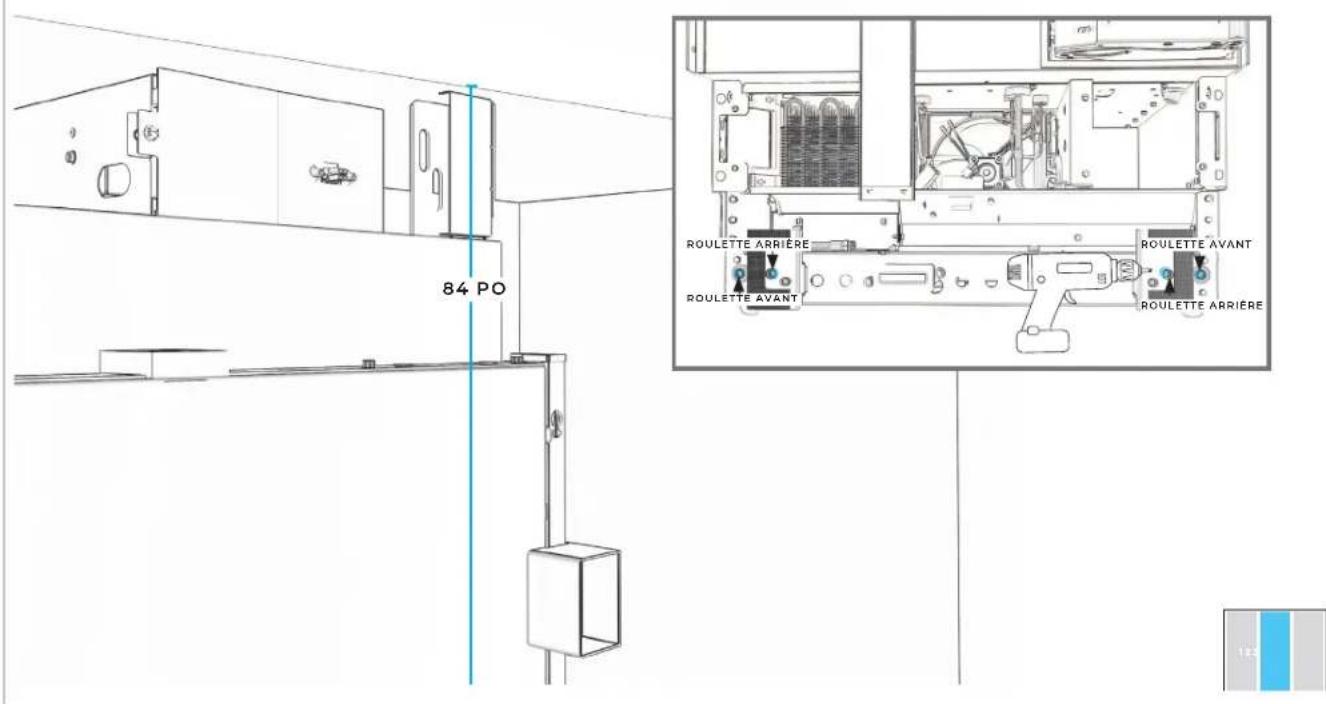

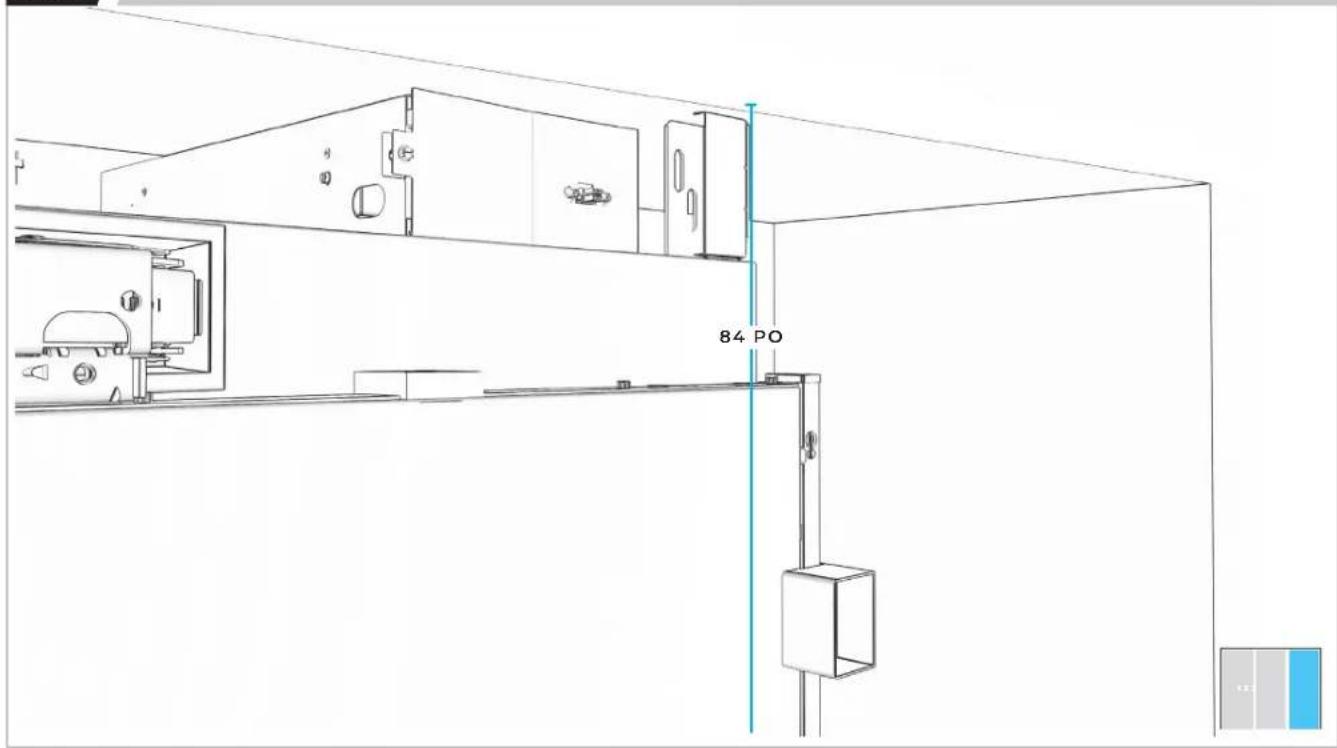

SECOND COLUMN: RAISE TO 84" LINE.

Line drawing of a mechanical device with a tool inserted into a housing (no text or symbols)

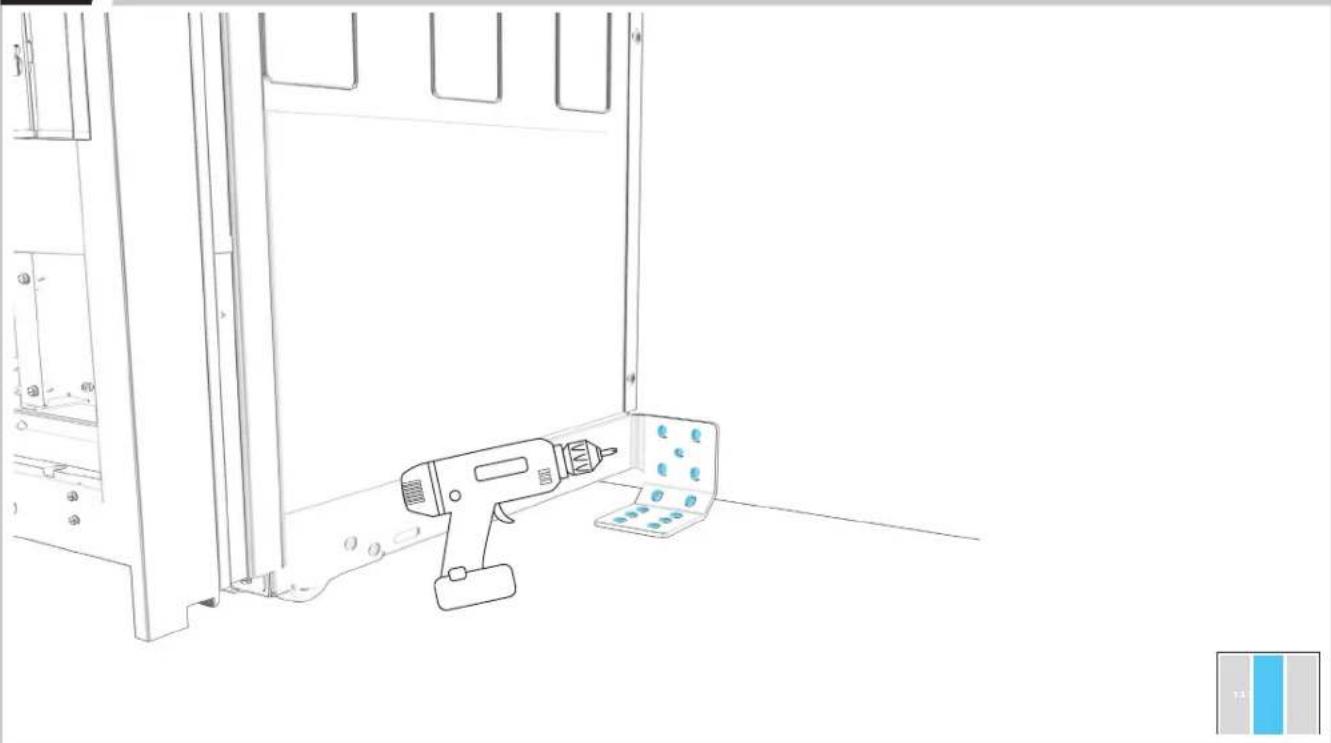

8.3

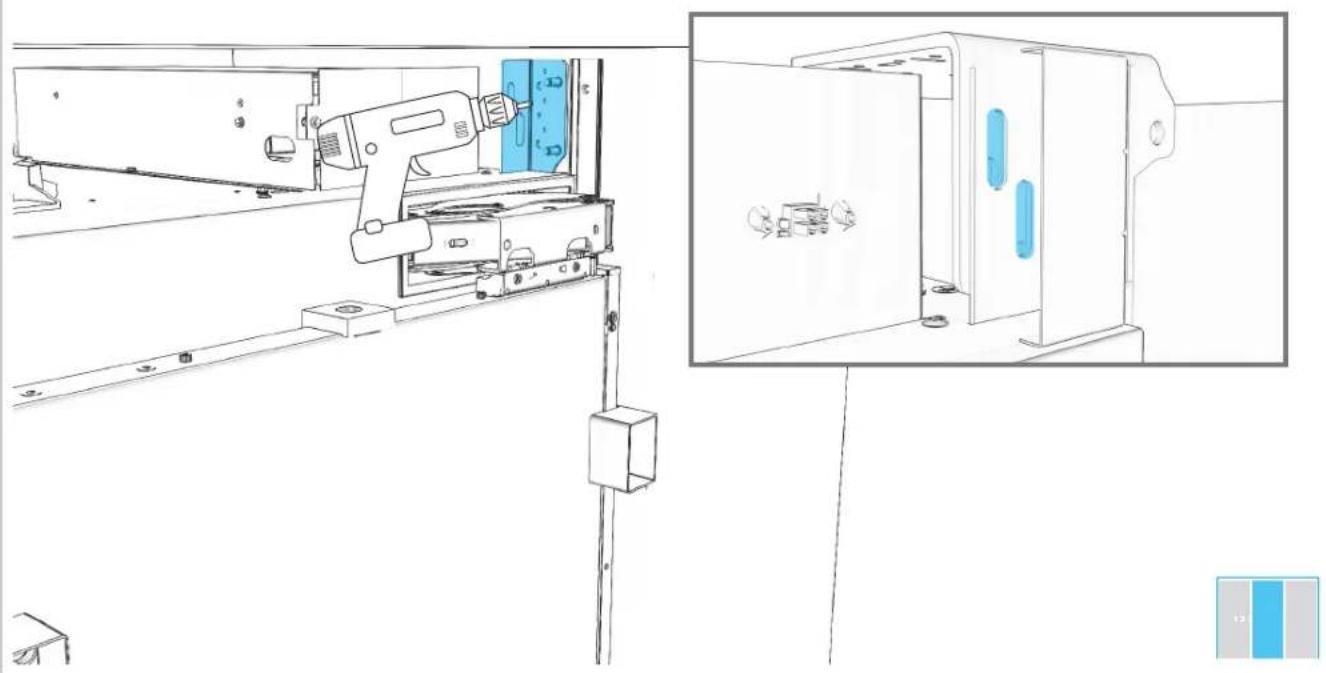

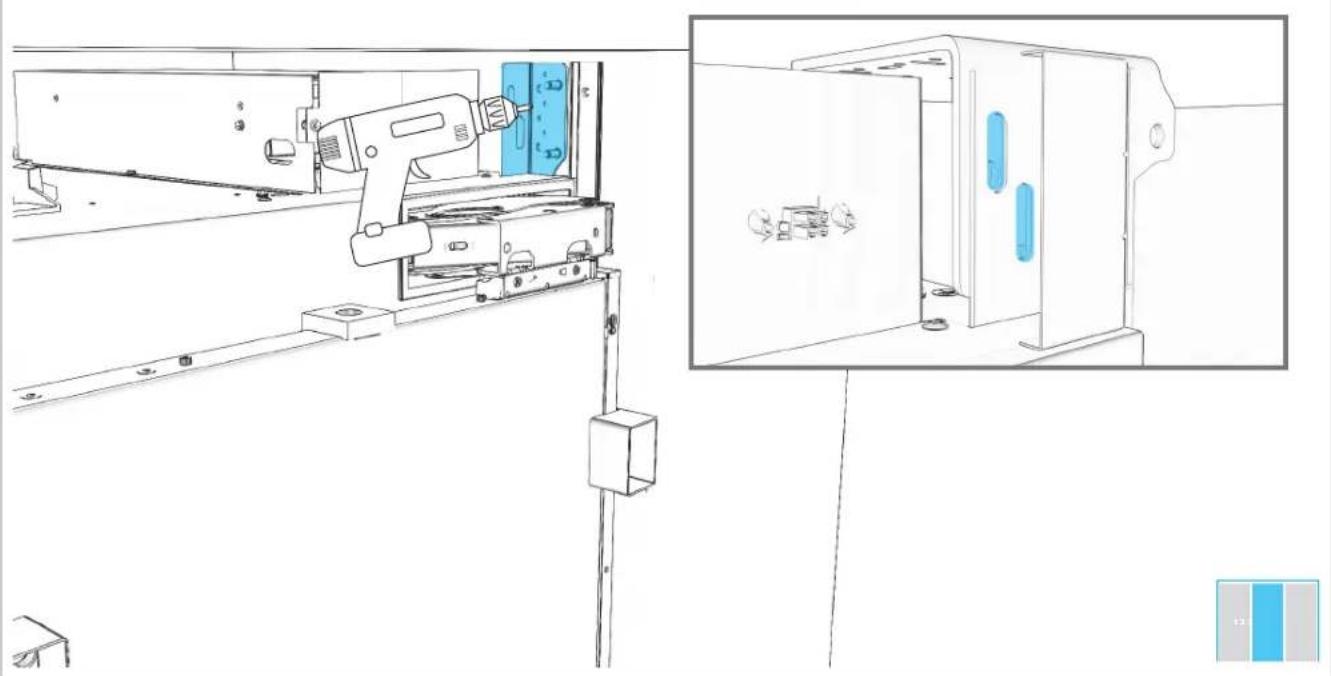

LOOSELY DRIVE SCREWS THROUGH INSTALLATION BRACKET AND BADASS SOFFIT BRACKET.

Technical line drawing of a mechanical assembly with a close-up view of a cabinet (no text or symbols present)

BEFORE PLUGGING IN COLUMN, READ WARNING.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

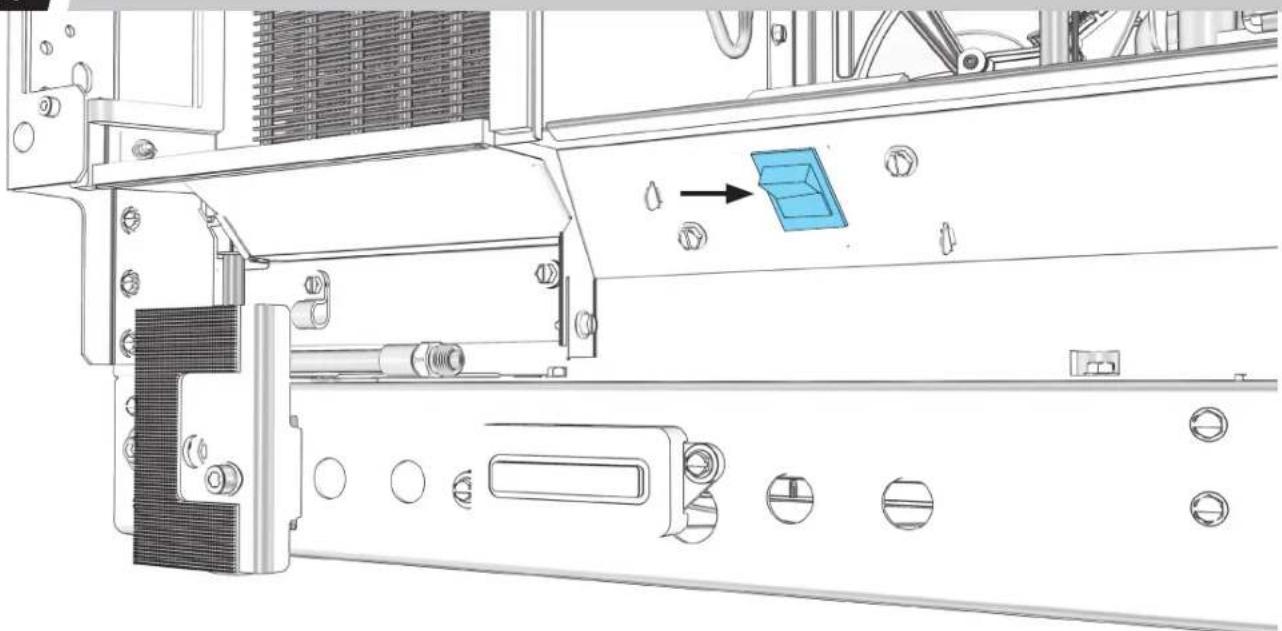

8.4

THIRD COLUMN: SWITCH OFF POWER.

Technical line drawing of a mechanical assembly with no visible text or symbols

8.5

PLUG INTO GROUNDED 3-PRONG OUTLET.

Line drawing of an electrical outlet with a blue socket and connected to a black power plug (no text or symbols)

BEFORE MOVING COLUMN, READ ALL WARNINGS.

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or "walk" the refrigerator when trying to move it, as floor damage could occur.

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

8.7

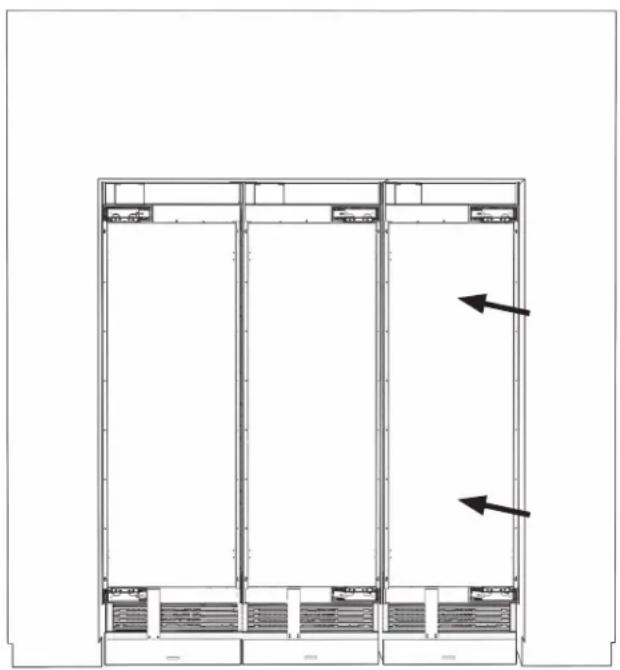

THIRD COLUMN: MOVE INTO THE CUTOUT.

Architectural floor plan showing three rectangular layouts with labeled windows and structural elements (no text or symbols)

8.8
THIRD COLUMN: RAISE TO 84" LINE.

Technical line drawing of a cabinet or enclosure assembly with internal components and a 84-inch height dimension (no text or symbols)

8.9
SECURE SECOND UNIT TO THIRD UNIT AT TOP.

5 mm driver bit Washer Pliers 10 mm hex nut

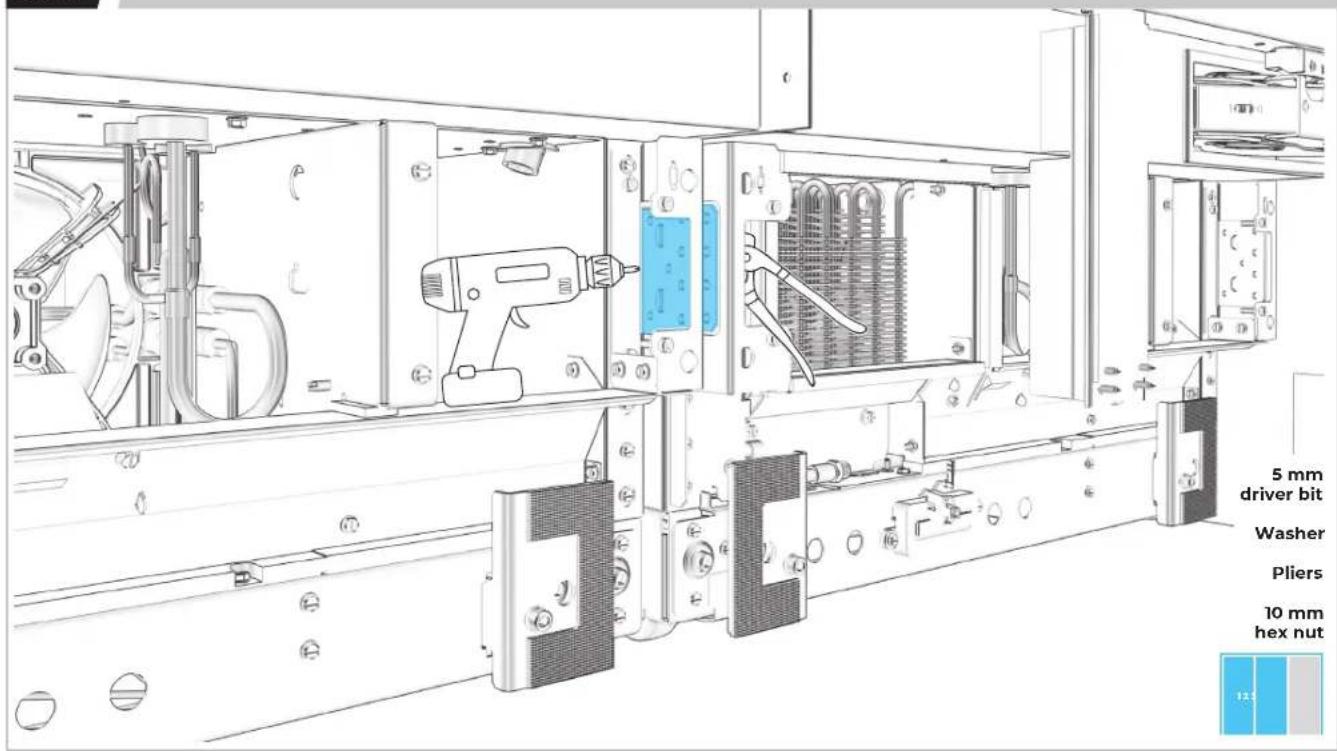

8.10

REPEAT ON BOTTOM BRACKET.

5 mm driver bit Washer Pliers 10 mm hex nut

8.11

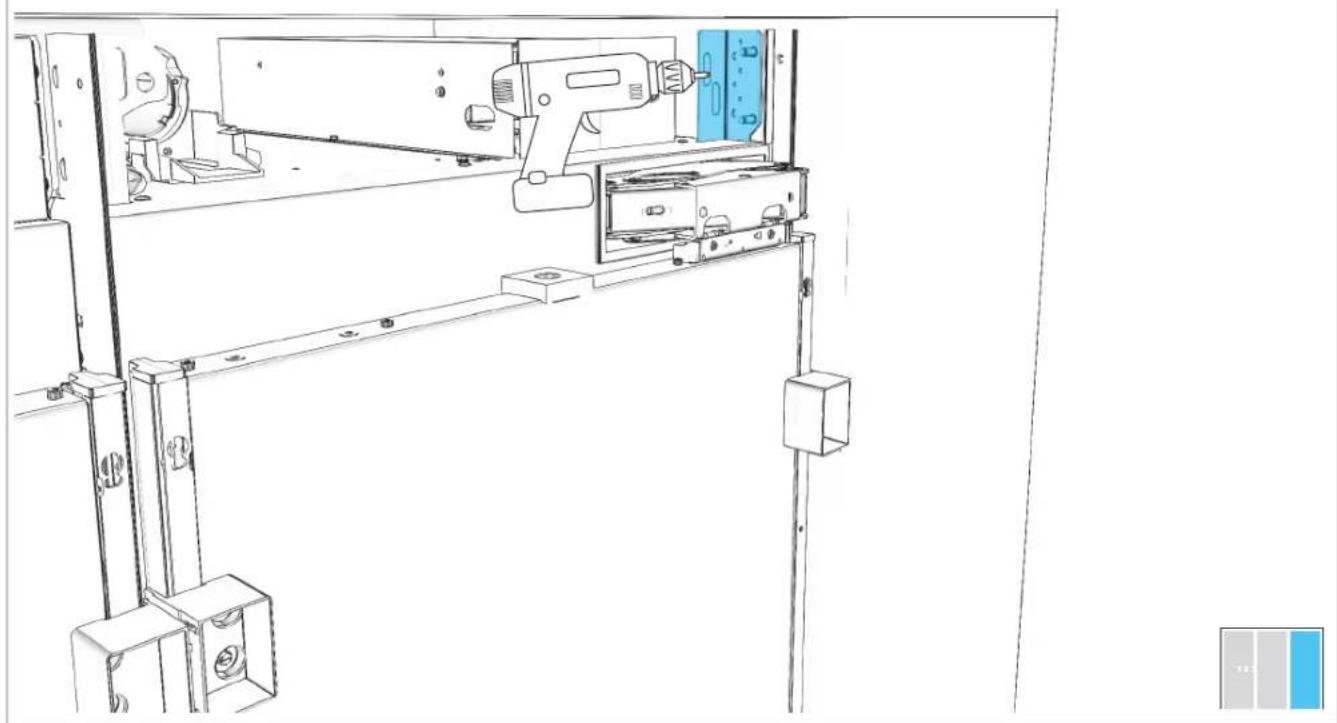

THIRD COLUMN: SECURE TO RIGHT SIDE PANEL.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

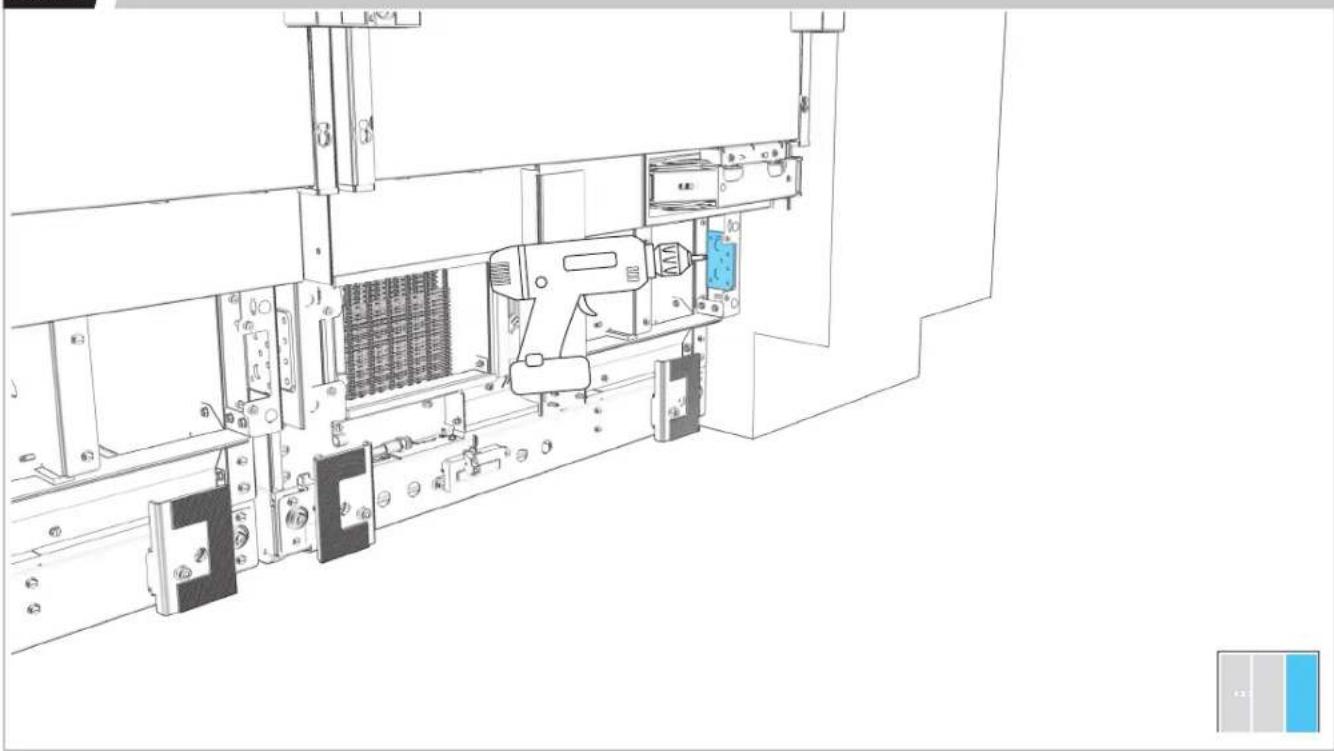

8.12

THIRD COLUMN: REPEAT ON BOTTOM BRACKET.

Technical line drawing of a mechanical assembly with no visible text or symbols

8.13

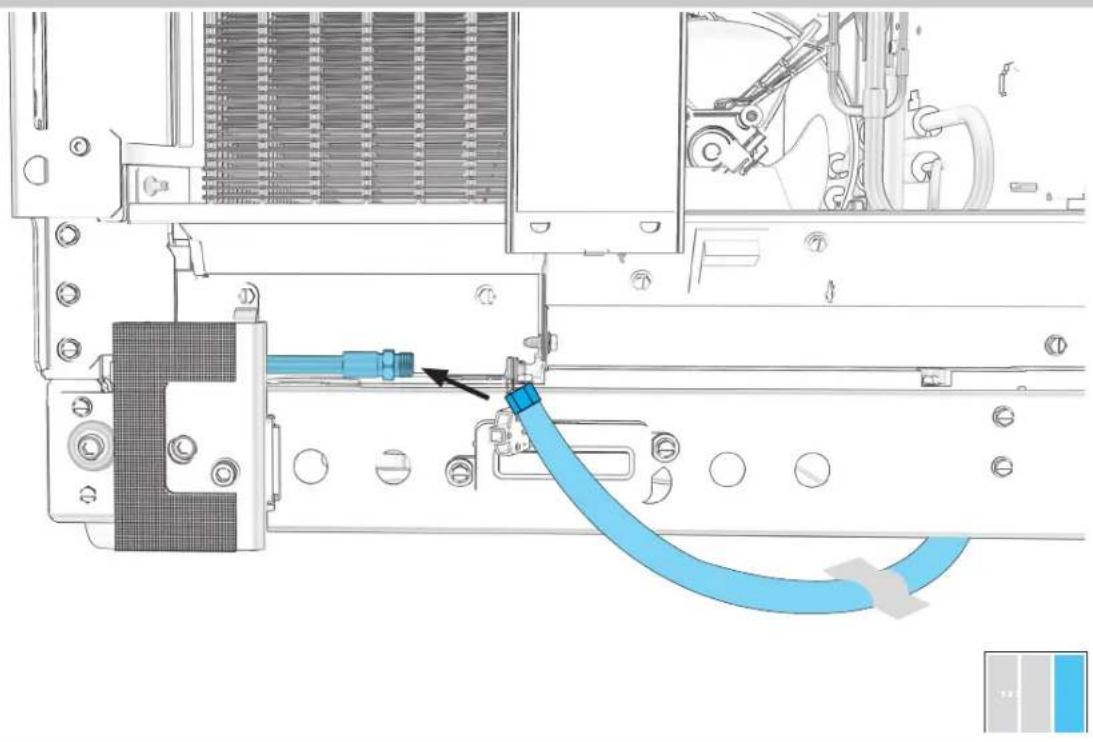

CONNECT THE WATER SUPPLY LINE.

Technical diagram of a mechanical assembly with a blue cable and connector, showing internal components and no visible text or symbols.

PREPAR E

COLUMNS FOR USE

9.1

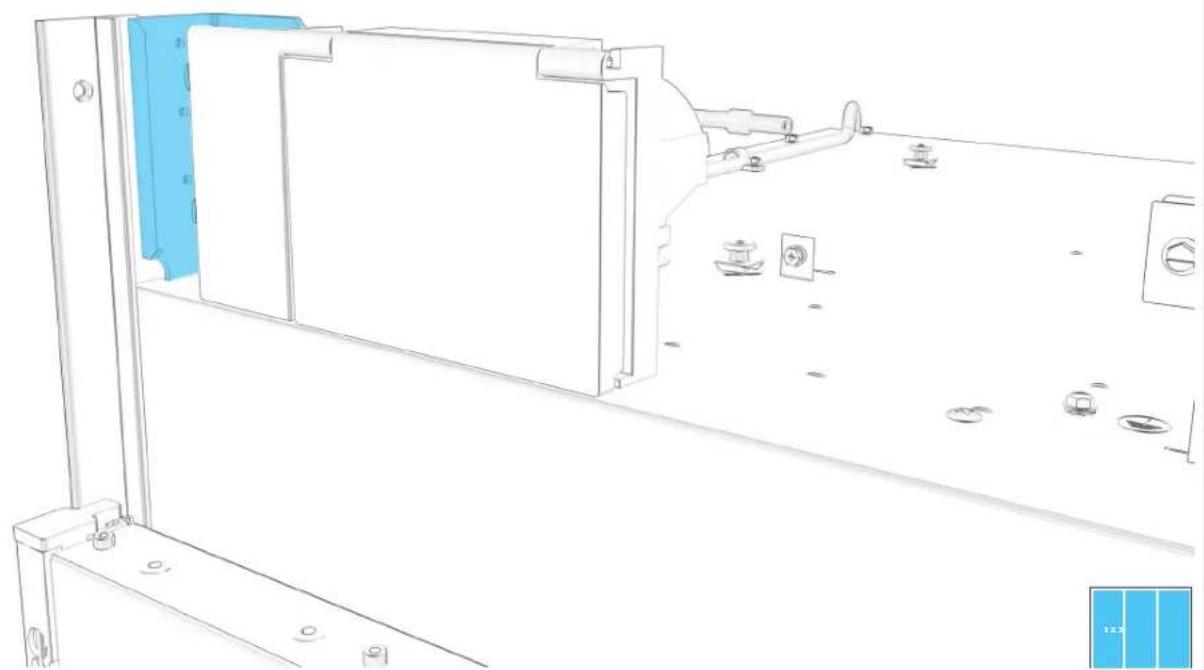

EACH COLUMN: ALIGN FILTER HOUSING BETWEEN BRACKETS ON TOP OF COLUMN.

Technical line drawing of a mechanical assembly with blue component and mounting holes (no text or symbols)

9.2

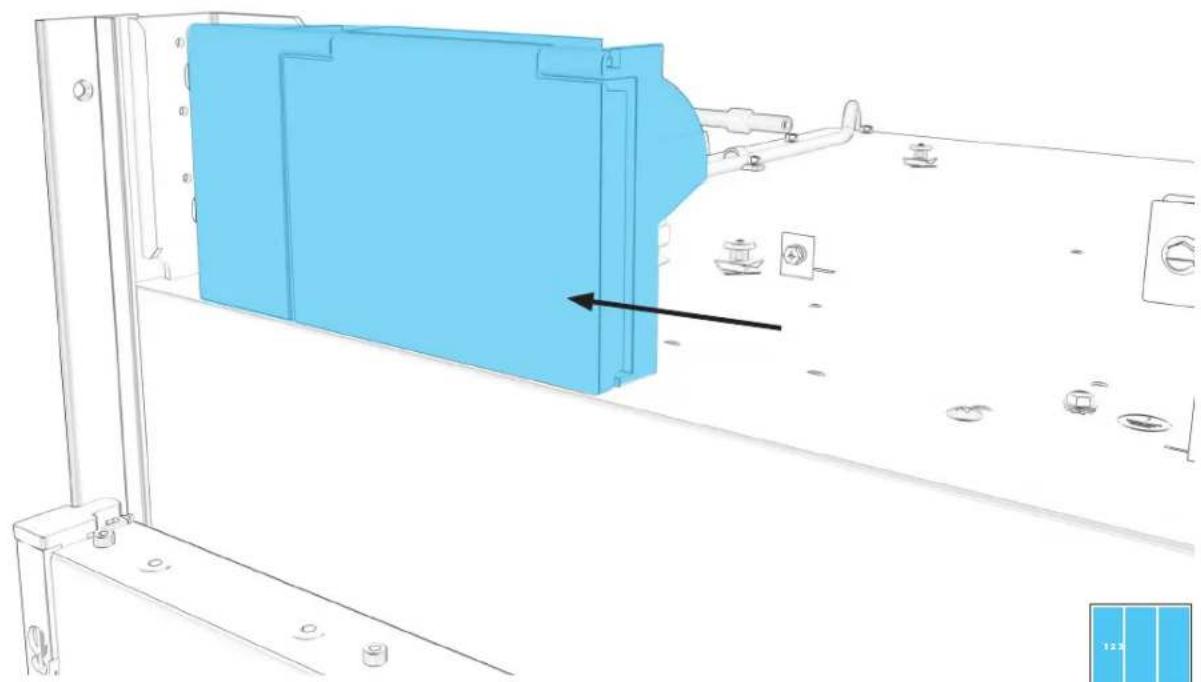

EACH COLUMN: REINSTALL HOUSING, PUSHING LEFT WITH FORCE.

Technical line drawing of a mechanical assembly with blue component and mounting holes (no text or symbols)

9.3

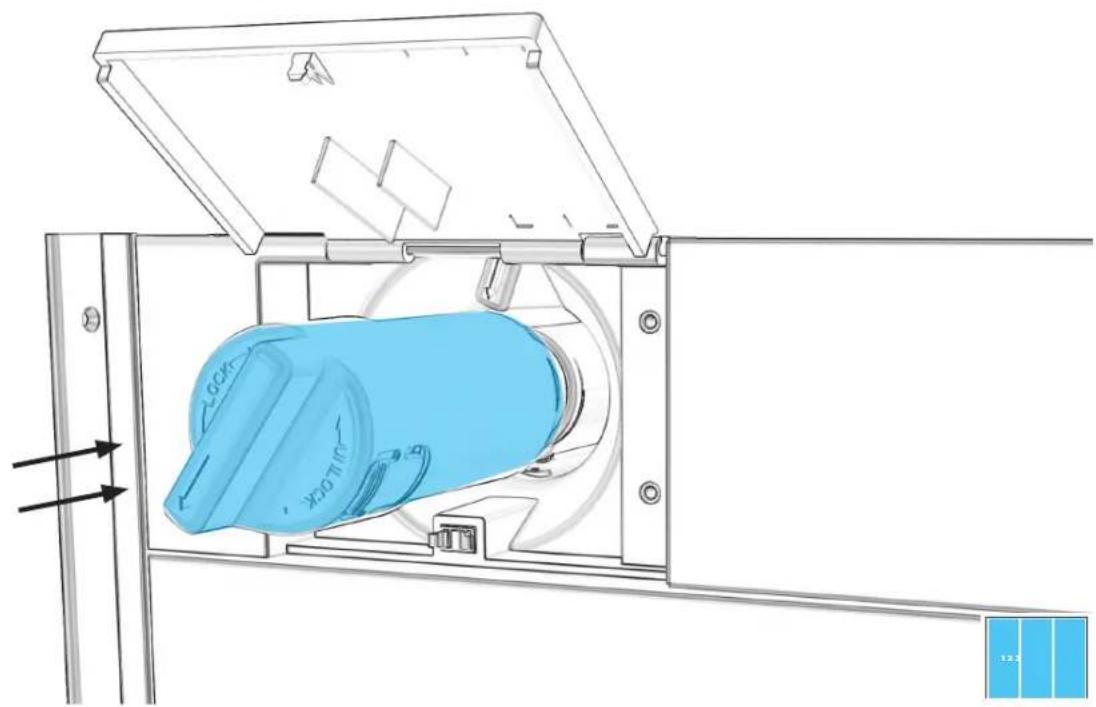

EACH COLUMN: INSERT WATER FILTER UNTIL SEATED.

Technical line drawing of a mechanical device with blue component and directional arrows indicating motion (no text or symbols)

9.4

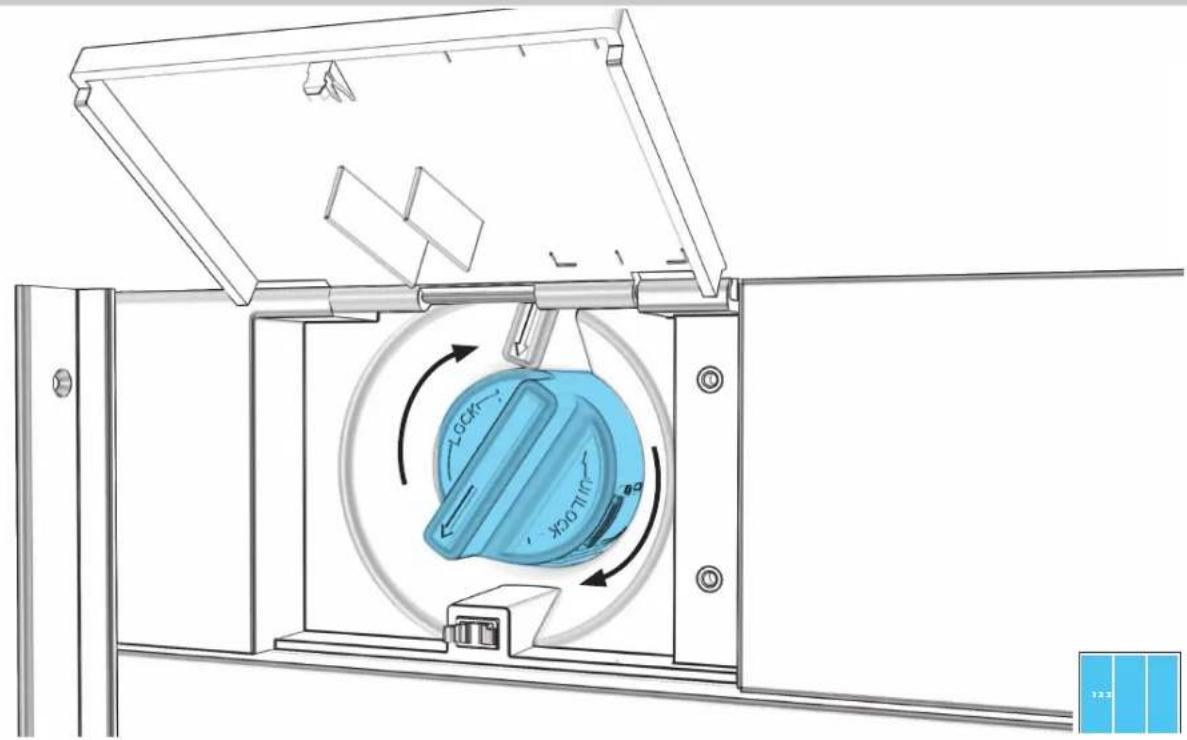

EACH COLUMN: ROTATE FILTER CLOCKWISE TO ALIGN ARROWS.

Technical line drawing of a mechanical device with a blue circular component and directional arrows indicating motion (no text or symbols)

9.5

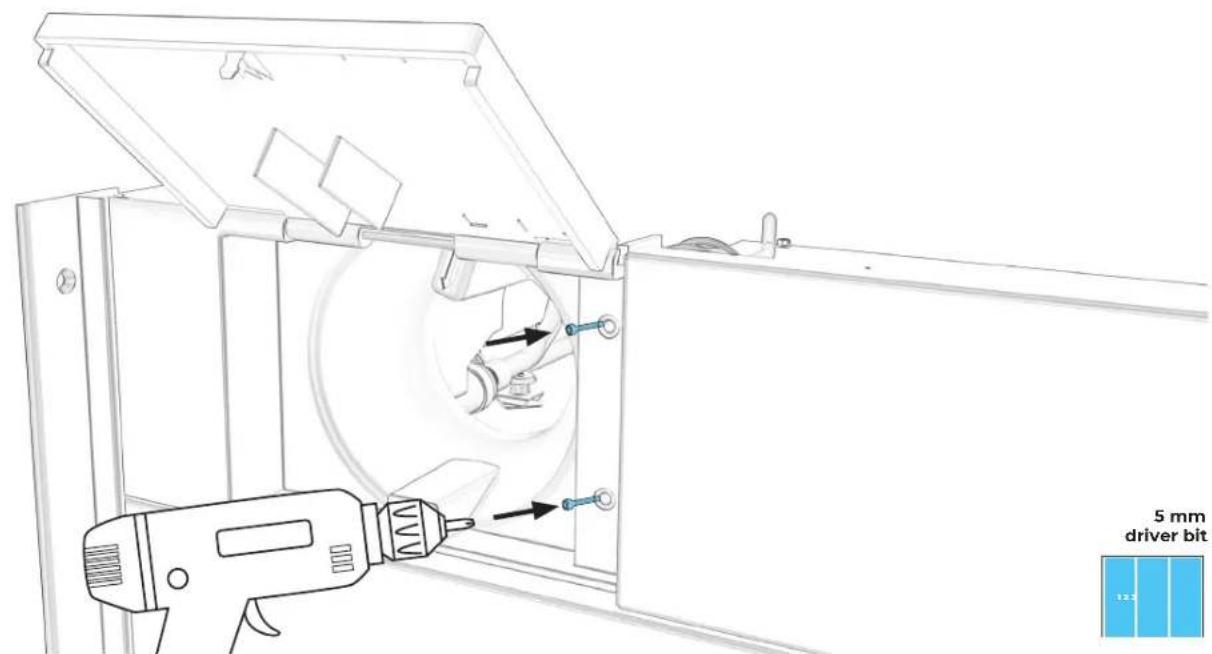

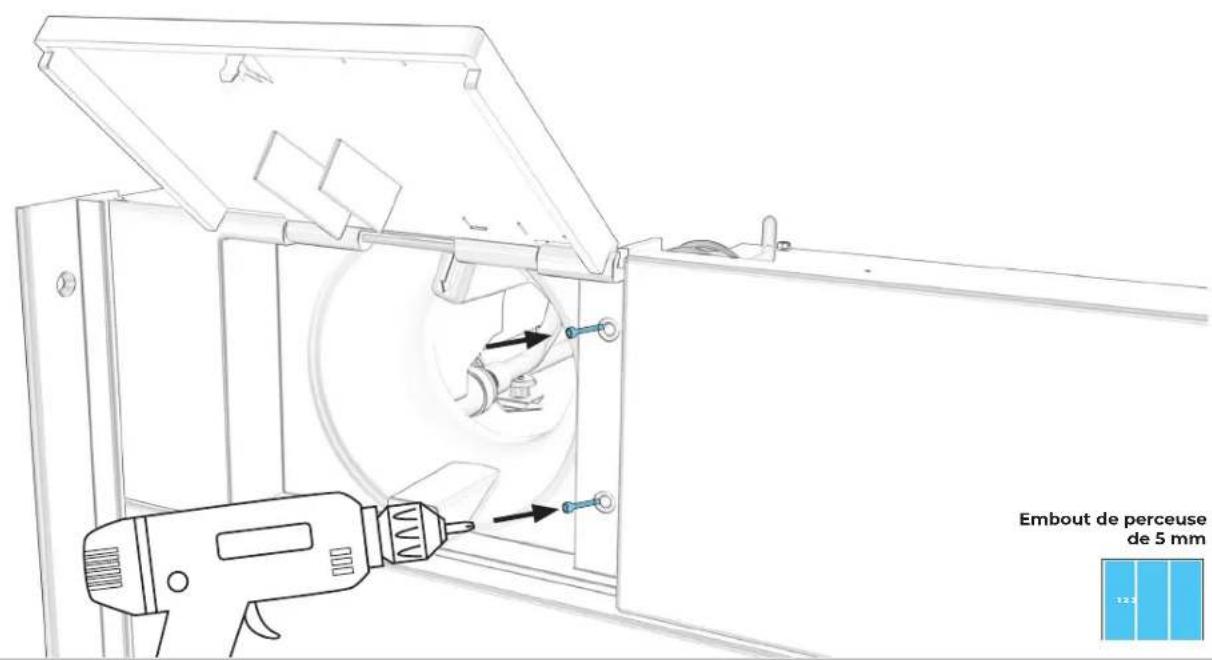

EACH COLUMN: SECURE WITH TWO SCREWS AND REPLACE TOP COVER.

5 mm driver bit

9.6

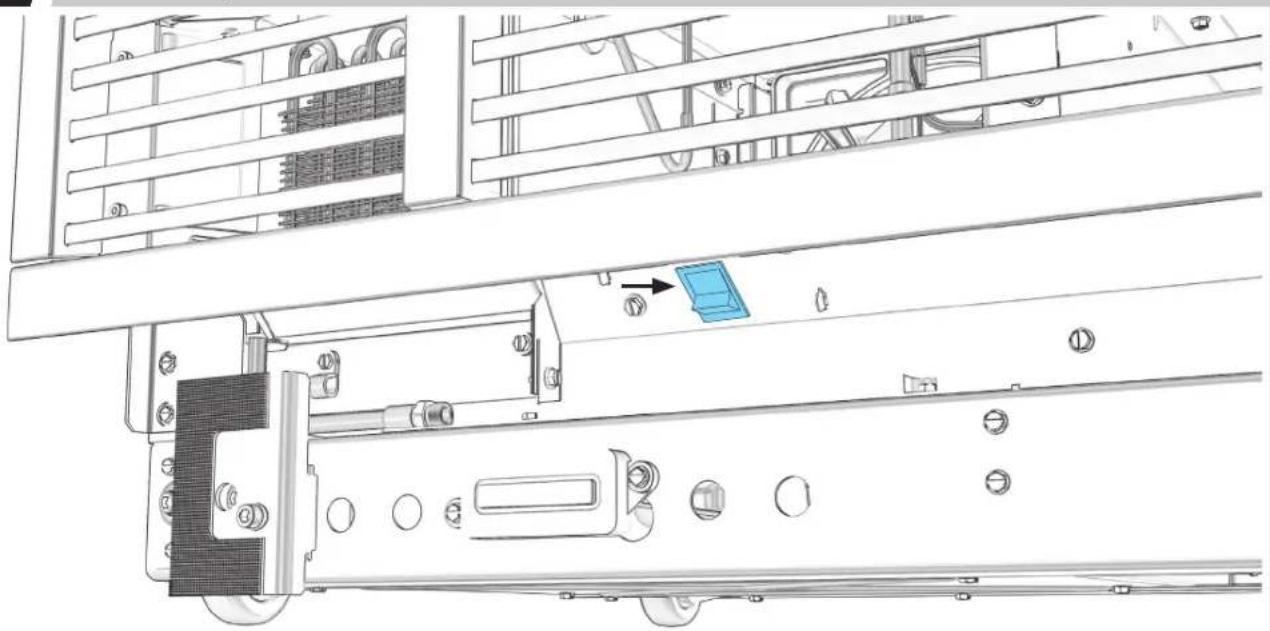

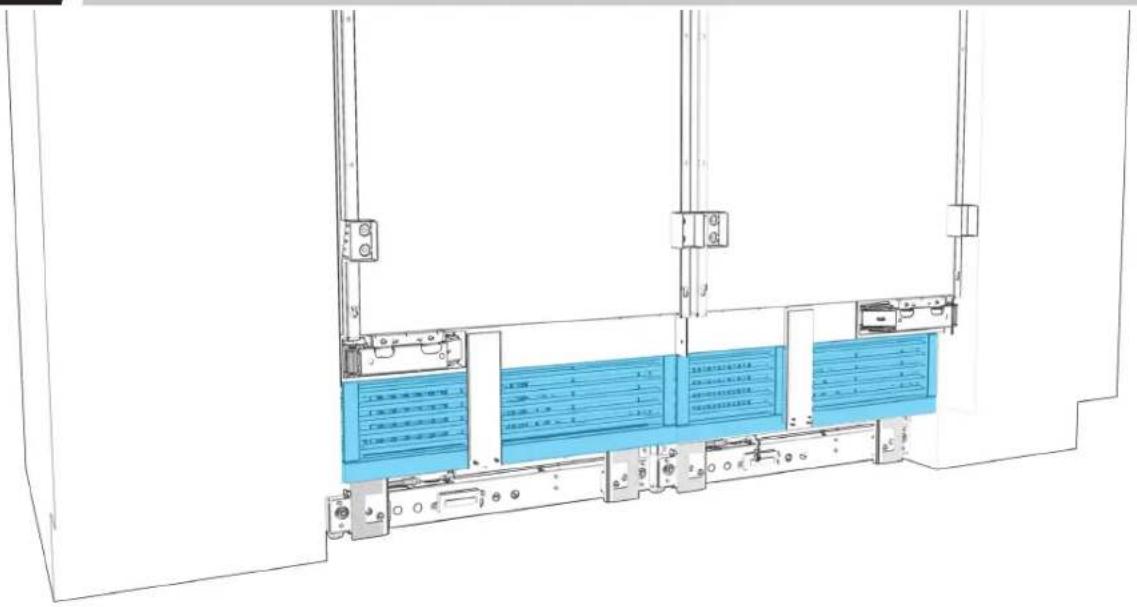

EACH COLUMN: REINSTALL AIR GRILLE.

Technical diagram of a server rack with blue internal compartments and labeled ports, showing status indicators and status codes.

9.7
EACH COLUMN: TURN POWER ON

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALLATION

CHECKPOINT

PG.86 CUSTOM WOOD

TOE-KICK PREPARATION

PG.89 STAINLESS STEEL

TOE-KICK PREPARATION

PG.92 ALIGN AND INSTALL ALL TOE-KICKS

TOE-KICK

CUSTOM WOOD PREPARATION

10.1

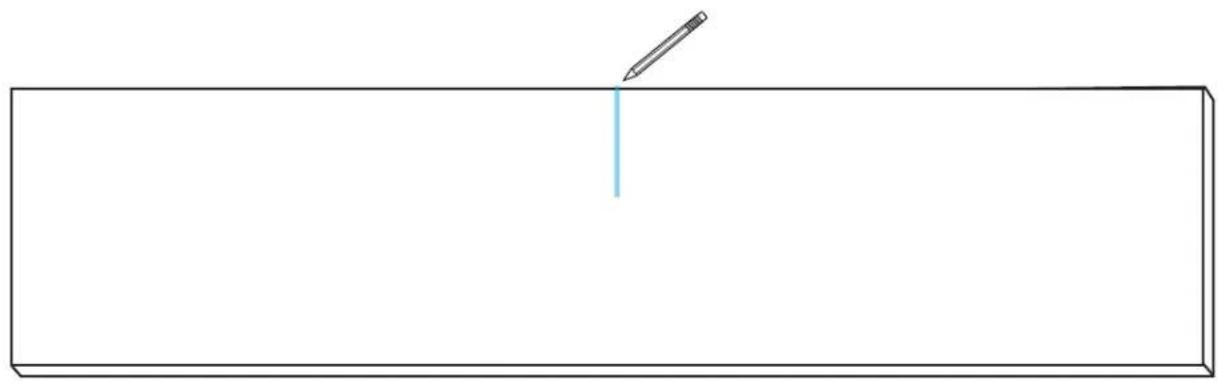

MEASURE AND MARK CENTERLINE OF TOE-KICK.

Simple line drawing of a pencil striking a vertical line on a rectangular base (no text or symbols)

COMPLETE ALL STEPS FOR EACH UNIT.

10.2

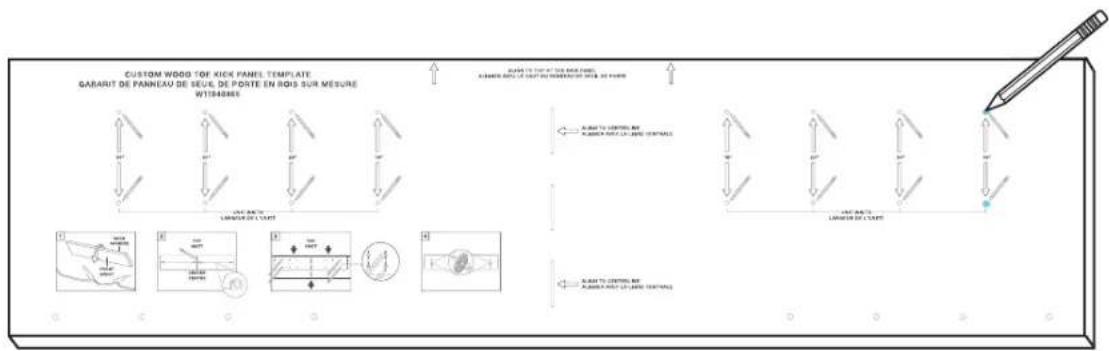

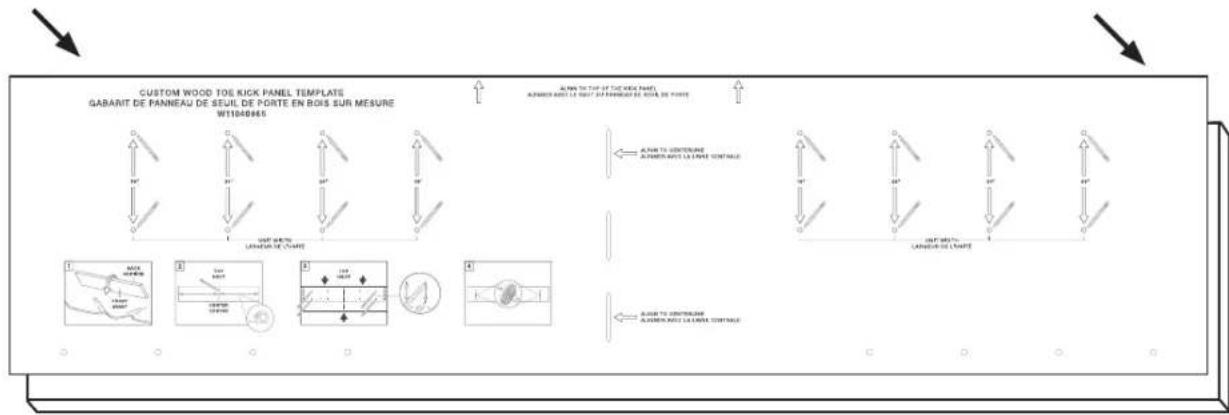

ALIGN TEMPLATE

CUSTOM WOOD TOE KICK PANEL TEMPLATE GABARIT DE PANNEAU DE SEUIL DE PORTE EN ROIS SUR MESURE W11040465 AUXIN TO TUI OF TUI WIRE PAINT AUXININ AUXIN LE ROUTE DE PARAGUE DE ROTA DE PRAUTE AUXIN TO CENTRUME AUXININ AUXIN LE ROUTE CENTRALE AUXIN TO CENTRUME AUXININ AUXIN LE ROUTE CENTRALE

10.3

MARK GRIPPING PAD LOCATIONS.

CUSTOM WOOD TOF KIDE PANEL TEMPLATE GARARIT DE PANNEAU DE SEUE DE PORTE EN RIOIS SUR MESURE W184085 LEVE WITH Länger de 2 LIME LEVE WITH Länger de 2 LIME LEVE WITH Länger de 2 LIME LEVE WITH Länger de 2 LIME LEVE WITH Länger de 2 LIME

10.5

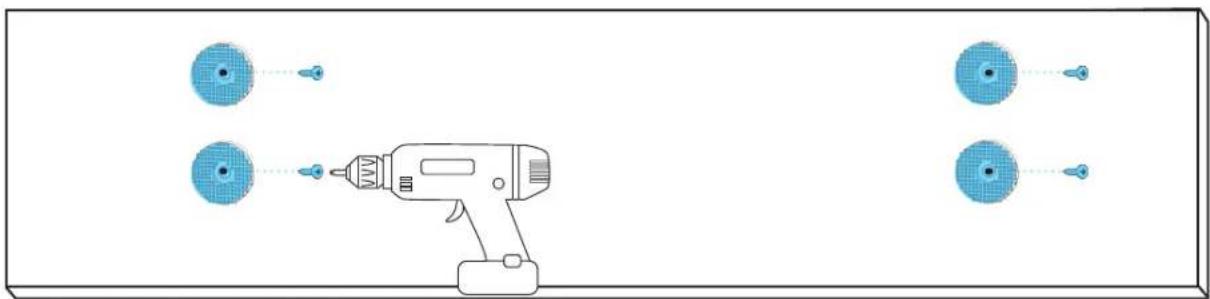

ADHERE GRIPPING PADS TO POINTS.

Diagram of a handheld electric drill with four circular components and two dashed lines indicating positions (no text or symbols)

TOE-KICK

STAINLESS STEEL PREPARATION

11.1

EACH COLUMN: UNSCREW AND DISCARD WIFI HARNESS.

Technical diagram of a mechanical assembly with blue plastic component and directional arrows indicating movement (no text or symbols)

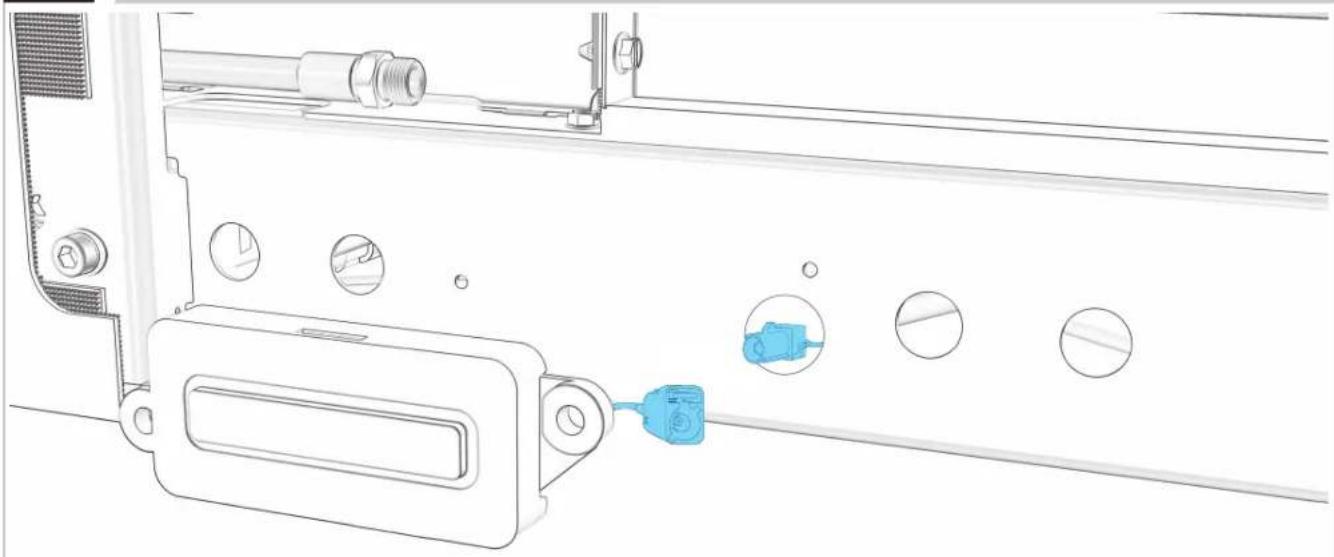

11.2

DISCONNECT BLUE WIFI WIRE FROM HARNESS.

Technical line drawing of a mechanical assembly with circular components and a blue connector (no text or symbols)

11.3

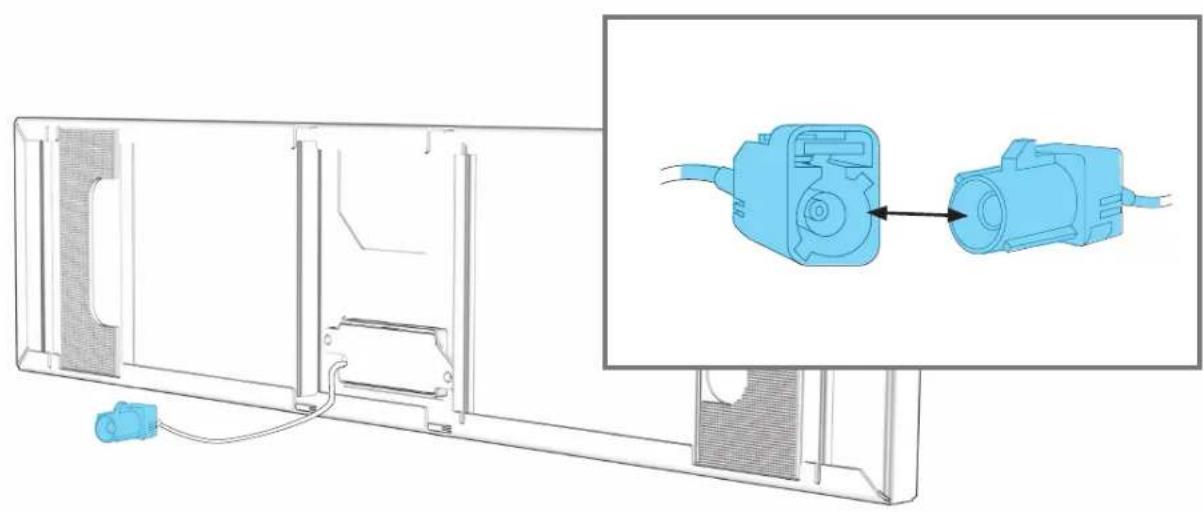

ATTACH BLUE TOE-KICK AND COLUMN WIRES.

Technical line drawing of a device panel with an inset showing two connected components (no text or symbols)

TOE-KICK

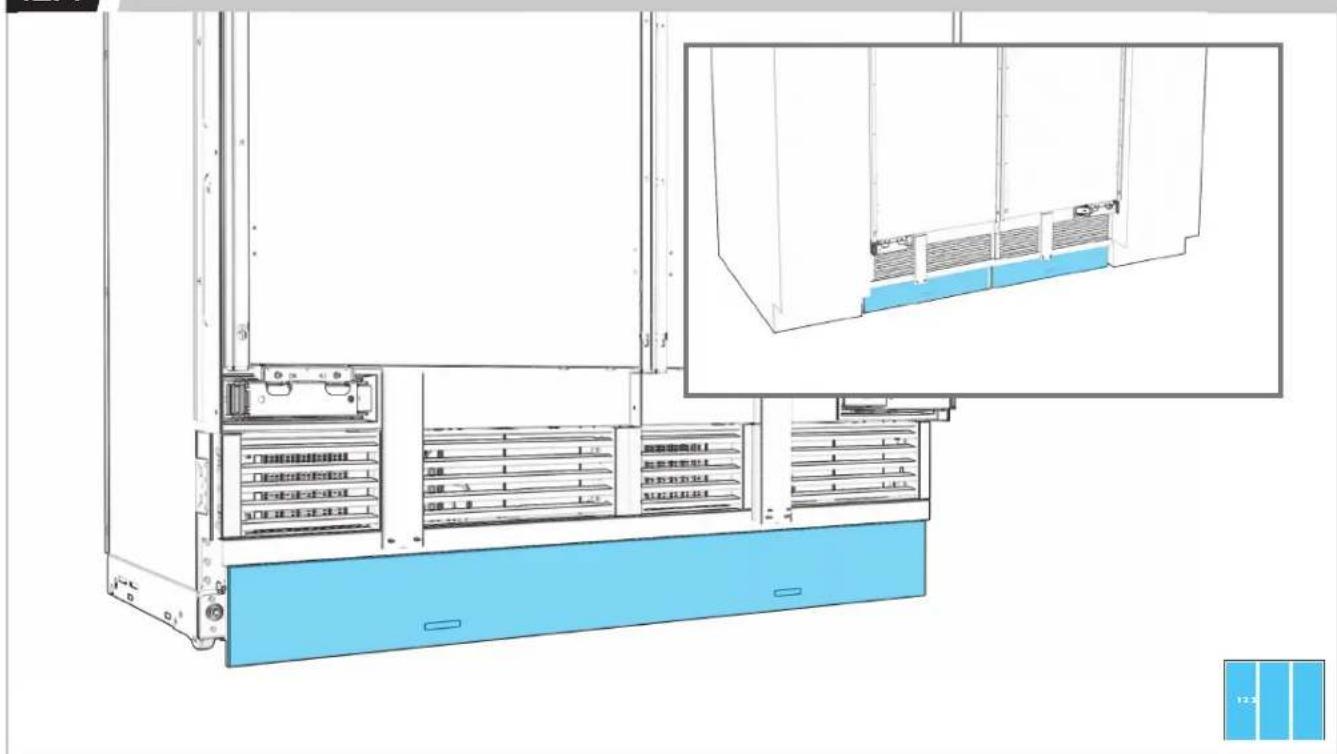

ALIGN AND INSTALL

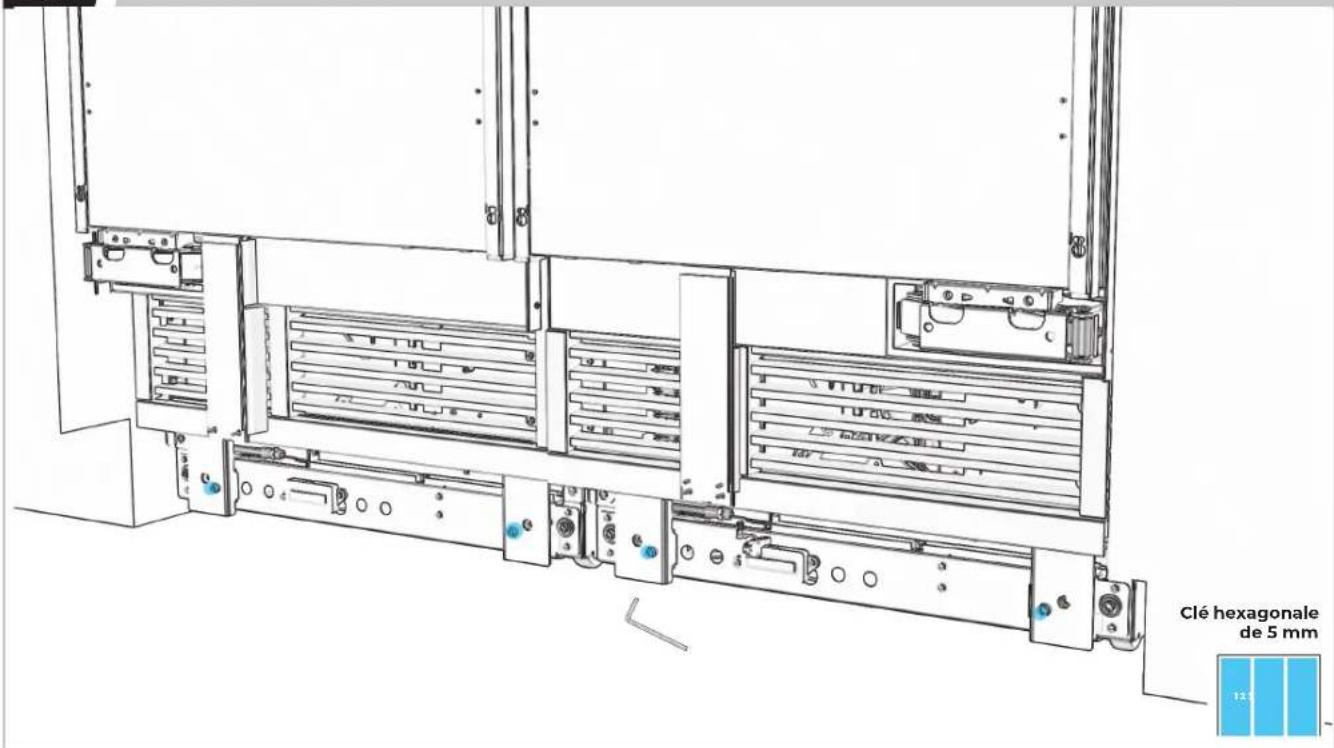

12.1

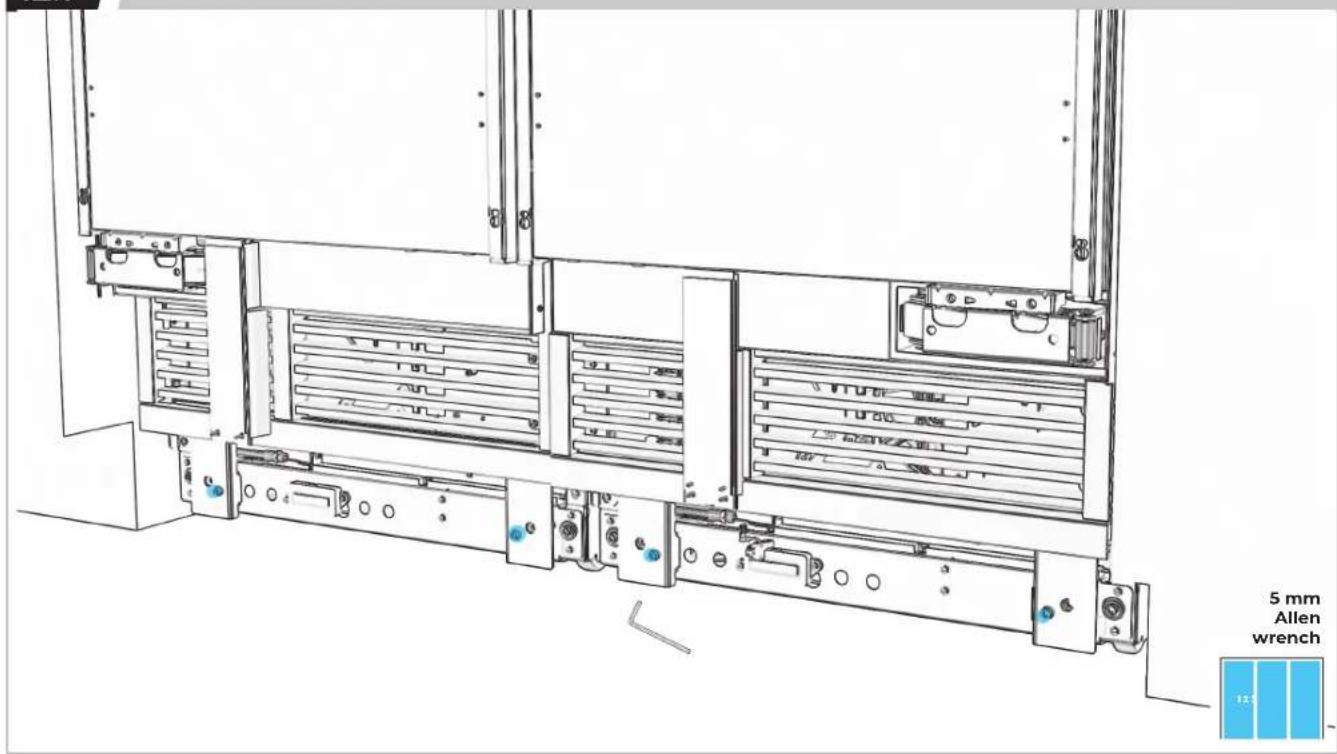

ALIGN TOE-KICK BRACKETS WITH FURNITURE TOE-KICK.

5 mm Allen wrench

12.2
CHECK THAT BRACKETS ARE IN PLANE.

Technical line drawing of a server rack with multiple drive bays and indicator lights (no text or symbols)

12.3

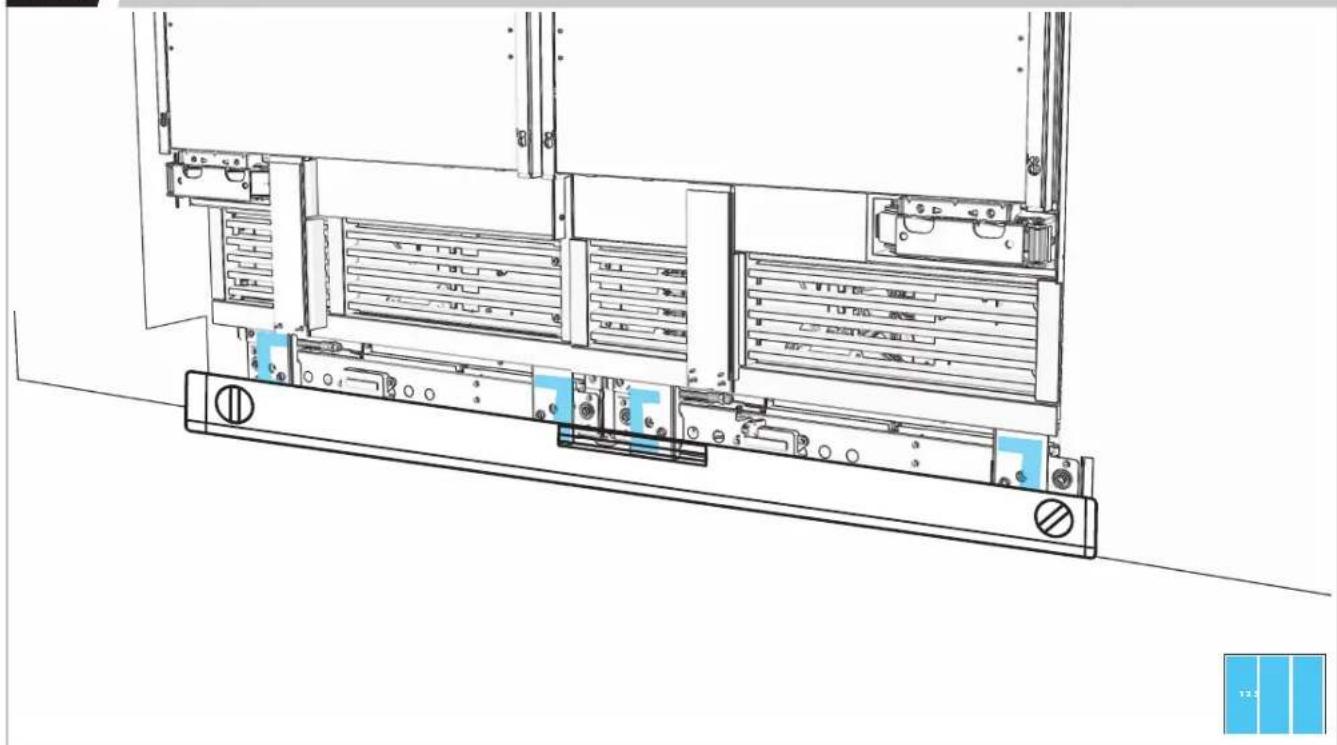

ALIGN TOE-KICK GRIPPING PADS WITH BRACKETS.

Technical diagram of a server rack system with blue panel and inset view showing internal components (no text or symbols)

12.4
PRESS FIRMLY TO ATTACH.

Technical line drawing of a server rack unit with blue insulation panel and inset view (no text or symbols)

12.5

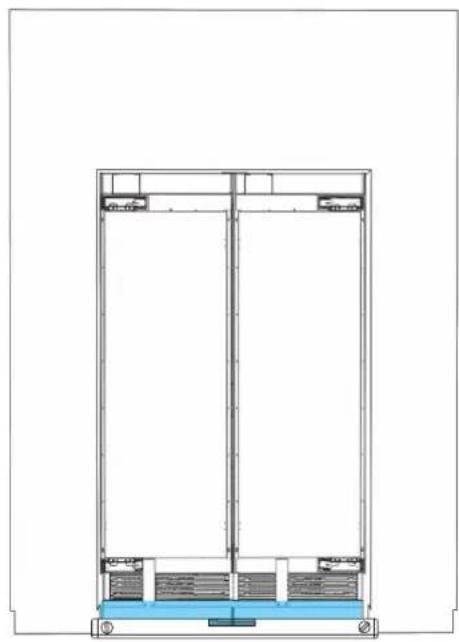

MEASURE OFFSET. IF UNEVEN, REMOVE TOE-KICK.

Architectural cross-section diagram of a two-story building facade with structural elements (no text or labels)

FURNITURE COLUMN 1 COLUMN 2 DEPTH GAUGE

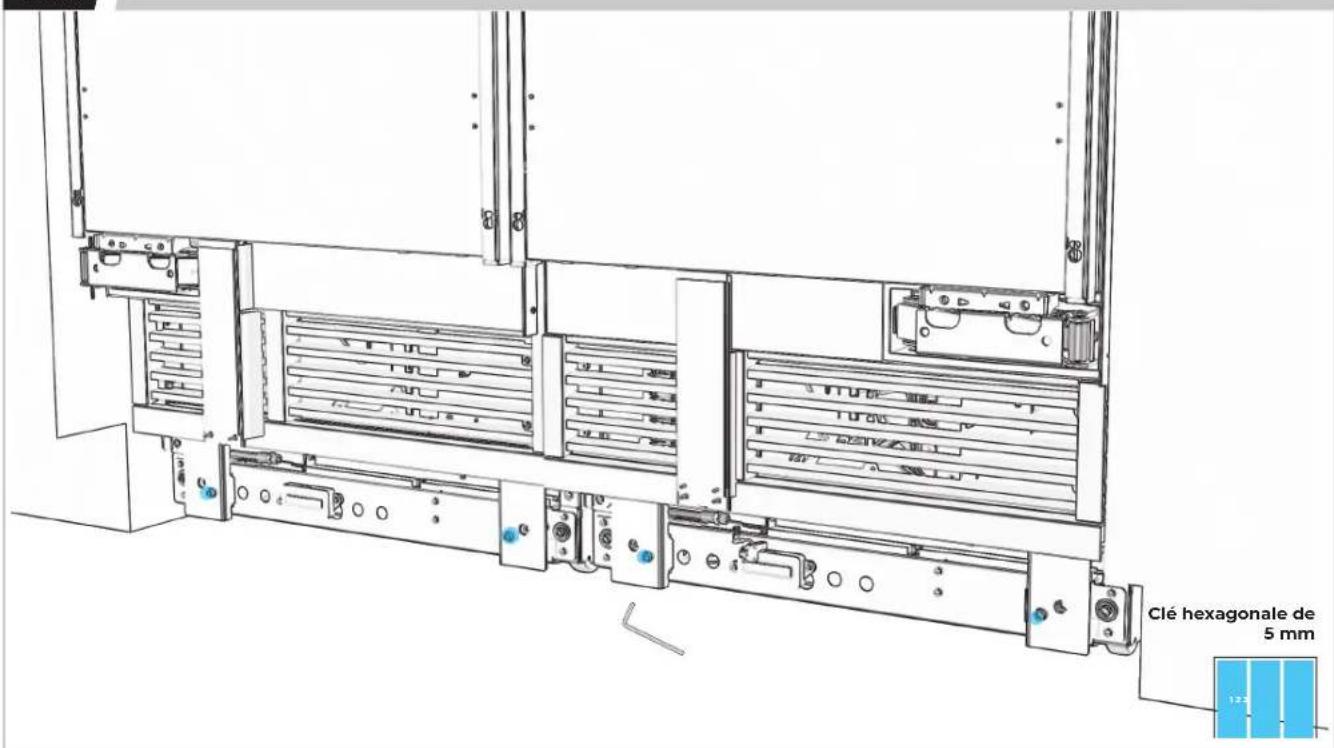

12.6

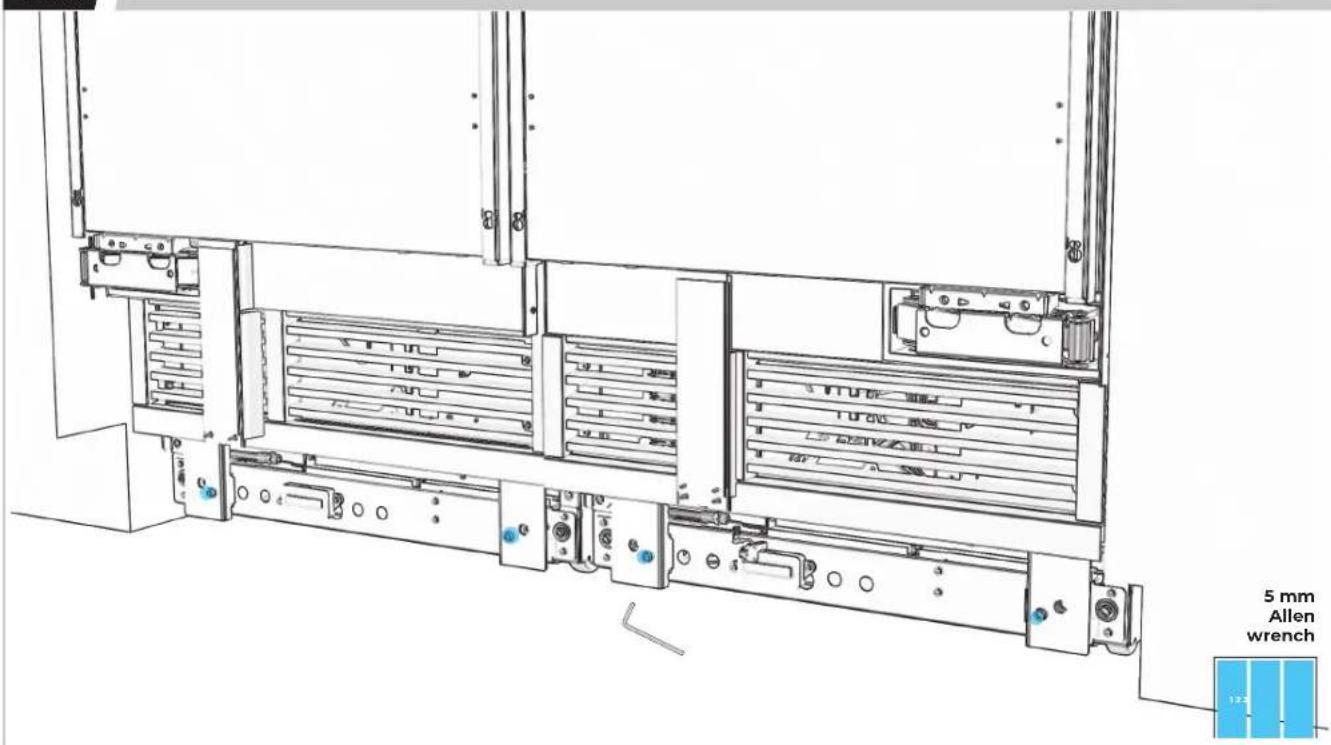

ADJUST BRACKETS TO ALIGN TOE-KICK.

5 mm Allen wrench

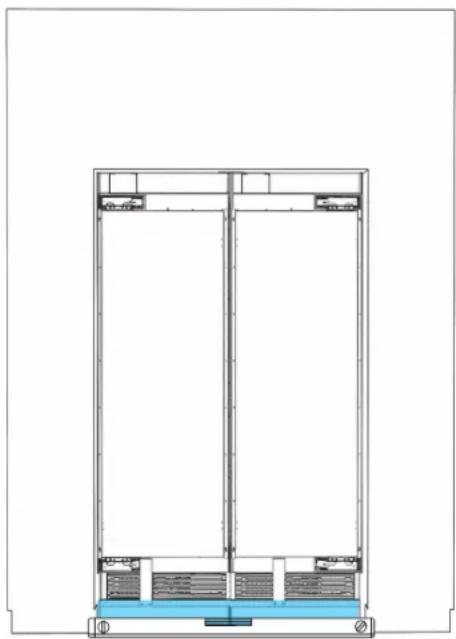

12.7

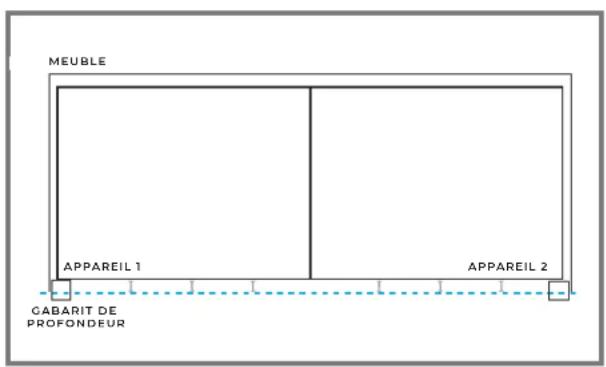

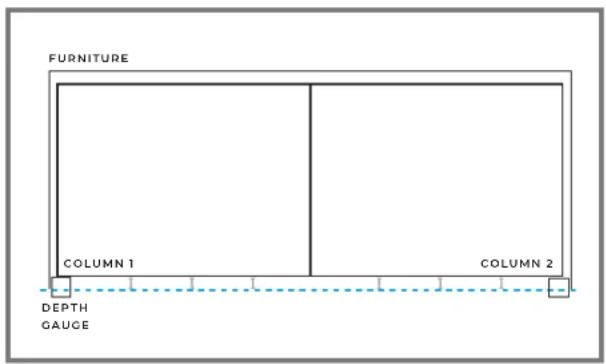

CONFIRM ALIGNMENT, READJUSTING IF NECESSARY.

Architectural cross-section diagram of a two-story building facade with structural elements and floor levels (no text or labels)

FURNITURE COLUMN 1 COLUMN 2 DEPTH GAUGE

P ∧ N E I.

CUSTOM WOOD PREPARATION

13.1

Line drawing of a refrigerator interior showing front and rear shelves with door contacts (no text or symbols)

COMPLETE ALL STEPS FOR EACH UNIT.

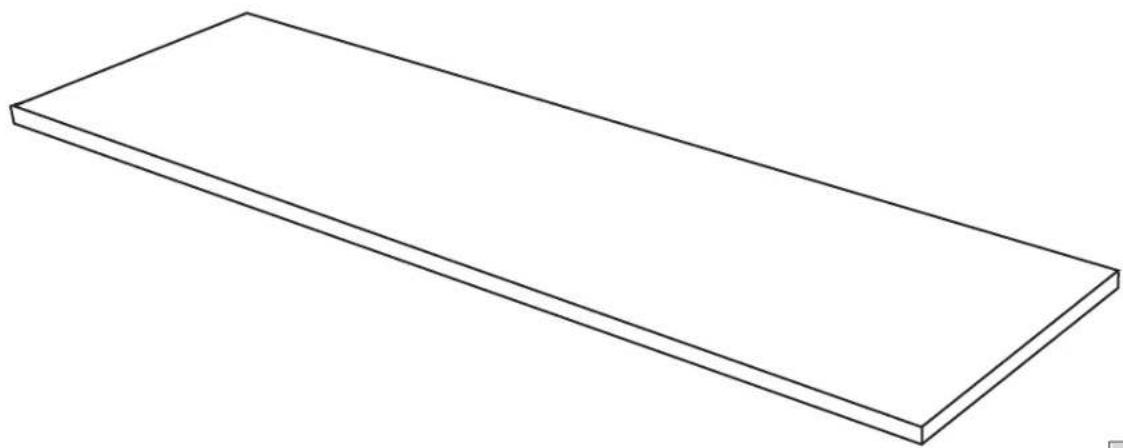

13.2

PLACE PANEL FACE-DOWN.

Simple line drawing of a rectangular plate or shelf (no text or symbols)

PLACE ON A FLAT, COVERED SURFACE.

13.3

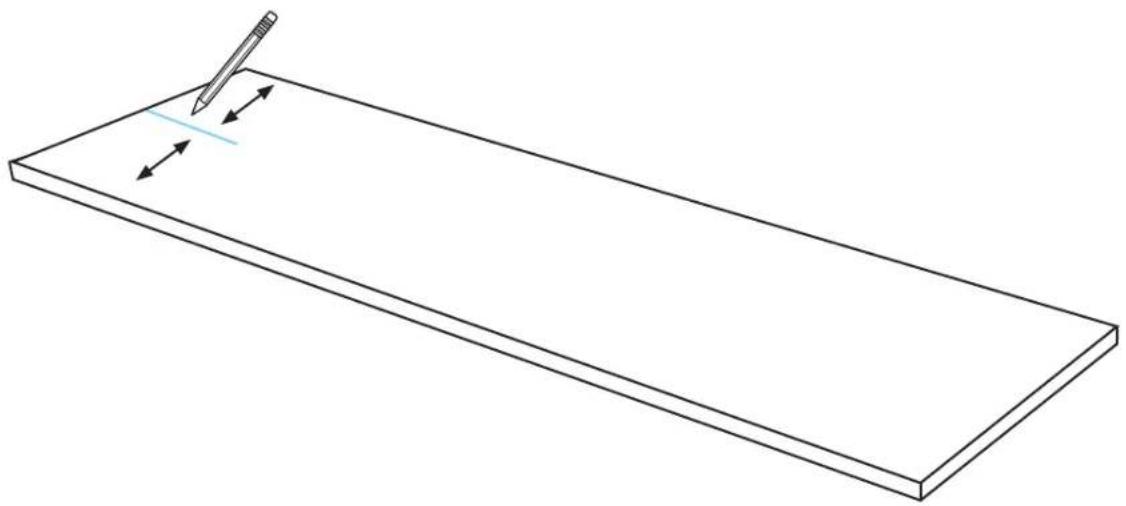

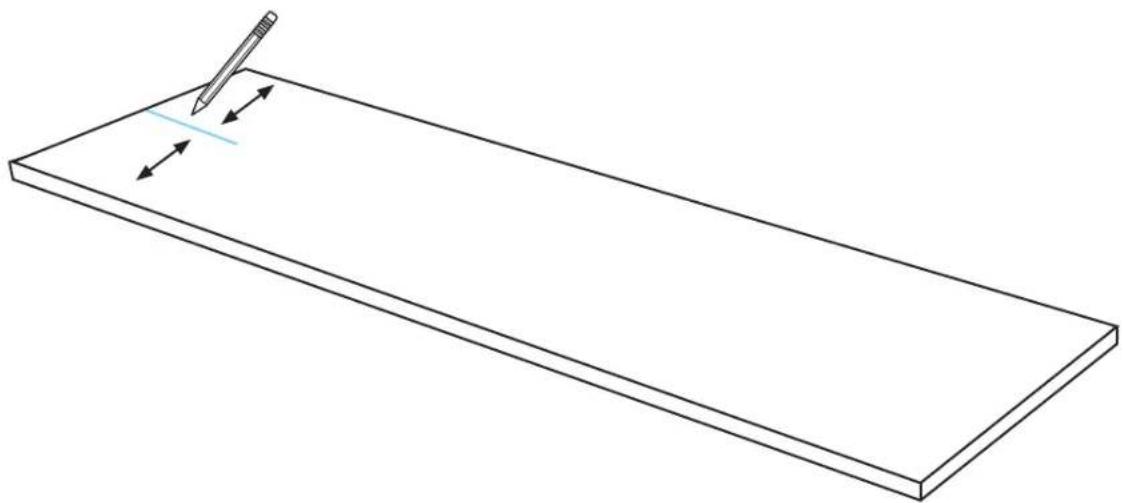

MEASURE AND MARK CENTER OF PANEL.

Line drawing of a rectangular plate with a pencil and directional arrows indicating writing or editing (no text or symbols)

13.4

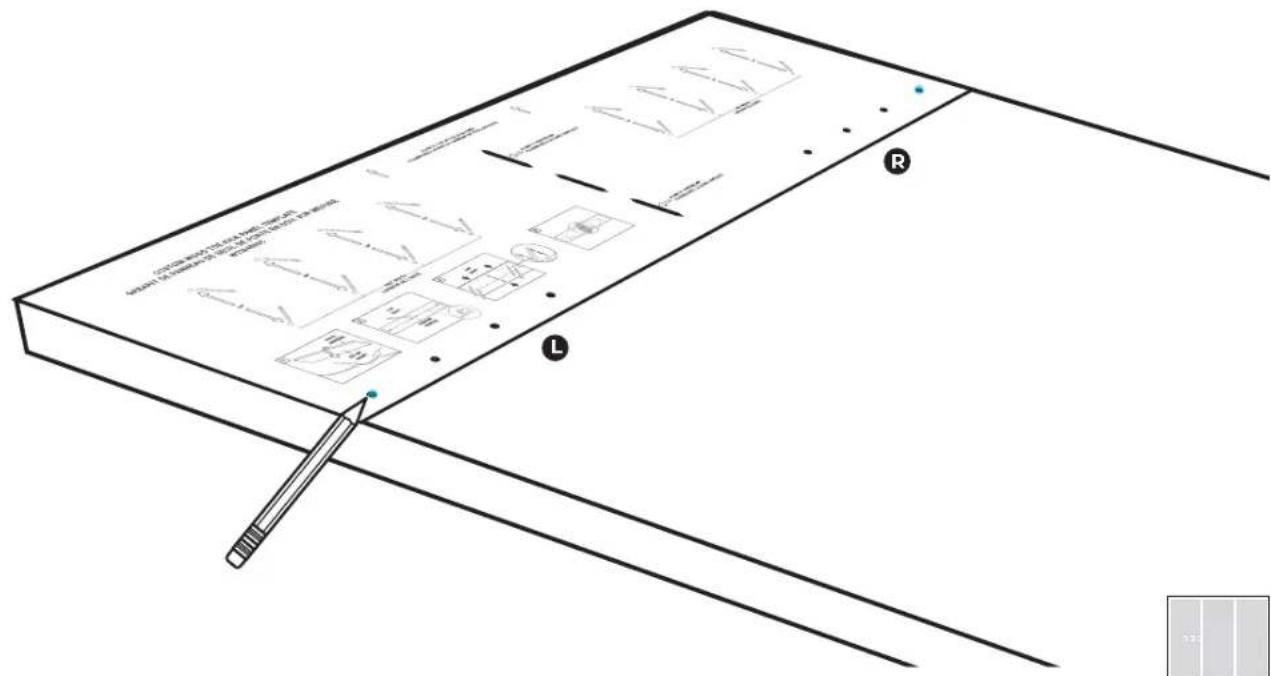

MARK LEFT AND RIGHT HOLES.

Technical diagram of a mechanical assembly with labeled components and tool, including parts L, R, and a pencil.

13.5

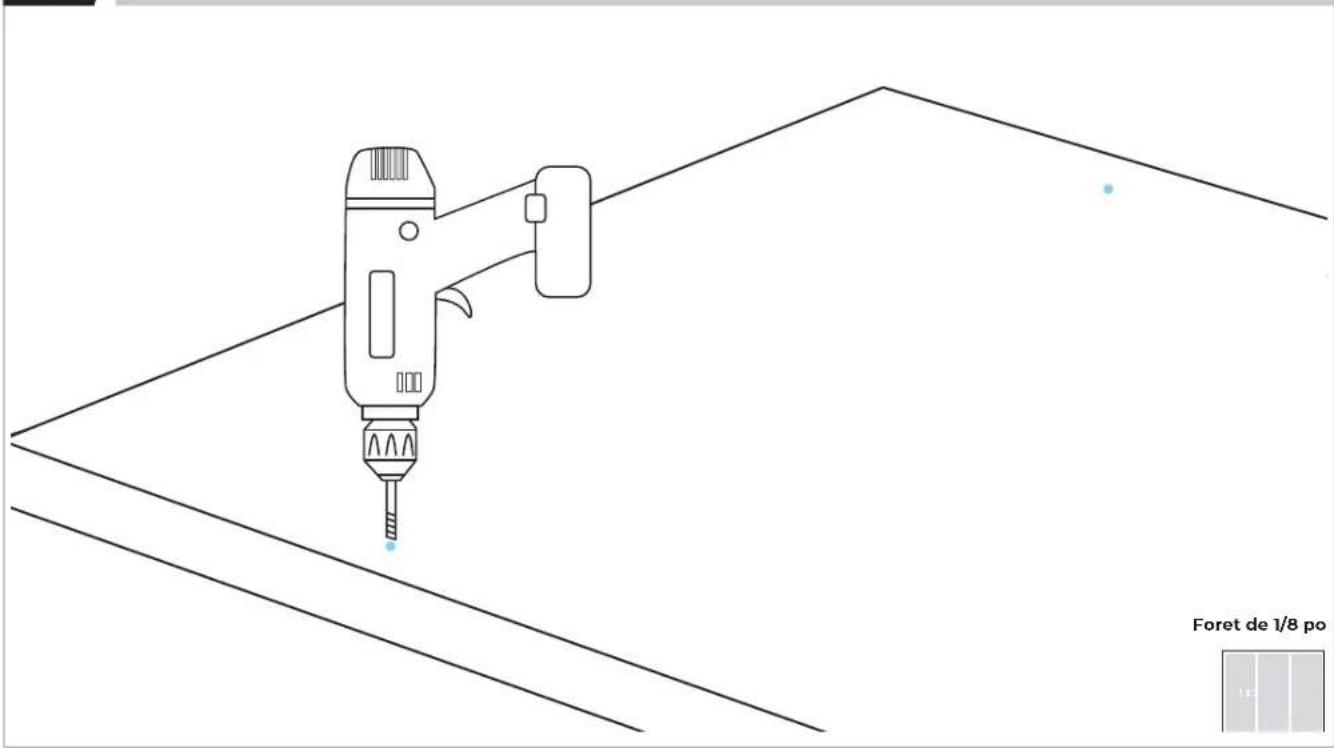

DRILL HOLES.

1/8" drill bit

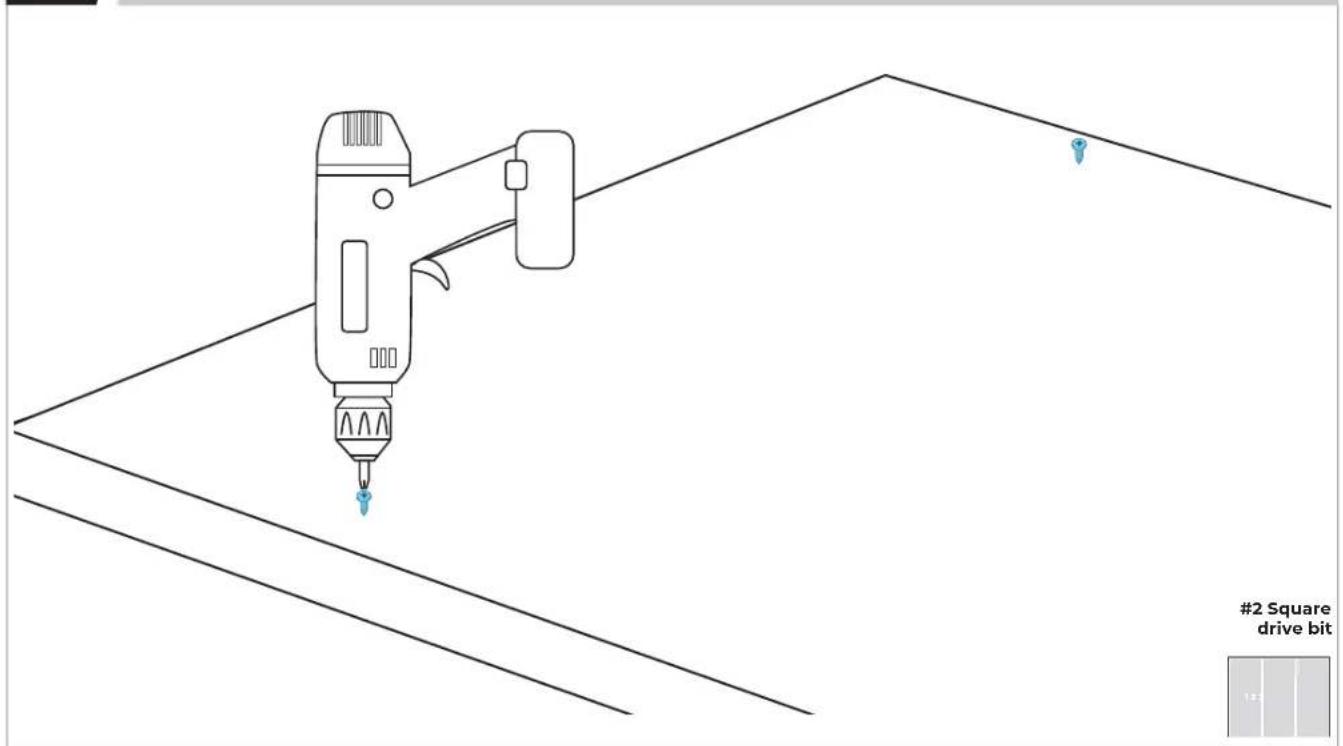

13.6

DRIVE FASTENERS INTO PRE-DRILLED LOCATIONS.

#2 Square drive bit

13.7

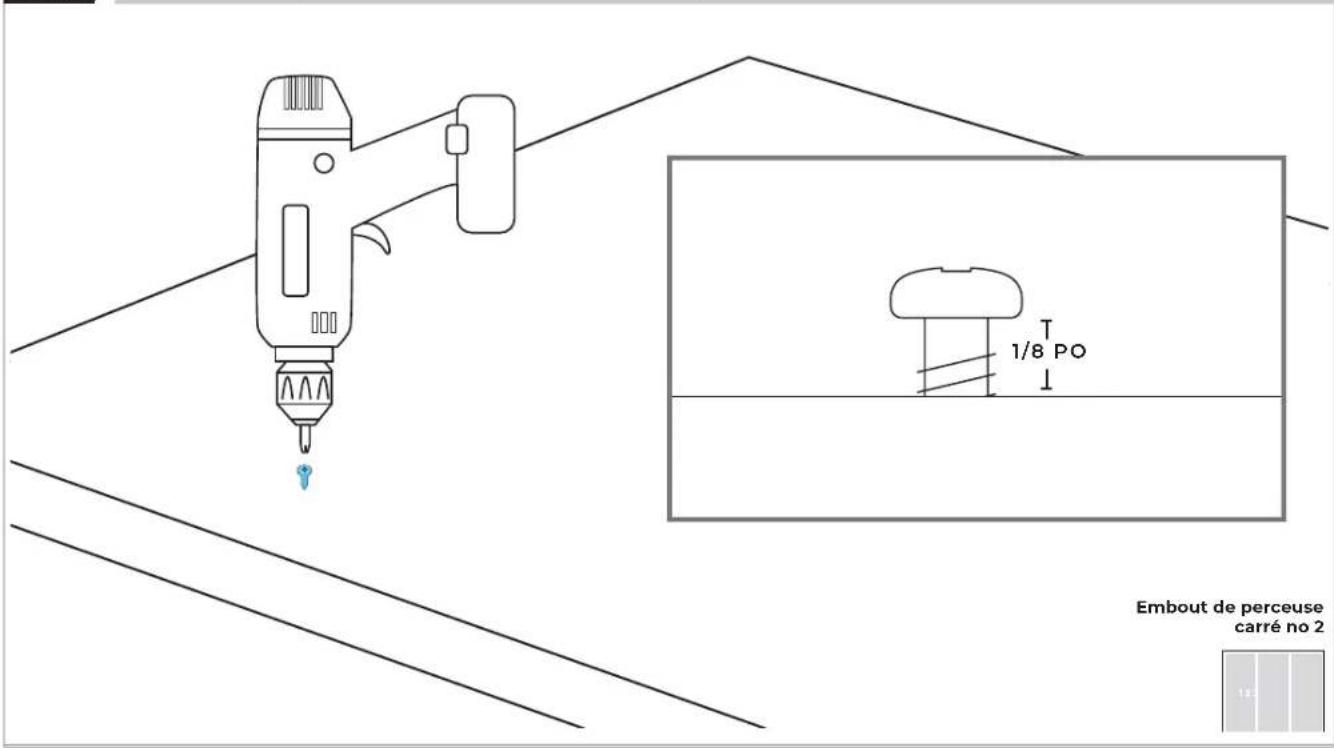

ENSURE SPACE OF 1/8" (3.2 MM).

1/8" #2 Square drive bit

P ∧ N E I.

STAINLESS STEEL PREPARATION

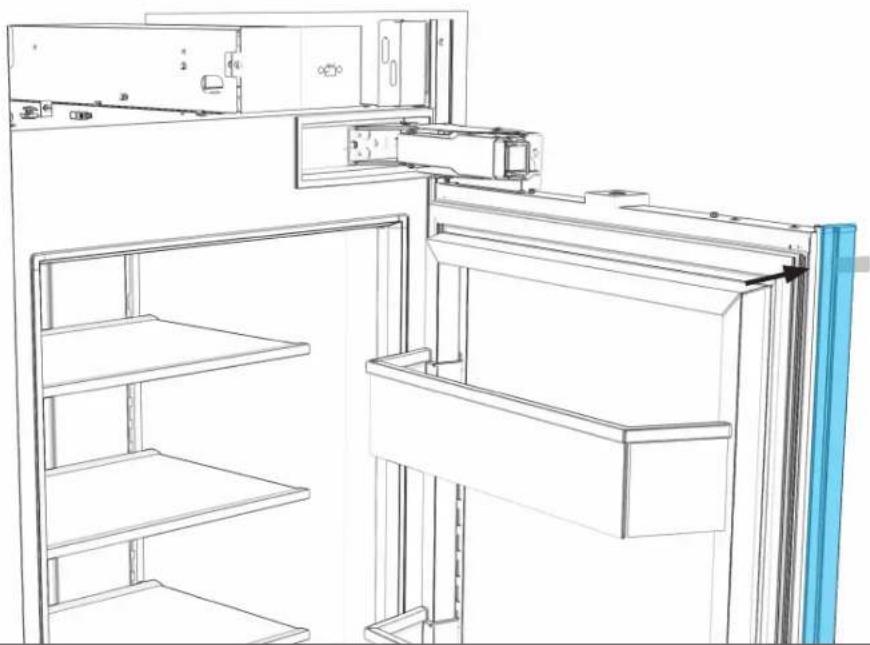

14.1

Line drawing of a refrigerator interior showing front, side, and front views with shelves and doors (no text or symbols)

COMPLETE ALL STEPS FOR EACH UNIT.

14.2

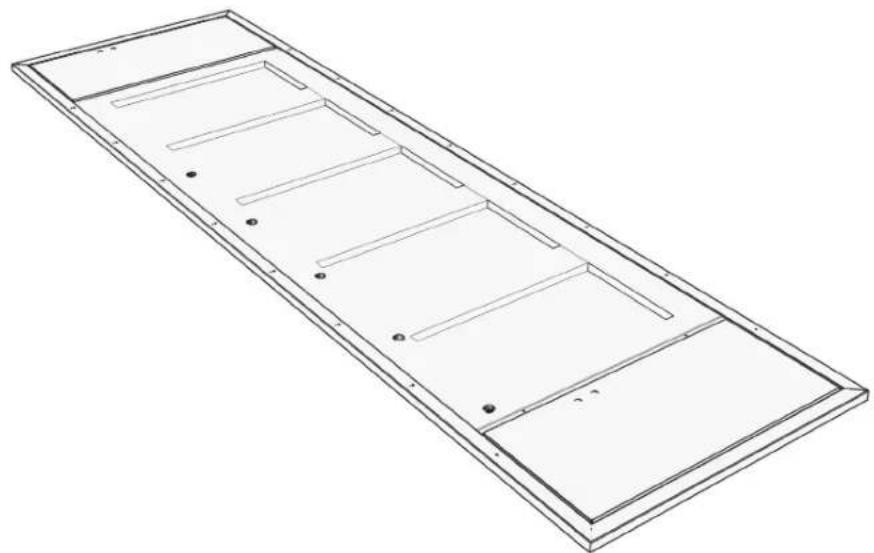

PLACE PANEL FACE-DOWN.

Technical line drawing of a rectangular metal frame with internal compartments and mounting holes (no text or symbols)

PLACE ON A FLAT, COVERED SURFACE

14.3

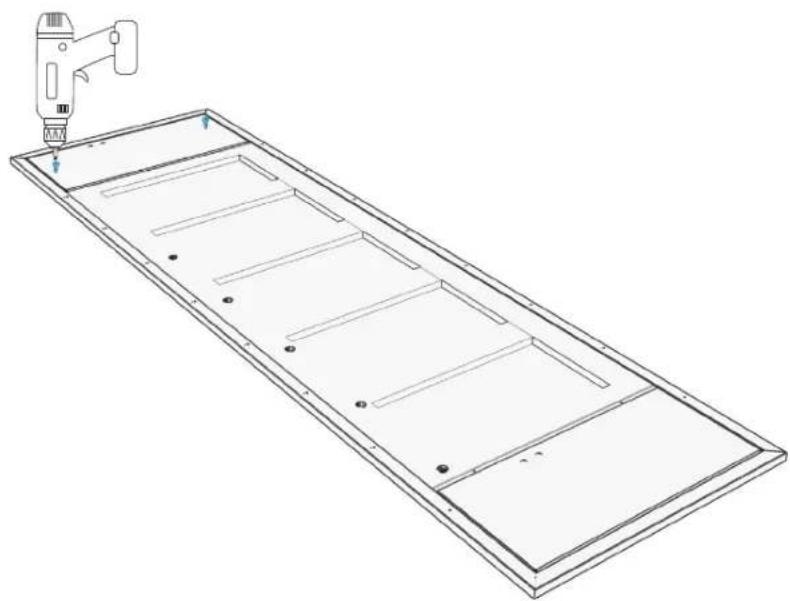

DRIVE FASTENERS INTO PRE-DRILLED LOCATIONS.

Technical line drawing of a rectangular panel with internal compartments and a tool in the top-right corner (no text or symbols)

2 Square drive bit

14.4

ENSURE SPACE OF 1/8" (3.2 MM).

#2 Square drive b

2 Square drive bit

P ∧ N E I.

HANG AND ALIGN

15.1

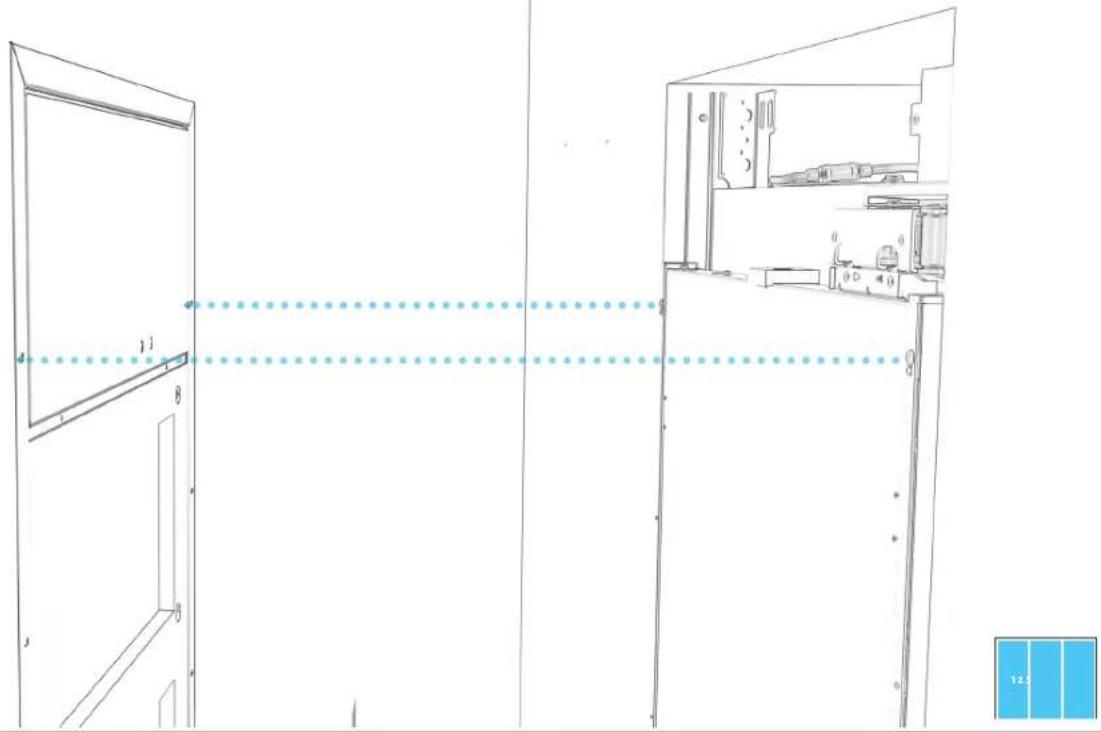

EACH COLUMN: INSERT FASTENERS INTO TOP SLOTS OF DOOR ADJUSTMENT TRIMS.

Technical diagram showing front and side views of a refrigerator with labeled components and measurement lines

15.2

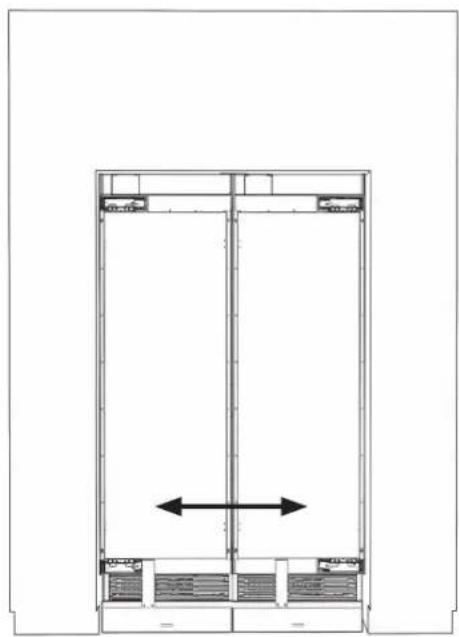

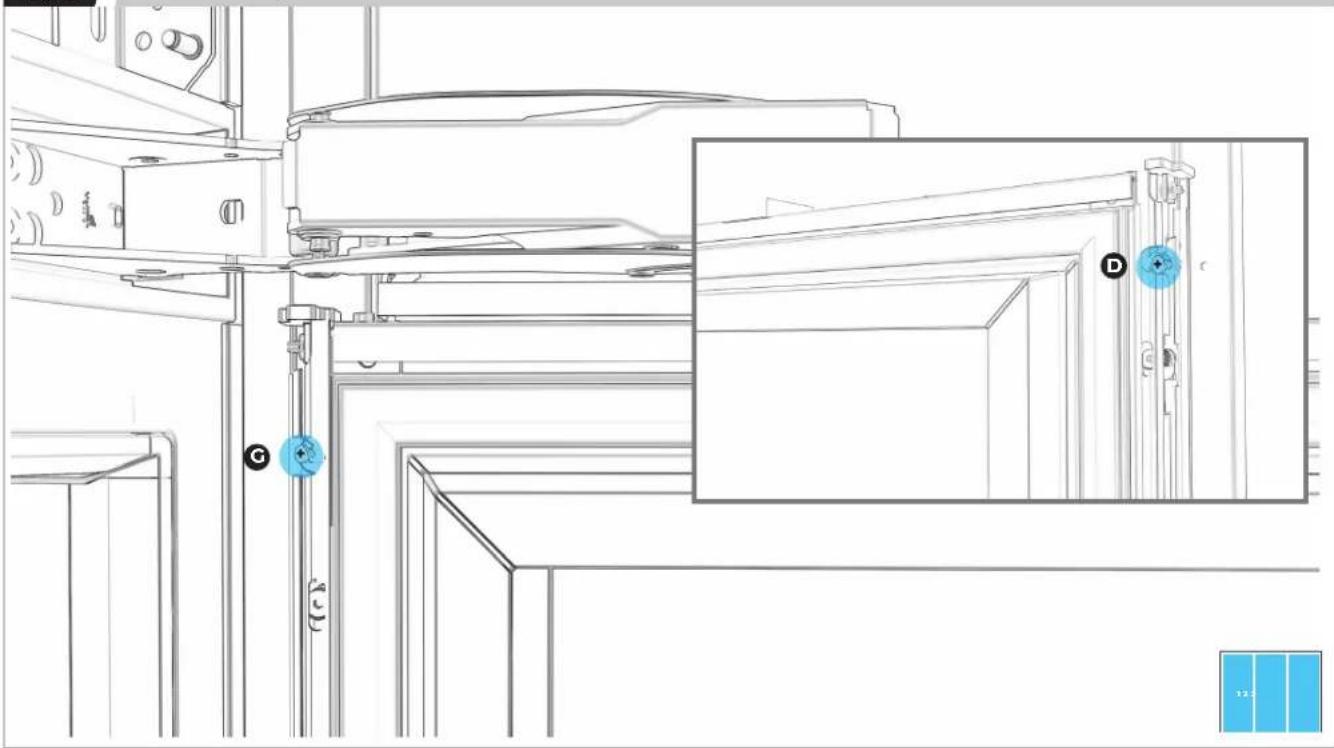

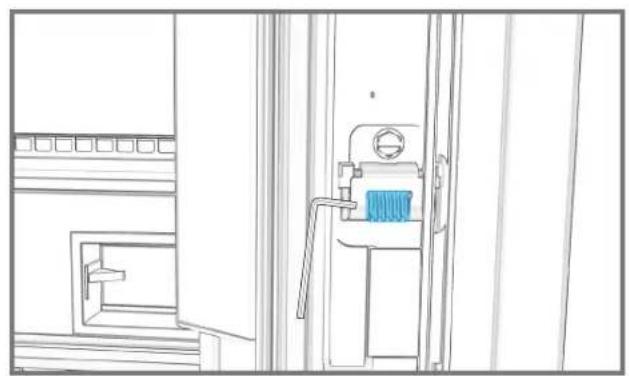

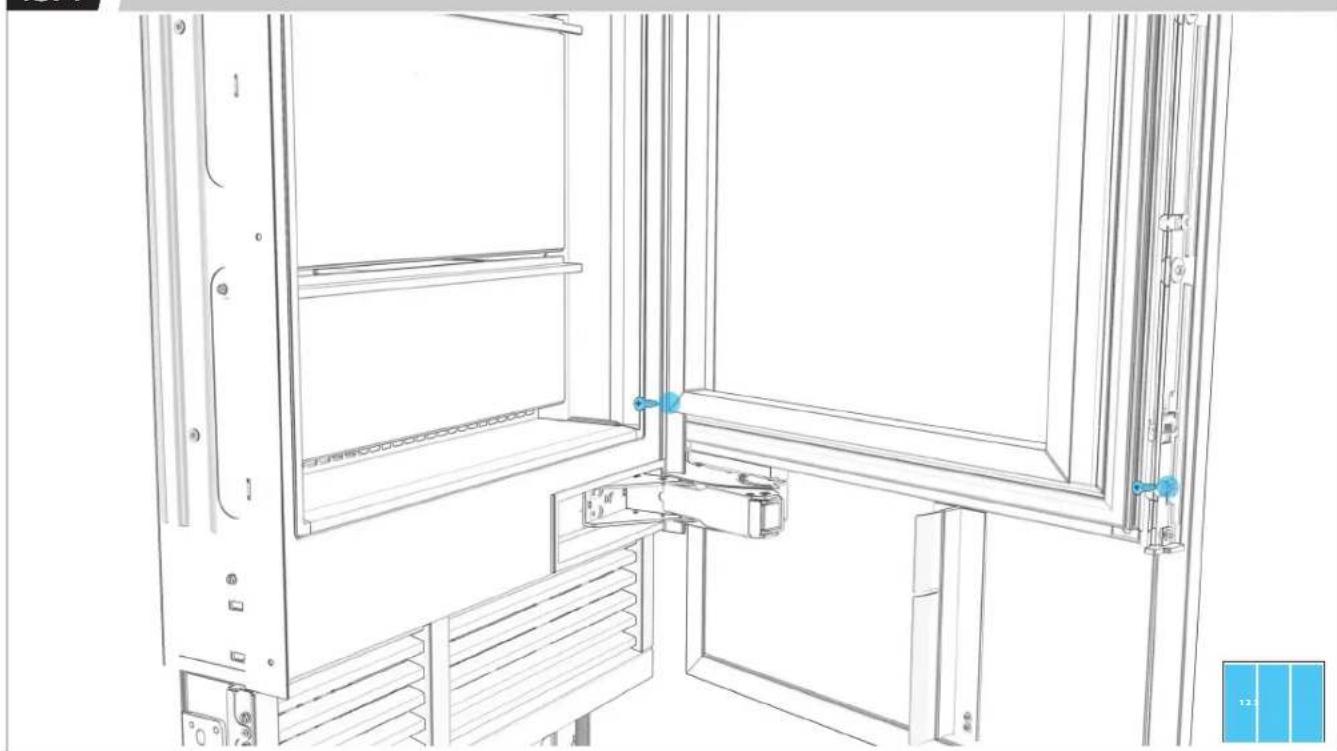

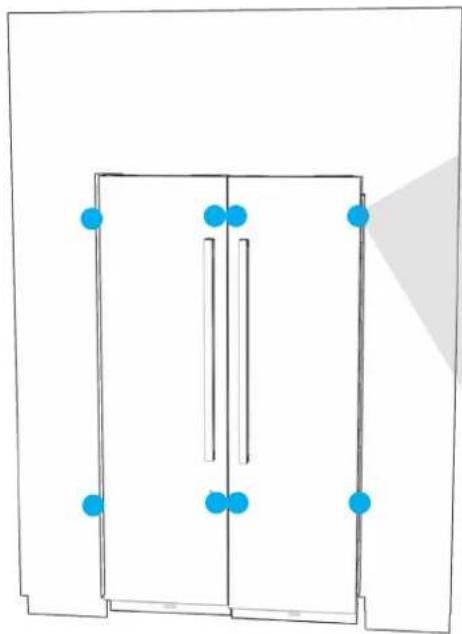

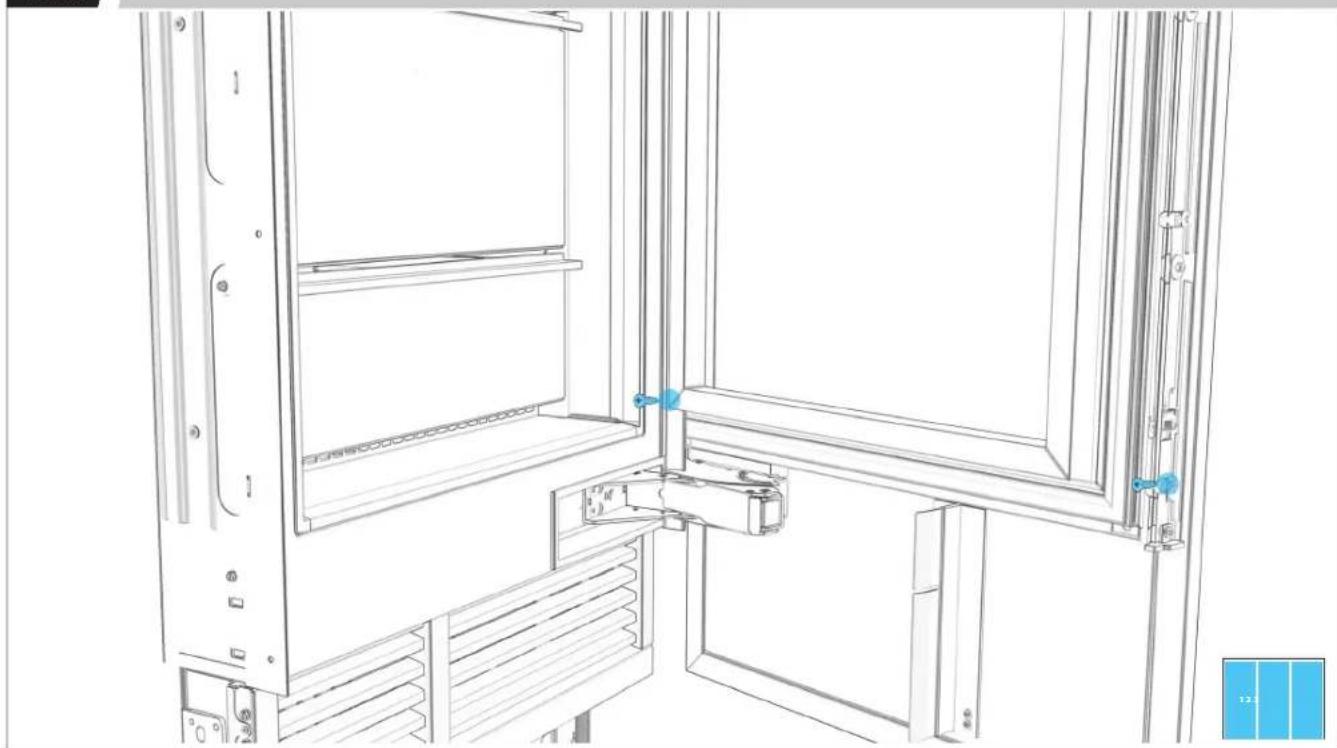

EACH COLUMN: MANUALLY ADJUST POSITION OF DOOR PANEL.

Architectural floor plan showing vertical and horizontal layout with a double-headed arrow indicating width (no text or labels)

Line drawing of a mechanical device with a blue component, no text or symbols present

15.3
EACH COLUMN: TIGHTEN TOP TWO FASTENERS.

Technical line drawing of a mechanical assembly with labeled components (L, R) and no readable text or symbols

15.4
EACH COLUMN: LOOSELY DRIVE IN TWO BOTTOM FASTENERS.

Technical line drawing of a cabinet or enclosure with door, windows, and side rails (no text or symbols)

15.5

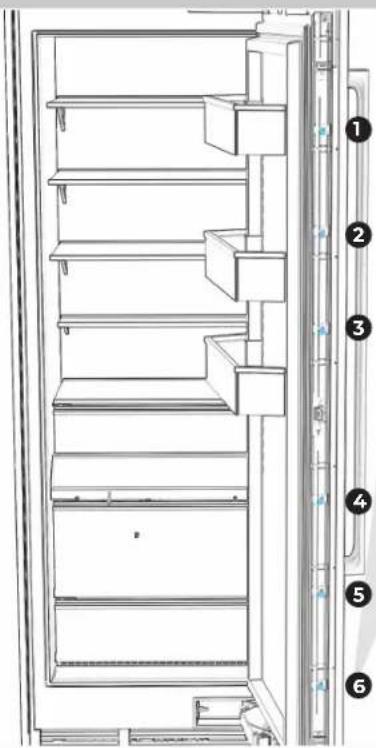

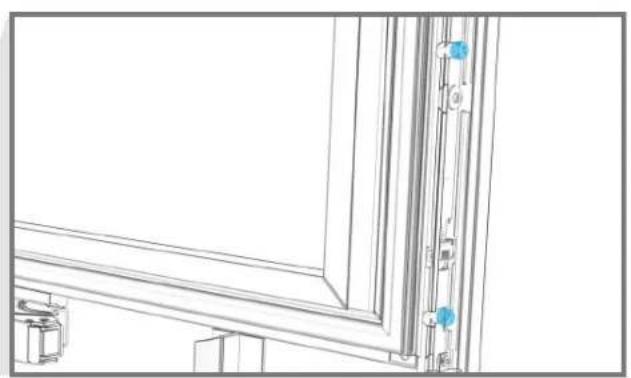

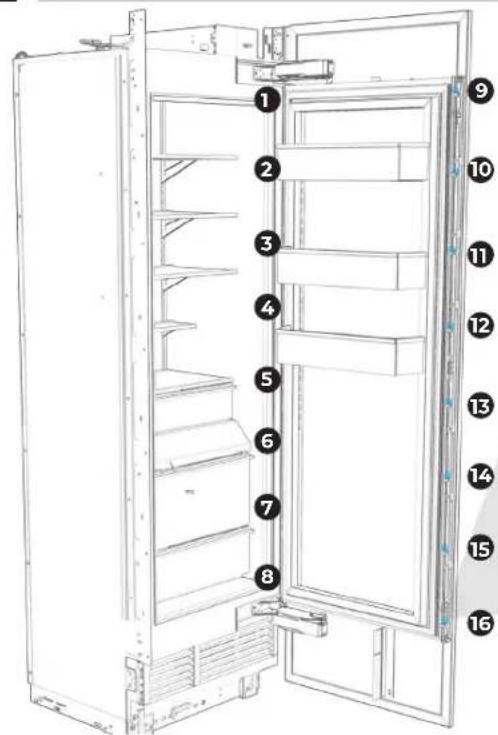

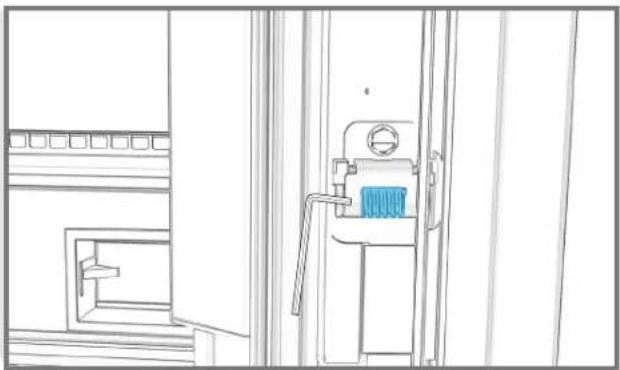

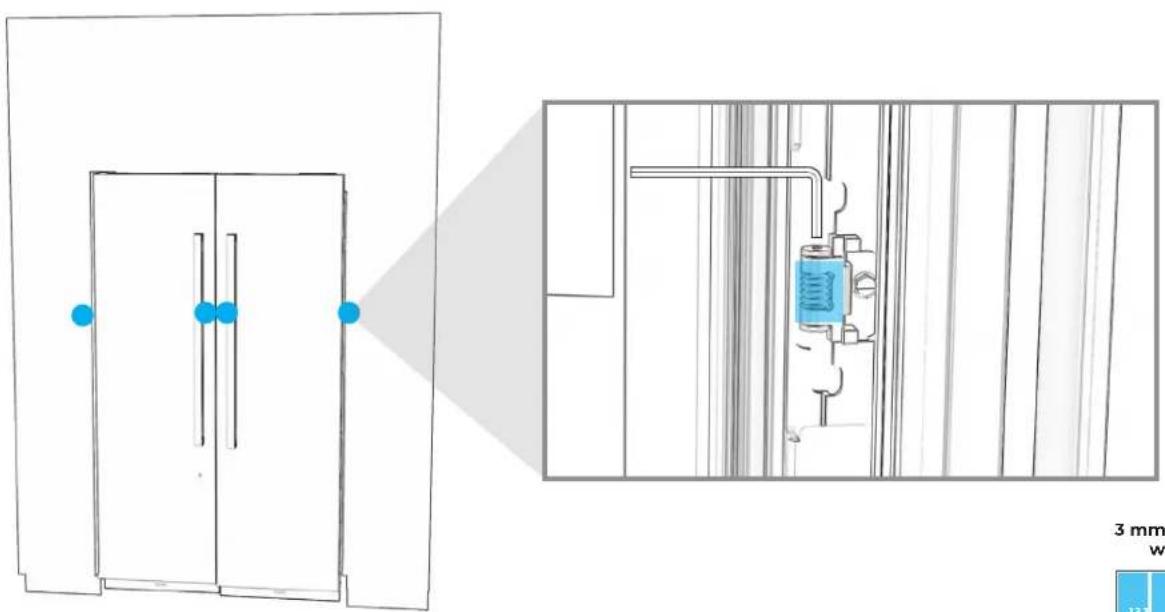

EACH COLUMN: LOOSEN THE SIX ADJUSTMENT SCREWS PER SIDE.

Technical diagram of a refrigerator with numbered parts and an inset view showing the interior door and refrigerator.

USE RIGHT-ANGLE ADAPTER FOR GREATER EASE.

15.6

EACH COLUMN: ADJUST DOOR PANEL HEIGHT UP AND DOWN.

Technical diagram showing a door with three blue dots and a close-up of a mechanical component inside a room (no text or symbols)

3 mm Allen wrench

15.7

EACH COLUMN: ADJUST DEPTH OF DOOR PANEL.

Pure architectural floor plan lines without any text, numbers, or symbols

Line drawing of a mechanical device with a blue component inserted, enclosed in a vertical panel (no text or symbols)

3 mm Allen wrench

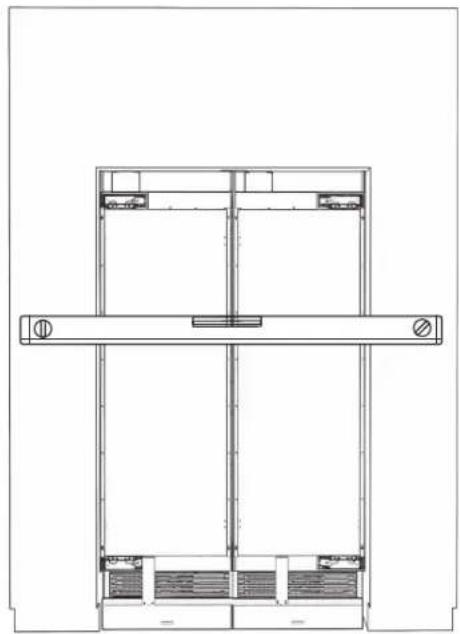

15.8

EACH COLUMN: CHECK THAT DOOR PANELS ARE IN PLANE WITH FURNITURE AND EACH OTHER.

Architectural floor plan showing room layouts and structural elements (no text or labels)

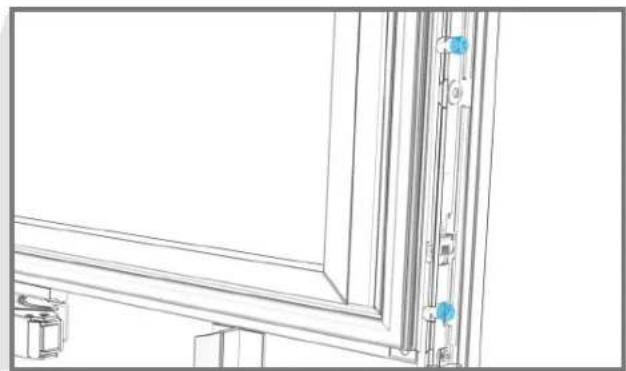

15.9

EACH COLUMN: INSERT AND TIGHTEN ALL 16 FASTENERS.

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical line drawing of a window frame with vertical structural elements and mounting fixtures (no text or symbols)

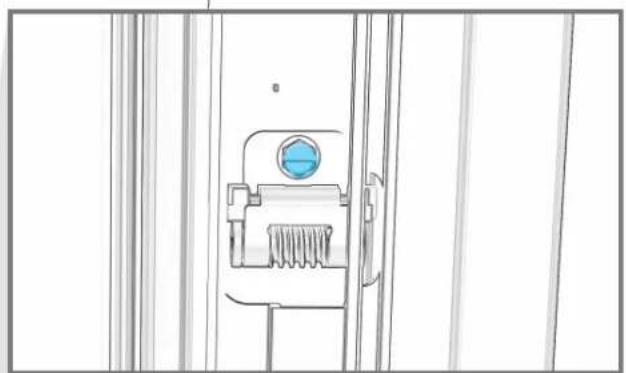

15.10

EACH COLUMN: TIGHTLY SECURE DOOR PANEL.

Line drawing of a refrigerator interior with numbered compartments (no text or symbols)

Line drawing of a mechanical component with a blue circular head and spring-like base, no text or symbols present

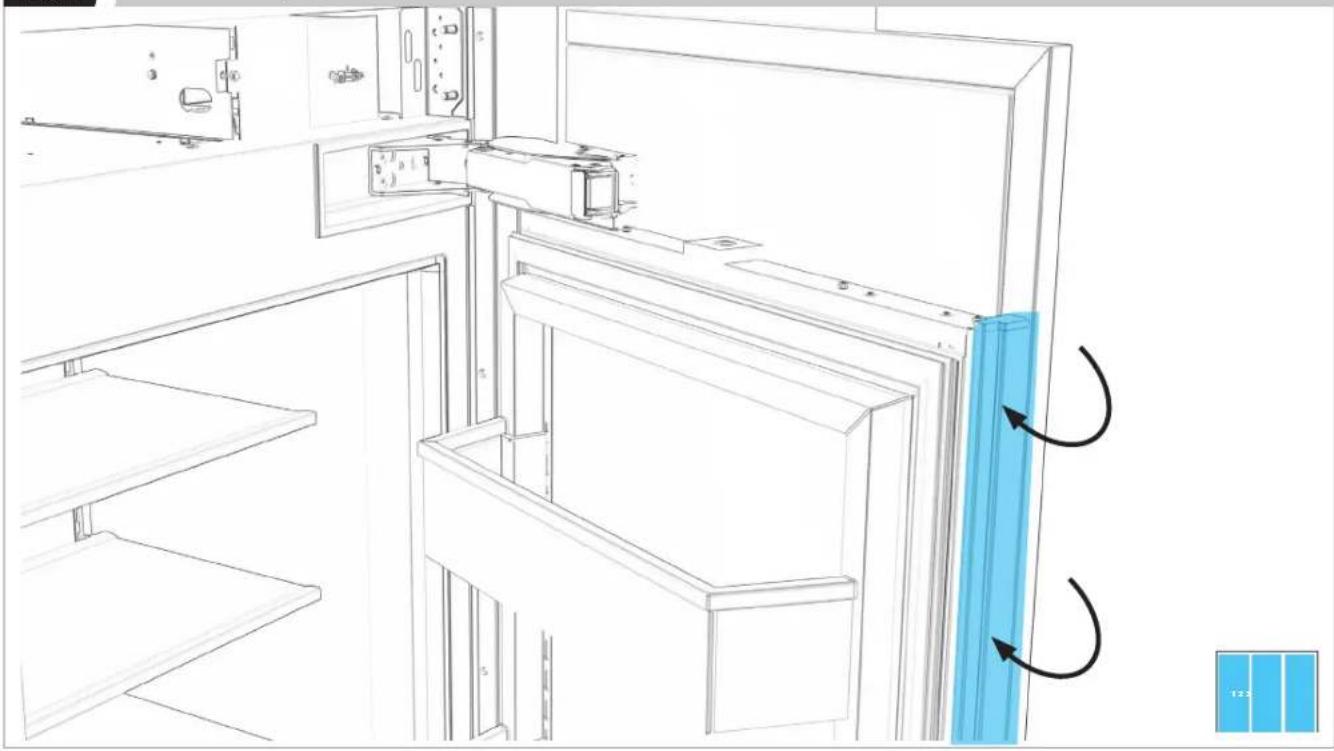

15.11

EACH COLUMN: REINSTALL BRACKET TRIMS.

Line drawing of a refrigerator interior with door, shelf, and door panel (no text or symbols)

COMPLETE

INSTALLATION

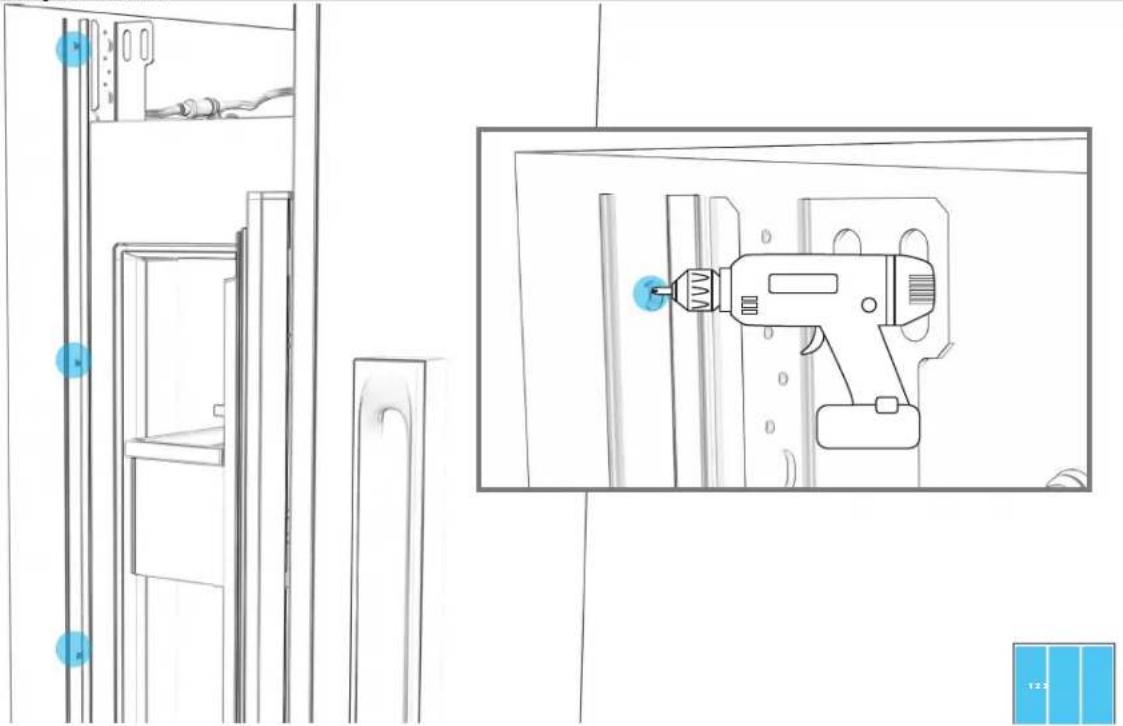

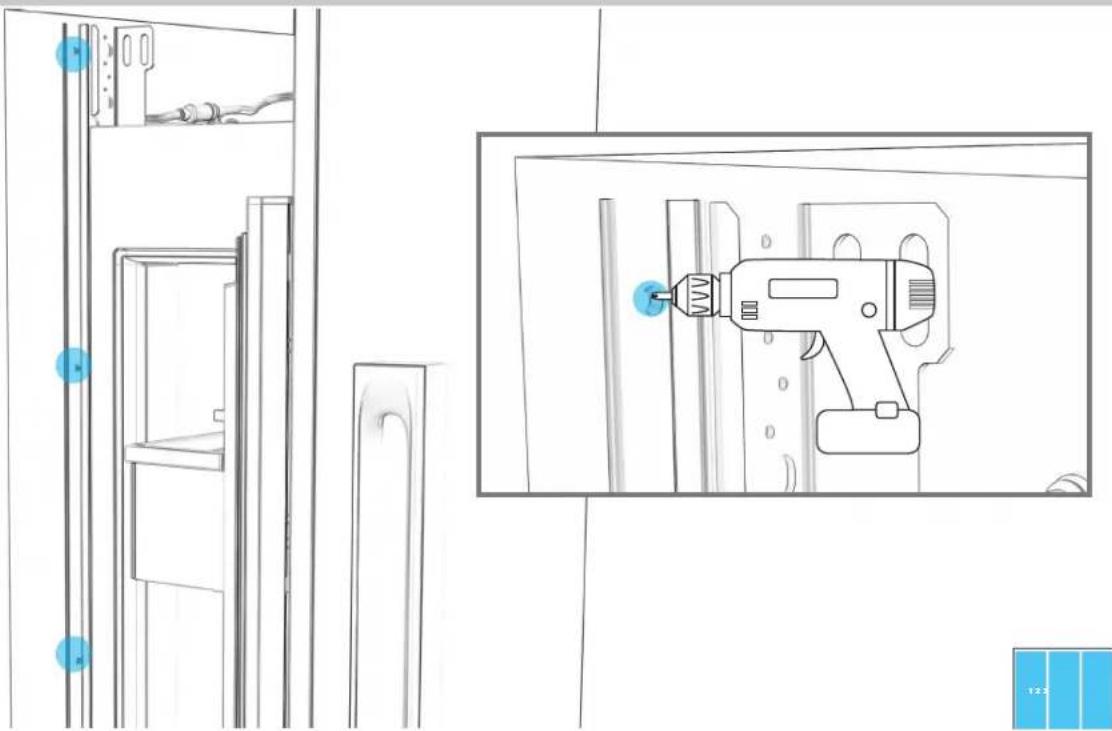

16.1

EACH COLUMN: TIGHTEN SCREWS TO DRAW SIDE TRIM TIGHT ON EACH SIDE.

Line drawing of a refrigerator interior with a hand tool inserted into the refrigerator (no text or symbols)

16.2

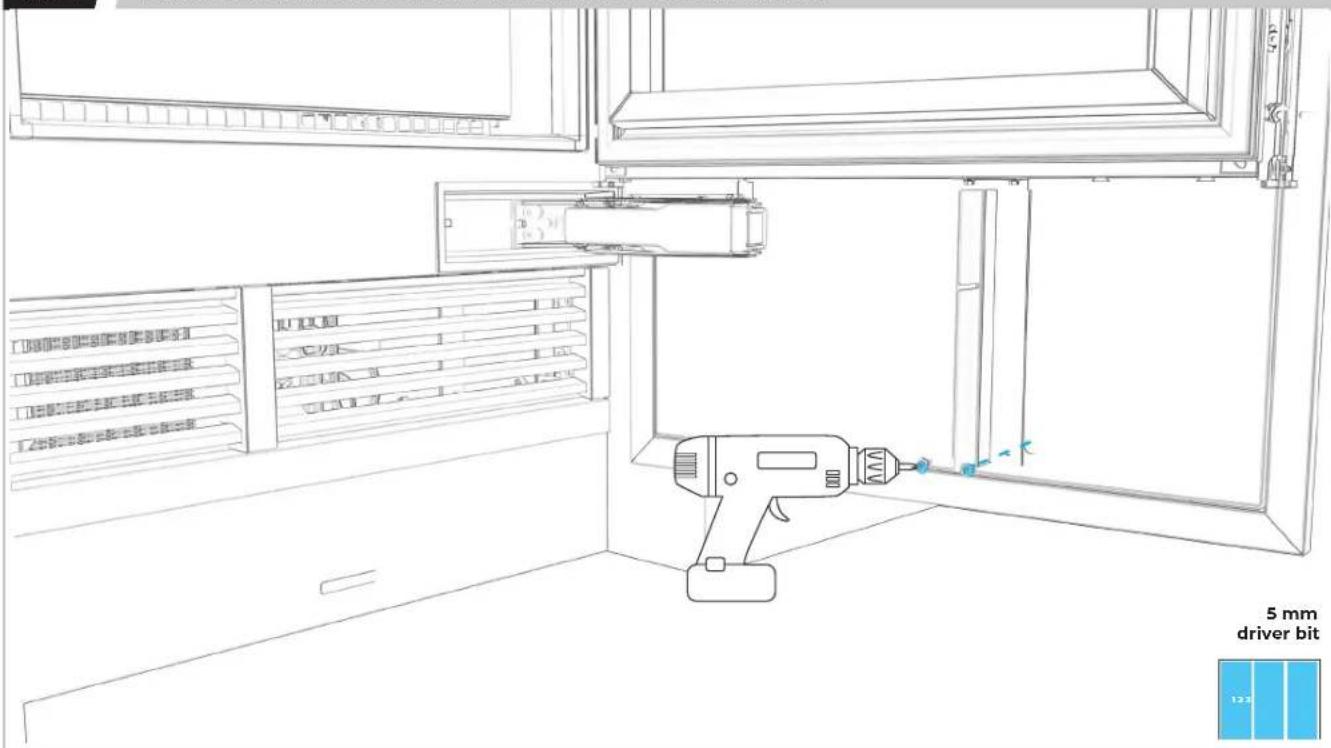

EACH COLUMN: SECURE AIR DIVIDERS TO DOOR PANELS.

5 mm driver bit

16.3

EACH COLUMN: REMOVE FILM.

Line drawing of a double door cabinet with two doors and a shelf (no text or symbols)

BEFORE FINAL CHECK, READ WARNING.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

FINAL CHECK

☐ All packaging removed from the residence
☐ Columns plugged in, powered on and operating at peak performance
□ Columns leveled
☐ Panels aligned and rechecked after 20 minutes operation
□ Water supplies properly connected with no leaks
☐ Water filters installed (not applicable with reverse osmosis system)
☐ Water dispensers and/or ice makers working
□ Any problems with installation or parts reported to JennAir Epicenter

OWNER WALKTHROUGH

If the owner is present, provide them with the User Guide. Guide the owner through:

□ Control panel functions

□ App and WiFi setup

□ Discarding first few batches of ice

□ Replacing the water filters

□ Registering their columns

☐ How to contact JennAir Epicenter through jennair.com or at 1-800-JENNAIR (536-6247)

Technical line drawing of a metal bracket with four holes (no text or symbols)

Bride de soffite Badass (W1111754)

Line drawing of a metal bracket with slots and mounting holes (no text or symbols)

Simple line drawing of a mechanical support structure with two vertical supports and a horizontal frame (no text or symbols)

Simple line drawing of two hanging objects with blue clips, no text or symbols present

Simple line drawing of two hanging metal clips with blue handles, no text or symbols present

CONFIGURATIONS À 2 APPAREILS NON PERMISES

Diagram showing a hand holding a blue vertical object above a box, with an 'X' symbol in the corner (no text or labels on the diagram itself)

CONFIGURATIONS

3 APPAREILS

CONFIGURATIONS À 3 APPAREILS PERMISES

Trousses de joint

Pure diagram of three hanging metal objects with blue connectors, no text or symbols present

Trousses de joint

Diagram of three hanging objects with blue tags, no text or symbols present

Trousses de joint

Simple line drawing of a three-panel support structure with two hanging clips (no text or symbols)

Pure diagram of three hanging objects with blue connectors, no text or symbols present

CONFIGURATIONS À 3 APPAREILS NON PERMISES

Diagram showing two hand gestures lifting a rectangular object, with a cross symbol and letter X (no text or labels)

Diagram showing two hanging objects with blue and green parts, no text or symbols present

DIMENSIONS

PRODUIT

DIMENSIONS COMPLÈTES (SANS PANNEAU)

LARGEUR DE L'OUVERTURE

72 po 24 po 24 po 24 po

LARGEUR DE L'OUVERTURE

LARGEUR DE L'OUVERTURE

78 po 24 po 24 po 30 po

DIMENSIONS

OUVERTURE

CONFIGURATION À 3 APPAREILS

3D diagram of a vertical blue structure mounted on a base with two upward arrows indicating direction (no text or symbols)

3D diagram of a blue rectangular structure with two upward arrows indicating vertical motion or force direction (no text or symbols)

RETIRER LES TROUSSES D'INSTALLATION DU TIROIR DES TIROIRS POUR SPÉCIALITÉ PENDANT QUE L'APPAREIL EST TOUJOURS SUR SES PATINS.

AVANT DE DÉPLACER L'APPAREIL, LIRE TOUS LES AVERTISSEMENTS.

AVERTISSEMENT

3D wireframe diagram of a blue industrial cabinet or enclosure with mounting brackets (no text or symbols)

DÉPLACER L'APPAREIL À DEUX PERSONNES. NE PAS OUVRIR LES PORTES AVANT QUE L'APPAREIL SOIT SÉCURISÉ.

1.3

POUR CHAQUE APPAREIL : ENLEVER LES DEUX VIS DU FILTRE À EAU.

Embout de perceuse de 5 mm

1.4

POUR CHAQUE APPAREIL : TIRER VERS LA GAUCHE, ENLEVER LA PLAQUE.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or movement.

1.5

POUR CHAQUE APPAREIL : TIRER LE BOÎTIER VERS LA DROITE POUR L'ENLEVER.

Technical line drawing of a mechanical assembly with blue panel and mounting holes (no text or symbols)

1.6
POUR CHAQUE APPAREIL : RETIRER LES QUATRE VIS DE LA GRILLE D'AÉRATION.

Embout de perceuse de 5 mm

1.7
POUR CHAQUE APPAREIL : RETIRER LA GRILLE D'AÉRATION DE LA BASE.

Technical diagram of a server rack with labeled components and directional arrows indicating assembly or movement.

1.8

DEUXIÈME (ET TROISIÈME) APPAREIL : INSTALLER LA GARNITURE DE GRILLE D'AÉRATION.

Technical line drawing of a server rack with blue components and directional arrows indicating movement (no text or symbols)

Tournevis cruciforme

1.9

RETIRER LES GARNITURES ENTRE LES APPAREILS.

Technical line drawing of a rectangular electronic device with internal components and directional arrows indicating flow or force (no text or symbols present)

Retirer la garniture, 2 appareils Retirer la garniture, 3 appareils

LAISSER LES GARNITURES EN PLACE SUR LES CÔTÉS MEUBLES.

1.10

PREMIER APPAREIL : INSTALLER L'ESPACEUR.

Tournevis cruciforme

S'ASSURER QUE LE CÔTÉ MINCE FAIT FACE VERS L'EXTÉRIEUR.

1.11

SI TROIS APPAREILS SONT INSTALLÉS : RÉPÉTER L'ÉTAPE 1,10 POUR LE DEUXIÈME APPAREIL.

Tournevis cruciforme

PRÉPARATION

DE LA TROUSSE DE JOINT

2.1

PREMIER APPAREIL : ALIGNER ET FIXER L'ÉLÉMENT CHAUFFANT.

Diagram of a vertical panel with blue insulation and directional arrows indicating flow or movement (no text or symbols present)

2.2

BRANCHER L'ÉLÉMENT CHAUFFANT SUR L'APPAREIL.

Technical line drawing of a mechanical assembly with blue connector housing and component blocks (no text or symbols)

2.3

RÉPÉTER L'ÉTAPE 2,1 ET 2,2 AVEC LE DEUXIÈME APPAREIL.

Technical line drawing of a vertical industrial or electronic device with internal blue insulation and directional arrows indicating flow or movement (no text or symbols present)

Blue plastic electrical connector with two ports and a coiled cable (no text or symbols)

2.4

PREMIER APPAREIL : INSTALLER LA GARNITURE DE JOINT EN L.

Technical line drawing of a vertical panel or enclosure with directional arrows indicating flow or movement (no text or symbols present)

Garniture de joint en L

Tournevis cruciforme

2.5

DEUXIÈME APPAREIL : INSTALLER LA GARNITURE DE JOINT EN CROCHET.

Diagram of a device interior with a blue vertical stripe and directional arrows indicating flow or movement (no text or symbols present)

Garniture de joint en crochet

Tournevis cruciforme

2.6

SI TROIS APPAREILS SONT INSTALLÉS : INSTALLER LE JOINT DE GARNITURE EN L SUR LE DEUXIÈME APPAREIL.

Technical line drawing of a vertical mechanical component with directional arrows indicating force or movement (no text or symbols present)

Garniture de joint en L

Tournevis cruciforme

2.7

SI TROIS APPAREILS SONT INSTALLÉS : INSTALLER LE JOINT DE GARNITURE EN CROCHET SUR LE TROISIÈME APPAREIL.

Diagram of a refrigerator interior with blue vertical panel and directional arrows indicating flow or movement (no text or symbols)

Garniture de joint en crochet

Tournevis cruciforme

PRÉPARATION

DE LA BRIDE DE POSITIONNEMENT

3.1
PREMIER APPAREIL : GLISSER LE SUPPORT DANS LA FENTE D'INSTALLATION.

Technical line drawing of a computer monitor internal structure with a blue drill bit inserted (no text or symbols)

Douille M6

LA POSITION FINALE EST DÉTERMINÉE UNE FOIS LES APPAREILS ENTIÈREMENT SOULEVÉS.

3.5

Technical line drawing of a computer monitor with an electric drill, showing internal components and mounting brackets (no text or symbols)

Douille M6

INSTALLATION DE LA BRIDE

B A D A S S

4.1

MARQUE UNE LIGNE À LA LARGEUR DU PREMIER APPAREIL, À PARTIR DU CADRE DE GAUCHE.

24 PO 24 PO

4.2

À L'AIDE D'UNE ÉQUERRE, TRACER UNE LIGNE PERPENDICULAIRE AU CADRE DE DEVANT.

24 PO Équerre

4.3

ALIGNER LA FENTE CENTRALE DU GABARIT DE BRIDE AVEC LA LIGNE DE LARGEUR.

① (6) ② ③ (5) ④ (4)

4.4

ALIGNER LA LIGNE DU TYPE DE PORTE DÉJÀ SÉLECTIONNÉ AVEC LE DEVANT DE L'ARMOIRE.

Diagram showing a 3D coordinate system with labeled axes and directional arrows, likely illustrating a geometric or physical concept.

4.5

MARQUER DEUX LIGNES.

Technical diagram showing a 3D coordinate system with labeled axes and a magnified inset of a plane.

4.6

ALIGNER LA BRIDE.

Simple line drawing of a 3D geometric shape with a blue bracket and small circular elements inside (no text or symbols)

4.7

ALIGNER LES POINTS DES TROUS EN FORME DE DIAMANT ET LA LIGNE DE LARGEUR.

Simple line drawing of a container with internal compartments and circular holes, no text or symbols present

4.8

FIXER SANS SERRER LA BRIDE AU SOFFITE.

Embout de percè de 5 m

Pure technical line drawing of a rectangular container with internal compartments and mounting points (no text or symbols)

4.10

SERRER 8 VIS.

Technical line drawing of a mechanical device mounted on a wall, with an inset showing its exterior panel assembly (no text or symbols present)

Vis à bois

UTILISER DES VIS À BOIS D'UNE LONGUEUR CONVENABLE

4.11

FIXER LA BRIDE À L'ARMOIRE EN UTILISANT LES TROUS RONDS.

UN MINIMUM DE SIX VIS DOIT ÊTRE UTILISÉ POUR FIXER LES BRIDES À L'ARMOIRE. L'APPAREIL POURrait BASCULER SI LES BRIDES NE SONT PAS BIEN FIXÉES. 6 vis à bois

UN MINIMUM DE SIX VIS DOIT ÊTRE UTILISÉ POUR FIXER LES BRIDES À L'ARMOIRE. L'APPAREIL POURRAIT BASCULER SI LES BRIDES NE SONT PAS BIEN FIXÉES.

4.12

SI SEULEMENT DEUX APPAREILS SONT INSTALLÉS :

PASSER À LA SECTION 5

4.13

SI TROIS APPAREILS SONT INSTALLÉS : AJOUTER LA LARGEUR DU DEUXIÈME APPAREIL À CELLE DU PREMIER.

LARGEUR DE L'OUVERTURE 42 po 18 po 24 po

42 PO

4.14

TRACER UNE LIGNE À LA LARGEUR MESURÉE.

42 PO

4.15

Pure architectural line drawing of a roof structure with three metal bracket symbols (no text or labels)

PRÉPARATION

DU MEUBLE

5.1

MESURER ET MARQUER UNE LIGNE POUR LE PANNEAU DE GAUCHE.

84 PO

5.2

PLACER LE GABARIT SUR LE PANNEAU DE GAUCHE.

Line drawing of a 3D rectangular structure with a small blue label on the top (no text or symbols present)

5.3

ALIGNER LA LIGNE DE STYLE DE PORTE AVEC LE DEVANT DE L'ARMOIRE ET MARQUER LES LIGNES D'ALIGNEMENT.

Line drawing of a 3D rectangular structure with a small blue label on the top left corner (no text or symbols on the main diagram)

5.4

Line drawing of a simple 3D rectangular structure with a vertical door and corner supports (no text or symbols)

RIGHT SIDE TOP & BOTTOM SIDE SHIMS

5.5

PLACER ET ALIGNER LE GABARIT SUR LA SECTION INFÉRIEURE DU PANNEAU DE GAUCHE, MARQUER LES LIGNES D'ALIGNEMENTS DE CALES.

Line drawing of a simple 3D rectangular structure with a small inset image showing a blue object (no text or symbols)

LEFT SIDE TOP & BOTTOM SIDE SHIMS

5.6

RÉPÉTER L'ÉTAPE 5,5 POUR LE PANNEAU DE DROITE.

Line drawing of a simple 3D rectangular structure with a vertical door and base, no text or symbols present.

5.7

SÉPARER LES CALES ROTTER EN RESPECTANT LES LONGUEURS.

Line drawing of a 3D rectangular structure with a central doorway and corner supports (no text or symbols)

9/32" 1/4" 3/16" 1/8" 1/16"

5.8

AJOUTER DES CALES AU BESOIN.

Line drawing of a 3D rectangular structure with a double door and corner supports (no text or symbols)

Pure architectural line drawing of a room corner with a small blue panel on the wall (no text or symbols)

5.9

FIXER LES CALES AUX PANNEAUX LATÉRAUX (DEUX VIS REQUISES).

Line drawing of a 3D rectangular structure with a central opening and two small components, no text or symbols present.

Vis à bois

UTILISER DES VIS À BOIS D'UNE LONGUEUR CONVENABLE

5.10

UTILISER DU RUBAN ADHÉSIF POUR FIXER LE TUYAU D'EAU AU PLANCHER.

Line drawing of a 3D rectangular structure with a double door and corner supports, showing no text or symbols.

INSTALLATION DU

PREMIER

APPAREIL

6.1
ÉTEINDRE L'ALIMENTATION.

Technical line drawing of a mechanical assembly with no visible text or symbols

AVANT DE BRANCHER L'APPAREIL, LIRE LES AVERTISSEMENTS.

AVERTISSEMENT

Line drawing of an electrical outlet with a blue socket and its connected plug (no text or symbols)

AVANT DE DÉPLACER L'APPAREIL, LIRE LES AVERTISSEMENTS.

AVERTISSEMENT

Technical line drawing of a mechanical device with directional arrows indicating flow or movement (no text or symbols)

NE PAS ENDOMMAGER LE TUYAU D'EAU.

6.4

UTILISER UN GABARIT DE PROFONDEUR (SELON LE STYLE DE PORTE).

1" OVERLAY 3/4" 1/2" 1/4" FLUSH

6.5

FAIRE SORTIR LES ROULETTES UNE À UNE.

ROULETTE ARRIÈRE ROULETTE AVANT ROULETTE AVANT ROULETTE ARRIÈRE AUT BAS Embout de pe de 12 M

HAUT

Technical line drawing of an electrical enclosure with a 3D display unit and component details (no text or symbols)

6.8

AJUSTER LES ROULETTES JUSQU'À CE QUE LES GABARITS DE PROFONDEUR SOIENT IDENTIQUES.

ROULETTE ARRIÈRE ROULETTE AVANT AUT BAS ROULETTE AVANT ROULETTE ARRIÈRE Embout de pe de 12.7

HAUT BAS

6.9

PLACER SANS SERRER DES VIS DANS LE SUPPORT D'INSTALLATION ET LA BRIDE BADASS DE SOFFITE.

Embout carre no :

6.10

FIXER LE SUPPORT D'INSTALLATION SUPÉRIEUR AU MEUBLE.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an electrical enclosure with a drill bit and wiring, no visible text or symbols

UTILISER DES VIS À BOIS D'UNE LONGUEUR CONVENABLE.

6.12

PLACER LES SUPPORTS AU PLANCHER ET AU MUR.

Embout de perceuse de 5 mm

ÉVALUER LES MATÉRIAUX DE FABRICATION DU MUR ET DU PLANCHER.

6.13

FIXER LE SUPPORT DE POSITIONNEMENT EN UTILISANT AUTANT DE FENTES QUE POSSIBLE.

Embout de perceuse de 5 mm

6.14

UTILISER UN NIVEAU POUR VÉRIFIER LA PROFONDEUR À PLUSIEURS EMPLACEMENTS À PARTIR DU CADRE DE FACE.

MEUBLE APPAREIL 1 PROFONDEUR GABARIT 12

PEUT REMPLACER LES CALES POUR LE NIVELLEMENT.

6.15

AJUSTER DE NOUVEAU L'APPAREIL POUR QUE TOUTES LES PROFONDEURS CORRESPONDENT.

Technical line drawing of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

INSTALLATION DU

DEUXIÈME

APPAREIL

7.1

ÉTEINDRE L'ALIMENTATION.

Technical line drawing of a mechanical assembly with no visible text or symbols

AVANT DE BRANCHER L'APPAREIL, LIRE LES AVERTISSEMENTS.

AVERTISSEMENT

Line drawing of a wall socket connected to an electrical outlet plug (no text or symbols)

AVANT DE DÉPLACER L'APPAREIL, LIRE TOUS LES AVERTISSEMENTS.

AVERTISSEMENT

Technical line drawing of an electrical enclosure with internal components and mounting holes (no text or symbols)

7.4

SI UN TROISIÈME APPAREIL EST INSTALLÉ :

PASSER À LA SECTION 8

7.5

DEUXIÈME APPAREIL : PLACER À LA LIGNE DE 84 PO.

84 PO 12.5

7.6

FIXER LE HAUT DU PREMIER APPAREIL AU DEUXIÈME APPAREIL.

Embout de perceuse de 5 mm Rondelle Pince Écrou hexagonal de 10 mm

7.7

RÉPÉTER POUR LE SUPPORT DU BAS.

Embout de perceuse de 5 mm Rondelle Pince Écrou hexagonal de 10 mm

7.8

FIXER LE SUPPORT D'INSTALLATION SUPÉRIEUR AU MEUBLE.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Technical diagram of a mechanical assembly with a blue cable and component, no visible text or symbols

7.11

SI SEULEMENT DEUX APPAREILS SONT INSTALLÉS :

PASSER À LA SECTION 9

INSTALLATION DU

Γ ΝΟΙΣΙΕΜΕ

APPAREIL

8.1

DEUXIÈME APPAREIL : PLACER À LA LIGNE DE 84 PO.

84 PO ROULETTE ARRIÈRE ROULETTE AVANT ROULETTE AVANT ROULETTE ARRIÈRE 123

8.2

DEUXIÈME APPAREIL : FIXER LE SUPPORT DE POSITIONNEMENT.

Line drawing of a mechanical device with a drill bit and control panel, no text or symbols present

8.3

PLACER SANS SERRER DES VIS DANS LE SUPPORT D'INSTALLATION ET LA BRIDE BADASS DE SOFFITE.

Technical line drawing of a mechanical assembly with a tool and component, shown from two orthographic views (no text or symbols present)

AVANT DE BRANCHER L'APPAREIL, LIRE LES AVERTISSEMENTS.

AVERTISSEMENT

Technical line drawing of a mechanical assembly with no visible text or symbols

8.5
BRANCHER À UNE PRISE À TROIS ALVÉOLES RELIÉE À LA TERRE.

Line drawing of an electrical outlet with a blue socket and its connected plug (no text or symbols)

AVANT DE DÉPLACER L'APPAREIL, LIRE TOUS LES AVERTISSEMENTS.

AVERTISSEMENT

Architectural floor plan showing two rectangular layouts with windows and doorways, no text or symbols present

8.8
TROISIÈME APPAREIL : PLACER À LA LIGNE DE 84 PO.

84 PO

8.9
FIXER LE HAUT DU DEUXIÈME APPAREIL AU TROISIÈME APPAREIL.

Embout de perceuse de 5 mm Rondelle Pince Écrou hexagonal de 10 mm

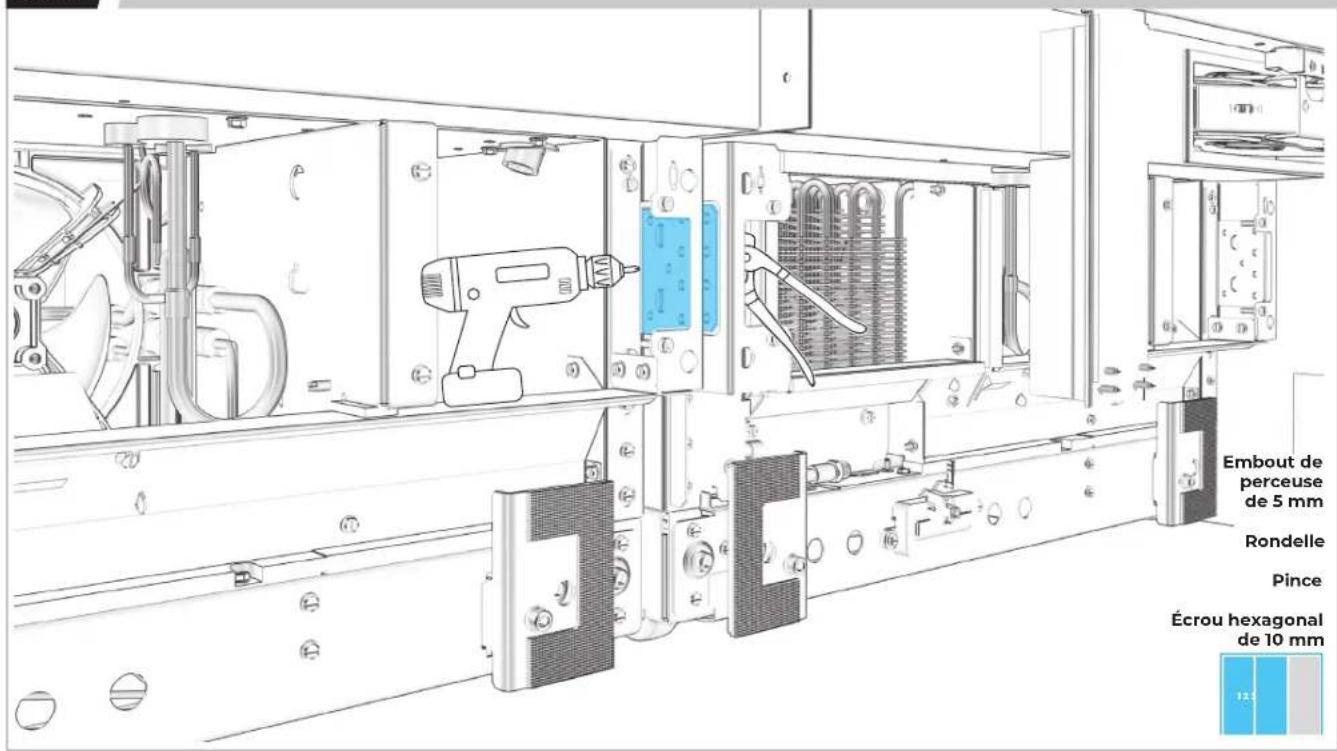

8.10

RÉPÉTER POUR LE SUPPORT DU BAS.

Embout de perceuse de 5 mm Rondelle Pince Écrou hexagonal de 10 mm

8.11

TROISIÈME APPAREIL : FIXER AU PANNEAU DE DROITE.

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

8.12

TROISIÈME APPAREIL : RÉPÉTER POUR LE SUPPORT DU BAS.

Technical line drawing of a mechanical assembly with no visible text or symbols

8.13

RACCORDER LE TUYAU D'ARRIVÉE D'EAU.

Technical diagram of a mechanical assembly with a blue cable and connector, showing internal components and no visible text or symbols.

PRÉPARATION

DE L'APPAREIL POUR SON UTILISATION

9.1

POUR CHAQUE APPAREIL : ALIGNER LE BOÎTIER DU FILTRE ENTRE LES SUPPORTS SITUÉS AU HAUT DE L'APPAREIL.

Technical line drawing of a mechanical assembly with blue component and mounting holes (no text or symbols)

9.2

POUR CHAQUE APPAREIL : INSTALLER DE NOUVEAU LE BOÎTIER EN POUSSANT AVEC FORCE VERS LA GAUCHE.

Technical line drawing of a mechanical assembly with blue component and mounting holes (no text or symbols)

9.3

POUR CHAQUE APPAREIL : INSÉRER LE FILTRE À EAU JUSQU'À CE QU'IL SOIT BIEN PLACÉ.

Technical line drawing of a mechanical device with blue component and directional arrows indicating flow or movement (no text or symbols)

9.4

POUR CHAQUE APPAREIL : FAIRE TOURNER LE FILTRE DANS LE SENS HORAIRE POUR ALIGNER LES FLÈCHES.

Technical line drawing of a mechanical device with a blue circular component and directional arrows indicating motion (no text or symbols)

9.5

POUR CHAQUE APPAREIL : FIXER À L'AIDE DE DEUX VIS ET REPLACER LE COUVERCLE.

Embout de perceuse de 5 mm

9.6

POUR CHAQUE APPAREIL : RÉINSTALLER LA GRILLE D'AÉRATION.

Technical diagram of a mechanical or electrical assembly with labeled components and blue internal panels

9.7
POUR CHAQUE APPAREIL : METTRE L'APPAREIL SOUS TENSION

Technical line drawing of a mechanical assembly with no visible text or symbols

VÉRIFICATION DE

L'INSTALLATION

PG.200 PRÉPARATION DE LA PLINTHE EN BOIS PERSONNALISÉE

PG.203 PRÉPARATION DE LA PLINTHE EN ACIER INOXYDABLE

PG.206 ALIGNEMENT ET INSTALLATION DES PLINTHES

PRÉPARATION DE LA

PLINHE

EN BOIS PERSONNALISÉE

10.1

MESURER ET MARQUER LA LIGNE CENTRALE DE LA PLINTHE.

Simple line drawing of a pencil striking a vertical line on a rectangular base (no text or symbols)

EFFECTUER TOUTES LES ÉTAPES POUR CHAQUE APPAREIL.

10.2

GABARIT D'ALIGNEMENT

CUSTOM WOOD TOE KICK PANEL TEMPLATE GABARIT DE PANNEAU DE SEUIL DE PORTE EN BOIS SUR MESURE W11040465 AUXIN TO TUI OF TUI WIRE PANEL AUXININ AUXIN LE ROUTE DE PARAGUE DE NOVA DE POATE AUXIN TO CENTRUME AUXININ AUXIN LE ROUTE CENTRALE AUXIN TO CENTRUME AUXININ AUXIN LE ROUTE CENTRALE

10.3

MARQUE L'EMPLACEMENT DES TAMPONS DE MAINTIEN.

CUSTOM WOOD TOF KIDE PANEL TEMPLATE GARARIT DE PANNEAU DE SEUE DE PORTE EN RIOIS SUR MESURE W184085 LEVE WITH Länger de 2 LIME LEVE WITH Länger de 2 LIME LEVE WITH Länger de 2 LIME LEVE WITH Länger de 2 LIME LEVE WITH Länger de 2 LIME

10.5

FIXER LES TAMPONS DE MAINTIEN AUX POINTS.

Diagram of a handheld electric drill with four circular components and two dashed lines indicating positions (no text or symbols)

PRÉPARATION DE LA

PLINHE

EN ACIER INOXYDABLE

11.1

POUR CHAQUE APPAREIL : DÉVISSER ET JETER LE FAISCEAU DE CÂBLAGE WI-FI.

Technical diagram of a mechanical assembly with blue plastic component and directional arrows indicating movement (no text or symbols)

11.2

DÉBRANCHER LE FIL WI-FI BLEU DU FAISCEAU DE CÂBLAGE.

Technical line drawing of a mechanical assembly with circular components and a blue connector (no text or symbols)

11.3

RELLIER LES FILS BLEUS DE LA PLINTHE ET DE L'APPAREIL.

Technical line drawing of a device panel with an inset showing two connected components (no text or symbols)

ALIGNEMENT ET INSTALLATION DE LA

PLINGHE

[12.] ALIGNER LES SUPPORTS DE LA PLINTHE AVEC LA PLINTHE DU MEUBLE.

Clé hexagonale de 5 mm 12.5

12.2 VÉRIFIER QUE LES SUPPORTS SONT TOUS ALIGNÉS.

Technical line drawing of a server rack with multiple drive bays and ventilation slots (no text or symbols)

12.3
ALIGNER LES TAMPONS DE MAINTIEN DE LA PLINTHE AVEC LES SUPPORTS.

Technical line drawing of a server rack with blue panel and inset view showing internal components (no text or symbols)

12.4
PRESSER FERMEMENT POUR FIXER.

Technical diagram of a server rack system with labeled components and a zoomed-in view showing internal structure.

12.5

MESURER L'ÉCART. S'IL Y A UN ÉCART, ENLEVER LA PLINTHE.

Architectural cross-section diagram of a building facade with structural layers and water level (no text or symbols)

MEUBLE APPAREIL 1 APPAREIL 2 GABARIT DE PROFONDEUR

12.6

AJUSTER LES SUPPORTS POUR ALIGNER LA PLINTHE.

Clé hexagonale de 5 mm

12.7

CONFIRMER L'ALIGNEMENT ET RÉALIGNER AU BESOIN.

Architectural cross-section diagram of a two-story building facade with structural elements and floor levels (no text or labels)

MEUBLE APPAREIL 1 APPAREIL 2 CABARIT DE PROFONDEUR

PRÉPARATION DU

PANNEAU

DE BOIS PERSONNALISÉ

13.1

RETIRER LE RUBAN POUR FAIRE SORTIR LA GARNITURE DE SUPPORT.

Line drawing of a refrigerator interior showing front and rear shelves with door contacts (no text or symbols)

EFFECTUER TOUTES LES ÉTAPES POUR CHAQUE APPAREIL.

13.2

PLACER LE PANNEAU FACE VERS LE BAS.

Simple line drawing of a rectangular plate or shelf (no text or symbols)

PLACER SUR UNE SURFACE PLANE ET COUVERTE.

13.3

MESURER ET MARQUER LE CENTRE DU PANNEAU.

Line drawing of a rectangular plate with a pencil and directional arrows indicating writing or editing (no text or symbols)

13.4

MARQUE LES TROUS GAUCHE ET DROIT.

Technical diagram of a mechanical assembly with labeled components and tool, including a pencil and drawing tools.

13.5

PERCER LES TROUS.

Foret de 1/8 po

13.6

PLACER DES ATTACHES DANS LES TROUS PRÉPERCÉS.

Embout de perceuse carré no 2

13.7

S'ASSURER QU'IL Y A UN ESPACE DE 1/8 PO (3,2 MM).

1/8 PO Embout de perceuse carré no 2

PRÉPARATION DU

PANNEAU

EN ACIER INOXYDABLE

14.1

RETIRER LE RUBAN POUR FAIRE SORTIR LA GARNITURE DE SUPPORT.

Line drawing of a refrigerator interior showing front, side, and back views (no text or symbols)

EFFECTUER TOUTES LES ÉTAPES POUR CHAQUE APPAREIL.

14.2

PLACER LE PANNEAU FACE VERS LE BAS.

Technical line drawing of a rectangular metal frame with internal compartments and mounting holes (no text or symbols)

PLACER SUR UNE SURFACE PLANE ET COUVERTE

14.3

PLACER DES ATTACHES DANS LES TROUS PRÉPERCÉS.

Technical line drawing of a rectangular panel with internal compartments and a tool in the top-right corner (no text or symbols)

Embout de perceuse carré no 2

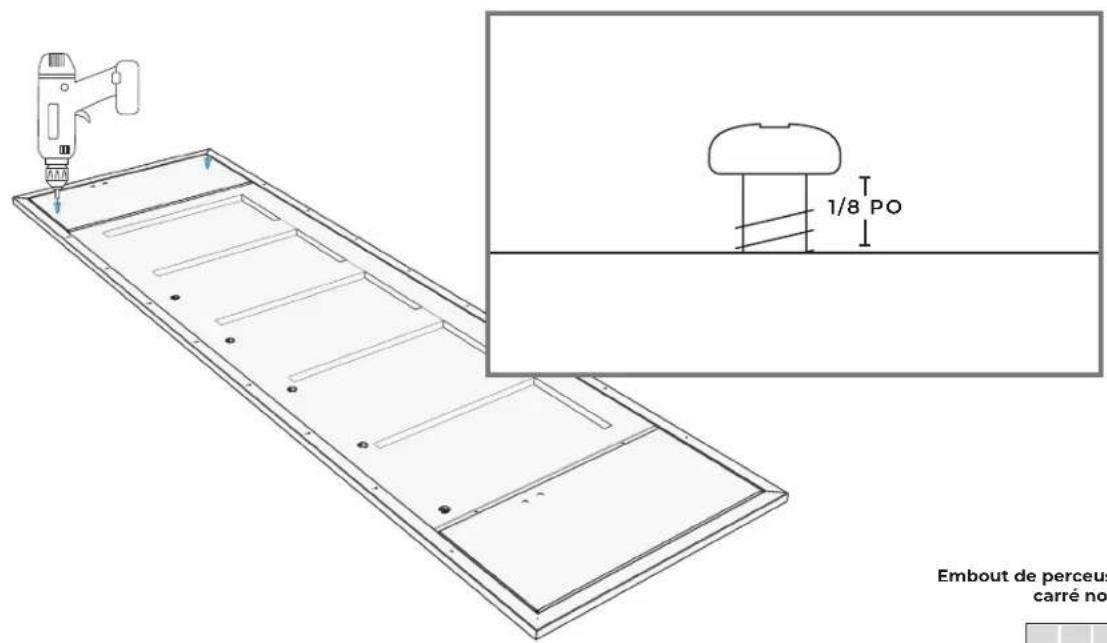

14.4

S'ASSURER QU'IL Y A UN ESPACE DE 1/8 PO (3,2 MM).

1/8 PO Embout de perceus carré no

SUSPENSION ET ALIGNEMENT DU

PANNEAU

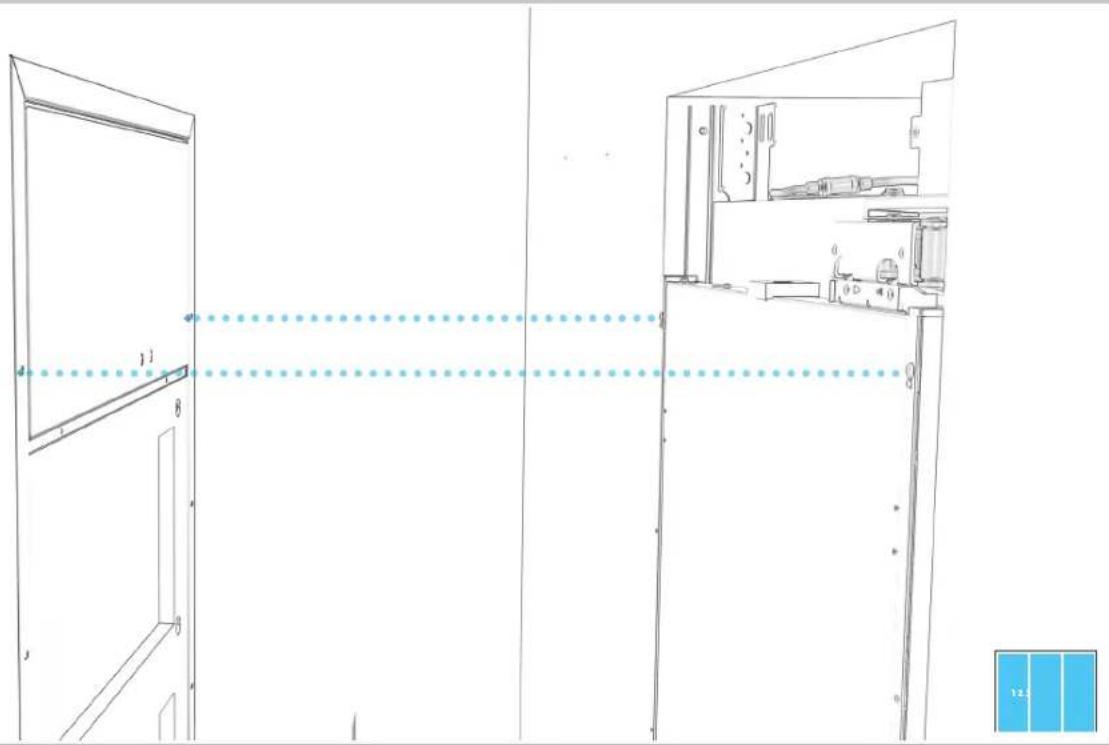

15.1

POUR CHAQUE APPAREIL : PLACER LES ATTACHES DANS LES FENTES DU HAUT DES GARNITURES D'AJUSTEMENT DE PORTE.

Technical line drawing of a door and cabinet interior with measurement lines and a blue panel inset (no text or symbols)

15.2

POUR CHAQUE APPAREIL : AJUSTER MANUELLEMENT LA POSITION DU PANNEAU DE PORTE.

Architectural floor plan showing vertical and horizontal layout with a double-headed arrow indicating width (no text or labels)

Line drawing of a mechanical device with a blue component, no text or symbols present

15.3
POUR CHAQUE APPAREIL : SERRER LES DEUX ATTACHES SUPÉRIEURES.

Technical line drawing of a mechanical assembly with labeled components (G, D) and no readable text or symbols

15.4
POUR CHAQUE APPAREIL : PLACER SANS SERRER DEUX ATTACHES DU BAS.

Technical line drawing of a cabinet or enclosure with door, windows, and support structure (no text or symbols)

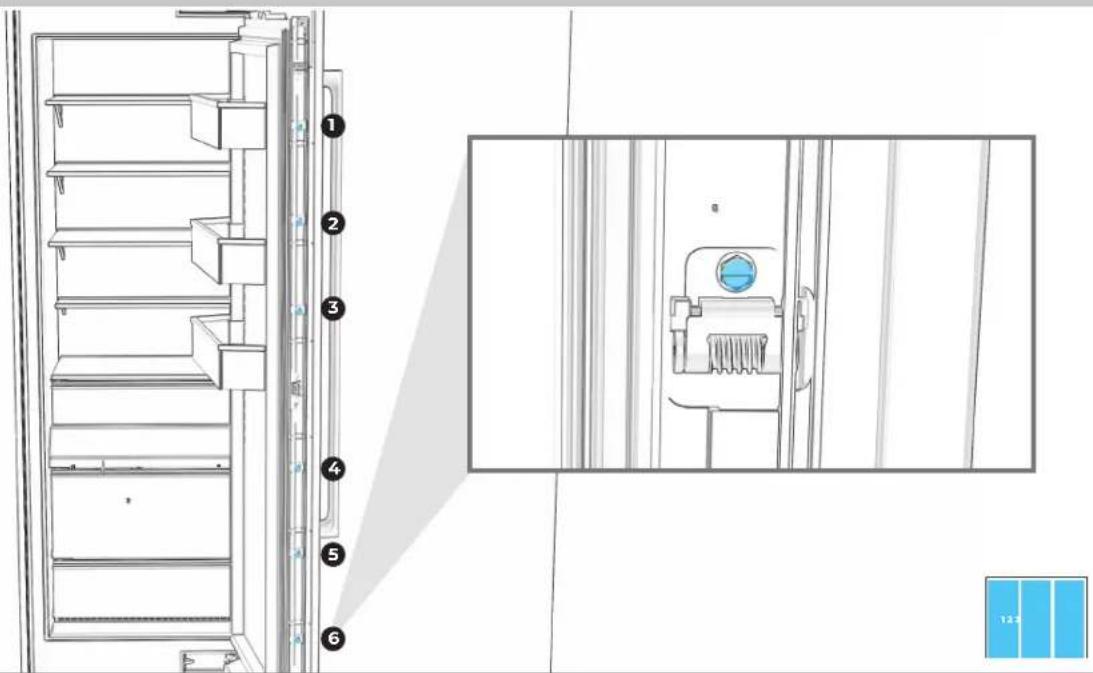

15.5

POUR CHAQUE APPAREIL : DESSERRER SIX VIS D'AJUSTEMENT PAR CÔTÉ.

Technical diagram of a refrigerator with numbered parts and an inset view showing the interior compartment.

UTILISER UN ADAPTATEUR À ANGLE DROIT POUR PLUS DE FACILITÉ.

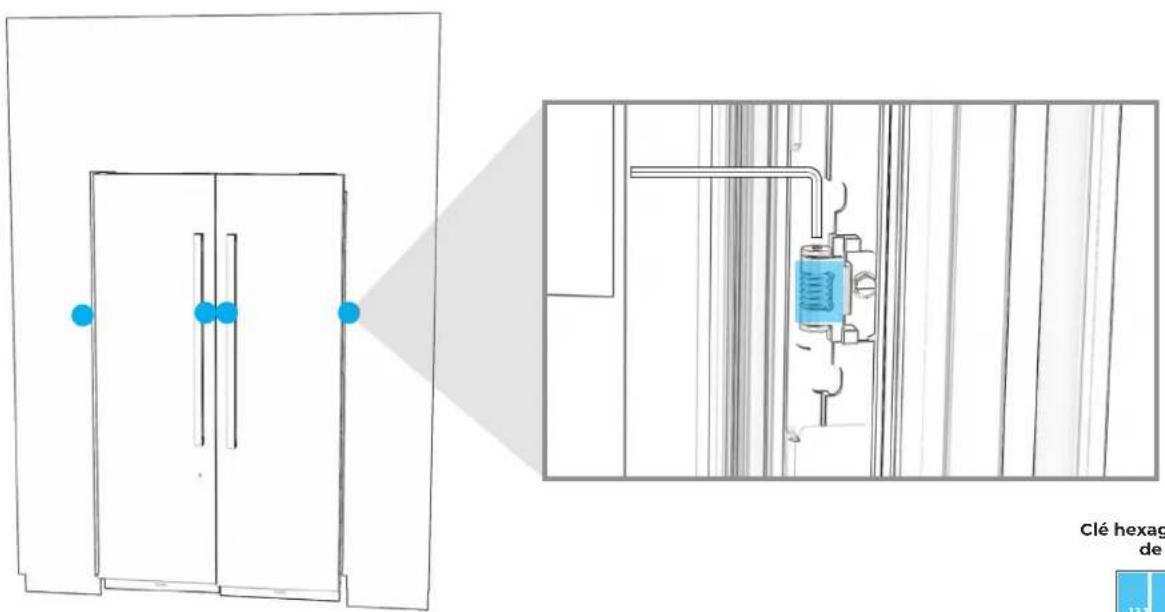

15.6

POUR CHAQUE APPAREIL : AJUSTER LA HAUTEUR DU PANNEAU DE PORTE.

Clé hexag de

Pure architectural floor plan lines without any text, numbers, or symbols

Line drawing of a mechanical device with a blue component inserted, enclosed in a vertical panel (no text or symbols)

Architectural cross-section diagram of a multi-level building structure (no text or labels)

15.9

POUR CHAQUE APPAREIL : PLACER ET SERRER LES 16 ATTACHES.

Diagram of an open refrigerator with numbered labels pointing to different compartments

Technical line drawing of a window frame with vertical door and control panel (no text or symbols)

15.10

POUR CHAQUE APPAREIL : SERRER LE PANNEAU DE PORTE.

Architectural line drawing of a refrigerator interior with numbered compartments (no text or symbols)

Line drawing of a mechanical component with a blue circular feature and internal structure (no text or symbols)

15.11

POUR CHAQUE APPAREIL : RÉINSTALLER LES GARNITURES DE SUPPORT.

Line drawing of a refrigerator interior showing door, shelf, and door frame with blue arrows indicating rotation (no text or symbols)

ΓΕ R MΙ N E R

L'INSTALLATION

16.1

POUR CHAQUE APPAREIL : SERRER LES VIS POUR BIEN FIXER LES GARNITURES DE CÔTÉ DE CHAQUE CÔTÉ.

Line drawing of a refrigerator interior with a hand tool inserted into the door (no text or symbols)

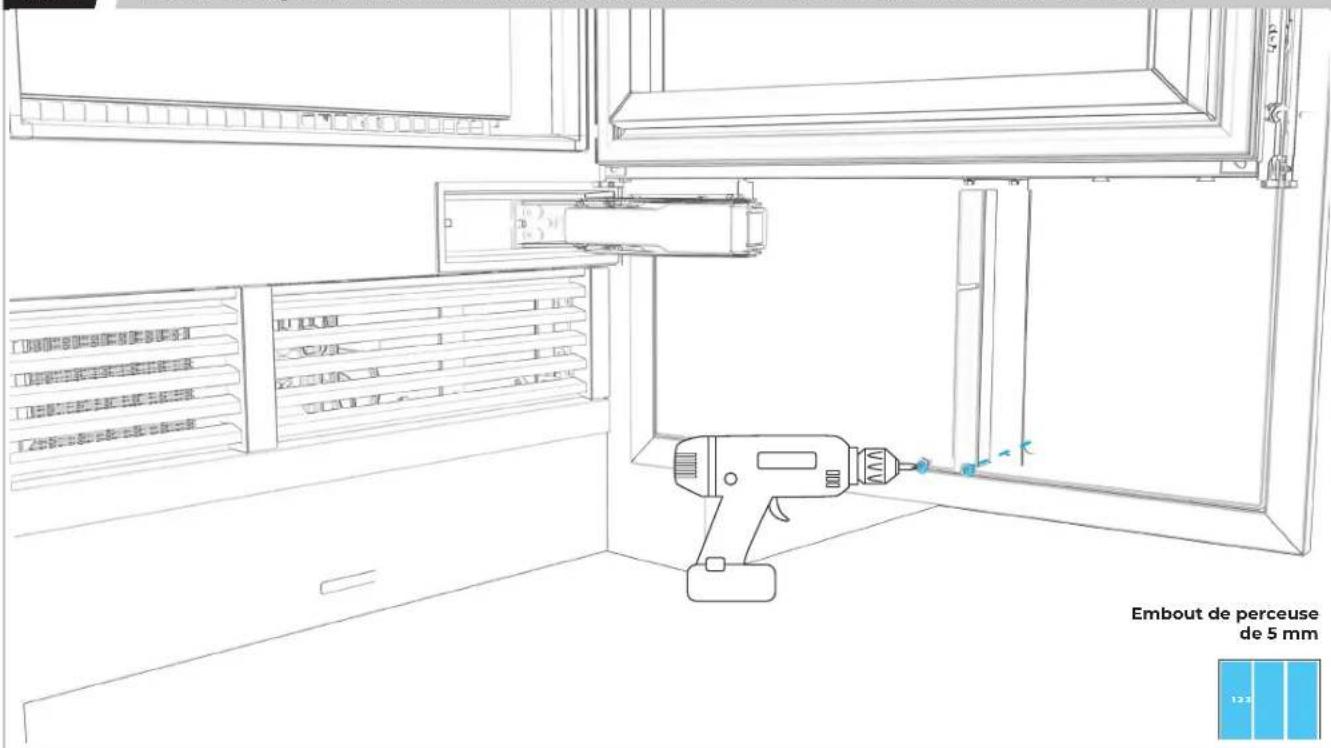

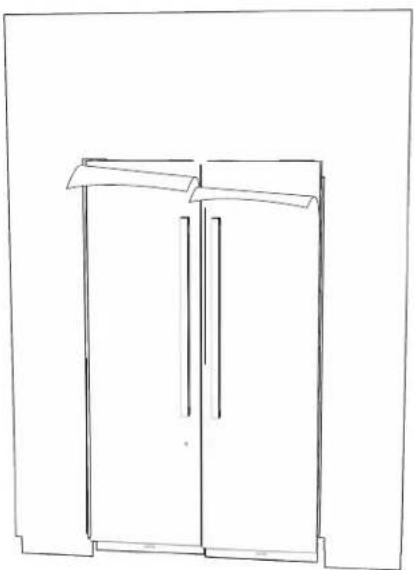

16.2

POUR CHAQUE APPAREIL : FIXER LES SÉPARATEURS D'AIR AUX PANNEAUX DE PORTE.

Embout de perceuse de 5 mm

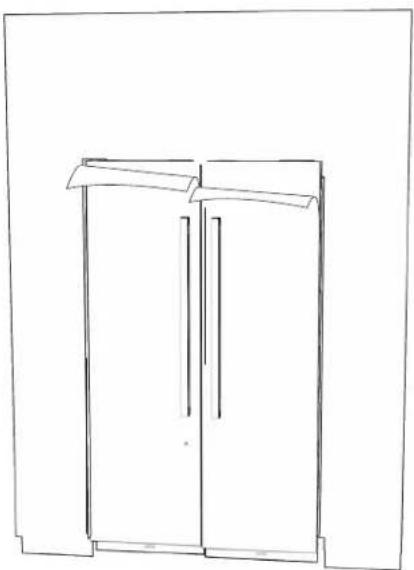

16.3

POUR CHAQUE APPAREIL : RETIRER LA PELLICULE.

Line drawing of a double door cabinet with two doors and a shelf (no text or symbols)

LIRE LES AVERTISSEMENTS AVANT LES DERNIÈRES VÉRIFICATIONS.

AVERTISSEMENT

®/TM © 2018 JennAir. All rights reserved. Printed in the U.S.A.
