Product type	Wall-mounted kitchen hood
Brand	Hoover
Model	HDSV685B
Power supply	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	60 cm x 50 cm x 45 cm (approx.)
Weight	14 kg (approx.)
Exhaust duct diameter	150 mm
Recommended installation height	65-75 cm above the cooking surface
Number of speeds	3 speeds + booster
Lighting	LED 1.5 W (max.)
Filtration type	Metal grease filter + activated carbon filter (recirculation)
Grease filter cleaning	Monthly, in the dishwasher or by hand
Carbon filter replacement	At least once a year
Special functions	Quick timer, automatic shut-off, standby mode
Material	Tempered glass, stainless steel
Installation	External exhaust or recirculation
Protection rating	IPX4 (approx.)
Noise level	55-65 dB (approx.) depending on speed
Troubleshooting	Refer to the manual for error codes

Frequently Asked Questions - HDSV685B HOOVER

How to install the Hoover HDSV685B hood in external exhaust mode?

Drill 3 holes of 8 mm to fix the wall bracket. Screw the bracket, then hang the hood. Install the non-return valve and connect a 150 mm exhaust duct. Maintain a distance of 65 to 75 cm between the hood and the cooking surface.

How to install the hood in recirculation mode (without external exhaust)?

The installation is identical to the exhaust mode, but without ducting. You must install activated carbon filters (not supplied) to absorb odors. Remove the grease filter, then engage the carbon filters by turning clockwise.

How often should I clean the grease filter?

The grease filter must be cleaned every month to avoid fire hazards. Wash it by hand with a mild detergent or in the dishwasher at low temperature.

When should I replace the activated carbon filters?

The activated carbon filters must be replaced at least once a year, or more often depending on usage. They cannot be cleaned and are essential in recirculation mode.

How to replace the LED bulb of the hood?

Unplug the appliance. Remove the screws from the glass panel and take it off. Disconnect the bulb connector. Replace the bulb, socket, and cable assembly (LED max 1.5 W). Reassemble in reverse order.

What to do if the hood vibrates strongly?

Check that the turbine is not blocked and the motor is properly secured. Also ensure that the appliance is correctly installed on the wall bracket. If the problem persists, contact a professional.

Why is the suction power low?

Check the distance between the hood and the cooking surface (should be between 65 and 75 cm). Clean the grease filter and, if necessary, replace the carbon filter. Ensure the exhaust duct is not blocked.

The light turns on but the motor does not run, what to do?

Turn off the appliance and check that the turbine is not blocked. If the problem persists, the motor may be damaged. Contact customer service.

How to use the quick timer?

Press and hold the Light/Timer button for 2-3 seconds. The working speed starts flashing. After 5 seconds, the timer stops and emits 5 beeps. To cancel, press the same button again or ON/OFF.

Where to find the serial number of the hood?

The 16-digit serial number (starting with 3) is on the warranty certificate or directly on the appliance. Note it before contacting consumer service.

USER MANUAL HDSV685B HOOVER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 03

SAFETY PRECAUTION 03

SPECIFICATION 05

INSTALLATION (VENT OUTSIDE) 06

INSTALLATION (VENT INSIDE) 10

DESCRIPTION OF COMPONENTS 11

OPERATION 11

MAINTENANCE 13

TROBULESHOOTING 14

CONFORMITY WITH DIRECTIVES 15

ENVIRONMENTAL PROTECTION 15

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage. The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

By placing the CE marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

SAFETY PRECAUTION

Never let the children operate the machine.
The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
The cooker hood and its filter should be clean regularly in order to keep in good working condition.
Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
Forbid the direct baking from the gas cooker.
Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
The air must not be discharged if fumes from appliances burning gas or other fuels;
Regulations concerning the discharge of air have to be fulfilled.
Children should be supervised to ensure that they do not play with the appliance.
Do not flambé under the range hood.
The range hood is not intended to be installed over a hob having more than four hob elements

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
Failure to follow these instructions can result in death, fire, or electrical shock.

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2

Standard Installation Accessories List

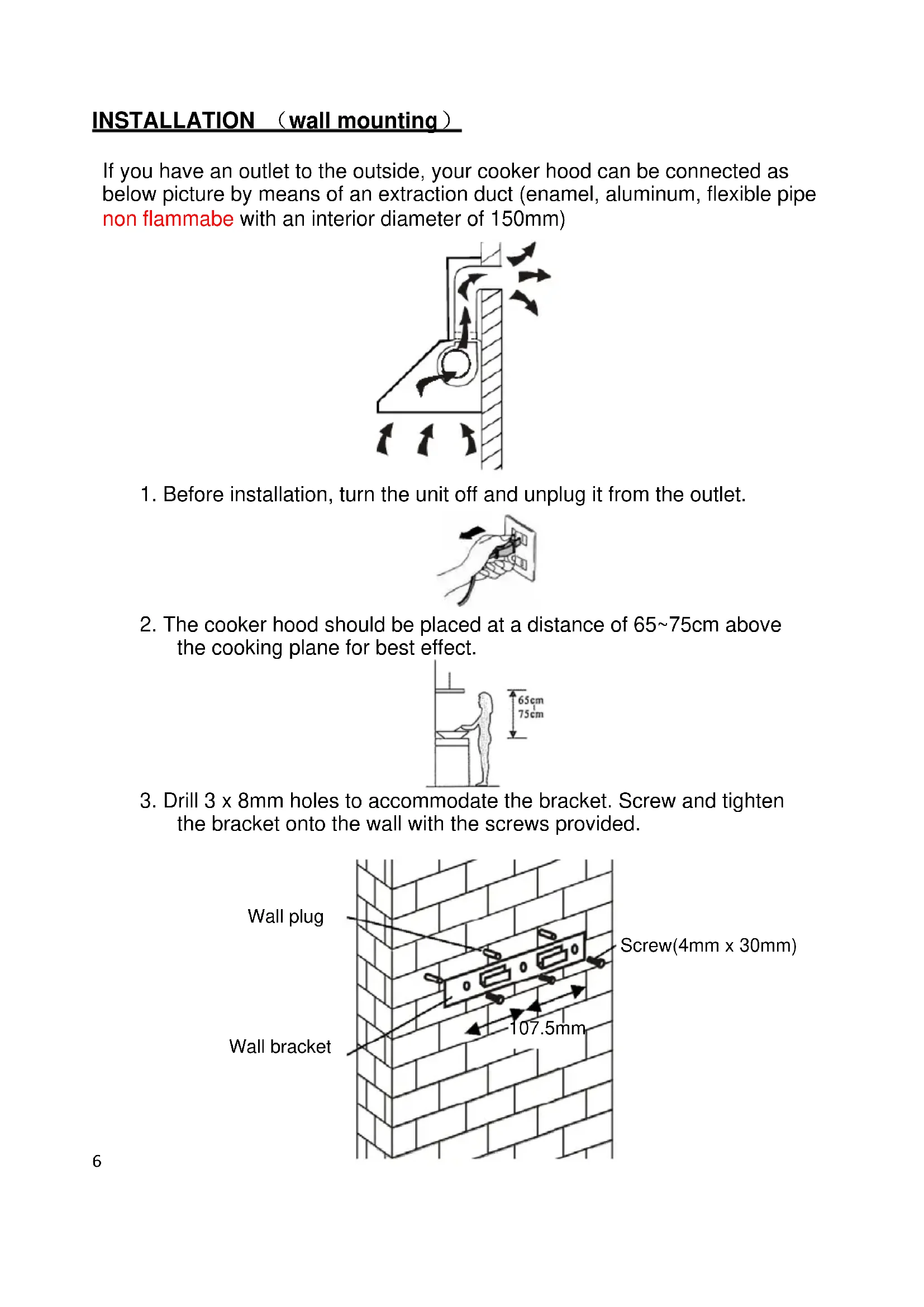

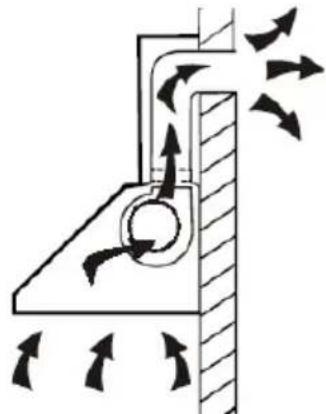

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe non flammabe with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65 75cm above the cooking plane for best effect.

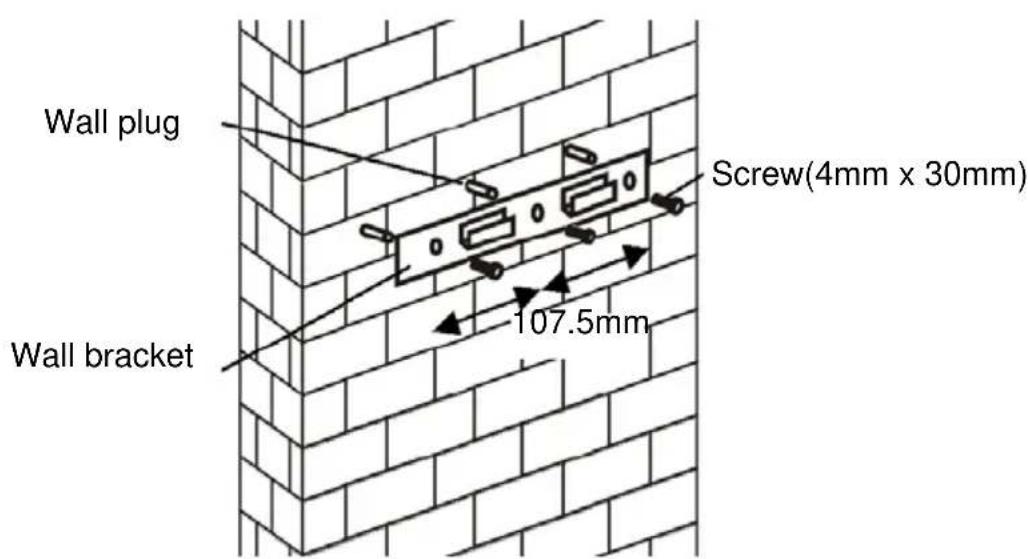

1. Drill 3 × 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

1. Leave up the cooker hood and hang onto the wall bracket hook.

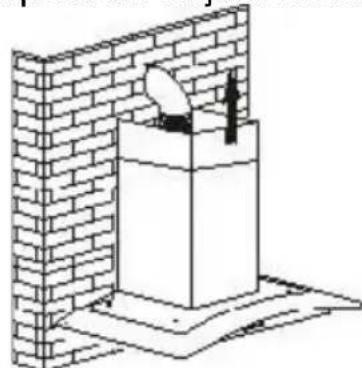

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe
Cooker hood

6.

i. Place the glass in appropriate position on the top the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

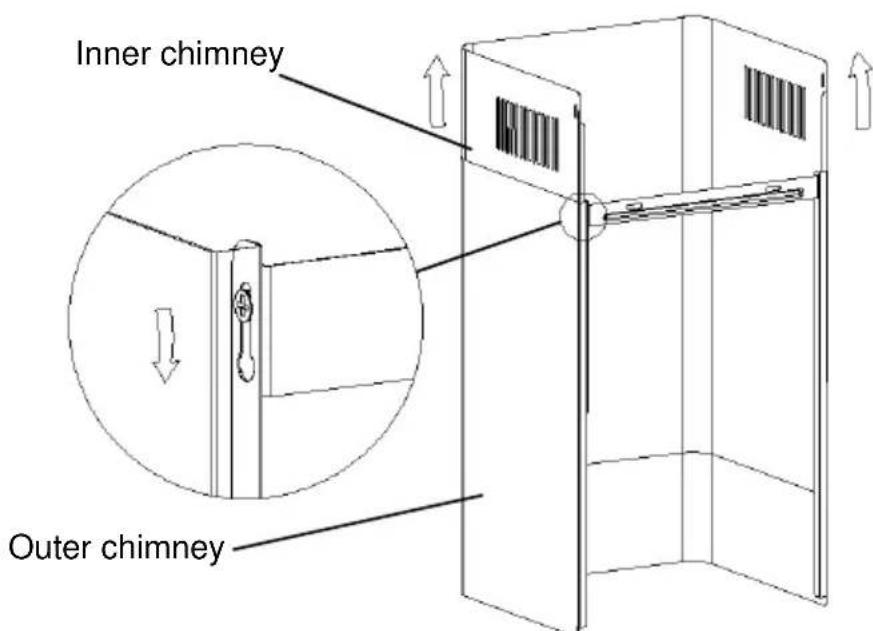

i. By Put the inner chimney into outer chimney .Then pulling out the inner chimney upwards. Adjust to reach the height required.

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

8.

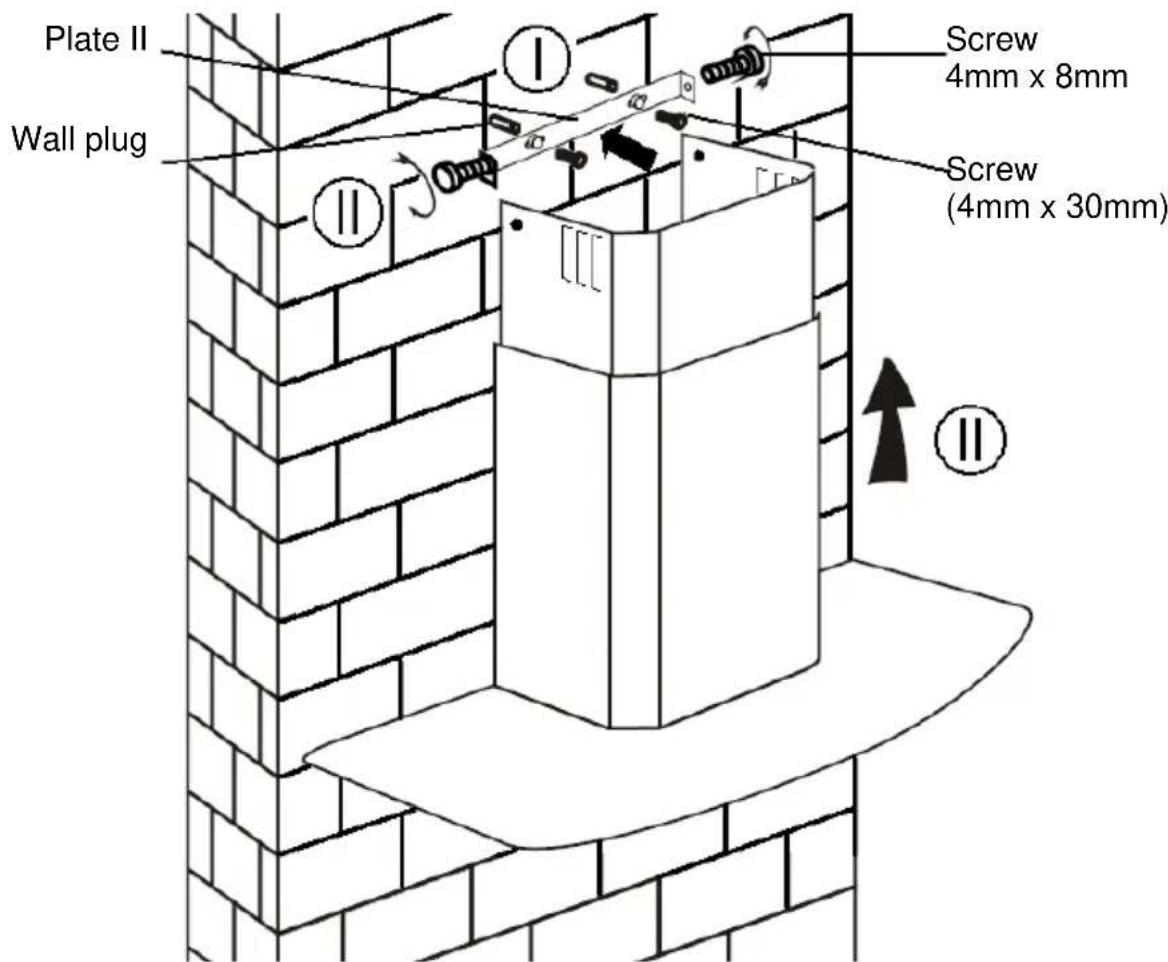

i. Drill 2 × 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.

INSTALLATION (VENT INSIDE)

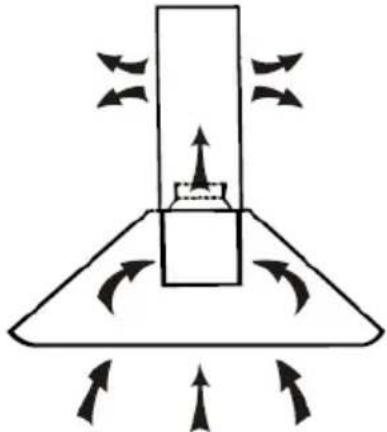

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

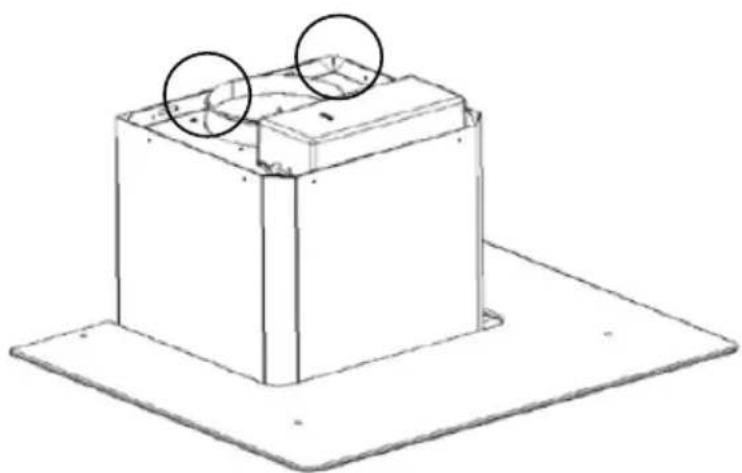

Activated carbon filter can be used to trap odors. In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
o When activated carbon filter attached, the suction power will be lowere

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed button 1

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button 2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button 3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

ON/OFF button ①

Pressing 1-2 seconds to switch on/off the cooker hood.

Low Speed button 1

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button 2

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button 3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

Short press the light/timer button ( 1 second) to switch on or switch off the light.

Quick Timer

.Keep pressing the Light/timer button for 2-3 seconds to switch on the quick timer.

The working speed button will become flashing, the quick timer will last for 5 seconds.

When the count down finish, there will be 'bit' sounds for 5 seconds.

To cancel the quick timer, press Light/Timer button again or press the ON/OFF button.

1

2

3

STANDBY MODE.

After plug in, all lighting, system in STANDBY MODE.

Low Speed button

cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

Booster button

Depress this button to enter into highest speed and again to turn off motor.

Light button

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust.... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
