Product Type	Air Purifier / Air Cooler and Humidifier
Brand	Sonnenkönig
Model	Air Fresh 12
Rated Voltage	220 - 240 V~
Rated Frequency	50 Hz
Power Consumption	65 W
Protection Class	II
Water Tank Capacity	6000 ml (6 L)
Main Functions	Cooling (cold water/ice), humidification, vertical and horizontal oscillation, timer (0.5 to 8 h), sleep mode, child lock
Fan Speeds	Low, Medium, High
Display	Screen with indicators, energy saving mode (display off)
Remote Control	Included
Maintenance and Cleaning	Clean the water tank and mesh filter every two weeks; clean the cooling system once a month
Safety	Automatic shut-off in case of water shortage (3 beep alerts), child lock, overheat protection (not specified but auto shut-off)
Spare Parts and Repairability	Use only original spare parts; repair by a qualified technician
Warranty	24 months from the date of purchase
General Information	Household use only; flat and dry surface; do not immerse

Frequently Asked Questions - Air Fresh 12 Sonnenkönig

How to clean the water tank and filter?

Unplug the appliance. Remove the water tank by pulling it about 10 cm until the safety pin. Clean it with a soft cloth. The mesh filter should also be cleaned every two weeks. Use a dry cloth to absorb residual water on the atomization head.

How to use the cooling function?

Make sure the water tank contains enough water (minimum required). Press the COOLER button to activate the water pump. For optimal effect, add ice cubes to the upper water tank.

What to do if the appliance stops and emits three beeps?

This is the water shortage alert signal. The cooling function automatically stops. Refill the water tank and restart the appliance.

How to set the timer?

During operation, press the TIMER button several times to increase the time in 0.5-hour increments up to a maximum of 8 hours. The display shows the remaining time. At the end, the appliance turns off.

How to lock the control panel?

Press the LOCK button for 3 seconds to activate child lock. The buttons will be disabled. Press again for 3 seconds to unlock.

Can the appliance work without water?

Yes, the fan can work without water. However, the cooling and humidification functions require water in the tank. If you activate cooling without water, the alarm will sound and the function will stop.

What is the water tank capacity?

The water tank has a capacity of 6000 ml (6 liters). It is advisable to fill it with fresh water for better cooling.

How to oscillate the appliance?

Use the OSC buttons: one for vertical oscillation (up/down) and another for horizontal oscillation (left/right). Press once to activate, again to deactivate.

Can I add ice cubes to the water tank?

Yes, for a more intense cooling, you can place ice cubes or an ice tray in the upper water tank. This lowers the water temperature and improves the cooling effect.

How to completely turn off the appliance after using cooling?

After stopping cooling, the fan continues to run for 5 minutes to dry the system. To force immediate shutdown, press the ON/OFF button twice (OFF).

USER MANUAL Air Fresh 12 Sonnenkönig

Festnetz 14 Cent/Minute

Modifications techniques

Festnetz 14 Cent/Minute

1 Introduction 42
2 Safety Information 42
3 Technical specifications 44
4 Part Designation/Assembly 45
5 How to fill the water tank. 46
6 How to use 47
7 Functional description 48
8 Cleaning and storage 49
9 Maintenance 50

10 Warranty / Disposal / Technical change 50

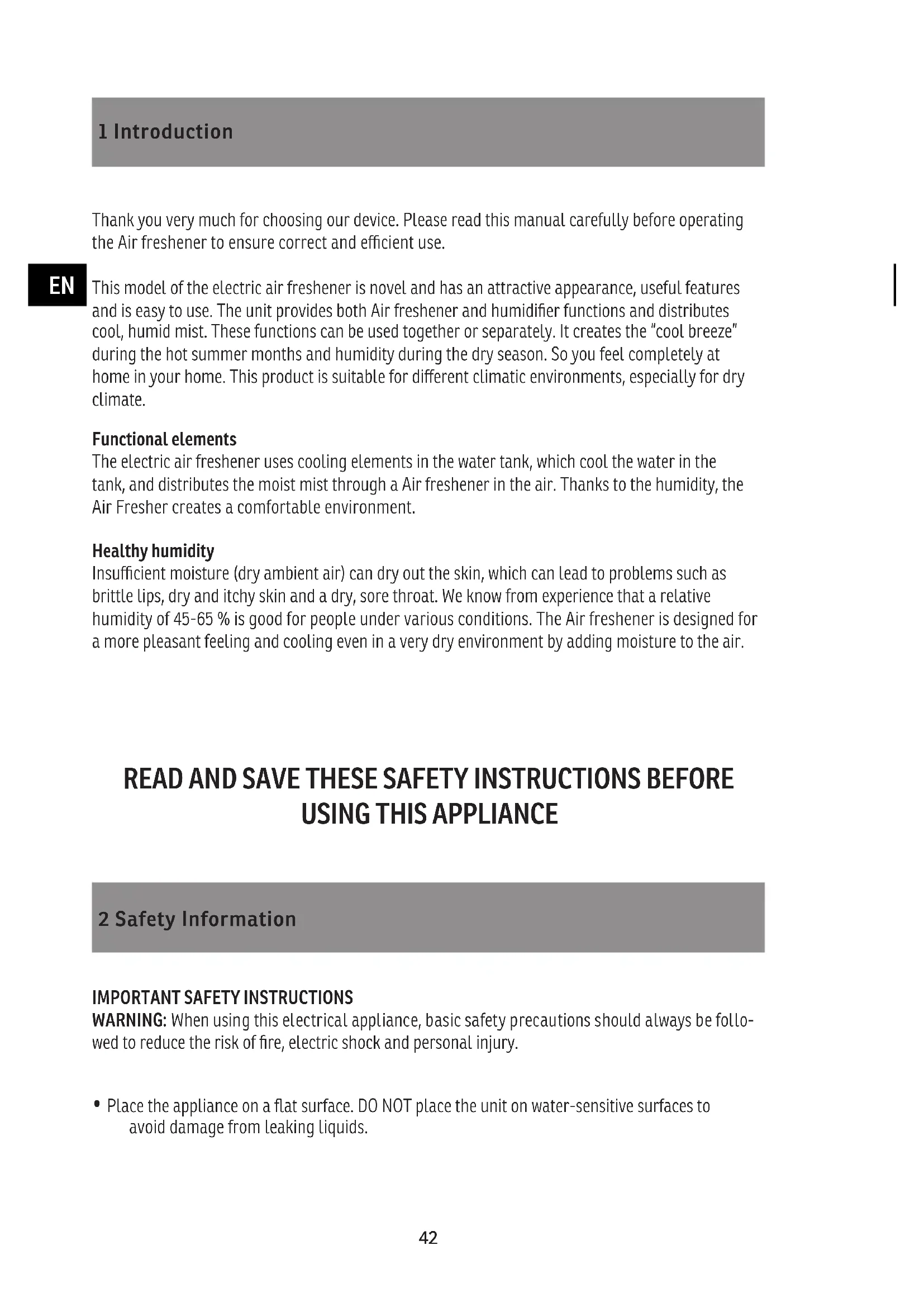

1 Introduction

Thank you very much for choosing our device. Please read this manual carefully before operating the Air freshener to ensure correct and efficient use.

EN

This model of the electric air freshener is novel and has an attractive appearance, useful features and is easy to use. The unit provides both Air freshener and humidifier functions and distributes cool, humid mist. These functions can be used together or separately. It creates the "cool breeze" during the hot summer months and humidity during the dry season. So you feel completely at home in your home. This product is suitable for different climatic environments, especially for dry climate.

Functional elements

The electric air freshener uses cooling elements in the water tank, which cool the water in the tank, and distributes the moist mist through a Air freshener in the air. Thanks to the humidity, the Air Fresher creates a comfortable environment.

Healthy humidity

Insufficient moisture (dry ambient air) can dry out the skin, which can lead to problems such as brittle lips, dry and itchy skin and a dry, sore throat. We know from experience that a relative humidity of 45 - 65% is good for people under various conditions. The Air freshener is designed for a more pleasant feeling and cooling even in a very dry environment by adding moisture to the air.

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS APPLIANCE

2 Safety Information

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using this electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury.

• Place the appliance on a flat surface. DO NOT place the unit on water-sensitive surfaces to avoid damage from leaking liquids.

• Use this air freshener only as described in this manual. Other use not recommended may cause fire, electric shock or injury to persons.

• This product is intended for household use ONLY and not for commercial, industrial or outdoor use.
• To protect against electric shock: do not place Air freshener on windowsills; do not immerse unit, plug or cord in water; and do not spray with liquids.
• To reduce the risk of shock, this plug is intended to fit the outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to bypass this safety feature.
• To reduce the risk of fire and electric shock, do not use this Air freshener with any solid-state speed control device.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Turn the Air freshener OFF and unplug the device from the outlet when not in use, when moving it from one location to another, and before cleaning.
• To disconnect the Air freshener, first turn the unit OFF, grip the plug and pull it from the wall outlet. Never pull the plug by the cord.
• Do not operate the Air freshener in the presence of explosive and/or flammable fumes.
• Do not place the Air freshener or any parts near an open flame, cooking or other heating appliance.
• Do not operate the Air freshener with a damaged cord or plug, or if the product malfunctions, or is dropped and damaged in any way.
• Avoid contact with any moving part of the air freshener.
• The use of attachments not recommended by the manufacturer may be hazardous.
• Place the Air freshener on a dry, level surface.
• Do not hang or mount the Air freshener on a wall or ceiling.
• Do not operate if the Air freshener casing is damaged.

• A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.

• Use the device only on a power supply that matches that shown on the unit's rating label.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazards.
• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way, and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

EN

3 Technical specifications

Model No. AIR FRESH 12
Rated Voltage 220 - 240V~
Rated Frequency 50 Hz
Power Input 65 W
Protection Class II
Water Tank Capacity 6000 ml

4 Part Designation/Assembly

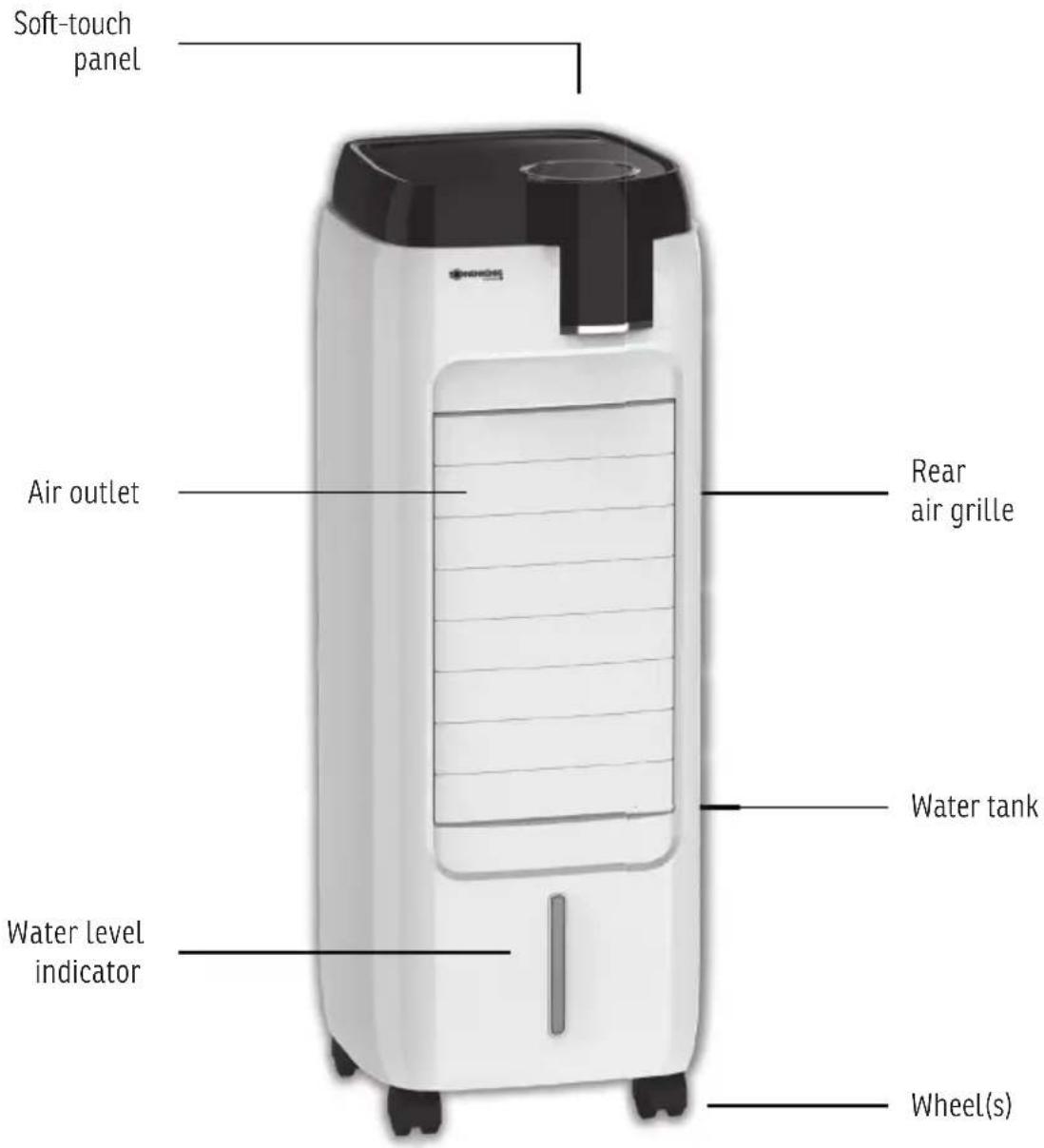

PART DESIGNATION

ASSEMBLY

Position the air freshener on a level floor; insert the wheels into the holes positioned on the bottom of the unit.

EN

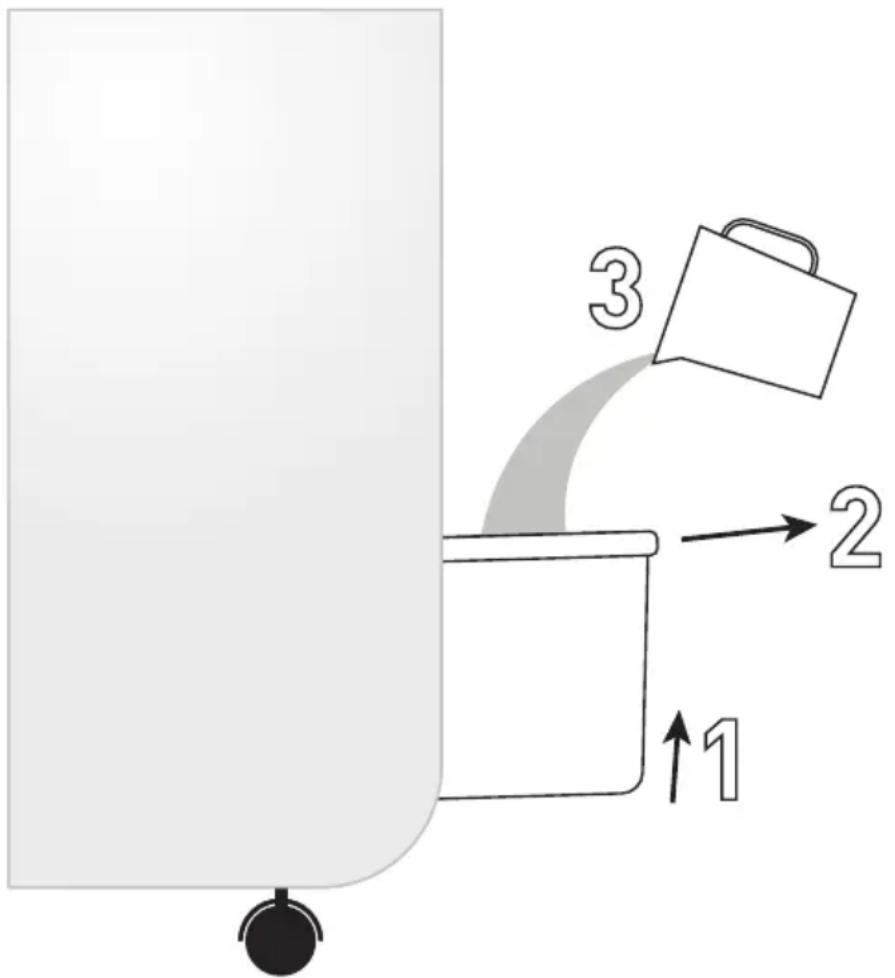

5 How to fill the water tank

Place the air freshener on a level ground and follow the steps below:

EN

(1) Lift the water tank slightly.
(2) Pull out the water tank about 10cm to the safety pin, then add water.
(3) Fill the tank with water or clean it.
(4) Push the water tank back into the appliance.

6 How to use

• Please ensure that the device is powered off before plugging it into the power socket.
• Place the unit on a firm, water resistant, and level surface.
• Avoid overloading the circuit by not plugging other high wattage products into the same power socket.

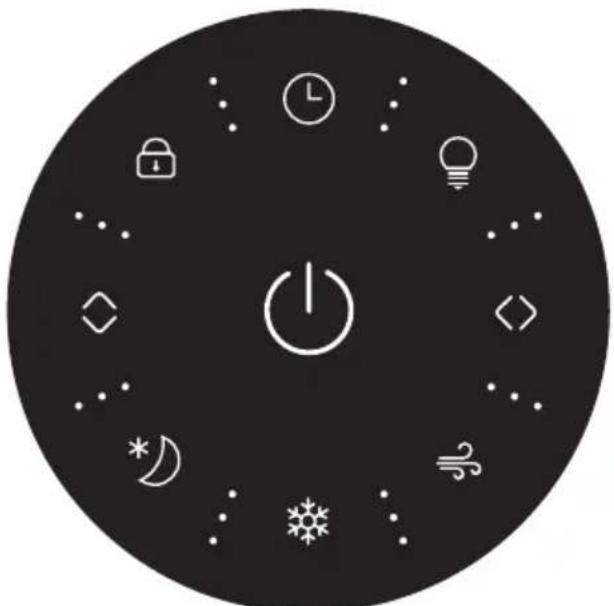

Display panel

Remote control

EN

7 Functional description

ON/OFF	Press this button to turn on the unit at low speed. Press it again to turn off the unit.
SPEED	Press this button to switch the unit from LOW to MID to HI speed, in Normal Mode. ~ LOWMIDHIGH~ ≈
SLEEP MODE	Press to select the sleep mode. This changes regularly between the different ventilation levels.
OSC	Press this button to start the oscillation in up and down direction. Press it again to stop the oscillation.
OSC	Press this button to start the oscillation in left and right direction. Press it again to stop the oscillation.
COOLER	Before activating this function, ensure there is enough water in the lower water tank. Press this button and the water pump starts running. The water circulates from the cooler master to allow warm air to be converted to cool air (warm air combined with water vapor) and to cool down the temperature effectively. If you have used the cooler function, when you stop the product, the Air freshener will continue working for 5 minutes to dry the cooler master. If you press the "Off" button twice, the product will be forced to stop. ** For better cooling effect, we recommend adding an ice box or ice in the upper water tank. Caution: the unit has a water shortage warning system. If there is not enough water, the COOLER function will be automatically stopped, and 3 beep warning sound will be heard, and the cooler display will flash.
TIMER	When the unit is in use, you can set the Timer to turn off the Air freshener after a specified time. Press this button repeatedly to increase the Timer setting in 0.5 hour increments (up to a maximum of 8 hours) as indicated on the display. Once the Timer has run out, the unit will turn off.
POWER SAVE MODE	With this key you can deactivate the display of the device. Press the button once to turn off the display. Press again to turn it back on.
LOCK	Press this button for 3 seconds to lock the control panel in the event of a child operating error. Press again for 3 seconds to disable this function.

8 Cleaning and storage

1. Unplug the unit before cleaning.
2. Please clean the water tank and filter mesh every four weeks.
3. Please clean the cooling master when it is visibly dirty or every month (depending on the condition of the environment).
4. Use a dry cloth to absorb any remaining water on the atomizing cup, and dry it using a piece of soft cloth.
5. Pack this appliance properly and store it in a cool dry place if it is not used for a long period.

Cleaning method:

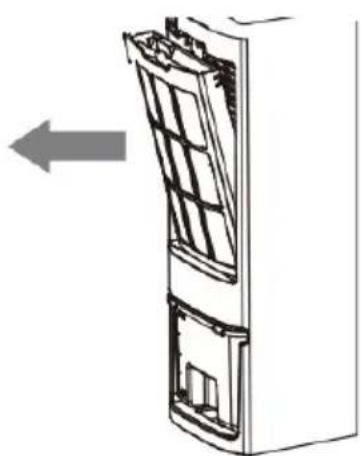

1. Press the door lock and remove the back including the filter.

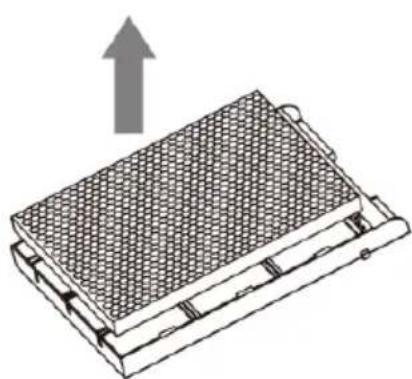

2. Then clean the filter and the cooling element.

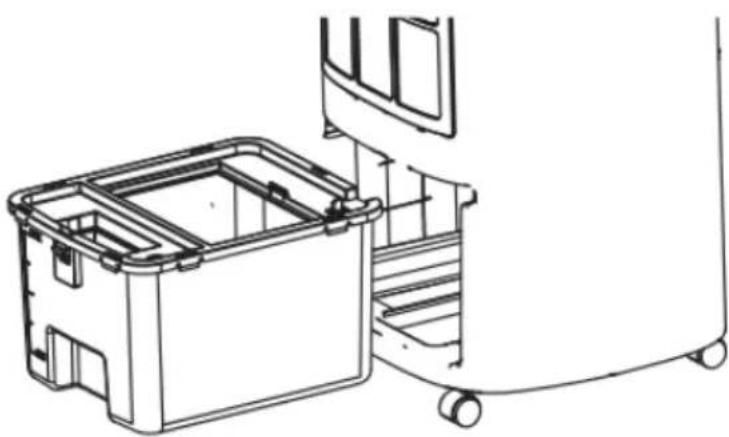

3. Pull the water tank completely out of the unit.
4. Clean the water tank and the gutter.

EN

9 Maintenance

• Have your product repaired only by a qualified person.
• This electrical product meets the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.
• Please contact the store in which you bought the product for after-sale services, if required.

10 Warranty / Disposal / Technical change

Warranty

The products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

We reserve the right to modify the price, the design and the technical features. Please save the packaging materials of the unit.

CE Declaration of Conformity

This device complies with the following standards

EN 55014-1:2017

EN 55014-2:2015

EN 60335-1:2012/A13:2017

EN 60335-2-98:2003 + A1:2005 + A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 62233:2008

2014/35/EU

2014/30/EU

2015/863/EU

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 31 March 2015 implementing Directive 2012/19/ EC and the Law of 4 March 2014 implementing Directive 2011/863/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L'adequata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. Composed the equipment. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

EN

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/ EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that it is prohibited to dispose of used batteries in household waste.

Batteries and batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. The service is free. In this way, legal requirements will be respected and the environment will be protected. The symbols identifying hazardous materials that may be present in batteries and accumulators are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.
