Product Type	Color Multifunction Printer
Brand	SAGEM
Model	MF 6890N
Main Functions	Print, copy, scan, fax (optional)
Print Technology	Color laser, electrophotographic
Supported Paper Sizes	A4, A5, A6, B5, B6, Letter, Legal, Envelopes (Monarch, DL, C5, #6, #9, #10), Hagaki, Postcards, Custom sizes
Paper Weight	Cassette: 60-105 g/m²; Multifunction tray: 60-200 g/m²
Standard Paper Capacity	Cassette: 500 sheets; Multifunction tray: 100 sheets
Paper Options	Additional paper feeder (3 cassettes of 500 sheets), Duplex unit
Duplex Printing	Automatic (with optional duplex unit)
Standard Memory	128 MB
Maximum Memory	1024 MB (2 DIMM slots)
Optional Hard Disk	Yes (for e-MPS and job storage)
Interfaces	Parallel, USB, Network (Ethernet 10/100)
Network Protocols	TCP/IP, NetWare, AppleTalk
Emulations	PCL 6, KPDL3 (compatible PostScript 3)
Print Quality	600 x 600 dpi, Fine mode for smooth halftones
Power Supply	230 V AC, 50/60 Hz
Power Consumption	Standby: < 15 W (estimated)
Dimensions (W × D × H)	Approximately 500 × 500 × 400 mm (estimated)
Weight	Approx. 25 kg (estimated)
Noise Level	During printing: < 55 dB(A) (estimated)
Consumables	Color and black toner cartridge, photoconductor drum
Maintenance	Clean feed rollers, calibrate colors periodically
Safety	CE marking, compliant with R&TTE Directive 1999/5/EC, Low Voltage Directive 73/23/EC, and EMC Directive 89/336/EC
Repairability	Spare parts available: toner cartridge, drum, fuser unit, rollers. Memory and hard disk options installable by technician.

Frequently Asked Questions - MF 6890N SAGEM

How to load paper in the multifunction tray?

Open the multifunction tray, adjust the guides according to the paper size, then insert the stack of paper with the print side up. For envelopes, place the flap up and insert the right side first.

How to cancel an ongoing print job?

Press the CANCEL key on the control panel. The message 'Cancel Print' is displayed. Press ENTER to confirm. Printing stops after the current page.

How to print on both sides (duplex)?

Duplex printing requires the optional duplex unit. From the control panel, go to the Paper Management menu and enable the Duplex Printing option. You can also select it in the printer driver.

What to do in case of paper jam?

Open the front cover of the printer and carefully remove the jammed paper. Use the help guides (key ?) to locate the jam. Avoid tearing the paper. Close the cover and press GO to resume.

How to configure the printer's IP address?

Access the Interface > Network menu on the control panel. Enable TCP/IP, then set the IP address, subnet mask, and default gateway. Use the arrow keys to enter values. Print a network status page to verify.

How to replace the toner?

Open the front cover of the printer. Remove the used toner cartridge by pulling it toward you. Take the new cartridge out of its packaging, shake it gently, then insert it into the slot until it clicks. Close the cover. The printer performs initialization.

How to print from a memory card?

Insert the memory card into the slot (printer off). Turn on the printer. Press MENU, select Storage Device Usage, then Memory Card. Choose the file to print and confirm.

How to perform color calibration?

Access the Other > Service > Color Calibration menu. Press ENTER to start calibration. The message 'Please Wait (Calibrating)' is displayed. When finished, the 'Ready' status reappears. Calibration also occurs automatically at power-on.

What type of paper is recommended for transparencies?

Use transparencies designed for laser printers, such as 3M CG3700 (Letter or A4). Load them in the multifunction tray, with the long side facing the printer. Avoid fingerprints by handling them by the edges.

How to perform a quick copy (quick copy)?

In the printer driver, select Quick Copy mode before printing. The printer stores the job on the hard disk. To print additional copies, go to e-MPS > Quick Copy on the control panel, select the job, and set the number of copies.

USER MANUAL MF 6890N SAGEM

Limited Warranty 4-11

Limitation of Remedies 4-12

General 4-12

Sagem Communication - Customer relations department

Voyant Interface (INTERFACE)

m = 311 ;

Orientation Portrait

Orientation Paysage

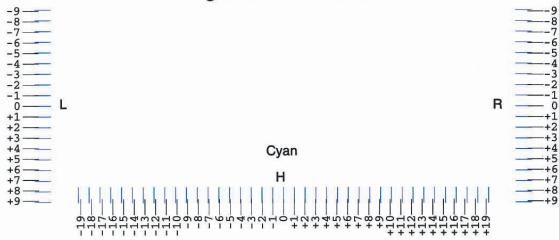

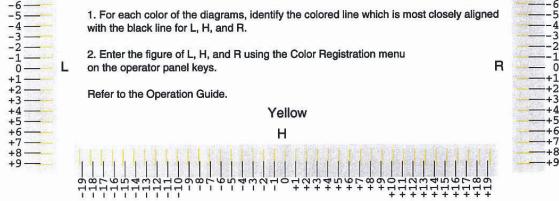

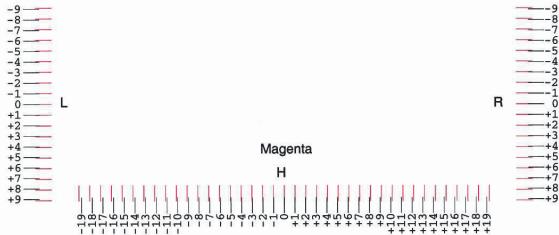

Color Registration Correction Chart

Color registration procedure

The device you have purchased contains one or more software programs ("Programs") which belong to international business machines corporation ("IBM"). This document defines the terms and conditions under which the software is being licensed to you by IBM. If you do not agree with the terms and conditions of this license, then within 14 days after your acquisition of the device you may return the device for a full refund. If you do not so return the device within the 14 days, then you will be assumed to have agreed to these terms and conditions.

The Programs are licensed not sold. IBM, or the applicable IBM country organization, grants you a license for the Programs only in the country where you acquired the Programs. You obtain no rights other than those granted you under this license.

The term "Programs" means the original and all whole or partial copies of it, including modified copies or portions merged into other programs. IBM retains title to the Programs. IBM owns, or has licensed from the owner, copyrights in the Programs.

License

Under this license, you may use the Programs only with the device on which they are installed and transfer possession of the Programs and the device to another party.

If you transfer the Programs, you must transfer a copy of this license and any other documentation to the other party. Your license is then terminated. The other party agrees to these terms and conditions by its first use of the Program.

You may not:

1) use, copy, modify, merge, or transfer copies of the Program except as provided in this license;
2) reverse assemble or reverse compile the Program; or
3) sublicense, rent, lease, or assign the Program.

Limited Warranty

The Programs are provided "AS IS."

There are no other warranties covering the Programs (or conditions), express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Some jurisdictions do not allow the exclusion of implied warranties, so the above exclusion may not apply to you.

Limitation of Remedies

IBM's entire liability under this license is the following;

1) For any claim (including fundamental breach), in any form, related in any way to this license, IBM's liability will be for actual damages only and will be limited to the greater of:
a) the equivalent of U.S.$25,000 in your local currency; or b) IBM's then generally available license fee for the Program

This limitation will not apply to claims for bodily injury or damages to real or tangible personal property for which IBM is legally liable.

IBM will not be liable for any lost profits, lost savings, or any incidental damages or other economic consequential damages, even if IBM, or its authorized supplier, has been advised of the possibility of such damages. IBM will not be liable for any damages claimed by you based on any third party claim. This limitation of remedies also applies to any developer of Programs supplied to IBM. IBM's and the developer's limitations of remedies are not cumulative. Such developer is an intended beneficiary of this Section. Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.

General

You may terminate your license at any time. IBM may terminate your license if you fail to comply with the terms and conditions of this license. In either event, you must destroy all your copies of the Program. You are responsible for payment of any taxes, including personal property taxes, resulting from this license. Neither party may bring an action, regardless of form, more than two years after the cause of action arose. If you acquired the Program in the United States, this license is governed by the laws of the State of New York. If you acquired the Program in Canada, this license is governed by the laws of the Province of Ontario. Otherwise, this license is governed by the laws of the country in which you acquired the Program.

Typeface Trademark Acknowledgement

All resident fonts in this printer are licensed from Agfa Corporation.

Helvetica, Palatino and Times are registered trademarks of Linotype-Hell AG.

ITC Avant Garde Gothic, ITC Bookman, ITC ZapfChancery and ITC Zapf Dingbats are registered trademarks of International Typeface Corporation.

Agfa Japan License Agreement

1. "Software" shall mean the digitally encoded, machine readable, scalable outline data as encoded in a special format as well as the UFST Software.

2. You agree to accept a non-exclusive license to use the Software to reproduce and display weights, styles and versions of letters, numerals, characters and symbols ("Typefaces") solely for your own customary business or personal purposes at the address stated on the registration card you return to Agfa Japan. Under the terms of this License Agreement, you have the right to use the Fonts on up to three printers. If you need to have access to the fonts on more than three printers, you need to acquire a multi-user license agreement which can be obtained from Agfa Japan.

Agfa Japan retains all rights, title and interest to the Software and Typefaces and no rights are granted to you other than a License to use the Software on the terms expressly set forth in this Agreement.

1. To protect proprietary rights of Agfa Japan, you agree to maintain the Software and other proprietary information concerning the Typefaces in strict confidence and to establish reasonable procedures regulating access to and use of the Software and Typefaces.

2. You agree not to duplicate or copy the Software or Typefaces, except that you may make one backup copy. You agree that any such copy shall contain the same proprietary notices as those appearing on the original.

3. This License shall continue until the last use of the Software and Typefaces, unless sooner terminated. This License may be terminated by Agfa Japan if you fail to comply with the terms of this License and such failure is not remedied within thirty (30) days after notice from Agfa Japan. When this License expires or is terminated, you shall either return to Agfa Japan or destroy all copies of the Software and Typefaces and documentation as requested.

4. You agree that you will not modify, alter, disassemble, decrypt, reverse engineer or decompile the Software.

7.Agfa Japan warrants that for ninety (90) days after delivery, the Software will perform in accordance with Agfa Japan-published specifications, and the diskette will be free from defects in material and workmanship. Agfa Japan does not warrant that the Software is free from all bugs, errors and omissions.

The parties agree that all other warranties, expressed or implied, including warranties of fitness for a particular purpose and merchantability, are excluded.

1. Your exclusive remedy and the sole liability of Agfa Japan in connection with the Software and Typefaces is repair or replacement of defective parts, upon their return to Agfa Japan.

In no event will Agfa Japan be liable for lost profits, lost data, or any other incidental or consequential damages, or any damages caused by abuse or misapplication of the Software and Typefaces.

9.New York, U.S.A. law governs this Agreement.

1. You shall not sublicense, sell, lease, or otherwise transfer the Software and/or Typefaces without the prior written consent of Agfa Japan.

11.Use, duplication or disclosure by the Government is subject to restrictions as set forth in the Rights in Technical Data and Computer Software clause at FAR 252-227-7013, subdivision (b)(3)(ii) or subparagraph (c)(1)(ii), as appropriate. Further use, duplication or disclosure is subject to restrictions applicable to restricted rights software as set forth in FAR 52.227-19 (c)(2).

1. You acknowledge that you have read this Agreement, understand it, and agree to be bound by its terms and conditions. Neither party shall be bound by any statement or representation not contained in this Agreement. No change in this Agreement is effective unless written and signed by properly authorized representatives of each party. By opening this diskette package, you agree to accept the terms and conditions of this Agreement.
