CG 4060 N - Coffee machine Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	CG 4060 N
Product Type	Filter coffee machine
Rated Voltage	230 V ~ AC
Frequency	50 Hz
Rated Power	800 W
Water tank capacity	1.25 L (about 10 cups)
Carafe	Glass carafe with level indicator
Permanent filter	Yes (reusable filter)
Hot plate	Yes, keeps coffee warm
Safety	Automatic shut-off? Not specified; hot surface; do not use without water
Maintenance and cleaning	Clean with a damp cloth; carafe hand-washable; do not immerse
Power supply	Mains plug, power cord
Usage	Household use only
Warranty	Manufacturer's warranty (see manual)

Frequently Asked Questions - CG 4060 N Orbegozo

How to use the Orbegozo CG 4060 N coffee machine?

Open the water tank lid, fill it with water according to the desired number of cups. Open the filter holder, add ground coffee into the permanent filter or a paper filter. Close the lids and turn on the appliance. The indicator light turns on. Once the coffee has brewed, turn off the machine and remove the carafe.

What type of ground coffee to use?

Use freshly ground coffee, medium grind (not too fine) for best taste and aroma.

How many cups can be prepared?

The water tank has a capacity of 1.25 liters, allowing to prepare about 10 cups of coffee.

How to clean the machine?

Unplug the appliance. Clean the exterior with a damp cloth. The carafe can be washed with warm water, mild soap, and a soft brush. Never put the carafe in the dishwasher and do not immerse the machine in water.

Can I use paper filters?

Yes, you can use a suitable paper filter in addition to the permanent filter. Make sure it is properly placed before adding ground coffee.

Does the hot plate keep the coffee warm?

Yes, the hot plate keeps the coffee warm after brewing. However, it is advisable to drink it quickly to preserve its aroma.

What are the important safety precautions?

Do not touch hot surfaces (carafe, plate). Use handles. Do not unplug by pulling the cord. Do not operate without water. Keep the appliance out of reach of children under 8 years.

What to do if the power cord is damaged?

If the cord is damaged, contact an approved technical service to have it replaced to avoid any danger.

How to descale the machine?

The manual does not provide specific details. For descaling, use a descaler compatible with filter coffee machines, following the recommendations of the descaler product manufacturer.

Where can I find the original manual?

The original manual is available in PDF format on the notice-facile.com website or you can request a copy by email at [e-mail].

USER MANUAL CG 4060 N Orbegozo

CAFETIÈRE - MANUEL D'INSTRUCTIONS

MAQUINA DE CAFÉ GOTA A GOTA - MANUAL DE INSTRUÇÉS

CG 4050 B

CG 4060 N

Sonifer, S.A.

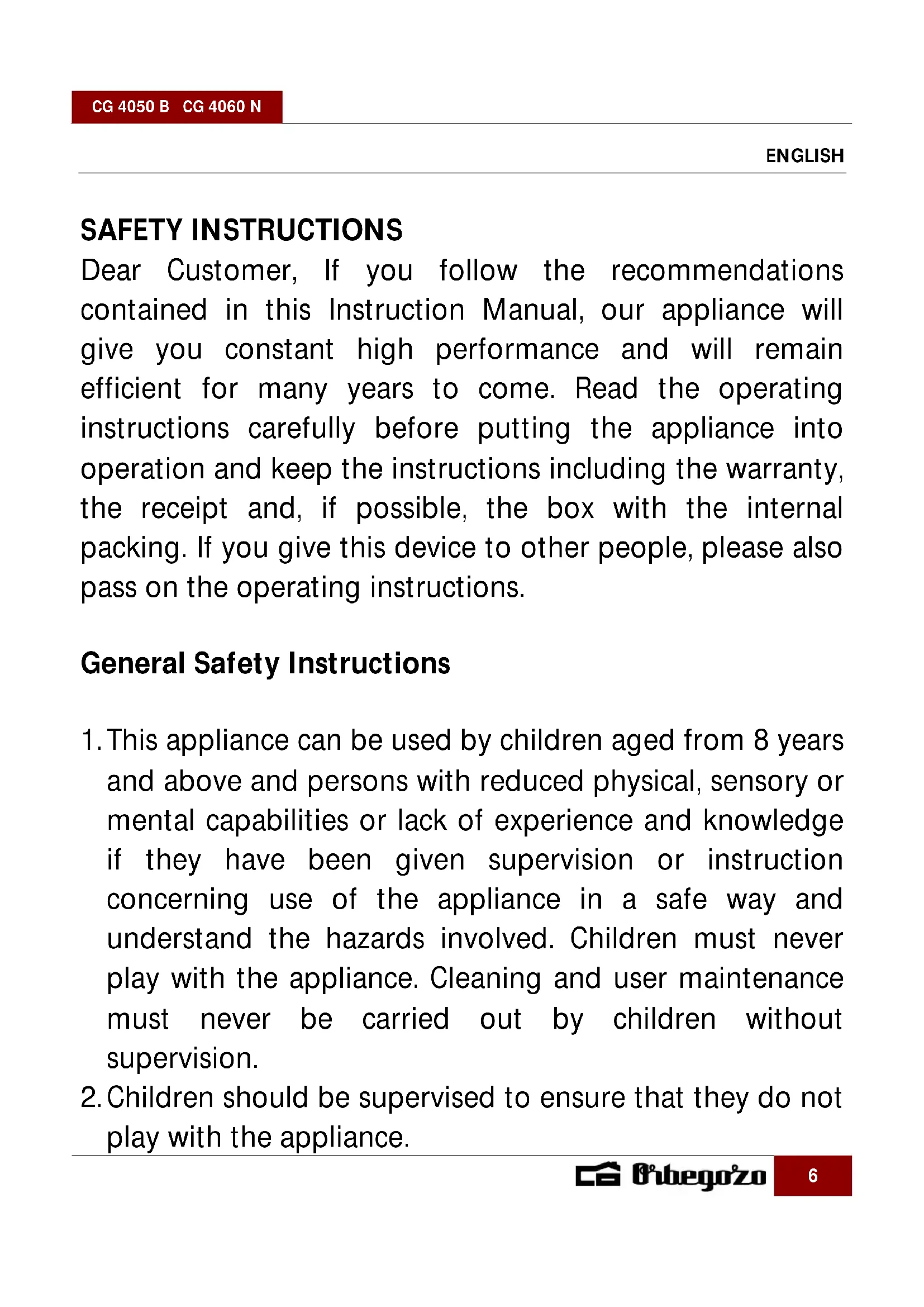

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].
14. WARNING: In case of misuse, there is a risk of possible injury.

Specific Safeguards

• To disconnect, remove plug from wall outlet. Always hold the plug. But never pull the cord.
• Be careful not to get burned by the steam.
• Do not touch hot surface. Use handles or knobs only.
• Never use the appliance if the carafe shows any signs of cracks. Only use the carafe with this appliance. Use carefully as the carafe is very fragile.
• Never use your coffee maker without water in it.
• Stand the appliance on a table or flat surface.
  ATTENTION. Hot surface.

The surface can become hot during operation"

TO MAKE COFFEE

1. Turn to open the tank cover and fill the water tank with as much water as cups of coffee are desired.
2. Turn back the tank cover.
3. Turn to open the funnel cover, put ground coffee as you need into the permanent filter or proper paper filter before making coffee.
4. Turn back the funnel cover.
5. Switch on the appliance and the pilot lamp illuminates, to indicate the unit is on.
6. After the brewing process, turn the coffee maker off and take away the carafe.

RECOMENDATIONS TO MAKE A GOOD CUP OF COFFEE

To give your coffee a better flavor and aroma, we recommend that you use recently ground coffee. The coffee should be medium ground and should not be too fine. Keep your coffee in a dry place. Once the coffee packet has been opened, keep it well closed in the refrigerator so as to maintain its aroma. Although the hotplate will keep the coffee hot, it is best to drink your coffee as soon as it is made.

TECHNICAL INFORMATION

Input voltage: 230V AC

Frequency: 50Hz

Power: 800 W

Volume: 1.25

CLEANING AND MAINTENANCE

• Disconnect the appliance.
• Never immerse the appliance in water.
  Clean the appliance with a damp cloth only.
  The carafe and the filter can be cleaned with warm water, some washing-up liquid and a soft brush.
• Do not clean the carafe and filter in a dishwasher.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product

reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.

CONSEILS DE SECURITE

DECLARATION DE CONFORMITE:
