CM 2360 - Crepe maker Orbegozo - Free user manual and instructions

Brand	Orbegozo
Model	CM 2360
Product type	Electric crêpe maker
Power supply	220-240 V ~ 50/60 Hz
Power consumption	1200 W (estimated)
Dimensions (W x D x H)	30 x 30 x 15 cm (estimated)
Weight	1.5 kg (estimated)
Cooking surface	Non-stick
Temperature control	Temperature knob with red (on) and green (ready) indicator lights
Capacity	Up to 8 crêpes (approx. 25 cm diameter)
Included accessories	Spatula, T-shaped spreader, cooking spatula
Material	Plastic and metal
Color	Black and silver
Cord length	1.2 m (estimated)
Control type	Thermostatic knob
Functions	Cooking crêpes, omelettes, eggs, pancakes
Safety	Hot surface, non-slip feet, auto shut-off not specified
Care and cleaning	Clean with a damp cloth after cooling; do not immerse
Cord storage	Compartment under the base
Compliance	Low Voltage Directive 2006/95/EC and EMC Directive 2004/108/EC

Frequently Asked Questions - CM 2360 Orbegozo

How to use the Orbegozo CM 2360 crêpe maker for the first time?

Before first use, remove all packaging and stickers. Wipe the surface with a damp cloth. Plug in the appliance, set the thermostat to maximum temperature to heat quickly, then reduce to the desired temperature. A slight odor is normal during first use.

What is the power of the CM 2360 crêpe maker?

The power is not explicitly stated in the manual, but for a crêpe maker of this size, the power is estimated at about 1200 W. This allows rapid heating and even cooking.

Can metal utensils be used on the non-stick surface?

No, never use metal utensils as they may damage the non-stick coating. Use only the provided plastic or wooden accessories (spatula, spreader).

How to clean the crêpe maker after use?

Unplug the appliance and wait for it to cool completely. Wipe the surface and sides with a soft cloth or paper towel. For the exterior, use a slightly damp cloth. Never immerse the appliance in water and do not put it in the dishwasher.

What types of preparations can be made with the CM 2360?

You can make classic crêpes, omelettes, eggs, and American pancakes. The non-stick surface allows cooking without excessive fat.

Are the indicator lights important?

Yes, the red light turns on when the appliance is powered, and the green light indicates that the cooking temperature is reached. Wait for the green light to turn on before pouring the batter.

What is the ideal cooking temperature for crêpes?

Set the thermostat to a medium position (between 3 and 4 on the dial). For a first cooking, it is advisable to heat at maximum power, then reduce. Cooking time is about 45 seconds per side.

Is the power cord long?

The cord is about 1.2 meters long, allowing use on a standard table or countertop. Store the excess in the compartment under the base.

What to do in case of strange odor during first use?

This is perfectly normal. Manufacturing residues may emit a slight odor during the first heating. Ventilate the room and the odor will disappear after a few minutes of use.

Where can I find the crêpe batter recipe supplied with the appliance?

The manual includes two recipes: thin crêpes and American pancakes. For crêpes, mix 125 g flour, 2 tbsp sugar, 3 eggs, 312 ml milk, 30 g melted butter, and 2 tbsp liquor. Let the batter rest for 30 minutes before use.

USER MANUAL CM 2360 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read and follow all the instructions in this "Use And Care" even if you feel you are familiar with the product, and find a place to keep it handy for future reference.

For your convenience record the complete model number (located on the product identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. Retain in the event that warranty service is required.

IMPORTANT SAFEGUARDS

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
14. WARNING: In case of misuse, there is a risk of possible injury.

Special Safety Instructions

• ATTENTION. Hot surface. The surface can become hot during operation.
• Do not use the device connected to an external timer or a separate remote control system.
• The electrical safety of the appliance is only guaranteed if it is connected to an efficient earth installation as specified in current electric safety regulations. The manufacturer does not accept responsibility for any damage resulting from a lack of earth installation.
• We strongly advise against the use of adapters, extension plugs and/or leads. In the case of these being necessary, use only simple or multiple adapters and extension leads which conform to current safety regulations, taking care not to exceed the voltage limit indicated on the adapter and/or extension lead.
• The baking surfaces get very hot.
• Warning: When the unit is switched on, the inside surfaces can reach extremely high temperatures and can

cause serious burns. Do not touch the appliance while it is switched on. Use the handles to move or adjust its position.

• Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.
• Keep the mains cord away from hot surfaces.
• Do not let the appliance operate unattended.
• Put the appliance on a flat, stable surface with sufficient free space around it.
• Let the appliance cool down completely before you remove the cooking plates, clean the appliance or put it away.
• Put the unit down onto a heat-resistant surface or mat.
• In order to prevent heat from building up, do not put the unit directly underneath a cupboard. Ensure that there is enough space all around.

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
• Place the appliance on a stable surface and make sure there is 10cm free of space around the appliance.
  NOTE: It is normal that strange odor comes out from the unit for the first use. This will cause after a short while.

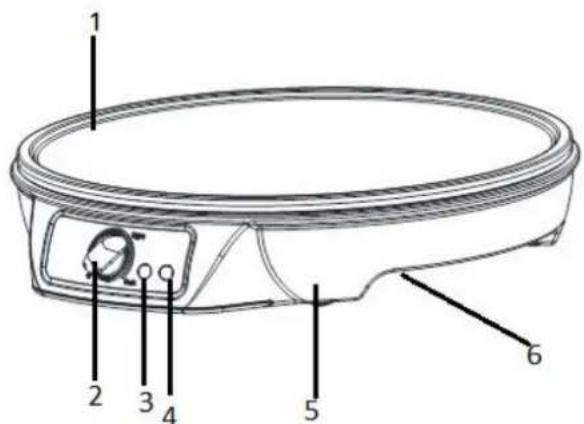

DESCRIPTION

1. Non-stick cooking surface
2. Temperature selector
3. ON/OFF light (red)
4. Ready light (green)
5. Base
6. Cord storage (in the bottom side)

USE

• Connect the power cable to the socket. (Note: Make sure the indicated voltage on the device matches the local voltage before connecting the device. Voltage 220V-240V ~ 50Hz).

• Set the temperature selector to the desired position. For quicker warming up set max temperature and then low it to desire temperature. Red on/off light will light.
• Once it reaches the desire temperature, ready light (green) will light.
• The heating plate should be rubbed in with some food oil.
• Place a small quantity of the prepared paste on the heating plate and distribute these evenly with the help of the spreader (accessory as "T").
• After about 45 seconds use the spatula to turn the crepe. The correct baking time depends on the dough mixture and the desired browning of the Crepes.
• Note: Never use metal articles for distributing the paste and/or for turning or taking the Crepes, since it could damage the non-adhesive coating of the heating plate.
• You can make pancakes, omelettes and eggs in your crepe maker.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Wipe the inside and the edges of the appliance with a paper towel or a soft cloth.
• Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Never immerse the device in water or any other liquid. The device in not dishwasher proof.

RECIPES

French crepes

Ingredients (8 pieces):

• 125 gr flour.
• 2 tablespoonful of powdered sugar.
• 3 eggs
• 312ml milk
• 30 gr of butter cream
• 2 tablespoons of sweet liqueur (Cointreau)

• Sieve the flour in a bowl and add the powdered sugar. Whisk the eggs and milk, pour the flour slowly and keep whisking until the mixture has a light texture. Then, add the butter cream and liqueur. Put the mixture in a jar.
• Warm the crepe maker to medium level. Pour about 65ml of the mixture on the surface, spread quick and uniformly with the spreader so you will make thin crepes. When the crepe begin to brown, turn it around with the spatula and cook on the other side.
• Roll them up or fold them into quarters.
• Serve them with pureed berries, jam, chocolate, caramel, syrup or dulce de leche.

American pancakes

Ingredients:

• 200gr flour
  -2 eggs
• 3 tablespoonful of sugar
• 2 teaspoons of yeast
• 1 tablespoonful of oil
• 1 glass of cold milk
• 1 / 2 teaspoon of salt

• Whisk the eggs, add milk, sugar and oil and mix it well.
• On the other side, mix flour with yeast and salt. Add it slowly to last blend (eggs, milk, sugar and oil) and mix it.
• Take the dough with a ladle and pour it in crepe maker, it is not necessary to use the spread. When bubbles appear on the dough turn it around. When it is golden colour it will be ready.
• You can eat pancake with chocolate, cream, syrup or what you want.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
