USER MANUAL CR 5016 Orbegozo

PTC FAN HEATER - INSTRUCTION MANUAL

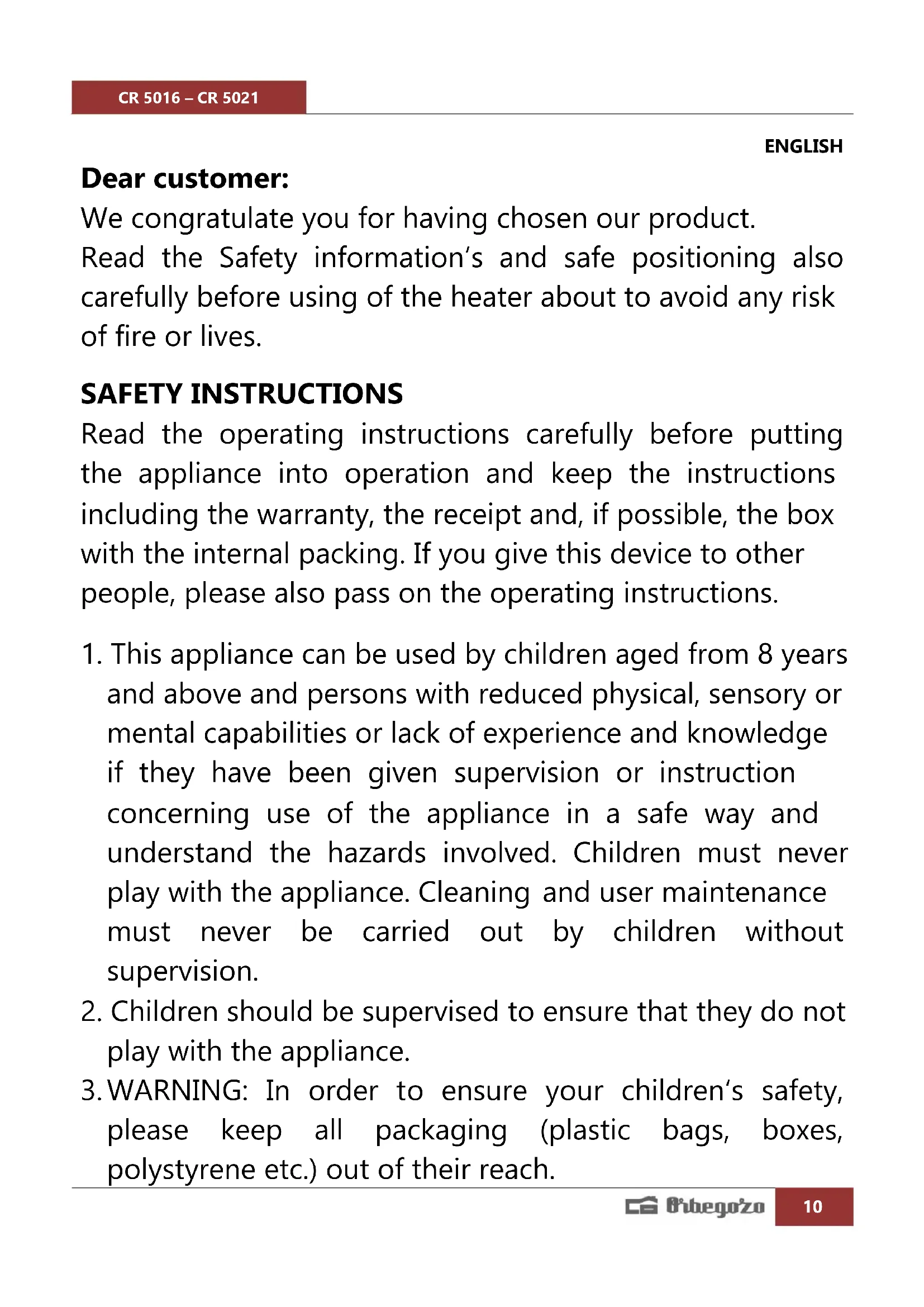

ENGLISH Dear customer: We congratulate you for having chosen our product. Read the Safety information’s and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives. SAFETY INSTRUCTIONS Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not

play with the appliance.

3. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.CR 5016 – CR 5021

4. If the supply cord is damaged it must be repaired by the

Authorized Service Agent.

5. Never pull on the cord when unplugging.

6. Do not use the unit with a damaged cord or plug, or if it

is not working properly.

7. Do not handle the appliance with wet hands.

8. Never immerse the appliance in water or any other

9. Make sure the appliance has been unplugged before

10. This appliance must be installed following the national

regulations for electrical installations.

11. This appliance is for household use only.

12. In case that you need a copy of the instruction manual,

you can find it in www.orbegozo.com.

13. WARNING: In case of misuse, there is a risk of possible

injury. The meaning of figure in marking is “DO NOT COVER”. WARNING: In order to avoid overheating, do not cover the heater. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operatingCR 5016 – CR 5021

position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. The device should not be placed immediately below a socket base. Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat. Do not use this heater in the immediate vicinity of a bath, shower or pool. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly. Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard! Allow ample space around the heater. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top.CR 5016 – CR 5021

Always unplugged the heater after use. Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance! Keep the mains cord at a safe distance from the air inlet and outlet grilles. Do not use this heater if it has been dropped. Do not use if there are visible signs of damage to the heater. Use this heating appliance on a horizontal and stable surface, or if possible fix it to a wall.

WARNING: Do not use this heater in rooms that are

occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.

WARNING: To reduce the risk of fire, keep textiles,

curtains, or other flammable material at least 1m away from the air outlet. These instructions for use belong to the appliance and must be kept in a safe place. When changing owners, these instructions must be surrendered to the new owner! SAFE POSITIONING

1. The heater must not be located immediately below a socket outlet

2. For your own safety and that of others: water and electricity are a dangerous combination! Do not use

this heater in the immediate surroundings of a bath, a shower or a swimming pool. Ensure that the appliance cannot fall into water (bath wash basin, shower cubicle, etc.)

3. Please read also the safety information’s before using.

4. Do not use the heater on extremely deep-pile carpets!

The selector switch and the thermostat knob enable you to select the following functions: Selector switch: Ο : OFF. Both the fan and the two heating elements are switched off : “Cool air”. Only the fan is switched on I : “Warm air for gradual heating-up. ECO position (750 W): the fan andone of the heating leements are switched on. II : “Hot air” for quick heating-up. Full power (1500 W): the fan and the two heating elements are switched on. Thermostat knob: With the thermostat knob you can set a constant room temperature. When the selector switch is set to position I or position II the heater will automatically switch on as soon as the room temperature falls below the set temperature. As soon as the set temperature falls is reached, the switch will turn off. Rotate the knob clockwise to obtain a higher temperature setting or anti-clockwise for a lower temperature setting. You may adjust the thermostat during use. Oscillation (CR 5021) With the rocker switch you can switch on or off the oscillation of the fan heater. The oscillation function can be operated to every function separately.

OVERHEATING SAFETY DEVICE

To prevent damage and risks due to overheating, the built-in overheating safety device cuts off the power as soon as the heating elements become too hot. MAINTENANCE - Before undertaking any maintenance operation, disconnect the appliance from the power supply. - This appliance does not require any particular maintenance. For cleaning it is recommended to use a soft moist rag and neutral detergent. Do not use an abrasive cloth or devices which could affect the outward appearance of the appliance. Check that the parts exposed to the heat rays and the ventilation are free of dust and dirt. - In case of breakdown and/or poor function of the appliance, disconnect the appliance from the power supply and contact an authorized service center. Always request the use of original spare p arts.CR 5016 – CR 5021

Item Symbol Value Unit

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat [no] Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback [no] Maximum continuous heat output

electronic heat charge control with room and/or outdoor temperature feedback [no] Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

single stage heat output and no room temperature control [no] In standby mode

Two or more manual stages, no room temperature control [no]

with mechanic thermostat room temperature control [yes]

with electronic room temperature control [no]

electronic room temperature control plus day timer [no]

electronic room temperature control plus week timer [no]

Other control options (multiple selections possible)

room temperature control, with presence detection [no]

room temperature control, with open window detection [no]

with distance control option [no]

with adaptive start control [no]

with working time limitation [no]

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.CR 5016 – CR 5021
