USER MANUAL RM 1000 Orbegozo

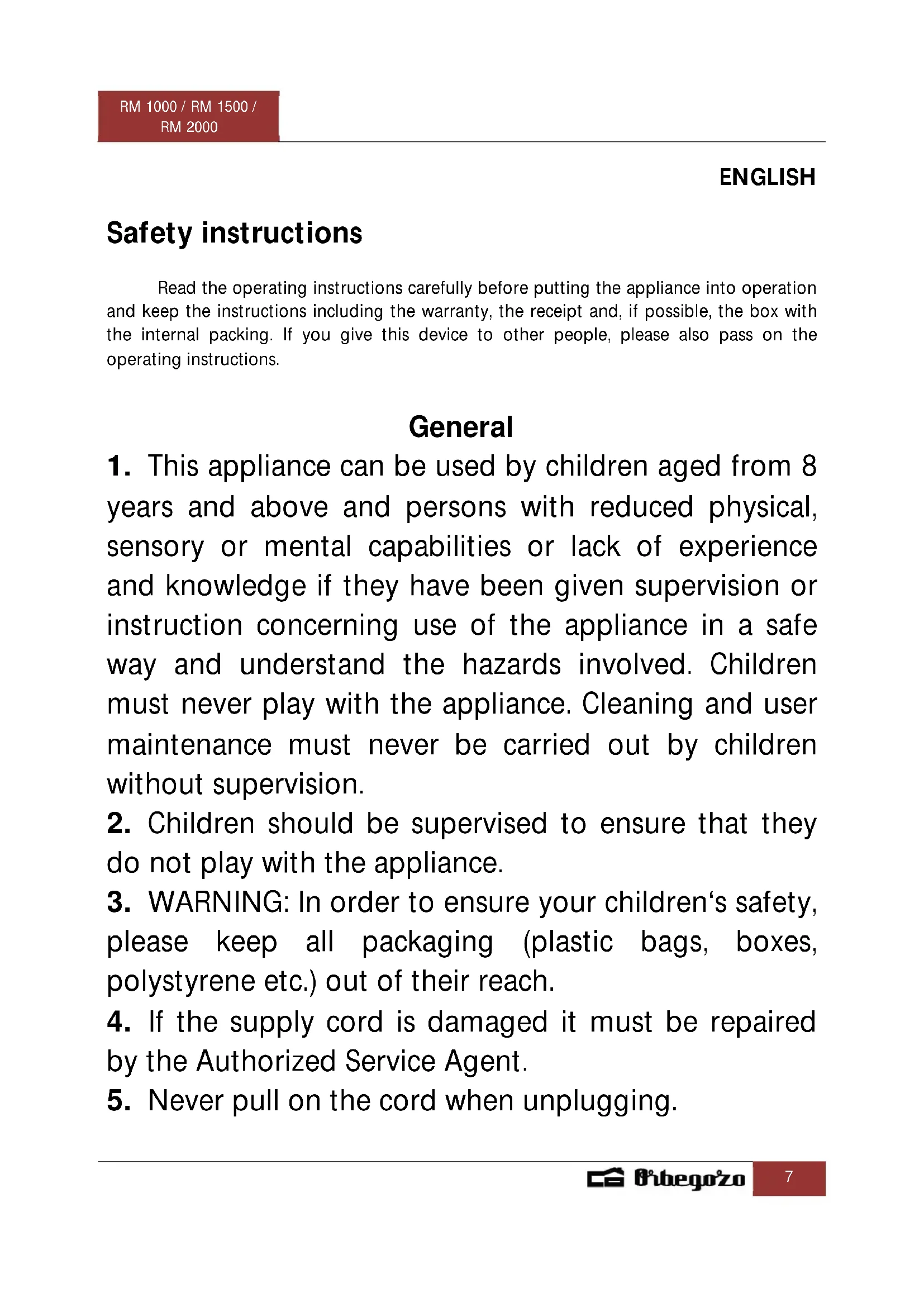

ENGLISH Safety instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions. General

1. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they

do not play with the appliance.

3. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired

by the Authorized Service Agent.

6. Do not use the unit with a damaged cord or plug,

or if it is not working properly.

7. Do not handle the appliance with wet hands.

8. Never immerse the appliance in water or any other

9. Make sure the appliance has been unplugged

10. This appliance must be installed following the

national regulations for electrical installations.

11. This appliance is for household use only.

12. In case that you need a copy of the instruction

manual, you can ask for it writing an email to sonifer@sonifer.es.

13. WARNING: In case of misuse, there is a risk of

possible injury. Specific

WARNING: The meaning of this figure is “Do

not cover”. In order to avoid overheating, do not cover the heater.

• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided thatRM 1000 / RM 1500 / RM 2000

it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• CAUTION: Some parts of this appliance may become hot and cause burns. Particular attention should be when children and vulnerable people are present.

• The appliance must not be located immediately below a socket- outlet.

• Do not place the unit close to walls, furniture, scrims, curtains, bedding and other flammable materials due to the risk of fire.

• Do not use this heater in the immediate surroundings of a bath, shower or pool.

• Always disconnect the radiator outlet when not in use or when cleaning.

• Keep the device clean. Never insert objects into the ventilation slots, as this may cause electric shock, fire or damage to the heater. The pictures in this manual are only for your reference. The product you purchased may vary thereof.RM 1000 / RM 1500 / RM 2000

MOUNTING LEGS Place the wheels on the brackets and click them together. Place the brackets with wheels on the ends of the bottom of the unit and screw.

WALL MOUNT Prior to the installation on a wall, you should be aware that the device, once installed, must comply with the following minimum distances:

• In any case above the radiator should be no impediment (tables, shelves, etc.) less than 50 cm. Attach the unit to the wall using these steps: - Place the bracket against the wall and mark the holes. - Drill the wall at the marked points and enter the plastic anchors.

RM 1000: a = 245mm RM 1500: a = 345 mm RM 2000 : a = 445 mm - Then attach the brackets to the wall using the four screws provided. - Once installed the brackets, put the radiator. Place the radiator vertically, putting the brackets into the apertures in the back of the device (pic 1). Then, move the radiator to theRM 1000 / RM 1500 / RM 2000

left to place it in its final position (pic 2). In this way, to remove the radiator you should move it to the right and then pull up.

- To prevent the device touch the wall, install the black plastic block in the back of the radiator. Match the block’s hole with the hole in the radiator and screw it (pic. 3). - To transport the radiator install the provided handles. Blend them to introduce the legs into the slots in the top on the radiator (pic. 4)

• Connect the device to the network.

• Turn the thermostat control knob in the direction of clockwise into position maximum .

• Turn the power selector to the desired position. The indicator light will illuminate. − Position "I": Minimum power. − Position "II": Average power. − Position "III": Maximum power. − Position "0": Off.

• When the room temperature is the desired one, turn the thermostat control counter clockwise to clockwise until the indicator light turns off. Leave the command in that position, and the thermostat will automatically maintain the selected temperature, initiating a series of connections and disconnections.

• When not using the unit, turn the power switch to "0 "(OFF) and disconnect the network device.

MAINTENANCE AND CLEANING

• Before cleaning, make sure the appliance is disconnected from the network and completely cold.

• It is important to keep the grille clean. Remove any lint, dust or strange elements that hinder a correct air evacuation

• Use a dry cloth for cleaning.

• Do not use chemical or abrasive cleaners, steel scourers, etc, which can damage the device’s surfaces. Disposal of old electrical appliances. The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.RM 1000 / RM 1500 / RM 2000
