USER MANUAL FH 5031 Orbegozo

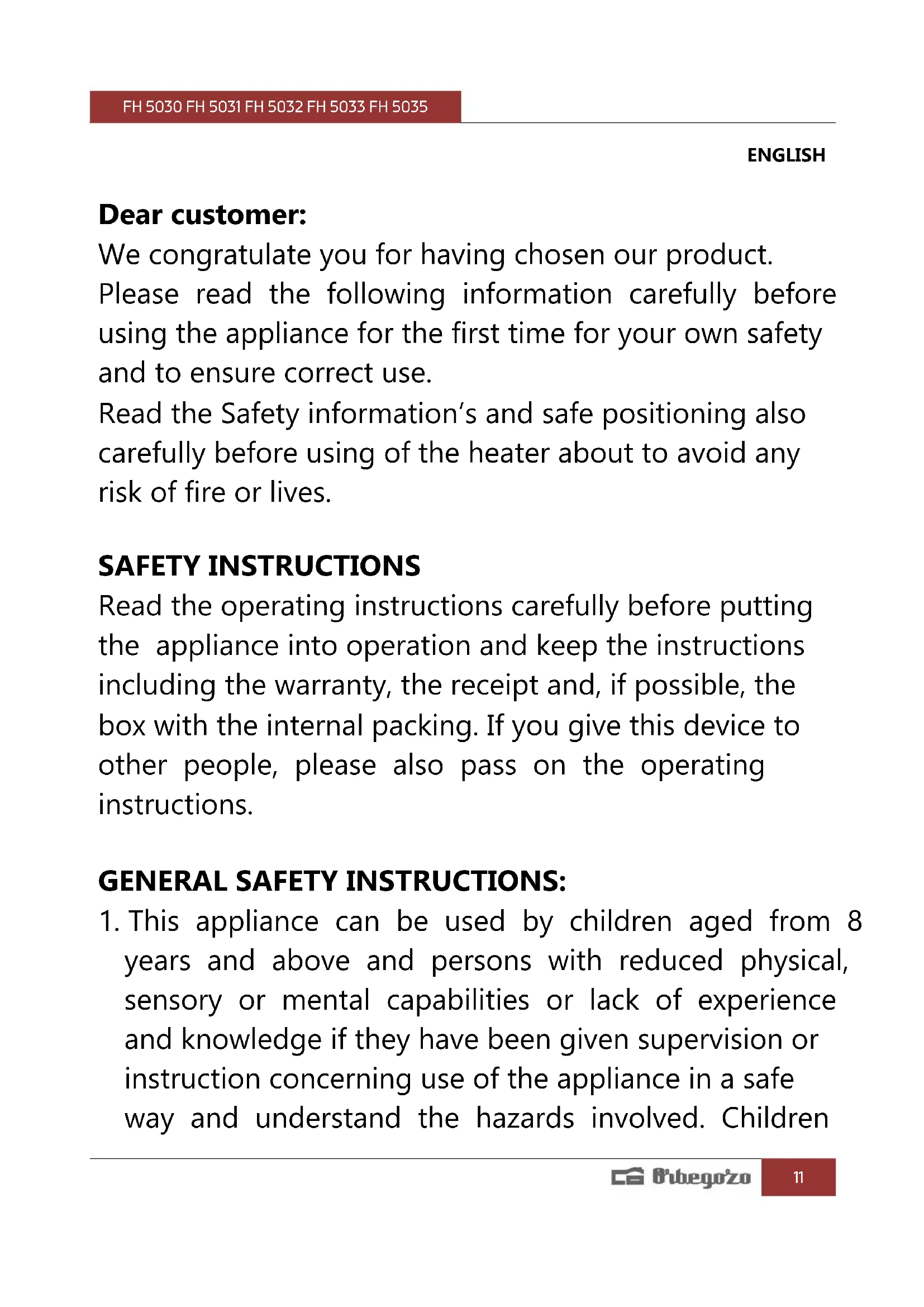

ENGLISH Dear customer: We congratulate you for having chosen our product. Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use. Read the Safety information’s and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives. SAFETY INSTRUCTIONS Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions. GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8

years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. ChildrenFH 5030 FH 5031 FH 5032 FH 5033 FH 5035

must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do

not play with the appliance.

3. WARNING: In order to ensure your children‘s safety,

please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by

the Authorized Service Agent in order to avoid hazards.

5. Never pull on the cord when unplugging.

6. Do not use the unit with a damaged cord or plug, or if

it is not working properly.

7. Do not handle the appliance with wet hands.

8. Never immerse the appliance in water or any other

9. Make sure the appliance has been unplugged before

10. This appliance must be installed following the

national regulations for electrical installations.

11. This appliance is for household use only.

12. In case that you need a copy of the instruction

13. WARNING: In case of misuse, there is a risk of

possible injury. IMPORTANT SAFETY INTRUCTIONS: The meaning of figure in marking is “DO NOT COVER”. WARNING: In order to avoid overheating, do not cover the heater. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. The device should not be placed immediately below a socket base.FH 5030 FH 5031 FH 5032 FH 5033 FH 5035

Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat. Do not use this heater in the immediate vicinity of a bath, shower or pool. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly. Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard! Allow ample space around the heater. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top. Always unplugged the heater after use. Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance! Keep the mains cord at a safe distance from the air inlet and outlet grilles. These instructions for use belong to the appliance and must be kept in a safe place. When changing owners,FH 5030 FH 5031 FH 5032 FH 5033 FH 5035

these instructions must be surrendered to the new owner! Safe positioning The heater must not be located immediately below a socket outlet. Only use the fan heater when it is standing in a horizontal position. Do not place the heater on instable surfaces, such as bed, carpets etc. and do not use the heater on uneven position, where the heater can tip over – otherwise there is a risk of fire. The heater should be placed with a minimum distance from flammable objects, walls, structure etc. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top. The appliance opening must not be obstructed in any way. For your own safety and that of others: water and electricity are a dangerous combination! Do not use this heater in a bathroom or near a swimming pool. Ensure that the appliance cannot fall into water (bath wash basin, shower cubicle, etc.) Please read also the safety information before using. Do not use the heater on extremely deep-pile carpets! General description A air inlet grille B air outlet grille C selector switch D Thermostat knob E Control lamp Using your heater Put the selector switch to position ( ) OFF. Plug the power socket in the wall-socket. The selector switch (C) and the thermostat knob (D) enable you to select the following functions: Selector switch(C): = “OFF”. Both the fan and the two heating elements are switched off. = “Cool air”. Only the fan is switched on. = “Warm air” (1250 W) for gradual heating-up. = “Hot air” (2500 W) for quick heating-up.FH 5030 FH 5031 FH 5032 FH 5033 FH 5035

Thermostat knob (D): With the thermostat knob you can set a constant room temperature. When the selector switch is set to position or position the heater will automatically switch on as soon as the room temperature falls below the set temperature. As soon as the set temperature is reached, they will switch off. Rotate the knob clockwise to obtain a higher temperature setting or anti-clockwise for a lower temperature setting. You may adjust the thermostat during use. To find the ideal thermostat setting: - First set the knob to maximum position (rotate clockwise until the knob stops.) - As soon as the temperature is comfortable, turn the knob anti-clockwise slowly until the heater goes off. When using the cool air setting, the thermostat knob should be in its highest position. Control lamp (E): The control lamp (E) indicates the operation if st ep ( ) is turned on in combination with the thermostat switch. The control lamp shines so long, since the thermostat switches off the device with reaching of the opposed ambient temperature and begins again if the thermostat again turns on the device. If the steps switch turned on position or the device by the electricity mains is taken, the control lamp goes out. Switch off the heater: To switch off the heater turn the selector switch to the position ( ) and turn the thermostat-knob to its lowest position. Remove the mains plug from the wall-socket. Always unplug the heater from the wall-socket when not in use. Overheating safety device To prevent damage and risks due to overheating, the built-in overheating safety device cuts off the power as soon as the heating elements become too hot. If this should happen: First ensure that it was not the thermostat which has switched off the heater. Set the thermostat to maximum position. If the heater does not switch on, the safety device has been activated. - Remove the mains plug from the wall socket. - Let the heater cool down for 30 minutes. - Check if the heater had been placed correctly. - Check if anything is obstructing the air flow. - If necessary, clean the grilles with a vacuum cleaner. - Replace the plug into the wall socket and switch the heater on again. If the safety device again switches off the heater: - Remove the mains plug from the wall socket. - Have the heater inspected by a Service Centre or by your dealer.FH 5030 FH 5031 FH 5032 FH 5033 FH 5035

Cleaning We recommend that you clean your heater at least twice a year to remove accumulated dust and dirt. - Set the selector switch to position to switch off. Remove the mains plug from the wall socket. Wait for the heater to cool down sufficiently. - You may clean the outside of the heater with a damp cloth or brush. Do not use water or allow water to come into the appliance. Do not use any abrasive and caustic cleaning agents! - Never touch the heater in water! Danger to life! - Clean the air inlet and outlet grilles regularly with a vacuum cleaner, using the brush attachment. Storage Keep the original box in which the heater was packed to store it during the warmer months when it is not in use. Clean the heater according to the instructions under Cleaning. Pack the heater in the original box and store it in a cool, dry place.

Disposal of old electrical appliances. The European directive 2012/19/UE on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.FH 5030 FH 5031 FH 5032 FH 5033 FH 5035

This product is only suitable for well insulated spaces or occasional use Item FH 5030 FH 5031 FH 5032 FH 5033 FH 5035 Symbol Value Unit

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat N/A Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback N/A Maximum continuous heat output

electronic heat charge control with room and/or outdoor temperature feedback N/A Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control YES

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor
