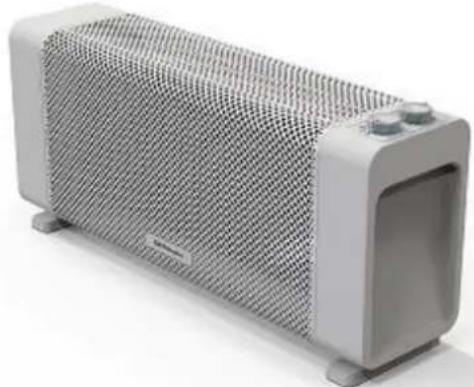

USER MANUAL RMB 1500 Orbegozo

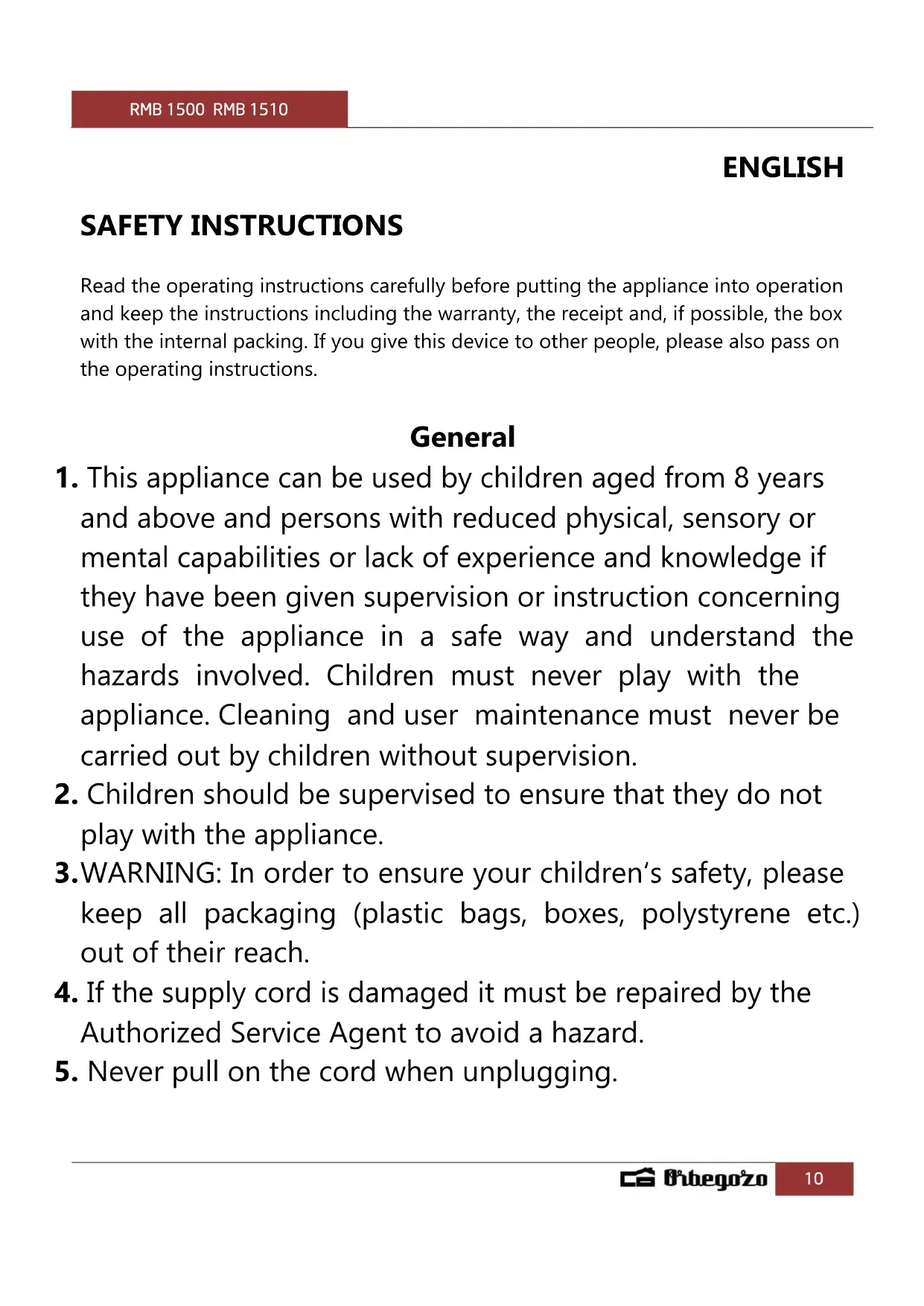

ENGLISH SAFETY INSTRUCTIONS Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions. General

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not

play with the appliance.

3. WARNING: In order to ensure your children‘s safety, please

keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

4. If the supply cord is damaged it must be repaired by the

Authorized Service Agent to avoid a hazard.

6. Do not use the unit with a damaged cord or plug, or if it is

not working properly.

7. Do not handle the appliance with wet hands.

8. Never immerse the appliance in water or any other liquid.

9. Make sure the appliance has been unplugged before

10. This appliance must be installed following the national

regulations for electrical installations.

11. This appliance is for household use only.

12. In case that you need a copy of the instruction manual,

you can find it in our website: www.orbegozo.com

13. WARNING: In case of misuse, there is a risk of possible

injury. Special Safety Instructions

WARNING: In order to avoid overheating, do not

cover the heater. Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe wayRMB 1500 RMB 1510

and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. The device should not be placed immediately below a socket base. Do not place a heater in use near curtains, furniture, wood paneling or combustible material which can deteriorate with heat. Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly. Do not use this heater in the immediate vicinity of a bath, shower or pool. Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance. The appliance must be connected to an earthed mains outlet. If you wish to use an extension cord, a 3-wire type is suitable.RMB 1500 RMB 1510

Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard! Important! Do not insert any object into the appliance openings! Risk of injury (electric shock) and damage to the appliance! Attention! The front grille becomes very hot when the appliance is in use. Place the appliance so that is cannot be touched by accident! Risk of burns! The appliance will cool down gradually after being switched off. Keep the mains cord at a safe distance from the air inlet and outlet grills. Do not wind the cord around the appliance and do not bend it. Always unplugged the heater after use. The socket-outlet must be accessible at all times to enable the mains plug to be disconnected as quickly as possible. Do not attempt to move the heater while in use. Do not use the heater on extremely deep-pile carpets! Do not use the heater in an upright position. There is tip over switch on the base. When the heater tips over, the electricity will be turned off automatically.RMB 1500 RMB 1510

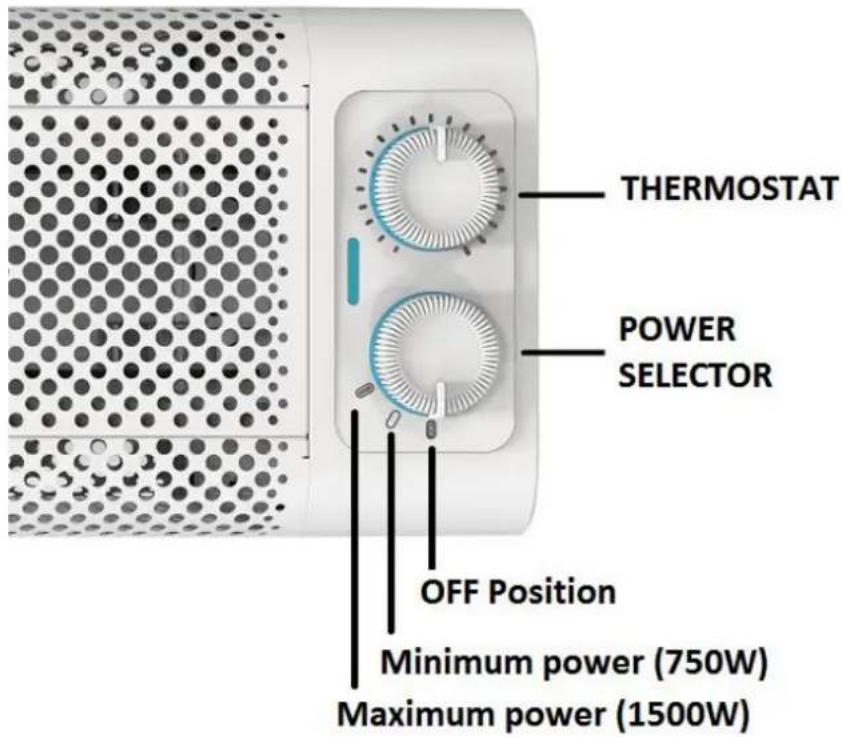

MANUAL Make sure the power control is in position “OFF”. Connect the device to the network. Turn the thermostat control knob in the direction of clockwise into position maximum. Turn the power selector to the desired position . o Position : Minimum power (750W) o Position : Maximum power (1500W) o Position OFF: Power off. When the room temperature is desired, turn the thermostat control counter clockwise to your needed position until you hear “click”. Leave command in that position, and the thermostat will automatically maintain the selected temperature, initiating a series of connections and disconnections. When not using the unit, turn the power switch to "0" (OFF) and disconnect the network device.

MAINTENANCE AND CLEANING

Before cleaning, make sure the appliance is disconnected from the network. Cool hot parts. It is important to keep the grilles clean for keeping a suitable air evacuation. Use a vacuum cleaner to clean it. Use a damp cloth to clean the rest of the device. Then, dry it properly.RMB 1500 RMB 1510

Do not use chemical or abrasive cleaners, steel wool, etc., Who can damage the apparatus surfaces. This product is only suitable for well insulated spaces or occasional use

Item Unit Heat output

Type of heat input, for electric storage local space heaters only (select one) Nominal heat output

manual heat charge control, with integrated thermostat N/A Minimum heat output (indicative)

manual heat charge control with room and/or outdoor temperature feedback。 N/A Maximum continuous heat output

electronic heat charge control with room and/or outdoor temperature feedback N/A Auxiliary electricity consumption

Type of heat output/room temperature control (select one) At minimum heat output

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control yes

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option

with adaptive start control

with working time limitation

with black bulb sensor

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.RMB 1500 RMB 1510
