USER MANUAL CTP 1830 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. En caso de necesitar una copia del manual de instrucciones,SEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO [e-mail]

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be

carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
   5.If the supply cord is damaged it must be repaired by the

Authorized Service Agent.

1. Never pull on the cord when unplugging.
2. Do not use the unit with a damaged cord or plug, or if it is not working properly.
3. Do not handle the appliance with wet hands.
4. Never immerse the appliance in water or any other liquid.
   10.Make sure the appliance has been unplugged before cleaning.
5. This appliance must be installed following the national regulations for

electrical installations.

1. This appliance is for household use only.
2. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].

3. WARNING: In case of misuse, there is a risk of possible injury.

4. Do not reach for an appliance that has fallen into water. Unplug it immediately.

• Do not use while bathing or in the shower.
• Do not place or drop into water or other liquid.
• Do not place or store this appliance where it can fall or be pulled into a tub or sink.
• Except when charging, always unplug this appliance from the electrical outlet immediately after using.
• Unplug this appliance before cleaning it.

• Keep the cord away from heated surfaces.

• Never drop or insert any object into any of the appliance's openings.

• Do not use outdoors or operate where aerosol (spray) products are being used, or where oxygen is being administered.
• Always store this appliance and cord in a moisture-free area.
• Make sure the cord is disconnected from the groomer stand when storing.
• Do not use this appliance

with a damaged or broken cutter unit, as injury may occur. Always make sure blades are aligned properly.

• Do not use an extension cord or a voltage converter with this appliance.
• Do not wrap the cord around the appliance.
• The power unit is intended to be correctly oriented in a vertical or floor mount position.
• Do not pull on the connection cord, but rather on the plug,

to separate the appliance from the mains.

- Do not leave the appliance unattended when it is switched on, as this may be a source of danger.

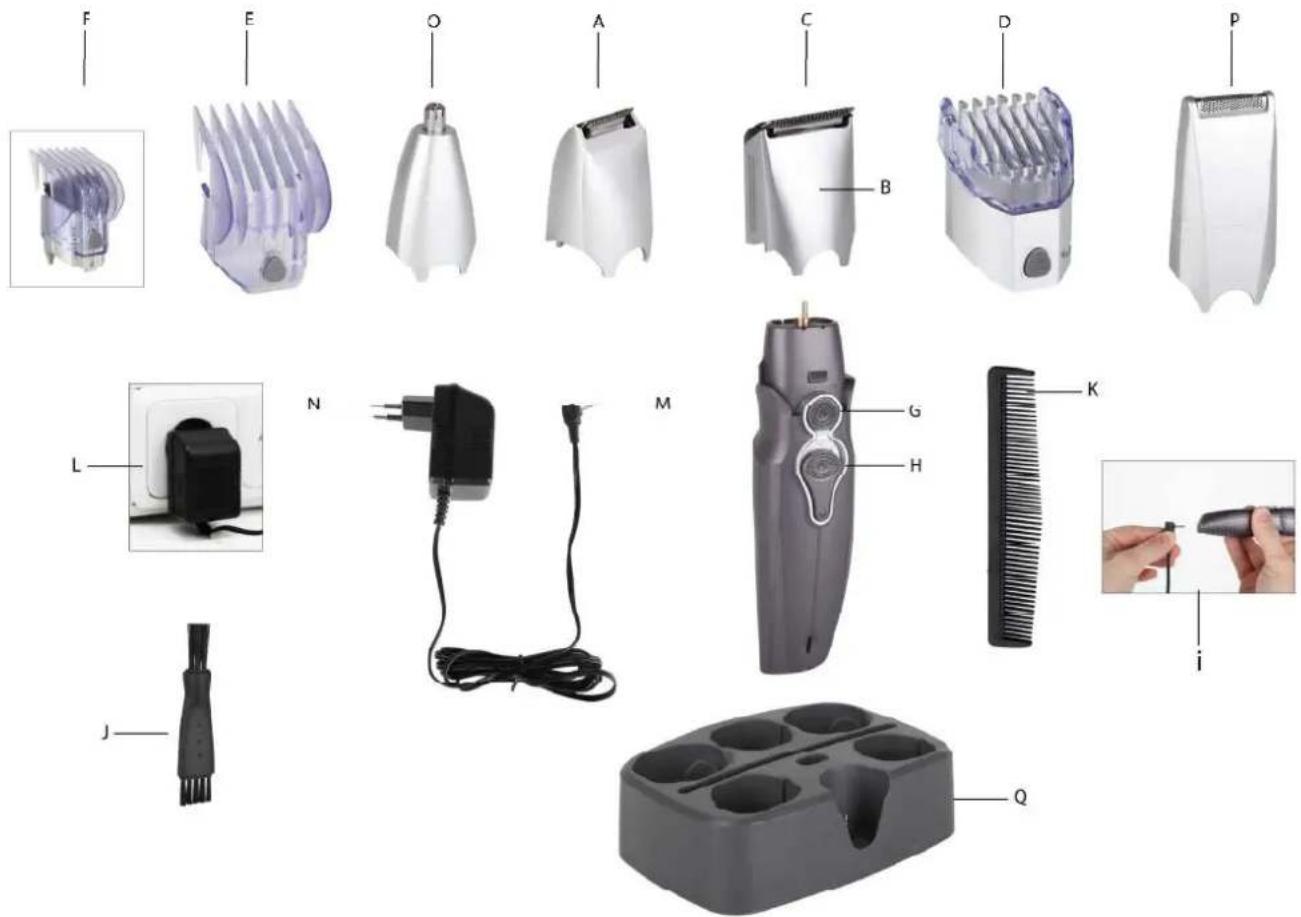

A. Neckline & sideburn trimmer attachment
B. Full width trimmer attachment
C. Lifetime self-sharpening 3-Dimensional, Rounded stainless steel cutter blades
D. Hair clipping comb
E. Hair clipping comb
F. 9 position hair length selector
G. Release button
H. ON/OFF slide switch
I. Socket for appliance plug
J. Cleaning brush
K. Styling comb
L. LED charging indicator light on adaptor
M. Appliance plug
N. Charging plug
O. Nose. ear, eyebrow trimmer attachment
P. Micro shaver
Q. Store& charge stand

TECHNICAL SPECIFICATION

Rated Voltage: 220-240V~50Hz

Rated Power: 3W

Charging Time: 8 hours

Battery Capacity: 600 mAh ×2 (included)

How to Use

1. Select attachment that best fits your personal grooming needs.
2. Place attachment atop Groomer Body. Secure by carefully inserting and turning attachment in a clockwise direction (NOTE: attachment is secure when the arrow aligns with circle).
3. To remove attachment, follow Step 2 in reverse order.
4. Slide ON/Off Switch upward to power the Personal Groomer.
5. The Adjustable Comb (D) Attachments (6mm) is to be used with Precision Trimmer, while the Adjustable Comb Attachments (F and E)(12mm and 20mm) are to be used with Full Size Trimmer Heads. To add, align the Comb side rails with slots of trimmer head. Secure Comb by sliding downward, away from blade head.

(NOTE: a clicking sound means Comb attachment is secure and ready for use).

Grooming tips

HAIR:

Should be dry and free of lotions or other liquids.
- Comb outward with the accessory C, and with (F and E) to obtain maximum height/length and facing in the same direction.

BEARD/MUSTACHE:

• Use small comb (D)(6mm) to straighten hairs for trimming.
• When trimming, first select Precision Trimmer Attachment. Starting under chin, follow the jaw line back toward ear. Trim in multiple directions to capture all stray hairs.
• When thinning or tapering, use a small comb to hold beard in place. In opposite hand, hold Groomer with cutting system facing outward while slowly moving Trimmer along length of comb. The Adjustable Comb Attachment can also be used to achieve desired look.

MICRO SHAVER:

Use the Micro Shaver attachment to clean-up detailed areas. For best results, avoid holding at an angle.

EARS:

• When trimmer inner ears, avoid inserting Grooming System (O) more than 1/4 into ear canal.
• Rotate Grooming System in a circular motion while gently moving in and out of ear canal.

EYEBROWS:

• Guide cutting edges to stray hairs along eyebrows.
• For best results, do not use the grooming system to define entire eyebrow.

NAPE OF NECK:

Using a hand-held mirror is necessary if self-trimming.
- Lift hair off neck, using index finger to cover & protect hairs NOT needing trimming.
- Carefully touch cutting blade to neck, slowly moving the groomer in an upward direction until stopped by index finger.

NOTE:

• Carefully insert groomer no more than 1/4 into nostril.
• Rotate Grooming System in a circular motion while gently moving in and out of nose.

CLEANING, CARE & MAINTENANCE

NOTE: Always clean Grooming System attachments regularly to ensure best performance and a proper operating life.

CLEANING ATTACHMENTS WITH WATER

1. Remove attachment.
2. Rinse ONLY the attachment under warm running water. DO NOT use hot water ad this might cause damage.

CLEANING ATTACHMENTS WITH BRUSH

After first removing attachment, thoroughly brush and blow out hair clippings from cutting system, attachment, and top of power handle.

CLEANING FOIL SHAVER

(DO NOT rinse oil over the foil shaver attachment as this is permanently lubricated.)

1. Remove attachment by pressing security latches on front of micro shaver.
2. Remove head, shake to remove excess clippings.
3. Replace attachment by gently snapping into place.

OILING BLADES & CAUTIONS (Oil not provided)

• Rinsing attachments under water (above) requires lubricating the cutting blades 1 × monthly. Using only light-grade oils (e.g. sewing machine oil), simply spread 1-2 drops lightly over cutters with fingertip. Wipe away all excess.
• Use only light-grade oils as these will not evaporate nor slow down speed of cutting blades.
• Do not use hair oil, grease, or any oil mixed with neither kerosene nor solvent as these too will evaporate.

Disposal of old electrical appliances

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that

when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance

DECLARATION OF CONFORMITY:

This device complies with the requirements of the EMC directive 2004/108/EC.

DECLARATION DE CONFORMITE:
