USER MANUAL HP 6006 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Before first using the pressure cooker, please read these instructions thoroughly.
- The pressure cooker and pressure cooker lid should be cleaned thoroughly on each occasion before use.
- On each occasion before use, check that the safety devices are all in proper order (heavy valve, safety valve and sealing valve)
- People not familiar with the use of this pressure cooker should not be allowed to use it.
If you use this pressure cooker when children are in the vicinity, please be particularly careful.
- This pressure cooker may only be used for the purpose of fast cooking, for which it was designed. It may only be used as a regular stockpot without a lid. Please never use it in a baking oven or in a microwave.
- The pressure cooker may only be placed on the appropriate hob for its sizes. When using full power to heat it, always keep it under observation. Too high a gas flame can for example damage the handles.
- Never touch the outside of the pressure cooker during the cooking procedure, as you may burn yourself. If the pressure cooker is still hot, it must only be touched or moved with great care, and by handles on the pressure cooker itself, and not that on the lid.
- This pressure cooker must never be used without liquid or it may be damaged.
- The pressure cooker must never be filled more than 2/3 full or when cooking food which expands or bubbles strongly (rice or pulses), not more than half-full. These foods should first be brought to the boil in the uncovered pressure cooker and the skimmed before the lid is closed.
- The pressure cooker must never be filled less than 1/3 full
- Under pressure, the pressure cooker must never be used for roasting or frying using fat or oil.
- When preparing e.g. sausages with an artificial skin, this must first be pierced. If the skin is not pierced, it will expand under pressure and may burst. Any splashes thus occasioned may cause burns.
- If you have cooked meat with the skin on which is swollen after cooking, do not pierce it but let it go down. Otherwise, you might burn yourself.
- You should not pressure cook foods which tend to cause foaming, such as apple puree, rhubarb, spaghetti, rolled oats or other types of cereals. As these foods can be swirled upwards during cooking, there is a risk of the cooker valve becoming blocked.
- If the contents are mushy, the pressure cooker must be agitated gently before opening it.
- During cooking, bursts of steam will be given off vertically from the centre of the heavy valve. Please take care that you do not come into contact with this hot steam.
- When the pressure cooker is under pressure, force must never be used in an attempt to open it.

• The pressure cooker must be allowed to cool down before it is opened. Steam pressure must be completely released; otherwise it will not be possible to open the cooker. Do not undertake any modifications to the safety devices; otherwise there is a risk of scalding. When releasing the steam, keep hands, head and body out of the way of the steam.
• You should only use original accessories and spare parts or lids and pans as designed for these pressure cookers.
• Pressure cookers or accessories which are deformed or damaged in any way should not be used in any circumstances.
• If repairs are necessary at any time, please contact our Customer Service Department.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• This pressure cooker is suitable for the following types of hob: VITRO, ELECTRIC, INDUCTION or GAS.
• When using an electric hotplate, its diameter must be smaller than or equal to that of the cooker.
• When using the gas stove, the crown of the flame must not exceed the diameter of the base of the cooker pot.
• When using a ceramic hob, the base of the cooker should be absolutely clean and dry.
• The pressure cooker is for home use only and other usage is not allowed. Keep the cooker away from children and the newly-users.
• The boiling point of the pressure cooker is below 120 centigrade, and can produce large amount of steam, water, soup and syrup etc...
• Don't put soda directly for cooking, overfull oil and wine.
• Never cover anything on the regulation valve.
• The purpose of this pressure cooker is its domestic use.

Model	Capacity	Working Pressure	Safety Valve	Safety Window Pressure
HP 4006	4L	60/110KPA	120-160kPa	180-300kPa
HP 6006	6L	60/110KPA	120-160kPa	180-300kPa
HP 8006	8L	60/110KPA	120-160kPa	180-300kPa
HP 10006	10L	60/110KPA	120-160kPa	180-300kPa

INSTALLATION AND ASSEMBLY

Users can only change the silicone sealing ring and regulator weight if they are broken, in accordance with installation and assembly instructions. Any other repairs must be exclusively made by persons duly authorized for this purpose.

Changing the Silicone Sealing Ring

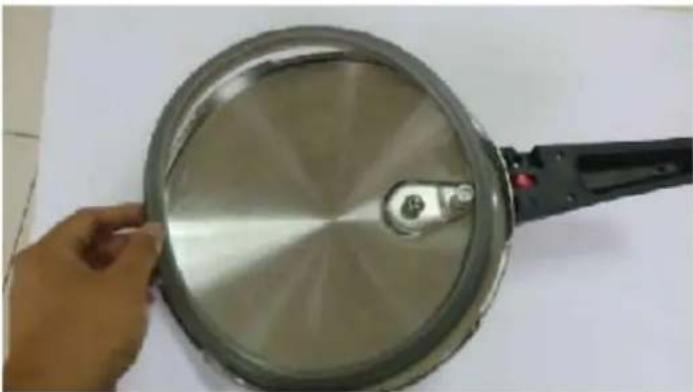

a. Remove the old sealing ring from the lid as indicated in the pictures below.

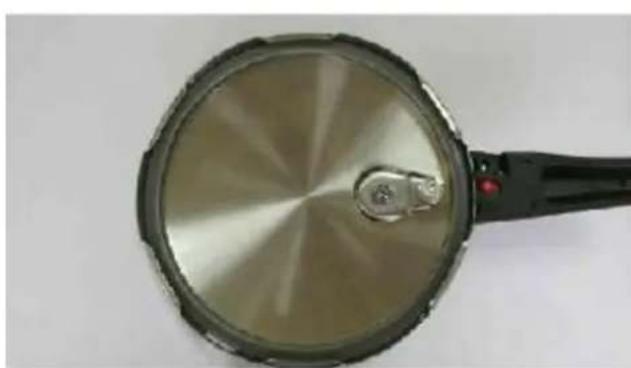

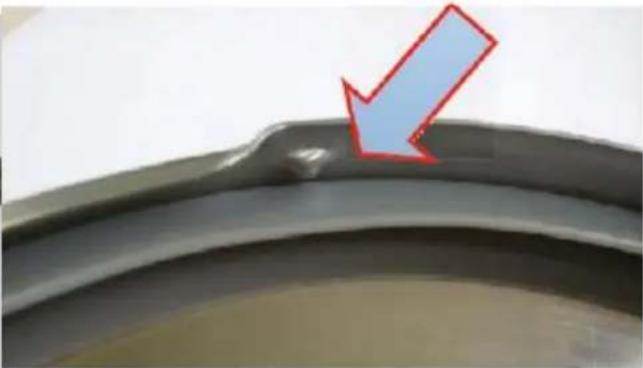

b. Place the new sealing ring on the lid and make sure it is in the correct position, i.e. below the position indicating point as shown in the following photos:

Removing the Pressure Valve

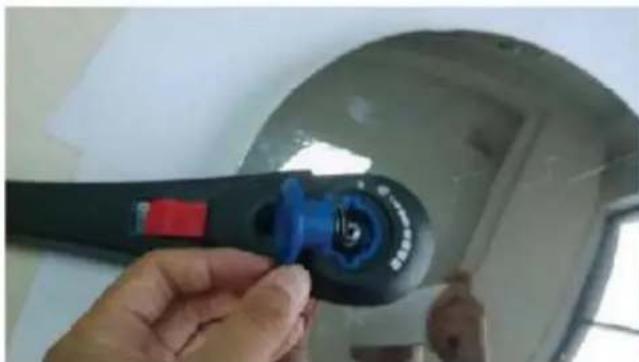

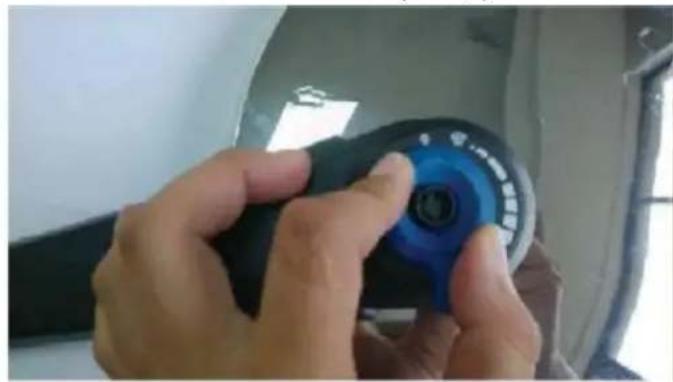

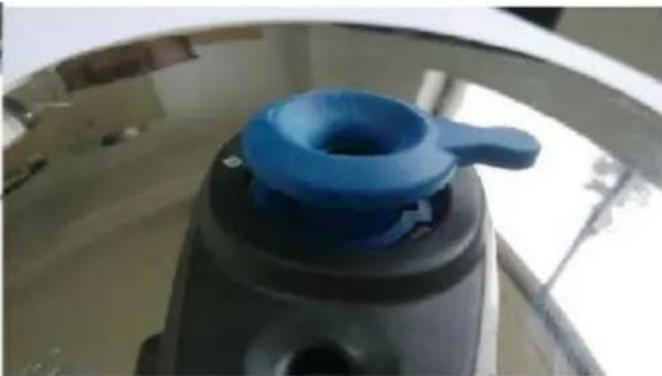

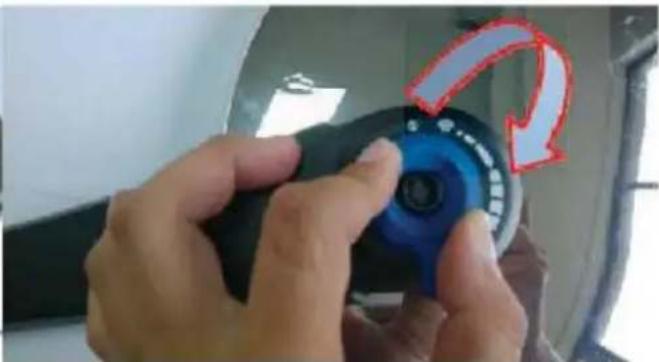

Turn valve counterclockwise. When it reaches the stop, press and continue turning to the symbol . Once the valve reaches that point, you can remove it.

Operating Instructions

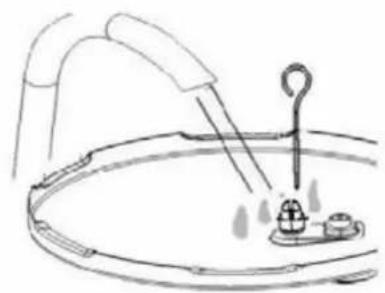

a. Make sure the air vent is not blocked. If it is, then clean it with a swab. Also make sure that the safety valve is clean. The silicone sealing ring and pressure valve must be in the correct position.

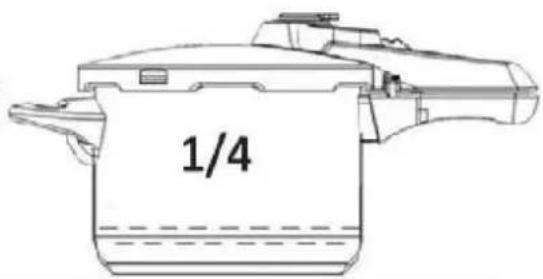

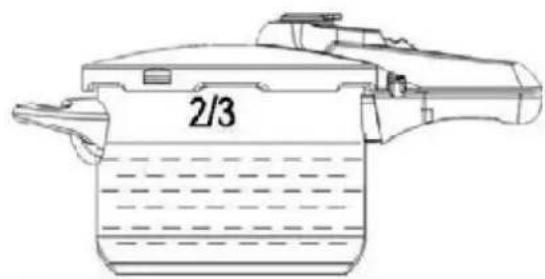

b. The pressure cooker must be at least 14 full of water or another liquid so steam will be produced when in use. Food or water must not exceed 2/3 of the cooker capacity.

Model Useful Capacity
HP 4006 3L
HP 6006 4,5L
HP 8006 6L
HP 10006 7.5L

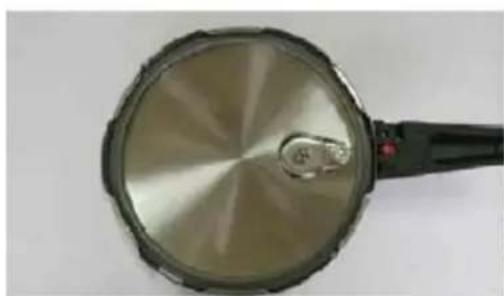

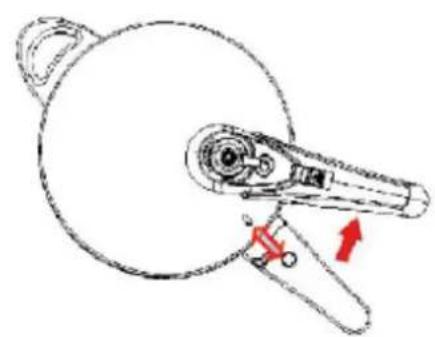

c. Closed lid: This pressure cooker has some marks indicating to the user how to easily open and close the pressure cooker lid. When opening and closing the lid make sure the arrow on the lid points to the round mark on the pressure cooker body handle.

d. To open the lid, press the red button and turn the lid counterclockwise.

e. Incorporated safety devices: This pressure cooker model has been designed with five safety systems. Each one of them is described below:

1. Manual blocking of handle: Thanks to this system the pressure cooker will be automatically blocked only if the lid and body are properly aligned. The reason for this system is to prevent accidents occurring due to incorrect closing of the pressure cooker. The cooker will be correctly closed when the lid and body handles are aligned and a "click" is heard.
2. Pressure sensor with automatic lid block: If the cooker has pressure inside, the sensor remains up making it impossible to open. It can only be opened when all the steam has been released, there is no pressure left inside and the sensor is down. If the pressure sensor is up it means there is still pressure inside the cooker, so the lid must not be opened yet.
3. Pressure valve: Once the cooker has reached the right pressure, this valve releases excess steam, keeping steady pressure inside.
4. Safety valve: If for any reason the pressure valve is obstructed or fails to work and pressure increases inside the cooker, this safety valve will start to work letting the steam out and regulating the excess pressure. If this occurs, you must take the pressure cooker off the heat, wait for the cooker to lose pressure to open it and rinse the pressure valve with plenty soap and water. If the problem persists, the pressure cooker must be taken to an Authorized Service Centre.
5. Safety side window: In the event of the previous safety devices getting obstructed, the silicone sealing ring would become deformed to depressurize the cooker through the window on the edge of the lid. If this occurs, you must take the pressure cooker to the nearest Authorized Service Centre in order to check all the safety systems.

f. In order to avoid damage to users when operating the pressure cooker, the following precautions should also be taken:

1. Never leave the cooker unattended when in operation.
2. Do not directly touch the hot surfaces while cooking.
3. When cooking dense food, make sure you do not overfill. Gently shake the pressure cooker to balance the ingredients inside before cooking, especially when cooking beans, etc.

g. Improper use danger warnings:

1. Do not cover any steam regulator valve.
2. Please do not block the lid safety window, as this could increase the high pressure inside the cooker.
3. Forcing the safety valve before opening the lid could break the valve and cause damage to the user. See the photos indicating the valve up and down safety positions.

Se puedeAbrir

No se puedaAbrir

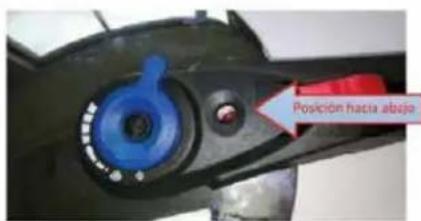

Down position: Can be opened

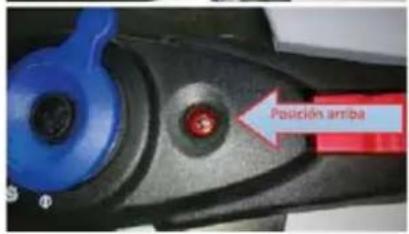

Up position: Cannot be opened

h. To ensure the pressure cooker is used correctly, check the following list when using it:

Check point Method Observations
1	Pressure valve regulator Visual inspection	Clean the air vent normally
2	Safety valve Visual inspection	Clean the air vent normally
3	Safety window Visual inspection
4	Handle and lid marks	Visual inspection

CARE AND MAINTENANCE

• Wash the pressure cooker body and lid. Always remove the pressure valve when doing so.

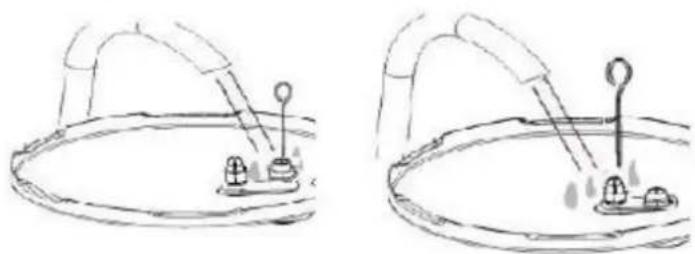

• Use a swab to remove any material stuck inside the regulator, the air vent and the safety valve. After using the cooker, clean the safety valve and regulator on a regular basis as shown in the photos below.

If any accident occurs while using the pressure cooker, follow these instructions to solve some of the possible problems:

Problem	Cause	Solution
When placing the cooker on the heat, there is a noise but no steam is released	Regulator is blocked	Take the pressure cooker off the heat and let it cool. Clean the regulator
	There are remains of food in the air vent	Take the pressure cooker off the heat and let it cool. Clean the air vent
	Heat dry Add water
	Pressure cooker is tilted	Place the pressure cooker on an even surface
Safety valve releases steam	Air vent is blocked	Take the pressure cooker off the heat and let it cool. Clean the air vent
	Too much food in the cooker Take	some of the food out
	Heat is too high	Use a smaller burner and turn down the heat
Steam escapes around the lid	Safety and pressure valve not working	Take the pressure cooker off the heat and let it cool. Clean the regulator
	Pressure valve incorrectly placed Place the pressure valve correctly
	Lid is not properly closed Close the lid properly.

The information in the table above should be used only as reference. In the event of any doubt, you should contact a professional at the store where you purchased the appliance. If any problem arises while cooking and you cannot solve it, please contact your dealer or an Authorized Service Centre.

To make sure that all the spare parts are the correct ones for the original pressure cooker, contact the store so it may get them from the manufacturer. The use of incorrect parts could cause safety problems. Below is a list of the parts and the frequency with which they should be changed.

Silicone sealing ring	Once a year
Safety valve	If it breaks
Regulator	If it breaks
Body handle	If it breaks
Side handle	If it breaks
Lid handle	If it breaks
Button	If it breaks

After using and cleaning, let the pressure cooker dry, remove the silicone sealing ring and never store it closed.

MAIN TECHNICAL CHARACTERISTICS

Technical characteristics: operating pressure 60 / 110kPa

• Pressure level 1: 120-160 kPa. Pressure level 2: 180-300 kPa.
• Resistance pressure: 360 kPa.
• Cover opening security: if the internal pressure is higher than 4kPa ,the lid cannot be opened.
• Closing security of the lid: the lid does not close well if the internal pressure is less than 4 kPa.
• Antilock safety: There is a lock nut under the steam outlet duct.

COOKING TIME

*Cooking time is calculated from the regulator emit steam normally.
*Following list is just for your reference; adjust cooking time according to your own flavor.

COOKING TIMES
Food	Time (minutes)	Position selectos
SOUP
Rice soup	4-6	2 (100kPa)
Noodle soup	3-5	1 (60kPa)
Fish soup	3-4	2 (100kPa)
PASTA
Rice with chicken 6-7	2 (100kPa)
Spaghetti	4-5	2 (100kPa)
VEGETABLES
Beans	3-4	2 (100kPa)
Cauliflower	4-6	2 (100kPa)
Carrot	5-6	2 (100kPa)
Chard	6-7	2 (100kPa)
PULSES
Lentils	15	2 (100kPa)
Chickpeas	20	2 (100kPa)
FISH
Octopus	30	2 (100kPa)
Marmitako	10	2 (100kPa)
CARNES
Round	22-22	2 (100kPa)
Ox sirloin steak	15-17	2 (100kPa)
Lamp	10-12	1 (60kPa)
Rabbit	10-12	2 (100kPa)
Chicken	15-20	1 (60kPa)

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/assistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
