Product type	Electronic scale
Brand	Orbegozo
Model	PB 2210
Display	LCD with 29 mm digits
Maximum capacity	150 kg (330 lb)
Precision	0.1 kg
Units of measurement	kg, lb, st (selectable)
Power supply	1 CR2032 lithium battery
Sensors	4 ultra-precise strain gauge sensors
Auto-off	Yes, after 10 seconds of display
Automatic zero reset	Yes
Overload indicator	Display « Err »
Low battery indicator	Display « Lo »
Platform material	Tempered glass
Cleaning	Damp cloth or glass cleaner
Minimum operating weight	5 kg
Use	Domestic use only
Replaceable battery	Yes
Safety	Do not immerse, do not jump, do not open

Frequently Asked Questions - PB 2210 Orbegozo

How to change the unit of measurement (kg/lb/st)?

Press the Unit button on the scale to switch between kg, lb, and st. The selected unit will be displayed on the screen.

What does the display « Err » mean?

The display « Err » indicates overload. The maximum capacity of the scale is 150 kg. Remove the weight and do not exceed this limit.

What does the display « Lo » mean?

« Lo » means the battery is low and needs to be replaced. Use a new CR2032 battery, respecting the polarity.

How to clean the scale?

Clean the scale with a damp cloth or glass cleaner. Never immerse the scale in water and avoid abrasive products.

Why does the scale display an incorrect weight?

Make sure the scale is placed on a hard, flat surface. Step onto the center of the platform and stand still. If the screen flickers, wait for it to stabilize. Do not step on before « 0.0 » is displayed.

Can I use the scale on a carpet?

It is recommended to use the scale on a hard, flat surface (tiles, hardwood) to ensure accurate measurements. Carpet may distort results.

How to replace the battery?

Open the battery compartment on the back of the scale. Remove the old battery and insert a new CR2032 battery, respecting polarity (+ up, - down). Close the compartment.

Which battery to use?

The scale uses a CR2032 lithium battery. Do not use other types of batteries and do not mix new and used batteries.

What to do if the scale does not turn on?

Check that the battery is correctly inserted and in good condition. If the battery is dead, replace it. Tap lightly on the platform to activate the scale.

Is the scale waterproof?

No, the scale is not waterproof. Do not immerse it in water. For cleaning, use a slightly damp cloth and avoid water getting inside.

USER MANUAL PB 2210 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

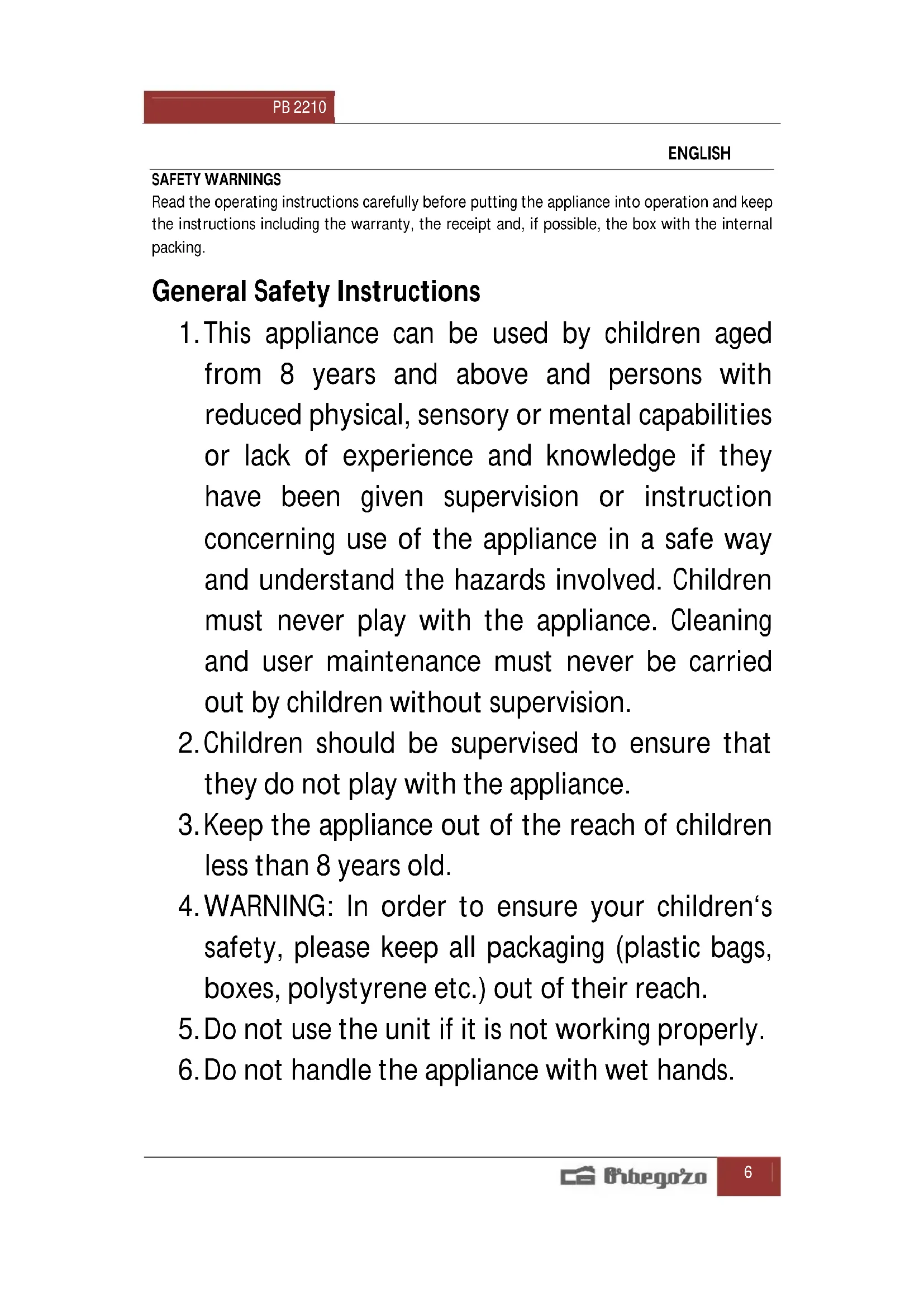

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. Do not use the unit if it is not working properly.

6. Do not handle the appliance with wet hands.

7. Never immerse the appliance in water or any other liquid.
   8.Make sure the appliance has been unplugged before cleaning.

8. This appliance is for household use only.
9. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]

Special Safety Instructions

• These scales are a precision electronic instrument. One of the most difficult things to weigh is the human body because it is constantly moving. In order to ensure reliable readings, try to put your feet always in the same place on the scales and remain still.
• Treat the scales with care. Never drop or jump on them. Our scales are designed for a long life, but incorrect use or handling may cause malfunctions of the electronic sensors.
• Never immerse the scales in water. To clean the surface, use a damp cloth or a window cleaner.
• Do not open or disassemble the scales or its components.

Product Feature:

LCD Display: 29MM Digits
Capacity: 150KG/330LB
Division: 0.1kg (0.2lb)
Auto zero-auto off

Low power & Overload indication
Power: 1 pc Lithium cell (CR2032)
Equipped with 4 high precision "strain-Gange" senso

User Manual:

1. Press the unit button to choose the unit that you want, there are three options: kg/lb/st

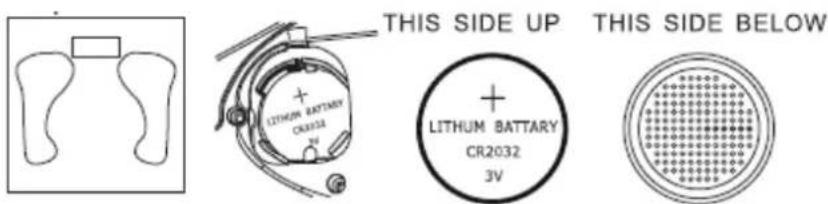

2. Insert the battery correctly as per the following picture:

(Note: to insert the battery correctly, the positive pole should be upside, and the negative pole should be downside). After insert the battery, there would be "HI" showing, please do not step on the scale this time. Otherwise, the weighing result would be affected.

1. Setting: Firstly, place the scale on a hard even surface, knock the centre of scale glass, there would be "HI" showing on the LCD, and then showing "0.0", then step on the centre of scale glass.

Operation:

Stepping on the scale till the number on LCD stop flashing, then that is the weighing result of your body. (Note: If you leave the scale when the number flashing, the number would go back to "0.0", then you can step on the scale's glass, and weighing again.

Note:

If you step on the scale before it showing "0.0", the scale would not showing the correct weight of your body. If so, please wait till the scale turn off, and repeat Step 3. Scale does not work under 5KG. After showing result 10 seconds, the scale turns off automatically.

Using Notice:

1. LCD showing "Err" for Overload.
2. LCD showing "Lo" for Low power.
3. This scale just for home using.
4. The scale cannot dip in the water. Please use glass detergent to clean the glass.
5. If the scale would not be used in a long period, please take the battery out, and make sure there is nothing on the scale.
6. To avoid any danger, please make sure you stand on the center of scale.
7. To avoid slip, please do not step on the scale when your feet are wet.

8. Do not mix old and new batteries. Don not mix alkaline, standard (carbon - zinc), or rechargeable (nickel-cadmium) batteries.

9. Do not dispose of batteries in fire. Batteries may explode or leak. Recycle or manage as hazardous waste.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected
