PB 2216 - Scale Orbegozo - Free user manual and instructions

Product Type	Scale
Brand	Orbegozo
Model	PB 2216
Maximum Capacity	150 kg
Graduation	0.1 kg
Weighing Units	Kilograms (kg), Pounds (lb), Stones (st)
Power Supply	Batteries
Battery Type	Not specified (check the compartment)
Display	Digital Screen
Automatic Shutdown	Yes, after a few seconds
Weighing Surface	Glass or plastic platform (not specified)
Intended Use	Household use only
Initialization	Required at first use, after moving or battery change
Safety Precautions	Do not immerse in water, avoid shocks, do not use with wet hands
Cleaning	Slightly damp cloth, no solvents, do not immerse
Overload Indicator	Display "Err"
Low Battery Indicator	Display "Low Battery"
Compliance	EMC Directive 2004/108/EC
Minimum Age of Use	8 years (with supervision)
Recycling	Do not dispose of with household waste, follow the WEEE directive

Frequently Asked Questions - PB 2216 Orbegozo

How to use the PB 2216 scale?

Place the scale on a flat, hard surface. Step onto the weighing platform without tapping it first. Wait for the weight to be displayed. The scale turns off automatically after a few seconds.

How to change the weighing unit?

Press the switch next to the battery compartment to choose between kg, lb or st (stones).

What does 'Err' mean on the display?

The Err display indicates an overload. Remove the weight immediately to avoid damaging the scale.

What if the scale shows 'Low Battery'?

Replace the used batteries with new ones. Open the cover on the bottom of the scale and install the batteries respecting the polarities.

How to clean the scale?

Clean with a slightly damp cloth. Do not use solvents and do not immerse the scale in water. Make sure no water gets inside.

Does the scale need to be initialized?

Yes, initialize the scale at first use, after each move or after changing the batteries. Follow the initialization procedure described in the manual.

Can children use the scale?

This device can be used by children aged 8 years or older, under supervision. Children must not play with the device. Cleaning and maintenance must not be performed by children without supervision.

Can the scale be used on carpet?

It is recommended to place the scale on a flat and hard surface for accurate measurements. Soft surfaces may distort the results.

How to dispose of the scale at the end of its life?

Do not throw the scale in household waste. Follow the European WEEE directive (Waste Electrical and Electronic Equipment). Contact your local council or retailer for collection points.

What if the scale does not turn on?

Check that the batteries are installed correctly and are charged. If the problem persists, contact the after-sales service at [e-mail].

USER MANUAL PB 2216 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

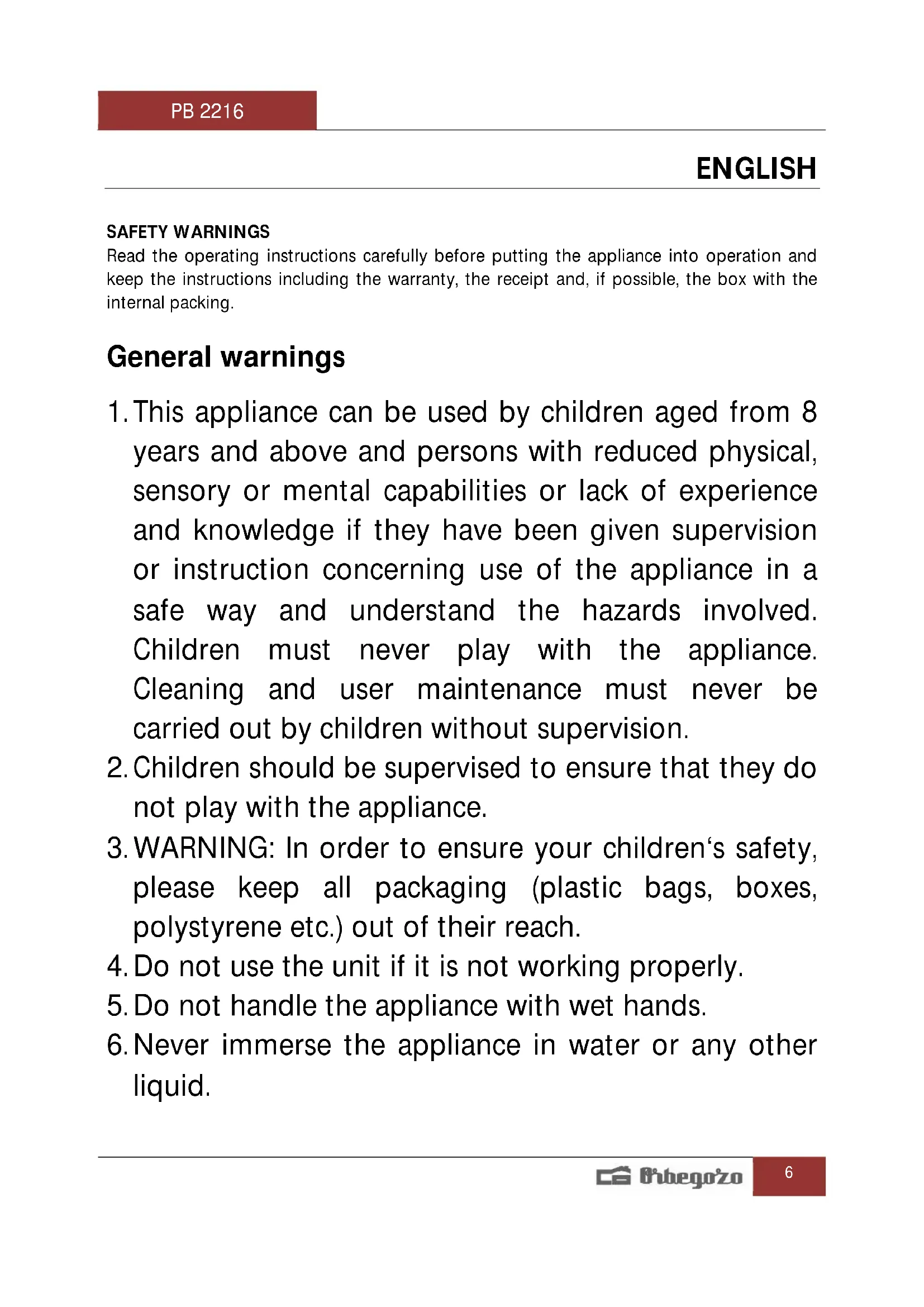

General warnings

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. Do not use the unit if it is not working properly.
5. Do not handle the appliance with wet hands.

6. Never immerse the appliance in water or any other liquid.

7. Make sure the appliance has been unplugged before cleaning.

8. This appliance is for household use only.
9. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail]
10. WARNING: In case of misuse, there is a risk of possible injury.

Important warnings

• This product is not intended for professional or medical use; it is intended for private use only.
• Clean with lightly dampened cloth without allowing any water to get into the device. Do not use solvents or immerse the product in water.
• Avoid excessive impact or vibration to the unit, such as dropping the product onto the floor.
• Once the display has disappeared, wait a few seconds before stepping back onto the scales.
• Important: If the appliance is moved before weighing or between two weighing sessions, reinitialize the scale.

INTRUCIONS FOR USE

Initialization: This scale needs to be initialized at the first time of use, each time it has been moved and after battery replacement.

• Please open battery cover on the rear of scale before use.
• Insert batteries
• You can alter the weighing units by depressing the switch next to the battery compartment, choosing from stones, kg and lb.
• Put the scale on a hard and flat surface.
• Step on the weighing platform. (No need to slight tap before use).
• Your correct weight will then be displayed.

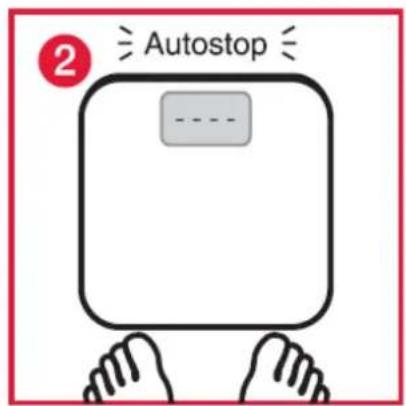

  Scale will automatically switch of after a few seconds.

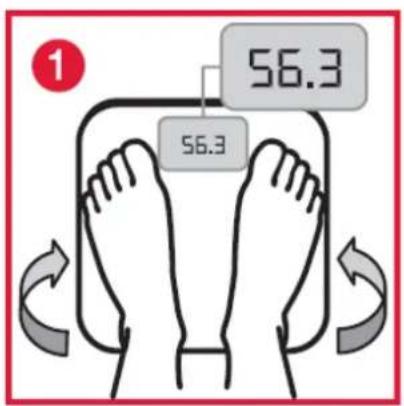

OPERATION

WARNING INDICATORS

• Err. Overload. Remove weight immediately
• LO: Battery failure: replace it.

SPECIFICATION

Max capacity 150kg
Scaled 0.1kg
3 Weighing units for your selection

TO INSTALL OR REPLACE BATTERY

Open the battery case cover at the bottom of the scale.

Take out used batteries.
Install new batteries.

Batteries should be removed and replaced by adults only.

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the EMC directive 2004/108/EC.

MESURES DE SECURITE IMPORTANTES

INTRUCTIONS D'EMPLOI
