USER MANUAL CYLO50 Vornado

VORNADO W O G P E G P E R T LE IN L IN

model CYLO50

WHOLE ROOM AIR PURIFIER OWNER'S GUIDE

READ AND SAVE THESE INSTRUCTIONS

LEER Y GUARDAR ESTAS INSTRUCCIONES

LISEZ ET CONSERVEZ CES INSTRUCTIONS

vornado.com

we expect this product to be PERFECT

if it's not WE will make it right.

vornado.com

800.234.0604

[e-mail]

CONTENTS

Important Safety Instructions....4 Leg Installation....10

Product Information ....6 Filter Replacement....11

True HEPA Filtration....7 Cleaning and Maintenance....12

Automatic Filter Refill Program....7 Troubleshooting....13

Control Panel 8 Warranty 14

How to Use 9

User Tips 10 Loverlop.15 Incorp.27

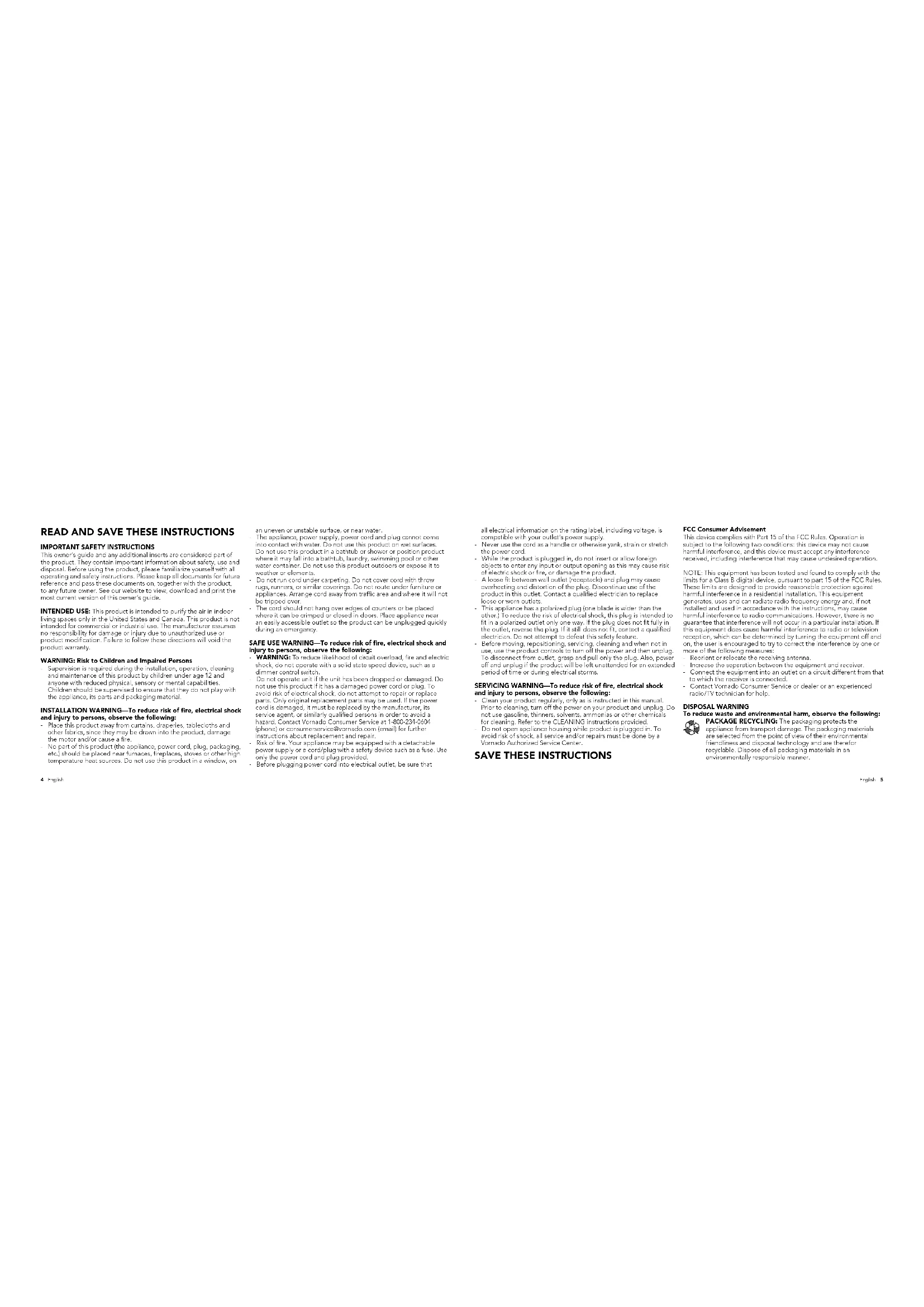

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See our website to view, download and print the most current version of this owner's guide.

INTENDED USE: This product is intended to purify the air in indoor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

WARNING: Risk to Children and Impaired Persons

Supervision is required during the installation, operation, cleaning and maintenance of this product by children under age 12 and anyone with reduced physical, sensory or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts and packaging material.

INSTALLATION WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

Place this product away from curtains, draperies, tablecloths and other fabrics, since they may be drawn into the product, damage the motor and/or cause a fire.
No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use this product in a window, on

an uneven or unstable surface, or near water.

The appliance, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product outdoors or expose it to weather or elements.

Do not run cord under carpeting. Do not cover cord with throw nugs, nuncors, or similar coverings. Do not route under furniture or appliances. Arrange cord away from traffic area and where it will not be tripoed over.

The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

WARNING: To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a dimmer control switch.

Do not operate unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or [e-mail] (email) for further instructions about replacement and repair.

Risk of fire. Your appliance may be equipped with a detachable power supply or a cord/plug with a safety device such as a fuse. Use only the power cord and plug provided.

Before plugging power cord into electrical outlet, be sure that

all electrical information on the rating label, including voltage, is compatible with your outlet's power supply. Never use the cord as a handle or otherwise yank, strain or stretch the power cord.

While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause risk of electric shock or fire, or damage the product.

A loose fit between wall outlet (receptacle) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualified electrician to replace loose or worn outlets.

This appliance has a polarized plug (one blade is wider than the other.) To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

ERVICING WARNING—To reduce risk of fire, electrical shock and injury to persons, observe the following:

Clean your product regularly, only as is instructed in this manual. Prior to cleaning, turn off the power on your product and unplug. I not use gasoline, thinners, solvents, ammonies or other chemicals for cleaning. Refer to the CLEANING instructions provided.

Do not open appliance housing while product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.

SAVE THESE INSTRUCTIONS

FCC Consumer Advisement

This device comolies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 1b of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can reduce radio frequency energy and, if not used, it is necessary to be used, and that the equipment is harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by using the equipment off and, but, if the equipment is not recommended to try to correct the interference by one moment of the following measures.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Contact Vornado Consumer Service or dealer or an experienced radio/TV technician for help.

DISPOSAL WARNING

To reduce waste and environmental harm, observe the following: PACKAGE RECYCLING: The packaging protects the

appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable. Disposse of all packaging materials in an environmentally responsible manner.

PRODUCT INFORMATION

① CONTROL PANEL
② OUTLET GRILL
③ LEGS (4)
④ POWER CORD
5 FILTER FRAME
6 FILTER FRAME SUPPORT TABS (3)
⑦ 3-IN-1 FILTER CARTRIDGE Hepa, Carbon, Prefilter

Labeled diagram of a vacuum cleaner with numbered components for identification

6 English

TRUE HEPA FILTRATION

VORNADO WHOLE ROOM AIR PURIFIERS FEATURE PRECISION TRUE HEPA CALIBRATION

products with a True HEPA Filter will not achieve their full filtration potential.

Gaps, poorly sealed filter housings, and excessive air velocity all reduce the effects of the product, induced

testing laboratory verifies that the precise calibration of a Vornado Air Purifier allows it to perform at True HEPA standards.

3-IN-1 FILTRATION

Carbon filtration captures odors and prolongs HEPA filter like. The use of carbon enables the filter to absorb more household odors and harmful gases than a traditional carbon filter. HEPA filter on captures 99.97% of particles 0.3 microns or larger, to effectively clean large volumes of air. The Pre-filter removes larger particles such as hair, pet cander, and mold spores.

AUTOMATIC FILTER REFILL PROGRAM

A convenient, and has a free way to relieve regular shipments of Vornado Filters, direct to your door. Eliminate the hassle of remembering to reorder. Maintain the high efficiency of your Vornado Purifier by regularly replacing user Filters with fresh new ones. How it works: You select a plan and Vornado will send replacement Filters at the recommended maintenance interval. To sign up, visit vomado.com, email [e-mail] or call 1 800 234 6664. Cancel at anytime.

Par: V MD1-0039

English 7

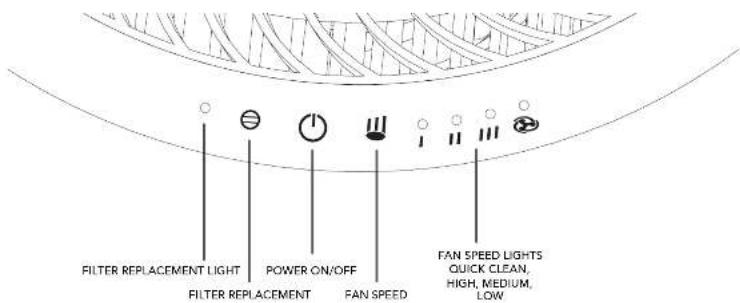

CONTROL PANEL

FILTER REPLACEMENT LIGHT FILTER REPLACEMENT POWER ON/OFF FAN SPEED FAN SPEED LIGHTS QUICK CLEAN, HIGH, MEDIUM, LOW

B English

HOW TO USE

POWER

Function ON and OFF by pressing the Power Button

FAN SPEED

4 fan speed settings to meet any need. Select Quick Clean, High, Medium or Low by pressing the Fan Speed button.

QUICK CLEAN

The Quick Clean filtration setting can be used to rapidly filter the air when airborne particle levels are high. In Quick Clean Mode, you will immediately notice a dramatic increase in airflow that will allow the unit to provide maximum filtration. Due to increased sound levels, use of this mode is recommended only as conditions require.

Note. Dust and allergens are most airborne when persons and pets are active in the room. For boat results, set the unit on Quick Close during these times for high demand cleaning and circulation. Set the unit to a lower setting for quieter operation when activity is reduced

FILTER REPLACEMENT

Equipped with Filter Replacement indicator light to show when it is recommended to change the filter. Please refer to FILTER REPLACEMENT for instructions. This feature is controlled by time of use. The light will illuminate after 4,500 hours of run time has accumulated.

Note: User environments will differ. The filter replacement time is based on average use situations. If you are using the air cleaner in a more demanding environment, you may need to change your filter more frequently. In less polluted environments, the filter life may extend beyond the notification.

USER TIPS LEG INSTALLATION

1. Keep retail carton to store unit when not in use.
2. For best results, position the front of the unit (sick with legal) towards the center of the room, leaving at least a 6-inch distance away from walls or furniture on every side.

Note: For optimum airflow, air outlet should be unobstructed. Ensure curtains and other items are far enough away from the unit to not be pulled into the side inlets or interfere with airflow.

You will need to install the 4 legs onto your Air Purifier before use.

Note: DO NOT turn on unit without first installing the legs. Air is being pulled in from underneath the unit. The motor could be damaged if proper airflow is not given by installing the legs.

1. Turn unit upside down.
2. Line leg up with holes on bottom of unit

1. Push leg firmly into unit until it snaps into place.
2. Install all 4 legs before turning unit right-side up

FILTER REPLACEMENT

GENUINE VORNADO FILTERS ARE RECOMMENDED
Peak performance is only realized when genuine Vornado Carbon and HEPA filters are used. Others may claim to be compatible with Vornado units, but the Vornado Air Funifier is calibrated to achieve a 99.97% capture rate of particles 0.3 microns or larger, or y when used with Vornado Filters.

HOW TO REPLACE YOUR FILTERS

1. Turn off and unplug unit
2. Turn over the unit and remove the Filter Frame by twisting the Filter Frame Support Tabs to the open position.

TAB TAB TAB

1. Remove and discard used filters. Simply take hold of the Pre-Filter at any place along the perimeter and remove. To remove the Filter Cartridge, pull upward on side tabs until filter is removed.
   Note: Clean any remaining dust or hair inside the unit by using a vacuum hose. Do Not use water or liquids to clean the unit.
2. Replace with genuine Vornado Filters. Place the Filter Cartridge in the unit and gently press around the perimeter to ensure placement. Carbon side of cartridge will go into the unit; first so thanks on Heps are facing up. Place Pre-Filter on top of Heps.
3. Place Filter Frame on top of Carbon and twist Filter Frame Support tabs into the locking position.
4. Turn unit right-side up.
5. To reset the Filter Replacement Indicator, press and hold ⊖ for approximately 3 seconds until Filter Replacement light has turned off.
   Note: Do not operate the Air Purifier without a Vornado 3-in-1 Filter Cartridge.

CLEANING AND MAINTENANCE

HOW TO CLEAN

Because large volumes of air pass through your Vornado Air Purifier each day, it will need regular cleaning.
1. Turn unit off and unplug before cleaning
Note: Do not use gasoline, thinners, solvents or other chemicals for cleaning.
2. Wipe down with a soft, damp cloth.
3. Dust or vacuum the top air outlet. It is recommended to clean the interior when the Filters are changed.

OTHER MAINTENANCE

The motor is permanently lubricated so it needs no service. No other serviceable parts, other than Filters, are contained within the unit.

12 English

STORAGE

Follow the steps listed below when you are ready to store your unit 1. Unplug power cord and bundle loosely.
2. Cover, or place back in retail carton if available. This will prevent
the unit from accumulating dust overtime.
4. Store unit in a cool and dry location.

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

Unit fails to power on.

Unit is not plugged in. Plug power cord into electrical outlet.

Household circuit breaker / ground fault interrupter has tripped or blown a fuse. Reset circuit breaker / ground fault interrupter, or replace fuse. For assistance, contact a licensed electrician.

Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.

Unit set to a low speed setting. Adjust to a higher speed setting.

Debris build-up on filter. Check and replace Filters.

Airflow is blocked. Remove obstruction.

WARRANTY

We expect this product to be perfect. If you're not satisfied with this product, let us know.

We're Here To Help

800.234.0604

vornado.com

[e-mail]

Vornado Air LLC ("Vornado") warrants to the original consumer at purchase this. Vornado® which Room Air (Outer) "Product" is free from defects in material or workmanship for a period of low (5 years from the date of purchase). Any such product is considered within the warranty period. Vornado as to auction or, will repair or replace the product at no cost.

For warranty or repair service:

Call: 1300-254-2604 or email http://varname.com to obtain a Refurn Author profile ("RA") form. Please have or include your products model number and serial number, as well as your name, address, city, state, up code and phone number when contacting Varncor for warranty services.

After receiving the RA form, ship your Product to:

Vorraco Air I C, A## Warrany & Repair 415 Post 130-Street Andover, KS A7002. For your convenience, please save your mode number and send number when contacting Vorraco with any inquiries. To course proper handling packages must be clearly marked with the BA number. Passages not clearly marked with the BA number may be released at this receiving clock. Please allow 1.2 weeks for up and return of your product after the Products is received.

Repair not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling and shopping. This warranty does not apply to defects resulting from abuse of the product, modification, alteration, repair or service of the Product by anyone other than Tobacco, mislanding, improper maintenance, commer

about the Product, merger and other procurement in use initiated to act as of April 2014. The Company is a HOLD UNIVID THE WARRANTY IS THE EXCLUDING REMOY OF THE CONSUMER VORNADO SHALL NOT RELIEABLE FOR ANY INCIDENTAL CONSULTURAL DRAWALS OR APPLICATION ANY ALL AS DES IT'S ALLOWED WARRANTY ON THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY PRICE WARRANTY OF INLETICIANIBILITY OR UNLESS TO A PARTICULAR ORDER ON THE PRODUCT IS INATED INFORMATION TO THE ZATURE OF THIS WARRANTY. This warranty is not intended to be issued or granted under any particular damages, or a law lettering on or have long an implied warranty says, at the above final time in which you may not apply. This company gives you specific legal rights, and you may have, except a right that any translation is available.

All company names and product name are trademarks of their respective owners. All rights reserved. All technical information data are instructions for the installation connection, and operation contained in these instructions for use correspond to the latest available information in terms of printing. The contents of this material may offer slightly from the actual product. Observe any additional supplements.

The manufacturer assumes no responsibility for domestic caused by failure to follow these instructions or improper product use. Any such actions will validate the product warranty.

Any unauthorized product modification, repair by unauthorized repair center, or use of non-supportive research and/or use is not implemented and any consequences will not be covered by support services or product warranties.

Jiangwei, engineered and applied materials

© 2017 Promedio Ar LLC Andover, KS 67002 U.S. Patent Pending. Specifications subject to change with notice: Vorsuda® is a trademark owned by Vorsuda 57 LLC.

Labeled diagram of a mechanical device with numbered components for identification

20 Faparel

INFORMATIONS SUR LE PRODUIT

① TABLEAU DE COMMANDE
② GRILLE DE SORTIE
③ PATTES (4)
④ CORDON D'ALIMENTATION
5 CADRE DU FILTRE
⑥ LANGUETTES DE SUPPORT DU CADRE DU FILTRE (3)
⑦ CARTOUCHE DE FILTRE 3-EN-1 Hepa, Charbon, Préfiltre

Labeled diagram of a mechanical device with numbered components for identification

34 Fureçais

VÉRITABLE FILTRATION HEPA

REMPLACEMENT DES FILTRES

IL EST RECOMMANDÉ D'UTILISER D'AUTHENTIQUES FILTRES VORNADO.

CAUSE POSSIBLE ET SOLUTIONPROBLÈME

© 2019 Vorrado An LLC, K5-6/0022 E.U. Brasilan International, Specialization Solutions and Validation Services Vorrado® volume range valuation per Vorrado An LLC

VORNADO®

Vornado Air, LLC

415 East 13th Street, Andover, Kansas 67002

800.234.0604 | vornado.com

CL3-0658 R-, V01
