USER MANUAL VRUI5240GLSS VIKING

WARNING WARNING - You can be killed or seriously injured if you do not follow these instructions.

WARNING State of California Proposition 65 Warning: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING State of California Proposition 65 Warning: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm..3 NOTE

CAUTION XXXXXXXXXXXX

WARNING WARNING - Help Prevent Tragedies Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous - even if they sit out for "just a few hours".If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.Before you throw away your old refrigerator or freezer:• Take off the doors or remove the drawers.• Leave the shelves in place so children may not easily climb inside.

WARNING WARNING - Dispose of the plastic bags which can be a suffocation hazard.

Use two or more people to move product.Failure to do so can result in personal injury. Remove Interior Packaging Your appliance has been packed for shipment with all parts that could be damaged by movement securely fastened. Remove internal packing materials and any tape holding internal components in place. The owners manual is shipped inside the product in a plastic bag along with the warranty registration card, and other accessory items. Important Keep your carton and packaging until your appliance has been thoroughly inspected and found to be in good condition. If there is damage, the packaging will be needed as proof of damage in transit. Afterwards please dispose of all items responsibly. Note to Customer This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the retailer upon acceptance of the shipment. Claims for loss or damage sustained in transit must be made to the retailer.DO NOT RETURN DAMAGED MERCHANDISE TO THE MANUFACTURER - FILE THE CLAIM WITH THE RETAILER.If the appliance was shipped, handled, or stored in other than an upright position for any period of time, allow the appliance to sit upright for a period of at least 24 hours before plugging in. This will assure oil returns to the compressor. Plugging the appliance in immediately may cause damage to internal parts.Figure 1It is important you send in your warranty registration card immediately after taking delivery of your appliance or you can register online at www.vikingrange.com in the US or brigade.ca in Canada. The following information will be required when registering your appliance.Service NumberSerial NumberDate of PurchaseDealer’s name and addressThe service number and serial number can be found on the serial plate which is located inside the cabinet on the left side near the top. See fi gure 1. Warranty Registration

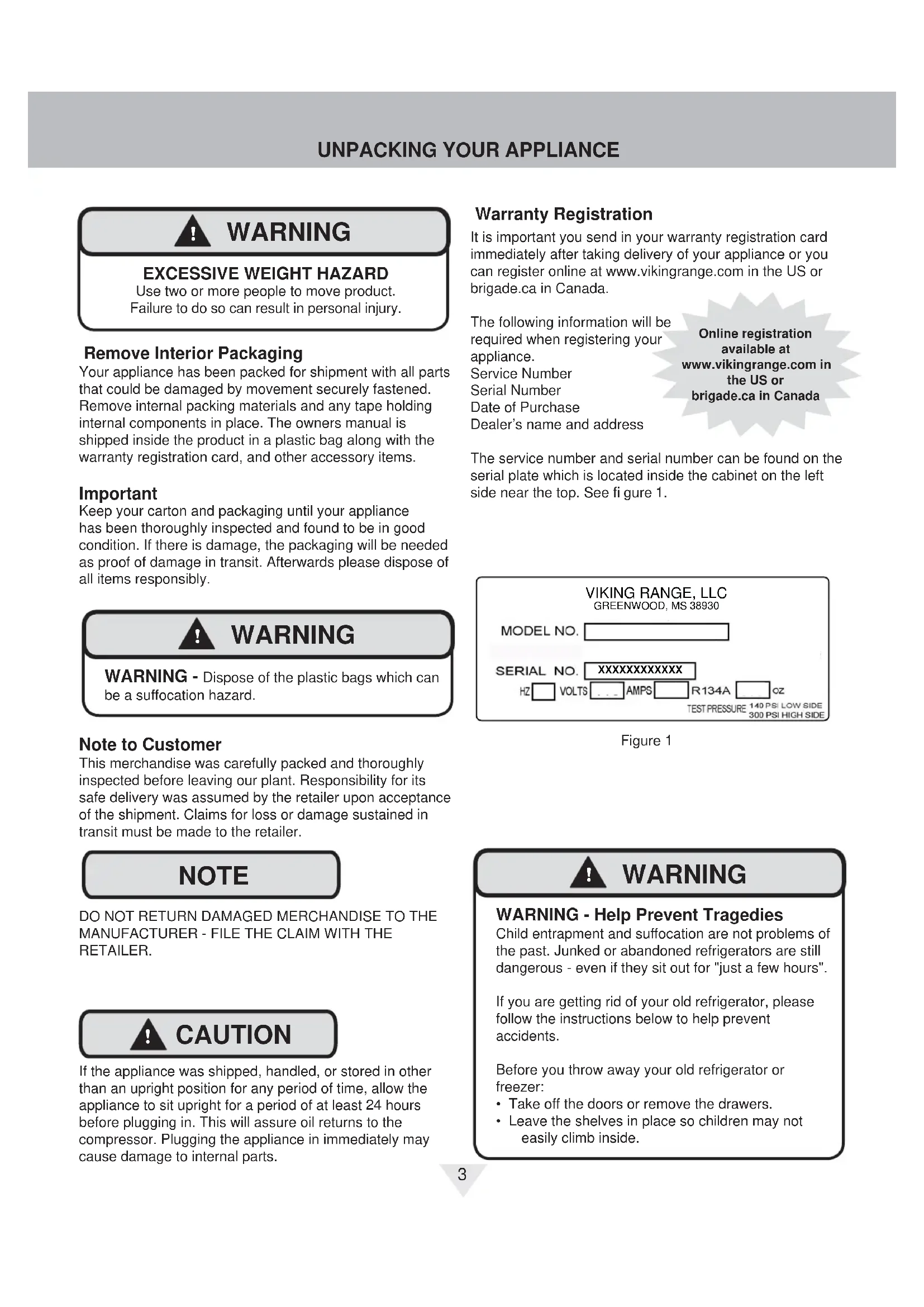

UNPACKING YOUR APPLIANCE

Online registration available at www.vikingrange.com in the US or brigade.ca in Canada4

CAUTION Select Location The proper location will ensure peak performance of your appliance. We recommend a location where the unit will be out of direct sunlight and away from heat sources. To ensure your product performs to specifi cations, the recom- mended installation location temperature range is from 55 to 100°F (13 to 38°C). Cabinet Clearance Ventilation is required from the bottom front of the appli- ance. Keep this area open and clear of any obstructions. Adjacent cabinets and counter top can be installed around the appliance as long as the front grille remains unob- structed. All Professional models with articulated hinges are intended for built-in applications only. Front Grille Do not obstruct the front grille. The openings within the front grille allow air to fl ow through the condenser heat ex- changer. Restrictions to this air fl ow will result in increased energy usage and loss of cooling capacity. For this reason it is important this area to not be obstructed and the grille openings kept clean. Viking Range, LLC does not recom- mend the use of a custom made grille as air fl ow may be restricted. (See Figure 2).

I NSTALLING YOUR APPLIANCE

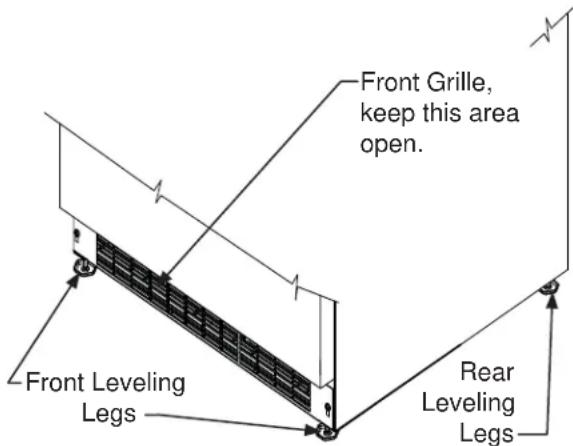

Figure 2 Front Leveling Legs Front Grille, keep this area open. Leveling Legs Adjustable legs at the front and rear corners of the appli- ance should be set so the unit is fi rmly positioned on the fl oor and level from side to side and front to back. The overall height of your appliance may be adjusted higher (by turning the leveling leg out, CCW) and lower (by turning the leveling leg in, CW) dimensions as shown in Table "A". To adjust the leveling legs, place the appliance on a solid surface and protect the fl oor beneath the legs to avoid scratching the fl oor. With the assistance of another person, lean the appliance back to access the front leveling legs. Raise or lower the legs to the required dimension by turning the legs. Repeat this process for the rear by tilting the appli- ance forward using caution. On a level surface check the appliance for levelness and adjust accordingly. The front grille screws may be loosened and the grille ad- justed to the desired height. When adjustment is complete tighten the two front grille screws. (See Figure 5). Rear Leveling Legs Model Door Style Minimum Height Maximum Height VRUI5240, CVRUI5240 VBUI5150, CVUBI5150 VBUI5240, CVUBI5240 (G)

I NSTALLING YOUR APPLIANCE

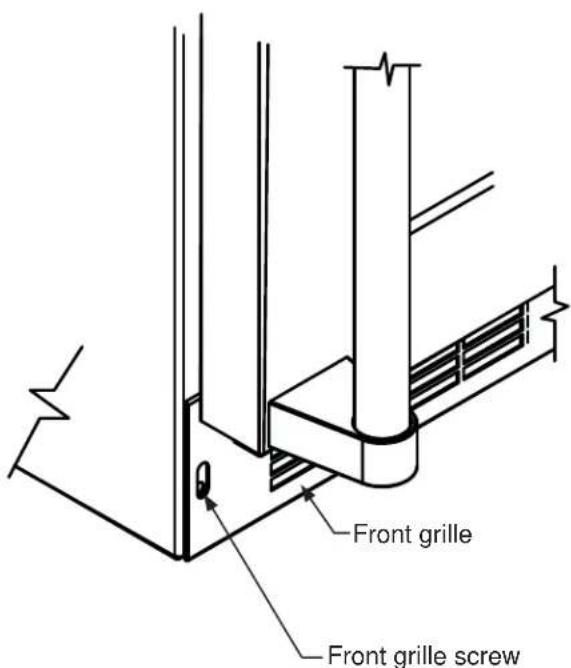

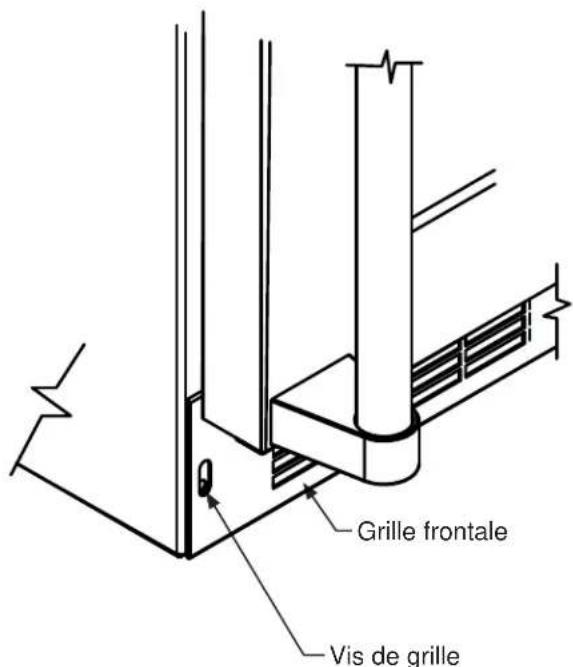

Figure 5 Front grille screw Electrical Shock Hazard

• Do not use an extension cord with this appliance. They can be hazardous and can degrade product performance.

• This appliance should not, under any circumstanc- es, be installed to an un-grounded electrical supply.

• Do not remove the grounding prong from the power cord. (See Figure 3).

• Do not use an adapter. (See Figure 4).

• Do not splash or spray water from a hose on the appliance. Doing so may cause an electrical shock, which may result in severe injury or death.

WARNING Front grille Ground Fault Circuit Interrupters (GFCI) are prone to nui- sance tripping which will cause the appliance to shut down. GFCI’s are generally not used on circuits with power equip- ment that must run unattended for long periods of time, un- less required to meet local building codes and ordinances. Electrical Connection A grounded 115 volt, 15 amp dedicated circuit is required. This product is factory equipped with a power supply cord that has a three-pronged, grounded plug. It must be plugged into a mating grounding type receptacle in accor- dance with the National Electrical Code and applicable lo- cal codes and ordinances (see Figure 6). If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to provide the proper power supply. The third ground prong should not, under any cir- cumstances, be cut or removed. Figure 6 Figure 3 Figure 4 Do not remove ground prong6 "A" "B" "C" "D" "E" PRODUCT DIMENSIONS

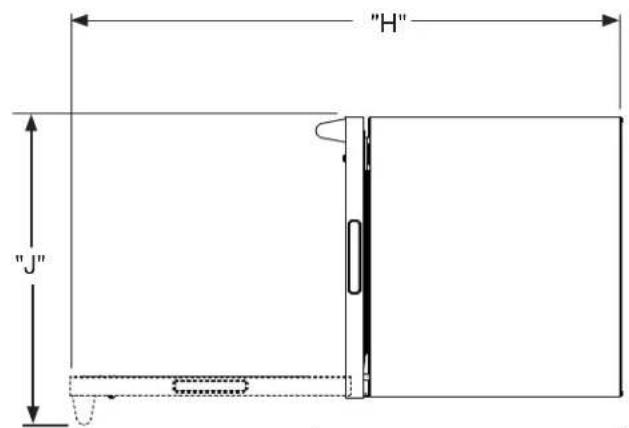

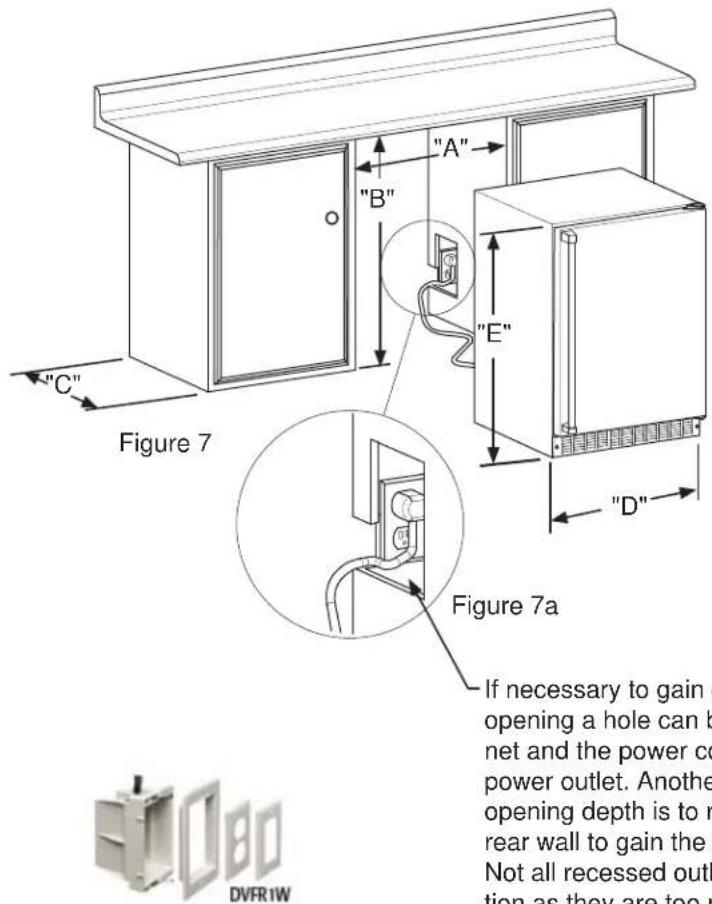

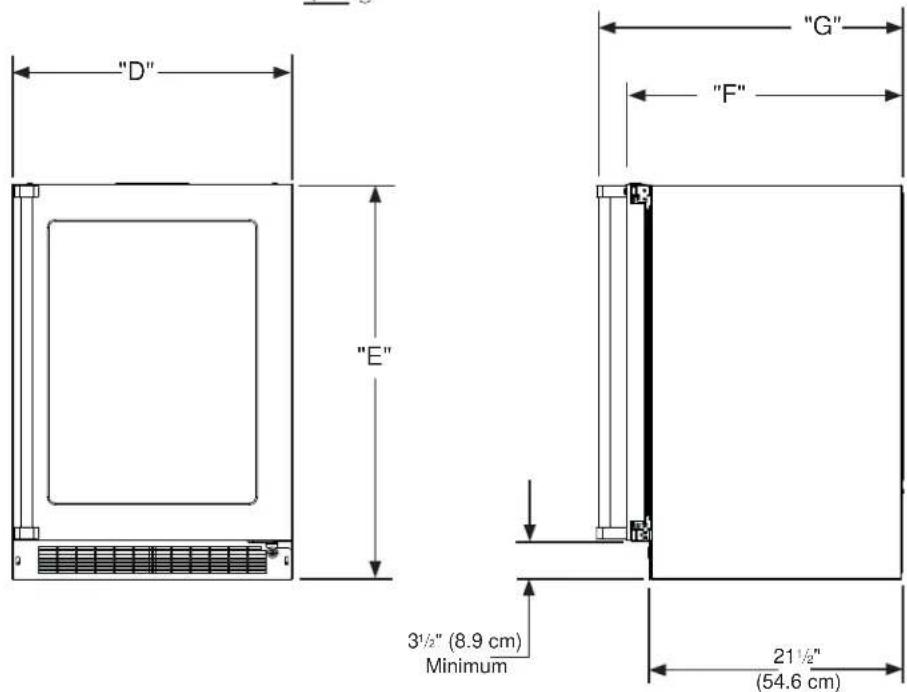

ROUGH-IN OPENING DIMENSIONS CABINET DIMENSIONS

MODEL "A" "B" "C" "D" "E" "F" "G" "H" "J" VBUI5150 CVBUI515 15" (38.1 cm) **34" to 35" (86.4 to 88.9 cm)

⁄4" (85.7 to 88.3 cm)

⁄4" (85.7 to 88.3 cm)

• Depth dimension of rough-in opening may vary depending on each individual installation. To recess entire door "F" di- mension plus 1" (2.5 cm) for thickness of power cord plug is required. ** Minimum rough-in opening required is to be larger than the adjusted height of the cabinet. Figure 7 Figure 7a If necessary to gain clearance inside the rough-in opening a hole can be cut through the adjacent cabi- net and the power cord routed through this hole to a power outlet. Another way to increase the available opening depth is to recess the power outlet into the rear wall to gain the thickness of the power cord plug. Not all recessed outlet boxes will work for this applica- tion as they are too narrow, but a recessed outlet box equivalent to Arlington #DVFR1W is recommended for this application, (see Figure 8). Figure 87 "D" "E" "F" "G" "H" "J" PRODUCT DIMENSIONS PRODUCT DATA MODEL ELECTRICAL REQUIREMENTS # PRODUCT WEIGHT VBUI5150 CVBUI5150 115V/60HZ/15A 105 lbs (47.6 kg) VRUI5240 CVRUI5240 VBUI5240 CVBUI5240 115V/60Hz/15A 140 lbs (63.6 kg)

⁄2" (54.6 cm) # A grounded 15 amp dedicated circuit is required. Follow all local building codes when installing electrical and appliance.8 Power Failure ALARM RESET

USING YOUR ELECTRONIC CONTROL

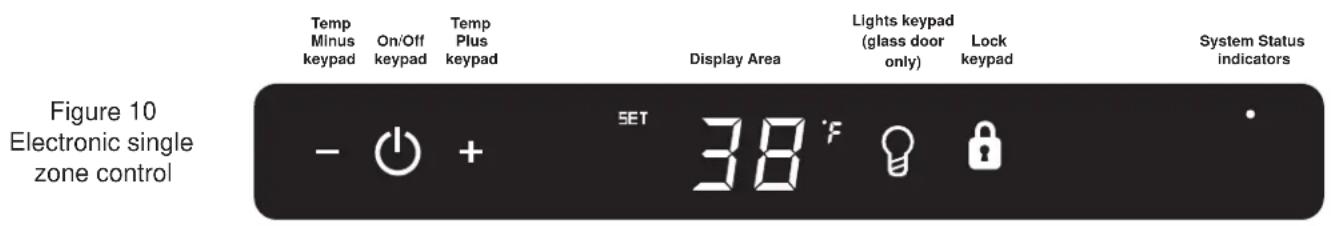

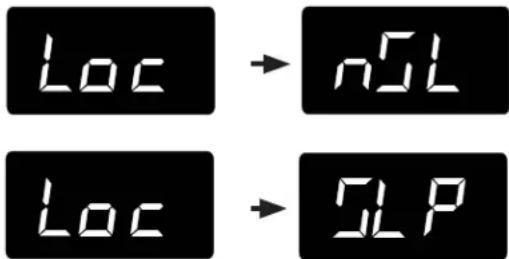

Temp Minus keypad Temp Plus keypad On/Off keypad Display Area Lights keypad (glass door only) Lock keypad System Status indicators Figure 10 Electronic single zone control Starting your appliance: Plug the appliance power cord into a 115 volt wall outlet. Your appliance is shipped from the factory in the "On" posi- tion and will begin start-up of cooling as soon as power is supplied. If the appliance does not start, confi rm that the wall outlet has power, and that the control is in the "On" position, (See "Turning your appliance On and Off" below). The control display is covered with a clear plastic fi lm. This fi lm may be removed by carefully lifting the fi lm at a corner. On initial power up, the control display will indicate a "Power Failure" alarm. This is a normal condition as the ap- pliance was powered-up at the factory for quality inspection and then removed from power. A momentary press of the "On/Off" keypad will reset this alarm condition. (See Alarms section on page 10). Turning your appliance ON and OFF: If the appliance is "On", (and out of sleep mode) the tem- perature will be shown in the display area of the control. To turn the appliance "Off", press and hold the "On/Off" keypad for 4-seconds. "OFF" will now be displayed on the control. To turn the appliance "On", press and hold the "On/Off" keypad for 4-seconds. Sleep mode: If no keypads are pressed for 60 seconds, the display will enter sleep mode to conserve power. The control panel will go dark with the exception of the system status "OK" indi- cator which will remain enabled. Alarm conditions will wake the display, (see alarms on page 10). To make the following changes to the control settings (turning the appliance ON/OFF, adjusting the tempera- ture, changing the interior lights, and activating vaca- tion mode), the control must be awake. The sleep mode can be disabled if you prefer to have the display on continuously. Press and hold the "Lock" key- pad until the display goes past "Loc" and reads "nSL". To enable the sleep mode, repeat the instruction, again going past "Loc" until the display reads "SLP". To wake the display press any keypad. A confi rm tone will sound, and the current storage compartment temperature will be displayed. Interior display lighting: (Glass door models only) Your appliance is equipped with a dual light level display lighting feature. With the control out of sleep mode press the "Light" keypad once to activate the interior lighting display feature at full illumination. A confi rmation tone will sound, and the light bulb "Icon" will illuminate. Pressing the "Light" keypad a 2nd time will dim the lighting to 50%. A 3rd press will deactivate the display lighting feature. The display lighting will automatically deactivate after 4-hours.9 NOTE If the control lock is active (illuminated lock icon) the control will have to be unlocked before using the keypad to reset an alarm condition. See page 9 (Control Lock) for instructions for unlocking the control. Temperature Sensor Error Codes Sensor Displayed Code Error Description Action to Take Single Zone Temperature Sensor Failed temperature sensor in the single zone compartment. Can lead to unwanted storage temperatures and/or spoiled perishable goods. Call service to have the temperature sensor replaced and remove all perishable goods from compartment to prevent spoilage. Defrost Sensor Failed defrost temperature sensor. Causes unit to not defrost properly and can create large frost build-up. Can lead to water damage to the unit and surrounding fl oor. Unplug the power cord immediately and call service to have the defrost sensor replaced. The temperature sensors are monitored continuously. Any OPEN or SHORTED circuit condition will initiate an ER- ROR CODE as listed below: Temperature Sensor Error Codes

USING YOUR ELECTRONIC CONTROL

Temperature mode: The temperature mode is preset from the factory in Fahren- heit (°F) but you have the option to change it to Centigrade (°C). To change the mode, press and hold the "-" keypad, while pressing the "+" keypad, then release the "-" keypad. The temperature will now be displayed in Centigrade (°C). Repeat the procedure to change the temperature mode back to Fahrenheit (°F). Control lock: The control panel can be locked to avoid unintentional changes. To lock the control, press and hold the "Lock" key- pad until the display reads "Loc" then immediately release your fi nger from the keypad. The lock icon will fl ash 3-times and then continuously illuminate. When the control panel is locked, only the Lock keypad, System Status OK indicator , and the Alarm indicator are active. To un-lock the control panel, repeat this instruction until the display reads "nLc", then immediately release your fi nger from the keypad. Adjusting the temperature: To set or check the set-point temperature (with the control out of sleep mode), press the "-" or "+" keypads. "SET" will be indicated on the user interface panel and the current set-point temperature will display and fl ash. Subsequent presses of the "-" or "+" keypads will adjust the temperature colder or warmer respectively. When you have reached your desired set-point temperature, press the "On/Off" key- pad to accept, or do nothing and the "Set" mode will time- out in 10-seconds accepting the displayed temperature as the new set-point. The available set-point temperature range for your ap- pliance is 34°F (1.2°C) to 42°F (5.7°C). If you attempt to adjust the temperature outside of this range you will receive an audible notifi cation. When initially loading your product with warm contents, it may take up to 48-hours for the storage compartment tem- perature to stabilize. When making temperature set-point changes, it may take up to 24-hours for the stored contents to stabilize at your new set-point temperature. Factors that affect the storage compartment stabilized temperature:

• Changes to temperature setting.

• Room temperature changes.

• Temperature of stored contents. - Loading warm contents. - Cold content load will delay the change to a warmer set-point temperature. - Warm content load will delay the change to a colder set-point temperature.

• Usage, (number and duration of the door openings).

• Use of the storage compartment display lighting, (glass door product only).

• Installation of the appliance in direct sunlight or next to a heat source.10 ALARM RESET Power Failure ALARM RESET Temp NOTE Door Ajar Temp Door AjarALARM RESET This alarm condition can be reset by closing the door or momentarily pressing the "On/Off" keypad, (i.e.-if you are cleaning the storage compartment, etc.). The alarm will recur in 5-minutes if the alarm condition persists.

USING YOUR ELECTRONIC CONTROL

• Power failure - If power to the appliance is inter- rupted the System Status indicator will turn-off and the "Power Failure" indicator will fl ash. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad. No audible tone will sound. This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs, it is recommend- ed that you check the condition of any perishables, even if the appliance is operating normally and the tem- perature has recovered, as prolonged power outages could result in excessive temperature excursions which may spoil perishables.

• Temperature alarm - If the storage compart- ment temperature deviates excessively from your set-point temperature for an extended period of time, the "TEMP" indicator will fl ash, and an audible tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "ON/ OFF" keypad. Multiple alarms are possible, i.e.- "Door Ajar" for a pro- longed period may trigger a "Temp" alarm, in which case both "Door Ajar" and "Temp" indicators will activate.

• Door ajar - If the door is open, or not closed prop- erly, for more than 5-minutes the System Status OK indicator will turn-off, the "Door Ajar" indicator will fl ash, and a tone will sound every 60 seconds. Additionally, an "ALARM RESET" indicator will be displayed below the "On/Off" keypad. Alarms: The control will alert you to conditions that could adversely affect the performance of the appliance. This alarm condition can be reset by momentarily pressing the "On/Off" keypad. If this alarm occurs it is recommended that you check the condition of your stored contents, even though the appliance is operating normally and the temper- ature has recovered, as prolonged temperature excursions could spoil perishables. NOTE The audible alarm can be muted, for each occurrence, by pressing the lock keypad. NOTE The audible alarm can be muted, for each occurrence, by pressing the lock keypad. NOTE NOTE After a high temperature alarm condition, check all perish- ables to ensure they are safe for consumption. The temperature alarm may occur as a result of high usage or introduction of warm contents to the storage compart- ment. If the temperature alarm continues to occur, your unit may require service.11

USING YOUR ELECTRONIC CONTROL

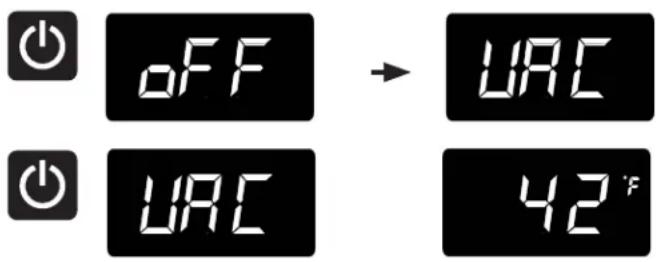

Vacation mode: This operating mode can be used to save energy during high cost energy periods, or when you won't be using your appliance for an extended period of time by disabling the lights, alarm tones, and keypad entry tones. Vacation mode also serves as a Sabbath mode, disabling functions and its controls in accordance with the weekly Sabbath and religious holidays observed within the Orthodox Jewish community. When used as Sabbath mode, you may open or close the door at any time to access contents without concern of directly turning on or off any lights, digital read- outs, solenoids, fans, valves, compressor, icons, tones, or alarms. When activated, the display, alarm indicators and tones, keypad touch tones, interior lights, and all options are dis- abled. All keypad functions are disabled, with the exception of the "On/Off" keypad which is required to exit Vacation- mode. Storage compartment temperatures are monitored and controlled at the settings prior to entering Vacation mode. To enter Vacation Mode (with the control out of sleep mode), press and hold the "On/Off" keypad until the display goes past "OFF" and reads "VAC". The display will fl ash "VAC" 3-times to acknowledge your request, then will display "VAC" continuously until Vacation mode is exited. A power outage will not exit Vacation mode, exiting can only be accomplished manually. To exit Vacation mode and return to normal operation, press and hold the "On/Off" keypad until the control displays the temperature.12 SHELVING CONFIGURATIONS VBUI5240 Beverage Center: VBUI5150 Beverage Center: Loading Tips and Suggestions Your appliance is equipped with a cantilever shelf system which provides maximum adjust ability and customizing of the shelving arrangements listed below. 24" (61 cm) Wide Models: Shown with a glass overlay door. Figure 12. 15" (38.1 cm) Wide Models: Shown with a glass door. Figure 11. Figure 11 (2) frame and fl at glass shelf. (See Figure 14). Figure 13 VRUI5240 Refrigerator: 24" (61 cm) Wide Models: Shown with a glass door. Figure 13. (1) half width fl at glass cantilever shelf. (See Figure 14). (1) wine cutout and fl at glass cantilever shelf. (See Figure 15). (1) frame and fl at glass crisper cover. (1) roll-out crisper pan (2) wine cutout and fl at glass cantilever shelf. (See Figure 15). (1) 5 bottle rollout display rack with vibration dampening mat (See Figure 16). Figure 12 To remove the crisper : Pull out until it stops. Lift up on the front of the pan, and remove it from the frame.13 Figure 14 Frame and fl at glass shelf with trim SHELVING CONFIGURATIONS Wine shelf underneath glass Figure 15 Wine cutout and fl at glass shelf with vibration dampening mat, the glass can be removed for wine storage. Figure 16 5 bottle rollout display rack with vibration dampening mat14 Tall bottle storage area To Add or Remove a Shelf Remove stored product from the shelf. Do not try to remove a loaded shelf from the appliance. Grasp the shelf front with both hands, rotate the front upward and lift out. (See Figure 17b). To install a shelf insert the shelf in the appliance and insert the top hooks into the shelf support slots and drop the shelf down so the hooks drop over the bottom of the slots. Rear tang (hook) on shelf Shelf support slot Installed shelf tang Make sure your cantilever shelf is secure on the shelf supports by pressing down on the shelf before loading the shelf.

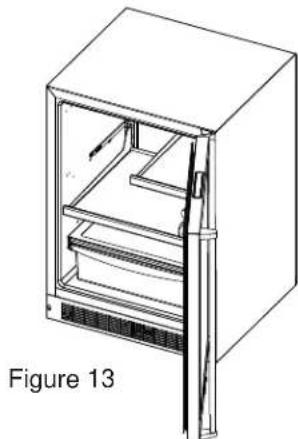

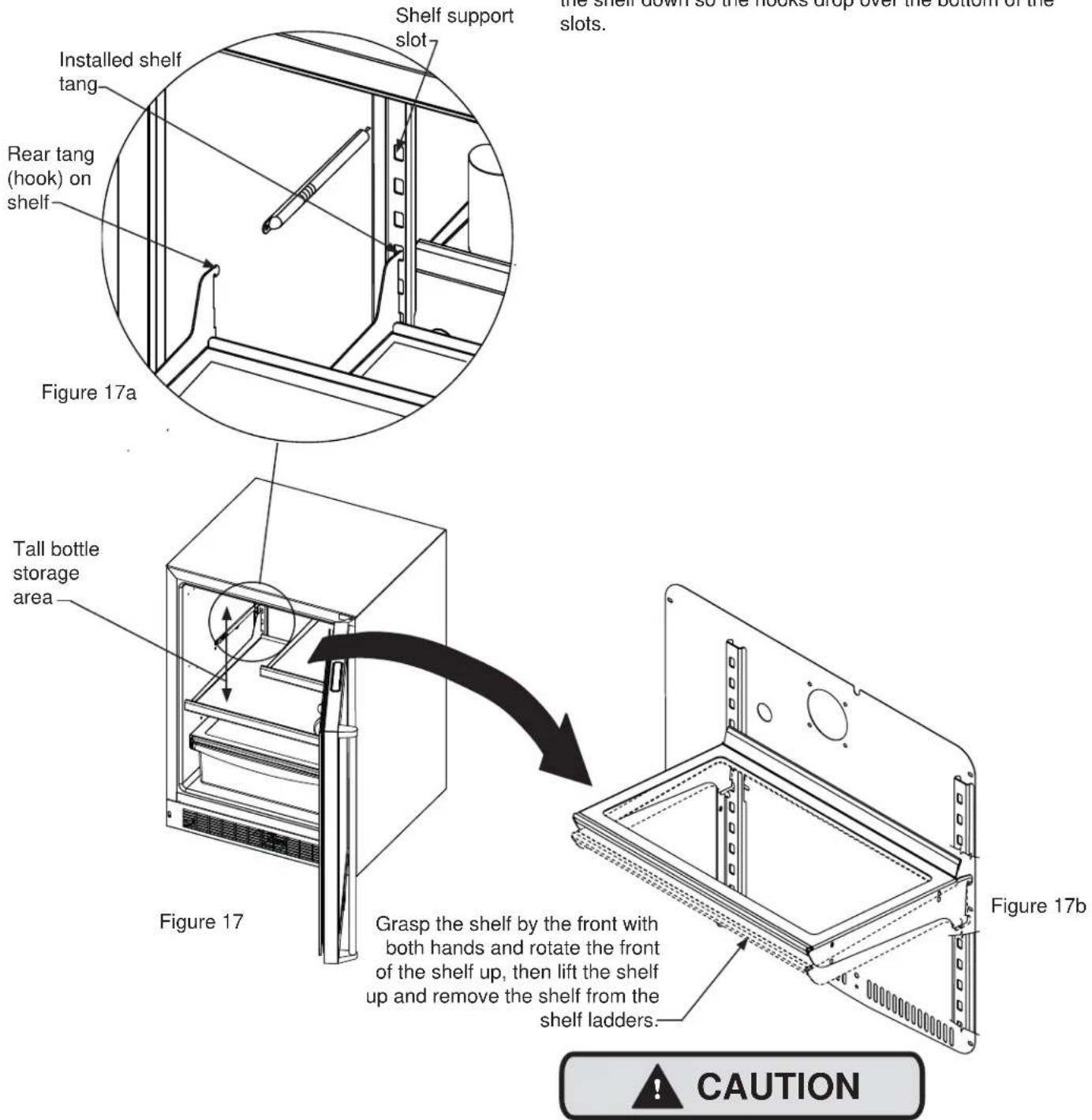

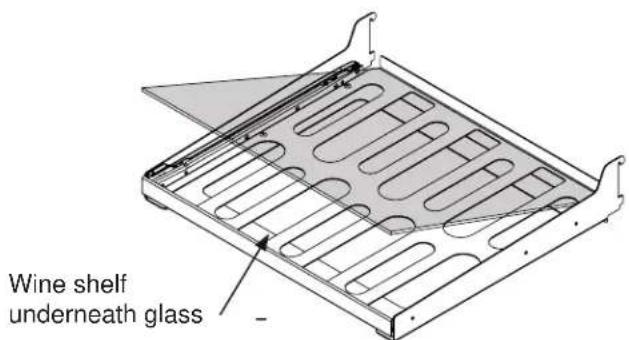

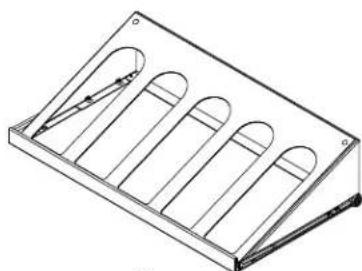

CAUTION Grasp the shelf by the front with both hands and rotate the front of the shelf up, then lift the shelf up and remove the shelf from the shelf ladders.

CAUTION Never try to move a loaded shelf, remove everything from the shelf before moving. Use both hands when moving a shelf. Figure 17a Figure 17 Figure 17b SHELVING CONFIGURATIONS15

CAUTION Front Grille Be sure that nothing obstructs the required air fl ow open- ings in front of the cabinet. At least once or twice a year, brush or vacuum lint and dirt from the front grille area (see page 4). SHOCK HAZARD: Disconnect electrical power from the appliance before cleaning with soap and water. Cabinet The painted cabinet can be washed with either a mild soap and water and thoroughly rinsed with clear water. NEVER use abrasive scouring cleaners. Interior Wash interior compartment with mild soap and water. Do NOT use an abrasive cleaner, solvent, polish cleaner or undiluted detergent. Care of Appliance

1. Avoid leaning on the door, you may bend the door

hinges or tip the appliance.

2. Exercise caution when sweeping, vacuuming or mop-

ping near the front of the appliance. Damage to the grille can occur.

3. Periodically clean the interior of the appliance as

4. Periodically check and/or clean the front grille as

needed. In the Event of a Power Failure If a power failure occurs, try to correct it as soon as pos- sible. Minimize the number of door openings while the power is off so as not to adversely affect the appliance's temperature. Light assembly replacement All models use an LED to illuminate the interior of the ap- pliance. This component is very reliable, but should it fail, contact a qualifi ed service technician for replacement of the LED. The following suggestions will minimize the cost of operating your refrigeration appliance.

1. Do not install your appliance next to a hot appliance

(cooker, dishwasher, etc.), heating air duct, or other heat sources.

2. Install product out of direct sunlight.

3. Ensure the front grille vents at front of appliance be-

neath door are not obstructed and kept clean to allow ventilation for the refrigeration system to expel heat.

4. Plug your appliance into a dedicated power circuit. (Not

shared with other appliances).

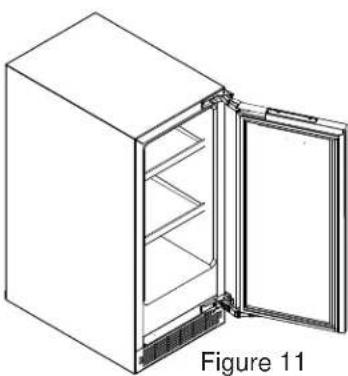

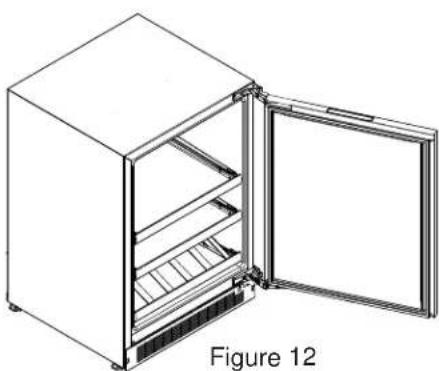

5. When initially loading your new product, or whenever

large quantities of warm contents are placed within refrigerated storage compartment, minimize door openings for the next 12 hours to allow contents to pull down to compartment set temperature.

6. Maintaining a relatively full storage compartment will

require less appliance run time than an empty compart- ment.

7. Ensure door closing is not obstructed by contents

stored in your appliance.

8. Allow hot items to reach room temperature before plac-

9. Minimize door openings and duration of door openings.

10. Use the warmest temperature control set temperature

that meets your personal preference and provides the proper storage for your stored contents.

11. When on vacation or away from home for extended pe-

riods, set the appliance to warmest acceptable tem- perature for the stored contents.

12. Set the control to the “off” position if cleaning the

appliance requires the door to be open for an extended period of time.

13. For wine storage products:

When serving temperatures are not required, return the compartment(s) set temperature to the ideal red and white wine long term storage tem- perature of 13°C / 55°F. CARE AND CLEANING AND ENERGY SAVING TIPS16 If service is required, call your authorized service agency. Have the following information readily available:

• Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range, LLC at (888) 845-4641 or write to:

PREFERRED SERVICE 111 Front Street Greenwood, Mississippi 38930 USA Record the information indicated below. You will need it if service is ever required. The serial number and model numbers for your refrigerator are located on the upper wall, behind the lighting: Model No. ___________________________________ Serial No. _____________________________________ Date of Purchase ______________________________ Date Installed _________________________________ Dealer’s Name ________________________________ Address _____________________________________

If service requires installation of parts, use only authorized parts to insure protection under the warranty. Keep this manual for future reference. SERVICE INFORMATION17

• Never attempt to repair or perform maintenance on the appliance until the main electrical power has been disconnected. Turning the appliance control "OFF" does not remove electrical power from the units wiring.

• Replace all parts and panels before operating.

WARNING Electrocution Hazard Before You Call for Service If the appliance appears to be malfunctioning, read through this manual fi rst. If the problem persists, check the troubleshooting guide below. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem may be something very simple that can be solved without a service call. However, it may be required to contact your dealer or a qualifi ed service technician. TROUBLESHOOTING Problem Possible Cause Remedy Appliance not cold enough (See “Adjusting the temperature" on page 9)

• Control set too warm

• Content temperature not stabi- lized.

• Excessive usage or prolonged door openings.

• Airfl ow to front grille blocked.

• Door gasket not sealing properly.

• Adjust temperature colder. Al- low 24 hours for temperature to stabilize.

• Allow temperature to stabilize for at least 24 hours.

• Airfl ow must not be obstructed to front grille. See “clearances” on page 4.

• Check door alignment and/or replace door gasket. Appliance too cold (See “Adjusting the Temperature” on page 9)

• Control set too cold

• Door gasket not sealing properly.

• Adjust temperature warmer. Allow 24 hours for temperature to stabilize.

• Check door alignment and/or replace door gasket. No interior light. • Failed LED light assembly or light switch.

• Contact a qualifi ed service techni- cian. Light will not go out when door is closed

• Display light is turned on. (Glass door models only.

• Door not activating light switch.

• Turn off display light, shut door.

• Appliance not level, level appli- ance, (See page 4, “leveling legs”)

• Contact a qualifi ed service techni- cian. Noise or Vibration • Appliance not level

• Fan hitting tube obstruction.

• Level appliance, see “Leveling Legs” on page 4.

• Contact a qualifi ed service techni- cian. Appliance will not run. • Appliance turned off

• Power cord not plugged in.

• Turn appliance on. See “Starting your appliance” on page 8.

CAUTION In the unlikely event you lose cooling in your unit, do not unplug the product from the electric supply, but do call a qualifi ed service technician immediately. It is possible that the loss of cooling capacity is a result of excessive frost build-up on the evaporator cooling coil. In this case, removing power to the unit will result in the melting of this excessive quantity of ice, which could generate melt water that exceeds the capacity of the defrost drain system and could result in water damage to your home. The end-user will be ultimately responsible for any water damage caused by prematurely turning the unit off without appropriately managing the excess water run-off.18

HOUSEHOLD PRODUCT WARRANTY

UNDERCOUNTER REFRIGERATOR / BEVERAGE CENTER WARRANTY

TWO YEAR FULL WARRANTY

Undercounter refrigerators / Beverage Centers and all of their component parts, except as detailed below*†, are warranted to be free from defective materials or workmanship in normal residential use for a period of two (2) years from the date of original retail purchase. Viking Range, LLC, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. *FULL NINETY (90) DAY COSMETIC WARRANTY: Product is warranted to be free from cosmetic defects in materials or workmanship (such as scratches on stainless steel, paint/porcelain blemishes, etc.) for a period of ninety (90) days from the date of original retail purchase or closing date for new construction, whichever period is longer. Any defects must be reported to the selling dealer within ninety (90) days from date of original retail purchase. Viking Range, LLC uses high quality processes and materials available to produce all color fi nishes. However, slight color variation may be noticed because of the inherent differences in painted parts and porcelain parts as well as differences in kitchen lighting, product locations, and other factors. Therefore, this warranty does not apply to color variation attributable to such factors. †FULL NINETY (90) DAY WARRANTY IN “RESIDENTIAL PLUS” APPLICATIONS: This full warranty applies to applications where use of the product extends beyond normal residential use, but the warranty period for products used in such applications is ninety (90) days. Examples of applications covered by this warranty are bed and breakfasts, fi re stations, private clubs, churches, yachts, etc. Under this “Residential Plus” warranty, the product, its components and accessories are warranted to be free from defective material or workmanship for a period of ninety (90) days from the date of original retail purchase. This warranty excludes use of the product in all commercial locations such as restaurants, food service locations and institutional food service locations. SIX YEAR FULL WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the third through the sixth year from the date of original retail purchase. Viking Range, LLC, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period. Sealed Refrigeration System Components: Compressor, Evaporator, Condenser, Connecting Tubing, Dryer/Strainer TWELVE YEAR LIMITED WARRANTY ON SEALED REFRIGERATION PARTS AS LISTED Any sealed refrigeration system component, as listed above, which fails due to defective materials or workmanship in normal household use during the seventh through the twelfth year from the date of original retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs, including labor.

TERMS AND CONDITIONS

This warranty extends to the original purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the warranty and applies to products purchased and located in the United States, Canada, Mexico and the Caribbean (excluding Cuba, Dominican Republic, and Haiti). Products must be purchased in the country where service is requested. If the product or one of its component parts contains a defect or malfunction during the full warranty period after a reasonable number of attempts by the warrantor to remedy the defect or malfunction, the owner is entitled to either a refund or replacement of the product or its component part or parts. Replacement of a component part includes its free installation, except as specifi ed under the limited warranty. Under the terms of this warranty, service must be performed by a factory authorized Viking Range, LLC service agent or representative. Service will be provided during normal business hours, and labor performed at overtime or premium rates shall not be covered by this warranty. Owner shall be responsible for proper installation, providing reasonable and necessary maintenance, providing proof of purchase upon request, and making the appliance reasonably accessible for service. The return of the Owner Registration Card is not a condition of warranty coverage. You should, however, return the Owner Registration Card so that Viking Range, LLC can contact you should any question of safety arise which could affect you. This warranty gives you specifi c legal rights, and you may also have other rights which may vary from jurisdiction to jurisdiction. WHAT IS NOT COVERED BY THIS WARRANTY: This warranty shall not apply to damage resulting from abuse, failure to provide reasonable and necessary maintenance, accident, delivery, negligence, natural disaster, loss of electrical power to the product for any reason, alteration, outdoor use, improper installation, improper operation, or repair or service of the product by anyone other than an authorized Viking Range, LLC service agency or representative. This warranty does not apply to commercial usage. LIMITATION OF REMEDIES AND DURATION OF IMPLIED WARRANTY OWNER’S SOLE AND EXCLUSIVE REMEDY FOR A CLAIM OF ANY KIND WITH RESPECT TO THIS PRODUCT SHALL BE THE REMEDIES SET FORTH ABOVE. VIKING RANGE, LLC IS NOT RESPONSIBLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGE, INCLUDING BUT NOT LIMITED TO FOOD OR MEDICINE LOSS, DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT OR OTHERWISE. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusions may not apply to you. ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLICABLE TO THIS PRODUCT ARE LIMITED IN DURATION TO THE PERIOD OF COVERAGE OF THE APPLICABLE EXPRESS WRITTEN LIMITED WARRANTIES SET FORTH ABOVE. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. WARRANTY SERVICE To obtain warranty service, contact an authorized Viking Range, LLC service agent, or Viking Range, LLC, 111 Front Street, Greenwood, Mississippi 38930, (888) 845-4641. Provide model and serial number and date of original purchase or closing date for a new construction. For the name of your nearest authorized Viking Range, LLC service agency, call Viking Range, LLC. IMPORTANT: Retain proof of original purchase to establish warranty period. Specifi cations subject to change without notice.19058185-000A EN Viking Range, LLC 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-(845-4641) or visit our web site at vikingrange.com in the US or brigade.ca in Canada (040116)Install / Use & Care MANUAL 5 SERIES Professional Undercounter Refrigerator / Beverage Center Réfrigérateur de comptoir/ Stockage de boissons Professionnel Refrigerador bajo mostrador / Centro de bebidas Profesional

CVRUI5240CVBUI5150CVBUI5240

DIMENSIONS DU PRODUIT

Figure 87-FR "D" "E" "F" "G" "H" "J"

DIMENSIONS DU PRODUIT8-FR

Power Failure ALARM RESET

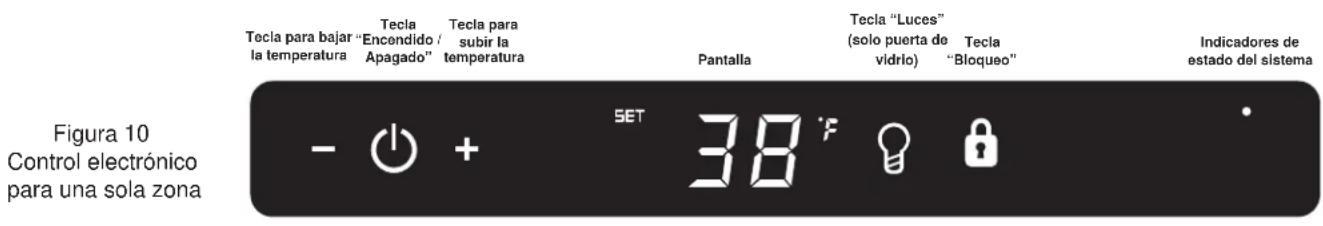

UTILISATION DE VOTRE COMMANDE ÉLECTRONIQUE
