Product Type	Gas Cooktop
Brand	Viking
Model	TVDR6606GGB
Width	121.9 cm (48 in)
Depth	68.6 cm (27 in)
Height	91.4 cm (36 in)
Weight	Approximately 136 kg (300 lb)
Fuel	Natural gas (convertible to propane)
Number of Surface Burners	6
Burner Types	Gas burners with electronic ignition
Griddle	Yes, removable
Ignition	Electronic
Safety	Flame detection, automatic shutoff if flame goes out
Material	Stainless steel
Cleaning	Removable grates and burner caps, wash with soapy water
Included Spare Parts	Propane conversion kit (orifices, label)
Repairability	Technical support and parts available from Viking
General Information	Manufactured by Viking Range, LLC, Greenwood, MS, USA

Frequently Asked Questions - TVDR6606GGB VIKING

How to convert the cooktop from natural gas to propane?

Follow the instructions in the provided conversion manual. You need to reverse the regulator piston and replace the burner orifices with those from the kit. Use a soapy water solution to check for leaks after conversion.

How to clean the surface burners?

Remove the grates and burner caps. Wash them with hot soapy water, rinse and dry completely. Do not obstruct the orifices with debris.

What to do if you smell gas?

Do not try to light any appliance. Do not touch any electrical switch. Evacuate the premises and immediately call your gas supplier from an outside phone. Follow their instructions.

How to light a surface burner?

Turn the burner knob to the High position. The electronic igniter produces sparks. If the burner does not ignite, check that the cap is correctly installed and the orifice is not obstructed.

Where is the rating label located?

The label is located under the control panel, on the appliance chassis. It indicates the gas type, pressure, and safety information.

Can I use the griddle to cook pancakes?

Yes, the griddle is ideal for crepes, pancakes, and grilling. Preheat it over medium heat and lightly grease the surface.

How to remove the griddle for cleaning?

Allow the griddle to cool. Remove the mounting screws if necessary (depending on model). Lift the griddle and clean it with a non-abrasive sponge. Do not use harsh cleaners.

What type of gas to use with this cooktop?

The appliance is shipped to operate on natural gas. It can be converted to propane using the included kit. Check the label for the correct gas pressure.

How to replace a burner orifice?

Disconnect the power supply. Remove the burner ring and unscrew the orifice with a nut driver. Use adhesive tape inside the socket to avoid losing the orifice. Install the new orifice and reassemble.

Where to find the appliance serial number?

The serial number is on the rating label, under the control panel. It is required for technical support and replacement parts.

USER MANUAL TVDR6606GGB VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifi ces may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

-DO NOT try to light any appliance.
-DO NOT touch any electrical switch.
DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open f1 ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
• Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP". Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

• Reinstall hex nut onto regulator in configuration desired.

Orifices Locations

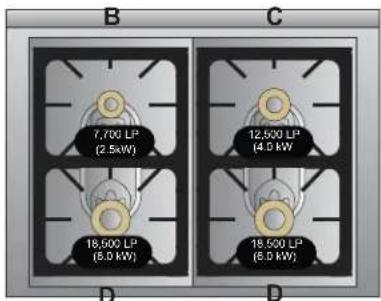

36" W/4 Surface Burners

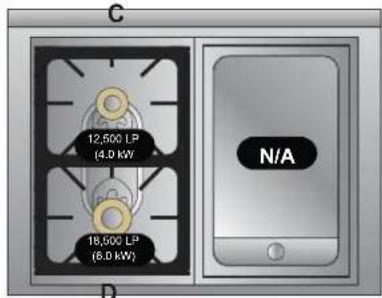

36'' W/2 Surface Burners/Griddle

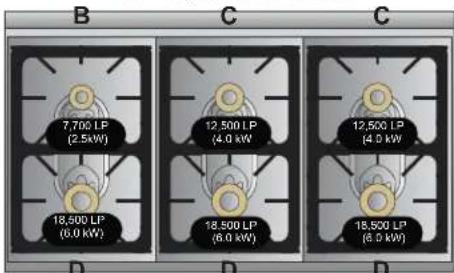

48" W/6 Surface Burners

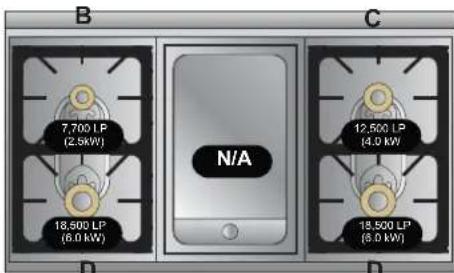

48" W/4 Surface Burners/Griddle

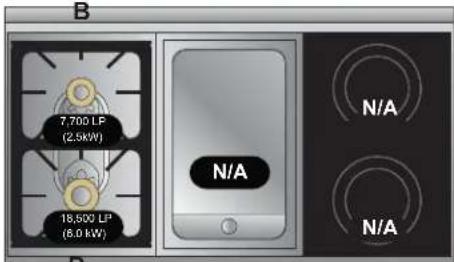

48" W/2 Surface Burners/Griddle/Induction

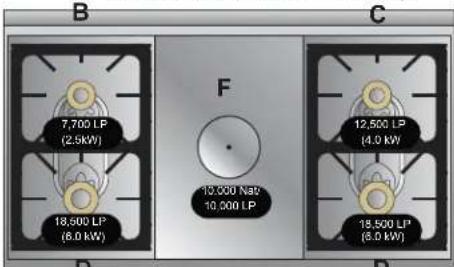

48" W/4 Surface Burners/French Top

D

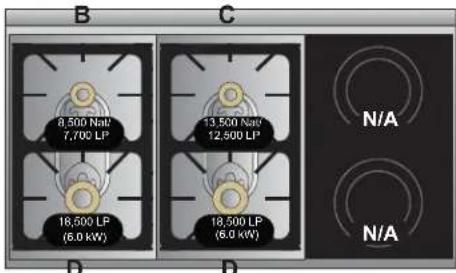

48" W/4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

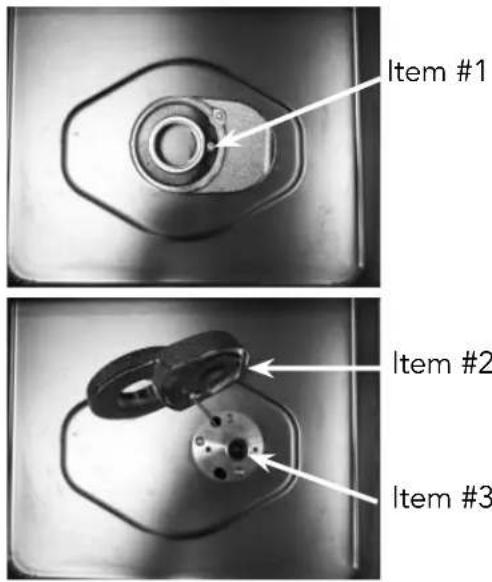

Surface Burner Conversion

-Locate appropriate orificce
-Remove screw (Item #1) fl at-head screwdriver.
- Lay the burner flange to side - do not disconnect the igniter wire. (Item #2).
-Use a nut driver to remove orificce (ltem #3).
-Replace with correct orific e - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, replace Item#2 burner fl ange.
  -Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Frenchtop Burner Conversion

-Remove frenchtop plate.
-Remove screws around burner.
-Remove screws holding burner box.
-Slide burner box forward and lift out.

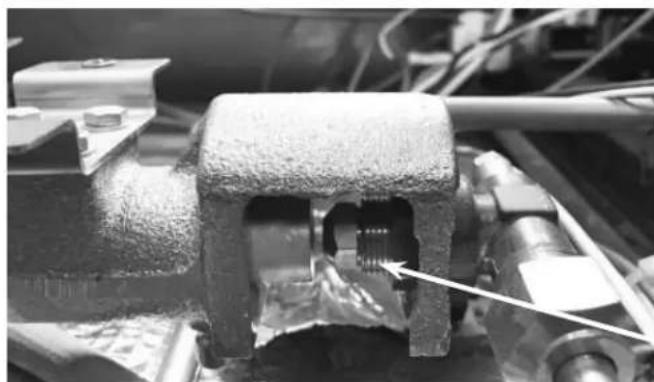

-Orifice is located under orifice bracket, attached to tubing.
-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

• After replacing the orifice, reinstall burner box and frenchtop plate

Orifice bracket

Orificce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.
