Product Type	Gas Range
Brand	Viking
Model	TVDR6606GAW
Width	36 inches (91.4 cm)
Number of surface burners	4 (depending on model)
Burner power (LP)	Rear: 7,700 BTU (2.5 kW), Front: 18,500 BTU (6.0 kW), etc.
Compatible gas type	Natural gas or propane (LP) - convertible
Electrical supply	120 V / 60 Hz (for igniters and controls)
Integrated pressure regulator	Yes, convertible between natural gas and LP
Safety features	Automatic gas shut-off if flame extinguishes
Maintenance and cleaning	Removable grates, clean burners with soapy water
Spare parts and repairability	LPKTVDR conversion kit available, interchangeable orifices
General information	User and installation manual available free of charge

Frequently Asked Questions - TVDR6606GAW VIKING

How to convert the range from natural gas to propane?

Use the provided LPKTVDR conversion kit. Follow the instructions: reverse the regulator piston, replace the burner orifices with those suitable for LP, then check for leaks with soapy water.

Where is the rating label located?

The label is located under the control panel of the range.

What is the power of the burners on propane?

The rear burners (B) are 7,700 BTU (2.5 kW), the front burners (D) are 18,500 BTU (6.0 kW). Consult the manual for other positions.

How to change a burner orifice?

Remove the burner flange with a flat-head screwdriver, take out the orifice with a nut driver, replace with the new orifice and reinstall the flange. Tip: place tape in the socket to avoid losing the orifice.

What to do in case of gas smell?

Do not light any appliance, do not touch switches, leave the building and call your gas supplier from a nearby phone. If not possible, contact the fire department.

Can I use the range with natural gas without conversion?

Yes, if it is already configured for natural gas. Check that the regulator is set to NAT and that the orifices are the original ones.

How to clean the burners?

Remove the grates and burner caps. Clean them with a soapy water solution and a soft brush. Do not use an open flame to check for leaks.

Is it necessary to cut off the electrical supply before conversion?

Yes, turn off the electrical supply at the breaker box before starting the conversion to avoid any risk of electric shock.

Where to find the part number for the orifices?

The LPKTVDR kit contains orifices numbered #78, #105, #120, #90. The reference varies by model. Contact Viking at 1-888-845-4641.

How to properly install the burner cap after replacement?

Turn the burner cap until it snaps into the groove designed for that purpose. Make sure it is properly positioned before replacing the grates.

USER MANUAL TVDR6606GAW VIKING

Description Part Number/Size Quantity
Rear Surface Burner (B) #78 1
Rear Surface Burners (C) #105 2
Front Surface Burner (D) #120 3
Frenchtop Burner (F) #90 1
Conversion label PF030377 1
LPKTVDR Conversion Instructions 056242-000 1

NOTE: Depending on the model being converted, some of the orifices may not be used.

IMPORTANT - Please Read and Follow!

WARNING

FIRE/EXPLOSION HAZARD

If the information in this

guide is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.
  •DO NOT touch any electrical switch.
  •DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

CAUTION

Be sure the electric power is turned off at the breaker box while the unit is being converted.

CAUTION

Before placing the appliance into operation, always check for gas leaks with a soapy water or other acceptable method.

DO NOT use an open fl ame to check for leaks.

Regulator Conversion

• Remove hex nut from top of regulator.
  •Unsnap plastic plunger from hex nut.
• Reverse plunger and reinstall onto hex nut by pressing firmly.

NOTE: Plunger is marked "NAT" or "LP".

Converted fuel type will be shown on the lower portion of plunger.

Natural Orientation LP Orientation

Apply sideways finger pressure to remove pin from cap.

- Reinstall hex nut onto regulator in configuration desired.

Orifi ce Locations

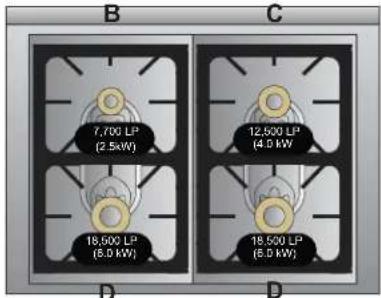

36" W /4 Surface Burners

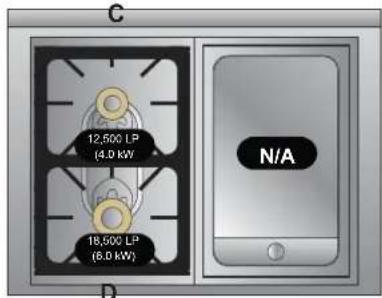

36" W /2 Surface Burners/Griddle

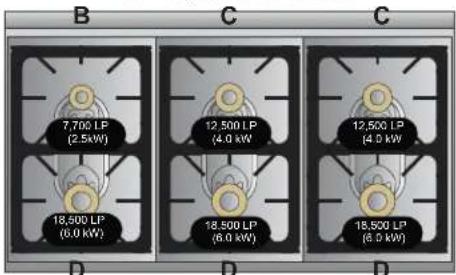

48" W /6 Surface Burners

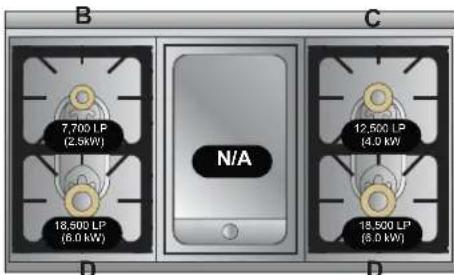

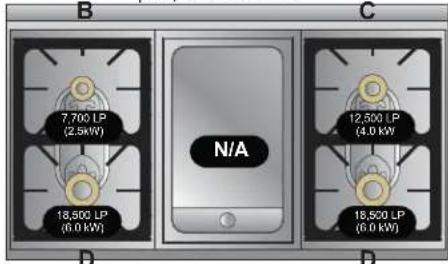

48" W /4 Surface Burners/Griddle

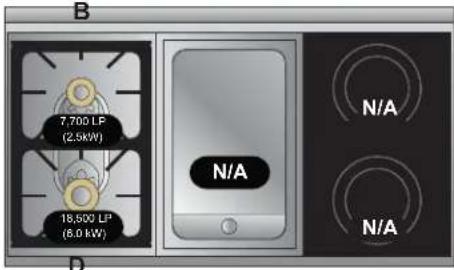

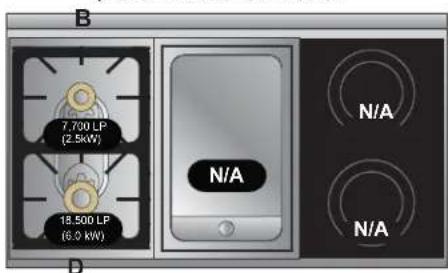

48" W /2 Surface Burners/Griddle/Induction

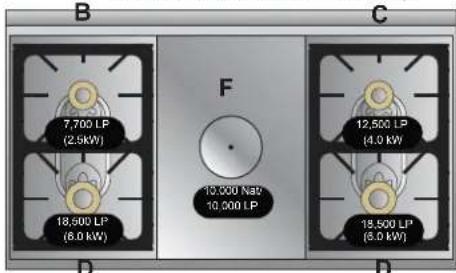

48" W /4 Surface Burners/French Top

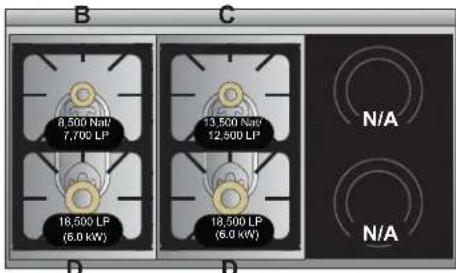

48" W /4 Surface Burners/Induction

Surface Burner Conversion

Remove grates, surface burner caps and frenchtop (if applicable)

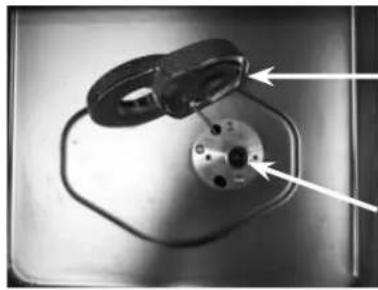

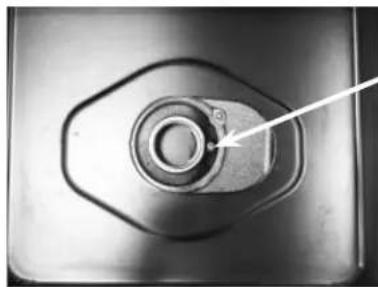

Surface Burner Conversion

-Locate appropriate orifi ce

-Remove screw (Item #1) fl at-head screwdriver.

- Lay the burner fl ange to side - do not disconnect the igniter wire. (Item #2).

-Use a nut driver to remove orifi ce (Item #3).

-Replace with correct orifi ce - refer to next page.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

- After replacing the orifice, replace Item#2 burner fl ange.

-Reinstall screw and reverse procedure to reassemble.

NOTE: For proper placement of the burner head, rotate until burner head seats into groove.

Close-up of a mechanical component with a central bore and flange, no visible text or symbols

Item #1

Close-up of a mechanical component with a metallic housing and mounting holes, no visible text or symbols

Item #2
Item #3

Frenchtop Burner Conversion

-Remove frenchtop plate.

-Remove screws around burner.

-Remove screws holding burner box.

-Slide burner box forward and lift out.

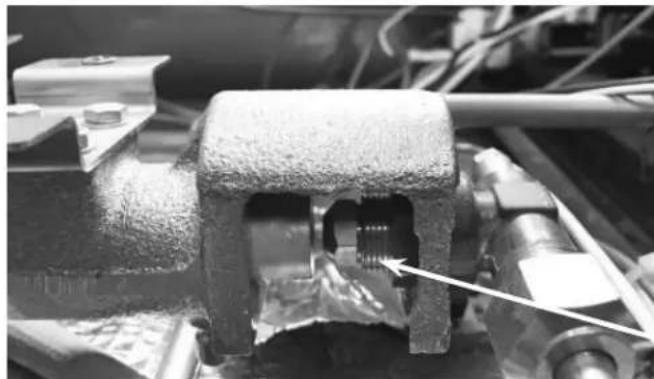

-Orifi ce is located under orifi ce bracket, attached to tubing.

-Use a nut driver to remove orifi ce.

Tech tip: Tape can be applied to the inside of the socket to assist in the removal of the surface burner orifices. This can prevent the orifices from falling into the range during removal.

- After replacing the orifice, reinstall burner box and frenchtop plate

Mechanical testing apparatus with perforated circular component and wiring, no visible text or symbols

Orifi ce bracket

Close-up of a mechanical component with a highlighted internal section and an arrow pointing to it (no visible text or symbols)

Orifi ce

Rating Label Location

When the LP/Propane conversion is complete, complete the enclosed conversion label and place it next to the rating label.

The rating label is located under the control panel.

Diagram of a kitchen appliance interior showing a door, rack, and window (no text or symbols)

48 po W /2 Brûleurs de surface/ plaque chauffante/Induction

36 po W /2 Brûleurs de surface/ plaque chauffante

48 po W /4 Brûleurs de surface/ plaque chauffante

Surface Burner Conversion

Mechanical testing setup with a perforated circular component mounted on a metal frame, surrounded by wires and components (no visible text or symbols)

Close-up of a mechanical component with a highlighted internal section and an arrow pointing to it (no visible text or symbols)

l'orifi ce

Architectural detail drawing of a cabinet or elevator shaft with decorative patterns and a dashed oval highlighting a section (no text or symbols)
